Makita

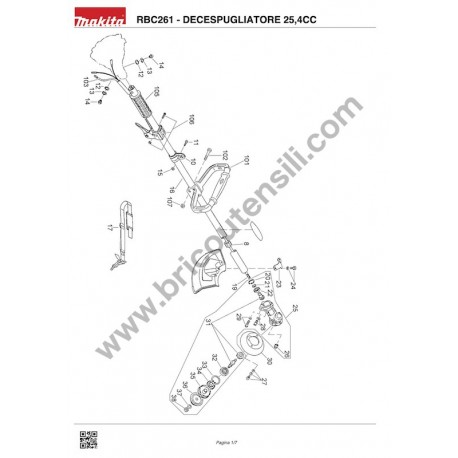

Makita Spare Parts for Brusch Cutter RBC261

SKU: Makita RBC261
€6.06
VAT included

Makita Spare Parts for String Trimmer RBC261

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for STRING TRIMMER RBC261.
Makita Spare Parts for Brusch Cutter RBC261
  • Makita Spare Parts for Brusch Cutter RBC261
  • Makita Spare Parts for Brusch Cutter RBC261
  • Makita Spare Parts for Brusch Cutter RBC261
Makita

Makita Spare Parts for Brusch Cutter RBC261

SKU: Makita RBC261 Condition: New
€6.06
VAT included

Makita Spare Parts for String Trimmer RBC261

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for STRING TRIMMER RBC261.
settings 114 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
114 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

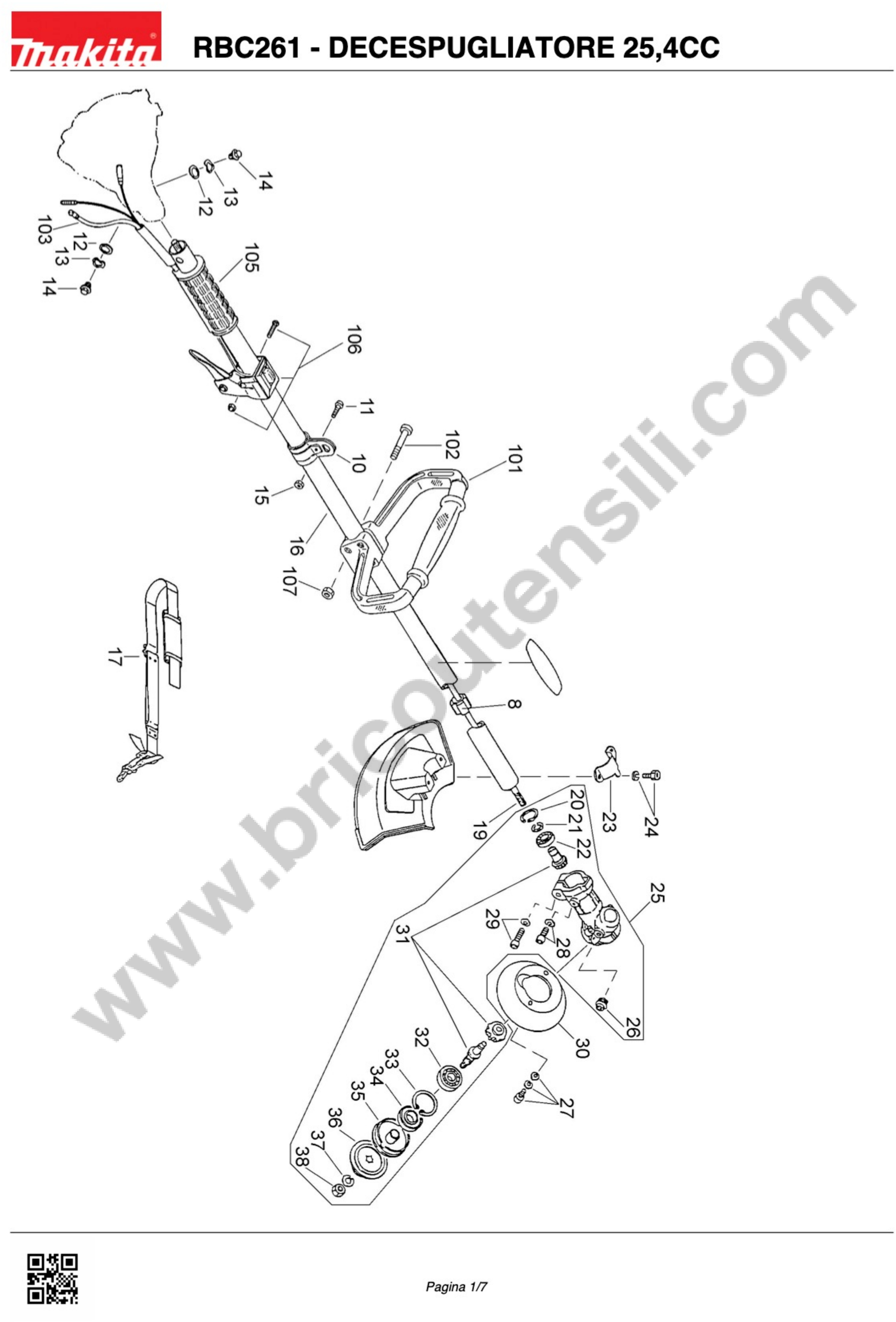

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
10
 photo_cameraImage coming soon 6254004000 HOLDER CPL RBC260 / 230/310 €34.73
12
 photo_cameraImage coming soon 6219500400 WASHER X RBC260 / 230 €2.69
13
 photo_cameraImage coming soon 0032214000 WAVE WASHER RBC230/260 €1.40
14
 photo_cameraImage coming soon 6211502902 DAMPER BOLT RBC260 €13.31
15
 photo_cameraImage coming soon 0022705000 NUT M5 X RBC230 / 310 / RBK410 €1.44
16
 photo_cameraImage coming soon 6211004000 SHAFT COMPL. PIPE X RBC260 / 230 €154.46
17
 photo_cameraImage coming soon 6207003000 BAND ASS'Y X RBC260 / 230 €44.74
19
 photo_cameraImage coming soon 6251505001 DRIVE SHAFT €13.46
20
 photo_cameraImage coming soon 0031424000 INNER SNAP RING X RBC260-230-225 €2.15
21
 photo_cameraImage coming soon 0031508000 OUTER SNAP RING RBC260-230-225-255 €1.41
22
 photo_cameraImage coming soon 210049-4 BEARING 609ZZ EBH252L €5.66
24
 photo_cameraImage coming soon 0011706300 BOLT M6X30 X RBK250-RBC225- €2.15
25
 photo_cameraImage coming soon 6213009002 GEAR CASE ASS'Y RBC230 / 260 €194.91
26
 photo_cameraImage coming soon 266671-5 OIL CAP €3.23
27
 photo_cameraImage coming soon 922213-2 HEX BOLT M5X12 EBH253L/341U €1.51
28
 photo_cameraImage coming soon 0119059900 BOLT M5X12 X RBC225-255 €2.08
29
 photo_cameraImage coming soon 0119059890 SOCKET HEAD BOLT M5X25 XRBC225 €2.15
30
 photo_cameraImage coming soon 450653-9 GUARD RBC2510 €1.97
31
 photo_cameraImage coming soon 6213004001 GEAR SET RBC230 €67.98
32
 photo_cameraImage coming soon 0600109980 BALL BEARING 6000 €14.77
33
 photo_cameraImage coming soon 0031426000 INNER SNAP RING X RBC260 / 230/225/2 €1.97
34
 photo_cameraImage coming soon 6213500500 OIL SEAL RBC230 €2.53
35
 photo_cameraImage coming soon 6218500000 RECEIVE WASHER RBC230 / 60 €13.31
36
 photo_cameraImage coming soon 168797-8 CLAMP WASHER €4.16
37
 photo_cameraImage coming soon 0203089990 SPRING WASHER X RBC260 / 230RBK410 €1.44
38
 photo_cameraImage coming soon 264018-7 NUT M8 RBC2510 €1.44
102
 photo_cameraImage coming soon 266573-5 HSS HD BOLT M5X33 EBH341U €1.51
103
 photo_cameraImage coming soon 6215500100 CONTROL CABLE X RBC 260 €2.66
105
 photo_cameraImage coming soon 6214500400 HANDLE X RBC230 / RBK 410 €17.15
106
 photo_cameraImage coming soon 6215009000 CONTROL LEVER RBC230 XRBC230 €44.74
107
 photo_cameraImage coming soon 0022705000 NUT M5 X RBC230 / 310 / RBK410 €1.44
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

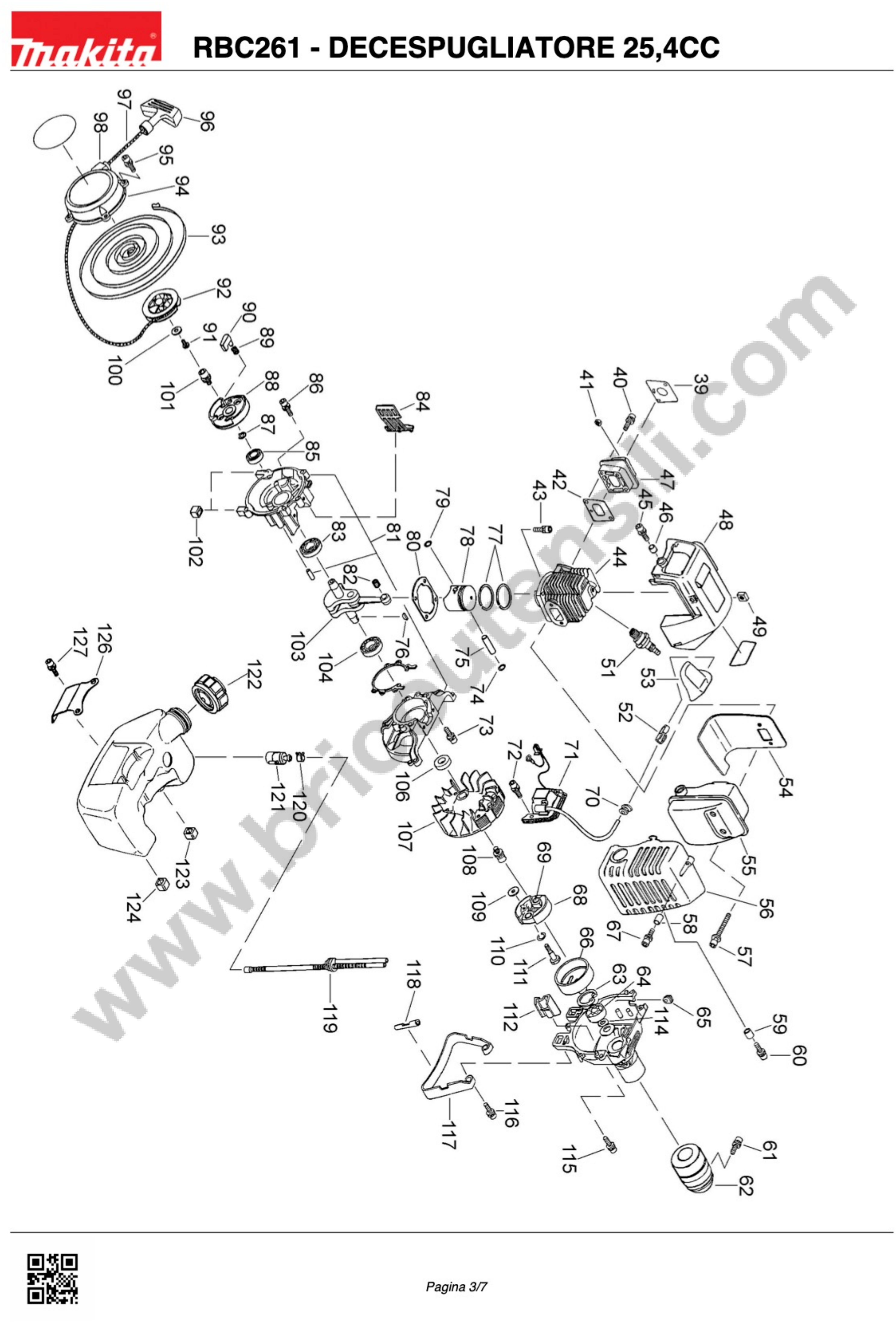

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
39
 Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
40
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
41
 photo_cameraImage coming soon 0021705000 NUT M5 X RBC415 €1.54
42
 photo_cameraImage coming soon 5243500301 INSULATOR GASKET X RBC260 €2.16
43
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
44
 photo_cameraImage coming soon 5241500403 CYLINDER XRBC260 €129.59
45
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
46
 photo_cameraImage coming soon 0230059990 COMPASS X RBC260 / 410 / RBK 410 €1.43
47
 photo_cameraImage coming soon 5243004001 INSULATOR COMPLETE X RBC260 €10.16
48
 photo_cameraImage coming soon 5245501502 CYLINDER COVER RBC260 €19.45
51
 photo_cameraImage coming soon 054001-10 SPARK PLUG NGK - BPM7A (10PZ) €54.43
52
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
53
 photo_cameraImage coming soon 5317500200 SPARK PLUG CAP X RBC260 310 €12.33
54
 photo_cameraImage coming soon 5243500101 MUFFLER GASKET X RBC260 €15.18
55
 photo_cameraImage coming soon 5243001002 EXHAUST MUFFLER RBC260/310 €19.45
56
 photo_cameraImage coming soon 5243500203 MUFFLER COVER €13.31
57
 photo_cameraImage coming soon 0119059690 BOLT M6X30 €1.69
60
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
61
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
62
 photo_cameraImage coming soon 6251024001 DAMPER ASSY RBC260 €60.56
63
 photo_cameraImage coming soon 0031432000 INTERNAL LOCK X RBC260 / 310/410 €2.77
64
 photo_cameraImage coming soon 0600129950 BALL BEARING X RBC260 €17.01
66
 photo_cameraImage coming soon 6252010000 CLUTCH DRUM COMPL. X RBC260 €49.21
67
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
68
 photo_cameraImage coming soon 6252008001 CLUTCH ASS'Y X RBC260 €26.15
69
 photo_cameraImage coming soon 6252500600 CLUTCH SPRING RBC260 €2.16
71
 photo_cameraImage coming soon 5247004020 IGNITION COIL X RBC260 €139.59
72
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
73
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
74
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
75
 photo_cameraImage coming soon 5242500100 PISTON PIN X RBC260 / 230 €2.16
76
 photo_cameraImage coming soon 0053203101 WOODRUFF RBC / RBK 410 €2.15
77
 photo_cameraImage coming soon 257979-8 PISTON RING RBC2510 €4.43
78
 photo_cameraImage coming soon 5242500601 PISTON X RBC260 €35.82
79
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
81
 photo_cameraImage coming soon 5241003000 CRANKCASE ASS'Y X RBC260 €174.92
82
 Piston Pin Needle Bearing for Brushcutter Makita RBC310 0610089990 Piston Pin Needle Bearing for Brushcutter Makita RBC310 €7.60
83
 photo_cameraImage coming soon 0600129920 BEARING MS5250 €12.34
85
 photo_cameraImage coming soon 0440129991 OIL SEAL X RBC415 €3.79
86
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
87
 photo_cameraImage coming soon 5215003040 RETAINING RING PB500R €1.31
90
 photo_cameraImage coming soon 5245007010 RATCHET X RBC260 €2.53
91
 photo_cameraImage coming soon 5105015110 SCREW X RBC260 / 230/520 €2.76
92
 photo_cameraImage coming soon 5415003010 REEL X RBC260 €11.92
93
 photo_cameraImage coming soon 5415003020 STARTER SPRING FOR RBC260 €7.33
94
 photo_cameraImage coming soon 5245006000 REWIND STARTER X RBC260 €60.56
95
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
96
 photo_cameraImage coming soon 5305002110 STARTER KNOB X RBC260 / RBK41 €7.79
97
 photo_cameraImage coming soon 5415001140 STARTER CABLE X RBC 260/410 / RBK 410 €8.74
98
 photo_cameraImage coming soon 5415001120 ROPE GUIDE X RBC260 €3.09
100
 photo_cameraImage coming soon 5415003030 WASHER X RBC 260 €1.97
102
 photo_cameraImage coming soon 5246500301 DAMPER X RBC 260 €1.69
103
 photo_cameraImage coming soon 5242001002 CRANKSHAFT COMPL. X RBC 260 €136.86
104
 photo_cameraImage coming soon 0600129920 BEARING MS5250 €12.34
106
 photo_cameraImage coming soon 0440129991 OIL SEAL X RBC415 €3.79
107
 photo_cameraImage coming soon 5247002011 MAGNETO FLYWHEEL X RBC 260 €100.54
109
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.54
110
 photo_cameraImage coming soon 267817-6 WASHER 8 EBH252L €1.46
111
 photo_cameraImage coming soon 266457-7 SCREW M6FOR25 EBH252L €2.76
112
 photo_cameraImage coming soon 5245500702 BAFFLE PLATE X RBC 260 €2.16
114
 Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
115
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
116
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
117
 photo_cameraImage coming soon 6255502002 STAND RBC 260 €26.15
118
 photo_cameraImage coming soon 6255502100 STAND DAMPER X RBC 260 €2.53
119
 photo_cameraImage coming soon 0851169971 TUBE X RBC260 / 310 €3.73
120
 photo_cameraImage coming soon 0561080010 HOSE STOP X RBC 260 / RBC520 €1.89
121
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
122
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
123
 photo_cameraImage coming soon 5246500301 DAMPER X RBC 260 €1.69
124
 photo_cameraImage coming soon 5246500301 DAMPER X RBC 260 €1.69
126
 photo_cameraImage coming soon 5246500202 FUEL TANK PLATE RBC260 €6.07
127
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

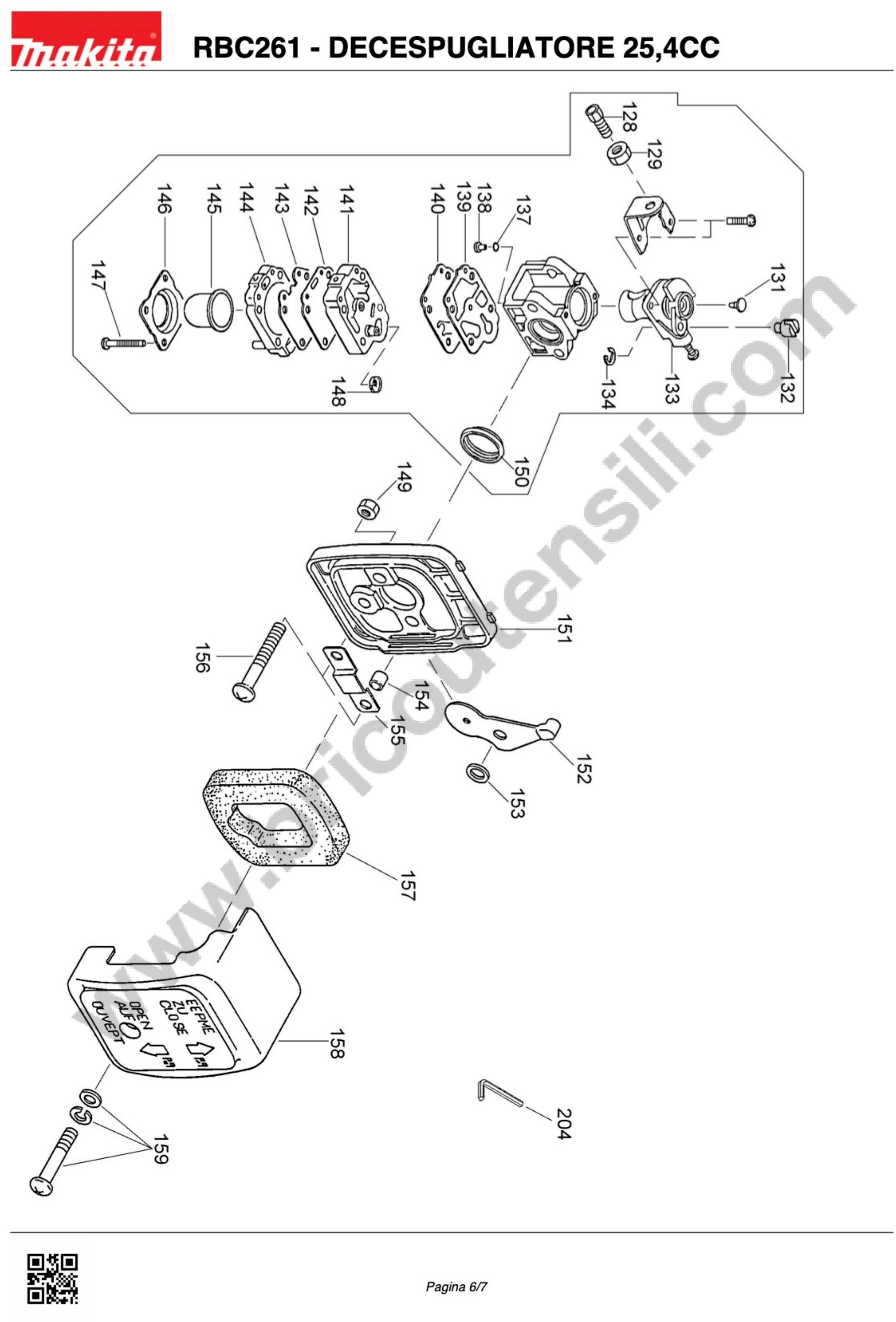

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
128
 photo_cameraImage coming soon 5216008010 CABLE ADJUST SCREW X RBC260 310 €5.43
129
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
131
 photo_cameraImage coming soon 5206008110 PIN / RBC 260/230/310/225 €3.95
132
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
133
 photo_cameraImage coming soon 5236018010 THROTTLE VALVE ASS'Y RBC230 -310 €20.92
134
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
137
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
138
 photo_cameraImage coming soon 5236046030 CARBURETOR JET RBC260/PB250/RBL250 €13.31
139
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
140
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
141
 photo_cameraImage coming soon 5236046130 BODY PUMP CPL FOR RBC350-RBC42 €61.62
142
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
143
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
144
 photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
145
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
146
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
147
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
148
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
149
 photo_cameraImage coming soon 0022705000 NUT M5 X RBC230 / 310 / RBK410 €1.44
150
 photo_cameraImage coming soon 5236018020 GASKET FOR RBC 260/230 / 310 €5.43
151
 photo_cameraImage coming soon 5213500400 FILTER COVER X RBC 260/230/230 €5.12
152
 photo_cameraImage coming soon 454831-3 LEVER €3.73
153
 photo_cameraImage coming soon 423376-2 GASKET EBH251L/341U €1.47
154
 photo_cameraImage coming soon 0230059970 SPACER X RBC 260/230/310 €2.62
155
 photo_cameraImage coming soon 5013501400 AIR CLEANER PLATE X RBC 260/230/310 €2.62
156
 photo_cameraImage coming soon 0140059730 SCREW M5X50 X RBC260 / 310 €2.69
158
 photo_cameraImage coming soon 5213500501 AIR CLEANER CASE COVER 260/230/310 €18.43
159
 photo_cameraImage coming soon 0043605120 SCREW M5X12 X RBC 260/230/310 €1.89
204
 photo_cameraImage coming soon 0717049990 WRENCHE €2.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for String Trimmer RBC261

We are MAKITA original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for STRING TRIMMER RBC261.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.


RBC261 - STRING TRIMMER 25,4CC pag.1
8 6211003000 BUSH COMPL. X RBC230
10 6254004000 HANGER ASSY RBC RBC260 / 230/310
11 0043105140 SCREW M 5 X 14 X RBC230
12 6219500400 WASHER X RBC260 / 230
13 0032214000 WAVE WASHER RBC230/260
14 6211502902 DAMPER BOLT RBC260
15 0022705000 NUT M5 X RBC230 / 310 / RBK410
16 6211004000 SHAFT COMPL. PIPE X RBC260 / 230
17 6207003000 BAND ASS'Y X RBC260 / 230
19 6251505001 SHAFT
20 0031424000 INNER SNAP RING XRBC260-230-225-
21 0031508000 OUTER SNAP RING XRBC260-230-225-255
22 210049-4 BALL BEARING 609ZZ EBH252L
23 6418500302 PROTECTER CLAMP X RBK250-RBC225
24 0011706300 BOLT M6X30 X RBK250-RBC225-
25 6213009002 GEAR CASE ASS'Y RBC230 / 260
26 266671-5 HEX.SOCKET HEAD BOLT M10X9
27 922213-2 SOCKET HEAD BOLT M5X12 EBH341U
28 0119059900 BOLT M5X12 X RBC225-255
29 0119059890 SOCKET HEAD BOLT M5X25 XRBC225-
30 450653-9 GUARD RBC2510
31 6213004001 GEAR SET RBC230
32 0600109980 BALL BEARING 6000
33 0031426000 INNER SNAP RING DBC260L/U/RBC2   X RBC260 / 230/225/2
34 6213500500 OIL SEAL RBC230
35 6218500000 RECEIVE WASHER RBC230 / 60
36 168797-8 CLAMP WASHER COMPLETE
37 0203089990 SPRING WASHER X RBC260 / 230RBK410
38 264018-7 NUT M8 RBC2510
102 266573-5 SCREW M5X33 EBH341U
103 6215500100 CONTROL CABLE X RBC 260
105 6214500400 GRIP RBC230 (C.E) X RBC230 / RBK 410
106 6215009000 CONTROL LEVER RBC230 XRBC230
107 0022705000 NUT M5 RBC230/260/310/2810 - RBK410
RBC261 - SRING TRIMMER 25,4CC pag.2
39 442177-9 GASKET AIR CLEANER
40 0119059730 SOCKET HD BOLT M5X20 DBC260L - RBC 260/230/225/255
41 0021705000 NUT M5 EPH1000/RBL500/MH2556 - RBC415
42 5243500301 INSULATOR GASKET X RBC260
43 0119059730 SOCKET HD BOLT M5X20 DBC260L - RBC 260/230/225/255
44 5241500403 CYLINDER XRBC260
45 0119059730 SOCKET HD BOLT M5X20 DBC260L - RBC 260/230/225/255
46 0230059990 SPACER RBC260/420/PB250/ 410 / RBK 410
47 5243004001 INSULATOR COMPLETE X RBC260
48 5245501502 CYLINDER COVER RBC260
51 054001-10 SPARK PLUG NGK - BPM7A (10PZ)
52 324891-8 SPARK PLUG SPRING EBH341
53 5317500200 SPARK PLUG CAP X RBC260 310
54 5243500101 MUFFLER GASKET X RBC260
55 5243001002 EXHAUST MUFFLER RBC260/310
56 5243500203 MUFFLER COVER
57 0119059690 BOLT M6X30
60 0119059730 SOCKET HD BOLT M5X20 DBC260L /230/225/255
61 0119059730 SOCKET HD BOLT M5X20 DBC260L/230/225/255
62 6251024001 DAMPER ASSY RBC260
63 0031432000 INNER SNAP RING RBC260/EM4251 / 310/410
64 0600129950 BALL BEARING 6201DD RBC260/310
66 6252010000 CLUTCH DRUM COMPL. X RBC260
67 0119059730 SOCKET HD BOLT M5X20 DBC260L RBC 260/230/225/255
68 6252008001 CLUTCH ASS'Y X RBC260
69 6252500600 CLUTCH SPRING RBC260
71 5247004020 IGNITION COIL X RBC260
72 0119059730 SOCKET HEAD BOLT M5X20 X RBC 260/230/225/255
73 0119059730 SOCKET HEAD BOLT M5X20 X RBC 260/230/225/255
74 233976-8-4 CLIP EBH252L (4pcs)
75 5242500100 PISTON PIN X RBC260 / 230
76 0053203101 WOODRUFF KEY RBC / RBK 410
77 257979-8 PISTON RING RBC2510
78 5242500601 PISTON X RBC260
79 233976-8-4 CLIP EBH252L (4pcs)
80 5241500500 CYLINDER GASKET X RBC260
81 5241003000 CRANKCASE ASS'Y X RBC260
82 0610089990 NEEDLE ROLLER BEARING X RBC260 / 230/310 /
83 0600129920 BALL BEARING #6001 C3 MS5250
85 0440129991 OIL SEAL X RBC415
86 0119059730 SOCKET HEAD BOLT M5X20 X RBC 260/230/225/255
87 5215003040 E RING PB500R
88 5245007000 PULLEY STARTER
89 5245007020 RETURN SPRING X RBC260
90 5245007010 RATCHET X RBC260
91 5105015110 SCREW X RBC260 / 230/520
92 5415003010 REEL X RBC260
93 5415003020 SPIRAL SPRING X RBC260
94 5245006000 REWIND STARTER X RBC260
95 0119059730 SOCKET HEAD BOLT M5X20 X RBC 260/230/225/255
96 5305002110 STARTER KNOB X RBC260 / RBK41
97 5415001140 STARTER ROPE X RBC 260/410 / RBK 410
98 5415001120 ROPE GUIDE X RBC260
100 5415003030 WASHER X RBC 260
101 0119069841 SCREW M 6 X 15 X RBC260
102 5246500301 DAMPER X RBC 260
103 5242001002 CRANKSHAFT COMPL. X RBC 260
104 0600129920 BALL BEARING #6001 C3 MS5250
106 0440129991 OIL SEAL X RBC415
107 5247002011 MAGNETO FLYWHEEL X RBC 260
108 0119069841 SCREW M 6 X 15 X RBC260
109 267429-5 WASHER 6
110 267817-6 WASHER 8 EBH252L
111 266457-7 SCREW M6X25 EBH252L
112 5245500702 BAFFLE PLATE X RBC 260
114 0031512000 OUTER SNAP RING X RBC260 / 520RBK410
115 0119059730 SOCKET HEAD BOLT M5X20 X RBC 260/230/225/255
116 0119059730 SOCKET HEAD BOLT M5X20 X RBC 260/230/225/255
117 6255502002 STAND RBC 260
118 6255502100 STAND DAMPER X RBC 260
119 0851169971 TUBE X RBC260 / 310
120 0561080010 HOSE CLAMP EPH1000/EM4251/434 - RBC 260 / RBC520
121 163447-0 GASOLIN FILTER ER2550/DCS230T
122 452920-8 FUEL TANK CAP
123 5246500301 DAMPER RBC260
124 5246500301 DAMPER RBC260
126 5246500202 FUEL TANK PLATE RBC260
127 0119059730 SOCKET HD BOLT M5X20 X RBC 260/230/225/255
RBC261 - SRING TRIMMER 25,4CC pag.3
128 5216008010 CABLE ADJUST SCREW RBC230/260 - 310
129 5316005450 CABLE ADJUST NUT RBC230/RBC260 / 310
131 5206008110 PLUG RBC230/260/310/EM4251 RBC225
132 5236018040 SWIVEL EPH1000/EH7500/RBC230-260-310-225-
133 5236018010 THROTTLE VALVE ASS'Y RBC230 -310
134 5316005120 RING DBC260L/U/EH7500/RBC230/310/225/2
137 5246001010 O RING EH7500/EPH1000/RBC310 RBC 260/230
138 5236046030 CARBURETOR JET RBC260/PB250/RBL250
139 5246001030 PUMP GASKET RBC260-230-310-
140 WJ00009599 PUMP DIAPHRAGM X DCS230T
141 5236046130 PUMP BODY ASS'Y X RBC350-RBC42
142 442154-1 METERING DIAPHRAGM GASET EBH341U
143 168574-8 METERING DIAPHRAGM COMPL. EBH341U
144 5236046060 AIR PURGE BODY ASS'Y RBC350
145 424314-7 PRIMER PUMP EBH341
146 5236046050 PRIMER PUMP COVER X RBC350-RBC42
147 266582-4 SCREW 3X24 EBH341U
148 5016004010 INLET SCREEN X RBC 260/230/310/225
149 0022705000 NUT M5 X RBC230 / 310 / RBK410
150 5236018020 RING PACKING X RBC 260/230 / 310
151 5213500400 AIR CLEANER CASE X RBC 260/230/230
152 454831-3 LEVER CHOKE
153 423376-2 GASKET EBH341U
154 0230059970 SPACER X RBC 260/230/310
155 5013501400 AIR CLEANER PLATE X RBC 260/230/310
156 0140059730 SCREW M5X50 X RBC260 / 310
157 5213500700 AIR CLEANER ELEMENT RBC230 / 260/310
158 5213500501 AIR CLEANER CASE COVER RBC 260/230/310
159 0043605120 SCREW M5X12 X RBC 260/230/310
204 0717049990 HEX. WRENCH X RBC350-RBC420

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC261
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita RBC261

Drawing Makita RBC261

Download (698.94KB)

You might also like

Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Makita SKU: DA00000118
Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Carburator Hose Grommet for Brushcutter Dolmar MS-27C Genuine parts Dolmar, Carburator Hose Grommet for Brushcutter MS-27C - Makita EM2600L Part for the following products: -  MS-27C - BRUSHCUTTER 25,7CC DOLMAR -  EM2600L -...
AVAILABLE €2.37
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA 25CM -...
AVAILABLE €4.49
Details
Piston Pin Circlip for Brushcutter Makita RBC310
Makita SKU: 233976-8
Piston Pin Circlip for Brushcutter Makita RBC310
Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.01
Details
Clutch Drum for Brush Cutter Makita RBC2510
Makita SKU: 168675-2
Clutch Drum for Brush Cutter Makita RBC2510
Clutch Drum for Brush Cutter Makita RBC2510 Genuine part Makita, Clutch Drum for Brush Cutters RBC2510 - RBC2511 - RBC221 - RBC2501 - RBC251 - Dolmar MS221 - MS253 - MS254C - MS254U. Part for the following products: - RBC2510 - BRUSH...
AVAILABLE €20.57
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Clutch Ass'y for Brushcutter Makita RBC2510
Makita SKU: 168672-8
Clutch Ass'y for Brushcutter Makita RBC2510
Clutch Ass'y for Brushcutter Makita RBC2510 Genuine part Makita, Clutch Assembly for Brushcutters RBC2510 - RBC2511 - RBC221 - RBC2501 - RBC251 - Dolmar MS221 - MS253...
Last items in stock €16.28
Details
Primer Bulb for Blower Makita BHX2501
Makita SKU: 424314-7
Primer Bulb for Blower Makita BHX2501
Primer Bulb for Blower Makita BHX2501 Genuine replacement part Makita, Primer Bulb for Brushcutters, Hedge Trimmers, Blowers, Engine Pump, Mist Blowers. Part for the following...
AVAILABLE €6.90
Details
Air Cleaner Element for Brushcutter Makita RBC2510
Makita SKU: 443167-5
Air Cleaner Element for Brushcutter Makita RBC2510
Air Cleaner Element for Brushcutter Makita RBC2510 Genuine part Makita, Air Cleaner Sponge Element for Brushcutters RBC2510 - RBC225-255 - MS2501 - MS2810. Part for the following products: - MS254C...
AVAILABLE €3.03
Details
Comments (0)
