Makita

Makita Spare Parts for Electric Hedge Trimmer UH5 UH5550

SKU: Makita UH5550
€32.42
VAT included

Makita Spare Parts for Electric Hedge Trimmer UH5550

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Electric Hedge Trimmer UH5550.
Makita Spare Parts for Electric Hedge Trimmer UH5 UH5550
  • Makita Spare Parts for Electric Hedge Trimmer UH5 UH5550
  • Makita Spare Parts for Electric Hedge Trimmer UH5 UH5550
Makita

Makita Spare Parts for Electric Hedge Trimmer UH5 UH5550

SKU: Makita UH5550 Condition: New
€32.42
VAT included

Makita Spare Parts for Electric Hedge Trimmer UH5550

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Electric Hedge Trimmer UH5550.
settings 21 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approxox

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
21 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

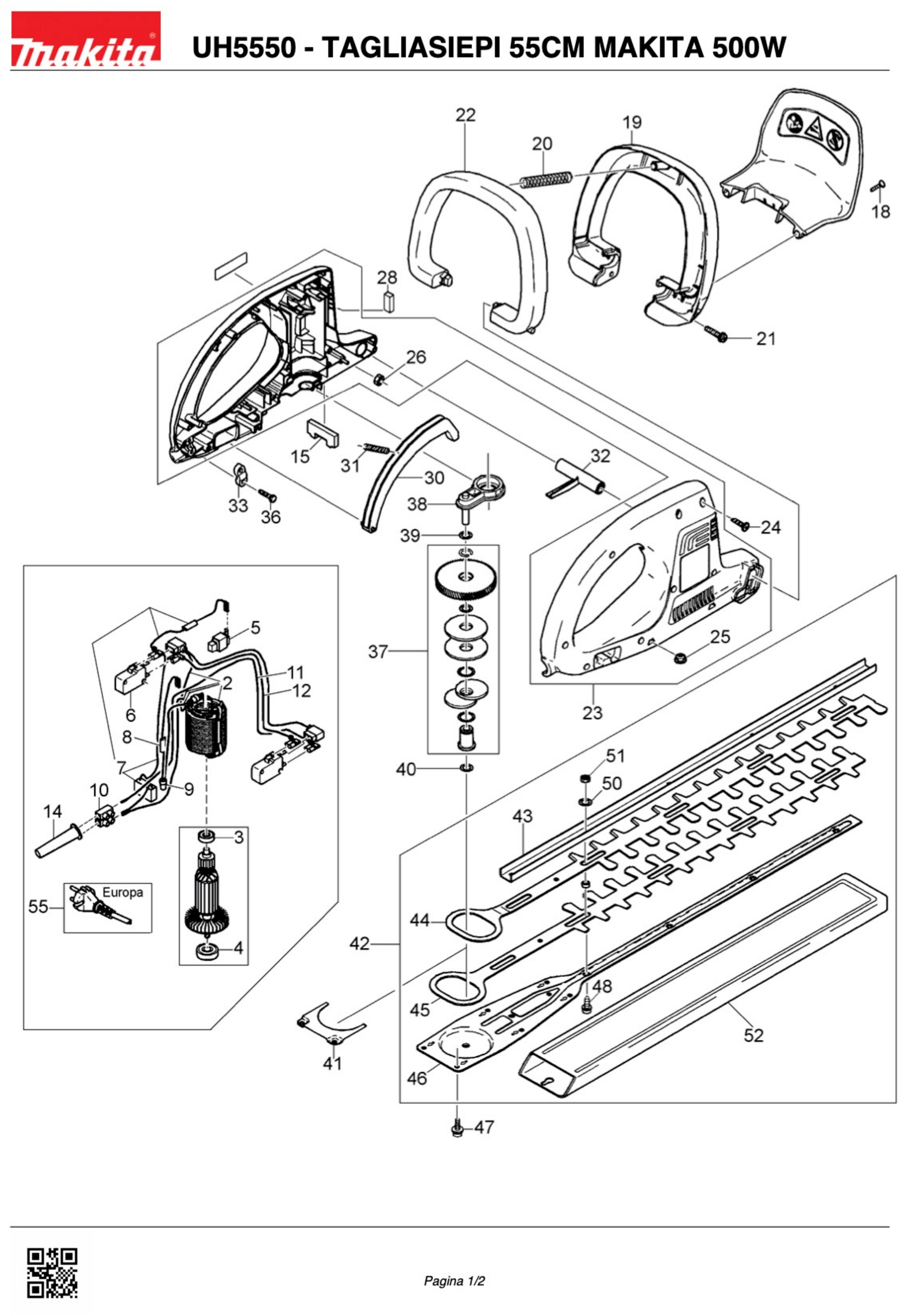

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 621643-1 STATOR - FIELD €25.39
5
 photo_cameraImage coming soon 957800410 CARBON BRUSHES X UH4520-5520-7020 €9.16
6
 photo_cameraImage coming soon 970001210 SWITCH €6.62
7
 photo_cameraImage coming soon 970311291 Capacitor Reactance Coil ,uh4850,uh6350 - UH4850 €6.62
12
 photo_cameraImage coming soon 970311280 CONNECTING CABLE €4.63
14
 photo_cameraImage coming soon 204152010 CORD GUARD C33:C47DES / UH4520-5520- €1.69
15
 photo_cameraImage coming soon 222111030 GASKET PLATE X UH4850 €3.01
19
 photo_cameraImage coming soon 221310111 TUBULAR HANDLE HT/UH X UH4850 €9.86
22
 photo_cameraImage coming soon 221144110 FRONT GRIP €12.69
23
 photo_cameraImage coming soon 183306-2 MOTOR HOUSING UH 4850 €43.44
25
 photo_cameraImage coming soon 222111050 HEX NUT M 5 X UH4850 €1.64
28
 photo_cameraImage coming soon 222111040 DUST PROTECTION UH4850 €1.64
30
 photo_cameraImage coming soon 221144120 SWITCH LEVER €1.64
38
 photo_cameraImage coming soon 222211010 CONNECTING ROD X UH4850 €14.74
39
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
40
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
41
 photo_cameraImage coming soon 222233610 PLATE X UH4850 €3.01
43
 photo_cameraImage coming soon 222233430 BAR 55 X UH4850 €9.86
48
 photo_cameraImage coming soon 911223-4 HEAD SCREW CILIND. M5X16 €1.44
51
 photo_cameraImage coming soon 221233170 NUT M5 €2.46
52
 photo_cameraImage coming soon 220233620 BLADE COVER X UH5520 €16.88
55
 photo_cameraImage coming soon 970102200 POWER SUPPLY CABLE CPL HT-40 €3.46

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Hedge Trimmer UH5550

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Electric Hedge Trimmer UH5550.

In the following table, look for the model of the Trimmer and the respective parts of the code.
Makita UH5550

UH5550 Electric Hedge Trimmer 55CM MAKITA 500W
# Part Num. Description
2 621643-1 ROTOR ASS'Y, UH5530
5 957800410 CARBON BRUSH CPL., UH5530 X UH4520-5520-7020
6 970001210 SWITCH
7 970311291 Capacitor Reactance Coil ,uh4850,uh6350 - UH4850
12 970311280 CONNECTING CABLE
14 204152010 Break Protection X DES / UH4520-5520-
15 222111030 GASKET PLATE X UH4850
19 221310111 TUBULAR HANDLE HT/UH X UH4850
22 221144110 FRONT GRIP
23 183306-2 MOTOR HOUSING UH 4850
25 222111050 HEX NUT M 5 X UH4850
28 222111040 DUST PROTECTION UH4850
30 221144120 REAR GRIP SWITCH LEVER UH4030/6330
31 221145120 COMPRESSION SPRING
32 417642-7 SWITCH X UH4850
37 222220010 GEAR COMPLETE - DISCONTINUED
38 222211010 CONNECTING ROD X UH4850
39 253215-0 FLAT WASHER 8 6510PBL / LVR
40 253215-0 FLAT WASHER 8 6510PBL / LVR
41 222233610 PLATE X UH4850
42 222230631 BLADE SET 55 CM X UH5550
43 222233430 BAR 55 X UH4850
44 222233230 UPPER BLADE HT155
47 265088-9 SCREW X UH4850
48 911223-4 PAN HEAD SCREW M5X16
50 924405520 WASHER X UH4850
51 221233170 NUT M5
52 220233620 BLADE COVER X UH5520
55 970102200 POWER CABLE CPL. HT-40

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita UH5550
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita UH5550

Drawing Makita UH5550

Download (322.53KB)
