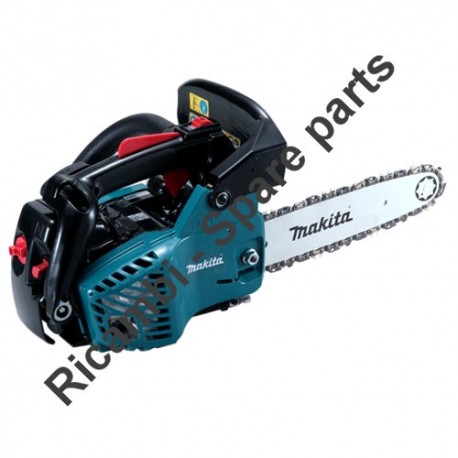

Makita Spare Parts for Chainsaw EA3110T

SKU: Makita EA3110T
€2.14
VAT included

Makita Spare Parts for Chainsaw EA3110T

Makita original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Petrol Chainsaw EA3110T.
Makita Spare Parts for Chainsaw EA3110T
  • Makita Spare Parts for Chainsaw EA3110T
  • Makita Spare Parts for Chainsaw EA3110T
  • Makita Spare Parts for Chainsaw EA3110T
  • Makita Spare Parts for Chainsaw EA3110T
  • Makita Spare Parts for Chainsaw EA3110T
  • Makita Spare Parts for Chainsaw EA3110T
  • Makita Spare Parts for Chainsaw EA3110T
  • Makita Spare Parts for Chainsaw EA3110T
  • Makita Spare Parts for Chainsaw EA3110T
Makita

Makita Spare Parts for Chainsaw EA3110T

SKU: Makita EA3110T Condition: New
€2.14
VAT included

Makita Spare Parts for Chainsaw EA3110T

Makita original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Petrol Chainsaw EA3110T.
settings 187 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
187 spare parts

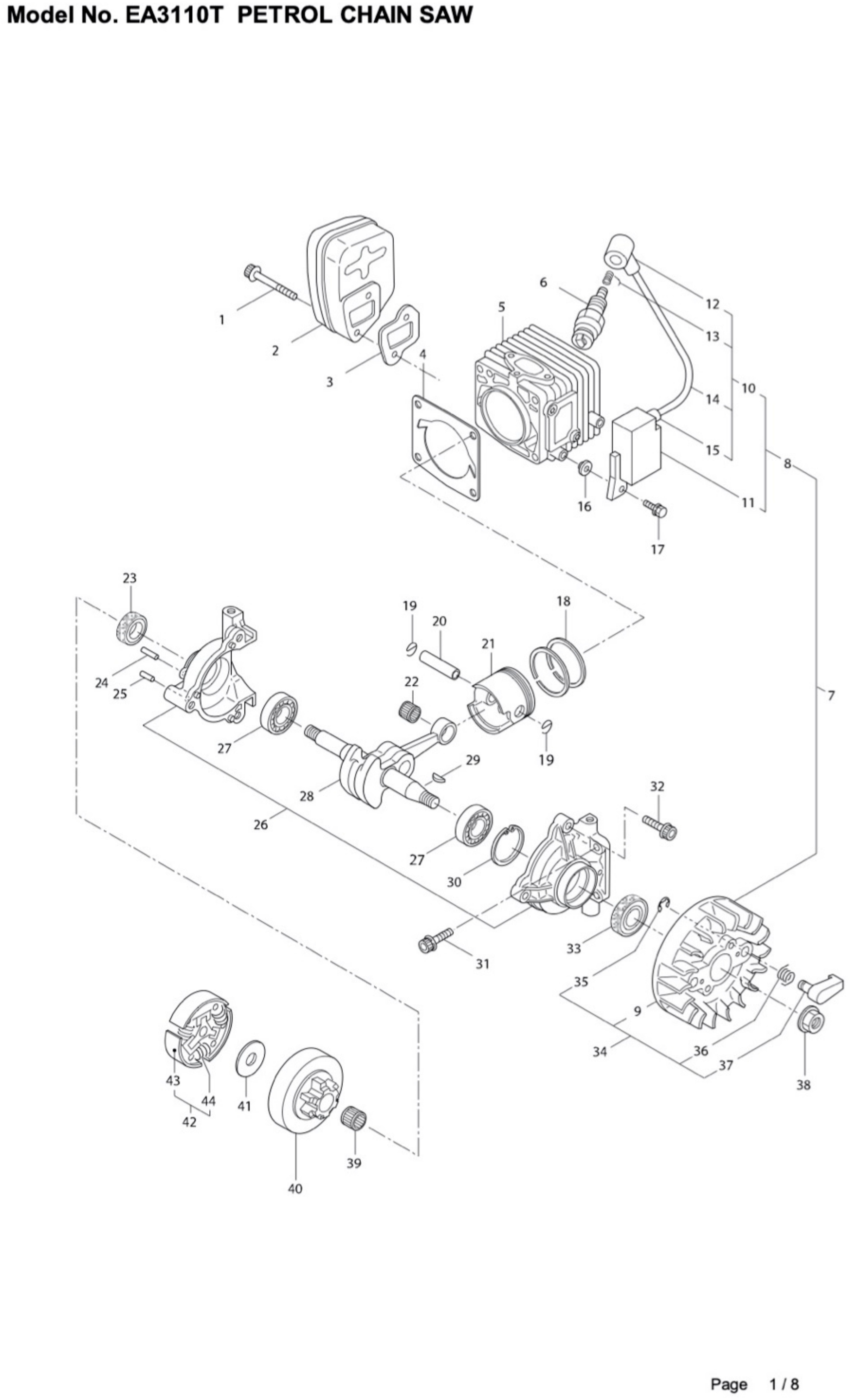

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon MR00264223 CAP SCREW M5X40 €2.14
2
 Dolmar PS311TH Muffler MR00276332 Dolmar PS311TH Muffler €17.15
3
 Dolmar Muffler Gasket for Chainsaw PS311TH MR00285472 Dolmar Muffler Gasket for Chainsaw PS311TH €3.30
4
 photo_cameraImage coming soon MR00289341 SEAL CYLINDER PS311TH €10.19
5
 photo_cameraImage coming soon MR00288931 CYLINDER PS311TH €225.79
6
 photo_cameraImage coming soon MR00288264 SPARK PLUG BPMR8Y PS311TH €29.17
7
 photo_cameraImage coming soon MR00289489 BADMINTON / REEL €155.11
8
 photo_cameraImage coming soon MR00289548 COIL CPL €92.18
9
 photo_cameraImage coming soon MR00285555 THEY FLY €61.65
10
 photo_cameraImage coming soon MR00286096 CABLE COIL CPL €24.36
11
 photo_cameraImage coming soon MR00289650 COIL PS311TH €87.73
13
 photo_cameraImage coming soon MR00261075 CONNECTOR €3.14
14
 photo_cameraImage coming soon MR00286097 COIL CABLE €2.08
15
 photo_cameraImage coming soon MR00261072 HOOD ROLL €2.08
16
 photo_cameraImage coming soon MR00289481 SPACER €2.08
17
 photo_cameraImage coming soon MR00281211 CAP SCREW M4X20 €2.14
18
 Makita Piston Ring for Chainsaw EA3110T MR00285590 Makita Piston Ring for Chainsaw EA3110T €8.75
19
 photo_cameraImage coming soon MR00261576 CLIP,PISTON €1.44
20
 photo_cameraImage coming soon MR00285591 PISTON PIN €5.29
21
 photo_cameraImage coming soon MR00288399 PISTON PS311TH €46.20
22
 photo_cameraImage coming soon MR00261037 BEARING,NEEDLE KBK8X11X11.8X1 €11.40
23
 photo_cameraImage coming soon MR00285626 OIL SEAL €6.12
24
 photo_cameraImage coming soon MR00285529 PIN €2.14
25
 photo_cameraImage coming soon MR00285560 PIN 3X9.8 €2.14
26
 photo_cameraImage coming soon MR00288845 BASE €125.99
27
 photo_cameraImage coming soon MR00285521 BEARING €14.76
28
 photo_cameraImage coming soon MR00285599 CRANKSHAFT COMP. €199.38
29
 photo_cameraImage coming soon MR00261076 WOODRUFF KEY 3X10 €2.76
30
 photo_cameraImage coming soon MR00055185 SNAP RING n.28 €1.44
32
 photo_cameraImage coming soon MR00261232 CAP SCREW M5X20 €1.42
33
 photo_cameraImage coming soon MR00261492 OIL SEAL €3.96
34
 photo_cameraImage coming soon MR00288365 ROTOR ASS'Y €87.73
35
 photo_cameraImage coming soon MR00020299 RING E-4 €1.41
36
 photo_cameraImage coming soon MR00285552 SPRING €8.76
37
 photo_cameraImage coming soon MR00285553 STARTER PAWL €2.14
38
 photo_cameraImage coming soon MR00261417 NUT,ROTOR M8 €1.44
39
 photo_cameraImage coming soon MR00285624 NEEDLE BEARING 10X13X13 €29.17
40
 Clutch Drum for Chainsaw Dolmar PS310TH - PS311TH MR00286238 Clutch Drum for Chainsaw Dolmar PS310TH - PS311TH €50.97
41
 photo_cameraImage coming soon MR00285537 WASHER 8X26XT2 €2.76
42
 photo_cameraImage coming soon MR00285535 CLUTCH ASS'Y €36.84
43
 photo_cameraImage coming soon MR00285655 JAW CLUTCH €16.65
44
 photo_cameraImage coming soon MR00285656 SPRING €13.08

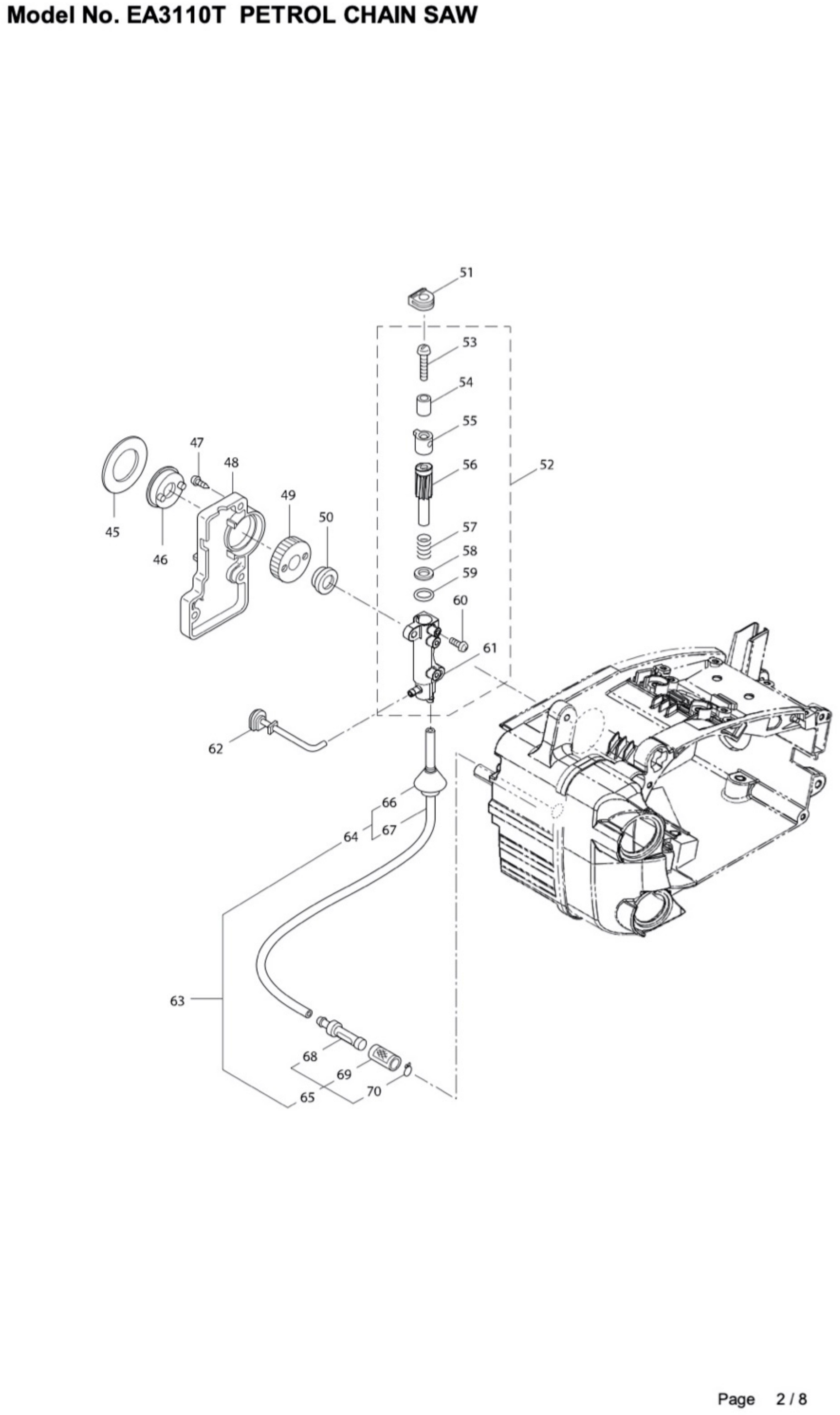

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
45
 photo_cameraImage coming soon MR00286241 WASHER €3.23
46
 Bush for Chainsaw Dolmar PS310TH MR00286305 Bush for Chainsaw Dolmar PS310TH €7.83
47
 photo_cameraImage coming soon MR00285631 SCREW M4X16 €1.42
48
 Makita EA3110T Oil Pump Cover MR00285598 Makita EA3110T Oil Pump Cover €4.56
49
 Worm Screw for Chainsaw Makita EA3100T MR00286303 Worm Screw for Chainsaw Makita EA3100T €56.65
50
 Swivel Bush for Chainsaw Dolmar PS310TH MR00286843 Swivel Bush for Chainsaw Dolmar PS310TH €5.59
51
 Grommet for Chainsaw Makita EA3110T25B MR00285528 Grommet for Chainsaw Makita EA3110T25B €2.76
52
 Oil Pump for Chainsaw Makita EA3100T MR00286816 Oil Pump for Chainsaw Makita EA3100T €49.90
53
 photo_cameraImage coming soon MR00285617 SCREW M4X25 €1.44
54
 photo_cameraImage coming soon MR00288184 SLEEVE €2.76
55
 photo_cameraImage coming soon MR00285534 PUMP CAP €2.14
56
 Oil Pump Piston for Chainsaw Dolmar PS310TH MR00285550 Oil Pump Piston for Chainsaw Dolmar PS310TH €10.00
57
 photo_cameraImage coming soon MR00285551 SPRING €2.14
58
 photo_cameraImage coming soon MR00286801 WASHER 6.5X9.8XT0.5 €1.44
59
 photo_cameraImage coming soon MR00014759 O-RING P6 €1.44
60
 photo_cameraImage coming soon MR00285630 SCREW M3X8 €1.44
61
 Makita EA3110T25B Pump Body MR00285527 Makita EA3110T25B Pump Body €22.20
62
 photo_cameraImage coming soon MR00285522 OIL PIPE A €19.56
63
 Makita EA3100T Oil Pipe B Assy MR00286802 Makita EA3100T Oil Pipe B Assy €36.84
64
 photo_cameraImage coming soon MR00285523 OIL PIPE B ASS'Y €19.56
65
 photo_cameraImage coming soon MR00286818 OIL FILTTER ASS'Y €22.19
66
 Makita Oil Tube Grommet for Chainsaw EA3100T MR00261339 Makita Oil Tube Grommet for Chainsaw EA3100T €5.29
67
 photo_cameraImage coming soon MR00265725 PIPE L=220 €3.23
69
 photo_cameraImage coming soon MR00285524 OIL FILTER €11.08
70
 photo_cameraImage coming soon MR00261117 SPRING RING €2.08

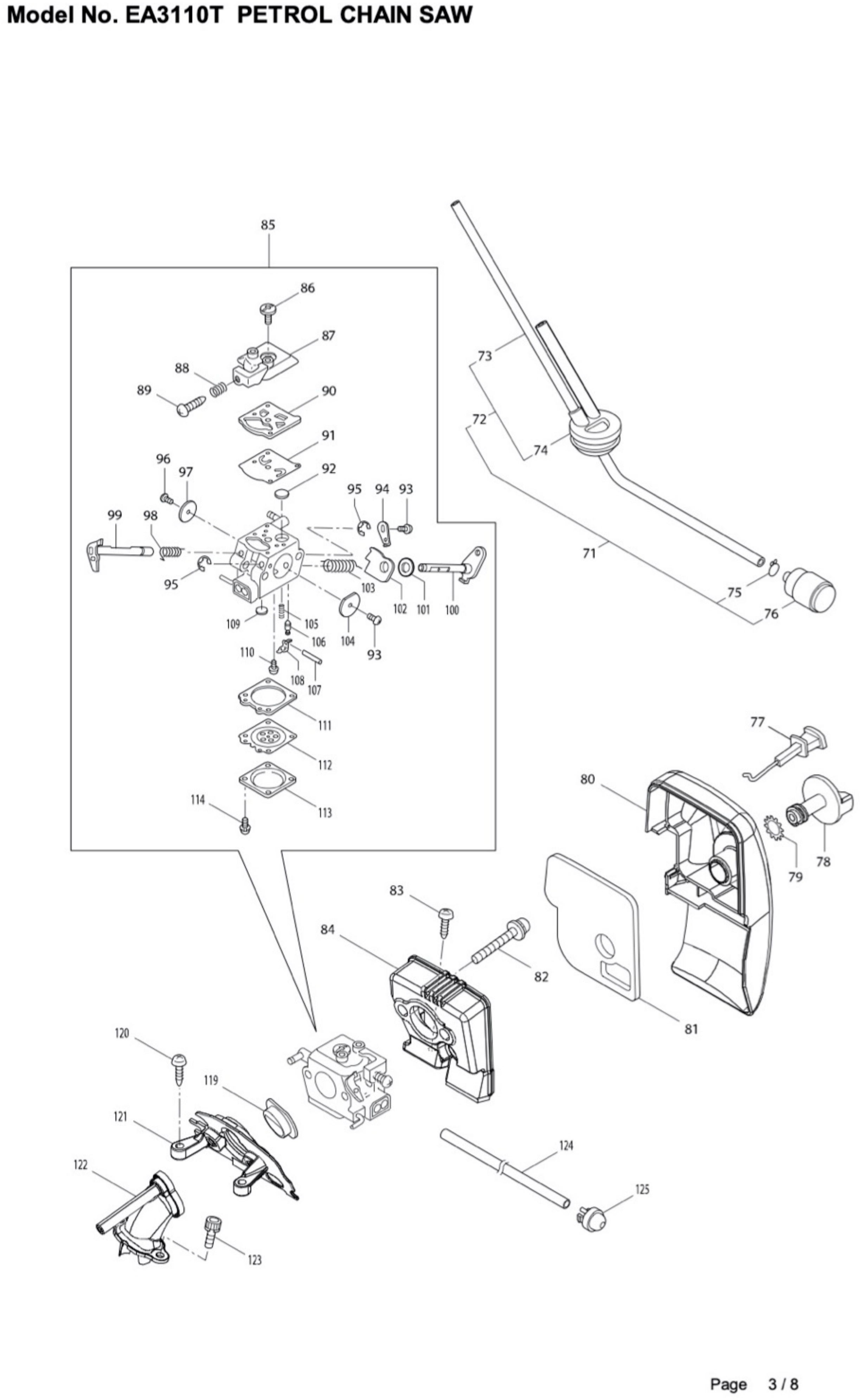

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
71
 photo_cameraImage coming soon MR00285488 FUEL PIPE ASS'Y €40.11
73
 photo_cameraImage coming soon MR00285491 TUBE 222mm €9.90
74
 photo_cameraImage coming soon MR00285490 FUEL GROMMET €29.17
75
 photo_cameraImage coming soon MR00261117 SPRING RING €2.08
76
 photo_cameraImage coming soon MR00264653 FUEL FILTER €8.76
76-1
 photo_cameraImage coming soon MR00286749 FILTER ASS'Y €8.51
77
 photo_cameraImage coming soon MR00285580 CHOKE ROD €5.29
78
 Air Filter Cover Knob for Chainsaw Dolmar PS310TH MR00285540 Air Filter Cover Knob for Chainsaw Dolmar PS310TH €3.04
79
 photo_cameraImage coming soon MR00288404 WASHER €1.44
80
 Cleaner Cover for Chainsaw Dolmar PS310TH MR00285579 Cleaner Cover for Chainsaw Dolmar PS310TH €11.48
81
 Makita Element for Chainsaw EA3100T MR00285584 Makita Element for Chainsaw EA3100T €5.05
82
 photo_cameraImage coming soon MR00285633 SCREW M5X45 €2.76
83
 photo_cameraImage coming soon MR00285631 SCREW M4X16 €1.42
84
 photo_cameraImage coming soon MR00285539 CLEANER BODY €10.19
85
 photo_cameraImage coming soon MR00289500 CARBURETOR PS311TH €144.16
90
 photo_cameraImage coming soon MR00287171 SEAL €3.96
91
 photo_cameraImage coming soon MR00287170 DIAPHRAGM €13.08
92
 photo_cameraImage coming soon MR00261872 CARB FILTER €8.51
105
 photo_cameraImage coming soon MR00287172 SPRING €3.85
106
 photo_cameraImage coming soon MR00262986 VALVE €12.70
107
 photo_cameraImage coming soon MR00262989 PIN €3.14
108
 photo_cameraImage coming soon MR00262990 LEVER €5.94
109
 photo_cameraImage coming soon MR00287174 PLUG €2.68
110
 photo_cameraImage coming soon MR00287173 SCREW €2.68
111
 photo_cameraImage coming soon MR00263727 GASKET €3.23
112
 photo_cameraImage coming soon MR00283905 DIAPHRAGM €25.08
119
 photo_cameraImage coming soon MR00288551 HOLDER CARBURETOR PS311TH €1.44
120
 photo_cameraImage coming soon MR00285631 SCREW M4X16 €1.42
121
 photo_cameraImage coming soon MR00285497 PLATE €11.40
122
 Makita EA3110T25B Intake Manifold MR00285495 Makita EA3110T25B Intake Manifold €36.57
123
 photo_cameraImage coming soon MR00285618 BOLT M4X12 €1.44
124
 photo_cameraImage coming soon MR00285492 FUEL PIPE B 2.4X5 L=145 €5.29
125
 Primer Pump for Chainsaw Dolmar PS310TH MR00282299 Primer Pump for Chainsaw Dolmar PS310TH €11.09
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Tank for Chainsaw Makita EA3110T25B MR00285694 Tank for Chainsaw Makita EA3110T25B €150.29
2
 Makita EA3100T Oil Cap Ass'y MR00285501 Makita EA3100T Oil Cap Ass'y €14.77
3
 photo_cameraImage coming soon MR00285503 PACKING €1.44
5
 photo_cameraImage coming soon MR00285574 BREATHER €7.80
6
 Makita Element for Chainsaw EA3110T MR00285526 Makita Element for Chainsaw EA3110T €1.44
7
 photo_cameraImage coming soon MR00285632 BOLT M5X16 €2.14
8
 photo_cameraImage coming soon MR00286803 CHAIN CATCHER ASS'Y €2.14
9
 photo_cameraImage coming soon MR00285583 CHAIN CATCHER €1.44
10
 photo_cameraImage coming soon MR00285585 TUBE 7X10.5 L=18 €1.44
11
 photo_cameraImage coming soon MR00285634 SCREW M5X14 €1.42
12
 photo_cameraImage coming soon MR00285531 GUIDE PLATE L €7.50
13
 photo_cameraImage coming soon MR00285627 SCREW M3X8 €1.42
14
 photo_cameraImage coming soon MR00286804 SCREW M5X20X8 €2.14
15
 Makita EA3100T Fuel Cap Ass'y MR00286051 Makita EA3100T Fuel Cap Ass'y €10.19
16
 photo_cameraImage coming soon MR00286063 PACKING €2.14
18
 photo_cameraImage coming soon MR00285832 BREATHER ASS'Y €11.40
18
 photo_cameraImage coming soon MR00286052 FUEL CAP €3.96
19
 photo_cameraImage coming soon MR00285502 OIL CAP €3.23
19
 photo_cameraImage coming soon MR00285573 BREATHER GROMMET €3.23

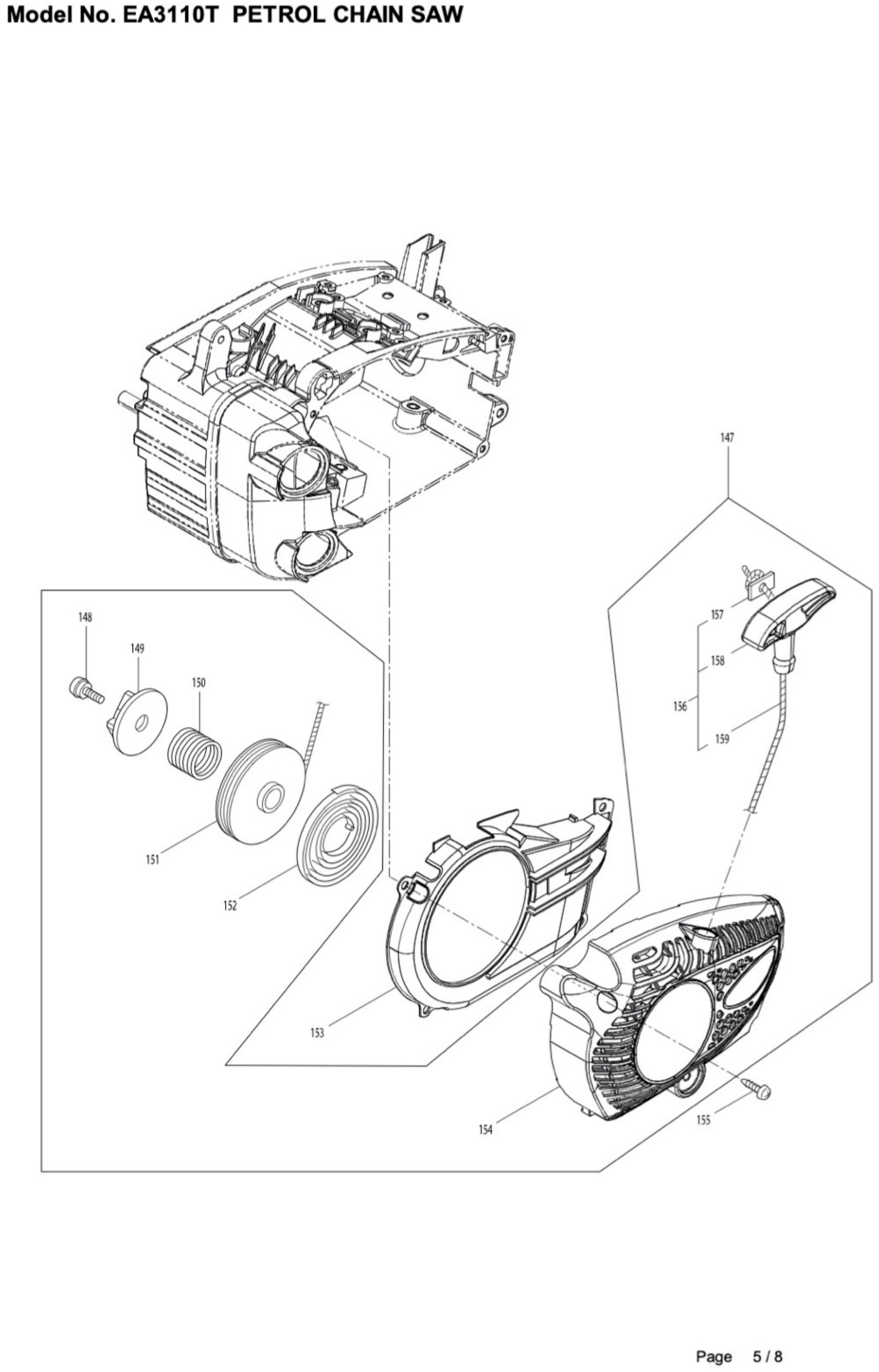

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
147
 Makita EA3100T Recoil Starter Assy MR00288396 Makita EA3100T Recoil Starter Assy €94.94
148
 photo_cameraImage coming soon MR00267213 SCREW €2.76
149
 Makita Cam Plate for Chainsaw EA3110T25B MR00285597 Makita Cam Plate for Chainsaw EA3110T25B €9.17
150
 photo_cameraImage coming soon MR00283276 DAMPER SPRING €14.76
151
 Makita EA3110T25B Starter Pulley MR00283274 Makita EA3110T25B Starter Pulley €14.77
152
 Spring Ass'y for Chainsaw Dolmar PS310TH MR00283275 Spring Ass'y for Chainsaw Dolmar PS310TH €24.14
153
 photo_cameraImage coming soon MR00285548 FAN COVER €6.83
154
 photo_cameraImage coming soon MR00288397 STARTER CASE ASS'Y €57.72
155
 photo_cameraImage coming soon MR00285631 SCREW M4X16 €1.42
157
 photo_cameraImage coming soon MR00283281 ROPE STOPPER €1.41
158
 photo_cameraImage coming soon MR00285581 STARTER HANDLE €7.98

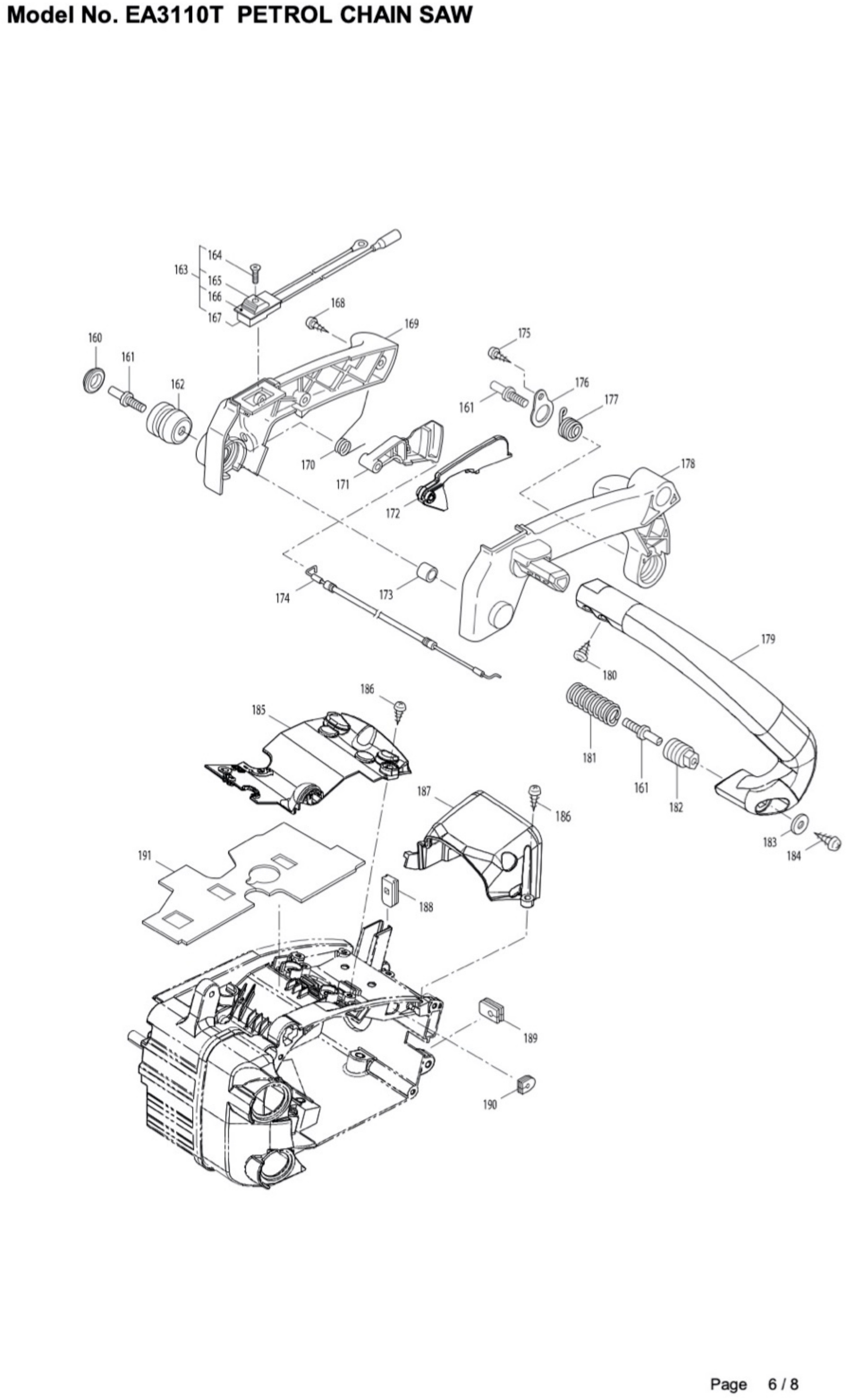

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
160
 photo_cameraImage coming soon MR00285473 CAP €2.14
161
 photo_cameraImage coming soon MR00285474 STOPPER BOLT €3.96
162
 photo_cameraImage coming soon MR00285582 BUFFER €14.76
163
 Makita EA3110T25B Switch Assy MR00286224 Makita EA3110T25B Switch Assy €23.23
165
 photo_cameraImage coming soon MR00282171 KEY €2.76
166
 Label for Chainsaw Dolmar PS310TH MR00286226 Label for Chainsaw Dolmar PS310TH €3.96
167
 photo_cameraImage coming soon MR00286225 SWITCH €22.19
168
 photo_cameraImage coming soon MR00285635 SCREW M4X14 €1.44
169
 photo_cameraImage coming soon MR00285621 TOP HANDLE COVER €13.08
170
 photo_cameraImage coming soon MR00285594 SPRING €3.96
171
 Throttle Lever for Chainsaw Dolmar PS310TH MR00285602 Throttle Lever for Chainsaw Dolmar PS310TH €3.55
172
 photo_cameraImage coming soon MR00285603 SAFETY LEVER €2.76
173
 photo_cameraImage coming soon MR00285565 PIPE €2.14
174
 Dolmar Chainsaw PS311TH Throttle Cable MR00285558 Dolmar Chainsaw PS311TH Throttle Cable €19.57
175
 photo_cameraImage coming soon MR00285644 SCREW M4X12 €1.42
176
 photo_cameraImage coming soon MR00285645 STAY €2.76
177
 Makita Spring for EA3110T Chainsaw MR00285592 Makita Spring for EA3110T Chainsaw €9.15
178
 photo_cameraImage coming soon MR00285620 TOP HANDLE CASE €22.19
179
 photo_cameraImage coming soon MR00285619 SIDE HANDLE €19.56
180
 photo_cameraImage coming soon MR00285634 SCREW M5X14 €1.42
181
 photo_cameraImage coming soon MR00285593 SPRING €7.80
182
 photo_cameraImage coming soon MR00285604 BOSS €3.23
183
 photo_cameraImage coming soon MR00263743 WASHER 5.7X15.8XT2 €1.44
184
 photo_cameraImage coming soon MR00285636 SCREW M5X20 €1.44
185
 photo_cameraImage coming soon MR00285547 TOP COVER €8.76
186
 photo_cameraImage coming soon MR00285631 SCREW M4X16 €1.42
187-1
 photo_cameraImage coming soon MR00286072 CARBURETOR COVER €6.12
187
 photo_cameraImage coming soon MR00286072 CARBURETOR COVER €6.12
188
 photo_cameraImage coming soon MR00285642 GROMMET €2.76
189
 Rubber Grommet for Chainsaw Dolmar PS310TH MR00285549 Rubber Grommet for Chainsaw Dolmar PS310TH €2.84
190
 photo_cameraImage coming soon MR00287300 GROMMET €2.14
191
 photo_cameraImage coming soon MR00286002 GASKET €6.83
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

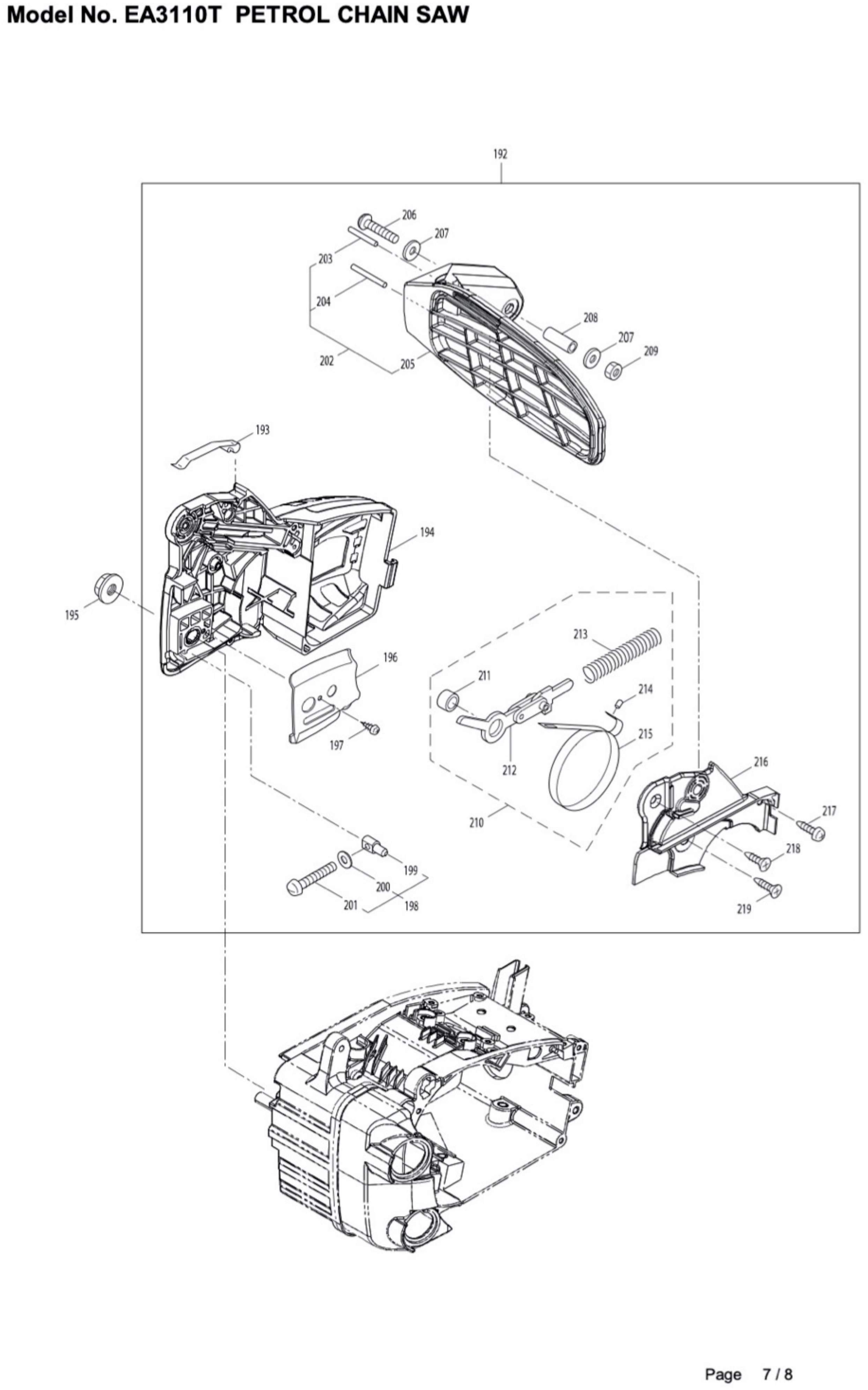

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
192
 photo_cameraImage coming soon MR00288547 CHAIN CASE ASS'Y €144.16
193
 photo_cameraImage coming soon MR00285595 RETURN SPRING €8.76
194
 photo_cameraImage coming soon MR00288543 CHAIN CASE €24.36
195
 photo_cameraImage coming soon MR00283041 NUT M8 €1.44
196
 photo_cameraImage coming soon MR00285532 GUIDE PLATE R €5.29
197
 photo_cameraImage coming soon MR00285627 SCREW M3X8 €1.42
198
 photo_cameraImage coming soon MR00286060 TENSIONER ASS'Y €11.40
199
 photo_cameraImage coming soon MR00285564 BOSS €7.80
200
 photo_cameraImage coming soon MR00286004 WASHER FOR 5 EA3100T €1.44
201
 photo_cameraImage coming soon MR00285471 SCREW M5X35 €1.44
202
 photo_cameraImage coming soon MR00288843 PROTECTOR COMPLETO PS311TH €29.17
203
 photo_cameraImage coming soon MR00286048 PIN 3X23.8L €2.14
204
 photo_cameraImage coming soon MR00285563 PIN 3X29.8 €2.76
205
 photo_cameraImage coming soon MR00288815 PROTECTOR PS311TH €25.08
206
 photo_cameraImage coming soon MR00285638 SCREW M5X30 €1.44
207
 photo_cameraImage coming soon MR00286045 WASHER 5.3X15XT1.2 €1.44
208
 photo_cameraImage coming soon MR00285607 COLLAR 5.2X7.5 L=22.5 €6.83
209
 photo_cameraImage coming soon MR00285640 NUT M5X0.8 €1.44
210
 Brake Ass'y for Chainsaw Dolmar PS310TH MR00286823 Brake Ass'y for Chainsaw Dolmar PS310TH €57.73
211
 photo_cameraImage coming soon MR00285606 COLLAR 8.2X12 L=7.2 €5.29
212
 photo_cameraImage coming soon MR00285570 LEVER COMP. €17.15
213
 photo_cameraImage coming soon MR00285605 SPRING €6.12
214
 photo_cameraImage coming soon MR00285560 PIN 3X9.8 €2.14
215
 photo_cameraImage coming soon MR00285572 BAND €29.17
216
 photo_cameraImage coming soon MR00288545 SIDE COVER €7.80
217
 photo_cameraImage coming soon MR00285644 SCREW M4X12 €1.42
218
 photo_cameraImage coming soon MR00285637 SCREW M5X12 €1.44
219
 photo_cameraImage coming soon MR00285639 SCREW M4X14 €1.44
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

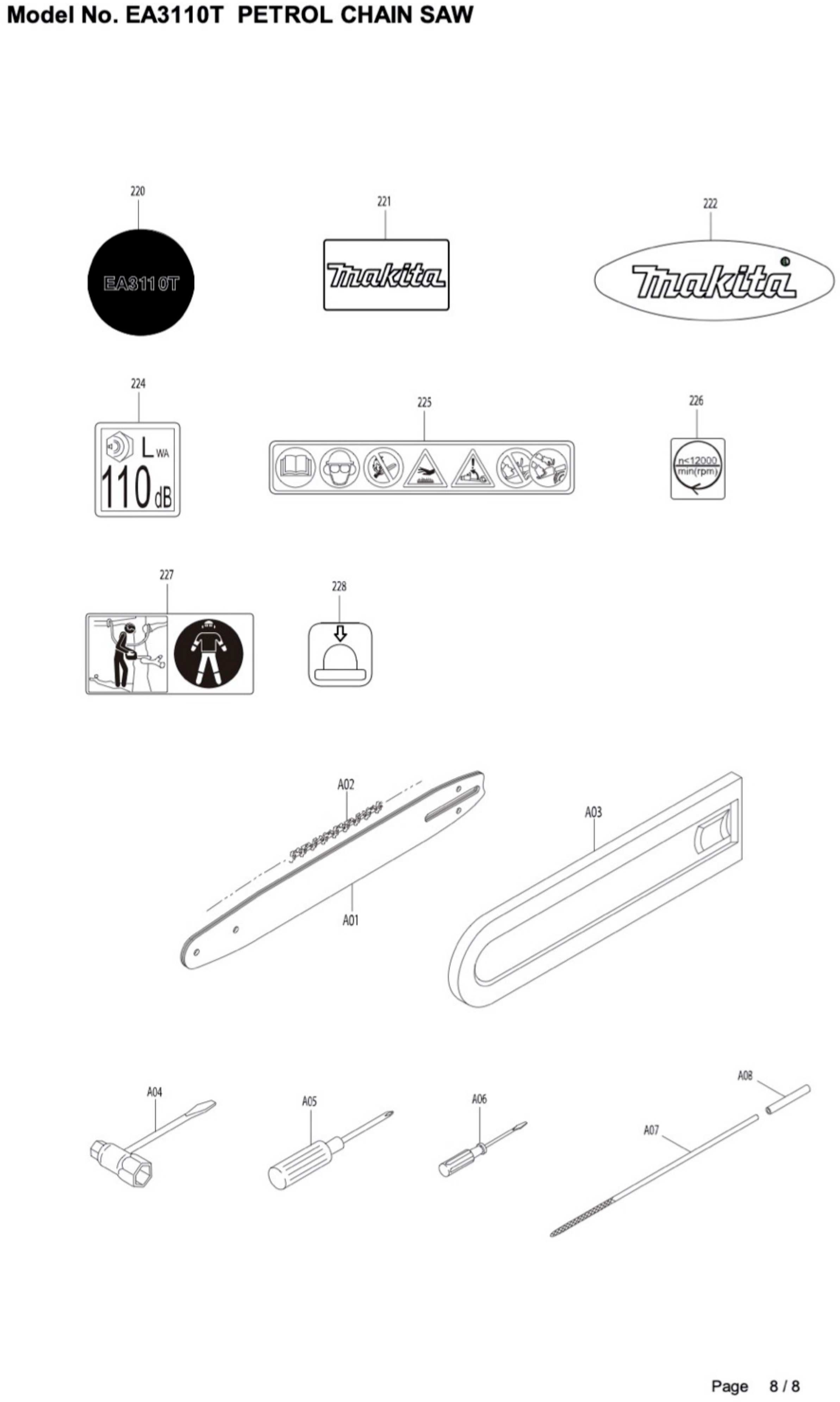

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A01
 photo_cameraImage coming soon 191G22-4 GUIDE BAR 3/8" X1,3MMX25CM €22.17
A02
 photo_cameraImage coming soon 511492740 SAW CHAIN 3/8" .050" 25cm-10" €19.14
A07
 photo_cameraImage coming soon MR00285729 FILE €12.70
A08
 photo_cameraImage coming soon MR00285730 FILE GRIP €2.68
A05
 photo_cameraImage coming soon MR00285732 SCREWDRIVER €12.70
A06
 photo_cameraImage coming soon MR00286865 SCREWDRIVER €3.14
222
 photo_cameraImage coming soon MR00288482 MAKITA LOGO LABEL 2 €5.14

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chainsaw EA3110T

Makita original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Petrol Chainsaw EA3110T.

In the following table, look for the model of Chainsaw and the respective parts of the code.
Makita EA3110T

MAKITA EA3110T PETROL CHAIN SAW pag.1
# Part Num. Description
1 MR00264223 CAP SCREW M5X40
2 MR00276332 MUFFLER ASS'Y
3 MR00285472 GASKET
4 MR00289341 GASKET
5 MR00288931 CYLINDER
6 MR00288264 SPARK PLUG NGK BPMR8Y
7 MR00289489 MAGNETO ASS'Y
8 MR00289548 IGNITION COIL ASS'Y
9 MR00285555 MAGNETO ROTOR
10 MR00286096 CORD ASS'Y
11 MR00289650 COIL
12 MR00261074 PLUG BOOT
13 MR00261075 CONNECTOR
14 MR00286097 CORD
15 MR00261072 CAP
16 MR00289481 SPACER
17 MR00281211 CAP SCREW M4X20
18 MR00285590 PISTON RING
19 MR00261576 CLIP,PISTON
20 MR00285591 PISTON PIN
21 MR00288399 PISTON
22 MR00261037 BEARING,NEEDLE KBK8X11X11.8X1
23 MR00285626 OIL SEAL
24 MR00285529 PIN
25 MR00285560 PIN 3X9.8
26 MR00288845 CRANKCASE ASS'Y
27 MR00285521 BEARING
28 MR00285599 CRANKSHAFT COMP.
29 MR00261076 WOODRUFF KEY 3X10
30 MR00055185 SNAP RING #28
31 MR00261250 HEXAGON BOLT
32 MR00261232 CAP SCREW M5X20
33 MR00261492 OIL SEAL
34 MR00288365 ROTOR ASS'Y
35 MR00020299 E-RING #4
36 MR00285552 SPRING
37 MR00285553 STARTER PAWL
38 MR00261417 NUT,ROTOR M8
39 MR00285624 NEEDLE BEARING 10X13X13
40 MR00286238 CLUTCH DRUM
41 MR00285537 WASHER 8X26XT2
42 MR00285535 CLUTCH ASS'Y
43 MR00285655 CLUTCH SHOE
44 MR00285656 SPRING
MAKITA EA3110T PETROL CHAIN SAW pag.2
45 MR00286241 WASHER
46 MR00286305 BUSH
47 MR00285631 SCREW M4X16
48 MR00285598 OIL PUMP COVER
49 MR00286303 WORM SCREW
50 MR00286843 BUSH
51 MR00285528 GROMMET
52 MR00286816 OIL PUMP ASS'Y
53 MR00285617 SCREW M4X25
54 MR00288184 SLEEVE
55 MR00285534 PUMP CAP
56 MR00285550 WHEEL GEAR
57 MR00285551 SPRING
58 MR00286801 WASHER 6.5X9.8XT0.5
59 MR00014759 O-RING P6
60 MR00285630 SCREW M3X8
61 MR00285527 PUMP BODY
62 MR00285522 OIL PIPE A
63 MR00286802 OIL PIPE B ASS'Y
64 MR00285523 OIL PIPE B ASS'Y
65 MR00286818 OIL FILTTER ASS'Y
66 MR00261339 GROMMET
67 MR00265725 PIPE L=220
68 MR00285525 OIL FILTTER BODY
69 MR00285524 OIL FILTTER
70 MR00261117 CLIP
MAKITA EA3110T PETROL CHAIN SAW pag.3
71 MR00285488 FUEL PIPE ASS'Y
72 MR00285489 PIPE ASS'Y
73 MR00285491 FUEL PIPE A 3X5 L=222
74 MR00285490 FUEL GROMMET
75 MR00261117 CLIP
76 MR00264653 FILTER ASS'Y
76-1 MR00286749 FILTER ASS'Y
77 MR00285580 CHOKE ROD
78 MR00285540 KNOB
79 MR00288404 WASHER
80 MR00285579 CLEANER COVER
81 MR00285584 ELEMENT
82 MR00285633 SCREW M5X45
83 MR00285631 SCREW M4X16
84 MR00285539 CLEANER BODY
85 MR00289500 CARBURETOR ASS'Y
86 MR00287169 SCREW
87 MR00287168 PUMP COVER
88 MR00287178 SPRING
89 MR00287179 IDLE ADJUST SCREW
90 MR00287171 GASKET
91 MR00287170 DIAPHRAGM
92 MR00261872 SCREEN
93 MR00287180 SCREW
94 MR00287181 LEVER
95 MR00287182 RING
96 MR00287184 SCREW
97 MR00287183 THROTTLE VALVE
98 MR00287185 SPRING
99 MR00287186 SHAFT
100 MR00287190 SHAFT
101 MR00287189 WASHER
102 MR00287191 LEVER
103 MR00287188 SPRING
104 MR00287187 CHOKE VALVE
105 MR00287172 SPRING
106 MR00262986 NEEDLE VALVE
107 MR00262989 LEVER PIN
108 MR00262990 LEVER
109 MR00287174 PLUG
110 MR00287173 SCREW
111 MR00263727 GASKET
112 MR00283905 DIAPHRAGM, METERRING
113 MR00263726 COVER PLATE
114 MR00287192 SCREW
119 MR00288551 RING
120 MR00285631 SCREW M4X16
121 MR00285497 PLATE
122 MR00285495 INSULATOR
123 MR00285618 BOLT M4X12
124 MR00285492 FUEL PIPE B 2.4X5 L=145
125 MR00282299 PRIMER PUMP
MAKITA EA3110T PETROL CHAIN SAW pag.4
8 MR00286803 CHAIN CATCHER ASS'Y
10 MR00285585 TUBE 7X10.5 L=18
9 MR00285583 CHAIN CATCHER
11 MR00285634 SCREW M5X14
13 MR00285627 SCREW M3X8
14 MR00286804 SCREW M5X20X8
12 MR00285531 GUIDE PLATE L
7 MR00285632 BOLT M5X16
6 MR00285526 ELEMENT
5 MR00285574 BREATHER
1 MR00285694 ENGINE CASE ASS'Y
19 MR00285573 BREATHER GROMMET
18 MR00285832 BREATHER ASS'Y
15 MR00286051 FUEL CAP ASS'Y
4 MR00285504 HOLDER
16 MR00286063 PACKING
18 MR00286052 FUEL CAP
2 MR00285501 OIL CAP ASS'Y
4 MR00285504 HOLDER
3 MR00285503 PACKING
19 MR00285502 OIL CAP
MAKITA EA3110T PETROL CHAIN SAW pag.5
147 MR00288396 RECOIL STARTER ASS'Y
148 MR00267213 SCREW
149 MR00285597 CAM PLATE
150 MR00283276 DAMPER SPRING
151 MR00283274 STARTER PULLEY
152 MR00283275 SPRING ASS'Y
153 MR00285548 FAN COVER
154 MR00288397 STARTER CASE COMP.
155 MR00285631 SCREW M4X16
156 MR00285697 ROPE ASS'Y
157 MR00283281 ROPE STOPPER
158 MR00285581 STARTER KNOB
159 MR00283279 STARTER ROPE
MAKITA EA3110T PETROL CHAIN SAW pag.6
160 MR00285473 CAP
161 MR00285474 STOPPER BOLT
162 MR00285582 BUFFER
163 MR00286224 SWITCH ASS'Y
164 MR00282172 SCREW
165 MR00282171 KNOB
166 MR00286226 LABEL
167 MR00286225 SWITCH
168 MR00285635 SCREW M4X14
169 MR00285621 TOP HANDLE COVER
170 MR00285594 SPRING
171 MR00285602 THROTTLE LEVER
172 MR00285603 SAFETY LEVER
173 MR00285565 PIPE
174 MR00285558 CABLE COMP.
175 MR00285644 SCREW M4X12
176 MR00285645 STAY
177 MR00285592 SPRING
178 MR00285620 TOP HANDLE CASE
179 MR00285619 SIDE HANDLE
180 MR00285634 SCREW M5X14
181 MR00285593 SPRING
182 MR00285604 BOSS
183 MR00263743 WASHER 5.7X15.8XT2
184 MR00285636 SCREW M5X20
185 MR00285547 TOP COVER
186 MR00285631 SCREW M4X16
187 MR00286072 CARBURETOR COVER
187-1 MR00286072 CARBURETOR COVER
188 MR00285642 GROMMET
189 MR00285549 GROMMET
190 MR00287300 GROMMET
191 MR00286002 GASKET
MAKITA EA3110T PETROL CHAIN SAW pag.7
192 MR00288547 CHAIN CASE ASS'Y
193 MR00285595 RETURN SPRING
194 MR00288543 CHAIN CASE
195 MR00283041 NUT M8
196 MR00285532 GUIDE PLATE R
197 MR00285627 SCREW M3X8
198 MR00286060 TENSIONER ASS'Y
199 MR00285564 BOSS
200 MR00286004 WASHER 5
200-1 MR00272943 WASHER 5
201 MR00285471 SCREW M5X35
202 MR00288843 FRONT GUARD COMP
203 MR00286048 PIN 3X23.8L
204 MR00285563 PIN 3X29.8
205 MR00288815 FRONT GUARD
206 MR00285638 SCREW M5X30
207 MR00286045 WASHER 5.3X15XT1.2
208 MR00285607 COLLAR 5.2X7.5 L=22.5
209 MR00285640 NUT M5X0.8
210 MR00286823 BRAKE ASS'Y
211 MR00285606 COLLAR 8.2X12 L=7.2
212 MR00285570 LEVER COMP.
213 MR00285605 SPRING
214 MR00285560 PIN 3X9.8
215 MR00285572 BAND
216 MR00288545 SIDE COVER
217 MR00285644 SCREW M4X12
218 MR00285637 SCREW M5X12
219 MR00285639 SCREW M4X14
MAKITA EA3110T PETROL CHAIN SAW pag.8
220 MR00272928 LABEL EA3110T
221 MR00288481 MAKITA LOGO LABEL 1
222 MR00288482 MAKITA LOGO LABEL 2
224 MR00273036 LABEL 110 DB
225 MR00287161 LABEL
226 MR00287616 LABEL
227 MR00287653 LABEL
228 MR00272020 LABEL
A01 191G22-4 GUIDE BAR 3/8" X1,3MMX25CM
A02 511492740 SAW CHAIN EXTRAGUARD L. 40
A03 419559-0 CHAIN PROTECTION COVER 330
A04 MR00288652 COMBI BOX SPANNER 13X19 L=190
A05 MR00285732 SCREWDRIVER
A06 MR00286865 SCREWDRIVER
A07 MR00285729 FILE
A08 MR00285730 FILE GRIP
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EA3110T
7 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita EA3110T

Drawing Makita EA3110T

Download (1.34MB)

You might also like

Bush for Chainsaw Dolmar PS310TH
Makita SKU: MR00286305
Bush for Chainsaw Dolmar PS310TH
Bush for Chainsaw Dolmar PS310TH Genuine parts Dolmar, Bush per Pruning Petrol Chainsaw Dolmar PS310TH - PS311TH - Makita EA3100T25B - EA3110T25B Part for the following products: -  PS310TH -...
on 7/10 Business Days Approx €7.83
Details
Oil Pump Piston for Chainsaw Dolmar PS310TH
Makita SKU: MR00285550
Oil Pump Piston for Chainsaw Dolmar PS310TH
Oil Pump Piston for Chainsaw Dolmar PS310TH Genuine parts Dolmar, Oil Pump Piston for Chainsaw Dolmar PS310TH - PS311TH - Makita EA3100T25B - EA3110T25B Part for the following products: -  PS310TH - CHAINSAW 30,1CC 25CM DOLMAR -...
Usually Ships in: 7/10 Business Days Approx. €10.00
Details
Swivel Bush for Chainsaw Dolmar PS310TH
Makita SKU: MR00286843
Swivel Bush for Chainsaw Dolmar PS310TH
Swivel Bush for Chainsaw Dolmar PS310TH Genuine parts Dolmar, Swivel Bush per Chainsaw Dolmar PS310TH - PS311TH - Makita EA3100T25B - EA3110T25B Part for the following products: -  PS310TH - Chainsaw...
Usually Ships in: 7/10 Business Days Approx. €5.59
Details
Oil Pump for Chainsaw Makita EA3100T
Makita SKU: MR00286816
Oil Pump for Chainsaw Makita EA3100T
Oil Pump for Chainsaw Makita EA3100T Genuine part Makita, Oil Pump Maruyama, for Chainsaws EA3100T - EA3110T25B - Dolmar PS311TH Part for the following products: -  EA3100T25B - CHAINSAW 30,1CC 25CM MAKITA - EA3110T25B - CHAINSAW...
Usually Ships in: 7/10 Business Days Approx. €49.90
Details
Rubber Grommet for Chainsaw Dolmar PS310TH
Makita SKU: MR00285549
Rubber Grommet for Chainsaw Dolmar PS310TH
Rubber Grommet for Chainsaw Dolmar PS310TH Genuine replacement part Dolmar, Rubber Grommet for Chainsaw EA3100T - PS310TH - PS311TH - Makita EA3100T25B - EA3110T25B. Part for the following products: -  PS310TH - CHAINSAW 30,1CC 25CM...
AVAILABLE €2.84
Details
Air Filter Cover Knob for Chainsaw Dolmar PS310TH
Makita SKU: MR00285540
Air Filter Cover Knob for Chainsaw Dolmar PS310TH
Air Filter Cover Knob for Chainsaw Dolmar PS310TH Genuine replacement part Dolmar, Air Filter Cover Knob for Chainsaw EA3100T - PS310TH - PS311TH - Makita EA3100T25B - EA3110T25B. Part for...
on 7/10 Business Days Approx €3.04
Details
Tank for Chainsaw Makita EA3110T25B
Makita SKU: MR00285694
Tank for Chainsaw Makita EA3110T25B
Tank for Chainsaw Makita EA3110T25B Genuine replacement part Makita, Tank for Chainsaws EA3100T25B - EA3110T25B - Dolmar PS310TH - PS311TH. Part for the following products: -  EA3110T - CHAINSAW 30,1CC 25CM MAKITA -  EA3110T25B -...
on 7/10 Business Days Approx €150.29
Details
Clutch Drum for Chainsaw Dolmar PS310TH - PS311TH
Makita SKU: MR00286238
Clutch Drum for Chainsaw Dolmar PS310TH - PS311TH
 Clutch Drum for Chainsaw Dolmar PS310TH - PS311TH Genuine replacement part Dolmar, Clutch Drum per Chainsaw Dolmar PS310TH - PS311TH - Makita EA3100T25B - EA3110T25B. Part for the following products: - PS310TH - Chainsaw 30,1CC 25CM...
Last items in stock €50.97
Details
Primer Pump for Chainsaw Dolmar PS310TH
Makita SKU: MR00282299
Primer Pump for Chainsaw Dolmar PS310TH
Primer Pump for Chainsaw Dolmar PS310TH Genuine replacement part Dolmar, Primer Pump for Chainsaw PS310TH - PS311TH - Makita EA3100T25B - EA3110T25B. Part for the following products: -  PS310TH - CHAINSAW 30,1CC 25CM DOLMAR -...
on 7/10 Business Days Approx €11.09
Details
Cleaner Cover for Chainsaw Dolmar PS310TH
Makita SKU: MR00285579
Cleaner Cover for Chainsaw Dolmar PS310TH
Cleaner Cover for Chainsaw Dolmar PS310TH Genuine replacement part Dolmar, Cleaner Cover for Chainsaws PS310TH - PS311TH - Makita EA3100T25B - EA3110T25B. Part for the following products: - ...
on 7/10 Business Days Approx €11.48
Details
Throttle Lever for Chainsaw Dolmar PS310TH
Makita SKU: MR00285602
Throttle Lever for Chainsaw Dolmar PS310TH
Throttle Lever for Chainsaw Dolmar PS310TH Genuine replacement part Dolmar, Throttle Lever for Chainsaws PS310TH - PS311TH - Makita EA3100T25B - EA3110T25B. Part for the following products: -  PS310TH - CHAINSAW 30,1CC 25CM DOLMAR -...
Last items in stock €3.55
Details
Spring Ass'y for Chainsaw Dolmar PS310TH
Makita SKU: MR00283275
Spring Ass'y for Chainsaw Dolmar PS310TH
Spring Ass'y for Chainsaw Dolmar PS310TH Genuine replacement part Dolmar, Spring Ass'y for Chainsaws PS310TH - PS311TH - Makita EA3100T25B - EA3110T25B. Part for the following products: -  PS310TH - CHAINSAW 30,1CC 25CM DOLMAR -...
on 7/10 Business Days Approx €24.14
Details
Grommet for Chainsaw Makita EA3110T25B
Makita SKU: MR00285528
Grommet for Chainsaw Makita EA3110T25B
Grommet for Chainsaw Makita EA3110T25B Genuine replacement part Makita, Grommet for Chainsaws EA3100T25B - EA3110T25B - Dolmar PS310TH - PS311TH. Part for the following products: -  EA3110T - CHAINSAW 30,1CC 25CM MAKITA -  EA3110T25B...
Last items in stock €2.76
Details
Worm Screw for Chainsaw Makita EA3100T
Makita SKU: MR00286303
Worm Screw for Chainsaw Makita EA3100T
Worm Screw for Chainsaw Makita EA3100T Genuine part Makita, Oil Pump Maruyama Worm Screw, for Chainsaws EA3100T - EA3110T25B - Dolmar PS311TH Part for the following products: -  EA3110T25B -...
Usually Ships in: 7/10 Business Days Approx. €56.65
Details
Makita EA3100T Fuel Cap Ass'y
Makita SKU: MR00286051
Makita EA3100T Fuel Cap Ass'y
Makita EA3100T Fuel Cap Ass'y Genuine part Makita, Fuel Cap Ass'y for Chainsaws EA3100T - EA3110T25B - Dolmar PS311TH Part for the following products: -  EA3110T25B - CHAINSAW 30,1CC...
on 7/10 Business Days Approx €10.19
Details
Makita EA3100T Oil Cap Ass'y
Makita SKU: MR00285501
Makita EA3100T Oil Cap Ass'y
Makita EA3100T Oil Cap Ass'y Genuine part Makita, Oil Cap Ass'y for Chainsaws EA3100T - EA3110T25B - Dolmar PS311TH Part for the following products: -  EA3110T25B - CHAINSAW 30,1CC...
Last items in stock €14.77
Details
Makita EA3100T Recoil Starter Assy
Makita SKU: MR00288396
Makita EA3100T Recoil Starter Assy
Makita EA3100T Recoil Starter Ass'y Genuine part Makita, Recoil Starter Ass'y for Chainsaws EA3100T - EA3110T25B. Part for the following products: -  EA3110T25B - CHAINSAW 30,1CC 25CM MAKITA -  EA3100T...
Usually Ships in: 7/10 Business Days Approx. €94.94
Details
Maruyama MCV3100S Fuel Pipe Assy
Maruyama SKU: 285488
Maruyama MCV3100S Fuel Pipe Assy
Maruyama MCV3100S Fuel Pipe Ass'y Genuine part Maruyama, Fuel Pipe Ass'y for Chainsaw MCV3101TS(10)-01 - MCV3100S. Part for the following products: MARUYAMA - Maruyama MCV3100S - Maruyama MCV3101S(14)-01 -...
Usually Ships in: 10 Business Days Approx. €40.11
Details
Maruyama MCV3100S Guide Plate L
Maruyama SKU: 285531
Maruyama MCV3100S Guide Plate L
Maruyama MCV3100S Guide Plate L Genuine part Maruyama, Guide Plate L for Chainsaw MCV3101TS(10)-01 - MCV3100S. Part for the following products: MARUYAMA - Maruyama MCV3100S - Maruyama MCV3101S(14)-01 -...
Usually Ships in: 10 Business Days Approx. €7.50
Details
Dolmar PS311TH Muffler
Makita SKU: MR00276332
Dolmar PS311TH Muffler
Dolmar PS311TH Muffler Complete Genuine part for Makita, Exhaust Muffler Complete, for Chainsaws PS311TH - EA3110T. Part for the following products: - Chainsaw PS311TH - Petrol Chainsaw EA3110T - Code: MR00276332
Usually Ships in: 7/10 Business Days Approx. €17.15
Details
Makita EA3110T25B Switch Assy
Makita SKU: MR00286224
Makita EA3110T25B Switch Assy
Makita Switch Assy for Chainsaw EA3110T25B Genuine replacement Makita, Switch Assy for Chainsaws EA3110T25B - PS311TH - PS310TH - EA3110T- EA3100T. Part for the following products: - EA3110T25B - CHAINSAW 30,1CC 25CM MAKITA -...
on 7/10 Business Days Approx €23.23
Details
Makita EA3110T25B Pump Body
Makita SKU: MR00285527
Makita EA3110T25B Pump Body
Makita Oil Pump Body for Chainsaw EA3110T25B Genuine replacement Makita, Oil Pump Body for Chainsaws EA3110T25B - PS311TH - PS310TH - EA3110T - EA3100T. Part for the following products: - EA3110T25B - CHAINSAW 30,1CC 25CM...
on 7/10 Business Days Approx €22.20
Details
Makita EA3100T Oil Pipe B Assy
Makita SKU: MR00286802
Makita EA3100T Oil Pipe B Assy
Makita EA3100T Oil Pipe B Assy Genuine replacement Makita, Oil Pipe B Assy for Chainsaws EA3110T25B - PS311TH - PS310TH - EA3110T- EA3100T. Part for the following products: - EA3110T25B - CHAINSAW 30,1CC 25CM MAKITA - PS311TH...
Usually Ships in: 7/10 Business Days Approx. €36.84
Details
Dolmar PS310TH Intake Manifold
Makita SKU: MR00285495
Makita EA3110T25B Intake Manifold
Makita Chainsaw EA3110T25B Intake Manifold Genuine replacement part Makita Dolmar, Intake Manifold for Chainsaw EA3110T25B - EA3110T. Part for the following products: -  Chainsaw Makita EA3110T25B -  Chainsaw Dolmar...
Usually Ships in: 10/15 Business Days Approx. €36.57
Details
Makita EA3110T25B Starter Pulley
Makita SKU: MR00283274
Makita EA3110T25B Starter Pulley
Makita Starter Pulley for Chainsaw EA3110T25B Genuine spare part Makita, Starter Pulley for Chainsaws EA3110T - EA3110T25B - EA3100T. Part for the following products: - Makita Chainsaw EA3110T25B - Dolmar Chainsaw...
Usually Ships in: 7/10 Business Days Approx. €14.77
Details
Makita Cam Plate for Chainsaw EA3110T25B
Makita SKU: MR00285597
Makita Cam Plate for Chainsaw EA3110T25B
Makita Cam Plate for Chainsaw EA3110T25B Genuine replacement part Makita Dolmar, Cam Plate for Chainsaw EA3110T25B - EA3110T. Part for the following products: -  Chainsaw Makita EA3110T25B -  Chainsaw Dolmar PS311TH...
Last items in stock €9.17
Details
Makita Spring for EA3110T Chainsaw
Makita SKU: MR00285592
Makita Spring for EA3110T Chainsaw
Makita Spring for EA3110T Chainsaw Genuine spare part Makita, Damper Spring for Chainsaws EA3110T - EA3110T25B - EA3100T. Part for the following products: - Makita Chainsaw EA3110T25B - Dolmar Chainsaw PS311TH - Dolmar...
Last items in stock €9.15
Details
Makita Spring for EA3110T Chainsaw
Makita SKU: MR00285598
Makita EA3110T Oil Pump Cover
Makita Oil Pump Cover for EA3110T Chainsaw Genuine spare part Makita, Oil Pump Cover for Chainsaws EA3110T - EA3110T25B - EA3100T. Part for the following products: - Makita Chainsaw EA3110T25B - Dolmar Chainsaw PS311TH -...
Usually Ships in: 7/10 Business Days Approx. €4.56
Details
Makita Oil Tube Grommet for Chainsaw EA3100T
Makita SKU: MR00261339
Makita Oil Tube Grommet for Chainsaw EA3100T
Makita Oil Tube Grommet for Chainsaw EA3100T Genuine part Makita Dolmar, Oil Tube Grommet for Chainsaw EA3110T25B - PS311TH. Part for the following products: -  Chainsaw Makita EA3110T25B -  Chainsaw Dolmar PS311TH...
Usually Ships in: 7/10 Business Days Approx. €5.29
Details
Makita Element for Chainsaw EA3100T
Makita SKU: MR00285584
Makita Element for Chainsaw EA3100T
Makita Element for Chainsaw EA3100T Genuine part Makita Dolmar, Air Filter for Chainsaw EA3110T25B - PS311TH. Part for the following products: -  Chainsaw Makita EA3110T25B -  Chainsaw Dolmar PS311TH -  Chainsaw Dolmar PS310TH -...
Usually Ships in: 7/10 Business Days Approx. €5.05
Details
Makita Piston Ring for Chainsaw EA3110T
Makita SKU: MR00285590
Makita Piston Ring for Chainsaw EA3110T
Makita Piston Ring for Chainsaw EA3110T Genuine part Makita Dolmar, Piston Ring for Chainsaw EA3110T25B - PS311TH. Part for the following products: -  Chainsaw Makita EA3110T25B -  Chainsaw Dolmar PS311TH...
Last items in stock €8.75
Details
Makita Element for Chainsaw EA3110T
Makita SKU: MR00285526
Makita Element for Chainsaw EA3110T
Makita Element for Chainsaw EA3110T Genuine part Makita Dolmar, Element Filter for Chainsaw EA3110T25B - PS311TH. Part for the following products: -  Chainsaw Makita EA3110T25B -  Chainsaw Dolmar PS311TH - ...
Usually Ships in: 7/10 Business Days Approx. €1.44
Details
Dolmar Muffler Gasket for Chainsaw PS311TH
Makita SKU: MR00285472
Dolmar Muffler Gasket for Chainsaw PS311TH
Dolmar Muffler Gasket for Chainsaw PS311TH Genuine part Dolmar, Muffler Gasket for Chainsaw EA3110T25B - PS311TH. Part for the following products: -  Chainsaw Makita EA3110T25B -  Chainsaw Dolmar...
Usually Ships in: 7/10 Business Days Approx. €3.30
Details
Dolmar Throttle Cable for Chainsaw PS311TH
Makita SKU: MR00285558
Dolmar Chainsaw PS311TH Throttle Cable
Dolmar Throttle Cable for Chainsaw PS311TH Genuine part Dolmar, Throttle Cable for Chainsaw EA3110T25B - PS311TH. Part for the following products: -  Chainsaw Makita EA3110T25B -  Chainsaw Dolmar...
Usually Ships in: 7/10 Business Days Approx. €19.57
Details
Comments (0)
