Makita Spare parts for Cordless Chain Saw DUC252
Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chain Saw DUC252.

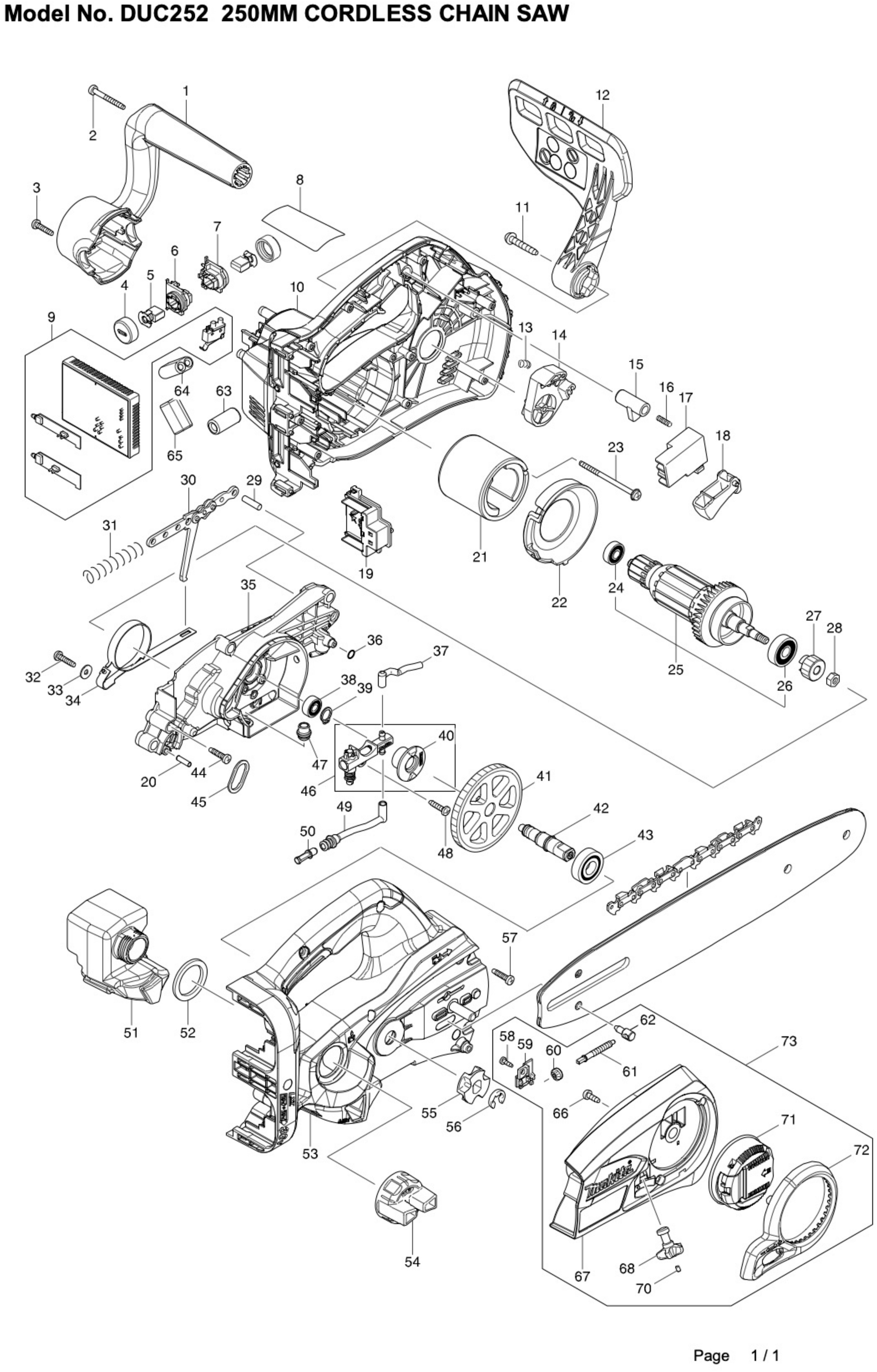

In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
| DUC252 CORDLESS CHAINSAW 250MM 18VX2 |
| # |
Part Num. |
Description |
| 001 |
451972-6 |
FRONT HANDLE |
| 002 |
266053-1 |
TAPPING SCREW 4X35 |
| 003 |
265995-6 |
TAPPING SCREW 4X18 |
| 004 |
643941-3 |
BRUSH HOLDER CAP |
| 005 |
194928-3 |
CARBON BRUSH CB-442 |
| 006 |
644514-5 |
BRUSH HOLDER |
| 007 |
644513-7 |
BRUSH HOLDER |
| 008 |
815R26-5 |
DUC252 NAME PLATE |
| 009 |
620275-1 |
CONTROLLER |
| 010 |
187882-8 |
HOUSING SET |
| C10 |
263005-3 |
RUBBER PIN 6 |
| D10 |
|
INC. 53 |
| 011 |
266173-1 |
TAPPING SCREW 5X30 |
| 012 |
142574-6 |
FRONT HAND GUARD COMPLETE |
| C10 |
803G42-3 |
CAUTION LABEL |
| 013 |
231298-0 |
COMPRESSION SPRING 6 |
| 014 |
451973-4 |
HAND GUARD SUPPORT |
| 015 |
416178-3 |
LOCK-OFF BUTTON |
| 016 |
233173-6 |
COMPRESSION SPRING 4 |
| 017 |
650730-9 |
SWITCH TG72BD-6 |
| 018 |
450212-9 |
SWITCH LEVER |
| 019 |
644808-8 |
TERMINAL |
| 020 |
256184-4 |
PIN 4 |
| 021 |
638571-3 |
YOKE UNIT |
| 022 |
451970-0 |
BAFFLE PLATE |
| 023 |
266292-3 |
TAPPING SCREW 4X65 |
| 024 |
210062-2 |
BALL BEARING 607ZZ |
| 025 |
519268-2 |
ARMATURE ASS'Y 36V |
| D10 |
|
INC. 24,26 |
| 026 |
211092-6 |
BALL BEARING 629DDW |
| 027 |
227252-0 |
SPUR GEAR 16 |
| 028 |
252186-8 |
HEX. NUT M6 |
| 029 |
256123-4 |
PIN 5 |
| 030 |
158047-9 |
LINK PLATE COMPLETE |
| 031 |
233175-2 |
COMPRESSION SPRING 9 |
| 032 |
265995-6 |
TAPPING SCREW 4X18 |
| 033 |
267195-4 |
FLAT WASHER 4 |
| 034 |
168321-7 |
BRAKE BAND |
| 035 |
142573-8 |
BEARING HOUSING COMPLETE |
| C10 |
263002-9 |
RUBBER PIN 4 |
| C20 |
414377-1 |
NOZZLE |
| 036 |
213039-6 |
O RING 6 |
| 037 |
422058-3 |
CONNECTOR |
| 038 |
210028-2 |
BALL BEARING 606ZZ |
| 039 |
961006-2 |
RETAINING RING S-10 |
| 040 |
221427-3 |
WORM GEAR |
| 041 |
227251-2 |
SPUR GEAR 73 |
| 042 |
326417-2 |
SPINDLE |
| 043 |
210109-2 |
BALL BEARING 6001DDW |
| 043-1 |
210163-6 |
BALL BEARING 6001DDW |
| 044 |
265995-6 |
TAPPING SCREW 4X18 |
| 045 |
310593-2 |
HANGER |
| 046-1 |
142156-4 |
OIL PUMP COMPLETE |
| 047 |
424629-2 |
GROMMET |
| 048 |
265995-6 |
TAPPING SCREW 4X18 |
| 049 |
422057-5 |
CONNECTOR |
| 050 |
450437-5 |
FILTER |
| 051 |
455121-7 |
OIL TANK |
| 052 |
424326-0 |
SPONGE SHEET |
| 053 |
187882-8 |
HOUSING SET |
| C10 |
263005-3 |
RUBBER PIN 6 |
| D10 |
|
INC. 10 |
| 054 |
158810-0 |
TANK CAP COMPLETE |
| 055 |
221526-1 |
SPROCKET |
| 056 |
961014-3 |
STOP RING E-8 |
| 057 |
265995-6 |
TAPPING SCREW 4X18 |
| 058 |
266020-6 |
TAPPING SCREW 4X12 |
| 059 |
454818-5 |
COVER |
| 060 |
227496-2 |
STRAIGHT BEVEL GEAR 14 |
| 061 |
326372-8 |
ADJUST SCREW |
| 062 |
326310-0 |
ADJUST PIN |
| 066 |
266020-6 |
TAPPING SCREW 4X12 |
| 067 |
142571-2 |
SPROCKET COVER COMPLETE |
| 068 |
142665-3 |
DRIVE GEAR COMPLETE |
| 070 |
263002-9 |
RUBBER PIN 4 |
| 071 |
142235-8 |
NUT COMPLETE |
| 072 |
454819-3 |
NUT COVER |
| 073 |
196779-0 |
SPROCKET COVER SET |
| D10 |
|
INC. 58-62,66-68,70-72 |
| A01 |
168408-5 |
GUIDE BAR 10 |
| A02 |
455284-9 |
GUIDE BAR CASE |
| A03 |
196205-9 |
SAW CHAIN SET |
| A04A |
197624-2 |
KITENERGY18VBL1850B5Ax2+DC18RC |
| A04B |
198116-4 |
KITENERGY18VBL1860B6Ax2+DC18RC |
| A05A |
194204-5 |
BATTERY BL1830 SET |
| A05-1A |
194204-5 |
BATTERY BL1830 SET |
| A05-1B |
196399-0 |
BATTERY BL1840 SET |
| A05-2A |
197600-6 |
BATTERY BL1830B SET |
| A05-2B |
197265-4 |
BATTERY BL1840B SET |
| A06 |
197820-2 |
SPIKE BUMPER SET |
