Makita Spare Parts for Electric Chainsaw 5016NB
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Electric Chainsaws 5016NB.

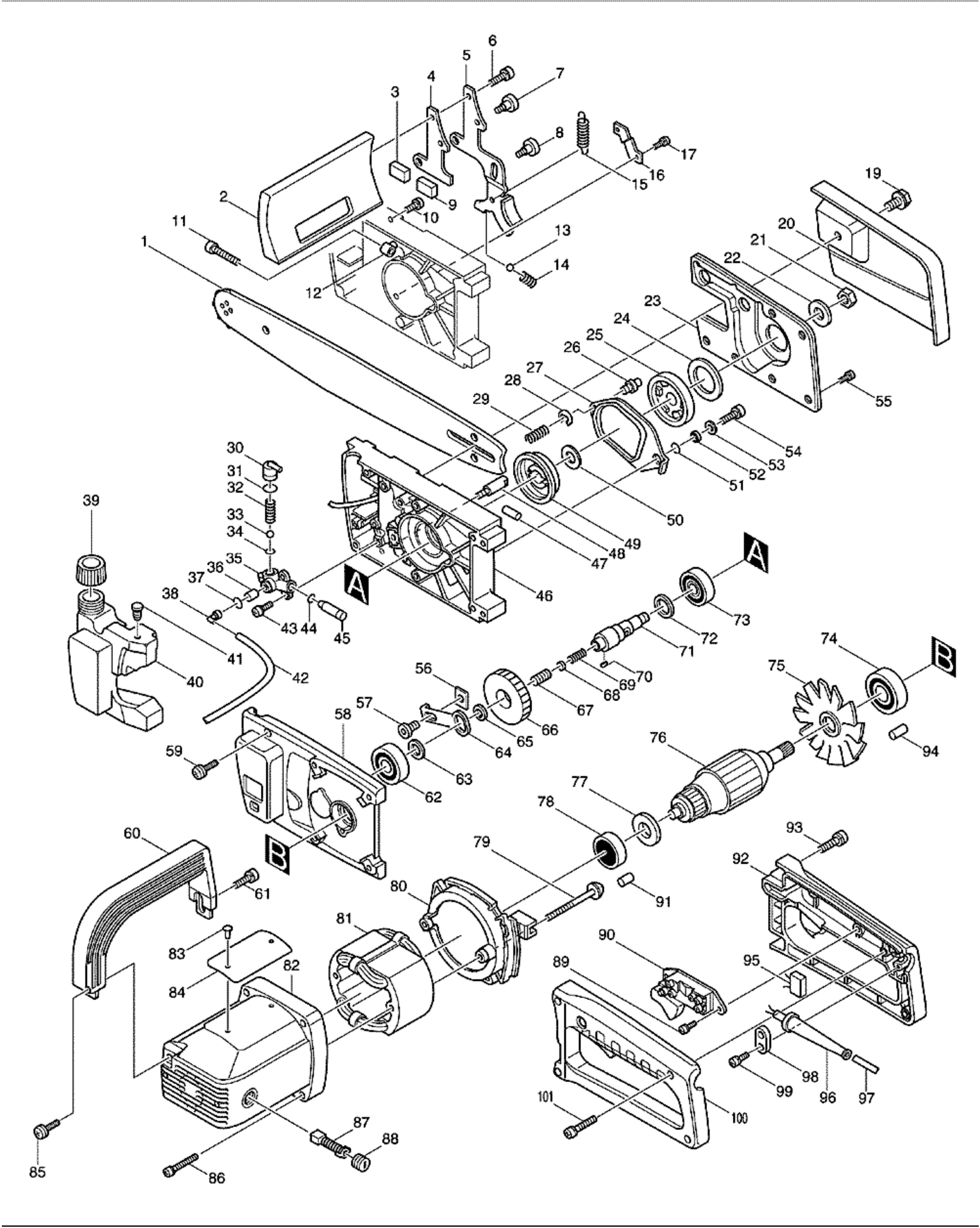

In the following table, look for the model of the Electric Saws and the respective parts of the code.
| MAKITA 5016NB PARTS - CHAINSAW |
| 2 |
155778-1 |
Protector, 5014Nb |
| 3 |
423120-7 |
Packing, 5014Nb |
| 4 |
342905-1 |
Supporter Plate, 5014Nb |
| 5 |
168146-9 |
Brake Lever, 5014Nb |
| 6 |
911221-8 |
P.H. Screw M5X16, 9227C |
| 7 |
265861-7 |
H.S.H. Bolt M6, 5014Nb |
| 8 |
265862-5 |
H.S.H. Bolt M6, 5014Nb |
| 10 |
911213-7 |
P.H. Screw M5X12, Ls1040 |
| 11 |
265062-7 |
Pan Head Screw M5X40, 5014NB |
| 12 |
325549-2 |
Adjust Pin, 5014Nb |
| 13 |
216011-7 |
Steel Ball 5.6, Lxdt08 |
| 14 |
231445-3 |
Comp. Spring 4, 5014Nb |
| 15 |
231778-6 |
Ten. Spring 9, 5014Nb |
| 16 |
342870-4 |
Cover Plate, 5014Nb |
| 17 |
911111-5 |
P.H. Screw M4X10, 4350Fct |
| 19 |
251697-0 |
H.F.H. Bolt M8X17, 5012B |
| 20 |
342871-2 |
Chain Cover, 5014Nb - OBSOLETE, NO LONGER AVAILABLE |
| 21 |
252043-0 |
Hex Nut M8-13, 5012B |
| 22 |
267009-7 |
F. Washer 8, 5014Nb |
| 23 |
155751-1 |
Dust Cover, 5014Nb |
| 24 |
213417-0 |
Dust Seal 30, 5014Nb |
| 25 |
152274-0 |
Sprocket, 5014Nb |
| 26 |
256421-6 |
Pin 6, 5014Nb |
| 27 |
342869-9 |
Clutch Pressure, 5014Nb |
| 28 |
961017-7 |
Stop Ring E-3, Hr2475 |
| 29 |
231372-4 |
Comp. Spring 5, Rp2301Fc |
| 30 |
410525-0 |
Nozzle (B), 5014Nb |
| 31 |
213007-9 |
O Ring 8, Af502 |
| 32 |
231400-5 |
Comp. Spring 3, 5014Nb |
| 33 |
216001-0 |
Steel Ball 3.5, Lxdt08 |
| 34 |
213022-3 |
O Ring 3, Rp2301Fc |
| 35 |
134374-8 |
Oil Vessel Cpl., 5014Nb |
| 36 |
423135-4 |
Filter, 5014Nb |
| 37 |
213054-0 |
O Ring 9, 5014Nb |
| 38 |
410524-2 |
Nozzle (A), 5014Nb |
| 39 |
242042-0 |
Cap, 5014Nb |
| 41 |
421298-0 |
Check Valve, 5014Nb |
| 45 |
321946-0 |
Plunger, 5014Nb |
| 46 |
157517-5 |
Gear Housing, 5014Nb |
| 47 |
256152-7 |
Pin 6, 5014Nb |
| 48 |
321396-9 |
Chain Catcher, 5014Nb |
| 49 |
223067-3 |
Clutch Cam, 5014Nb |
| 50 |
253878-2 |
F. Washer 10, 4301Bv |
| 51 |
257113-0 |
Ring 5, 5014Nb |
| 53 |
253184-5 |
F. Washer 5, 5090Dw |
| 56 |
342874-6 |
Slider Plate, 5014Nb |
| 57 |
265863-3 |
H.S.H. Bolt M6, 5014Nb |
| 58 |
157556-5 |
Gear Housing Cover, 5014Nb |
| 59 |
911231-5 |
P.H. Screw M5X20, Hr4002 |
| 60 |
273620-5 |
Grip, 5014Nb |
| 64 |
342873-8 |
Slider, 5014Nb |
| 65 |
253771-0 |
F. Washer 16, Ls1011 |
| 66 |
221741-7 |
H. Gear 53, 5014Nb |
| 67 |
913426-6 |
Set Screw M8X16, 5014Nb |
| 68 |
342876-2 |
Plate, 5014Nb |
| 69 |
231271-0 |
Comp. Spring 4, 5014Nb |
| 70 |
254032-1 |
Woodruff Key 5, 5037Nb |
| 71 |
321860-0 |
Spindle, 5014Nb |
| 72 |
267011-0 |
F. Washer 17, 5014Nb |
| 73 |
211251-2 |
B.Bearing 6003Llb, 5477Nb |
| 75 |
241093-0 |
Fan |
| 76 |
514795-4 |
Armature Assembly, 5016B |
| 77 |
681635-2 |
Insulation Washer, Hm1211B |
| 78 |
211068-3 |
B. Bearing 6200Lb, Ga7911 |
| 80 |
410519-5 |
Baffle Plate, 5014Nb |
| 82 |
159112-7 |
Motor Housing, 5016Nb |
| 84 |
855235-6 |
AME PLATE, 5016NB 855235-6 |
| 86 |
911273-9 |
P.H. Screw M5X50, Hr2400 |
| 88 |
643650-4 |
Brush Holder Cap, 5007F |
| 89 |
911101-8 |
P.H. Screw M4X6, Ls1020 |
| 90 |
651040-7 |
Switch, 5014Nb |
| 91 |
263013-4 |
Rubber Pin 4, 1806B |
| 92 |
181861-8 |
Handle Set, 5014Nb |
| 93 |
911228-4 |
P.H. Screw M5X18, 5377Mg |
| 94 |
263002-9 |
Rubber Pin - Kett |
| 96 |
682505-8 |
Cord Guard, 2414Nb |
| 97 |
664991-5 |
Power Cord, 5012B, T2 |
| 99 |
911133-5 |
P.H. Screw M4X18, N9501B |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
