Makita Spare Parts for Brushcutter EM3400L

Name: Makita Spare Parts for Brushcutter EM3400L
Brand: Makita
SKU: Makita EM3400L
Availability: InStock

SKU: Makita EM3400L

€20.81

VAT included

Makita Spare Parts for Brushcutter EM3400L

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Brushcutter EM3400L.

151 spare parts

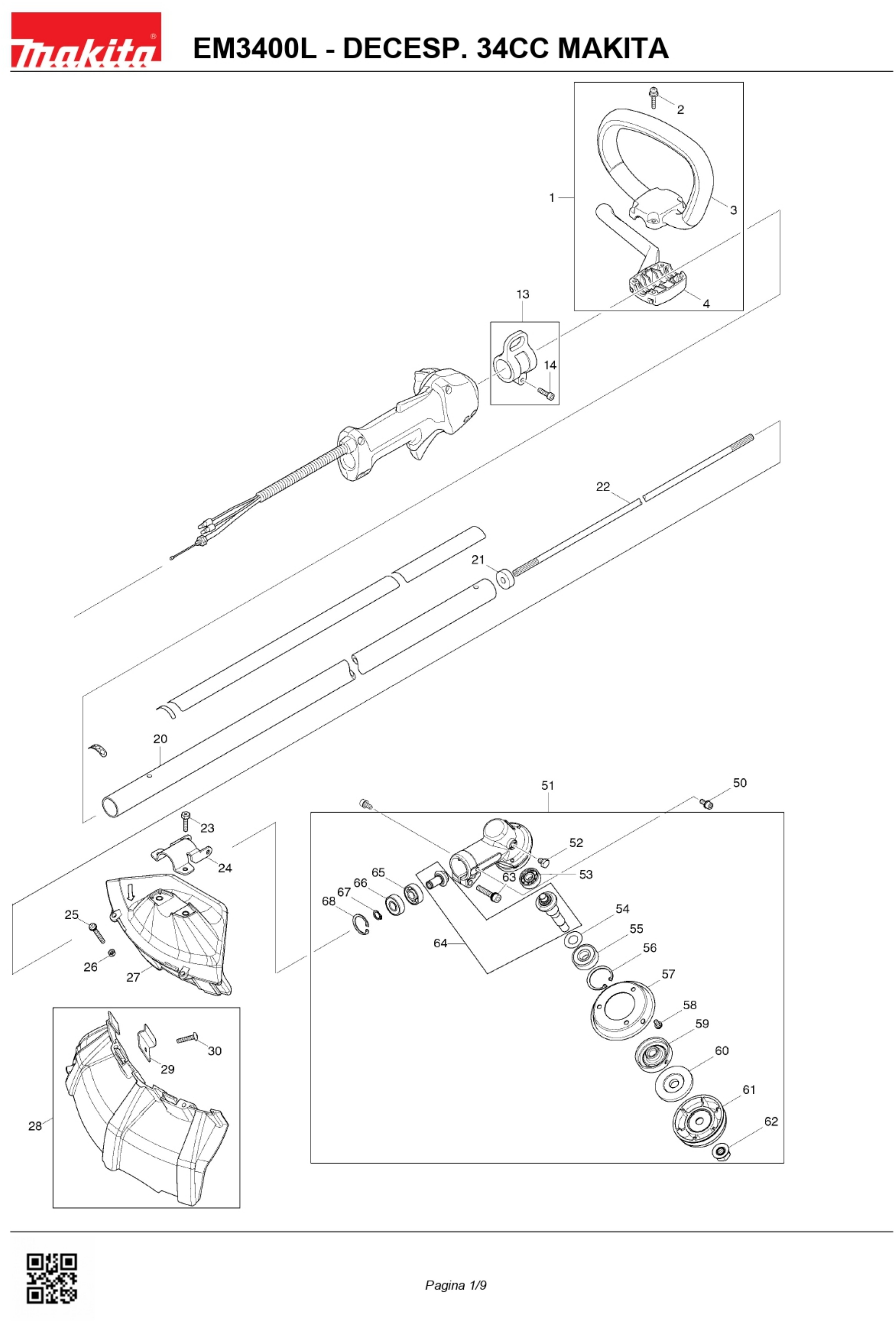

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1	Image coming soon	195251-9 HANDLE CPL MS335.4C	€20.81
2	Image coming soon	911253-5 SCREW M 5 X 30 X JR3030T	€1.42
3	Image coming soon	451596-8 GRIP 28 MS335.4C	€12.27
4	Image coming soon	451597-6 GRIP BASE 28 MS335.4C	€3.72
13	Image coming soon	125558-9 HOOK EBH341U	€7.58
14	Image coming soon	922232-8 SCREW M5X20	€1.44
20	Image coming soon	142837-0 SHAFT PIPE COMPLETE X EM3400L	€56.04
21	Image coming soon	443146-3 FELT RING EBH341U	€1.44
22	Image coming soon	325675-7 SHAFT EBH341U	€21.97
23	Image coming soon	266617-1 SCREW M6X23	€1.41
24	Image coming soon	346973-6 PROTECTOR CLAMP X EM3400L	€2.68
25	Image coming soon	911263-2 HEAD SCREW CILIND.	€1.47
26	Image coming soon	264035-7 NUT M5 RBC2510	€1.32
27	Image coming soon	451878-8 UPPER PROTECTOR EM3400L	€21.55
28	Image coming soon	140424-9 LOWER PROTECTION RBC2510	€14.33
29	Image coming soon	346262-9 CUTTER X EM3400L	€3.85
30	Image coming soon	266574-3 TAPPING SCREW 5X25	€1.41
50	Image coming soon	922213-2 HEX BOLT M5X12 EBH253L/341U	€1.51
51	Image coming soon	126506-1 GEAR CASE ASSYMBLY INC. 52-68 EM3400L	€75.87
57	Image coming soon	KC00000003 GUARD EM3400L	€3.14
59	Image coming soon	KC00000013 RECEIVE WASHER EM3400L	€9.90
60	Image coming soon	KC00000004 CLAMP WASHER X EM3400L	€4.43
61	Image coming soon	168526-9 CUP EBH253L/EBH341U/BBC231URD	€6.83
62	Image coming soon	KC00000016 HEX NUT M10	€2.68
64	Image coming soon	KC00000017 CUTTER SHAFT SET X EM3400L	€28.32
68	Image coming soon	257988-7 RETAINING RING R26 RBC2510	€1.44

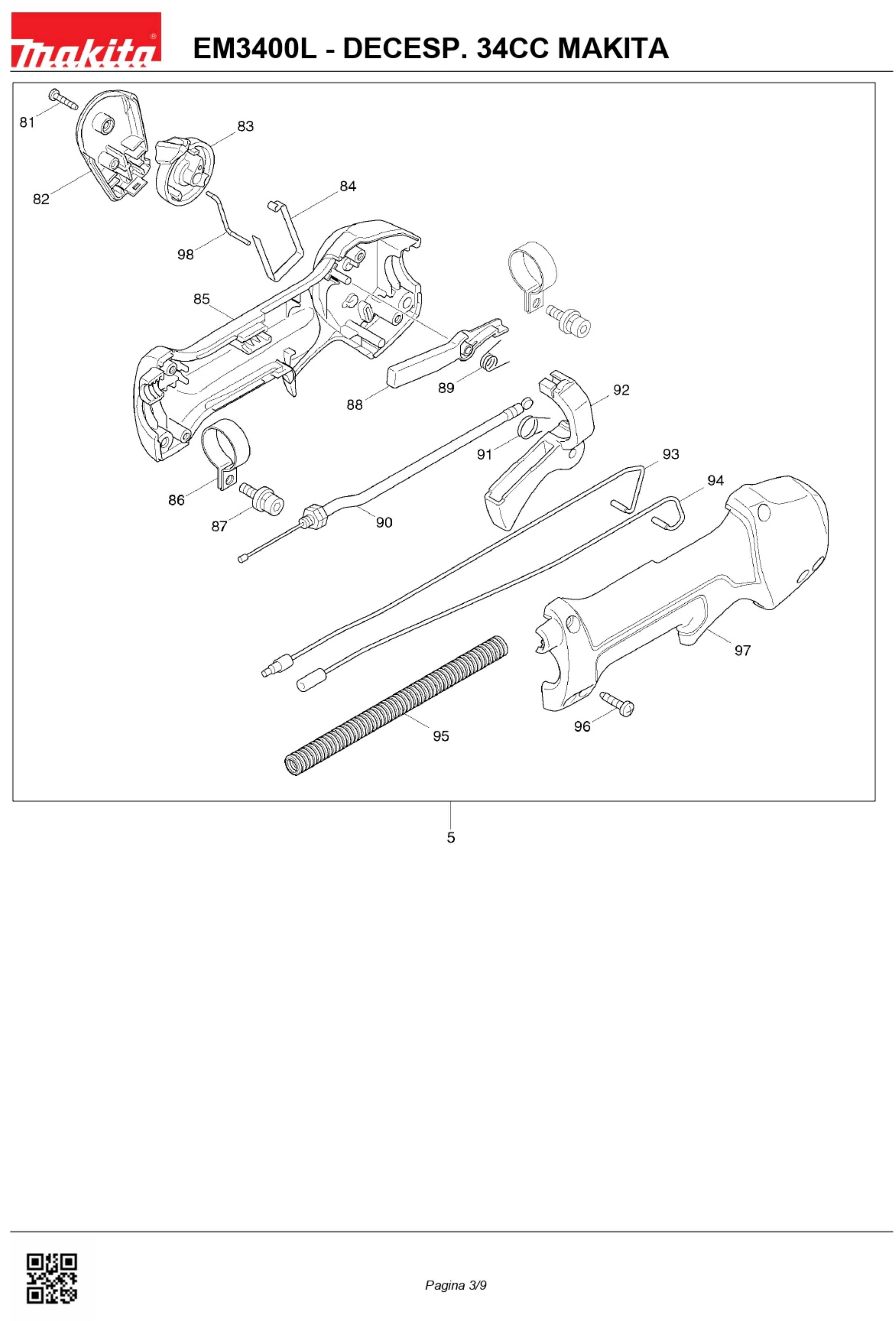

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
5	Image coming soon	126505-3 CONTROL LEVER ASS'Y INC. 81-98 EM3400L	€44.86
81	Image coming soon	266130-9 SCREW 3X16 X 6203/13 / 6313DW	€1.46
82	Image coming soon	451595-0 SWITCH COVER MS335.4C	€2.18
83	Image coming soon	451594-2 SWITCH LEVER MS335.4C	€2.18
84	Image coming soon	232251-9 LEAF SPRING EBH341U/EM2651LH	€1.46
86	Image coming soon	346249-1 CLAMP 28 MS335.4C	€2.03
87	Image coming soon	922218-2 SCREW M5x14 EBH341U	€1.53
88	Image coming soon	451593-4 BLOCK LEVER MS335.4C	€2.18
89	Image coming soon	233541-3 TORSION SPRING 7 EBH341U	€2.18
90	Image coming soon	168868-1 CONTROL CABLE X EM3400L	€5.94
91	Image coming soon	233540-5 SPRING TWIST 11 EBH341U	€1.46
92	Image coming soon	451592-6 THROTTLE LEVER MS335.4C P04	€3.28
93	Image coming soon	638676-9 WIRE MS335.C	€2.14
94	Image coming soon	638677-7 WIRE MS335.4C	€2.14
96		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.47

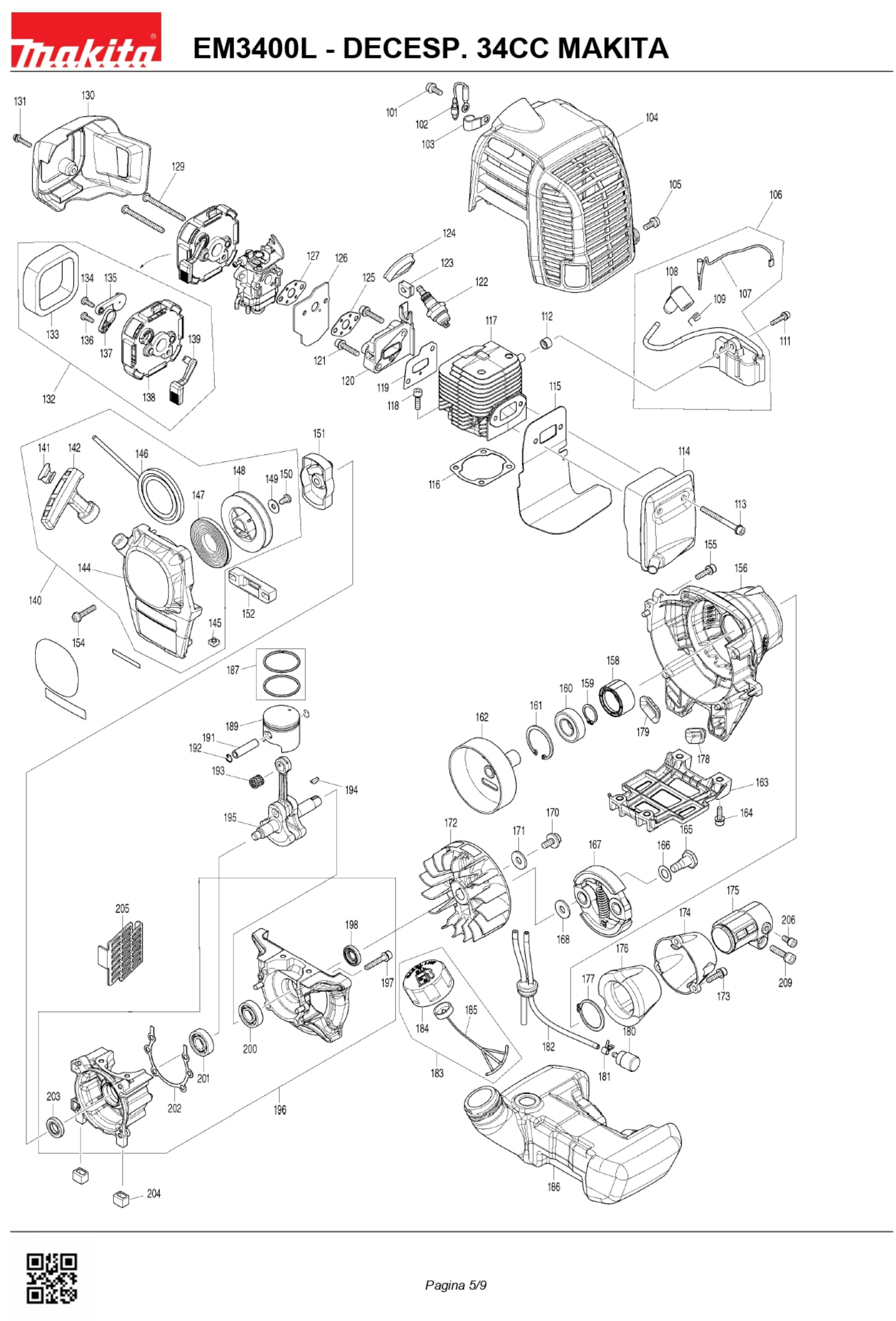

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
101	Image coming soon	911218-7 HEAD SCREW CILIND. M5x14	€1.54
102	Image coming soon	632D74-3 LEAD UNIT X EM3400L	€2.08
103	Image coming soon	345963-6 CLAMP EBH253L/EBH341U	€1.44
104	Image coming soon	455371-4 CYLINDER COVER EM3400L	€14.34
105	Image coming soon	911218-7 HEAD SCREW CILIND. M5x14	€1.54
106		126418-8 MAKITA EM3400L Ignition Coil	€29.17
111	Image coming soon	922138-0 HS H BOLT M4X20 EBH341U/253L	€9.01
112	Image coming soon	452049-0 SPACER EX2650LH	€1.44
113	Image coming soon	266917-9 HEX. SOCKET HEAD BOLT M5X55	€1.41
114	Image coming soon	165754-7 EXHAUST MUFFLER X EM3400L	€14.34
115	Image coming soon	346829-3 MUFFLER GASKET EM3400L	€3.85
116	Image coming soon	442208-4 CYLINDER GASKET EM3400L	€1.41
117	Image coming soon	319133-3 CYLINDER X EM3400L	€32.75
118		922231-0 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH	€1.35
119	Image coming soon	442210-7 INSULATOR GASKET X EM3400L	€1.41
120	Image coming soon	455378-0 INSULATOR X EM3400L	€5.14
121	Image coming soon	922243-3 BOLT M5 X 25 X 2702	€1.40
122	Image coming soon	168648-5 SPARK PLUG X RBC350-RBC420-PB500R	€6.05
123	Image coming soon	424491-5 GROMMET X DBC260	€2.08
124	Image coming soon	424656-9 PLUG CAP COVER X EM3400L	€1.41
125		442177-9 Carburator Gasket for Brushcutter Makita RBC310	€1.51
126	Image coming soon	346591-0 CARBURETOR PLATE EM3400L	€1.97
127		442177-9 Carburator Gasket for Brushcutter Makita RBC310	€1.51
129	Image coming soon	0043105550 SCREW M5X55 XRBC520	€1.43
130	Image coming soon	455377-2 AIR CLEANER COVER EM3400L	€3.85
131	Image coming soon	911536-3 SCREW M4X20	€2.86
132	Image coming soon	126502-9 AIR CLEANER PLATE ASSEMBLY INC. 133-139 EM3400L	€8.51
133	Image coming soon	443194-2 AIR CLEANER ELEMENT X EM3400L	€1.41
138	Image coming soon	455373-0 AIR CLEANER PLATE X EM3400L	€4.43
139	Image coming soon	455375-6 CHOKE LEVER X EM3400L	€1.41
140	Image coming soon	126501-1 RECOIL STARTER ASSEMBLY INC. 141,142,144-150 X EM3400L	€19.00
144	Image coming soon	JL03007281 STARTER CASE COMPLETE X EM3400L	€7.58
146	Image coming soon	JL03007284 STARTER ROPE EM3400L	€2.08
147	Image coming soon	JL03007282 SPIRAL SPRING EM3400L	€2.68
148	Image coming soon	JL03007283 REEL EM34	€2.08
151	Image coming soon	168863-1 PULLEY X EM3400L	€5.14
152	Image coming soon	424657-7 DAMPER X EM3400L	€1.41
154	Image coming soon	911243-8 SCREW M5x25 HR2010	€1.40
155		922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T	€1.44
156	Image coming soon	143321-8 CLUTCH CASE COMPLETE EM3400L	€35.77
158	Image coming soon	451157-4 SPACER EBH341U	€2.08
159		961057-5 Makita Power Tools Ext DIN471 Circlip-17	€1.47
160	Image coming soon	210126-2 BEARING 6003LLU	€3.72
161	Image coming soon	962153-2 RETAINING RING R35	€2.08
162	Image coming soon	165577-3 CLUTCH DRUM EBH341U	€13.08
163	Image coming soon	455370-6 TANK GUARD EM3400L	€3.85
164	Image coming soon	922223-9 SCREW M5X16 EBH341U EX2650LH	€1.46
165	Image coming soon	266571-9 SCREW M8X23 EBH341U	€2.76
166	Image coming soon	267849-3 WAVE WASHER	€1.41
167	Image coming soon	125757-3 CLUTCH CPL X EM3400L	€17.15
168	Image coming soon	253762-1 WASHER 8 X LS1040	€2.02
170	Image coming soon	266596-3 HEX. HEAD BOLT M6X16 WITH W X RBK420G	€2.08
171	Image coming soon	267427-9 FLAT WASHER 7 M6 X RBC310 / 410 / RBK410	€2.68
172	Image coming soon	319137-5 FLYWHEEL X EM3400L	€19.00
173		922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T	€1.44
174	Image coming soon	318453-2 PIPE RETAINER EBH341U	€6.63
175	Image coming soon	318454-0 PIPE BRACKET EBH341U	€11.07
176	Image coming soon	424204-4 DAMPER EBH341U	€5.94
177	Image coming soon	961151-3 RETAINING RING S-32 EBH341U	€1.40
178	Image coming soon	424103-0 DAMPER EBH341U	€1.44
179		424102-2 Tank Damper for Brushcutter Makita RBC2110	€1.30
180		163447-0 Gasoline Filter for Chainsaw Makita DCS230T	€4.49
181	Image coming soon	345920-4 CLAMP EBH341U	€1.44
182	Image coming soon	126503-7 TUBE ASSEMBLY EM3400L	€3.85
183	Image coming soon	168668-9 FUEL TANK CAP COMPLETE RBC2510	€9.90
184		452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110	€41.20
185		140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110	€8.31
186	Image coming soon	455379-8 FUEL TANK EM3400L	€18.82
187	Image coming soon	257359-8 PISTON RING EM3400L	€2.68
189	Image coming soon	319136-7 PISTON X EM3400L	€12.70
191	Image coming soon	268337-3 PISTON PIN 8	€3.85
192	Image coming soon	233976-8-4 CIRCLIP EBH252L RING (4pcs)	€6.01
193	Image coming soon	212702-8 NEEDLE CAGE 810	€4.43
194	Image coming soon	254040-2 WOODRUFF KEY 3 EM2651LH/EBH341	€4.02
195	Image coming soon	142542-9 CRANKSHAFT COMPLETE X EM3400L	€35.77
196	Image coming soon	135647-2 CRANK CASE ASS'Y INC. 197,198,200-203 EM3400L	€61.65
197	Image coming soon	922253-0 SCREW M5X30	€1.97
198	Image coming soon	213628-7 OIL SEAL RBC2510	€2.08
200	Image coming soon	210113-1 BALL BEARING 6001C3 MS3200E	€2.69
201	Image coming soon	210113-1 BALL BEARING 6001C3 MS3200E	€2.69
202	Image coming soon	442209-2 CRANK CASE GASKET EM3400L	€1.41
203	Image coming soon	213628-7 OIL SEAL RBC2510	€2.08
204	Image coming soon	424446-0 GROMMET RBC2510	€1.41
205	Image coming soon	455372-2 GUARD X EM3400L	€2.08
206	Image coming soon	922213-2 HEX BOLT M5X12 EBH253L/341U	€1.51
209	Image coming soon	922341-3 SCREW M6X25	€1.44

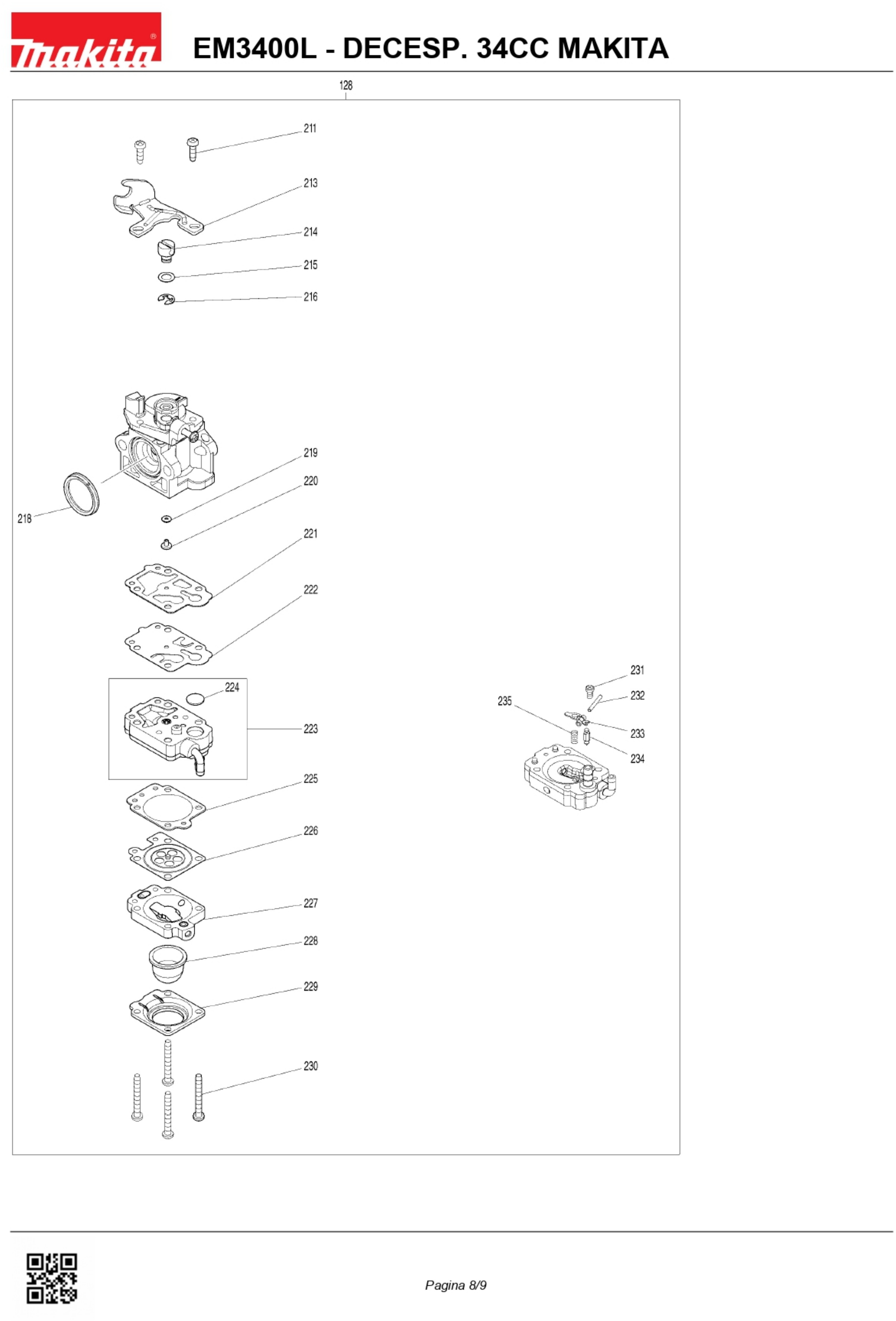

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
128	Image coming soon	168864-9 CARBURETOR X EM3400L	€164.92
211	Image coming soon	266704-6 SCREW M3X10 RBC2510	€2.08
214	Image coming soon	325922-6 SCREW CARBURATOR EBH341U	€6.95
215	Image coming soon	413140-9 WASHER EBH341U	€2.18
216	Image coming soon	257964-1 RETAINING RING E3 EBH341U	€4.02
218	Image coming soon	424444-4 GASKET RBC2510	€3.14
219	Image coming soon	WJ00016104 O RING DCS230T	€3.23
220	Image coming soon	WJ00112288 JET X EM3400L	€3.85
221		442155-9 Makita EBH341U Pump Gasket	€4.06
222	Image coming soon	168575-6 DIAPHRAGM PUMP EBH341U	€8.90
223	Image coming soon	140989-1 PUMP BODY RBC2510	€61.65
224	Image coming soon	352010-6 EBH252L FILTER	€2.82
225	Image coming soon	442154-1 SEAL IRIS EBH341U	€4.64
226		168620-7 Makita Diaphragm for EM2651UH	€23.70
227	Image coming soon	140988-3 BODY BREATHER RBC2510	€19.00
228		424314-7 Primer Bulb for Blower Makita BHX2501	€6.90
229	Image coming soon	346270-0 PUMP COVER EBH341U	€6.22
230	Image coming soon	266582-4 SCREW 3x24 EBH341U	€2.18
231		WJ00096424 Carburator Screw for Chainsaw Makita DCS230T	€2.84
232	Image coming soon	WJ00014477 PIN DCS230T	€2.77
233	Image coming soon	WJ00016648 LEVER DCS230T	€3.22
234	Image coming soon	WJ00008282 VALVE DCS230T	€10.18
235	Image coming soon	WJ00983160 SPRING DCS230T	€2.76

Page 5 Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price	Buy
501	Image coming soon	1911-9227-01 Line Cutter Head	€18.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brushcutter EM3400L

EM3400L - BRUSHCUTTER 34CC MAKITA pag.1
#	Part Num.	Description
1	195251-9	LOOP HANDLE SET INC. 2,3,4
2	911253-5	PAN HEAD SCREW M5X30
3	451596-8	LOOP HANDLE 28 MS335.4C
4	451597-6	HANDLE CLAMP 28 MS335.4C
13	125558-9	HANGER ASSEMBLY EBH341U
14	922232-8	HEX. SOCKET HEAD BOLT M5X20
20	142837-0	SHAFT PIPE COMPLETE X EM3400L
21	443146-3	FELT RING 8 EBH341U
22	325675-7	SHAFT EBH341U
23	266617-1	SCREW M6X23
24	346973-6	PROTECTOR CLAMP X EM3400L
25	911263-2	PAN HEAD SCREW M5X40
26	264035-7	HEX. NUT M5 RBC2510
27	451878-8	UPPER PROTECTOR EM3400L
28	140424-9	PROTECTOR COMPLETE INC. 29,30 RBC2510
29	346262-9	CUTTER X EM3400L
30	266574-3	TAPPING SCREW 5X25
50	922213-2	H.S.H.BOLT M5X12 WITH WR EBH341U
51	126506-1	GEAR CASE ASSYMBLY INC. 52-68 EM3400L
52	KC00000014	HEX BOLT M6X8 M6X8
53	KC00000009	BALL BEARING 629
54	KC00000008	PLATE
55	KC00000012	BALL BEARING 6201DDU
56	KC00000005	RETAINING RING R-32
57	KC00000003	GUARD EM3400L
58	KC00000007	P.H.SCREW M4X20 WITH W
59	KC00000013	RECEIVE WASHER EM3400L
60	KC00000004	CLAMP WASHER X EM3400L
61	168526-9	CUP EBH341U
62	KC00000016	HEX NUT M10
63	KC00000015	HEX. SOCKET HEAD BOLT M6X30 WR
64	KC00000017	CUTTER SHAFT SET X EM3400L
65	KC00000011	BALL BEARING 6000
66	KC00000010	BALL BEARING 6000Z
67	KC00000006	RETAINING RING S-10
68	257988-7	RETAINING RING (INT) R-26 RBC2510
EM3400L - BRUSHCUTTER 34CC MAKITA pag.2
5	126505-3	CONTROL LEVER ASS'Y INC. 81-98 EM3400L
81	266130-9	TAPPING SCREW BIND PT 3X16 X 6203/13 / 6313DW
82	451595-0	SWITCH COVER MS335.4C
83	451594-2	SWITCH LEVER MS335.4C
84	232251-9	LEAF SPRING EBH341U
85	187574-9	LEVER CASE SET INC. 97 X EM4350LH
86	346249-1	PIPE CLAMP 28 MS335.4C
87	922218-2	H.S.H.BOLT M5X14 WITH WR EBH341U
88	451593-4	LOCK LEVER MS335.4C
89	233541-3	TORSION SPRING 7 EBH341U
90	168868-1	CONTROL CABLE X EM3400L
91	233540-5	TORSION SPRING 11 EBH341U
92	451592-6	THROTTLE LEVER MS335.4C
93	638676-9	LEAD UNIT MS335.C
94	638677-7	LEAD UNIT MS335.4C
95	456083-2	CORRUGATE TUBE X EM3400L
96	266326-2	TAPPING SCREW 4X18 X MT601
97	187574-9	LEVER CASE SET INC. 85 X EM4350LH
98	325907-2	LOCK PIN X EM4350LH
EM3400L - BRUSHCUTTER 34CC MAKITA pag.3
101	911218-7	PAN HEAD SCREW M5X14
102	632D74-3	LEAD UNIT X EM3400L
103	345963-6	CLAMP EBH341U
104	455371-4	CYLINDER COVER EM3400L
105	911218-7	PAN HEAD SCREW M5X14
106	126418-8	IGNITION COIL ASSEMBLY INC. 107-109 X EM3400L / MS-34C
107	ZG00000001	IGNITION COIL WIRE EM3400L
108	ZG00000002	CAP,PLUG EM3400L
109	ZG00000003	SPRING,PLUG CAP EM3400
111	922138-0	H.S.H.BOLT M4X20 WITH WR
112	452049-0	SPACER EX2650LH
113	266917-9	HEX. SOCKET HEAD BOLT M5X55
114	165754-7	EXHAUST MUFFLER X EM3400L
115	346829-3	MUFFLER GASKET EM3400L
116	442208-4	CYLINDER GASKET EM3400L
117	319133-3	CYLINDER X EM3400L
118	922231-0	HEX. SOCKET HEAD BOLT M5X20
119	442210-7	INSULATOR GASKET X EM3400L
120	455378-0	INSULATOR X EM3400L
121	922243-3	HEX. SOCKET HEAD BOLT M5X25 X 2702
122	168648-5	SPARK PLUG (BPMR7A) X RBC350-RBC420-PB500R
123	424491-5	GROMMET X DBC260
124	424656-9	PLUG CAP COVER X EM3400L
125	442177-9	GASKET AIR CLEANER
126	346591-0	CARBURETOR PLATE EM3400L
127	442177-9	GASKET AIR CLEANER
129	0043105550	SCREW M5X55 XRBC520
130	455377-2	AIR CLEANER COVER EM3400L
131	911536-3	SCREW M4X20
132	126502-9	AIR CLEANER PLATE ASSEMBLY INC. 133-139 EM3400L
133	443194-2	AIR CLEANER ELEMENT X EM3400L
134	ZH00000001	TAPPING SCREW CT 4X12
135	455374-8	CHOKE PLATE EM3400L
136	ZH00000001	TAPPING SCREW CT 4X12
137	455376-4	AIR CLEANER CHECK PLATE X EM3400L
138	455373-0	AIR CLEANER PLATE X EM3400L
139	455375-6	CHOKE LEVER X EM3400L
140	126501-1	RECOIL STARTER ASSEMBLY INC. 141,142,144-150 X EM3400L
141	JL03007287	PLATE X EM3400L
142	JL03007280	STARTER KNOB EM3400L
144	JL03007281	STARTER CASE COMPLETE X EM3400L
145	JL12650113	NUT
146	JL03007284	STARTER ROPE EM3400L
147	JL03007282	SPIRAL SPRING EM3400L
148	JL03007283	REEL EM34
149	JL03007285	WASHER
150	JL03007286	TAPPING SCREW
151	168863-1	PULLEY X EM3400L
152	424657-7	DAMPER X EM3400L
154	911243-8	PAN HEAD SCREW M5X25 HR2010
155	922233-6	HEX SOCKET HEAD BOLT M5X20 X DCS230T
156	143321-8	CLUTCH CASE COMPLETE EM3400L
158	451157-4	SPACER EBH341U
159	961057-5	RETAINING RING S17
160	210126-2	BALL BEARING 6003LLU
161	962153-2	RETAINING RING R35
162	165577-3	CLUTCH DRUM EBH341U
163	455370-6	TANK GUARD EM3400L
164	922223-9	H.S.H.BOLT M5X16 WITH WR EBH341U EX2650LH
165	266571-9	SHOULDER HEX. BOLT M8X23 EBH341U
166	267849-3	WAVE WASHER
167	125757-3	CLUTCH ASSEMBLY X EM3400L
168	253762-1	FLAT WASHER 8 X LS1040
170	266596-3	HEX. HEAD BOLT M6X16 WITH W X RBK420G
171	267427-9	FLAT WASHER 7 M6 X RBC310 / 410 / RBK410
172	319137-5	FLYWHEEL X EM3400L
173	922233-6	HEX SOCKET HEAD BOLT M5X20 X DCS230T
174	318453-2	PIPE RETAINER EBH341U
175	318454-0	PIPE BRACKET EBH341U
176	424204-4	DAMPER EBH341U
177	961151-3	RETAINING RING S-32 EBH341U
178	424103-0	PLATE EBH341U
179	424102-2	PLATE EBH341U
180	163447-0	GASOLINE FILTER X DCS230T
181	345920-4	HOSE CLAMP EBH341U
182	126503-7	TUBE ASSEMBLY EM3400L
183	168668-9	FUEL TANK CAP ASSY RBC2510
184	452920-8	FUEL TANK CAP
185	140436-2	STRAP CPL EBH341U
186	455379-8	FUEL TANK EM3400L
187	257359-8	PISTON RING EM3400L
189	319136-7	PISTON X EM3400L
191	268337-3	PISTON PIN 8
192	233976-8-4	CLIP EBH252L (4pcs)
193	212702-8	NEEDLE CAGE 810
194	254040-2	WOODRUFF KEY 3 EBH341U
195	142542-9	CRANKSHAFT COMPLETE X EM3400L
196	135647-2	CRANK CASE ASS'Y INC. 197,198,200-203 EM3400L
197	922253-0	H.S.H.BOLT M5X30 WITH WR
198	213628-7	OIL SEAL RBC2510
200	210113-1	BALL BEARING 6001 RBC2510
201	210113-1	BALL BEARING 6001 RBC2510
202	442209-2	CRANK CASE GASKET EM3400L
203	213628-7	OIL SEAL RBC2510
204	424446-0	DAMPER RBC2510
205	455372-2	GUARD X EM3400L
206	922213-2	H.S.H.BOLT M5X12 WITH WR EBH341U
209	922341-3	HEX. SOCKET HEAD BOLT M6X25
EM3400L - BRUSHCUTTER 34CC MAKITA pag.4
128	168864-9	CARBURETOR X EM3400L
211	266704-6	PAN HEAD SCREW M3X10RBC2510
213	346588-9	BRACKET,CABLE
214	325922-6	CARBURETOR SWIVEL EBH341U
215	413140-9	WASHER EBH341U
216	257964-1	STOP RING E3 EBH341U
218	424444-4	PACKING RING RBC2510
219	WJ00016104	O-RING X DCS230T
220	WJ00112288	JET X EM3400L
221	442155-9	PUMP GASKET EBH341U
222	168575-6	PUMP DIAPHRAGM EBH341U
223	140989-1	PUMP BODY ASSEMBLY RBC2510
224	352010-6	INLET SCREEN EBH252L
225	442154-1	METERING DIAPHRAGM GASKET EBH341U
226	168620-7	METERING DIAPHRAGM FOR BHX2501
227	140988-3	AIR PURGE BODY ASSEMBLY RBC2510
228	424314-7	PRIMER PUMP EBH341
229	346270-0	PRIMER PUMP COVER EBH341U
230	266582-4	TAPPING SCREW 3X24 EBH341U
231	WJ00096424	SCREW X DCS230T
232	WJ00014477	METERING LEVER PIN X DCS230T
233	WJ00016648	LEVER X DCS230T
234	WJ00008282	INLET NEEDLE VALVE X DCS230T
235	WJ00983160	SPRING X DCS230T
Pag.5
500	384224503	HEAD TAP&GO M10X1,25 + 12X1,5
501	1911-9227-01	HEAD TAP&GO M10X1,25

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita EM3400L

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Diagram Makita EM3400L

Download (1.7MB)

Makita SKU: 163447-0

Gasoline Filter for Chainsaw Makita DCS230T

Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T - DCS231TC - DCS232TC Part for the following...

Last items in stock €4.49

Details

Makita SKU: 233976-8

Piston Pin Circlip for Brushcutter Makita RBC310

Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...

AVAILABLE €6.01

Details

Makita SKU: 442177-9

Carburator Gasket for Brushcutter Makita RBC310

Carburator Gasket for Brushcutter Makita RBC310 Genuine spare part Makita, Carburator Gasket for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 -...

AVAILABLE €1.51

Details

Carburator Screw for Chainsaw Makita DCS230T

Sale

Makita SKU: WJ00096424

Carburator Screw for Chainsaw Makita DCS230T

Carburator Screw for Chainsaw Makita DCS230T Genuine part Makita, Carburator Screw EB7650TH for Chainsaws DCS230T - DCS230TC - DCS231T - DCS231TC - DCS232T - DCS232TC - BUC250RDE - Dolmar PS220TH - PS221TH Part for the following...

AVAILABLE €2.84

Details

Makita SKU: 452920-8

Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110

Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...

Last items in stock €41.20

Details

Makita SKU: 266326-2

Strain Relief Screw M4x16 for Angle Grinder Makita GA4530

Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 Genuine part Makita, Strain Relief Special Screw M4x16 for Angle GrinderS GA4530 - GA4530R - GA4534 - GA5034 - Plate Joiner PJ7000. Parts for the following...

AVAILABLE €1.47

Details

Makita SKU: 140436-2

Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110

Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap Strap Complete for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the following...

AVAILABLE €8.31

Details

Makita SKU: 424314-7

Primer Bulb for Blower Makita BHX2501

Primer Bulb for Blower Makita BHX2501 Genuine replacement part Makita, Primer Bulb for Brushcutters, Hedge Trimmers, Blowers, Engine Pump, Mist Blowers. Part for the following...

AVAILABLE €6.90

Details

Makita SKU: 922233-6

Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T

Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T Genuine part Makita, Hex Socket HD Bolt M5x20, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: - DCS231T - CHAINSAW...

on 7/10 Business Days Approx €1.44

Details

Makita SKU: 442155-9

Makita EBH341U Pump Gasket

Makita Gasket for Brushcutter EBH341U Genuine spare part Makita, Pump Gasket for Brushcutters EBH341U - DBC260L - MS350.4C - EX2650LHRH. Part for the following products: - MS350.4C – 34CC-4T BRUSHCUTTER DOLMAR - PB7650.4...

Last items in stock €4.06

Details

Makita SKU: 126418-8

MAKITA EM3400L Ignition Coil

MAKITA EM3400L Ignition Coil Genuine part Makita, Ignition Coil Assembly for Brushcutter EM3400L/MS-34C. Part for the following products: - EM3400L PETROL BRUSH CUTTER - Code : 126418-8

Last items in stock €29.17

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Spare Parts for Brushcutter EM3400L

Makita Spare Parts for Brushcutter EM3400L

Makita Spare Parts for Brushcutter EM3400L

Makita Spare Parts for Brushcutter EM3400L

Makita Spare Parts for Brushcutter EM3400L

Data sheet

Specific References

Download

Diagram Makita EM3400L

You might also like

Products

News

Notes

Our company
