Makita

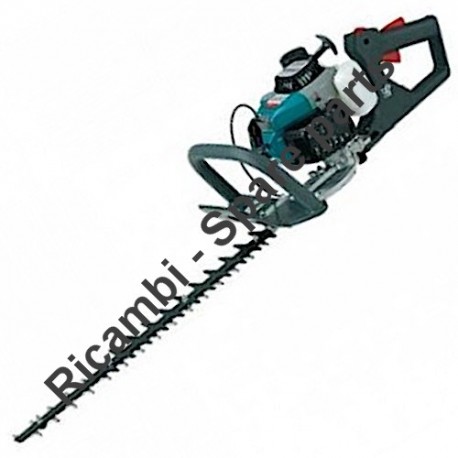

Makita Spare Parts for Hedge Trimmer HTR4900

SKU: Makita HTR4900
€2.76
VAT included

Makita Spare Parts for Hedge Trimmer HTR4900

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer HTR4900.
Makita Spare Parts for Hedge Trimmer HTR4900
  • Makita Spare Parts for Hedge Trimmer HTR4900
  • Makita Spare Parts for Hedge Trimmer HTR4900
Makita

Makita Spare Parts for Hedge Trimmer HTR4900

SKU: Makita HTR4900 Condition: New
€2.76
VAT included

Makita Spare Parts for Hedge Trimmer HTR4900

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer HTR4900.
settings 48 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 030051600N NYLON NUT X EH490V €2.10
4
 photo_cameraImage coming soon 303331100N FRONT HANDLE PLATE X EH490V €2.10
5
 photo_cameraImage coming soon 303330100N FRONT HANDLE X EH490V €21.97
6
 photo_cameraImage coming soon XNR0000098 SCREW TORX M5X20 RBK350 €2.18
7
 photo_cameraImage coming soon 303355300N GEAR X EH490V €25.39
9
 photo_cameraImage coming soon 045002800N LOCKING RING R-28 RBK350 €2.18
10
 photo_cameraImage coming soon 035600103N BALL BEARING 6001LL €22.50
11
 photo_cameraImage coming soon 035600103N BALL BEARING 6001LL €22.50
12
 photo_cameraImage coming soon 370355100N FLANGE X EH490V €66.01
13
 photo_cameraImage coming soon 048041200N PIN X EH490V €1.64
14
 photo_cameraImage coming soon 303555200N CLUTCH DRUM X EH490V €66.01
15
 photo_cameraImage coming soon 370540000N CLUTCH ASSY X EH490V €120.18
17
 photo_cameraImage coming soon 370540100N CLUTCH GUIDE X EH490V €31.35
18
 photo_cameraImage coming soon 305077000N CLUTCH SHOE W/ SPRING EH490V €34.78
19
 photo_cameraImage coming soon 305040411N CLUTCH PLATE X EH490V €5.90
22
 photo_cameraImage coming soon 303350100N EMGINE BASE X EH490V €66.01
23
 photo_cameraImage coming soon 099832600N STOP SWITCH X EH490V €34.78
25
 photo_cameraImage coming soon 303340221N REAR HANDLE (B) X HTR4900 €11.13
26
 photo_cameraImage coming soon 099861000N THROTTLE WIRE €9.86
27
 photo_cameraImage coming soon 303340320N THROTTLE LEVER X HTR4900 €3.01
28
 photo_cameraImage coming soon 303340500N THROTTLE LEVER SPRING LEVER X EH490V €2.10
29
 photo_cameraImage coming soon 303340600N LOCK LEVER X EH490V €2.10
30
 photo_cameraImage coming soon 303340700N LOCK LEVER SPRING X EH490 €2.10
31
 photo_cameraImage coming soon 303340121N REAR HANDLE (A) HTR4900 €14.74
32
 photo_cameraImage coming soon 303340900N LOCK PIN SPRING X EH490V €2.10
33
 photo_cameraImage coming soon 303340811N LOCK PIN HTR4900 €3.01
35
 photo_cameraImage coming soon 303341200N THROTTLE WIRE HOLDER X EH490V €2.46
36
 photo_cameraImage coming soon 371241000N REAR HANDLE HOLDER X HTR4900 €8.61
38
 photo_cameraImage coming soon 065061800N SCREW TORX M6X18 RBK350 €2.18
39
 photo_cameraImage coming soon 303510100N CASE X EH490V €53.38
40
 photo_cameraImage coming soon 065052500N TORX SCREW M 5 X 25 X EH490V €2.14
41
 photo_cameraImage coming soon 065051500N SCREW TORX M5X15 RBK350 €1.46
42
 photo_cameraImage coming soon 303510700N CRANK SHAFT X EH490V €25.39
43
 photo_cameraImage coming soon 303511100N CRANK PLATE X EH490V €6.62
44
 photo_cameraImage coming soon 303522000N CUTTER BLADE HT2049D / EH490V €73.00
45
 photo_cameraImage coming soon 303510800N CRANK GEAR X EH490V €38.94
46
 photo_cameraImage coming soon 303522000N CUTTER BLADE HT2049D / EH490V €73.00
47
 Case Cover Gasket for Hedge Trimmer Makita HTR4900 303513000N Case Cover Gasket for Hedge Trimmer Makita HTR4900 €16.12
48
 photo_cameraImage coming soon 303510200N CASE COVER EH490V €25.39
49
 photo_cameraImage coming soon 099861500N CLAMP X EH490V €2.46
52
 photo_cameraImage coming soon XNR0000098 SCREW TORX M5X20 RBK350 €2.18
53
 photo_cameraImage coming soon 306020400N BLADE BOLT WASHER X EH490V €2.10
54
 photo_cameraImage coming soon 303520900N GUIDE BLOCK X EH490V €2.10
55
 photo_cameraImage coming soon 303511200N PLATE X BLADES X EH490V €5.90
56
 Felt Gasket for Hedge Trimmer Makita HTR4900 303510400N Felt Gasket for Hedge Trimmer Makita HTR4900 €4.56
57
 photo_cameraImage coming soon 068053500N SCREW M 5 X 35 X EH490V €2.10
58
 photo_cameraImage coming soon 068053500N SCREW M 5 X 35 X EH490V €2.10
61
 photo_cameraImage coming soon 029060400N NIPPLE X EH490V €3.01
63
 photo_cameraImage coming soon 303560100N CUTTER BLADE COVER €14.15
64
 photo_cameraImage coming soon 030051100N NYLON NUT M5 X EH490V €2.10
65
 photo_cameraImage coming soon 303329000N PROTECTOR X EH490V €38.94
66
 photo_cameraImage coming soon 303520100N CUTTER GUIDE X EH490V €43.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Hedge Trimmer HTR4900

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer HTR4900.

In the following table, look for the model of the Trimmer and the respective parts of the code.
Hedge Trimmer HTR4900
HTR4900 - Petrol Hedge Trimmer 49CM MAKITA 21CC
# Part Num. Description
1 0736359980 CAUTION LABEL X HT2556D
2 030051600N NYLON NUT X EH490V
3 032050000N SPRING WASHER 5 X EH490V
4 303331100N FRONT HANDLE PLATE X EH490V
5 303330100N FRONT HANDLE X EH490V
6 XNR0000098 TORX SCREW M5X20 RBK350
7 303355300N GEAR X EH490V
8 045001202N SNAP RING S-12 X EH490V
9 045002800N SNAP RING R-28 RBK350
10 035600103N BALL BEARING 6001LL
11 035600103N BALL BEARING 6001LL
12 370355100N FLANGE X EH490V
13 048041200N PIN X EH490V
14 303555200N CLUTCH DRUM X EH490V
15 370540000N CLUTCH ASSY X EH490V
16 005061800N FLAT HEAD SCREW M 6 X 18 X EH490V
17 370540100N CLUTCH GUIDE X EH490V
18 305077000N CLUTCH SHOE W/ SPRING EH490V
19 305040411N CLUTCH PLATE X EH490V
20 005041200N FLAT HEAD SCREW M 4 X 12 X EH490V
21 002051200N FLAT HEAD SCREW M 5 X 12 X EH490V
22 303350100N EMGINE BASE X EH490V
23 099832600N STOP SWITCH X EH490V
24 303341300N TAPPING HD SCREW 4,5 X 16 X EH490V
25 303340221N REAR HANDLE (B) X HTR4900
26 099861000N THROTTLE WIRE
27 303340320N THROTTLE LEVER X HTR4900
28 303340500N THROTTLE LEVER SPRING LEVER X EH490V
29 303340600N LOCK LEVER X EH490V
30 303340700N LOCK LEVER SPRING X EH490
31 303340121N REAR HANDLE (A) HTR4900
32 303340900N LOCK PIN SPRING X EH490V
33 303340811N LOCK PIN HTR4900
34 303341300N TAPPING HD SCREW 4,5 X 16 X EH490V
35 303341200N THROTTLE WIRE HOLDER X EH490V
36 371241000N REAR HANDLE HOLDER X HTR4900
38 065061800N TORX SCREW M6X18 RBK350
39 303510100N CASE X EH490V
40 065052500N TORX SCREW M 5 X 25 X EH490V
41 065051500N TORX SCREW M5X15 RBK350
42 303510700N CRANK SHAFT X EH490V
43 303511100N CRANK PLATE X EH490V
44 303522000N CUTTER BLADE HT2049D / EH490V
45 303510800N CRANK GEAR X EH490V
46 303522000N CUTTER BLADE HT2049D / EH490V
47 303513000N GASKET X EH490V
48 303510200N CASE COVER EH490V
49 099861500N CLAMP X EH490V
50 065041200N TORX BOLT M 4 X 12 X EH490V
51 032040000N SPRING WASHER 4 EH490V
52 XNR0000098 TORX SCREW M5X20 RBK350
53 306020400N BLADE BOLT WASHER X EH490V
54 303520900N GUIDE BLOCK X EH490V
55 303511200N PLATE X BLADES X EH490V
56 303510400N GASKET X EH490V
57 068053500N SCREW M 5 X 35 X EH490V
58 068053500N FLANGE M 5 X 35 X EH490V
59 030051400N FLANGE NUT M5 X EH490V
60 030051400N FLANGE NUT M5 X EH490V
61 029060400N NIPPLE X EH490V
62 030081400N FLANGE NUT M8 X EH490V
63 303560100N CUTTER BLADE COVER
64 030051100N NYLON NUT M5 X EH490V
65 303329000N PROTECTOR X EH490V
66 303520100N CUTTER GUIDE X EH490V

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HTR4900
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita HTR4900

Drawing Makita HTR4900

Download (254.41KB)
