Makita Spare Parts for Chainsaw DCS52/45

Name: Makita Spare Parts for Chainsaw DCS52/45
Brand: Makita
SKU: Makita DCS52/45
Availability: InStock

SKU: Makita DCS52/45

€308.12

VAT included

Makita Spare Parts for Chainsaw DCS52/45

Makita original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Chainsaw DCS52/45.

170 spare parts

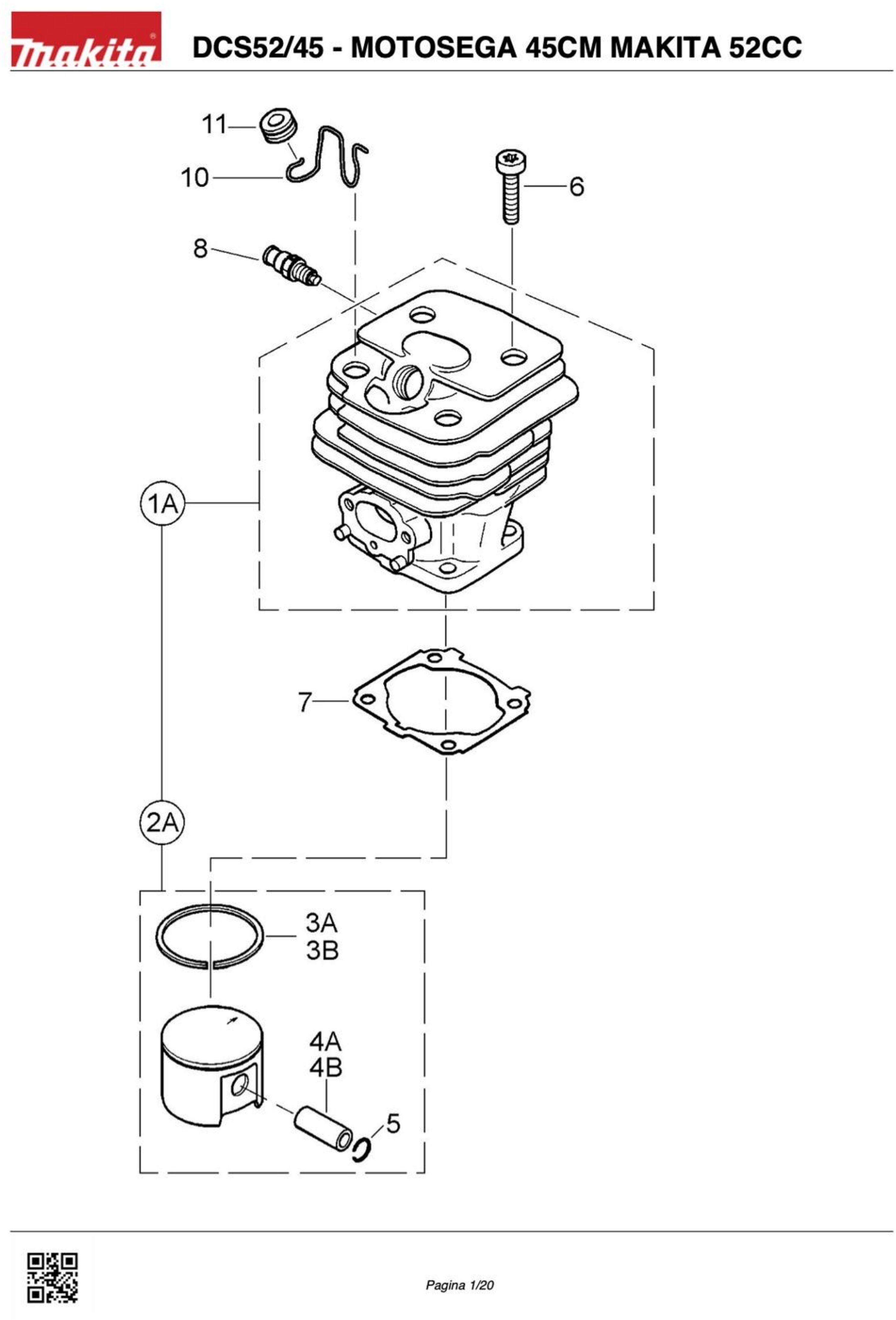

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1A	Image coming soon	027130034 PISTON + CYLINDER CPL X 111/115	€308.12
2A	Image coming soon	027132050 PISTON DIAM. 44MM	€125.91
3B	Image coming soon	020132100 PISTON RING	€11.13
4B	Image coming soon	001132010 PISTON	€24.35
5	Image coming soon	020132050 SPRING RING C10X0,8 430/4300I/	€1.40
6	Image coming soon	266476-3 SCREW M5X20 (TORX)	€1.47
7	Image coming soon	965525042 GASKET	€3.13
10	Image coming soon	001142012 CRAMP DCS430/520/4300I/5200I/	€2.69
11	Image coming soon	965401011 RUBBER BUSHING DCS330S/390/430	€2.69

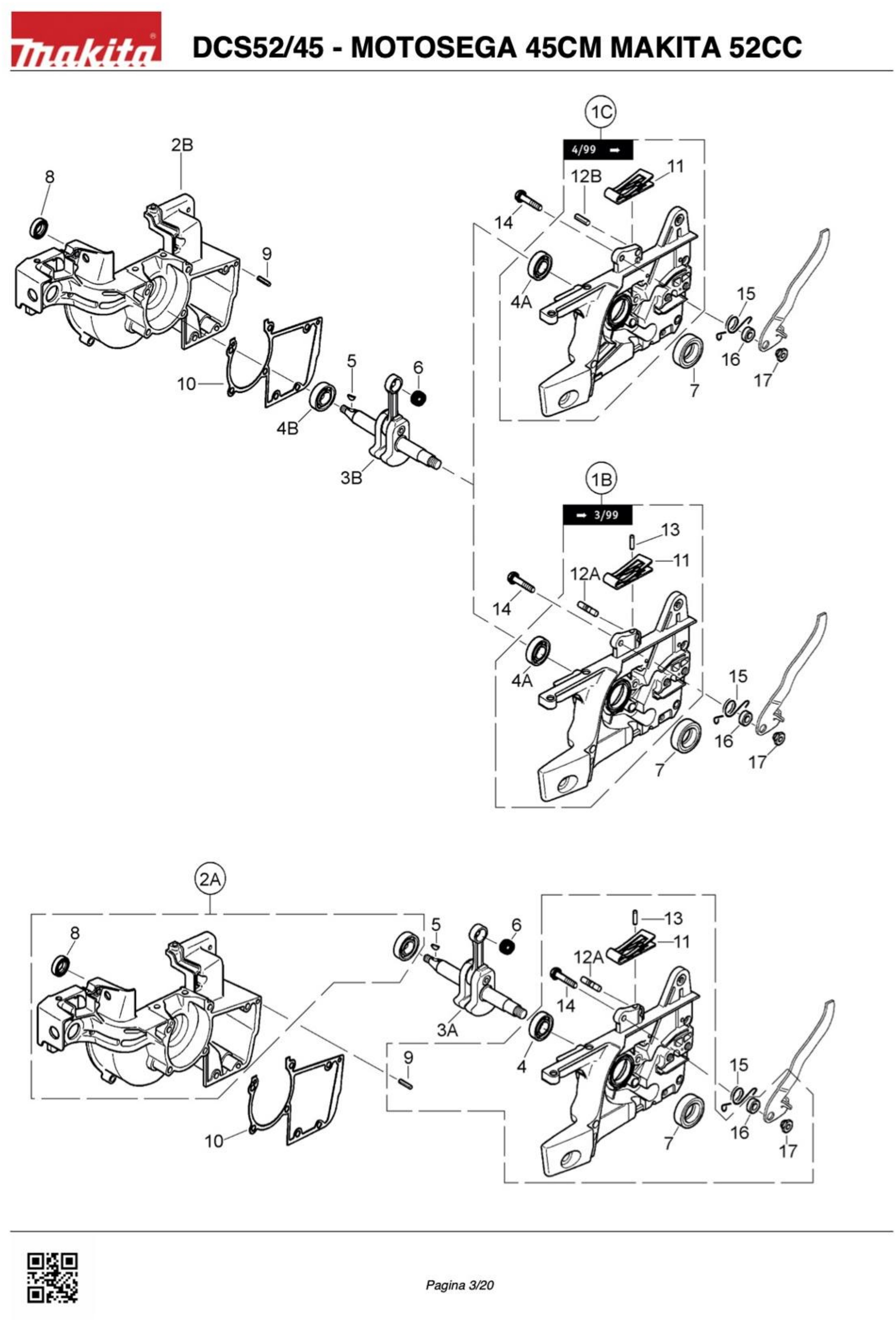

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1C	Image coming soon	020111660 CRANKCASE CLUTCH SIDE	€139.59
1B	Image coming soon	027111680 CRANKCASE CLUTCH SIDE	€123.78
2B	Image coming soon	027111640 CRANKCASE X DCS430	€139.59
3B	Image coming soon	027120010 CRANKSHAFT DCS430/431/4300I/5	€349.55
4A	Image coming soon	211154-0 BALL BEARING 6202	€6.29
4B	Image coming soon	960102131 BALL BEARING 6201	€20.92
5	Image coming soon	939620371 KEY 2X3,7 430/520/4300I/5200I/	€1.40
6	Image coming soon	962211030 NEEDLE CAGE DCS430/520/4300I/5	€9.89
7	Image coming soon	213814-0 RADIAL RING 15 / 24X7	€3.13
8	Image coming soon	213141-5 SEAL	€6.29
9	Image coming soon	258038-1 CLAMPING PIN	€1.47
10	Image coming soon	965525002 GASKET DCS430/520/4300I/5200I	€5.12
11	Image coming soon	027213320 LEAF SPRING DCS430/520/4300I/5	€3.13
12A	Image coming soon	027213230 BOLT	€6.46
12B	Image coming soon	934950160 CLAMPING SLEEVE	€1.40
14	Image coming soon	027213520 HEX HEAD SCREW DCS430/520/4300	€1.40
15	Image coming soon	027213270 SPRING DCS430/520/4300I/5200I	€2.69
16	Image coming soon	027213510 RING DCS430/520/4300I/5200I	€2.69
17	Image coming soon	027213500 SHOULDER NUT DCS430/520/4300I/	€4.43

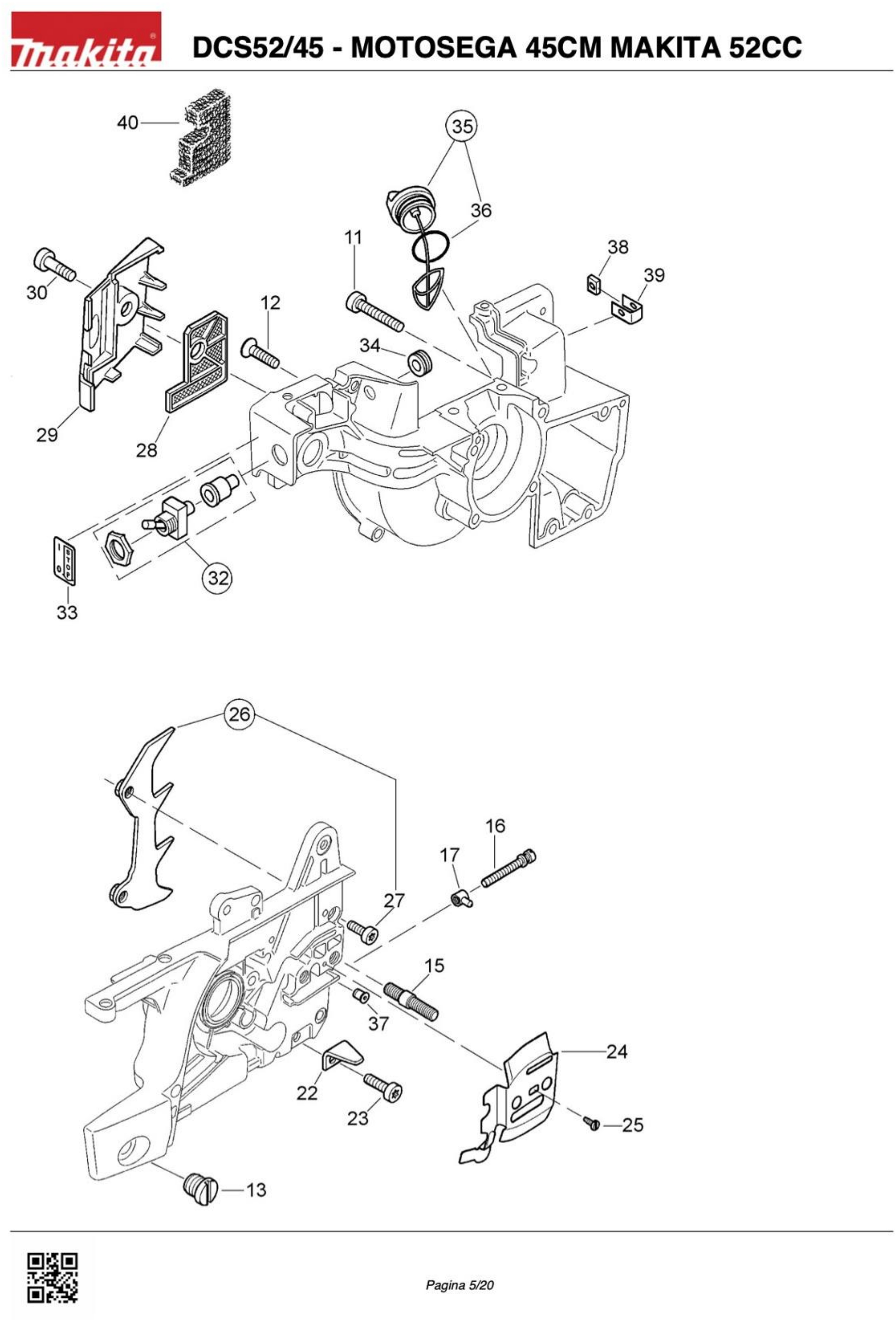

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price	Buy
11	Image coming soon	266945-4 SCREW M5X30 (TORX)	€1.40
12	Image coming soon	908105204 COUNTERSUNK SCREW M5X20	€1.36
13	Image coming soon	001111012 SCREW M12X1	€2.16
15	Image coming soon	905808305 GUDGEON M8X30 430/520/4300I/52	€2.08
16	Image coming soon	389213081 SCREW	€3.84
17	Image coming soon	001213020 NUT WITH PIVOT DCS430/520/4300	€3.13
22	Image coming soon	020111082 CHAIN CATCH 430/520/4300I/5200	€2.69
23	Image coming soon	266946-2 SCREW M5X12 (TORX)	€1.40
24	Image coming soon	020111172 GUIDE PLATE 430/520/4300I/5200	€3.84
25	Image coming soon	915135100 FILLISTER (TORX)HEAD SCREW 3,5	€1.40
26	Image coming soon	020250020 COMPLETE TOOTHED BAR	€16.65
27	Image coming soon	266474-7 SCREW M5X8 (TORX)	€1.47
28	Image coming soon	020173011 PREFILTER DCS430/520/4300I/520	€3.13
29	Image coming soon	020173612 COVER FOR PREFILTER	€3.02
30	Image coming soon	266947-0 H.L. SOCKET HEAD BOLT M5X14	€1.40
32	Image coming soon	957605112 SHORT CIRCUIT SWITCH ASSY 430/	€12.69
33		980115888 Sticky Label for Petrol Chainsaw Makita DCS52/45 - DCS5200I	€1.48
35		010114032 Oil Tank Plug Cpl. for Chainsaw Dolmar PS43/38	€10.20	Not available for order
36	Image coming soon	963100051 GASKET DCS430/520/6000I/6800I	€5.62
37	Image coming soon	010245010 AIR VENT VALVE DCS6000I/9010	€9.89
38	Image coming soon	921905004 NUT	€1.40
39	Image coming soon	020111070 CRAMP DCS430/520/4300I/5200I	€2.69

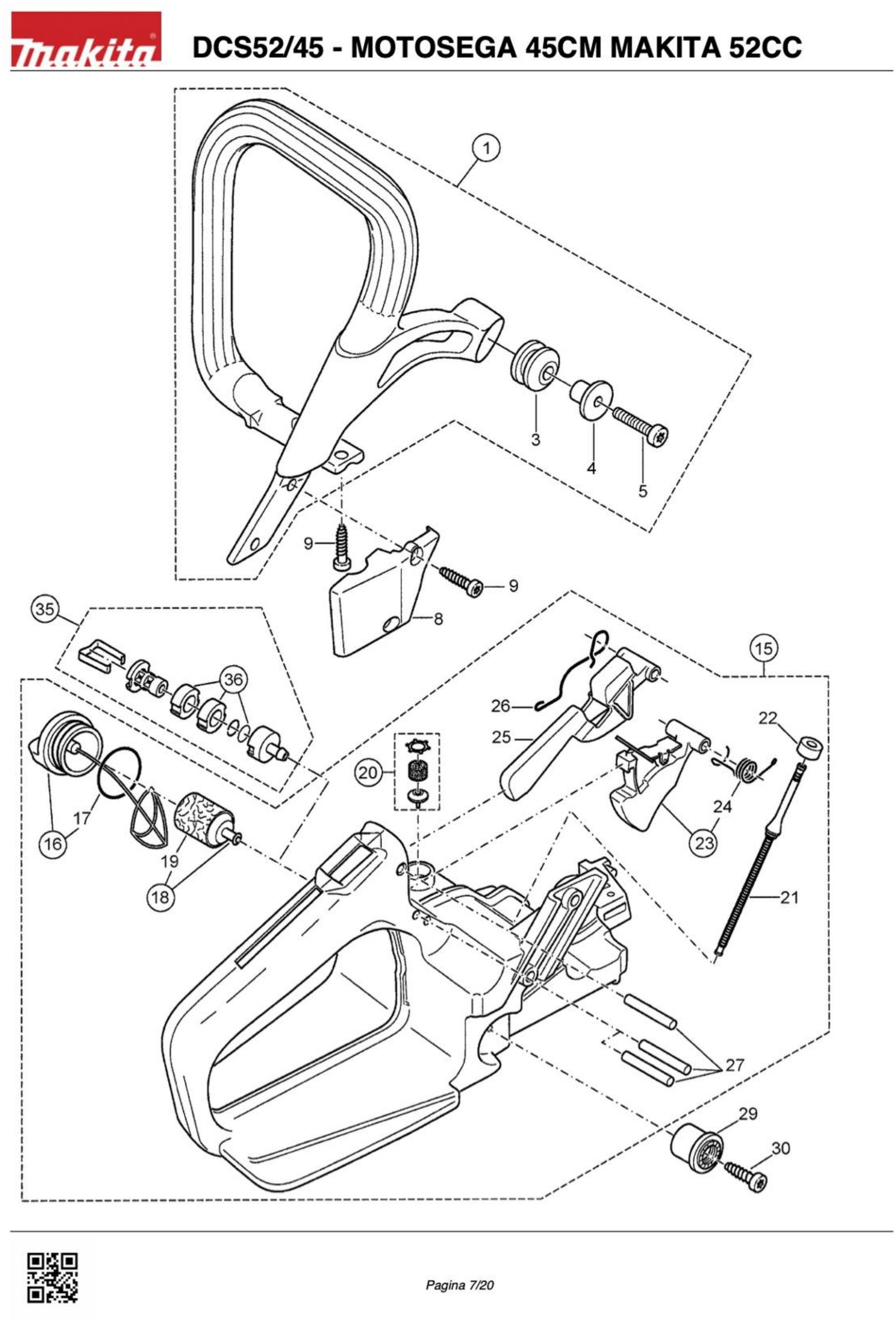

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1	Image coming soon	957310027 TUBULAR HANDLE GROUP	€73.56
3		965403491 Rubber Buffer for Petrol Chainsaw Dolmar PS45/40	€2.53
4	Image coming soon	021114051 FIXING BUSH DCS430/431/4300I/5	€2.08
8	Image coming soon	020310600 COVER DCS430/520/4300I/5200I	€3.02
9	Image coming soon	266478-9 SCREW 5,5X16 (TORX)	€1.47
16	Image coming soon	965451901 CAP ASSY DCS / PS9010	€11.07
17	Image coming soon	963232045 PACKING RING DCS430/520/4300I/	€2.09
18		163532-9 Makita EK8100WS Fuel Filter	€6.76
19	Image coming soon	963601240 FELT	€8.86
20	Image coming soon	957114011 TANK VALVE	€4.70
21	Image coming soon	965404460 FUEL LINE DCS430/520/4300I/520	€8.50
22	Image coming soon	965404521 SEAL	€2.09
23	Image coming soon	020117291 THROTTLE LEVER	€13.31
24	Image coming soon	020117273 SPRING DCS430/520/4300I/5200I	€1.40
25		020117301 Throttle Catch Lever for Chainsaw Dolmar PS43/38	€3.20
26	Image coming soon	020117160 BEND SPRING DCS430/520/4300I/5	€3.13
27	Image coming soon	935932320 CYLINDRICAL PIN DCS430/520/430	€2.08
29		965403282 Makita DCS43/38 Rubber Buffer	€7.73
30	Image coming soon	913447134 SELF-CUTTING SCREW 4,7X13 DCS4	€1.40

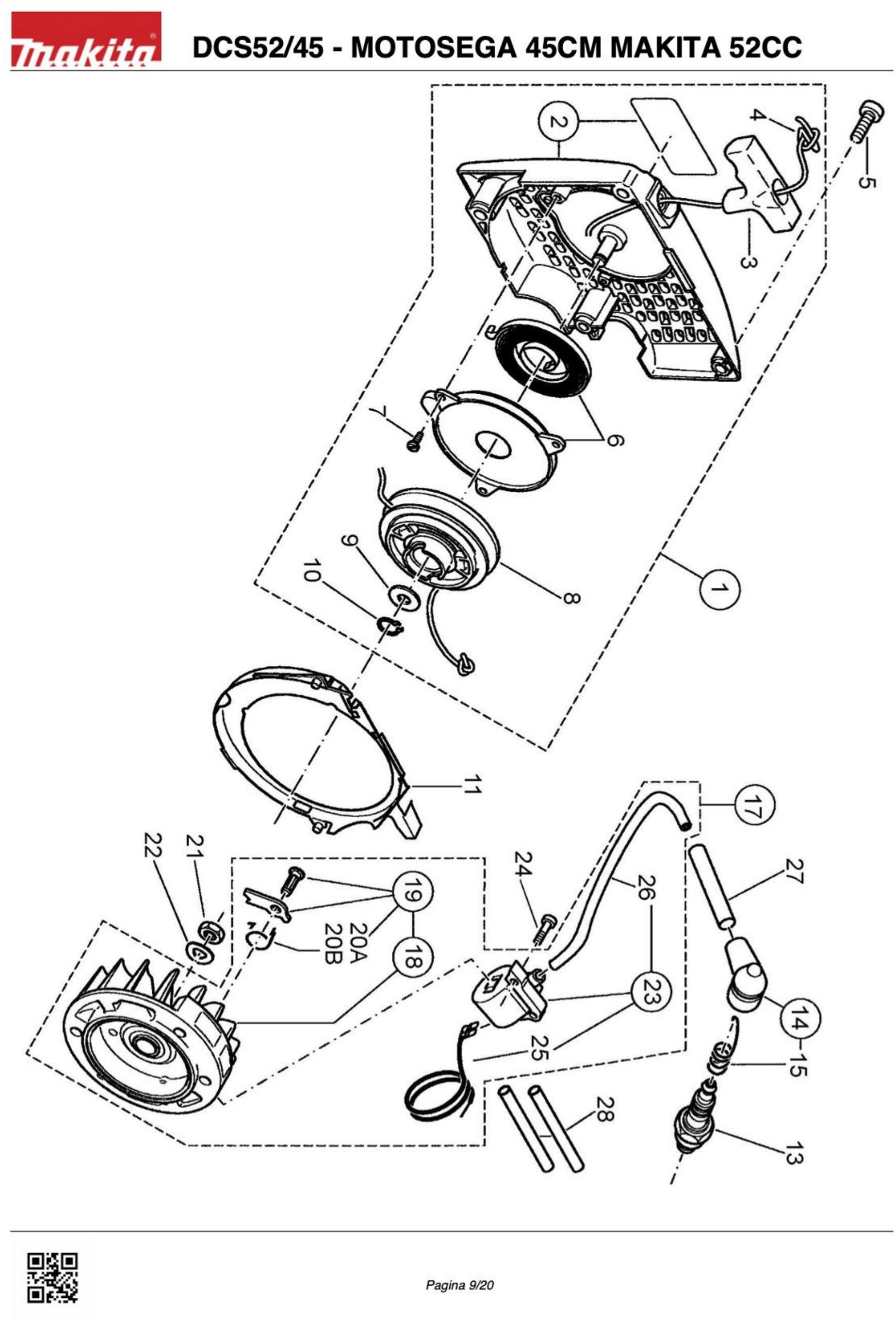

Page 5 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1		026160640 Starter Assembly for Petrol Chainsaw Makita DCS52/45	€77.36
2	Image coming soon	020112631 CASE FOR FAN	€17.22
3	Image coming soon	965402262 STARTER GRIP DCS6000I/9010	€8.50
4	Image coming soon	108164020 STARTER ROPE 38-1/2"	€8.03
5	Image coming soon	266605-8 SCREW M5X16 PS32CTLC	€1.43
6	Image coming soon	020163031 REWIND SPRING IN HOU DCS430	€11.07
8	Image coming soon	027162070 CABLE DRUM	€16.65
9	Image coming soon	924108410 WASHER 8.4	€1.69
10	Image coming soon	929108080 SAFETY DISC 8X0,8 DCS430/520/4	€1.40
11	Image coming soon	020112010 AIR DUCT DCS430/520/4300I/5200	€5.13
13	Image coming soon	168648-5 SPARK PLUG X RBC350-RBC420-PB500R	€6.05
14	Image coming soon	957604260 SPARK PLUG CAP CPL.	€4.51
15	Image coming soon	965604180 SPRING DCS330S/390/430/520/430	€2.20
17	Image coming soon	027140001 IGNITION GROUP	€174.83
18	Image coming soon	027141021 COMPLETE POLAR WHEEL	€193.46
19	Image coming soon	181166050 NOTTOLINO STARTING COMPL.	€205.23
20A	Image coming soon	122166020 SPRING 12,8 DCS430/520/4300I/5	€1.40
21	Image coming soon	264022-6 NUT	€1.43
22	Image coming soon	926208001 SPRING WASHER 8	€1.47
23	Image coming soon	020143032 IGNITION COIL (DUCATI)	€73.56
24	Image coming soon	266607-4 SCREW M5X20 PS32CTLC	€1.43
25	Image coming soon	001147000 SHORT CIRCUIT CABLE (DUCATI) 4	€9.89
26	Image coming soon	970310200 POWER CABLE 1m	€7.58
27	Image coming soon	444042-8 INSULATION TUBE PS32TCLC	€1.43
28		970502050 Insulating Hose for Chainsaw Dolmar PS43/38	€3.96

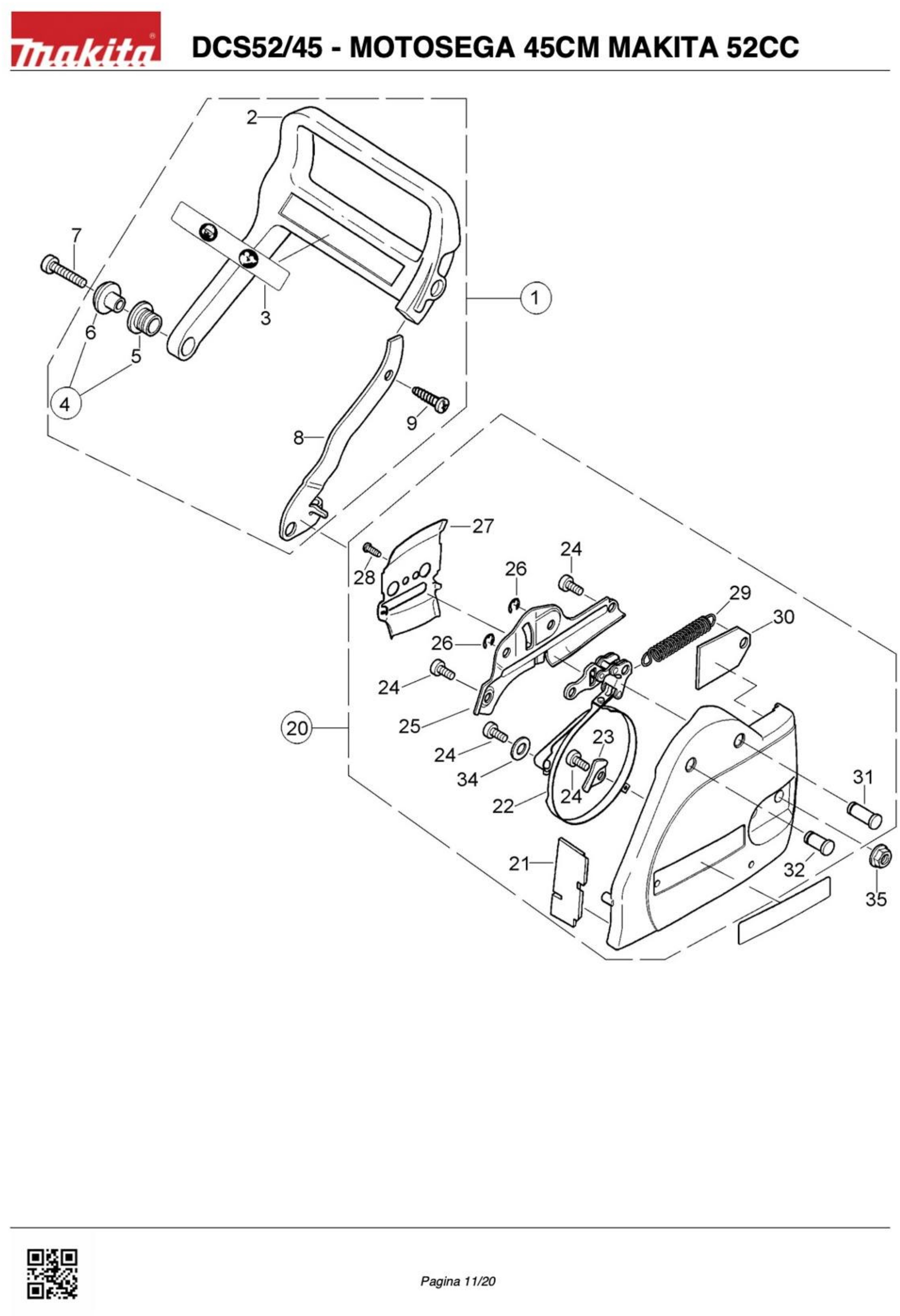

Page 6 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1	Image coming soon	027213452 HAND GUARD	€68.84
2	Image coming soon	027213462 HAND GUARD DCS430/431/4300I/52	€32.73
3	Image coming soon	810449-4 LABEL	€1.47
4	Image coming soon	027213430 SERIES OF BUSHING	€12.69
5	Image coming soon	027213150 RUBBER BUSH DCS430/520/4300I/5	€2.69
6	Image coming soon	027213161 BUSH	€7.58
8	Image coming soon	027213221 SENGAGING LEVER DCS430/520/4	€11.07
20	Image coming soon	027213652 SPROCKET GUARD ASSY	€60.56
21	Image coming soon	027213280 PROTECTION COVER DCS430/520/43	€2.08
22	Image coming soon	027213050 BRAKE SPRING WITH LEVER CPL DC	€28.31
23	Image coming soon	027213352 BRAKE SHEET	€3.66
24	Image coming soon	913205125 TAPPING LENS SCREW M5X12 DCS43	€2.08
25	Image coming soon	027213111 COVER PLATE DCS430/520/4300I/5	€5.13
26	Image coming soon	257934-0 RETAINING RING E-4 X UH6580	€1.47
27	Image coming soon	027111042 GUIDE PLATE	€2.53
29	Image coming soon	027213120 SPRING DCS430/520/4300I/5200I	€2.69
30	Image coming soon	027213560 RUBBER PLATE	€1.40
31	Image coming soon	027213130 SHAFT FOR BRAKE LEVER DCS430/5	€2.69
32	Image coming soon	027213140 SHAFT FOR LEVER DCS430/520/430	€2.69
34	Image coming soon	924500049 WASHER DCS430/520/4300I/5200I	€1.40
35		264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45	€1.48

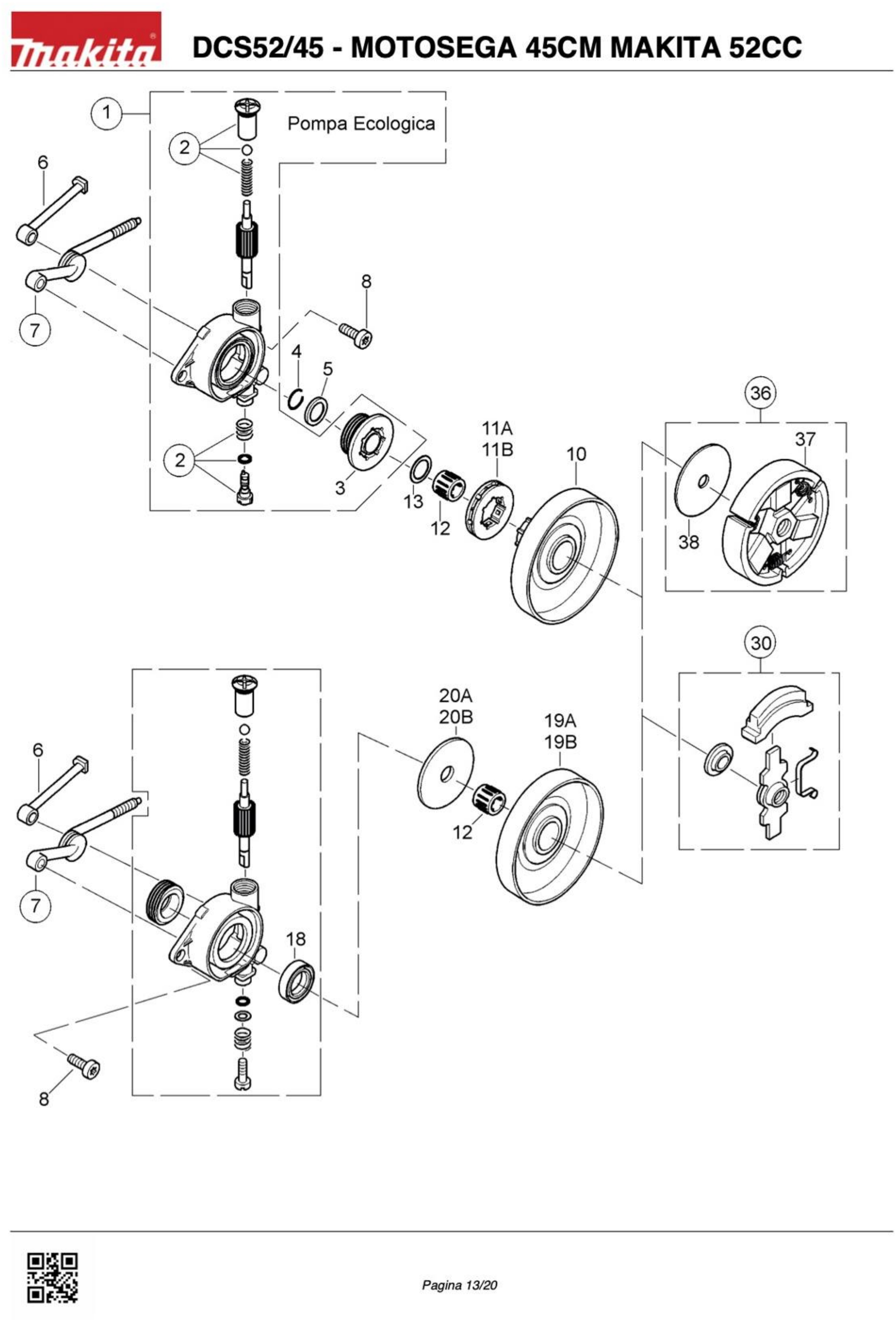

Page 7 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1		027245161 Oil Pump Assy for Chainsaw Dolmar PS43/38	€88.72
2		030245070 Oil Pump Repair Kit for Chainsaw Dolmar PS43/38	€22.12
3		027245010 Worm Screw for Chainsaws Makita DCS43/38	€16.31
4	Image coming soon	234366-8 SNAP RING A 1616X1	€2.50
5	Image coming soon	346872-2 SNAP RING	€3.13
6		020245020 Oil Pressure Line for Chainsaw Dolmar PS43/38	€4.50
7		020245041 Oil Suction Line for Chainsaw Dolmar PS43/38	€10.07
10	Image coming soon	027223101 CLUTCH DRUM	€28.31
11A		020224070 Rim Sprocket .325" for Chainsaw Dolmar PS43/38	€10.10
11B	Image coming soon	026224010 PINION 3/8 "	€10.09
12	Image coming soon	962210025 NEEDLE CAGE DCS430/520/4300I/5	€8.50
13	Image coming soon	027245021 STOP DISC DCS430/431/4300I/520	€3.02
30	Image coming soon	957180030 CLUTCH GROUP 109-115	€32.73
37	Image coming soon	181184020 TENSION SPRING	€2.69

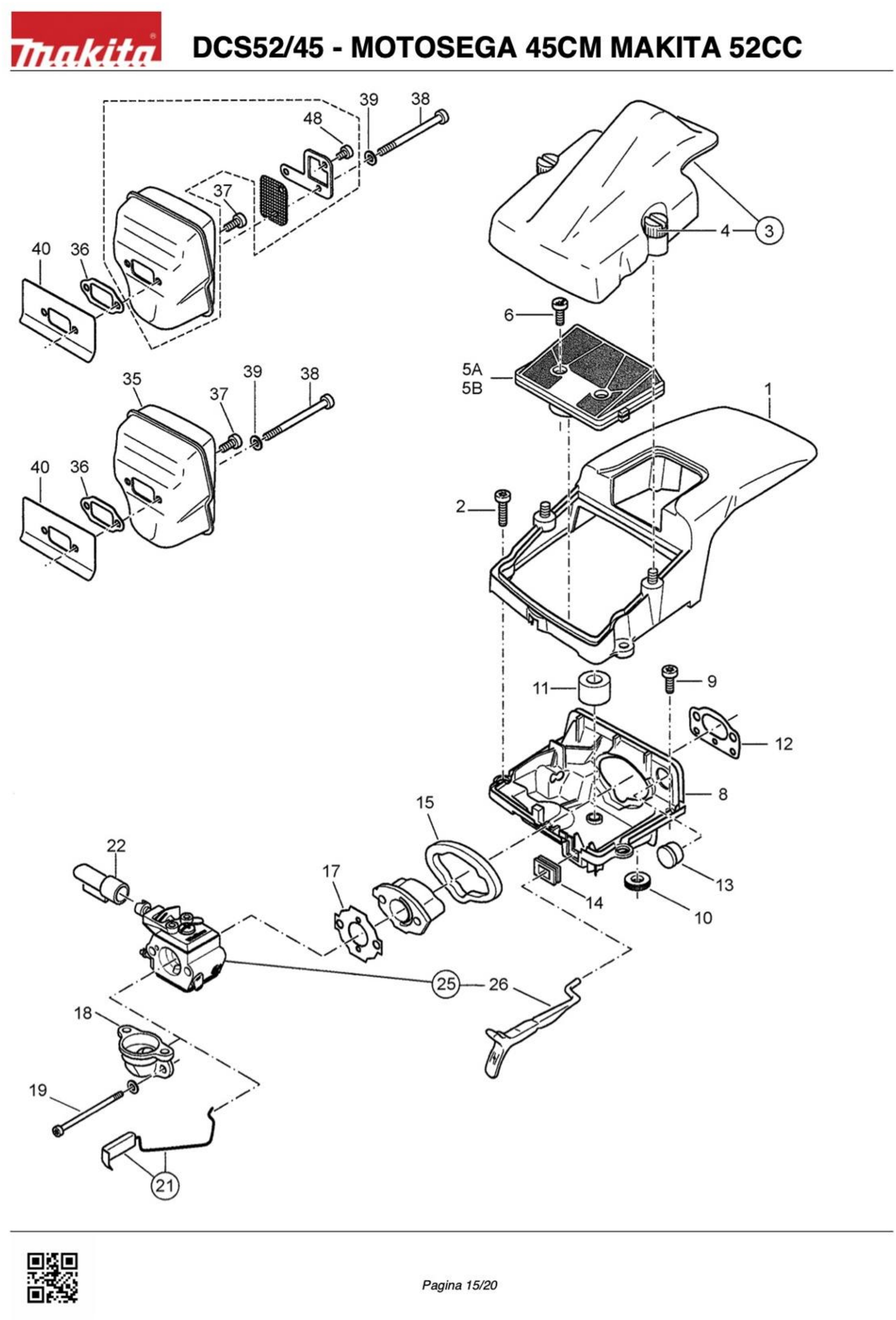

Page 8 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1	Image coming soon	027118155 COMPLETE FILTER CASING	€32.28
3	Image coming soon	020118121 COMPLETE CARTER	€16.65
4	Image coming soon	001118062 NUT	€3.84
5A	Image coming soon	020173202 AIR FILTER CPL (NYLON) DCS430/	€32.73
5B	Image coming soon	020173300 COMPLETE AIR FILTER	€17.22
8	Image coming soon	027118010 FUND	€44.74
10	Image coming soon	965401024 RUBBER BUSH DCS430/520/4300I/5	€3.13
11	Image coming soon	965404780 GASKETDCS430/431/4300I/520/52	€2.69
12	Image coming soon	965525032 GASKET DCS4320/520/4300I/5200I	€3.13
13	Image coming soon	965404230 'PLUG (CARBURETOR HEATING) DCS	€1.40
14		965404410 Rubber Bush for Chainsaw Dolmar PS43/38	€2.33
15	Image coming soon	965404341 GASKET	€1.40
17		965524023 Thermal Flange Gasket for Chaisaw Dolmar PS3400TH/30	€4.80
18	Image coming soon	020171100 CONNECTING MUFF DCS430/520/430	€7.58
19	Image coming soon	908205658 'FILLISTER HEAD SCREW M5X65	€3.13
21	Image coming soon	020117281 THROTTLE LINKAGE CO DCS430/52	€7.58
22	Image coming soon	020118030 GUIDE PIECE	€2.08
25	Image coming soon	957151102 CARBURETOR WT-76 COMPLETE PS52	€106.81
26	Image coming soon	027150840 AIR VALVE LEVER PS52	€3.46
35	Image coming soon	020174160 MUFFLER	€40.40
36	Image coming soon	346304-9 SEAL MUFFLER PS32CTLC	€1.43
38	Image coming soon	908205625 FILLISTER HEAD SCREW M5X62	€2.08
39	Image coming soon	267821-5 SPRING WASHER 5	€1.47

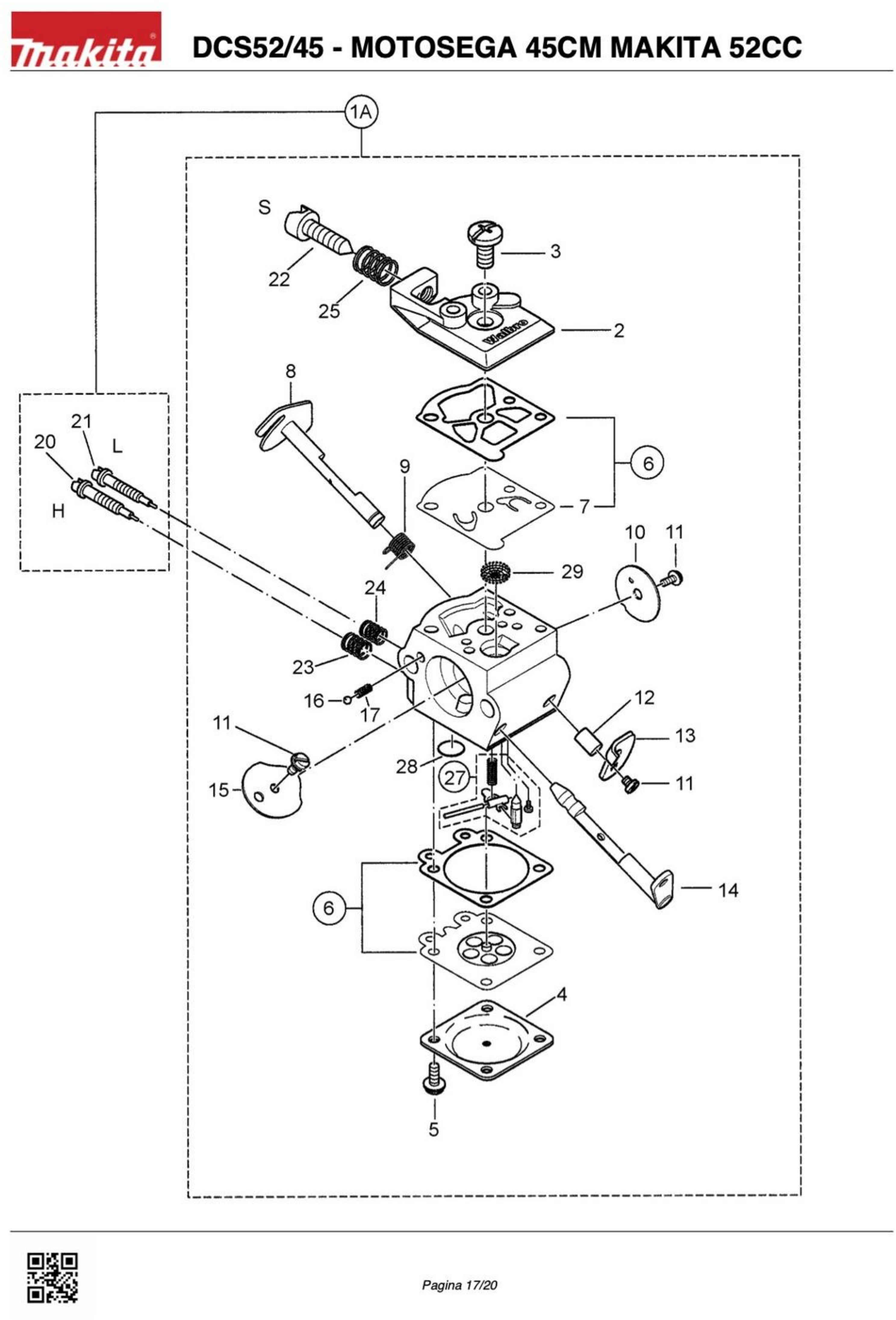

Page 9 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
6	Image coming soon	021151540 GASKETS SERIES	€24.36
7	Image coming soon	021151150 PUMP DIAPHR RUBBER DCS430/431/	€11.07
9	Image coming soon	001151310 SPRING DCS330S/390/430/520/DCS	€2.69
21	Image coming soon	001151470 IDLING ADJUSTM.SCREW (L) 330S/	€9.89
24	Image coming soon	021151480 SPRING (L) DPC6430/7331/8132/	€3.14
27	Image coming soon	957150040 SET OF CONTROL PIECES 330S/390	€19.00
28	Image coming soon	144150030 COVER DISC DCS430/520	€2.69
29	Image coming soon	021151180 SCREEN	€3.85

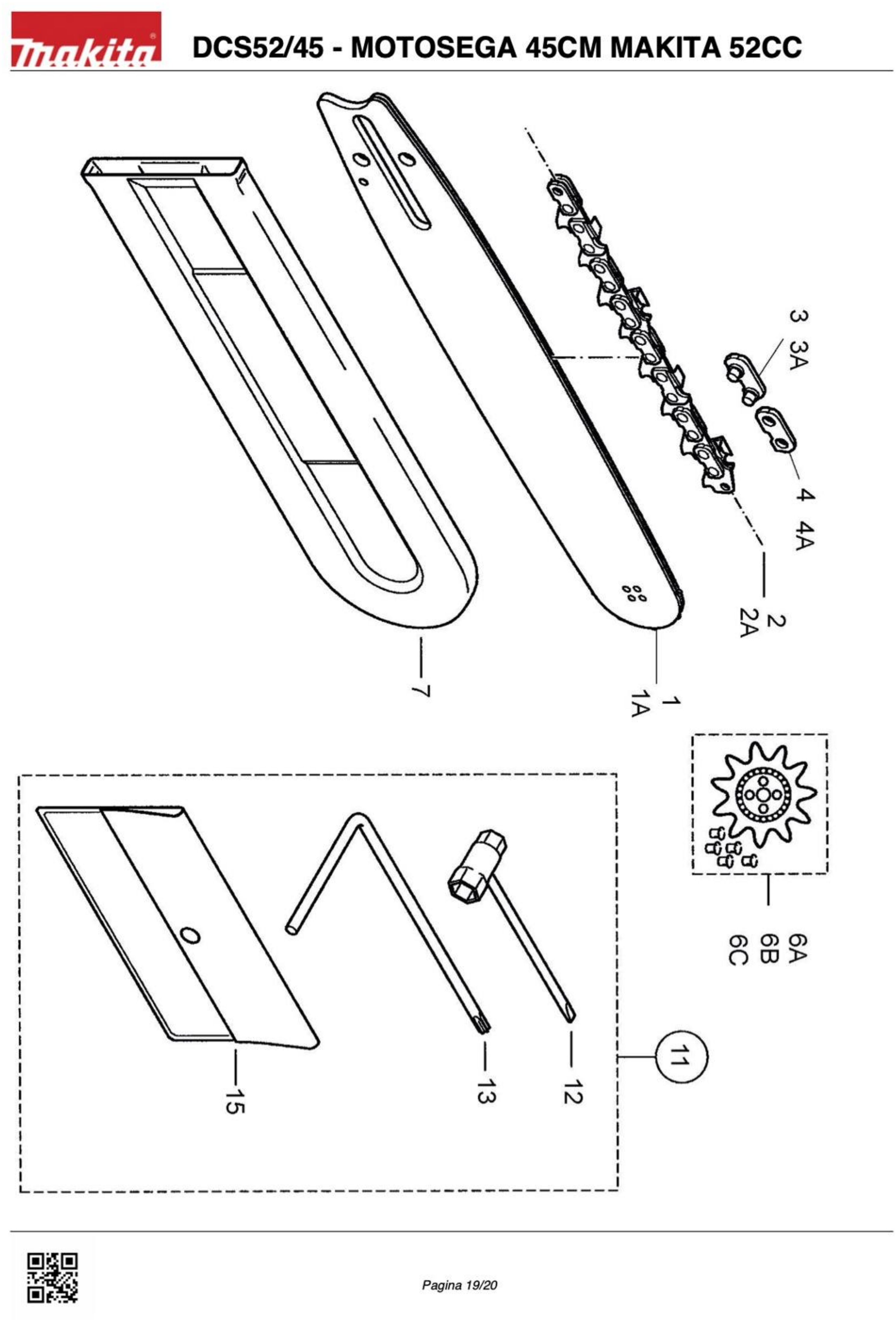

Page 10 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1	Image coming soon	445045631 45CM CHAIN BAR SP.1,5MM	€43.47
2	Image coming soon	528086772 CHAIN SAW 72	€33.94
3	Image coming soon	558083010 JERSEY JUNCTION 0.325 "	€2.08
4	Image coming soon	510086040 OUTER FLAP 0.325 "	€1.43
6B	Image coming soon	415325710 PINION BAR 0.325 "	€44.84
7	Image coming soon	952020650 BAR PROTECTION 38/45 CM	€9.52
11	Image coming soon	957004002 SERIES TOOLS DCS430	€16.96
12	Image coming soon	941719133 UNIVERSAL KEY 19/13	€5.15
13	Image coming soon	782025-3 TORX KEY	€2.18
15		950004001 Plastic Bag for Chainsaws Dolmar	€2.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chainsaw DCS52/45

Makita original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Chainsaw DCS52/45.

In the following table, look for the model of Chainsaw and the respective parts of the code.

DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.1
#	Part Num.	Description
1A	027130034	PISTON + CYLINDER CPL X 111/115
2A	027132050	PISTON DIAM. 44MM
3B	020132100	PISTON RING
4B	001132010	PISTON PIN X DCS430
5	020132050	SPRING RING C10X0,8
6	266476-3	SCREW M5X20 (TORX)
7	965525042	GASKET
10	001142012	CLAMP
11	965401011	RUBBER BUSCH
DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.2
1B	027111680	CRANKCASE CLUTCH SIDE
1C	020111660	CRANKCASE CLUTCH SIDE
2B	027111640	CRANKCASE X DCS430
3B	027120010	CRANKSHAFT CPL
4A	211154-0	BALL BEARING 6202
4B	960102131	BALL BEARING 6201
5	939620371	KEY 2.0X3.7
6	962211030	NEEDLE BEARING
7	213814-0	RADIAL GASKET 15 / 24X7
8	213141-5	OIL SEAL
9	258038-1	ELASTIC PIN
10	965525002	GASKET
11	027213320	FLAT SPRING
12A	027213230	BOLT
12B	934950160	RUBBER BUSH 5 X 16 X DCS430
14	027213520	HEX HEAD SCREW
15	027213270	SPRING
16	027213510	RING
17	027213500	NUT
DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.3
11	266945-4	SCREW M5X30 (TORX)
12	908105204	SCREW M5X20 (TORX)
13	001111012	SCREW M12X1
15	905808305	STUD M8X30
16	389213081	TENSION SCREW
17	001213020	NUT WITH PLUG
22	020111082	CHAIN CATCH
23	266946-2	SCREW M5X12 (TORX)
24	020111172	GUIDE PLATE
25	915135100	SCREW 3.5 X 9.5
26	020250020	OUTSIDE SPIKE BAR
27	266474-7	SCREW M5X8 (TORX)
28	020173011	PRE FILTER
29	020173612	PRE FILTER COVER
30	266947-0	TORX SCREW
32	957605112	SHORT CIRCUIT SWITCH ASSY
33	980115888	IGNITION LABEL
34	965401011	RUBBER BUSHING
35	010114032	OIL TANK CAP COMPL.
36	963100051	GASKET
37	010245010	VENT VALVE X PS6000I-6800I
38	921905004	NUT
39	020111070	CLAMP
40	020173061	SNOW FILTER
DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.4
1	957310027	TUBULAR HANDLE ASSY
3	965403491	RUBBER BUFFER
4	021114051	FIXING BUSHING
5	266945-4	SCREW M5X30 (TORX)
8	020310600	COVER
9	266478-9	SCREW 5,5X16 (TORX)
15	020114640	COMPLETE TANK
16	965451901	SCREW PLUG CPL DCS / PS9010
17	963232045	PACKING RING 32X4,5
18	163532-9	FILTER
19	963601240	FELT
20	957114011	TANK VALVE
21	965404460	FUEL LINE
22	965404521	GASKET
23	020117291	THROTTLE LEVER AND LEVERAGE
24	020117273	SPRING
25	020117301	HOOKING LEVER
26	020117160	SPRING
27	935932320	CYLINDRICAL PIN
29	965403282	RUBBER BUFFER
30	913447134	SCREW 4.7X13
DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.5
1	026160640	STARTER ASSY
2	020112631	CASE FOR FAN
3	965402262	STARTER HANDLE X DCS9000
4	108164020	STARTER ROPE 3,5X980MM
5	266605-8	SCREW M5X16 PS32CTLC
6	020163031	STARTER PRING
7	915135100	SCREW 3.5 X 9.5
8	027162070	CABLE DRUM ASSY
9	924108410	WASHER 8.4
10	929108080	SAFETY WASHER 8X0.8
11	020112010	AIR DUCT
13	168648-5	SPARK PLUG X RBC350-RBC420-PB500R
14	957604260	SPARK PLUG CAP
15	965604180	SPRING
17	027140001	IGNITION ASSY
18	027141021	FLY WHEEL COMPL.
19	181166050	STARTER PAWL COMPL.
20A	122166020	TORSION SPRING
21	264022-6	NUT
22	926208001	SPRING WASHER 8
23	020143032	IGNITION COIL (DUCATI)
24	266607-4	SCREW M5X20 PS32CTLC
25	001147000	SHORT CIRCUIT CABLE
26	970310200	IGNITION CABLE 1mt
27	444042-8	ISOLATING TUBE PS32TCLC
28	970502050	ISOLATING TUBE (M)
DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.6
1	027213452	HAND GUARD CPL.
2	027213462	HAND GUARD
3	810449-4	LABEL
4	027213430	BUSHING SET
5	027213150	RUBBER BUSH
6	027213161	BUSH
7	266476-3	SCREW M5X20 (TORX)
8	027213221	DISENGANGING LRVER
20	027213652	SPROCKET GUARD ASSY
21	027213280	PROTECTION COVER
22	027213050	SPRING BRAKE WITH FULL LEVER
23	027213352	BRAKE BAND HOLDER
24	913205125	SCREW 5 X 12 X DCS430
25	027213111	COVER PLATE
26	257934-0	RETAINING RING E-4 X UH6580
27	027111042	GUIDE PLATE
28	915135100	SCREW 3.5 X 9.5
29	027213120	SPRING
30	027213560	PLATE
31	027213130	SHAFT FOR LEVER
32	027213140	SHAFT FOR LEVER
34	924500049	WASHER 5,2X12X1
35	264055-1	NUT M8
DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.7
1	027245161	OIL PUMP ASSY
2	030245070	OIL PUMP REPAIR KIT
3	027245010	WORM SCREW
4	234366-8	RETAINING RING 16X1
5	346872-2	RETAINING RING
6	020245020	PRESSURE LINE FOR OIL
7	020245041	SUCTION LINE OIL
8	266946-2	SCREW M5X12 (TORX)
10	027223101	CLUTCH DRUM
11A	020224070	RIM SPROCKET .325",T=8
11B	026224010	RIM SPROCKET 3/8",T=7
12	962210025	ROLLER CAGE
13	027245021	RING
30	957180030	CLUTCH ASSEMBLY 109-115
36	957180030	CLUTCH ASSEMBLY 109-115
37	181184020	TENSION SPRING
DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.8
1	027118155	HOOD FILTER COMPLETE
2	266605-8	SCREW M5X16 PS32CTLC
3	020118121	COVER ASSY
4	001118062	NUT M5
5A	020173202	AIR FILTER ASSY (NYLON)
5B	020173300	AIR FILTER - FLOCK TYPE
6	266947-0	TORX SCREW
8	027118010	BOTTOM WITH HOOD
9	266474-7	SCREW M5X8 (TORX)
10	965401024	RUBBER BUSH
11	965404780	GASKET
12	965525032	GASKET
13	965404230	PLUG (CARBURETOR HEATING)
14	965404410	RUBBER BUSH
15	965404341	GASKET
17	965524023	GASKET
18	020171100	CONNECTION MUFF
19	908205658	FILLISTER HEAD SCREW M5X65
21	020117281	THROTTLE LINKAGE
22	020118030	GUIDE
25	957151102	CARBURETOR WT-76 COMPL.PS52
26	027150840	AIR VALVE LEVER, PS52
35	020174160	MUFFLER
36	346304-9	MUFFLER GASKET PS32CTLC
37	266474-7	SCREW M5X8 (TORX)
38	908205625	SCREW M5X62
39	267821-5	SPRING WASHER
DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.9
1A	957151102	CARBURETOR WT-76 COMPL.PS52
6	021151540	GASKET + DIAPHRAGM KIT
7	021151150	PUMP DIAPHRAGM
9	001151310	SPRING
21	001151470	IDLING ADJUSTMENT SCREW (L)
24	021151480	SPRING (L)
27	957150040	SET OF CONTROL PIECES
28	144150030	COVER WASHER
29	021151180	FUEL FILTER
DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.10
1	445045631	SPROCKET NOSE BAR 45CM THICKNESS 1,5MM
1A	445045631	SPROCKET NOSE BAR 45CM THICKNESS 1,5MM
2	528086772	SUPERGUARD CHAIN LINK 72
3	558083010	TIE STRAP WITH RIVETS 0.325 "
4	510086040	TIE STRAP 0.325"
6B	415325710	SPROCKET 0.325 "
7	952020650	CHAINSAW BAR PROTECTION 38/45 CM
11	957004002	TOOL SET DCS430
12	941719133	UNIVERSAL WRENCH 19/13
13	782025-3	TORX WRENCH
15	950004001	PLASTIC CASE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita DCS52/45

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Drawing Makita DCS52/45

Download (1.19MB)

Makita SKU: 027245010

Worm Screw for Chainsaws Makita DCS43/38

Worm Screw for Chainsaws Makita DCS43/38 Genuine part Makita, Worm Screw for Chainsaws Dolmar 109/38 - 109/45 - 110I/38 - 110I/45 - 111/38 - 111/45 - 115I/38 - 115I/45 -...

Last items in stock €16.31

Details

Makita SKU: 027245161

Oil Pump Assy for Chainsaw Dolmar PS43/38

Oil Pump Assy for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Pump Assy for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following...

on 7/10 Business Days Approx €88.72

Details

Makita SKU: 020245020

Oil Pressure Line for Chainsaw Dolmar PS43/38

Oil Pressure Line for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Pressure Line for Chainsaws PS43/38 - PS43/45 - 115I/38 - 115I/45 - PS52/45 - DCS520/45. Part...

Last items in stock €4.50

Details

Makita SKU: 020245041

Oil Suction Line for Chainsaw Dolmar PS43/38

Oil Suction Line for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Suction Line for Chainsaws PS43/38 - PS43/45 - 115I/38 - 115I/45 - PS52/45...

Last items in stock €10.07

Details

Makita SKU: 020117301

Throttle Catch Lever for Chainsaw Dolmar PS43/38

Throttle Catch Lever for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Throttle Catch Lever for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: - PS43/38 - CHAINSAW 43CC...

Last items in stock €3.20

Details

Makita SKU: 970502050

Insulating Hose for Chainsaw Dolmar PS43/38

Insulating Hose for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Insulating Hose Lenght 1 Mt, for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: - PS43/38 - CHAINSAW...

Last items in stock €3.96

Details

Makita SKU: 030245070

Oil Pump Repair Kit for Chainsaw Dolmar PS43/38

Oil Pump Repair Kit for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Pump Repair Kit, for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for...

Usually Ships in: 7/10 Business Days Approx. €22.12

Details

Makita SKU: 020224070

Rim Sprocket .325" for Chainsaw Dolmar PS43/38

Rim Sprocket .325" for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Rim Sprocket .325" ,T 8 for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for...

Last items in stock €10.10

Details

Makita SKU: 010114032

Oil Tank Plug Cpl. for Chainsaw Dolmar PS43/38

Oil Tank Plug Cpl. for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Tank Plug Cpl. for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the...

Available in 7/10 days €10.20

Details

Makita SKU: 965404410

Rubber Bush for Chainsaw Dolmar PS43/38

Rubber Bush for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Rubber Bush for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: - PS43/38 - CHAINSAW 43CC DOLMAR -...

on 7/10 Business Days Approx €2.33

Details

Makita SKU: 026160640

Starter Assembly for Petrol Chainsaw Makita DCS52/45

Starter Assembly for Petrol Chainsaw Makita DCS52/45 Genuine replacement part Makita, Starter Assembly for 2 Stroke Chainsaw Makita DCS52/45 - DCS5200I - DCS5200I/38 - DCS430.SB. Part for the following products:...

Last items in stock €77.36

Details

Makita SKU: 965403282

Makita DCS43/38 Rubber Buffer

Makita DCS43/38 Rubber Buffer Genuine part Makita, Rubber Buffer for Chainsaws Dolmar 109/38 - 109/45 - 110I/38 - 110I/45 - 111/38 - 111/45 - 115I/38 - 115I/45 -...

AVAILABLE €7.73

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Spare Parts for Chainsaw DCS52/45

Makita Spare Parts for Chainsaw DCS52/45

Makita Spare Parts for Chainsaw DCS52/45

Makita Spare Parts for Chainsaw DCS52/45

Makita Spare Parts for Chainsaw DCS52/45

Data sheet

Specific References

Download

Drawing Makita DCS52/45

You might also like

Products

News

Notes

Our company
