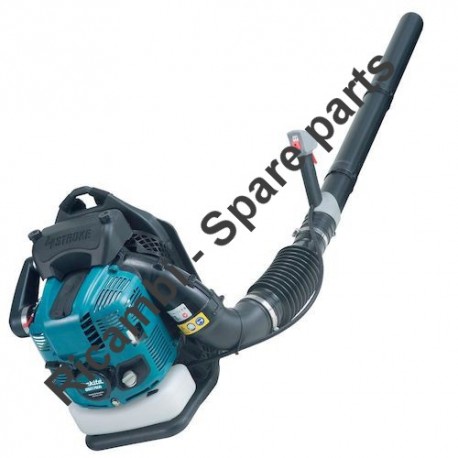

Makita Spare Parts for Petrol Blower BBX7600

SKU: Makita BBX7600
€78.40
VAT included

Makita Spare Parts for Petrol Blower BBX7600

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Petrol Blower BBX7600.
Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
  • Makita Spare Parts for Petrol Blower BBX7600
Makita

Makita Spare Parts for Petrol Blower BBX7600

SKU: Makita BBX7600 Condition: New
€78.40
VAT included

Makita Spare Parts for Petrol Blower BBX7600

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Petrol Blower BBX7600.
settings 189 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
189 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

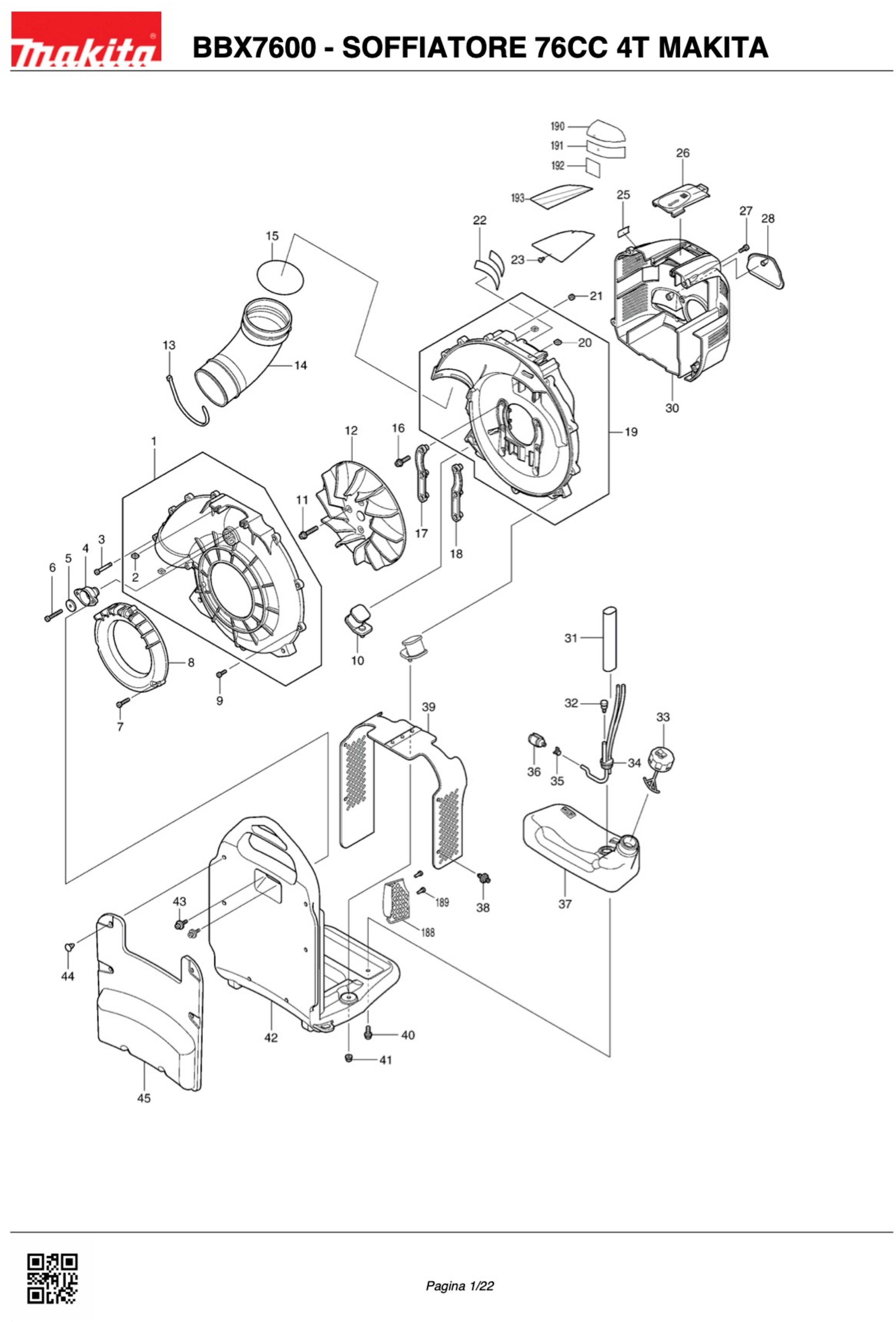

Esploso pagina 1
Pos. Item Price Buy
1
 Dolmar Volute Case Assy for PB7600.4 6671007001 Dolmar Volute Case Assy for PB7600.4 €73.80
2
 photo_cameraImage coming soon 6671005010 SQUARE NUTPB-7600.4 €1.44
3
 photo_cameraImage coming soon 0140059220 SCREW ASSY M5X65 (W.PB-7600.4 €2.16
4
 photo_cameraImage coming soon 6671002000 DAMPER 1 COMPLPB-7600.4 €13.12
5
 photo_cameraImage coming soon 0200059910 WASHER M5PB-7600.4 €1.44
6
 photo_cameraImage coming soon 0043105400 PAN HEAD SCREW M5X40 PB-7600.4 €1.44
7
 photo_cameraImage coming soon 0150059730 TAPPING SCREW 5X25 PB-7600.4 €1.44
8
 photo_cameraImage coming soon 6671001000 INLET COVER COMPLPB-7600.4 €17.21
9
 photo_cameraImage coming soon 0150059760 TAPPING SCREW 5X16BHX2500/PB-250.4 €18.84
10
 photo_cameraImage coming soon 6671003000 DAMPER 2 COMPL PB-7600.4 €11.44
11
 photo_cameraImage coming soon 0119069690 SOCKET HEAD BOLT M6XPB-7600.4 €2.77
12
 photo_cameraImage coming soon 6671004000 IMPELLER COMPL PB-7600.4 €36.97
13
 photo_cameraImage coming soon 0563379990 WIRE BAND PB-7600.4 €2.16
14
 photo_cameraImage coming soon 6671500400 ELBOW PB-7600.4 €7.84
15
 photo_cameraImage coming soon 0240989990 O RING PB-7600.4 €2.77
16
 photo_cameraImage coming soon 0119069680 SOCKET HEAD BOLT M6 X PB-7600.4 €2.16
17
 photo_cameraImage coming soon 6671500200 BASE 1 PB-7600.4 €8.78
18
 photo_cameraImage coming soon 6671500300 BASE 2 PB-7600.4 €8.78
19
 photo_cameraImage coming soon 6671008001 CASE 2 VOLUTE ASSY PB-7600.4 €88.04
21
 photo_cameraImage coming soon 0170059950 NUT M5PB-7600.4 €1.44
22
 photo_cameraImage coming soon 0736289980 CAUTION LABEL BHX2500 JA PB250.4 €5.28
23
 photo_cameraImage coming soon 0150049820 TAPPING SCREW 4X6PB-7600.4 €1.44
25
 photo_cameraImage coming soon 0736309870 LABEL (2) X BBX7600 €1.44
26
 photo_cameraImage coming soon 450964-2 CAP SPARK PLUG BHX2501 €2.16
28
 photo_cameraImage coming soon 424504-2 GARD X BBX7600/PB7600.4 €3.97
30
 photo_cameraImage coming soon 6676500804 ENGINE COVER X BBX7600 €61.86
31
 photo_cameraImage coming soon 0851159861 TUBEPB-7600.4 €3.96
32
 photo_cameraImage coming soon 168396-6 RELIEF VALVE X DCS230T €6.85
33
 photo_cameraImage coming soon 125472-9 CAP SERBATOIO CPL €10.67
34
 photo_cameraImage coming soon 0851339960 TUBEPB-7600.4 €22.27
35
 photo_cameraImage coming soon 0561059990 HOSE CLAMP XRBC230-310 / 520 €1.89
36
 Makita EK8100WS Fuel Filter 163532-9 Makita EK8100WS Fuel Filter €6.76
37
 photo_cameraImage coming soon 6673002001 FUEL TANK COMPLPB-7600.4 €30.81
38
 photo_cameraImage coming soon 458158-3 RIVET 6 €2.77
39
 photo_cameraImage coming soon 6672002000 GUARD COMPLPB-7600.4 €19.63
40
 photo_cameraImage coming soon 0043706120 SCREW ASSY M6X12 (W.PB-7600.4 €1.44
41
 photo_cameraImage coming soon 0023706000 NUT €1.44
42
 photo_cameraImage coming soon 6672001000 FRAME COMPL PB-7600.4 €95.26
43
 photo_cameraImage coming soon 0140059210 SCREW ASSY M5X16 (W.PB-7600.4 €1.44
44
 photo_cameraImage coming soon 6672500200 ROCK RIVET PB-7600.4 €2.16
45
 photo_cameraImage coming soon 6672003000 BALL BEARING €22.27
188
 photo_cameraImage coming soon 6672500400 FAN COVER €4.57
190
 photo_cameraImage coming soon 443174-8 ISALATOR LABER €5.30
191
 photo_cameraImage coming soon 443175-6 ISALATOR LABER €3.97
192
 photo_cameraImage coming soon 443176-4 ISALATOR LABER €3.24
193
 photo_cameraImage coming soon 443193-4 ISOLATOR €3.97
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

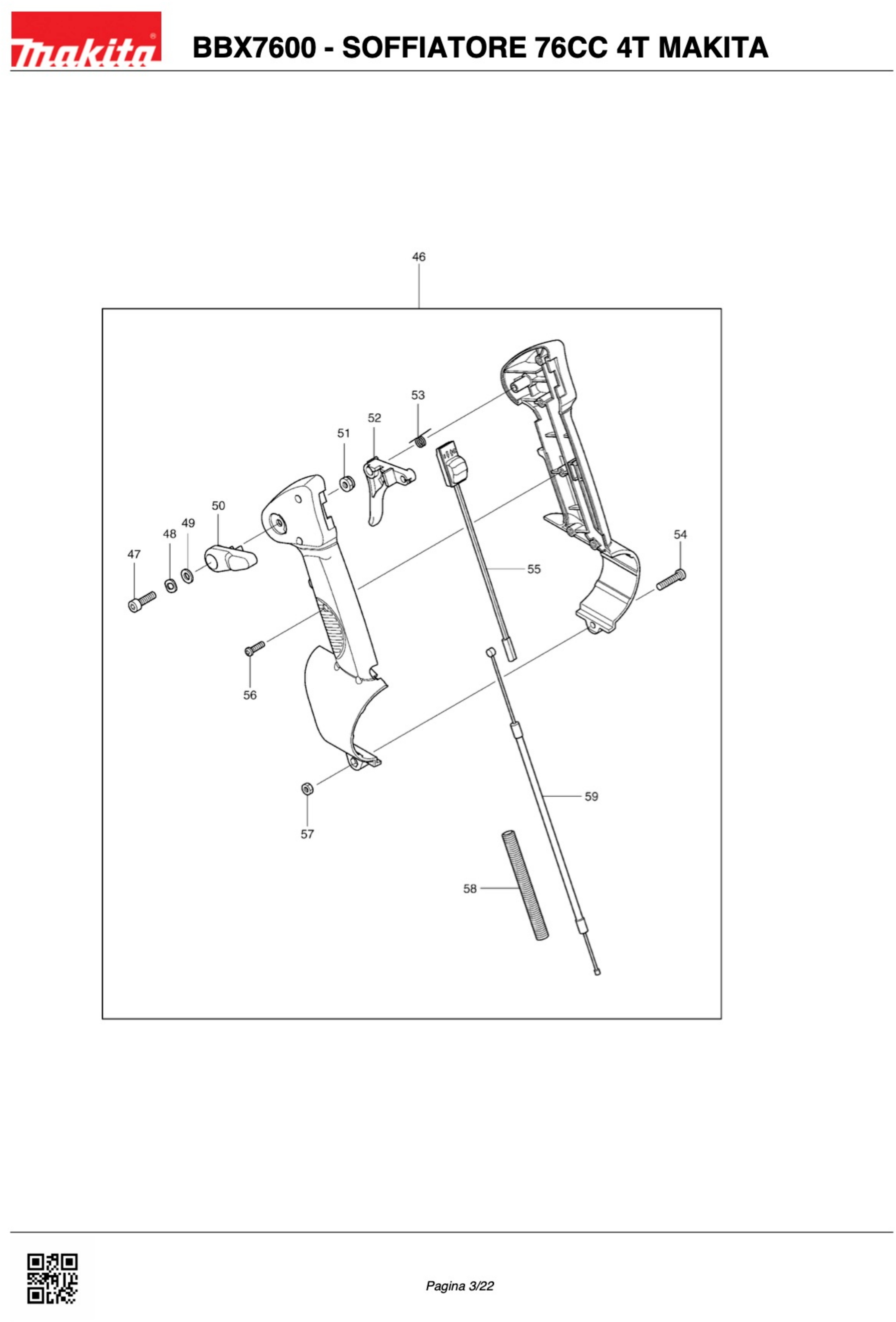

Esploso pagina 2
Pos. Item Price Buy
46
 photo_cameraImage coming soon 198218-6 CONTROL LEVER €78.40
47
 photo_cameraImage coming soon 6675001010 SOCKET HEAD BOLT M6 X PB-7600.4 €2.16
48
 photo_cameraImage coming soon 0032206000 WAVE WASHER €2.16
49
 photo_cameraImage coming soon 0031106000 WASHER €1.44
50
 photo_cameraImage coming soon 6625500701 THROTTLE LEVER 2 €10.22
51
 photo_cameraImage coming soon 0170069960 NUT €2.14
52
 photo_cameraImage coming soon 453716-0 LEVER 1 €3.24
53
 photo_cameraImage coming soon 6625500901 TORSION SPRING €3.97
54
 photo_cameraImage coming soon 6675001030 SCREW M5X25PB-7600.4 €1.44
55
 photo_cameraImage coming soon 168745-7 SWITCH €17.22
56
 photo_cameraImage coming soon 6675001020 TAPPING SCREW 4X16 PB-7600.4 €1.44
57
 photo_cameraImage coming soon 252103-8 LOCKNUT X JR3020 €3.18
58
 photo_cameraImage coming soon 453715-2 TUBE CABLE €8.78
59
 photo_cameraImage coming soon 168744-9 CONTROL CABLE €11.43
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

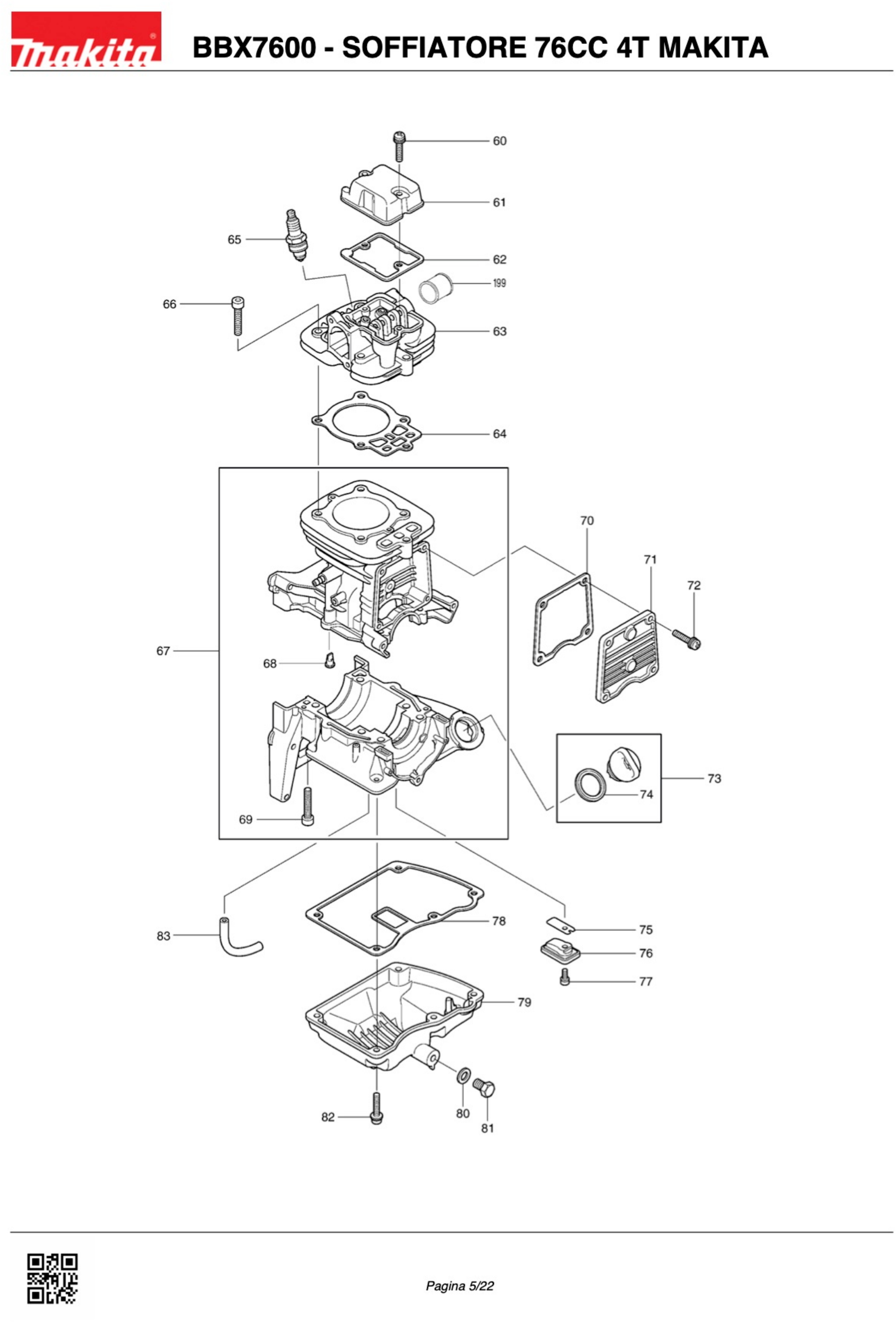

Esploso pagina 3
Pos. Item Price Buy
60
 photo_cameraImage coming soon 0043605300 SCREW ASS Y €1.89
61
 photo_cameraImage coming soon 141771-1 COFORCHIO HEAD €17.22
62
 photo_cameraImage coming soon 5971500900 GASKET HEAD €2.77
63
 Head Ass'y for Blower Dolmar PB7600.4 126943-9 Head Ass'y for Blower Dolmar PB7600.4 €153.26
64
 photo_cameraImage coming soon 442167-2 CYLINDER HEAD GASKET €5.30
65
 photo_cameraImage coming soon 0650109950 SPARK PLUG CMR6A X MS251.A €12.34
66
 photo_cameraImage coming soon 0119069670 SOCKET HEAD BOLT M6XPB-7600.4 €1.44
67
 photo_cameraImage coming soon 135739-7 CYLINDER €160.34
68
 photo_cameraImage coming soon 424201-0 CONTROL VALVE EBH341U €3.28
69
 photo_cameraImage coming soon 0119069930 HEX. SOCKET HEAD BOLT M6X30 €2.14
70
 photo_cameraImage coming soon 442168-0 GASHET COVER SIDE X BBX7600 €3.24
71
 photo_cameraImage coming soon 5971500600 CAMGEAR COVERPB-7600.4 €5.30
72
 photo_cameraImage coming soon 0119059531 SCREW M5 X 16 X MS351-4U €2.14
73
 photo_cameraImage coming soon 6676005000 CAP TANK OIL FOR BBX7600 €4.57
74
 photo_cameraImage coming soon 0213229980 GASKETPB-7600.4 €2.77
75
 photo_cameraImage coming soon 5921501000 PLATE X MS251.4 €7.06
76
 photo_cameraImage coming soon 5931501300 RETAINING PLATE X BBX7600 €3.97
77
 photo_cameraImage coming soon 0119049980 SOCKET HEAD BOLT M4XBHX2500/PB-250.4 €1.89
78
 photo_cameraImage coming soon 5976500100 GASKET X BBX7600 €4.57
79
 photo_cameraImage coming soon 5976500000 OIL CASEPB-7600.4 €13.12
80
 photo_cameraImage coming soon 0037008000 ALUMINUM GASKETPB-7600.4 €2.16
81
 photo_cameraImage coming soon 0016608120 BOLT M8 × 12PB-7600.4 €1.44
82
 photo_cameraImage coming soon 0140059680 SCREW M5X25 €1.44
83
 photo_cameraImage coming soon 0851109960 TUBEPB-7600.4 €2.16
199
 photo_cameraImage coming soon 331937-3 SPACER €2.16
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

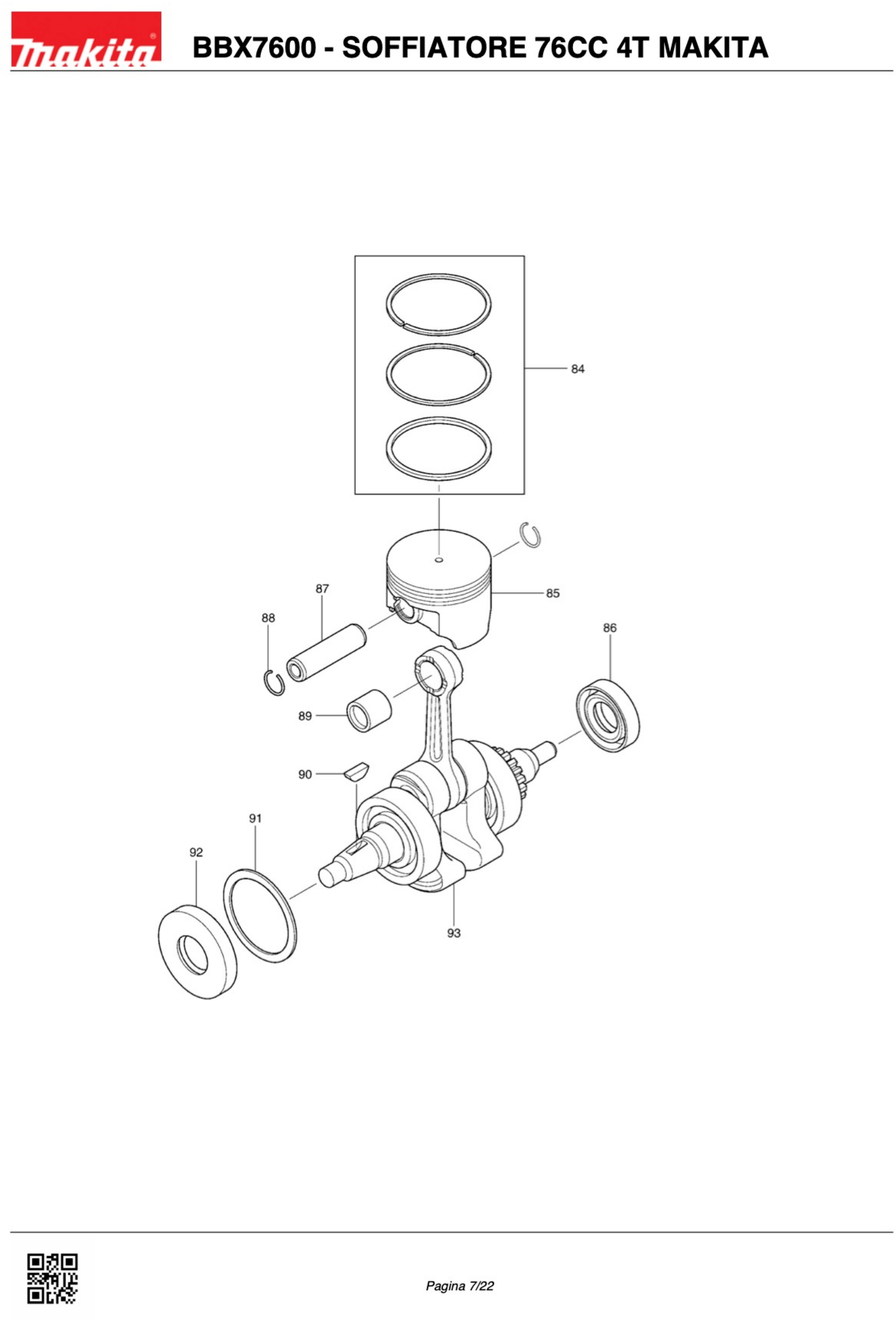

Esploso pagina 4
Pos. Item Price Buy
84
 photo_cameraImage coming soon 197040-8 PISTON RING €22.27
85
 photo_cameraImage coming soon 197456-7 PISTON €36.97
86
 photo_cameraImage coming soon 213091-4 OIL SEAL 17 €6.86
87
 photo_cameraImage coming soon 326039-8 PISTON PIN €3.24
88
 photo_cameraImage coming soon 233995-4 RING PISTON PIN €1.43
89
 photo_cameraImage coming soon 0610129940 NEEDLE ROLLER BEARING PB-7600.4 €6.14
90
 photo_cameraImage coming soon 0323049950 WOODRUFF KEY €2.72
91
 photo_cameraImage coming soon 267448-1 WASHER 41 €2.16
92
 photo_cameraImage coming soon 213090-6 OIL SEAL (L) €5.30
93
 photo_cameraImage coming soon 126576-0 SHAFT CPL €144.68
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

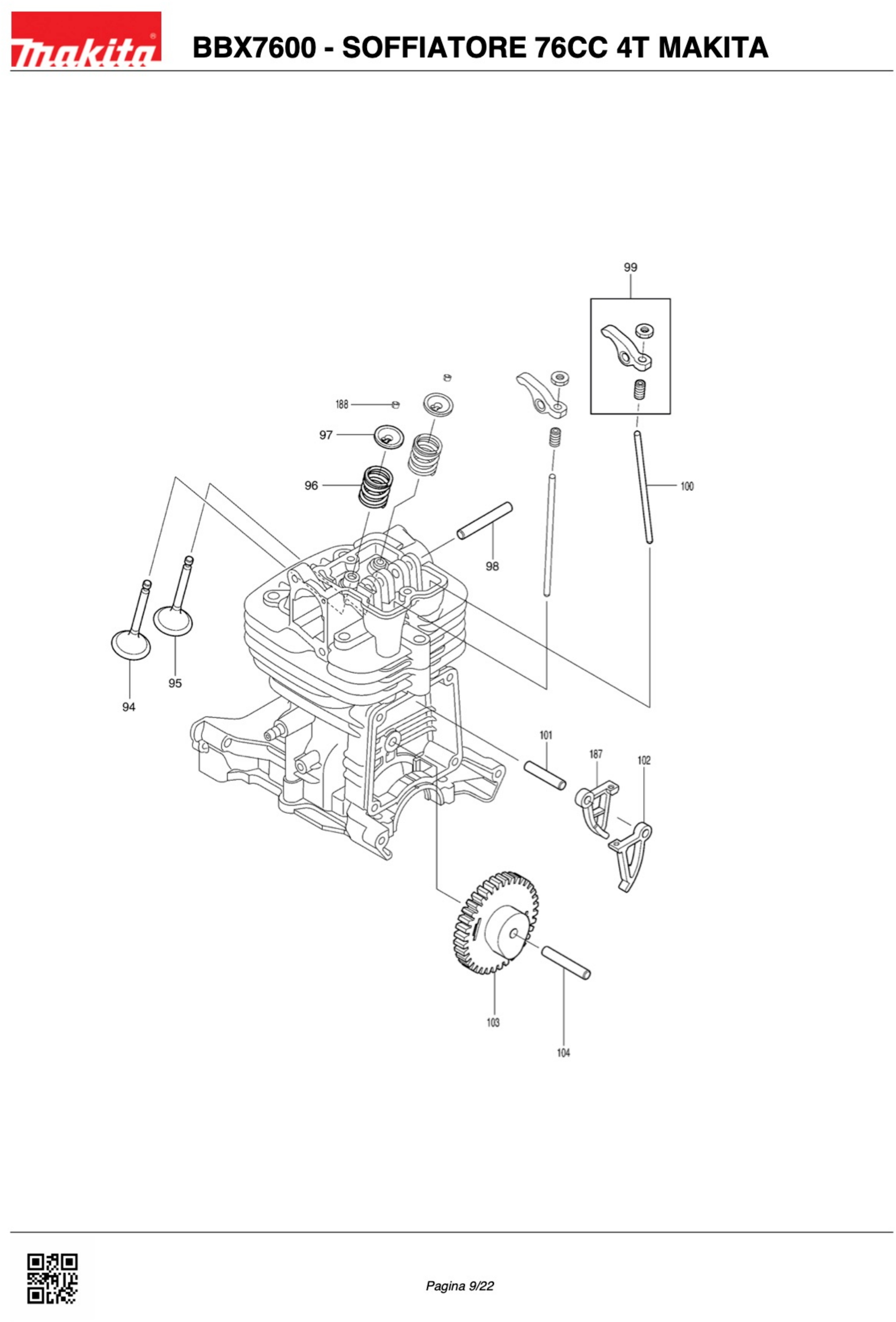

Esploso pagina 5
Pos. Item Price Buy
94
 photo_cameraImage coming soon 331964-0 INTAKE VALVE €14.81
95
 photo_cameraImage coming soon 331965-8 EXHAUST VALVE €19.63
96
 photo_cameraImage coming soon 234212-5 VALVE SPRING €1.44
97
 photo_cameraImage coming soon 331966-6 COVER MOL. VAL. €2.16
98
 photo_cameraImage coming soon 268310-3 PIN 5 €1.44
99
 photo_cameraImage coming soon 126005-3 ROCKER X BBX7600 / PB7600.4 €13.12
100
 photo_cameraImage coming soon 256526-2 ROD X BBX7600 / PB7600.4 €2.30
101
 photo_cameraImage coming soon 5973500700 SHAFTPB-7600.4 €2.16
102
 photo_cameraImage coming soon 310715-4 BALANCER X BBX7600/PB7600.4 €2.16
103
 photo_cameraImage coming soon 126622-9 GEAR CAM €25.17
104
 photo_cameraImage coming soon 256200-2 PIN 5 PER 2704 €1.46
187
 photo_cameraImage coming soon 313267-4 CAM LIFTER R €5.30
188
 photo_cameraImage coming soon 331967-4 FREEZE €1.44
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
105
 Recoil Startrer Ass'y for Blower Dolmar PB7600.4 5975001000 Recoil Startrer Ass'y for Blower Dolmar PB7600.4 €29.47
106
 photo_cameraImage coming soon 5975500000 PULLEY AVV.X BBX7600 €10.22
107
 photo_cameraImage coming soon 266585-8 SCREW 5X12 EBH252L €2.18
108
 photo_cameraImage coming soon 5975002040 COLLARPB-7600.4 €2.16
109
 photo_cameraImage coming soon 5975002050 SWING ARMPB-7600.4 €2.16
110
 photo_cameraImage coming soon 5975002030 FRICTION SPRING PB-7600.4 €2.77
111
 photo_cameraImage coming soon 5315001030 STOP X RBC415 €5.28
112
 photo_cameraImage coming soon 5315001020 STARTING KNOB X RBC 310 €10.49
113
 photo_cameraImage coming soon 5975002110 STARTER ROPE PB-7600.4 €7.84
114
 photo_cameraImage coming soon 5975002020 REELPB-7600.4 €5.30
115
 photo_cameraImage coming soon SG00000014 STARTER SPRING EM4351UH €19.54
116
 photo_cameraImage coming soon 0140059360 SCREW X MS254C-MS254U €1.40
117
 photo_cameraImage coming soon 6679500702 MODEL LABEL BBX7600 / PB7600.4 €7.61
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

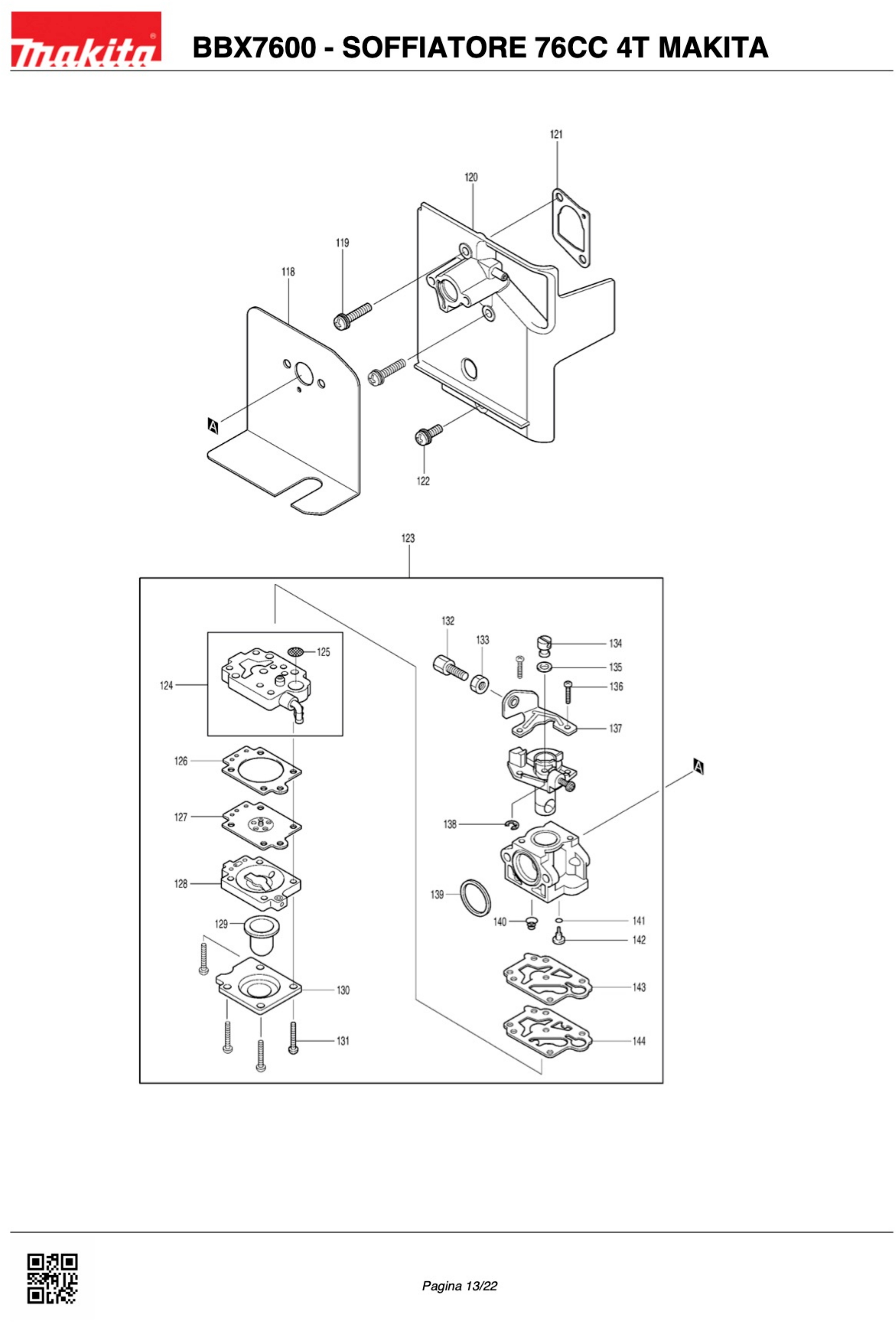

Esploso pagina 7
Pos. Item Price Buy
118
 photo_cameraImage coming soon 5973501200 CARBURETOR GASKET PB-7600.4 €3.24
119
 photo_cameraImage coming soon 0119059640 BOLT M5X25 X RBC415 €3.13
120
 photo_cameraImage coming soon 453858-0 MUFFLER GUARD €8.78
121
 photo_cameraImage coming soon 162333-2 ISOLATOR PLATE X BBX7600 €3.25
122
 photo_cameraImage coming soon 0043605140 SCREW M5X14 X RBC225-255 €1.89
123
 photo_cameraImage coming soon 5976001000 CARBURETORPB-7600.4 €95.26
124
 photo_cameraImage coming soon 5976001010 BODY PUMP ASSEMBLY PB-7600.4 €29.27
125
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
126
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
127
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
128
 photo_cameraImage coming soon 5236046140 BODY X MS251.4 €55.95
129
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
130
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
131
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
132
 photo_cameraImage coming soon 5216008010 CABLE ADJUST SCREW X RBC260 310 €5.43
133
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
134
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
135
 photo_cameraImage coming soon 5426005030 WASHER X-RBC350 RBC420 €7.06
137
 photo_cameraImage coming soon 5236052020 CABLE SUPPORT RBC350-RBC420 €25.16
138
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
139
 photo_cameraImage coming soon 5236018020 GASKET FOR RBC 260/230 / 310 €5.43
140
 photo_cameraImage coming soon 5926002020 SPRING PUMP X MS251.4 €10.46
141
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
142
 photo_cameraImage coming soon 5976001020 JET Ä60PB-7600.4 €5.30
143
 Makita EBH341U Pump Gasket 442155-9 Makita EBH341U Pump Gasket €4.06
144
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50

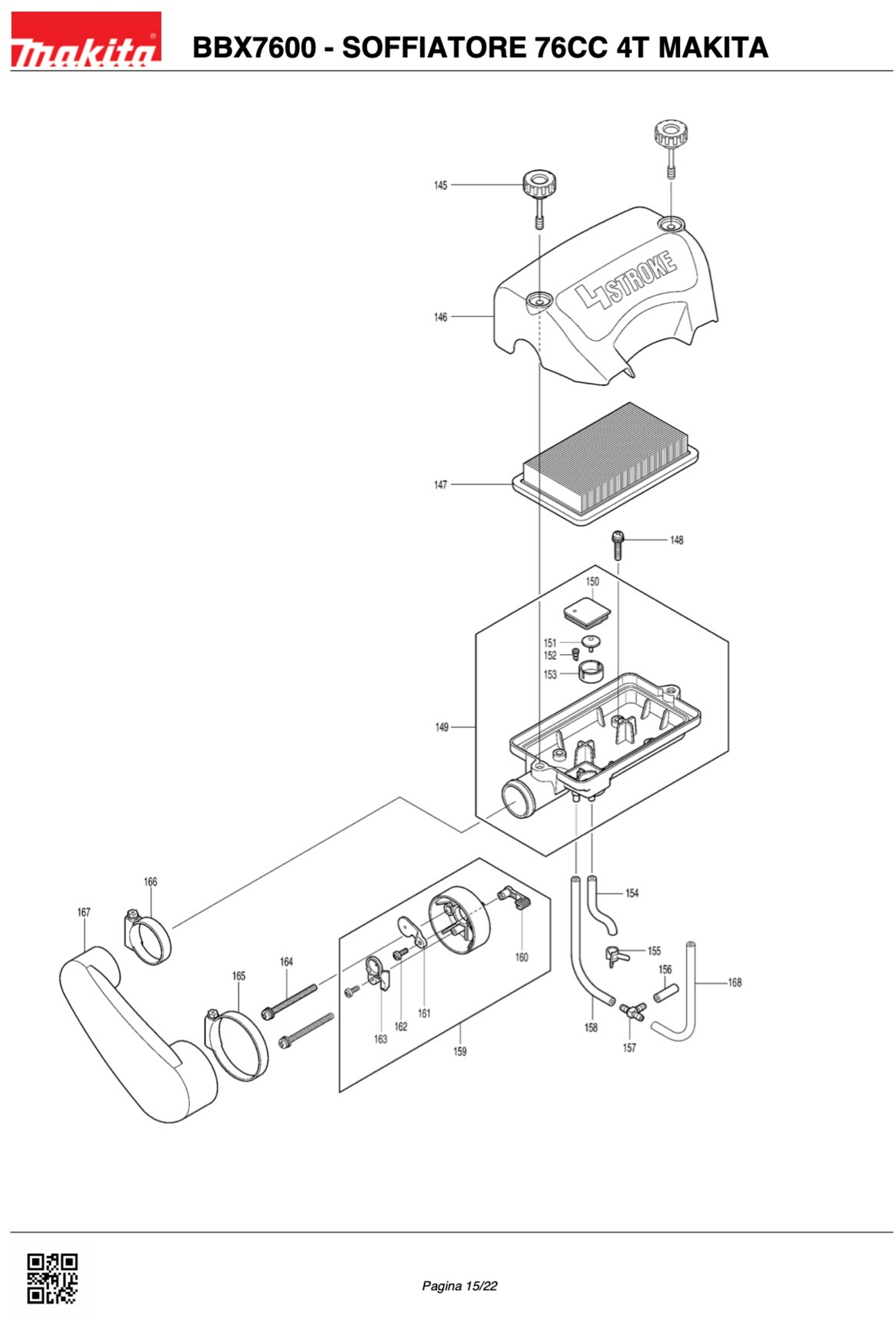

Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 8
Pos. Item Price Buy
145
 photo_cameraImage coming soon 6676501200 KNOB BOLT PB-7600.4 €5.30
146
 photo_cameraImage coming soon 6676002002 AIR COVER CLEANER PB-7600.4 €17.21
147
 photo_cameraImage coming soon 6676500201 AIR ELEMENT CLEANE RPB-7600.4 €17.21
148
 photo_cameraImage coming soon 0043605160 SCREW M 5 X 16 X MS251.4 €1.89
149
 photo_cameraImage coming soon 126377-6 CASING AIR FILTER €33.85
150
 photo_cameraImage coming soon 6676501300 SEPARATOR PLATEPB-7600.4 €5.30
151
 photo_cameraImage coming soon 424315-5 CHECK VALVE EBH251L/341U €1.44
152
 photo_cameraImage coming soon 424316-3 VALVE EBH341U €5.38
153
 photo_cameraImage coming soon 6676500500 CHECK PLATE VALVE PB-7600.4 €2.77
154
 photo_cameraImage coming soon 412129-4 TUBE 3-105 X EM4350RH €2.03
155
 photo_cameraImage coming soon 282027-4 CLAMP TUBE €2.77
156
 photo_cameraImage coming soon 0851029930 TUBEPB-7600.4 €1.44
157
 photo_cameraImage coming soon 452952-5 JOINT CPL X BBX7600 €2.77
158
 photo_cameraImage coming soon 0851199960 TUBE PB-7600.4 €2.77
159
 photo_cameraImage coming soon 5973006000 INTAKE CASE ASSY PB-7600.4 €6.86
160
 photo_cameraImage coming soon 458169-8 AIR LEVER €2.16
161
 Choke Plate for Sprayer Dolmar SP-7650.4R 458166-4 Choke Plate for Sprayer Dolmar SP-7650.4R €2.40
162
 photo_cameraImage coming soon 5973006010 TAPPING SCREW 4X12PB-7600.4 €1.44
163
 photo_cameraImage coming soon 5973501900 INTAKE PLATE PB-7600.4 €2.16
164
 photo_cameraImage coming soon 0043605650 SCREW M5X65 €2.77
165
 photo_cameraImage coming soon 0561679990 HOSE CLAMP PB-7600.4 €4.57
166
 photo_cameraImage coming soon 0561439990 HOSE CLAMP PB-7600.4 €3.96
167
 photo_cameraImage coming soon 6676500400 AIR DUCT CLEANER PB-7600.4 €14.81
168
 photo_cameraImage coming soon 412122-8 TUBE 3-240 €3.97

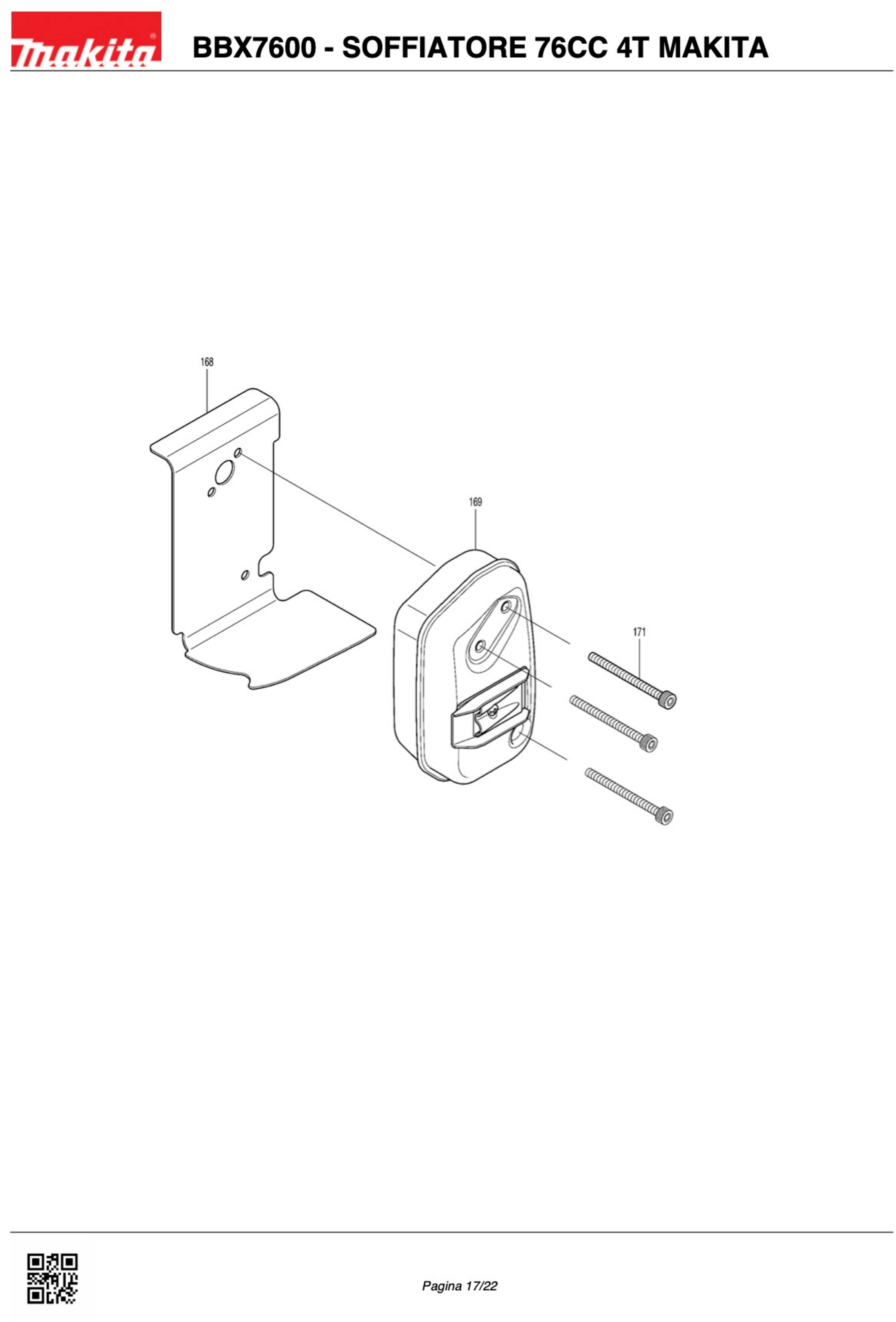

Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 9
Pos. Item Price Buy
168
 photo_cameraImage coming soon 5973501302 ISOLATOR GASKET €14.81
169
 photo_cameraImage coming soon 168807-1 MUFFLER €35.90
171
 photo_cameraImage coming soon 266771-1 SCREW M6X18 €1.44

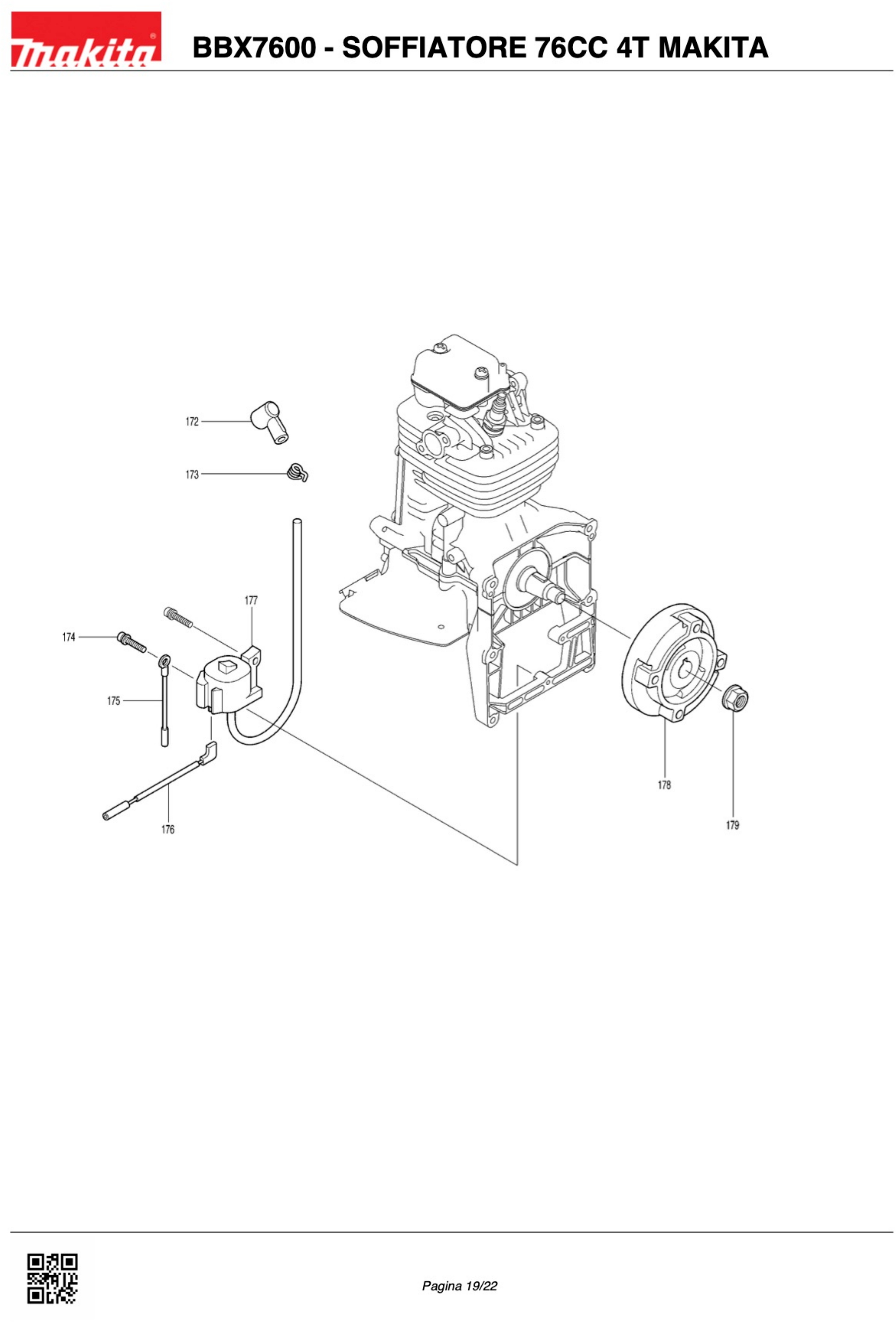

Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 10
Pos. Item Price Buy
172
 Spark Plug Cap for Brushcutter Makita EBH341U 424105-6 Spark Plug Cap for Brushcutter Makita EBH341U €1.62
173
 photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
174
 photo_cameraImage coming soon 922138-0 HS H BOLT M4X20 EBH341U/253L €9.01
175
 photo_cameraImage coming soon 6165500201 WIRE RBC201 €3.23
176
 photo_cameraImage coming soon 632F45-2 LEAD WIRE €2.16
177
 Ignition Coil for Blower Dolmar PB7600.4 161837-1 Ignition Coil for Blower Dolmar PB7600.4 €33.85 Not available for order
178
 photo_cameraImage coming soon 319170-7 FLYWHEEL €19.63
179
 photo_cameraImage coming soon 0023710000 FLANGE NUT M10 PB-7600.4 €1.44

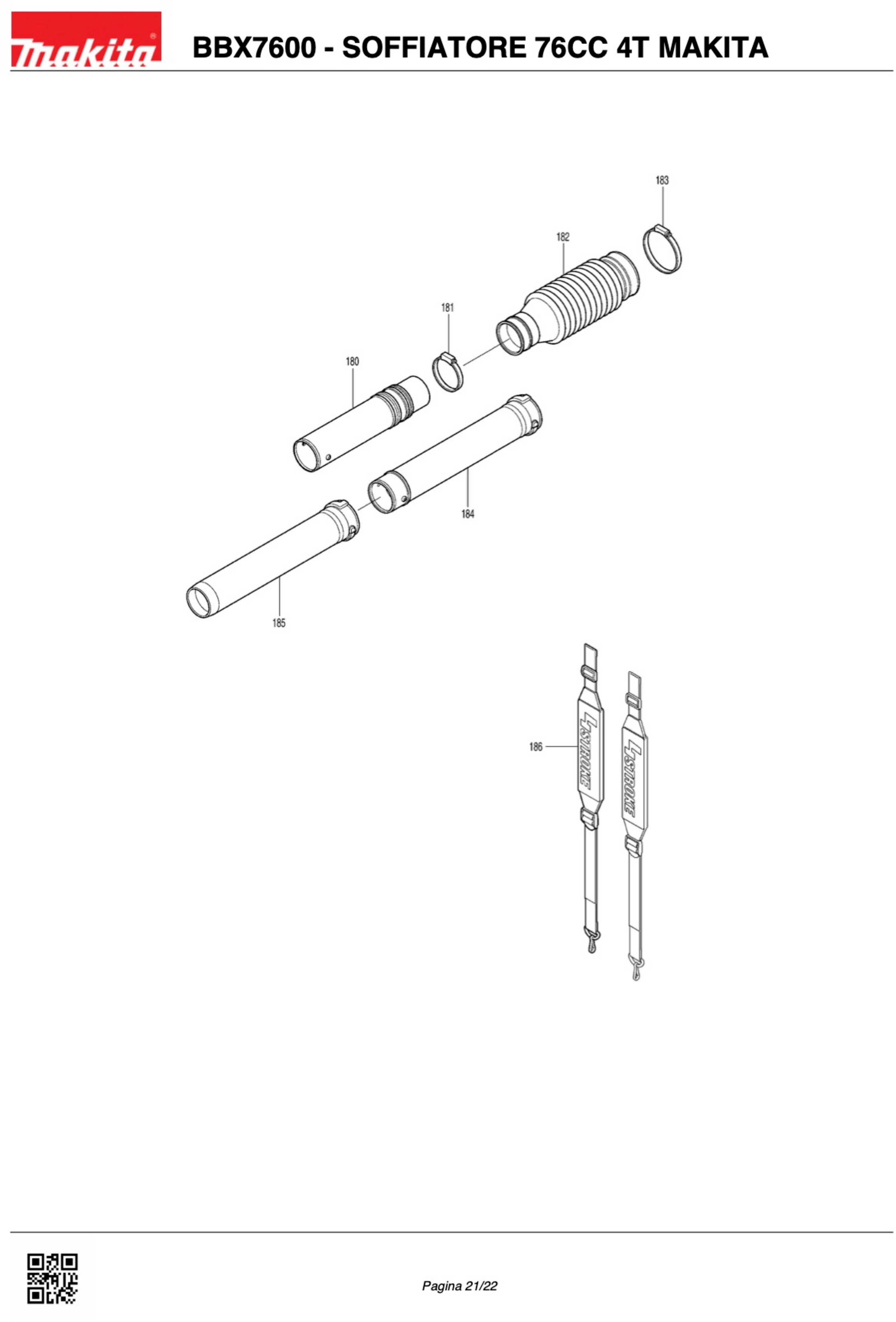

Page 11 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 11
Pos. Item Price Buy
180
 photo_cameraImage coming soon 168746-5 SWIVEL PIPE COMPLETE €12.37
181
 photo_cameraImage coming soon 0561769990 HOSE CLAMP PB-7600.4 €3.25
182
 photo_cameraImage coming soon 412115-5 FLEXIBLE PIPE €33.90
183
 photo_cameraImage coming soon 0561009990 HOSE CLAMP PB-7600.4 €3.96
184
 photo_cameraImage coming soon 455633-0 STAIGHT PIPE €11.05
185
 photo_cameraImage coming soon 6679501900 END PIPE PB-7600.4 €25.66
186
 photo_cameraImage coming soon 6679001000 BAND COMPL PB-7600.4 €22.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Petrol Blower BBX7600

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Petrol Blower BBX7600.

In the following table, look for the model of Blower and the respective parts of the code.
Makita BBX7600

BBX7600 - 4-stroke Petrol Blower 76CC 4T MAKITA pag.1
# Part Num. Description
1 6671007001 VOLUTE CASE 1 ASSY BBX7600
2 6671005010 SQUARE NUT BBX7600
3 0140059220 SCREW M5X65 X BBX7600
4 6671002000 DAMPER 1 COMP BBX7600
5 0200059910 WASHER M5 BBX7600 / PB7600.4
6 0043105400 PAN HEAD SCREW M5X40 X BBX7600 / PB7600.4
7 0150059730 TAPPING SCREW 5X25 BBX7600 / PB7600.4
8 6671001000 INLET COVER COMP BBX7600 / PB7600.4
9 0150059760 TAPPING SCREW 5X16 FOR BHX2500
10 6671003000 DAMPER 2 COMP X BBX7600 / PB7600.4
11 0119069690 SOCKET HEAD BOLT M6X40 BBX7600 / PB7600.4
12 6671004000 IMPELLER COMPL FOR BBX7600 / PB7600.4
13 0563379990 WIRE BAND BBX7600 / PB7600.4
14 6671500400 ELBOW X BBX7600 / PB7600.4
15 0240989990 O-RING FOR BBX7600 / PB7600.4
16 0119069680 SOCKET HEAD BOLT M6X30 BBX7600 X BBX7600 / PB7600.4
17 6671500200 BASE 1 X BBX7600 / PB7600.4
18 6671500300 BASE 2 X BBX7600 / PB7600.4
19 6671008001 CASE 2 VOLUTE ASSY BBX7600 LEFT BBX7600
20 6671005010 SQUARE NUT BBX7600 X BBX7600
21 0170059950 NUT M5 X BBX7600 / PB7600.4
22 0736289980 CAUTION LABEL (1) FOR BHX2500
23 0150049820 TAPPING SCREW 4X6 BBX7600 / PB7600.4
25 0736309870 LABEL DBC260L/U/BBX7600 (2)
26 450964-2 SPARK PLUG COVER BHX2501
27 0150059760 TAPPING SCREW 5X16 FOR BHX2500
28 424504-2 GUARD X BBX7600 / PB7600.4
30 6676500804 ENGINE COVER X BBX7600
31 0851159861 TUBE FOR BBX7600 / PB7600.4
32 168396-6 BREATHER VALVE X DCS230T
33 125472-9 FUEL TANK CAP ASSY ER2550/EBH253/
34 0851339960 TUBE FOR BBX7600 / PB7600.4
35 0561059990 HOSE CLAMP X RBC230-310 / 520
36 163532-9 FILTER
37 6673002001 FUEL TANK COMP. X BBX7600
38 458158-3 ROCK RIVET 6
39 6672002000 GUARD COMP. X BBX7600 / PB7600.4
40 0043706120 SCREW ASSY M6X12 X BBX7600 / PB7600.4
41 0023706000 FLANGE NUT
42 6672001000 FRAME COMP. X BBX7600 / PB7600.4
43 0140059210 SCREW ASSY M5X16 X BBX7600 / PB7600.4
44 6672500200 GUARD x BBX7600 / BP7600.4
45 6672003000 BALL BEARING X PB7600.4
188 6672500400 FAN COVER X BBX7600
189 458158-3 RIVET 6
190 443174-8 INSULATION LABEL A
191 443175-6 INSULATION LABEL B
192 443176-4 INSULATION LABEL C
193 443193-4 INSULATION
BBX7600 - BLOWER 76CC 4T MAKITA pag.2
46 198218-6 CONTROL LEVER ASSY BBX7600
47 6675001010 SOCKET HEAD BOLT M6X20 BBX7600
48 0032206000 WAVE WASHER RBL500/BBX7600 - PB500R
49 0031106000 WASHER
50 6625500701 THROTTLE LEVER 2 RBL500/BBX760 - PB500R
51 0170069960 NUT RBC525/BBX7600 - RBC520
52 453716-0 LEVER 1 PB500R
53 6625500901 TORSION SPRING RBL500/BBX7600 - PB500R
54 6675001030 SCREW M5X25 CPL X BBX7600
55 168745-7 SWITCH
56 6675001020 TAPPING SCREW 4X16 CPL BBX7600 / PB7600.4
57 252103-8 NUT M5 X JR3020
58 453715-2 CABLE TUBE
59 168744-9 CONTROL CABLE X BBX7600 / PB7600.4
BBX7600 - BLOWER 76CC 4T MAKITA pag.3
60 0043605300 SCREW
61 141771-1 ROCKER COVER BBX7600
62 5971500900 ROCKER GASKET COVER BBX7600
63 126943-9 CYLINDER HEAD ASSY
64 442167-2 CYLINDER HEAD GASKET
65 0650109950 SPARK PLUG CMR6A X MS251.A
66 0119069670 SCREW M6X35 FOR BBX7600
67 135739-7 CYLINDER
68 424201-0 CHECK VALVE ER2650LH/EBH251L - EBH341U
69 0119069930 SOCKET HD BOLT M6x30 RBC420E   MOD RBC415
70 442168-0 CAM GEAR GASKET X BBX7600
71 5971500600 CAMGEAR COVER X BBX7600
72 0119059531 SCREW M5 X 16 X MS351-4U
73 6676005000 OIL CAP ASSY BBX7600
74 0213229980 GASKET FOR BBX7600
75 5921501000 REED VALVE X MS251.4
76 5931501300 RETAINER PLATE X BBX7600
77 0119049980 SOCKET HEAD BOLT M4X10   X MS251.4
78 5976500100 OIL CASE GASKET BBX7600
79 5976500000 OIL CASE BBX7600
80 0037008000 ALUMINIUM GASKET BBX7600
81 0016608120 SCREW M 8X12 X BBX7600 / PB7600.4
82 0140059680 SCREW M5X25 X RBC230
83 0851109960 TUBE FOR BBX7600 / PB7600.4
199 331937-3 SPACER
BBX7600 - BLOWER 76CC 4T MAKITA pag.4
84 197040-8 PISTON RINGS
85 197456-7 PISTON ASSY
86 213091-4 OIL SEAL 17
87 326039-8 PISTON PIN
88 233995-4 CIRCLIP
89 0610129940 NEEDLE BEARING BBX7600
90 0323049950 WOODRUFF KEY RBC525/BBX7600
91 267448-1 FLAT WASHER 41
92 213090-6 OIL SEAL (L)
93 126576-0 COMPLETE CRANKSHAFT
BBX7600 - BLOWER 76CC 4T MAKITA pag.5
94 331964-0 INTAKE VALVE BBX7600
95 331965-8 EXHAUST VALVE BBX7600
96 234212-5 VALVE SPRING
97 331966-6 SPRING RETAINER BBX7600 - buy also 2 pcs 331967-4
98 268310-3 PIN 5
99 126005-3 ROCKER ARM ASSY BBX7600 / PB7600. 4
100 256526-2 PUSH ROD BBX7600 / PB7600.4
101 5973500700 SHAFT X BBX7600
102 310715-4 CAM LIFTER BBX7600 / PB7600. 4
103 126622-9 CAM GEAR ASSY
104 256200-2 PIN 5 ER2650LH/2704/EBH/BHX250
187 313267-4 CAM LIFTER X BBX7600 / PB7600. 4
188 331967-4 COTTER BBX7600 - buy with  331966-6
BBX7600 - BLOWER 76CC 4T MAKITA pag.6
105 5975001000 STARTER ASSY BBX7600
106 5975500000 PULLEY X BBX7600
107 266585-8 SCREW 5X12 EBH252L
108 5975002040 COLLAR X BBX7600 / PB7600.4
109 5975002050 SWING ARM BBX7600
110 5975002030 FRICTION SPRING BBX7600 / PB7600.4
111 5315001030 STOPPER DBC260/L/U/EPH1000/BBX - RBC415
112 5315001020 STARTER KNOB X RBC 310 EK7650H
113 5975002110 STARTER ROPE X BBX7600
114 5975002020 REEL X BBX7600 / PB7600.
115 SG00000014 STARTER SPIRAL SPRING EM4351UH
116 0140059360 SCREW X MS254C-MS254U
117 6679500702 MODEL LABEL BBX7600 / PB7600.4
BBX7600 - BLOWER 76CC 4T MAKITA pag.7
118 5973501200 CARBURETOR GASKET BBX7600
119 0119059640 SOCKET HEAD BOLT M5X25 DBC260 RBC415
120 453858-0 MUFFLER GUARD X BBX7600
121 162333-2 INSULATOR GASKET X BBX7600
122 0043605140 SCREW M5X14 X RBC225-255
123 5976001000 CARBURETOR FOR BBX7600
124 5976001010 BODY PUMP ASSY BBX7600
125 5016004010 INLET SCREEN RBC 260/230/310/225
126 442154-1 METERING DIAPHRAGM GASET EBH   EBH341U
127 168574-8 METERING DIAPHRAGME ER2550/EBH   EBH341U
128 5236046140 AIR PURGE BODY ASS'Y   MS251.4
129 424314-7 PRIMER PUMP ER2650LH/BHX2501 EBH341
130 5236046050 PRIMER PUMP COVER X RBC350-RBC42
131 266582-4 SCREW 3X24 EBH341U
132 5216008010 CABLE ADJUST SCREW RBC230 RBC260 310
133 5316005450 CABLE ADJUST NUT RBC230/260/31/ 310
134 5236018040 THROTTLE CABLE X RBC230-260-310-225-
135 5426005030 WASHER X RBC350-RBC420
137 5236052020 BRACKET CABLE MS3200/RBC350/4   RBC350-RBC420
138 5316005120 RING X RBC 260/230/310/225/2
139 5236018020 GASKET X RBC 260/230 / 310
140 5926002020 PUMP SPRING X MS251.4
141 5246001010 GASKET X RBC 260/230/310 /
142 5976001020 JET NOZZLE X BBX7600
143 442155-9 PUMP GASKET EBH341U
144 WJ00009599 PUMP DIAPHRAGM X DCS230T
BBX7600 - BLOWER 76CC 4T MAKITA pag.8
145 6676501200 SCREW RBC201 X BBX7600 / PB7600.4
146 6676002002 AIR COVER CLEANER BBX7600 / PB7600.4
147 6676500201 AIR ELEMENT CLEANER BBX7600
148 0043605160 SCREW M 5 X 16 X MS251.4
149 126377-6 AIR FILTER CASE
150 6676501300 SEPARATOR PLATE BBX7600 / PB7600.4
151 424315-5 CHECK VALVE ER2550/EBH251L/ EBH341U
152 424316-3 CHECK VALVE ER2550/EBH251L EBH341U
153 6676500500 CHECK PLATE VALVE BBX7600
154 412129-4 TUBE 3-105 X EM4350RH
155 282027-4 HOSE CLAMP
156 0851029930 TUBE FOR BBX7600 / PB7600.4
157 452952-5 HOSE JOINT X BBX7600
158 0851199960 TUBE FOR BBX7600 / PB7600.4
159 5973006000 INTAKE CASE ASSY BBX7600
160 458169-8 CHOKE LEVER BBX7600
161 458166-4 CHOKE PLATE BBX7600
162 5973006010 SCREW M 4X12 X BBX7600 / PB7600.4
163 5973501900 INTAKE PLATE BBX7600
164 0043605650 SCREW M5X65
165 0561679990 HOSE CLAMP X TUBE FOR BBX7600
166 0561439990 HOSE CLAMP X TUBE FOR BBX7600
167 6676500400 AIR DUCT CLEANER X BBX7600
168 412122-8 TUBE 3-240
BBX7600 - BLOWER 76CC 4T MAKITA pag.9
168 5973501302 INSULATOR GASKET
169 168807-1 MUFFLER
171 266771-1 SCREW M6X18
BBX7600 - BLOWER 76CC 4T MAKITA pag.10
172 424105-6 PLUG CAP ER2550/341U/BHX2501   EBH252L
173 0654009931 PLUG CAP SPRING RBC415-225-255
174 922138-0 SCREW M4X20
175 6165500201 WIRE RBC201/MS20C/MS3200E/RBC   RBC201
176 632F45-2 CABLE (2) COIL X BHX2501
177 161837-1 IGNITION COIL
178 319170-7 FLYWHEEL FOR BBX7600
179 0023710000 FLANGE NUT M10 BBX7600 / PB7600.4
BBX7600 - BLOWER 76CC 4T MAKITA pag.11
180 168746-5 SWIVEL PIPE COMP BBX7600
181 0561769990 HOSE CLAMP X BBX7600 / PB7600. 4
182 412115-5 FLEXIBLE PIPE X BBX7600
183 0561009990 HOSE CLAMP X BBX7600 / PB7600. 4
184 455633-0 STRAIGHT PIPE BBX7600
185 6679501900 END PIPE BBX7600
186 6679001000 BAND COMP BBX7600
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita BBX7600
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita BBX7600

Drawing Makita BBX7600

Download (1.71MB)

You might also like

Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Details
Piston Pin Circlip for Brushcutter Makita RBC310
Makita SKU: 233976-8
Piston Pin Circlip for Brushcutter Makita RBC310
Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.01
Details
Carburator for Blower Makita BHX2500
Makita SKU: 168641-9
Carburator for Blower Makita BHX2500
Carburator for Blower Makita BHX2500 Original replacement part Makita, Carburator for Blowers BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for the following products:  BHX2500 - BLOWER MAKITA 24,5CC 4TEMP - BHX2501 - BLOWER...
AVAILABLE €88.24
Details
Recoil Starter Assy for Petrol Blower Makita BHX2500
Makita SKU: 125917-7
Recoil Starter Assy for Petrol Blower Makita BHX2500
Recoil Starter Assy for Petrol Blower Makita BHX2500 Original replacement part Makita, Recoil Starter Assy for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for the following products: - BCX2510 - BRUSHCUTTER 25 4T...
on 10 Business Days Approx €22.10
Details
Cleaner Plate Assy for Petrol Blower Makita BHX2500
Makita SKU: 125468-0
Cleaner Plate Assy for Petrol Blower Makita BHX2500
Cleaner Plate Assy for Petrol Blower Makita BHX2500 Original replacement part Makita, Cleaner Plate Assy for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for...
on 10 Business Days Approx €21.00
Details
Air Cleaner Element for Petrol Blower Makita BHX2500
Makita SKU: 443140-5
Air Cleaner Element for Petrol Blower Makita BHX2500
Air Cleaner Element for Petrol Blower Makita BHX2500 Original replacement part Makita, Air Cleaner Element for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for the...
Usually Ships in: 7/10 Business Days Approx. €2.14
Details
Spark Plug Cap for Brushcutter Makita EBH341U
Makita SKU: 424105-6
Spark Plug Cap for Brushcutter Makita EBH341U
Spark Plug Cap for Brushcutter Makita EBH341U Genuine replacement part Makita, Spark Plug Cap for Brushcutters EBH252L - EBH252U - EBH341L - EBH341R - EM4340 - EM4340L - EBH341U. Part for the following products: - EBH252L -...
AVAILABLE €1.62
Details
Tube for Blower Makita BHX2501
Makita SKU: 451752-0
Tube for Blower Makita BHX2501
Tube for Blower Makita BHX2501 Genuine replacement part Makita, Tube for Blowers BHX2501 - Dolmar PB252.4. Part for the following products: - BHX2501 - BLOWER 24,5CC 4T MAKITA - PB252.4 - BLOWER 24,5CC 4T DOLMAR - Codice : 451752-0
Last items in stock €12.88
Details
Separator Gasket for Blower Makita BHX2501
Makita SKU: 168577-2
Separator Gasket for Blower Makita BHX2501
Separator Gasket for Blower Makita BHX2501 Genuine replacement part Makita, Separator Gasket for Blowers BHX2501 - Dolmar PB252.4. Part for the following products: - BHX2501 - BLOWER 24,5CC 4T...
AVAILABLE €1.62
Details
Recoil Startrer Ass'y for Blower Dolmar PB7600.4
Makita SKU: 5975001000
Recoil Startrer Ass'y for Blower Dolmar PB7600.4
Recoil Startrer Ass'y for Blower Dolmar PB7600.4 Original replacement part Dolmar, Recoil Startrer Ass'y for Blowers 75,6CC 4T - PB7600.4 - Makita BBX7600. Part for the following products: - ...
Last items in stock €29.47
Details
Ignition Coil for Blower Dolmar PB7600.4
Makita SKU: 161837-1
Ignition Coil for Blower Dolmar PB7600.4
Ignition Coil for Blower Dolmar PB7600.4 Original replacement part Dolmar, Ignition Coil for Blowers 75,6CC 4T - PB7600.4 -  PB7650.4 - Makita BBX7600. Part for the following products:...
Last items in stock €33.85
Details
Choke Plate for Sprayer Dolmar SP-7650.4R
Makita SKU: 458166-4
Choke Plate for Sprayer Dolmar SP-7650.4R
Choke Plate for Sprayer Dolmar SP-7650.4R Genuine replacement part Dolmar, Choke Plate for Sprayer Dolmar SP-7650.4R - Makita PM7651H Part for the following products: -  BBX7600 - BLOWER 76CC 4T MAKITA -  PB7600.4 - BLOWER 75,6CC 4T...
on 7/10 Business Days Approx €2.40
Details
Head Ass'y for Blower Dolmar PB7600.4
Makita SKU: 126943-9
Head Ass'y for Blower Dolmar PB7600.4
Head Ass'y for Blower Dolmar PB7600.4 Original replacement part Dolmar, Head Ass'y for Blowers 75,6CC 4T - PB7600.4 -  PB7650.4 - Makita BBX7600. Part for the following products: -  PB7600.4 - BLOWER 75,6CC 4T DOLMAR -  BBX7600 -...
Last items in stock €153.26
Details
Makita EBH341U Gasket
Makita SKU: 442155-9
Makita EBH341U Pump Gasket
Makita Gasket for Brushcutter EBH341U Genuine spare part Makita, Pump Gasket for Brushcutters EBH341U - DBC260L - MS350.4C - EX2650LHRH. Part for the following products: - MS350.4C – 34CC-4T BRUSHCUTTER DOLMAR - PB7650.4...
Last items in stock €4.06
Details
Comments (0)
