Makita

Makita Spare Parts for Bruschcutter 30,5CC RBC321

SKU: Makita RBC321
€88.87
VAT included

Makita Spare Parts for Bruschcutter 30,5CC RBC321

Makita Genuine spare parts or replacement parts for to repair Bruschcutter RBC321.

Fix Your Brusch Cutter Makita RBC321. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Bruschcutter 30,5CC RBC321
  • Makita Spare Parts for Bruschcutter 30,5CC RBC321
  • Makita Spare Parts for Bruschcutter 30,5CC RBC321
  • Makita Spare Parts for Bruschcutter 30,5CC RBC321
  • Makita Spare Parts for Bruschcutter 30,5CC RBC321
Makita

Makita Spare Parts for Bruschcutter 30,5CC RBC321

SKU: Makita RBC321 Condition: New
€88.87
VAT included

Makita Spare Parts for Bruschcutter 30,5CC RBC321

Makita Genuine spare parts or replacement parts for to repair Bruschcutter RBC321.

Fix Your Brusch Cutter Makita RBC321. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 130 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
126 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

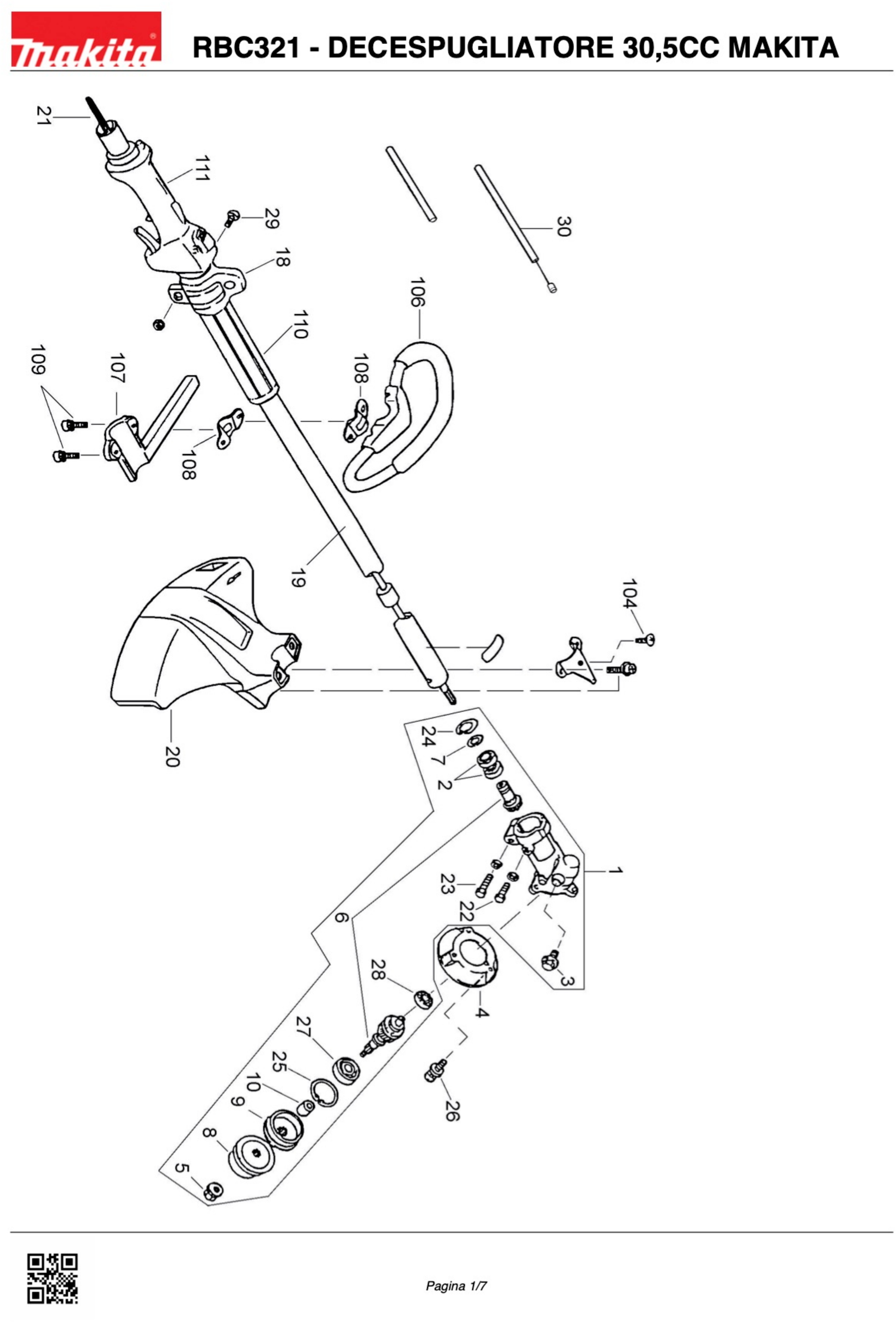

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 127021-8 GEAR CASE ASSEMBLY €83.78
2
 photo_cameraImage coming soon 210049-4 BEARING 609ZZ EBH252L €6.29
3
 photo_cameraImage coming soon 266671-5 OIL CAP €3.23
4
 photo_cameraImage coming soon 412099-7 PROTECTION X DECESP. €3.95
5
 photo_cameraImage coming soon 264018-7 NUT M8 RBC2510 €1.44
6
 Cutter Shaft Set for Brushcutter Makita RBC3110 6273013000 Cutter Shaft Set for Brushcutter Makita RBC3110 €45.74
7
 photo_cameraImage coming soon 6253502600 STOP OUTSIDE X RBC310 / RBK410 €2.15
8
 Clamp Washer for Brushcutter Makita RBC310 6258500001 Clamp Washer for Brushcutter Makita RBC310 €25.23
9
 Receive Washer for Brushcutter Makita RBC310 327195-7 Receive Washer for Brushcutter Makita RBC310 €34.41
10
 photo_cameraImage coming soon 6253501300 DISTANCE €5.28
18
 photo_cameraImage coming soon 6254023000 CPL SUPPORT X RBC321 €18.40
19
 photo_cameraImage coming soon 6271007000 SHAFT PIPE COMPLETE CPL X RBC321 €217.96
20
 photo_cameraImage coming soon 6218008003 PROTECTOR ASS'Y €51.16
21
 photo_cameraImage coming soon 6271500802 SHAFT X RBC321 €15.85
22
 photo_cameraImage coming soon 0011306120 M6X12 X RBC310 / 520 BOLT €1.44
24
 photo_cameraImage coming soon 0031424000 INNER SNAP RING X RBC260-230-225 €2.15
25
 photo_cameraImage coming soon 0031430000 INNER SNAP RING X RBC310 / RBK410 €2.77
26
 photo_cameraImage coming soon 922213-2 HEX BOLT M5X12 EBH253L/341U €1.51
27
 photo_cameraImage coming soon 0600109970 BEARING 6200DDU RBC321 €8.37
28
 photo_cameraImage coming soon 0600079990 BEARING 627 X RBC415 €16.17
29
 photo_cameraImage coming soon 0043605200 WASHER AND SCREW X RBC321 €1.54
30
 photo_cameraImage coming soon 6155500100 CONTROL CABLE X RBC230 €10.94
104
 photo_cameraImage coming soon 0150059940 SCREW X RBK250-RBC225-RBC255 €1.41
106
 photo_cameraImage coming soon 6274004010 LOOP HANDLE RBC201 €26.92
107
 photo_cameraImage coming soon 6274004020 LOOP HANDLE BAR RBC201 €20.99
108
 photo_cameraImage coming soon 174545200N PROTECTION FOR 058001 €7.33
109
 photo_cameraImage coming soon 6274004040 SCREW M6 X 20 RBC201 €4.24
110
 photo_cameraImage coming soon 6271501501 SPACER RBC201 €7.11
111
 photo_cameraImage coming soon 6275001001 CONTROL LEVER CPL X MS2810 €86.31
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

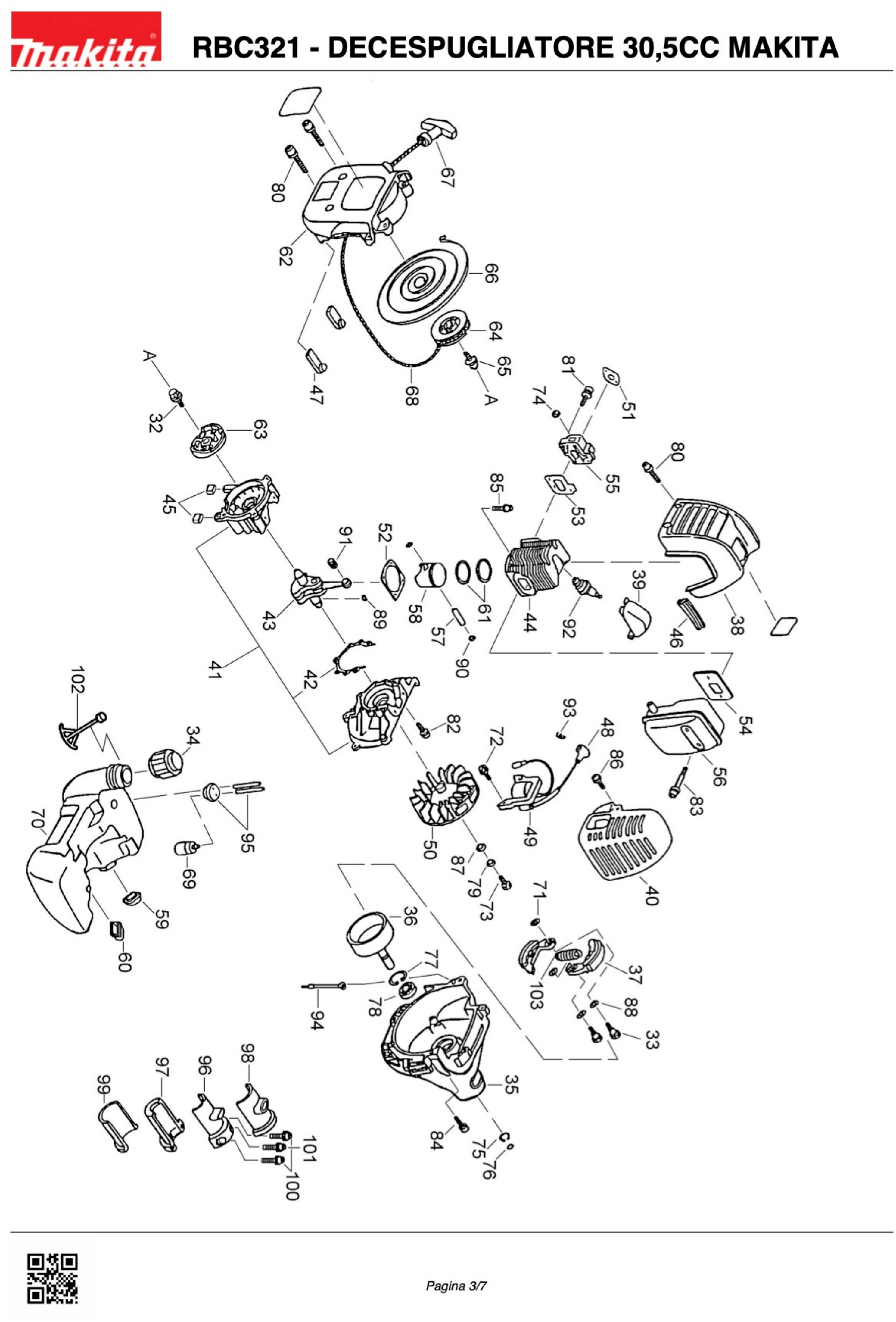

Esploso pagina 2
Pos. Item Price Buy
32
 photo_cameraImage coming soon 6202006000 BOLT FOR RBC310 €2.14
33
 photo_cameraImage coming soon 266457-7 SCREW M6FOR25 EBH252L €2.76
34
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
35
 photo_cameraImage coming soon 6271004001 CLUTCH HOUSING RBC321 €151.83
36
 photo_cameraImage coming soon 6272002002 CPL DRUM CLUTCH RBC321 €64.79
39
 photo_cameraImage coming soon 5317500700 SPARK PLUG COVER FOR RBC321 €7.33
41
 photo_cameraImage coming soon 5311007000 ENGINE CPL FOR RBC321 €199.62
42
 photo_cameraImage coming soon 5311501200 ENGINE GASKET FOR RBC321 €2.30
43
 photo_cameraImage coming soon 5312007001 CRANKSHAFT FOR MS2810 €123.95
44
 Cylinder for Brushcutter Makita RBC310 319255-9 Cylinder for Brushcutter Makita RBC310 €140.91
45
 photo_cameraImage coming soon 5216500200 DAMPER X RBC230-225-255 €1.40
46
 photo_cameraImage coming soon 5315504100 RUBBER FOR RBC321 €2.96
47
 photo_cameraImage coming soon 5316503100 DAMPER FOR RBC321 €4.89
48
 photo_cameraImage coming soon 5317010030 PLUG CAP RBC321 €2.96
49
 Electronic Coil for Brushcutter Makita RBC3210 5317010020 Electronic Coil for Brushcutter Makita RBC3210 €40.75 Not available for order
50
 photo_cameraImage coming soon 5317010010 FLYWHEEL FOR RBC321 €111.42
51
 Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
52
 Cylinder Gasket for Brushcutter Makita RBC310 5311500301 Cylinder Gasket for Brushcutter Makita RBC310 €3.08
53
 Insulator Gasket for Brushcutter Makita RBC310 5313502300 Insulator Gasket for Brushcutter Makita RBC310 €3.86
54
 photo_cameraImage coming soon 5313502200 MUFFLER GASKET FOR RBC321 €7.33
55
 photo_cameraImage coming soon 5313500500 ISOLATOR FOR RBC 310 €8.50
56
 photo_cameraImage coming soon 5313009001 MUFFLER FOR RBC321 €82.29
57
 Piston Pin for Brushcutter Makita RBC310 5312500400 Piston Pin for Brushcutter Makita RBC310 €3.08
58
 photo_cameraImage coming soon 319248-6 PISTON €53.68
59
 Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
60
 photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
61
 Piston Ring for Brushcutter Makita RBC310 5982500200 Piston Ring for Brushcutter Makita RBC310 €6.19
62
 photo_cameraImage coming soon 5315012000 STARTING BLOCK CPL FOR RBC321 €45.12
64
 photo_cameraImage coming soon 5315007010 STARTER REEL FOR RBC321 €18.40
65
 photo_cameraImage coming soon 5315007020 SCREW FOR RBC351 €3.46
66
 photo_cameraImage coming soon 5415003020 STARTER SPRING FOR RBC260 €7.33
67
 photo_cameraImage coming soon 5215002110 STARTER FOR RBC 230-225-255 €3.23
68
 photo_cameraImage coming soon 5235024022 STARTER ROPE RBK250-RBC225-2 €17.13
69
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
70
 photo_cameraImage coming soon 5316502001 TANK MS3210 €44.71
71
 photo_cameraImage coming soon 6272500000 WASHER FOR RBC321 €1.54
72
 photo_cameraImage coming soon 0011605200 BOLT X RBC321 €1.54
73
 photo_cameraImage coming soon 0016606160 M6X16 X RBC321 BOLT €1.54
74
 photo_cameraImage coming soon 0021705000 NUT M5 X RBC415 €1.54
75
 Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
76
 photo_cameraImage coming soon 0062610060 RING X RBC321 €1.54
77
 photo_cameraImage coming soon 0031432000 INTERNAL LOCK X RBC260 / 310/410 €2.77
78
 photo_cameraImage coming soon 0600129950 BALL BEARING X RBC260 €17.01
79
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
80
 photo_cameraImage coming soon 922253-0 SCREW M5X30 €1.97
81
 photo_cameraImage coming soon 0119059630 M5X20 X PB500R BOLT €2.99
83
 photo_cameraImage coming soon 0119059670 SCREW M5X55 X RBC415 €2.96
84
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
85
 photo_cameraImage coming soon 0119059950 BOLT M5X18 XRBC230 / 310/225 €2.30
86
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
87
 photo_cameraImage coming soon 0200069920 WASHER M6 X RBC310 / 410 / RBK410 €2.77
88
 photo_cameraImage coming soon 267817-6 WASHER 8 EBH252L €1.46
89
 photo_cameraImage coming soon 0323039990 KEY X RBC350-RBC420 €3.68
90
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
91
 Piston Pin Needle Bearing for Brushcutter Makita RBC310 0610089990 Piston Pin Needle Bearing for Brushcutter Makita RBC310 €7.60
92
 photo_cameraImage coming soon 0650149721 SPARK PLUG BMR7A RBK250 €19.05
93
 photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
94
 photo_cameraImage coming soon 6165500200 WHIRE X HT2276E €3.46
95
 photo_cameraImage coming soon 0851179972 FUEL TUBE MS2810 €15.85
96
 photo_cameraImage coming soon 6271500301 UPPER HALF-SHELL 1 RBC321 €14.05
97
 photo_cameraImage coming soon 6271500401 LOWER HALF-SHELL 2 RBC321 €14.05
98
 photo_cameraImage coming soon 6271500105 UPPER SPACER FOR MS2810 €7.33
99
 photo_cameraImage coming soon 6271500205 LOWER SPACER FOR MS2810 €6.57
101
 photo_cameraImage coming soon 0119059900 BOLT M5X12 X RBC225-255 €2.08
102
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
103
 photo_cameraImage coming soon 6272003020 CLUTCH SPRING €4.89
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

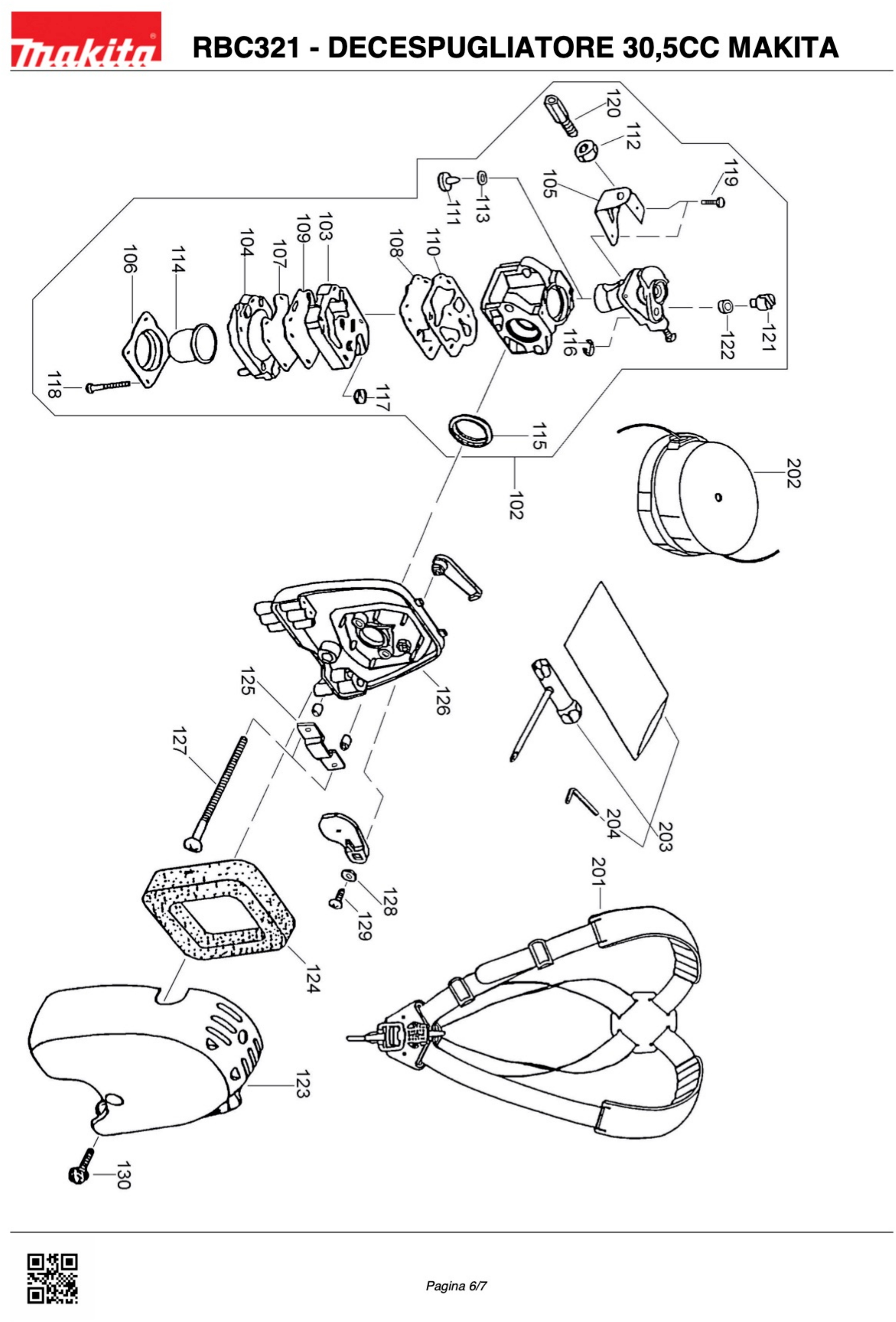

Esploso pagina 3
Pos. Item Price Buy
102
 Carburator Walbro for Brushcutter Dolmar MS3201C 5316021000 Carburator Walbro for Brushcutter Dolmar MS3201C €77.43
103
 photo_cameraImage coming soon 5236046130 BODY PUMP CPL FOR RBC350-RBC42 €61.62
104
 photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
105
 photo_cameraImage coming soon 5236052020 CABLE SUPPORT RBC350-RBC420 €25.16
106
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
107
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
108
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
109
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
110
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
111
 photo_cameraImage coming soon 5036002010 JET FOR RBC230 / 310/225/255 €11.07
112
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
113
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
114
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
115
 photo_cameraImage coming soon 5236018020 GASKET FOR RBC 260/230 / 310 €5.43
116
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
117
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
118
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
120
 photo_cameraImage coming soon 5316020020 SCREW FOR CABLE RBC321 €5.13
121
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
122
 photo_cameraImage coming soon 5236052030 WASHER FOR RBC321 €9.80
123
 photo_cameraImage coming soon 5313503200 AIR FILTER COVER RBC321 €8.37
124
 Air Cleaner Element for Brushcutter Makita RBC2510 443167-5 Air Cleaner Element for Brushcutter Makita RBC2510 €3.03
125
 photo_cameraImage coming soon 5013502400 CPL AIR FILTER PLATE RBC321 €17.81
126
 photo_cameraImage coming soon 5313015000 AIR FILTER SUPPORT RBC321 €12.48
127
 photo_cameraImage coming soon 0140059730 SCREW M5X50 X RBC260 / 310 €2.69
128
 photo_cameraImage coming soon 0031104000 WASHER X RBC225-255 €1.86
129
 photo_cameraImage coming soon 0150049980 SCREW M4X8 X RBC225-255 €1.54
201
 photo_cameraImage coming soon 6417015003 HARNESS CPL FOR RBC420E €81.27
202
 Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar B-02945 Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar €46.62
203
 photo_cameraImage coming soon 6119019000 KIT KEY SERVICE X RBC225-255 €24.76
204
 photo_cameraImage coming soon 0717049990 WRENCHE €2.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Bruschcutter 30,5CC RBC321

Fix Your Brusch Cutter Makita RBC321. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita RBC321

RBC321 - BRUSHCUTTER 30,5CC MAKITA Pag.1
# Part Num. Description
1 127021-8 GEAR CASE ASSEMBLY
2 210049-4 BALL BEARING 609ZZ EBH252L
3 266671-5 OIL BOLT
4 412099-7 GUARD X BRUSHCUTTER
5 264018-7 NUT M8 RBC2510
6 6273013000 CUTTER SHAFT GEAR SET MS2810
7 6253502600 OUTER SNAP RING X RBC310 / RBK410
8 6258500001 CLAMP WASHER X RBC 310 / RBK410
9 327195-7 RECEIVE WASHER
10 6253501300 SPACER
18 6254023000 HANGER ASSEMBLY X RBC321
19 6271007000 SHAFT PIPE COMPLETE CPL X RBC321
20 6218008003 PROTECTOR ASSEMBLY FOR BRUSHCUTTER
21 6271500802 SHAFT X RBC321
22 0011306120 BOLT M6X12 X RBC310 / 520
24 0031424000 H.S.H.BOLT M5X25 WITH W DUR X RBC260-230-225-
25 0031430000 INNER SNAP RING X RBC310 / RBK410
26 922213-2 SCREW M5X12 EBH341U
27 0600109970 BALL BEARING 6200DDU RBC321
28 0600079990 BALL BEARING 627 X RBC415
29 0043605200 WASHER AND SCREW X RBC321
30 6155500100 CONTROL CABLE X RBC230
104 0150059940 SCREW X RBK250-RBC225-RBC255
106 6274004010 HANDLE RBC201
107 6274004020 LOWER HANDLE RBC201
108 174545200N STRAP UNIT RBC201/420/MS20C* RBC281
109 6274004040 SCREW M6 X 20 RBC201
110 6271501501 SPACER RBC201
111 6275001001 CONTROL LEVER CPL X MS2810
RBC321 - BRUSHCUTTER 30,5CC MAKITA Pag.2
32 6202006000 BOLT X RBC310
33 266457-7 SCREW M6X25 EBH252L
34 452920-8 TANK CAP
35 6271004001 CLUTCH HOUSING CPL RBC321
36 6272002002 CLUTCH DRUM CPL RBC321
37 6272003000 CLUTCH X RBC321
38 5315503900 CYLINDER COVER X RBC321
39 5317500700 SPARK PLUG COVER X RBC321
40 5313503800 MUFFLER COVER X MS2810
41 5311007000 Crankcase Complete /Ms2800/Ms2810/Ms3200 X RBC321
42 5311501200 Crank Case GASKET Ms3200   - RBC321
43 5312007001 CRANKSHAFT X MS2810
44 319255-9 CYLINDER
45 5216500200 DAMPER X RBC230-225-255
46 5315504100 DAMPER X RBC321
47 5316503100 DAMPER X RBC321
48 5317010030 PLUG CAP RBC321
49 5317010020 IGNITION COIL X RBC321
50 5317010010 FLYWHEEL X RBC321
51 442177-9 GASKET
52 5311500301 CYLINDER GASKET X MS2810
53 5313502300 INSULATING GASKET X RBC321
54 5313502200 MUFFLER GASKET X RBC321
55 5313500500 INSULATOR X RBC 310
56 5313009001 MUFFLER X RBC321
57 5312500400 PISTON PIN X RBC 310
58 319248-6 PISTON
59 424102-2 SHOCK ABSORBER EBH341U
60 424103-0 SHOCK ABSORBER EBH341U
61 5982500200 PISTON RING X RBC 230/310
62 5315012000 RECOIL STARTER CPL X RBC321
63 5245007000 STARTER CUP
64 5315007010 REEL X RBC321
65 5315007020 SCREW X RBC351
66 5415003020 STARTER SPRING X RBC260
67 5215002110 STARTER HANDLE X RBC 230-225-255
68 5235024022 STARTER ROPE X RBK250-RBC225-2
69 163447-0 FUEL FILTER X DCS230T
70 5316502001 TANK MS3210
71 6272500000 WASHER X RBC321
72 0011605200 BOLT X RBC321
73 0016606160 BOLT M6X16 X RBC321
74 0021705000 NUT M5 X RBC415
75 0031512000 OUTER SNAP RINGX RBC260 / 520RBK410
76 0062610060 RING X RBC321
77 0031432000 INNER SNAP RINGX RBC260 / 310/410
78 0600129950 BALL BEARING X RBC260
79 0032006000 WASHER X RBC / RBK410-G2400R
80 922253-0 SCREW M5X30
81 0119059630 BOLT M5X20 X PB500R
83 0119059670 SCREW M5X55 X RBC415
84 0119059730 BOLT X RBC 260/230/225/255
85 0119059950 BOLT M5X18 XRBC230 / 310/225 /
86 911218-7 PAN HEAD SCREW M5x14
87 0200069920 WASHER M6 X RBC310 / 410 / RBK410
88 267817-6 WASHER 8 EBH252L
89 0323039990 WOODRUFF KEY X RBC350-RBC420
90 233976-8-4 CIRCLIP EBH252L (4pcs)
91 0610089990 NEEDLE BEARING X RBC260 / 230/310 /
92 0650149721-10 SPARK PLUG X RBK250
93 0654009931 PIN X RBC415-225-255
94 6165500200 EARTH WIRE X HT2276E
95 0851179972 FUEL TUBE MS2810
96 6271500301 PIPE BRACKET 1 RBC321
97 6271500401 PIPE BRACKET 2 RBC321
98 6271500105 PIPE DAMPER X MS2810
99 6271500205 PIPE DAMPER X MS2810
100 0119059950 BOLT M5X18 XRBC230 / 310/225 /
101 0119059900 BOLT M5X12 X RBC225-255
102 140436-2 STRAP COMPLETE EBH341U
103 6272003020 CLUTCH SPRING
RBC321 - BRUSHCUTTER 30,5CC MAKITA Pag.3
102 5316021000 CARBURETOR X RBC321
103 5236046130 PUMP BODY CPL X RBC350-RBC42
104 5236046060 COMPLETE AIR FILTER BODY RBC350
105 5236052020 CABLE SUPPORT RBC350-RBC420
106 5236046050 PUMP COVER X RBC350-RBC42
107 168574-8 DIAPHRAGM CPL EBH341U
108 WJ00009599 PUMP DIAPHRAGM X DCS230T
109 442154-1 EBH341U DIAPHRAG GASKET
110 5246001030 PUMP GASKET RBC260-230-310-
111 5036002010 JET X RBC230 / 310/225/255
112 5316005450 ADJUSTABLE NUT RBC260 / 310
113 5246001010 GASKET X RBC 260/230/310 /
114 424314-7 PRIMING PUMP EBH341
115 5236018020 GASKET X RBC 260/230 / 310
116 5316005120 RING X RBC 260/230/310/225/2
117 5016004010 FITTING X RBC 260/230/310/225
118 266582-4 SCREW 3X24 EBH341U
120 5316020020 SCREW X CABLE RBC321
121 5236018040 ACC. CABLE XRBC230-260-310-225-
122 5236052030 WASHER X RBC321
123 5313503200 AIR FILTER COVER RBC321
124 443167-5 AIR FILTER RBC2510
125 5013502400 AIR FILTER PLATE CPL RBC321
126 5313015000 AIR FILTER SUPPORT RBC321
127 0140059730 SCREW M5X50 X RBC260 / 310
128 0031104000 WASHER X RBC225-255
129 0150049980 SCREW M4X8 X RBC225-255
130 911218-7 CYLINDER HEAD SCREW M5x14
201 6417015003 BRACES CPL X RBC420E
202 B-02945 TAP & GO NYLON HEAD M8-M10X1.25F
203 6119019000 SERV.ICE KEYS KIT X RBC225-255
204 0717049990 WRENCH X NUTS RBC350-RBC420
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC321
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita RBC321

Drawing Makita RBC321

Download (762.58KB)

You might also like

Chainsaw Makita EA3200S35A -20% Sale
Makita SKU: EA3200S35A
Chainsaw Makita EA3200S35A
Chainsaw Bar 35 cm Makita EA3200S35A Features: - Chainsaw with primer for a quick and easy engine start. - Metal arpion. - Steel vibration dampers: 4 steel springs to reduce vibration. - Metal oil pump with adjustable capability.
Last items in stock €224.34 €280.43
Details
Brush Cutter Makita EM2600L -15% Sale
Makita SKU: EM2600L
Brush Cutter Makita EM2600L
Brush Cutter Makita EM2600L Features: - Very versatile bushers suitable for garden care. - Ideal for the demanding user who does not want to give up quality, reliability and safety. - Innovative and ergonomic design. - Anti-vibrating...
Available in 7/10 days €282.44 €332.29
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Details
Piston Pin for Brushcutter Makita RBC310
Makita SKU: 5312500400
Piston Pin for Brushcutter Makita RBC310
Piston Pin for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C - RBC3200 Part...
AVAILABLE €3.08
Details
Piston Ring for Brushcutter Makita RBC310
Makita SKU: 5982500200
Piston Ring for Brushcutter Makita RBC310
Piston Ring for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Ring for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.19
Details
Cylinder Gasket for Brushcutter Makita RBC310
Makita SKU: 5311500301
Cylinder Gasket for Brushcutter Makita RBC310
Cylinder Gasket for Brushcutter Makita RBC310 Genuine spare part Makita, Cylinder Gasket for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
Last items in stock €3.08
Details
Insulator Gasket for Brushcutter Makita RBC310
Makita SKU: 5313502300
Insulator Gasket for Brushcutter Makita RBC310
Insulator Gasket for Brushcutter Makita RBC310 Genuine spare part Makita, Insulator Gasket for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 -...
Last items in stock €3.86
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Electronic Coil for Brushcutter Makita RBC3210
Makita SKU: 5317010020
Electronic Coil for Brushcutter Makita RBC3210
Electronic Coil for Brushcutter Makita RBC3210 Genuine spare part Makita, Electronic Coil for Brushcutters RBC321 - RBC3210 - RBC281 - RBC320. Part for the following products: - MS3201C...
Available in 7/10 days €40.75
Details
Carburator Walbro for Brushcutter Dolmar MS3201C
Makita SKU: 5316021000
Carburator Walbro for Brushcutter Dolmar MS3201C
Carburator Walbro for Brushcutter Dolmar MS3201C Genuine part Dolmar, Carburator Walbro for Brushcutter MS3201C - MS3210 - MS3212 - Makita RBC3110 - RBC3210 - RBC320. Part for the following products: - MS2810 - BRUSHCUTTER 27,2CC...
Last items in stock €77.43
Details
Cylinder for Brushcutter Makita RBC310
Makita SKU: 319255-9
Cylinder for Brushcutter Makita RBC310
Cylinder for Brushcutter Makita RBC310 Genuine spare part Makita, Cylinder for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C - RBC3200...
Last items in stock €140.91
Details
Air Cleaner Element for Brushcutter Makita RBC2510
Makita SKU: 443167-5
Air Cleaner Element for Brushcutter Makita RBC2510
Air Cleaner Element for Brushcutter Makita RBC2510 Genuine part Makita, Air Cleaner Sponge Element for Brushcutters RBC2510 - RBC225-255 - MS2501 - MS2810. Part for the following products: - MS254C...
AVAILABLE €3.03
Details
Receive Washer for Brushcutter Makita RBC310
Makita SKU: 327195-7
Receive Washer for Brushcutter Makita RBC310
Receive Washer for Brushcutter Makita RBC310 Genuine spare part Makita, Receive Washer for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321. Part for the following products:...
Last items in stock €34.41
Details
Clamp Washer for Brushcutter Makita RBC310
Makita SKU: 6258500001
Clamp Washer for Brushcutter Makita RBC310
Clamp Washer for Brushcutter Makita RBC310 Genuine spare part Makita, Clamp Washer for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321. Part for the following products:...
on 7/10 Business Days Approx €25.23
Details
Cutter Shaft Set for Brushcutter Makita RBC3110
Makita SKU: 6273013000
Cutter Shaft Set for Brushcutter Makita RBC3110
Cutter Shaft Set for Brushcutter Makita RBC3110 Genuine spare part Makita, Cutter Shaft Gear Set for Brushcutters RBC3110 - RBC3212. Part for the following products: -  RBC3110 - BRUSHCUTTER 30,5CC MAKITA -  MS3212 - BRUSHCUTTER...
Last items in stock €45.74
Details
Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar
Makita SKU: B-02945
Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar
Nylon Cutting Head 4Y (L.H.) for Brushcutter Makita - Dolmar Genuine Accessory Makita, Nylon Cutting Head 4Y (L.H.) for Brushcutter Makita - Dolmar Parts for the following products: -  RBC2110 - BRUSHCUTTER MAKITA...
on 7/10 Business Days Approx €46.62
Details
Comments (0)
