Makita Spare Parts for Lawn Mower ELM3710
€5.58
VAT included
Makita Spare Parts for Lawn Mower ELM3710
Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Electric Lawn Mower ELM3710.
Makita Spare Parts for Lawn Mower ELM3710
€5.58
VAT included
Makita Spare Parts for Lawn Mower ELM3710
Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Electric Lawn Mower ELM3710.
settings
61 spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
61 spare parts
Page 1

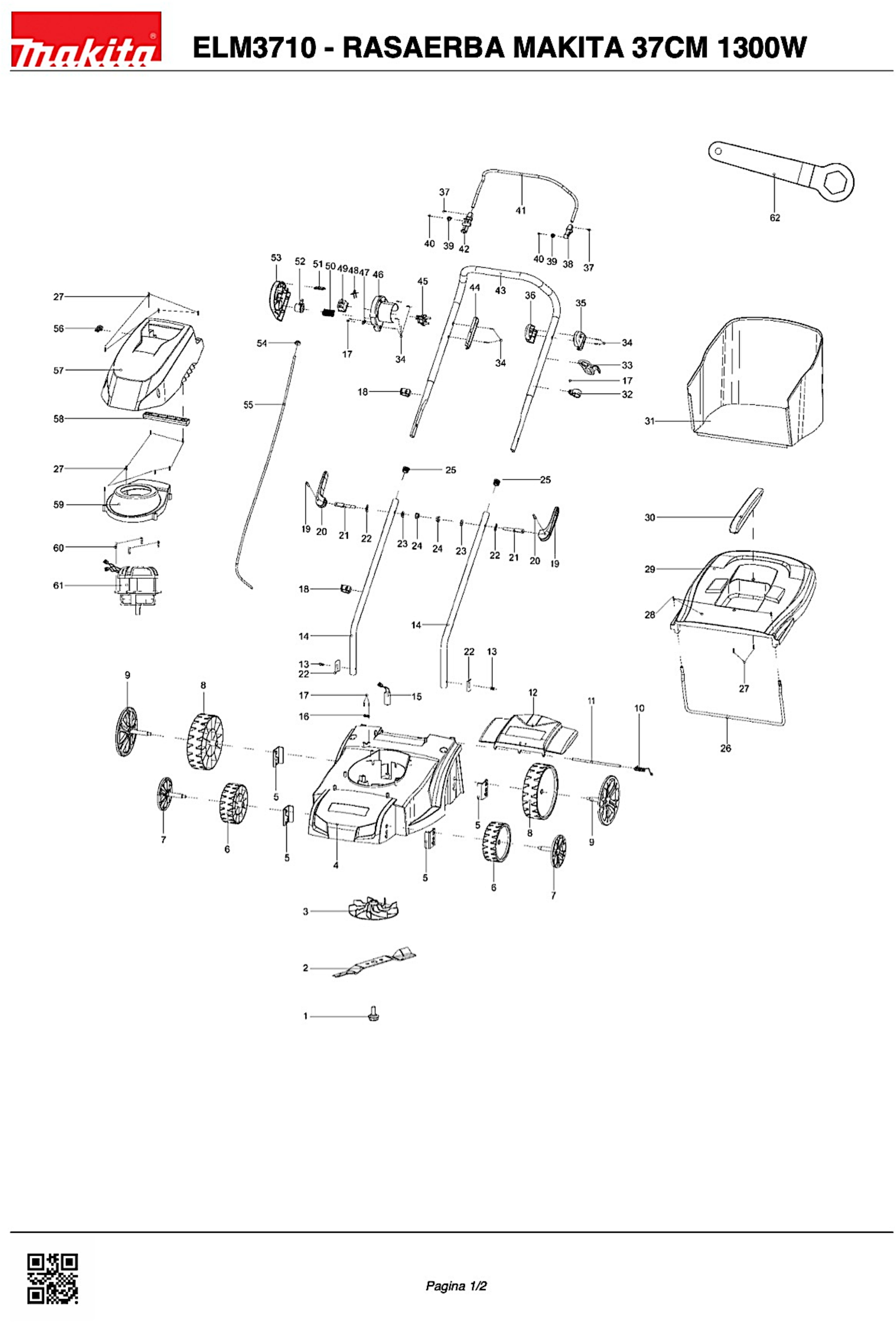

zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Makita Spare Parts for Lawn Mower ELM3710
Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Electric Lawn Mower ELM3710.
In the following table, look for the model of Lawn Mower and the respective parts of the code.
| ELM3710 - ELECTRIC LAWN MOWER MAKITA 37CM 1300W | ||
| # | Part Num. | Description |
| 1 | 671100802 | SCREW M10X40 |
| 2 | 671014142 | BLADE 37CM ELM3710 |
| 3 | 671492001 | BLADE PLATE WITH FAN ELM3310-3710 |
| 4 | 671436001 | DECK BLUEELM3710 |
| 5 | 671014150 | THREAD PLATE ELM3310-3710 |
| 6 | 671421001 | FRONT WHEEL 125 ELM3310-3710 |
| 7 | 671001188 | FRONT HUB COVER ELM3310-3710 |
| 8 | 671419001 | REAR WHEEL 175 ELM3310-3710 |
| 9 | 671001189 | WHEEL COVER WITH SHAFT ELM3310-3710 |
| 10 | 671011121 | TORSION SPRING ELM3310-3710 |
| 11 | 671001027 | AXLE ELM3710 |
| 12 | 671422001 | DECK LID ELM3710 |
| 13 | 671001054 | SCREW 5X12 ELM3310-3710 |
| 14 | 671001421 | HANDLE, LOWER PART ELM3310-3710 |
| 15 | 671001007 | CAPACITOR ELM3710 |
| 16 | 671001023 | CABLE HOLDER ELM3310 |
| 17 | 671001003 | SCREW 4X12 ELM3310-3710 |
| 18 | 671001051 | CABLE CLIP ELM3310-3710 |
| 19 | 671090040 | CYLINDRICAL PIN D.5,3X20 ELM3310-3710 |
| 20 | 671431001 | SHIFT HANDLE ELM3310-3710 |
| 21 | 671001466 | SCREW M6X60 ELM3310-3710 |
| 22 | 671001420 | PLATE ELM3310-3710 |
| 23 | 671007007 | WASHER 8 ELM3310-3710 |
| 24 | 671005016 | NUT M6 PLM4110-4610-4611 |
| 25 | 671001198 | TUBE PLUGS ELM3310-3710 |
| 26 | 671001417 | GRASS CATCHER BRACKET ELM3710 BAG |
| 27 | DA00000873 | SCREW M4,2X15 ELM 3310-3710 |
| 28 | 671002007 | SCREW M4X12 ELM3310-3710 |
| 29 | 671424001 | GRASS-BOX, UPPER ELM3710 |
| 30 | 671423001 | HANDLE OF GRASS CATCHER ELM3310-3710 |
| 31 | 671014140 | GRASSCATCHER ELM3710 |
| 32 | 671001083 | CLAMP ELM3310-3710 |
| 33 | 671001052 | CABLE HOLDER ELM 3310-3710 |
| 34 | 671001005 | SCREW M4X16 ELM3310-3710 |
| 35 | 671434002 | LEFT HANDLE SUPPORT ELM3310-3710 |
| 36 | 671434001 | RIGHT HANDLE SUPPORT ELM3310-3710 |
| 37 | 671002025 | SCREW M4X8 ELM3310-3710 |
| 38 | 671279005 | LEFT PLUG-IN OF HANDLE EM3310-3710 |
| 39 | 671011124 | SPRING EM3310-3710 |
| 40 | 671001036 | SCREW 3X10 ELM3310-3710 |
| 41 | 671014180 | ENGINE BRAKE LEVER ELM3710 |
| 42 | DA00001023 | RIGHT PLUG-IN OF HANDLE ELM3310-3710 |
| 43 | 671016150 | UPPER HANDLE |
| 44 | 671428001 | SPRESSING PLATE OF SWITCH BOX ELM3310-3710 |
| 45 | 671001071 | PIN ELM3310-3710 (COMPLETE) |
| 46 | 671001071 | PIN ELM3310-3710 (COMPLETE) |
| 47 | 671491001 | CABLE CLAMP ELM3710 |
| 48 | 671009002 | INDICATOR LIGHT LED ELM3310-3710 |
| 49 | 671010040 | SWITCH ELM3310-3710 |
| 50 | 671011079 | SPRING ELM3310-3710 |
| 51 | 671001043 | LAMPSHADE ELM3310-3710 |
| 52 | 671425002 | SAFETY BUTTON ELM3310-710 |
| 53 | 671426001 | SWITCH BOX, RIGHTELM3310-3710 |
| 54 | 671283001 | JACKET 1 OF CABLE CONNECTION ELM3310-3710 |
| 55 | 671001010 | CABLE 1250MM ELM3310-3710 |
| 56 | 671284001 | JACKET 2 OF CABLE CONNECTION ELM3310-3710 |
| 57 | 671433001 | MOTOR COVER ELM3710 |
| 58 | 671432001 | HANDLE ELM3710 |
| 59 | 671417001 | MOTOR WIND SHEATH ELM3710 |
| 60 | 671001053 | SELF-TAPPING SCREW 6X30 ELM3310-3710 |
| 61 | 671002014 | MOTOR 1300W ELM3710 |
| 62 | 671002009 | BOX SPANNER ELM3310-3710 |
