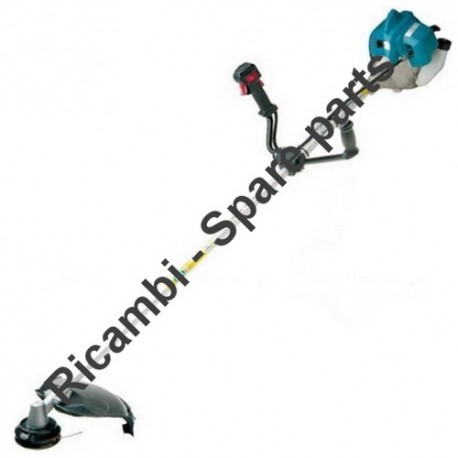

Makita Spare Parts for Brusch Cutter BBC4500

SKU: Makita BBC4500
€2.76
VAT included

Makita Spare Parts for Brusch Cutter BBC4500

We have the original MAKITA Garden parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Brusch Cutter BBC4500. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Brusch Cutter BBC4500
  • Online only
  • Makita Spare Parts for Brusch Cutter BBC4500
  • Makita Spare Parts for Brusch Cutter BBC4500
  • Makita Spare Parts for Brusch Cutter BBC4500
  • Makita Spare Parts for Brusch Cutter BBC4500
  • Makita Spare Parts for Brusch Cutter BBC4500
  • Makita Spare Parts for Brusch Cutter BBC4500
  • Makita Spare Parts for Brusch Cutter BBC4500
  • Makita Spare Parts for Brusch Cutter BBC4500
Makita

Makita Spare Parts for Brusch Cutter BBC4500

SKU: Makita BBC4500 Condition: New
€2.76
VAT included

Makita Spare Parts for Brusch Cutter BBC4500

We have the original MAKITA Garden parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Brusch Cutter BBC4500. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 251 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
233 spare parts

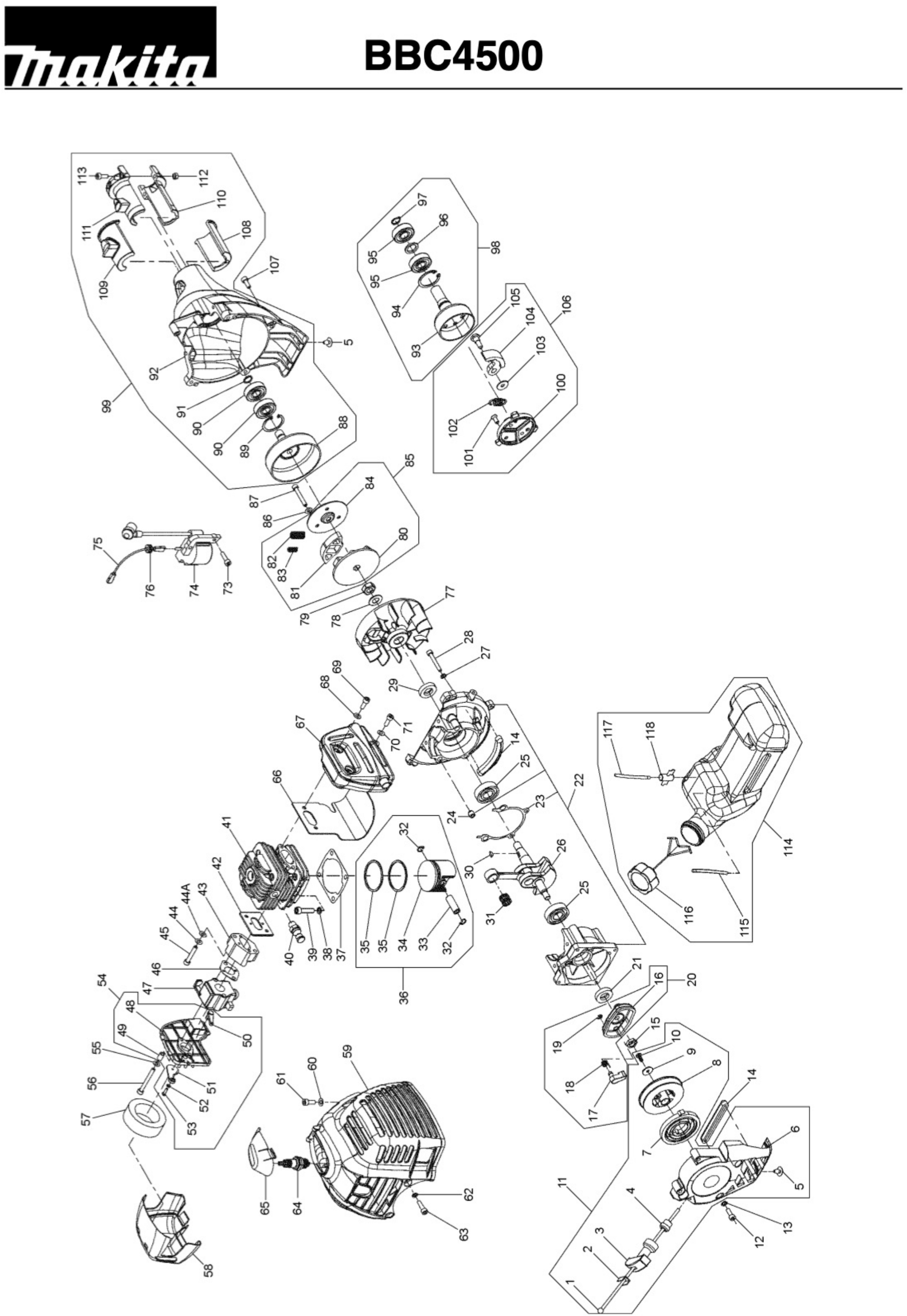

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon BB630070 STARTING ROPE €2.68
2
 photo_cameraImage coming soon BB510190 PLATE STOP ROPE €1.41
3
 photo_cameraImage coming soon BB724740 START CUTTER C / PIASTR.FERMO FUN. €7.15
4
 photo_cameraImage coming soon BB091640 STOPPED FOR ROPE €2.97
5
 Engine QUICK Grommet Support for Brushcutter Makita BBC5700 BB543600 Engine QUICK Grommet Support for Brushcutter Makita BBC5700 €1.42
6
 photo_cameraImage coming soon BB481020 CARTER START COVER €16.47
7
 photo_cameraImage coming soon BB180240 SPRING STARTING €9.90
8
 Starter Pulley for Brushcutter Makita BBC5700 BB541320 Starter Pulley for Brushcutter Makita BBC5700 €20.50 Not available for order
9
 photo_cameraImage coming soon BB090720 FLAT WASHER D.4,3 X 16 €1.41
10
 photo_cameraImage coming soon BB030800 TCB SCREW M 4 X 10 €1.41
11
 photo_cameraImage coming soon BB724070 STARTER ASSY WHITE BBK5700 FROM 2017 €39.60
12
 photo_cameraImage coming soon BB030410 SCREW TCEI M 5 X 18 €1.41
13
 photo_cameraImage coming soon BB090780 FLAT WASHER 5.3 X 10 X 1 €1.41
14
 photo_cameraImage coming soon BB541340 RUBBER TANK €1.41
15
 photo_cameraImage coming soon BB060370 NUT M 9 X 25.1 €2.68
16
 photo_cameraImage coming soon BB480900 RATCHET HOLDER €14.11
17
 Starter Pawl for Brushcutter Makita BBC451 BB541330 Starter Pawl for Brushcutter Makita BBC451 €3.50
18
 photo_cameraImage coming soon BB180200 RATCHET SPRING €2.68
20
 Starter Cup Assembly for Brushcutter Makita BBC5700 BB722460 Starter Cup Assembly for Brushcutter Makita BBC5700 €28.10
21
 photo_cameraImage coming soon BB240370 SEALING RING 15X26X7 €14.34
22
 photo_cameraImage coming soon BB721430 CARTER MOTOR ASSEMBLY €155.11
23
 photo_cameraImage coming soon BB240260 SEAL CARTER €2.08
24
 photo_cameraImage coming soon BB420200 PLUG CENTRING CARTER D.8X10 €1.41
25
 photo_cameraImage coming soon BB270070 6202 BEARING €11.08
26
 photo_cameraImage coming soon BB751600 CRANKSHAFT €174.93
27
 photo_cameraImage coming soon BB090150 LOCK WASHER 5,1 €1.41
28
 photo_cameraImage coming soon BB030620 SCREW TCEI M 5 X 35 €1.41
29
 photo_cameraImage coming soon BB240030 SEALING RING 15X26X7 €7.58
30
 photo_cameraImage coming soon BB420030 TAB AMERICAN 10X3,7X3 €2.08
31
 Needle Bearing for Brushcutter Makita BBC5700 BB270050 Needle Bearing for Brushcutter Makita BBC5700 €12.65
32
 photo_cameraImage coming soon BB150040 PIN LOCKING RING D.10 €4.43
33
 photo_cameraImage coming soon BB420040 PISTON PIN D.10X30 €5.14
35
 photo_cameraImage coming soon BB150240 PISTON RING D.41 €4.76
36
 Piston Complete Diameter mm 41 for Brushcutter Dolmar MS4520B BB721350 Piston Complete Diameter mm 41 for Brushcutter Dolmar MS4520B €45.99 Not available for order
37
 Cylinder Gasket for Brushcutter Dolmar MS4520B BB240270 Cylinder Gasket for Brushcutter Dolmar MS4520B €2.20
38
 photo_cameraImage coming soon BB090620 WASHER SCHNORR D.6,4 €1.41
39
 photo_cameraImage coming soon BB030630 SCREW TCEI M 6 X 25 €1.41
40
 Engine Decompresso for Brushcutter Makita BBC5700 BB752340 Engine Decompresso for Brushcutter Makita BBC5700 €21.88
41
 Cylinder Diameter mm 41 for Brushcutter Dolmar MS4520B BB480630 Cylinder Diameter mm 41 for Brushcutter Dolmar MS4520B €137.50
42
 Intake Manifold Gasket for Brushcutter Makita BBC5700 BB240290 Intake Manifold Gasket for Brushcutter Makita BBC5700 €2.20
43
 photo_cameraImage coming soon BB541270 COLLECTOR CARB.WT €12.70
44A
 photo_cameraImage coming soon BB090780 FLAT WASHER 5.3 X 10 X 1 €1.41
44
 photo_cameraImage coming soon BB090800 WASHER SCHNORR D.5,3 €1.41
45
 photo_cameraImage coming soon BB030070 SCREW TE M 5 X 30 €1.41
46
 photo_cameraImage coming soon BB240130 SEAL CARBURETOR €1.41
47
 photo_cameraImage coming soon BB331650 CARBURETOR FOR BBK4500 €81.34
48
 photo_cameraImage coming soon BB543160 COMPLETE AIR FILTER SUPPORT €2.79
49
 photo_cameraImage coming soon BB091630 BUSHING €1.41
50
 photo_cameraImage coming soon BB543350 RING FOR SHAFT Without GROOVES €1.25
52
 photo_cameraImage coming soon BB091680 FLAT WASHER D.3,2 X 7 X 0,5 €1.25
53
 photo_cameraImage coming soon BB031140 SCREW M 3 X 8 €1.33
55
 photo_cameraImage coming soon BB090830 WAVY WASHER D. 5,3 €1.41
56
 photo_cameraImage coming soon BB030500 SCREW TCEI M 5 X 45 €2.54
57
 Walbro Carburator Air Filter for Brushcutter Makita BBC5700 BB332100 Walbro Carburator Air Filter for Brushcutter Makita BBC5700 €6.36
59
 photo_cameraImage coming soon BB543090 BLUE MOTOR CYLINDER COVER €14.71
60
 photo_cameraImage coming soon BB090780 FLAT WASHER 5.3 X 10 X 1 €1.41
61
 photo_cameraImage coming soon BB030680 SCREW TCEI M 5 X 14 €1.41
62
 photo_cameraImage coming soon BB090780 FLAT WASHER 5.3 X 10 X 1 €1.41
63
 photo_cameraImage coming soon BB030620 SCREW TCEI M 5 X 35 €1.41
64
 photo_cameraImage coming soon BB450180 SPARK PLUG RCJ4 €5.87
66
 Muffler Gasket for Brushcutter Makita BBC5700 BB240500 Muffler Gasket for Brushcutter Makita BBC5700 €6.69 Not available for order
67
 Muffler for Brushcutter Makita BBC5700 BB752350 Muffler for Brushcutter Makita BBC5700 €44.98 Not available for order
68
 photo_cameraImage coming soon BB090830 WAVY WASHER D. 5,3 €1.41
69
 photo_cameraImage coming soon BB030410 SCREW TCEI M 5 X 18 €1.41
70
 photo_cameraImage coming soon BB090830 WAVY WASHER D. 5,3 €1.41
71
 photo_cameraImage coming soon BB030680 SCREW TCEI M 5 X 14 €1.41
73
 photo_cameraImage coming soon BB031150 SCREW M 5 X 20 €1.33
74
 Capacitive Ignition Coil for Brushcutter Makita BBC5700 BB450930 Capacitive Ignition Coil for Brushcutter Makita BBC5700 €95.37
75
 photo_cameraImage coming soon BB450340 CABLE MASS X COIL €5.14
76
 photo_cameraImage coming soon BB541510 X WIRE CABLE MASS €1.41
77
 photo_cameraImage coming soon BB450280 FLYWHEEL FOR N39 / 57 €85.18
78
 photo_cameraImage coming soon BB091000 WAVY WASHER D.10,5 €1.41
79
 photo_cameraImage coming soon BB060300 NUT M 8 X 10 €1.41
80
 photo_cameraImage coming soon BB780080 SUPP.CEPPI FRIZ. N31 / 52 €22.96
81
 photo_cameraImage coming soon BB780020 CLUTCH LOCK N31 / 52 €10.45
82
 photo_cameraImage coming soon BB180040 EXTERNAL CLUTCH SPRING €1.97
83
 photo_cameraImage coming soon BB180030 INTERNAL CLUTCH SPRING €1.97
84
 photo_cameraImage coming soon BB510200 THREADED SPRING DISC €4.18
85
 photo_cameraImage coming soon BB090830 WAVY WASHER D. 5,3 €1.41
86
 photo_cameraImage coming soon BB721390 CLUTCH FULL SINT. €56.04
87
 photo_cameraImage coming soon BB030620 SCREW TCEI M 5 X 35 €1.41
89
 photo_cameraImage coming soon BB120070 RING SEEGER 32I UNI 7437 €1.41
90
 photo_cameraImage coming soon BB270240 6201-ZZ BEARING €10.45
91
 photo_cameraImage coming soon BB120020 RING 12E UNI 7435-75 €1.33
92
 photo_cameraImage coming soon BB480980 HOUSING CLUTCH €42.29
99
 photo_cameraImage coming soon BB724100 SUPP GROUP. AND DRUM CLUTCH €118.77
107
 photo_cameraImage coming soon BB030380 SCREW TCEI M 5 X 16 €1.33
108
 photo_cameraImage coming soon BB543220 HOUSING €5.61
109
 photo_cameraImage coming soon BB543210 HOUSING €5.61
110
 photo_cameraImage coming soon BB481000 LOWER SPACER €5.61
111
 photo_cameraImage coming soon BB480990 SUPERIOR SPACER €5.61
112
 photo_cameraImage coming soon BB060100 NUT M 5 FOR 4 €1.40
113
 photo_cameraImage coming soon BB030410 SCREW TCEI M 5 X 18 €1.41
114
 Fuel Tank Ass'y for Brushcutter Dolmar MS4520B BB724110 Fuel Tank Ass'y for Brushcutter Dolmar MS4520B €46.20
115
 photo_cameraImage coming soon BB542520 PIPE RECOVERY €6.19
117
 photo_cameraImage coming soon BB542460 FUEL HOSE €6.19
118
 photo_cameraImage coming soon BB330820 FILTER MIX PESCANTE €5.94

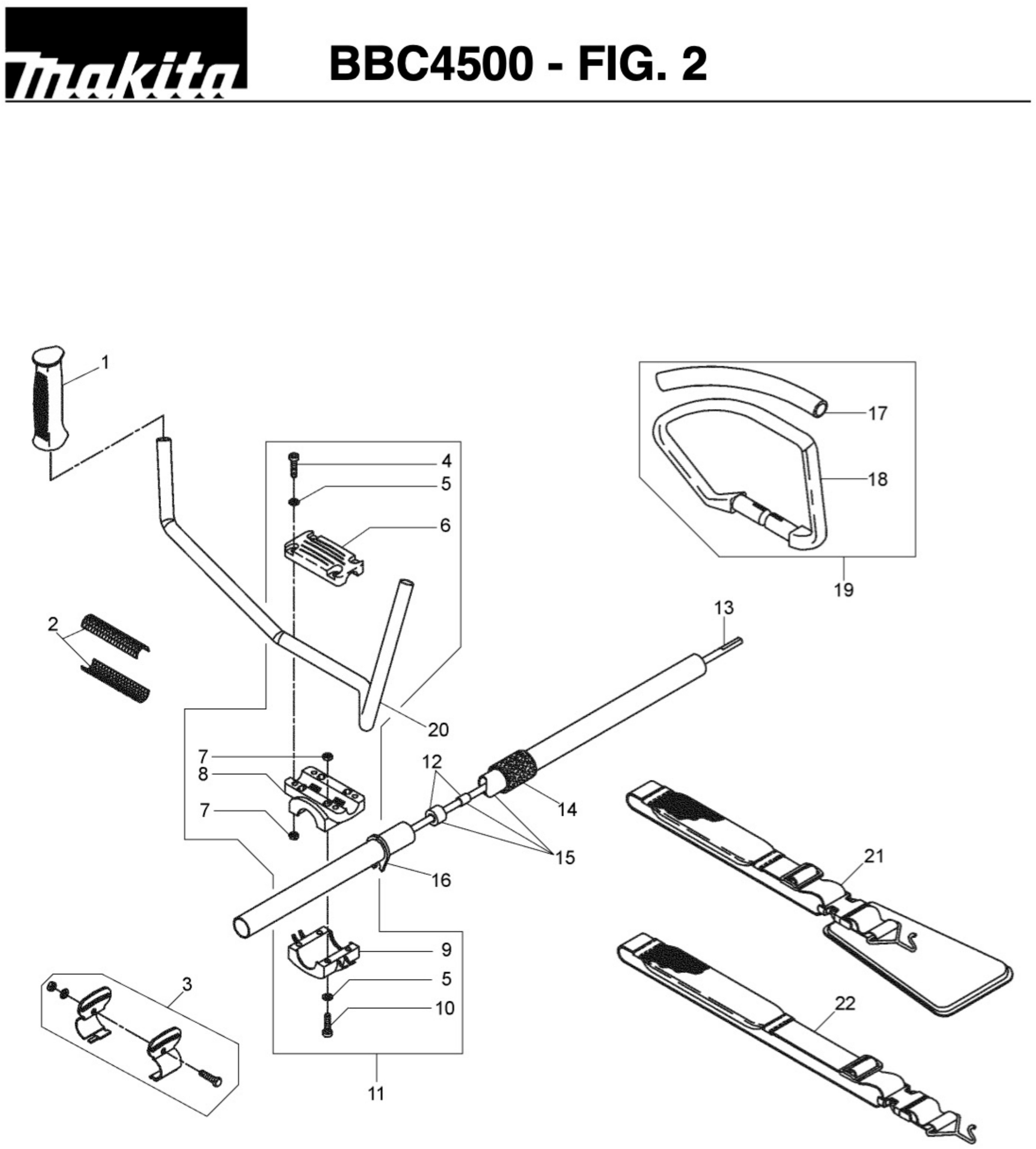

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon BB543490 NEW HANDLEBAR HANDLEBAR €7.15
2
 photo_cameraImage coming soon BB511030 SPACER €1.40
3
 photo_cameraImage coming soon BB750920 CUTTING ATTACK €8.03
4
 photo_cameraImage coming soon BB030630 SCREW TCEI M 6 X 25 €1.41
5
 photo_cameraImage coming soon BB090040 FLAT WASHER D.6,4 €1.33
6
 photo_cameraImage coming soon BB542450 CRUISE SUPPORT HAT €4.18
7
 photo_cameraImage coming soon BB060130 NUT M 6 X 4 €1.25
8
 photo_cameraImage coming soon BB542440 CRUISE SUPPORT BODY €5.61
9
 photo_cameraImage coming soon BB542430 HORSE CROSS BODY €4.85
10
 photo_cameraImage coming soon BB030810 SCREW TCEI M 6 X 40 €1.33
11
 photo_cameraImage coming soon BB722620 NYLON CUBE HANDLEBAR SUPPORT €13.52
12
 photo_cameraImage coming soon BB751640 BUSH €2.97
13
 photo_cameraImage coming soon BB391030 RIGID DRIVE SHAFT €42.29
14
 photo_cameraImage coming soon BB540420 ANTI-BUSH D.27 €4.18
16
 photo_cameraImage coming soon BB540690 GAS CONTROL CABLE SUPPORT €2.69
17
 photo_cameraImage coming soon BB570530 TUBE RUBBER X IMPUGN.ANT. €4.18
18
 photo_cameraImage coming soon BB542420 ANTIVIBRANTE CONTROL REG. €10.45
19
 photo_cameraImage coming soon BB722830 HANDLE €17.17
20
 photo_cameraImage coming soon BB570670 HANDBAG X EBC NBC €32.49
21
 photo_cameraImage coming soon BB751620 SUSPENDER WITH PROTECTION €13.52
22
 photo_cameraImage coming soon BB751580 SUSPENDERS €10.45

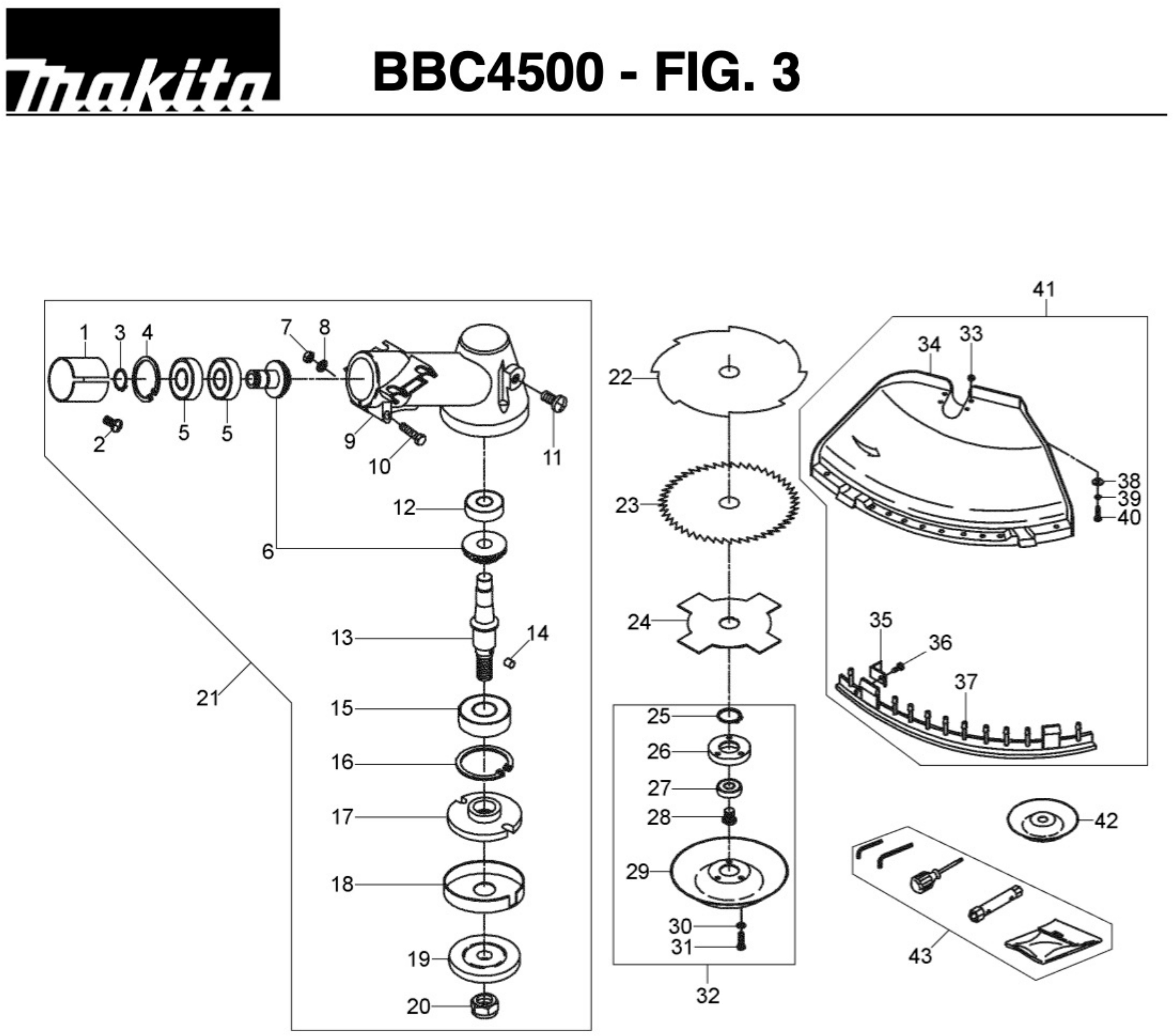

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon BB090020 CASE BOWL €2.97
2
 photo_cameraImage coming soon BB030800 TCB SCREW M 4 X 10 €1.41
3
 photo_cameraImage coming soon BB120020 RING 12E UNI 7435-75 €1.33
4
 photo_cameraImage coming soon BB120010 SEEGER RING 28I UNI 7437 €1.40
5
 photo_cameraImage coming soon BB270010 6001-ZZ BEARING €15.70
6
 photo_cameraImage coming soon BB723380 KIT GEAR GAR BOX €80.30
7
 photo_cameraImage coming soon BB060060 NUT M 6 X 5 €1.33
8
 photo_cameraImage coming soon BB090010 LOCK WASHER 6,1 D. €1.41
9
 photo_cameraImage coming soon BB480470 CONICA COVER CASE D.27 €47.36
10
 photo_cameraImage coming soon BB030010 SCREW TE M 6 X 30 €1.33
11
 photo_cameraImage coming soon BB031080 SCREW CAP €1.33
12
 photo_cameraImage coming soon BB270020 BALL BEARING 6000 €9.34
13
 photo_cameraImage coming soon BB390010 SPINDLE €22.96
14
 Lock Pin for Brushcutter Dolmar MS4520B BB420010 Lock Pin for Brushcutter Dolmar MS4520B €1.44 Not available for order
15
 photo_cameraImage coming soon BB270030 BALL BEARING 6202-2RS €13.52
16
 photo_cameraImage coming soon BB120030 RING SEEGER 35I UNI 7437 €1.33
17
 photo_cameraImage coming soon BB091560 DISC PORTABLE D.50 €13.52
19
 photo_cameraImage coming soon BB090070 FLANGE €7.15
20
 photo_cameraImage coming soon BB060470 NUT M 10 FOR 1 FOR 12 €2.08
21
 Gear Case Ass'y for Brushcutter Dolmar MS4520B BB722760 Gear Case Ass'y for Brushcutter Dolmar MS4520B €204.97
25
 photo_cameraImage coming soon BB120050 RING SEEGER 15E UNI 7435-75 €1.41
26
 photo_cameraImage coming soon BB480060 HOLDER BEARING €9.34
27
 photo_cameraImage coming soon BB270060 6002-ZZ BEARING €11.08
28
 photo_cameraImage coming soon BB060160 NUT M10X1 €3.63
29
 photo_cameraImage coming soon BB510030 SUPPORT CUP €14.71
30
 photo_cameraImage coming soon BB090010 LOCK WASHER 6,1 D. €1.41
31
 photo_cameraImage coming soon BB030050 SCREW TE M 6 X 12 €1.33
32
 photo_cameraImage coming soon BB720080 SCREW TE M 6X12 €21.63
33
 photo_cameraImage coming soon BB060100 NUT M 5 FOR 4 €1.40
34
 Safety Guard for Brushcutter Makita BBC4510 BB542410 Safety Guard for Brushcutter Makita BBC4510 €15.20
35
 photo_cameraImage coming soon BB511020 KNIFE €9.34
36
 Srew 3,9x16 for Brushcutter Makita BBC4510 BB030820 Srew 3,9x16 for Brushcutter Makita BBC4510 €1.35
37
 photo_cameraImage coming soon BB542400 HEAD COVER WITH BLADE €3.93
38
 photo_cameraImage coming soon BB091360 WASHER 5.5 X 15 X 1.6 €1.33
39
 photo_cameraImage coming soon BB090150 LOCK WASHER 5,1 €1.41
40
 photo_cameraImage coming soon BB030830 SCREW M 5 X 12 €1.33
41
 photo_cameraImage coming soon BB722690 PROTECTION ASSEMBLY €21.50
42
 photo_cameraImage coming soon P-47282 CUP €3.44
43
 photo_cameraImage coming soon BB720330 SERVICE KEYS KIT €22.96

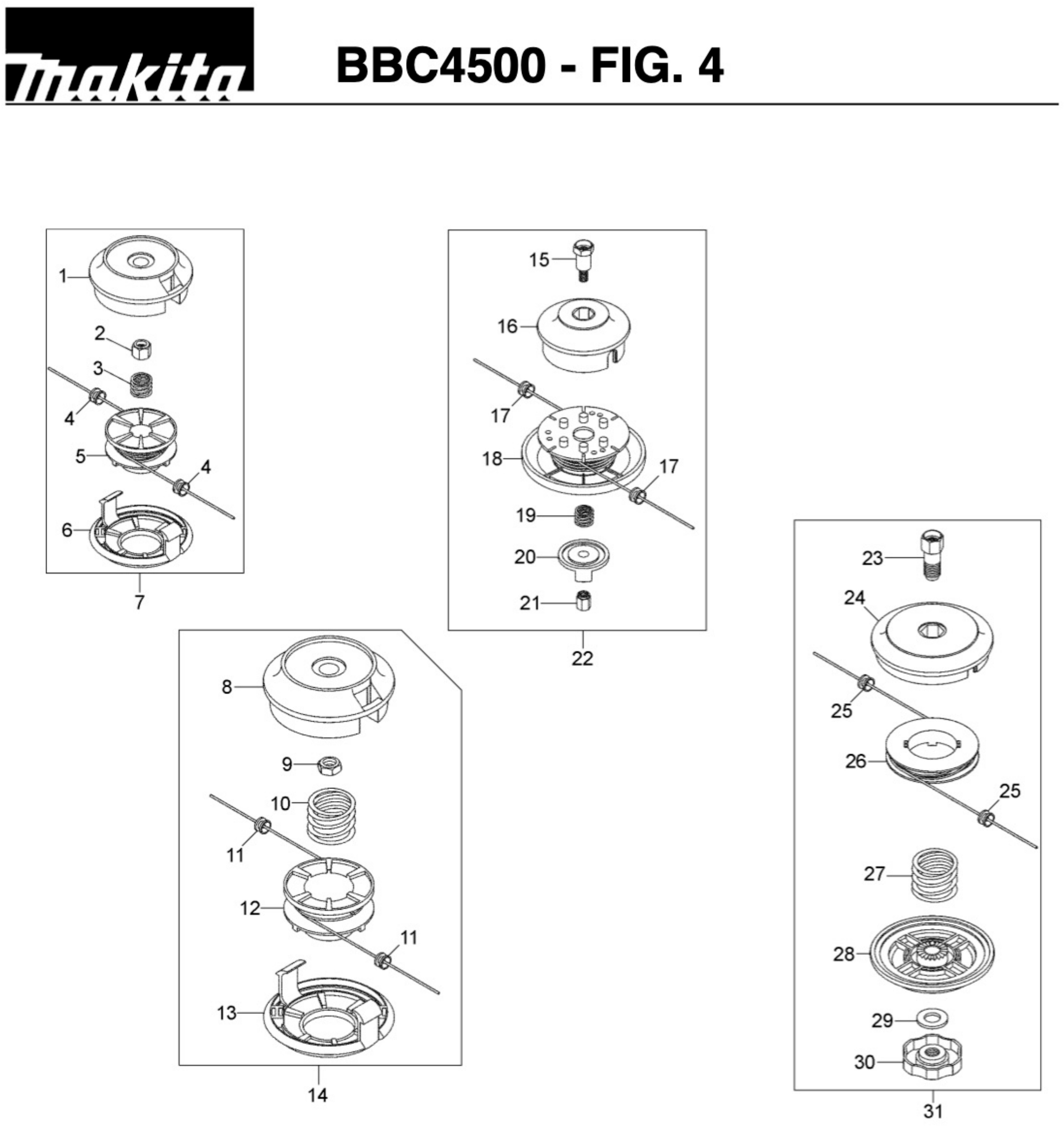

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon BB543260 UPPER COVER FLASH LIGHT €11.07
2
 photo_cameraImage coming soon BB391770 NUT €2.39
3
 photo_cameraImage coming soon BB180370 SPRING FOR HEAD FLASH LIGHT €2.69
4
 photo_cameraImage coming soon BB091350 GUIDE WIRE BUSHING FOR HEAD €2.69
5
 photo_cameraImage coming soon BB543280 REEL FOR HEAD FLASH LIGHT €8.50
6
 photo_cameraImage coming soon BB543270 FLASH LIGHT FLANGE €7.58
8
 photo_cameraImage coming soon BB542180 UPPER COVER FOR HEAD FLASH RAPID €11.07
9
 photo_cameraImage coming soon BB060220 COVER SUP.TEST.FLASH RAPID €2.08
10
 photo_cameraImage coming soon BB180180 SPRING FOR AUTOMATIC HEAD €2.69
11
 photo_cameraImage coming soon BB091350 GUIDE WIRE BUSHING FOR HEAD €2.69
12
 photo_cameraImage coming soon BB542170 COIL FOR RAPID HEAD S / WIRE €5.80
13
 photo_cameraImage coming soon BB542190 FLANGE €7.58
14
 photo_cameraImage coming soon P-47307 MANUAL HEAD M10X1.0F €13.52
15
 photo_cameraImage coming soon BB391510 NUT X HEAD FLASH QUICK €9.34
16
 photo_cameraImage coming soon BB543460 TOP TEST.QUICK COVER €7.15
17
 photo_cameraImage coming soon BB091350 GUIDE WIRE BUSHING FOR HEAD €2.69
18
 photo_cameraImage coming soon BB724140 REEL X FLASH QUICK €9.34
19
 photo_cameraImage coming soon BB180110 SPRING X FLASH AND QUICK TEST €1.97
20
 photo_cameraImage coming soon BB543430 QUICK TAPE PUMP €1.97
21
 photo_cameraImage coming soon BB091600 NUT QUICK FLASH HEAD INF.X €2.97
22
 photo_cameraImage coming soon BB723590 MANUAL HEAD M10X1.0F €11.20
24
 photo_cameraImage coming soon BB541110 SUPERIOR TEST.FLASH COVER €9.34
25
 photo_cameraImage coming soon BB091350 GUIDE WIRE BUSHING FOR HEAD €2.69
26
 photo_cameraImage coming soon BB540340 BOBINA X TEST FLASH S / FILO €2.97
27
 photo_cameraImage coming soon BB180110 SPRING X FLASH AND QUICK TEST €1.97
28
 photo_cameraImage coming soon BB541100 LOWER TEST.FLASH COVER €7.15
29
 photo_cameraImage coming soon BB090590 WASHER X M16 17X30X3 €1.33
30
 photo_cameraImage coming soon BB480310 POMOLO X HEAD SIN €4.85
31
 photo_cameraImage coming soon P-47307 MANUAL HEAD M10X1.0F €13.52

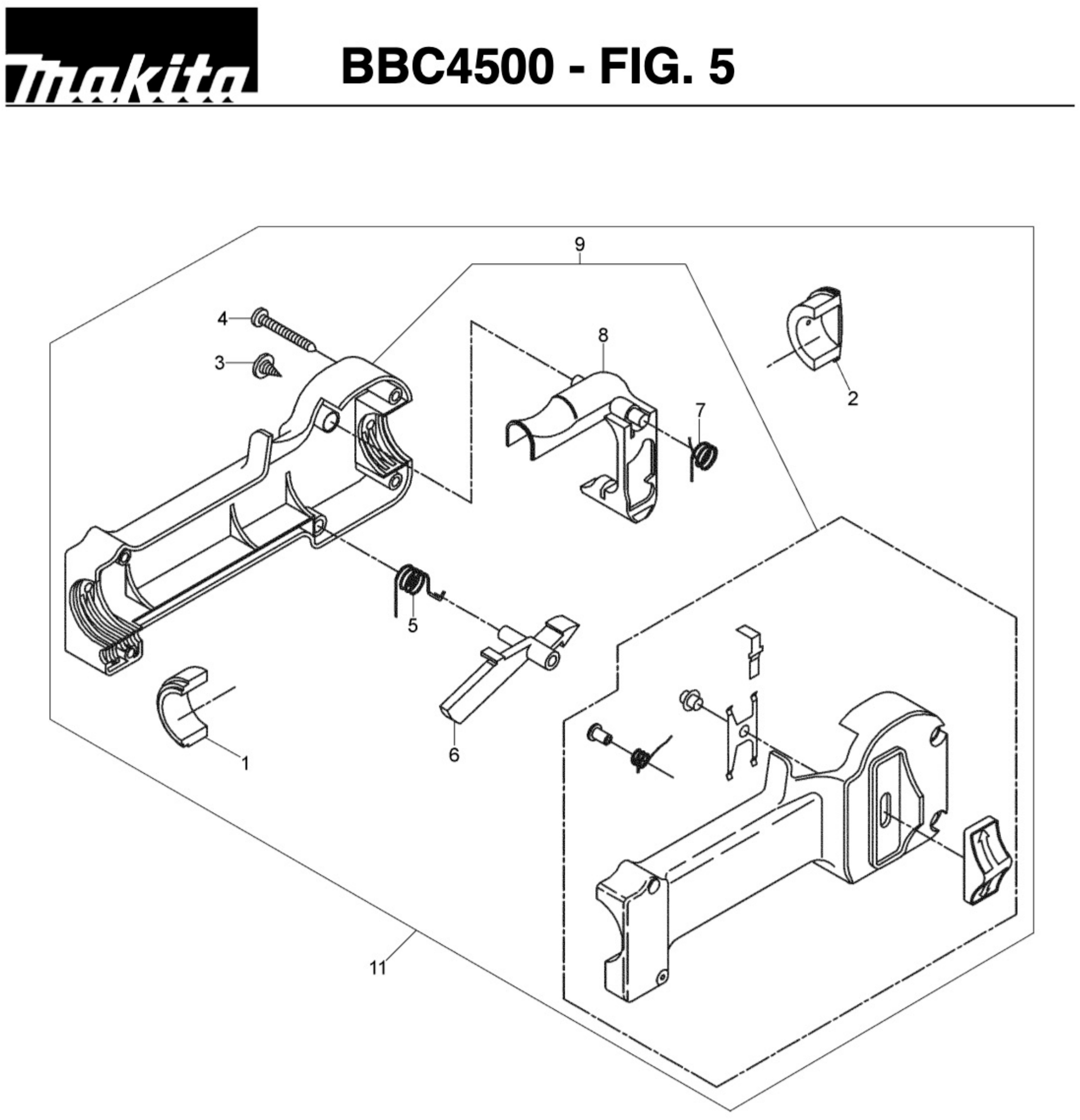

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
Pos. Item Price Buy
3
 photo_cameraImage coming soon BB030650 SCREW 4 X 20 €1.25
4
 photo_cameraImage coming soon BB030860 SCREW 3.5 X 25 €1.40
5
 photo_cameraImage coming soon BB180230 SPRING FOR SAFETY LEVER €1.40
6
 photo_cameraImage coming soon BB541410 CONTROL GAS SAFETY LEVER €2.08
7
 photo_cameraImage coming soon BB180220 GAS SPRING LEVER €1.40
8
 photo_cameraImage coming soon BB541400 GAS CONTROL LEVER €2.08
9
 photo_cameraImage coming soon BB750890 STANDARD HANDLE KIT €9.71
11
 photo_cameraImage coming soon BB721440 CPL MANOPLE. X HANDLEBAR €25.62

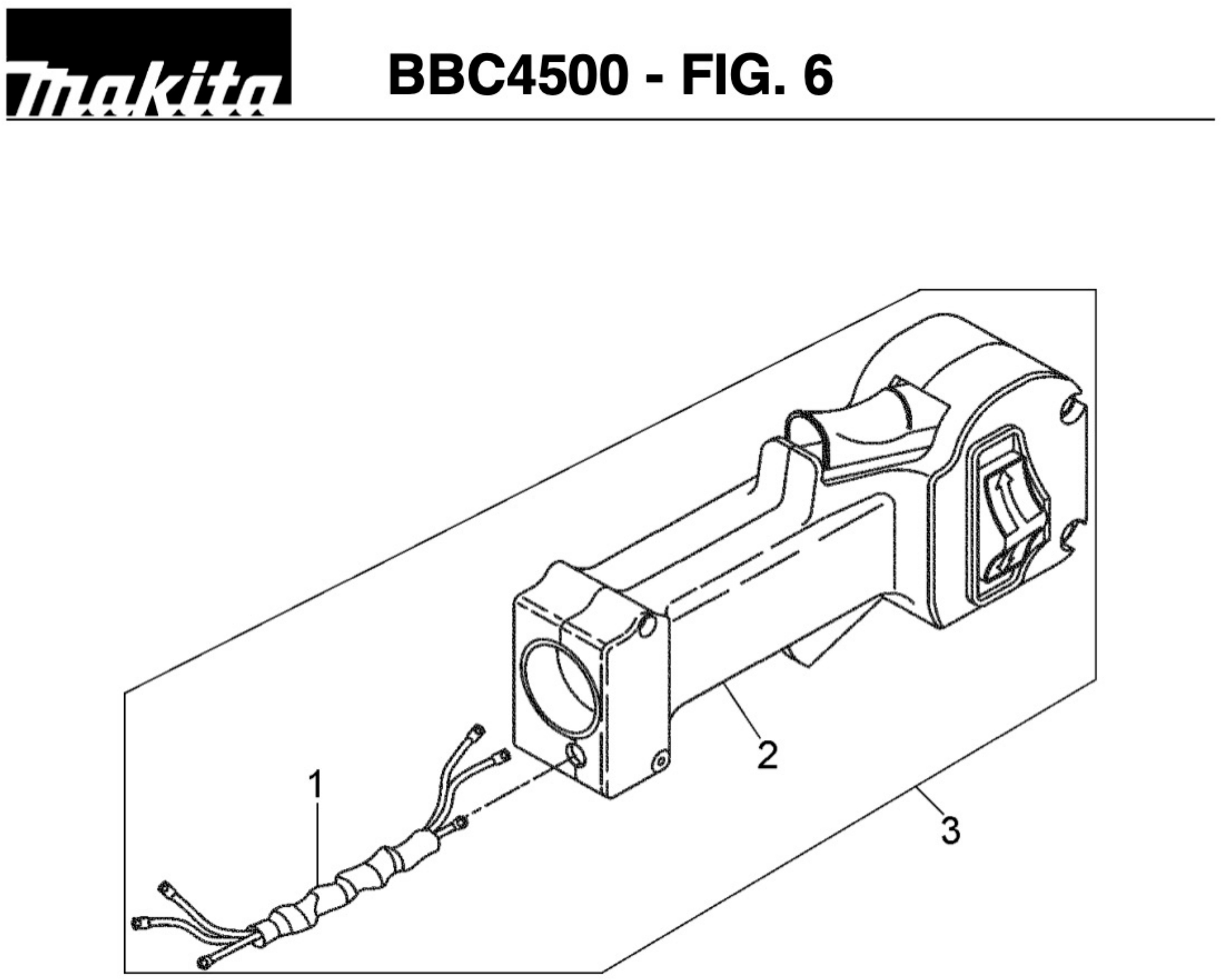

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon BB751060 CABLE GAS GROUP €12.40
2
 photo_cameraImage coming soon BB721440 CPL MANOPLE. X HANDLEBAR €25.62
3
 Throttle Handle Assy for Brushcutter Makita BBC5700 BB721660 Throttle Handle Assy for Brushcutter Makita BBC5700 €41.39

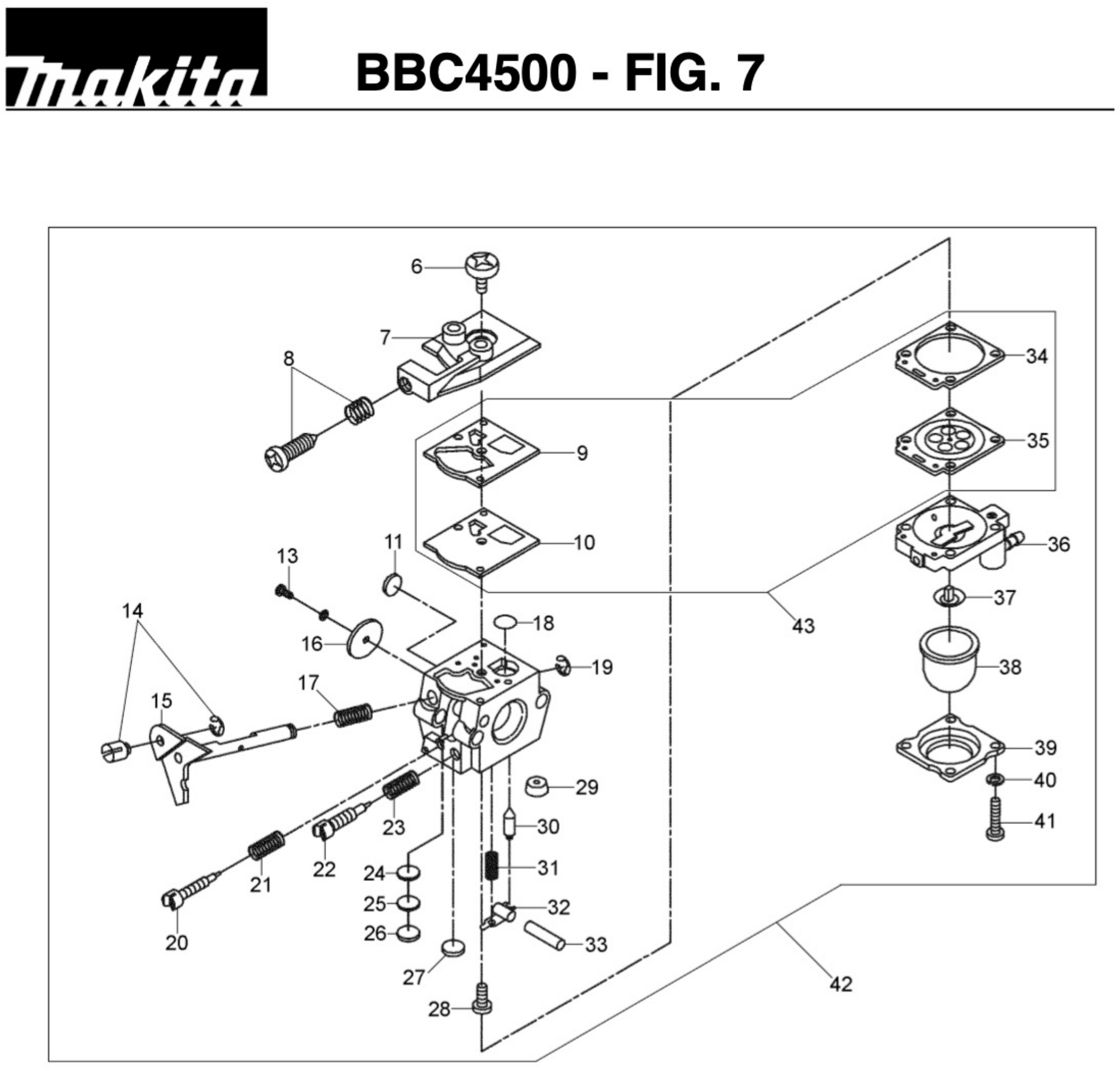

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 7
Pos. Item Price Buy
6
 photo_cameraImage coming soon BB96-166 SCREW COP. PUMP WT €1.41
7
 photo_cameraImage coming soon BB21-370 TOP COVER €14.71
8
 photo_cameraImage coming soon BB96-647 SCREW SPRING + X ADJUST. MINIMUM €1.41
9
 photo_cameraImage coming soon BB92-225 SEAL PUMP MIXTURE €2.68
10
 photo_cameraImage coming soon BB95-118 MEMBRANE PUMP WT €4.43
11
 photo_cameraImage coming soon BB88-131 STOPPER €1.41
13
 photo_cameraImage coming soon BB96-142 BUTTERFLY VALVE SCREW WT €1.41
14
 photo_cameraImage coming soon BB52-542 PIN WT101 €3.41
15
 photo_cameraImage coming soon BB30-1140 BUTTERFLY SHAFT €12.70
16
 photo_cameraImage coming soon BB34-158 THROTTLE €3.85
17
 photo_cameraImage coming soon BB98-234 VALVE SPRING RECALL €2.08
18
 photo_cameraImage coming soon BB140-70 FUEL FILTER INPUT €2.08
19
 photo_cameraImage coming soon BB16-71 RING SECURITY €2.68
20
 photo_cameraImage coming soon BB102-330 SCREW ADJUSTMENT MINIMUM WT €5.14
21
 photo_cameraImage coming soon BB98-404 SPRING ADJUSTMENT MINIMUM €2.08
22
 photo_cameraImage coming soon BB102-3066 SCREW ADJUSTMENT MAXIMUM WT €50.23
23
 photo_cameraImage coming soon BB98-405 SPRING ADJUSTMENT MAXIMUM €2.08
24
 photo_cameraImage coming soon BB140-69 SCREEN WASHER VALVE €1.41
25
 photo_cameraImage coming soon BB16-42 RETAINING RING €2.08
26
 photo_cameraImage coming soon BB88-119 STOPPER €1.41
27
 photo_cameraImage coming soon BB88-171 PLUG CIRCUIT MINIMUM €1.41
28
 photo_cameraImage coming soon BB96-156 SCREW AXIS ROCKER €1.41
29
 photo_cameraImage coming soon BB84-613 VALVE SEAT €5.14
30
 photo_cameraImage coming soon BB82-75 NEEDLE VALVE €5.14
31
 photo_cameraImage coming soon BB98-387 METER SPRING €2.08
32
 photo_cameraImage coming soon BB166-48 ROCKER €2.08
33
 photo_cameraImage coming soon BB144-77 ROCKER SHAFT €1.41
34
 photo_cameraImage coming soon BB92-251 GASKET WT €2.68
35
 Diaphragm for Brushcutter Dolmar MS4520B BB95-526 Diaphragm for Brushcutter Dolmar MS4520B €7.81
36
 photo_cameraImage coming soon BB5-2441 AIR FILTER BODY €14.71
37
 photo_cameraImage coming soon BB176-64 CONTROL VALVE €3.14
38
 photo_cameraImage coming soon BB188-12 SEAL €7.58
39
 photo_cameraImage coming soon BB21-404 PUMP COVER PRIMER €8.62
40
 photo_cameraImage coming soon BB090190 LOCK WASHER D.3,1 €1.41
41
 photo_cameraImage coming soon BB96-578 COVER SCREW DIAPHRAGM €2.08
42
 photo_cameraImage coming soon BB331650 CARBURETOR FOR BBK4500 €81.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brusch Cutter BBC4500

Fix Your Brusch Cutter BBC4500. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita BBC4500

MAKITA Brusch Cutter BBC4500 pag.1
Pos. Codice Description
1 BB630070 STARTER CORD
2 BB510190 CORD PLATE
3 BB724740 STARTER HANDLE WITH ROPE STOP PLATE
4 BB091640 LOCKING CORD
5 BB543600 ENGINE RUBBER
6 BB481020 STARTER COVER
7 BB180240 STARTER SPRING
8 BB541320 STARTER PULLEY
9 BB090720 FLAT WASHER D.4,3 X 16
10 BB030800 SCREW TCB M 4 X 10
11 BB724070 STARTER ASSY WHITE BBK5700 FROM 2017
12 BB030410 SCREW TCEI M 5 X 18
13 BB090780 FLAT WASHER 5.3 X 10 X 1
14 BB541340 TANK RUBBER
15 BB060370 NUT M 9 X 1.25
16 BB480900 REEL SUPPORT (MACCH FROM 2017)
17 BB541330 STARTER PAWL
18 BB180200 RATCHET SPRING
19 BB120160 LOCKING RING D4
20 BB722460 RATCHET ASSY
21 BB240370 SEAL RING 15X26X7
22 BB721430 ENGINE CASE ASSEMBLED
23 BB240260 CRANKCASE GASKET
24 BB420200 CRANKCASE CENTERING PIN D.8X10
25 BB270070 BEARING 6202
26 BB751600 CRANKSHAFT
27 BB090150 GROWER WASHER 5.1
28 BB030620 SCREW TCEI M 5 X 35
29 BB240030 OIL-SEAL 15X26X7
30 BB420030 KEY 10X3,7X3
31 BB270050 NEEDLE BEARING PB K10X14X13FKI-V1
32 BB150040 LOCKING PIN D.10
33 BB420040 PISTON PIN D.10X30
34 BB480710 PISTON DIAMETER 41 FOR N45E
35 BB150240 PISTON RING D.41
36 BB721350 PISTON ASSY D.41
37 BB240270 CYLINDER GASKET
38 BB090620 SCHNORR WASHER D.6,4
39 BB030630 SCREW TCEI M 6 X 25
40 BB752340 DECOMPRESSOR X N39 / 57E ENGINES
41 BB480630 CYLINDER DIAM. 41 FOR N45E
42 BB240290 INTAKE MANIFOLD GASKET
43 BB541270 CARBURETOR MANIFOLD WT
44 BB090800 SCHNORR WASHER D.5,3
44A BB090780 FLAT WASHER 5.3 X 10 X 1
45 BB030070 SCREW TE M 5 X 30
46 BB240130 CARBURETOR GASKET
47 BB331650 CARBURETOR FOR BBK4500
48 BB543160 COMPLETE AIR FILTER SUPPORT
49 BB091630 SPACER BUSH
50 BB543350 RING FOR SHAFT Without GROOVES
51 BB543360 AIR CLEANER HOLDER LEVER
52 BB091680 FLAT WASHER D.3,2 X 7 X 0,5
53 BB031140 SCREW M 3 X 8
54 BB724080 AIR FILTER HOLDER COMPL.
55 BB090830 WAVE WASHER D. 5,3
56 BB030500 VITE TCEI M 5 X 45
57 BB332100 WALBRO FILTER
58 BB543180 AIR CLEANER COVER BLUE
59 BB543090 CYLINDER COVER BLUE BLU
60 BB090780 FLAT WASHER 5,3 X 10 X 1
61 BB030680 SCREW TCEI M 5 X 14
62 BB090780 FLAT WASHER 5,3 X 10 X 1
63 BB030620 SCREW M 5 X 35
64 BB450180 SPARK PLUG RCJ4
65 BB543200 SPARK PLUG COVER BLUE
66 BB240500 MUFFLER GASKET
67 BB752350 MUFFLER GASKET
68 BB090830 WAVW WASHER D. 5,3
69 BB030410 SCREW M 5 X 18
70 BB090830 WAVE WASHER D. 5,3
71 BB030680 SCREW M 5 X 14
73 BB031150 SCREW M 5 X 20
74 BB450930 IGNITION COIL N39/57
75 BB450340 IGNITION COIL CABLE
76 BB541510 CHOCK
77 BB450280 FLYWHEEL N39/57
78 BB091000 WAVW WASHER D.10,5
79 BB060300 NUT M 10 X 8
80 BB780080 PERFORATED CLUTCH SHOES MOUNTING N31/52
81 BB780020 CLUTCH SHOEN31/52
82 BB180040 CLUTCH OUTER SPRING
83 BB180030 CLUTCH INNER SPRING
84 BB510200 PUNCHED CLUTCH PLATE
85 BB090830 WAVE WASHER D. 5.3
86 BB721390 SINTERED COMP. CLUTCH
87 BB030620 SCREW M 5 X 35
88 BB751300 CLUTCH DRUM
89 BB120070 SEEGER 32I UNI 7437
90 BB270240 BALL BEARING 6201-ZZ
91 BB120020 SEEGER 12E UNI 7435-75
92 BB480980 CLUTCH DRUM HOLDER
99 BB724100 CLUTCH DRUM HOLDER ASSEMBLY
107 BB030380 SCREW TCEI M 5 X 16
108 BB543220 LOWER HALF-SHELL
109 BB543210 UPPER HALF-SHELL
110 BB481000 LOWER SPACER
111 BB480990 UPPER SPACER
112 BB060100 NUT M 5 X 4
113 BB030410 SCREW TCEI M 5 X 18
114 BB724110 FUEL TANK ASS'Y FOR ENGINE
115 BB542520 RECOVERY TUBE
116 BB723740 COMPLETE TANK CAP
117 BB542460 MIXTURE TUBE
118 BB330820 FUELFILTER
DECESPUGLIATORE MAKITA BBC4500 pag.2
1 BB543490 NEW TYPE HANDLEBAR KNOB
2 BB511030 THICKNESS FOR HANDLE SUPPORT M
3 BB750920 BELT JOINT
4 BB030630 SCREW TCEI M 6 X 25
5 BB090040 FLAT WASHER D.6,4
6 BB542450 CROSS SUPPORT CAP
7 BB060130 NUT M 6 X 4
8 BB542440 CROSS SUPPORT BODY
9 BB542430 CROSS BODY SHELL
10 BB030810 SCREW TCEI M 6 X 40
11 BB722620 COMPLETE NYLON HANDLEBAR SUPPORT
12 BB751640 BUSH
13 BB391030 RIGID FLOATING TRANSMISSION SHAFT
14 BB540420 ANTIVIBRATION BUSHING D.27
15 BB750540 COMPLETE RUBBER TUBE
16 BB540690 GAS CONTROL CABLE SUPPORT
17 BB570530 RUBBER HOSE FOR FRONT HANDLE
18 BB542420 ADJUSTABLE ANTIVIBRATION HANDLE
19 BB722830 HANDLE WITH SHEATH
20 BB570670 HANDLEBAR FOR EBC NBC
21 BB751620 HARNESS WITH PROTECTION
22 BB751580 HARNESS
DECESPUGLIATORE MAKITA BBC4500 pag.3
1 BB090020 BUSH
2 BB030800 SCREW TCB M 4 X 10
3 BB120020 RING SEEGER 12E UNI 7435-75
4 BB120010 SEEGER 28I UNI 7437 RING
5 BB270010 BEARING 6001-ZZ
6 BB723380 GEAR CASE SET
7 BB060060 NUT M 6 X 5
8 BB090010 GROWER WASHER D. 6.1
9 BB480470 GEAR CASE D.27
10 BB030010 SCREW TE M 6 X 30
11 BB031080 GREASE CAP SCREW
12 BB270020 BEARING 6000
13 BB390010 GEAR CASE SPINDLE X D.27
14 BB420010 LOCK PIN
15 BB270030 BEARING 6202-2RS
16 BB120030 RING SEEGER 35I UNI 7437
17 BB091560 DISC HOLDER RING D.50
18 BB510180 UPPER FLANGE
19 BB090070 DISC FIXING FLANGE X D.27
20 BB060470 SELF LOCKING NUT M 10 X 1 X 12
21 BB722760 GEAR CASE ASSY FOR BBC4500
22 BB600040 8-TEETH BLADE
23 BB600060 48 TEETH BLADE (255X1.4X25.4) MM
24 BB600260 4 TEETH BLADE (255X1.4X25.4) MM
25 BB120050 RING SEEGER 15E UNI 7435-75
26 BB480060 BEARING SUPPORT
27 BB270060 BEARING 6002-ZZ
28 BB060160 CUP SUPPORT FIXING NUT M10X1
29 BB510030 SUPPORT CUP
30 BB090010 GROWER WASHER D. 6.1
31 BB030050 SCREW TE M 6 X 12
32 BB720080 CUP ASSEMBLY
33 BB060100 NUT M 5 X 4
34 BB542410 BRUSHCUTTER PROTECTION
35 BB511020 BLADE CUTTER WIRE X CLAMP
36 BB030820 SCREW 3.9 X 16
37 BB542400 HEAD REPAIR CLAMP WITH BLADE
38 BB091360 WASHER 5.5 X 15 X 1.6
39 BB090150 GROWER WASHER 5.1
40 BB030830 SCREW M 5 X 12
41 BB722690 PROTECTION ASSEMBLY
42 P-47282 FIXED SUPPORT CUP
43 BB720330 SERVICE KEYS KIT
DECESPUGLIATORE MAKITA BBC4500 pag.4
1 BB543260 FLASH LIGHT UPPER COVER
2 BB391770 NUT
3 BB180370 SPRING FOR FLASH LIGHT HEAD
4 BB091350 BUSH GUIDE WIRE X HEAD
5 BB543280 COIL FOR FLASH LIGHT HEAD
6 BB543270 FLASH LIGHT STOP FLANGE
7 BB723430 HEAD ASSEMBLY
8 BB542180 RAPID FLASH HEAD UPPER COVER
9 BB060220 NUT FOR FLASH RAPID HEAD
10 BB180180 SPRING FOR AUTOMATIC HEAD
11 BB091350 THREAD GUIDE BUSH FOR HEAD
12 BB542170 COIL FOR RAPID HEAD S / WIRE
13 BB542190 COVER
14 P-47307 MANUAL HEAD M10X1.0F
15 BB391510 NUT FOR FLASH QUICK HEAD
16 BB543460 UPPER COVER TEST.QUICK
17 BB091350 BUSH GUIDE WIRE X HEAD
18 BB724140 COIL FOR FLASH QUICK
19 BB180110 SPRING FOR FLASH AND QUICK HEAD
20 BB543430 QUICK HEAD KNOB
21 BB091600 LOWER NUT X FLASH QUICK HEAD
22 BB723590 HEAD ASSEMBLY
23 BB390540 NUT FOR FLASH HEAD
24 BB541110 FLASH HEAD UPPER COVER
25 BB091350 THREAD GUIDE BUSH FOR HEAD
26 BB540340 COIL FOR FLASH HEAD S / WIRE
27 BB180110 SPRING FOR FLASH AND QUICK HEAD
28 BB541100 LOWER HEAD COVER FLASH
29 BB090590 WASHER FOR M16 17X30X3
30 BB480310 LEFT HEAD KNOB
31 P-47307 MANUAL HEAD M10X1.0F
DECESPUGLIATORE MAKITA BBC4500 pag.5
1 BB541430 BUSH REDUCTION DIAMETER
2 BB541440 GAS KNOB CLOSING BUSH
3 BB030650 SCREW 4 X 20
4 BB030860 SCREW 3.5 X 25
5 BB180230 SPRING FOR SAFETY LEVER
6 BB541410 GAS CONTROL SAFETY LEVER
7 BB180220 SPRING FOR GAS CONTROL LEVER
8 BB541400 GAS CONTROL LEVER
9 BB750890 STANDARD KNOB SHELL KIT
11 BB721440 HANDLE ASSEMBLY
DECESPUGLIATORE MAKITA BBC4500 pag.6
1 BB751060 GAS CABLE GROUP
2 BB721440 COMPLETE HANDLEBAR KNOB
3 BB721660 COMPLETE KNOB
DECESPUGLIATORE MAKITA BBC4500 pag.7
6 BB96-166 SCREW COVER PUMP WT
7 BB21-370 TOP COVER
8 BB96-647 SCREW + SPRING X MINIMUM ADJUSTMENT
9 BB92-225 MIX PUMP GASKET
10 BB95-118 PUMP MEMBRANE WT
11 BB88-131 PLUG
13 BB96-142 CHOKE VALVE SCREW WT
14 BB52-542 PIN WT101
15 BB30-1140 CHOKE PIN
16 BB34-158 THROTTLE
17 BB98-234 SPRING RECALL VALVE
18 BB140-70 FUEL INLET FILTER
19 BB16-71 SECURITY RING
20 BB102-330 MINIMUM ADJUST SCREW WT
21 BB98-404 MINIMUM ADJUST SPRING
22 BB102-3066 SCREW ADJUST MAXIMUM WT
23 BB98-405 MAXIMUM ADJUST SPRING
24 BB140-69 VALVE SCREEN WASHER
25 BB16-42 STOP RING
26 BB88-119 PLUG
27 BB88-171 MINIMUM CIRCUIT CAP
28 BB96-156 SCREW SHAFT AXLE
29 BB84-613 VALVE SEAT
30 BB82-75 NEEDLE VALVE
31 BB98-387 SPRING VALVE BALANCE SPRING
32 BB166-48 ROCKER
33 BB144-77 ROCKER AXLE
34 BB92-251 DIAPHRAGM MEMBRANE GASKET WT
35 BB95-526 DIAPHRAGM MEMBRANE
36 BB5-2441 AIR FILTER BODY
37 BB176-64 CONTROL VALVE
38 BB188-12 SEAL
39 BB21-404 PRIMER PUMP COVER
40 BB090190 GROWER WASHER D.3,1
41 BB96-578 MEMBRANE COVER SCREW
42 BB331650 CARBURETOR FOR BBK4500
43 BBD10-WAT MEMBRANE KIT X WT 362,364,397
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita BBC4500
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita BBC4500

Drawing Makita BBC4500

Download (1.23MB)

You might also like

Muffler Gasket for Brushcutter Makita BBC5700
Makita SKU: BB240500
Muffler Gasket for Brushcutter Makita BBC5700
Muffler Gasket for Brushcutter Makita BBC5700 Genuine replacement part Makita, Muffler Gasket for Brushcutters BBC4510 - BBC5700 - BBC5710 - BBK4500 - Dolmar MS4520B - MS4520C. Parts...
AVAILABLE €6.69
Details
Starter Pawl for Brushcutter Makita BBC451
Makita SKU: BB541330
Starter Pawl for Brushcutter Makita BBC451
Starter Pawl for Brushcutter Makita BBC4510 Genuine replacement part Makita, Starter Pawl for Brushcutters BBC4510 - BBC5700 - BBC5710 - Dolmar MS4520B - MS4520C - MS5700B. Part for the...
AVAILABLE €3.50
Details
Starter Assembly for Brushcutter Makita BBC5700
Makita SKU: BB730050
Starter Assembly for Brushcutter Makita BBC5700
Starter Assembly for Brushcutter Makita BBC5700 Genuine spare part Makita, Starter Assembly (for Brushcutters by 2017) for Brushcutters BBC5700 - Dolmar MS4520U - MS5700C- MS5700U. Part...
Last items in stock €51.94
Details
Starter Cup for Brushcutter Makita BBC5700
Makita SKU: BB730080
Starter Cup for Brushcutter Makita BBC5700
Starter Cup for Brushcutter Makita BBC5700 Genuine spare part Makita, Starter Cup (for Brushcutters by 2017) for Brushcutters BBC5700 - Dolmar MS4520U - MS5700C- MS5700U. Part for the following products: - BBC4510 - BRUSHCUTTER...
Out-of-Stock €19.59
Details
Starter Cup Assembly for Brushcutter Makita BBC5700
Makita SKU: BB722460
Starter Cup Assembly for Brushcutter Makita BBC5700
Starter Cup Assembly for Brushcutter Makita BBC5700 Genuine spare part Makita, Starter Cup Assembly (for Brushcutters Before 2017) for Brushcutters BBC5700 - Dolmar MS4520U - MS5700C- MS5700U. Part for the following products: -...
Out-of-Stock €28.10
Details
Air Filter Holder for Brushcutter Makita BBC5700
Makita SKU: BB726390
Air Filter Holder for Brushcutter Makita BBC5700
Air Filter Holder for Brushcutter Makita BBC5700 Genuine replacement part Makita, Air Filter Holder for Brushcutters BBC4510 - BBC5700 - Dolmar MS4520B - MS4520C - MS4520U. Part for...
Available in 7/10 days €19.17
Details
Needle Bearing for Brushcutter Makita BBC5700
Makita SKU: BB270050
Needle Bearing for Brushcutter Makita BBC5700
Needle Bearing for Brushcutter Makita BBC5700 Genuine replacement part Makita, Needle Bearing PB K10X14X13FKI-V1 for Brushcutters BBC4510 - BBC5700 - Dolmar MS4520B - MS4520C - MS4520U. Part for the following products: - BBC4510 -...
AVAILABLE €12.65
Details
Intake Manifold Gasket for Brushcutter Makita BBC5700
Makita SKU: BB240290
Intake Manifold Gasket for Brushcutter Makita BBC5700
Intake Manifold Gasket for Brushcutter Makita BBC5700 Genuine replacement part Makita, Intake Manifold Gasket for Brushcutters BBC4510 - BBC5700 - Dolmar MS4520B - MS4520C - MS4520U. Part for the following products: - BBC4510 -...
on 7/10 Business Days Approx. €2.20
Details
Fuel Tank Ass'y for Brushcutter Dolmar MS4520B
Makita SKU: BB724110
Fuel Tank Ass'y for Brushcutter Dolmar MS4520B
Fuel Tank Ass'y for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Fuel Tank Assembly for Brushcutters N45E - MS4520B - MS4520C - MS4520U - Makita BBC4510 - BBK4500. Part for...
Last items in stock €46.20
Details
Diaphragm for Brushcutter Dolmar MS4520B
Makita SKU: BB95-526
Diaphragm for Brushcutter Dolmar MS4520B
Diaphragm for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Diaphragm for Brushcutters MS4520B - MS4520C - MS4520U - Makita BBC4510 - BBK4500. Part for the following products: -  MS4520C - BRUSHCUTTER DOLMAR 45CC IS -...
on 7/10 Business Days Approx. €7.81
Details
Gear Case Ass'y for Brushcutter Dolmar MS4520B
Makita SKU: BB722760
Gear Case Ass'y for Brushcutter Dolmar MS4520B
Gear Case Ass'y for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Gear Case Assembly for Brushcutters N45E - MS4520B - MS4520C - MS4520U - Makita BBC4510 - BBK4500. Part...
Last items in stock €204.97
Details
Lock Pin for Brushcutter Dolmar MS4520B
Makita SKU: BB420010
Lock Pin for Brushcutter Dolmar MS4520B
Lock Pin for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Gear Case Assembly for Brushcutters N45E - MS4520B - MS4520C - MS4520U - Makita BBC4510 - BBK4500. Part for the following products: -  MS4520C - BRUSHCUTTER...
Available in 7/10 days €1.44
Details
Makita Cylinder Cover for BBC5700
Makita SKU: BB543090/R
Makita Cylinder Cover for BBC5700
Makita Cylinder Cover for Bruschcutter BBC5700 Original part Makita, Red Cylinder Cover for Bruschcutter BBC5700. Part for the following products: -  Bruschcutter Makita BBK4500 -  Bruschcutter Makita BBK5700 - ...
Last items in stock €19.90
Details
Comments (0)
