Makita

Makita Spare Parts for Bruschcutter RBC420E

SKU: Makita RBC420E
€265.79
VAT included

Makita Spare Parts for Bruschcutter RBC420E

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC420E.
Makita Spare Parts for Bruschcutter RBC420E
  • Makita Spare Parts for Bruschcutter RBC420E
  • Makita Spare Parts for Bruschcutter RBC420E
  • Makita Spare Parts for Bruschcutter RBC420E
  • Makita Spare Parts for Bruschcutter RBC420E
  • Makita Spare Parts for Bruschcutter RBC420E
Makita

Makita Spare Parts for Bruschcutter RBC420E

SKU: Makita RBC420E Condition: New
€265.79
VAT included

Makita Spare Parts for Bruschcutter RBC420E

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC420E.
settings 157 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
155 spare parts

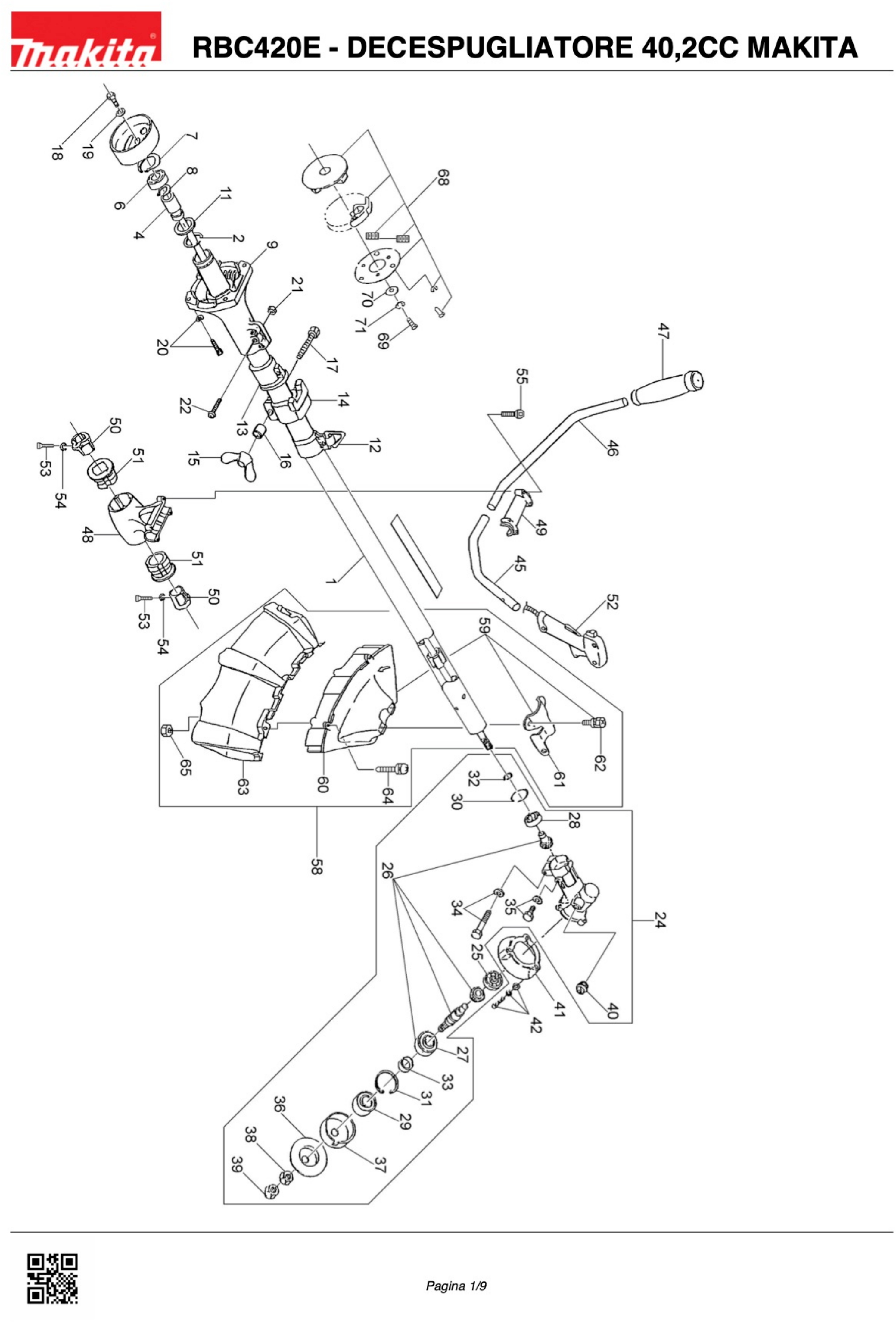

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6411026000 SHAFT PIPE COMPLETE X RBC350 €250.55
2
 photo_cameraImage coming soon 6301501500 OUTER SNAPPING RING X RBC525 €2.18
4
 photo_cameraImage coming soon 424403-8 RUBBER X RBC 410 €5.14
6
 photo_cameraImage coming soon 0600179850 BALL BEARING 6003DD X RBC / K 410 €18.98
7
 photo_cameraImage coming soon 0031435000 INTERNAL LOCK X RBC410 / 520 / RBK410 €3.23
8
 photo_cameraImage coming soon 0031517000 EXTERNAL LOCK X RBC 410 RBK410 €1.43
9
 photo_cameraImage coming soon 6411502600 CLUTCH HOUSING X RBC 410 €187.94
11
 photo_cameraImage coming soon 6301501600 WASHER X RBC520 €3.23
12
 photo_cameraImage coming soon 6407006000 COMPLETE BELT X RBC350-420 €31.80
13
 photo_cameraImage coming soon 6411502101 CLAMP X RBC350-420 €23.25
14
 photo_cameraImage coming soon 318732-8 CLAMP X RBC525 €20.57
15
 photo_cameraImage coming soon 6411501300 KNOB X RBC350-RBC420 €8.11
17
 photo_cameraImage coming soon 0016706500 BOLT X RBC350-420 €2.00
18
 photo_cameraImage coming soon 6202500400 BOLT X RBC 410 / RBK410 €8.37
19
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.54
20
 photo_cameraImage coming soon 0119069910 COMPLETE BOLT X RBC 410 €2.03
21
 photo_cameraImage coming soon 0022706000 NUT M6 X PB500R €1.43
24
 photo_cameraImage coming soon 6353001000 GEAR BOX X RBC 410 BOX €200.41
25
 photo_cameraImage coming soon 0600079990 BEARING 627 X RBC415 €16.17
26
 photo_cameraImage coming soon 6413003000 SPINDLE X RBC410 €92.13
27
 photo_cameraImage coming soon 0600129970 BEARING 6201 X RBC415 €20.93
28
 photo_cameraImage coming soon 0600129980 BALL BEARING 6001ZZ €21.54
29
 photo_cameraImage coming soon 6413500400 OIL GASKET X RBC410 €3.84
30
 photo_cameraImage coming soon 0031428000 INNER SNAPRING X RBC410/520 €2.77
31
 photo_cameraImage coming soon 0031432000 INTERNAL LOCK X RBC260 / 310/410 €2.77
32
 Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
33
 photo_cameraImage coming soon 6413500500 SPACER X RBC410 €5.94
34
 photo_cameraImage coming soon 0011306320 BOLT WITH WASHER X RBC410 €2.08
35
 photo_cameraImage coming soon 0011306140 BOLT WITH WASHER X RBC410 €1.40
36
 photo_cameraImage coming soon 346441-9 EXTERNAL FLANGE €22.16
37
 photo_cameraImage coming soon 326053-4 UPPER FLANGE X RBC410 €14.34
38
 photo_cameraImage coming soon 264058-5 NUT X RBC 410 / RBC520 €4.62
39
 photo_cameraImage coming soon 6308503300 NUT X RBC 410 / RBC520 €6.81
40
 photo_cameraImage coming soon 266671-5 OIL CAP €3.23
41
 photo_cameraImage coming soon 412099-7 PROTECTION X DECESP. €3.95
42
 photo_cameraImage coming soon 922213-2 HEX BOLT M5X12 EBH253L/341U €1.51
45
 photo_cameraImage coming soon 6414507300 HANDLE RBC420E/MS4200E w/hole €35.98
46
 photo_cameraImage coming soon 6414507400 HANDLE RBC420E/MS4200E/RBC525E €40.28
48
 photo_cameraImage coming soon 6414507201 HANDLE HOLDER RBC420E/525E/MS €35.98
49
 photo_cameraImage coming soon 6254503802 HANDLE HOLDER 1 RBC420E/525E €6.84
50
 photo_cameraImage coming soon 6404506200 STOPPER RBC420E/MS4200E/RBC52 €53.38
51
 photo_cameraImage coming soon 6404506600 BUSH RBC420E/MS4200E/RBC525E €8.90
53
 photo_cameraImage coming soon 0119069930 HEX. SOCKET HEAD BOLT M6X30 €2.14
54
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
55
 photo_cameraImage coming soon 0119059840 SCREW M5X25 MOD RBC415 €2.69
62
 photo_cameraImage coming soon 0100069790 HEX SOCKET HD SCREW M6X30 X RBC2110 €1.32
63
 photo_cameraImage coming soon 140424-9 LOWER PROTECTION RBC2510 €14.33
64
 photo_cameraImage coming soon 0043605400 SCREW M5X40 X RBK250 €2.08
65
 photo_cameraImage coming soon 0021805000 NUT X RBC201-221-251 €1.41
68
 Clutch Ass'y for Brushcutter Dolmar MS4210 140897-6 Clutch Ass'y for Brushcutter Dolmar MS4210 €110.29

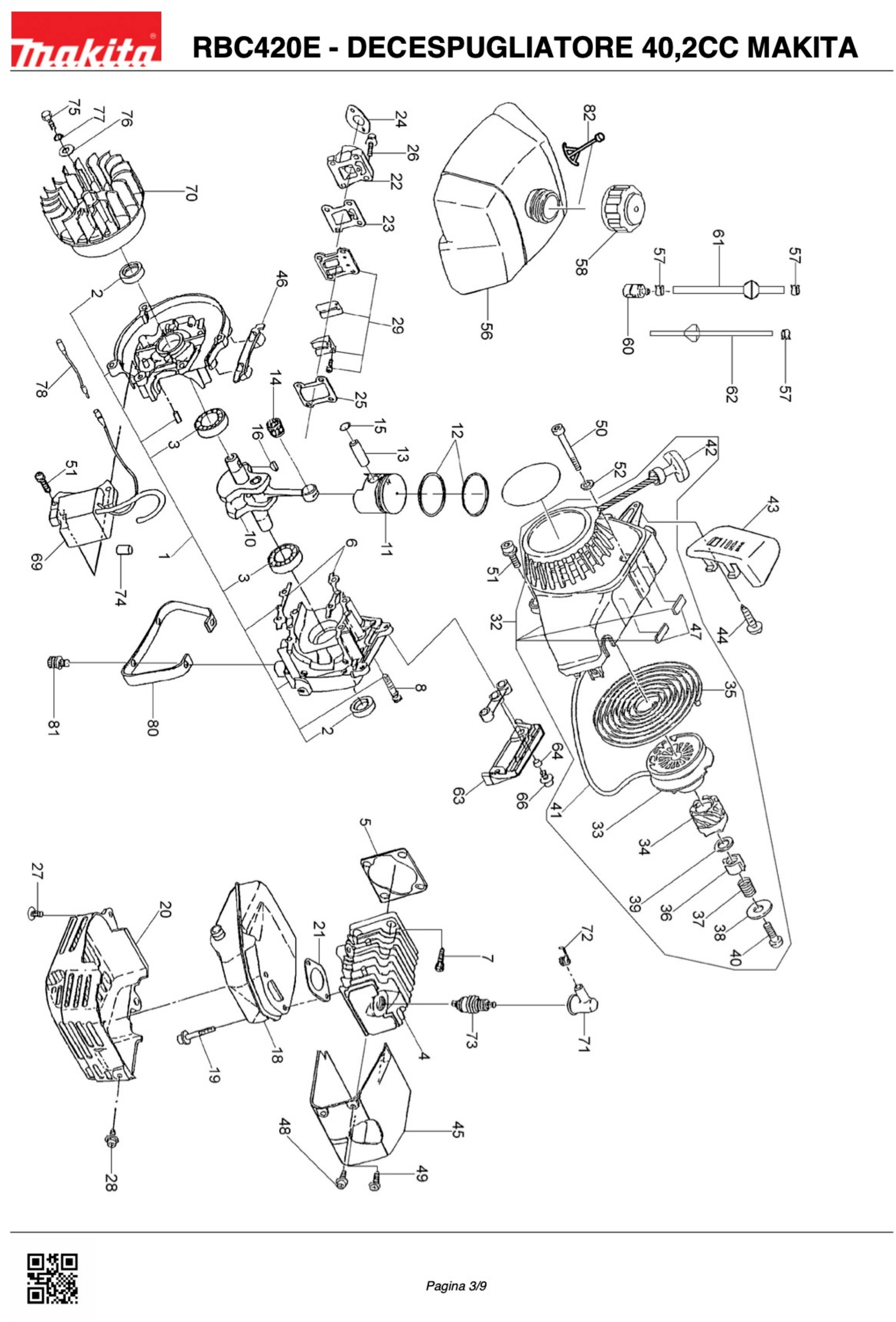

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5411005001 CONROD CASE X RBC420E €225.46
2
 photo_cameraImage coming soon 213546-9 OIL SEAL X PB500R-RBC525 €5.90
3
 photo_cameraImage coming soon 0600159880 BALL BEARING 6202C3 X PB500R €8.74
4
 Cylinder for Brushcutter Makita RBC410 318630-6 Cylinder for Brushcutter Makita RBC410 €66.15
5
 Cylinder Gasket for Brushcutter Makita RBC410 442156-7 Cylinder Gasket for Brushcutter Makita RBC410 €3.48
6
 photo_cameraImage coming soon 5411501200 CRANK CASE GASKET X RBC410 / RBK 410 €3.23
7
 photo_cameraImage coming soon 0119069990 BOLT X RBC 410 / RBK 410 €181.44
8
 photo_cameraImage coming soon 0119059940 BOLT X RBC 410 / RBK 410 €2.14
10
 photo_cameraImage coming soon 5412001000 CRANK SHAFT ASSY X RBC / RBK 410 €225.46
11
 Piston for Brushcutter Makita RBC410 318631-4 Piston for Brushcutter Makita RBC410 €28.32 Not available for order
12
 Piston Ring for Brushcutter Makita RBC410 257309-3 Piston Ring for Brushcutter Makita RBC410 €5.15
13
 Piston Pin for Brushcutter Makita RBC410 257797-4 Piston Pin for Brushcutter Makita RBC410 €3.65
14
 photo_cameraImage coming soon 212085-6 ROLLER CAGE 1014 €6.81
15
 Piston Pin Circlip for Brushcutter Makita RBC410 233983-1 Piston Pin Circlip for Brushcutter Makita RBC410 €1.55
16
 photo_cameraImage coming soon 0323039990 KEY X RBC350-RBC420 €3.68
18
 photo_cameraImage coming soon 5323006000 MUFFLER X RBC350-RBC420 €63.40
19
 photo_cameraImage coming soon 0119069780 BOLT M6X60 X RBC350-RBC420 €6.11
20
 photo_cameraImage coming soon 5413500100 MUFFLER COVER X RBC350-420 €23.65
21
 photo_cameraImage coming soon 5323500200 MUFFLER GASKET X RBC RBK / 410 €5.28
22
 photo_cameraImage coming soon 453971-4 INSULATOR X RBC350-RBC420 €4.31
23
 photo_cameraImage coming soon 5403500600 INSULATOR GASKET X RBC350 €2.03
24
 photo_cameraImage coming soon 5416504000 CARBURETOR GASKET RBC350P02 €2.03
25
 photo_cameraImage coming soon 442160-6 BRACKET GASKET €2.14
26
 photo_cameraImage coming soon 0119059640 BOLT M5X25 X RBC415 €3.13
27
 photo_cameraImage coming soon 0140069910 SCREW M6X16 X RBC350-RBC420 €2.14
28
 photo_cameraImage coming soon 0140059550 SCREW M5X14 X RBC350-RBC420 €2.14
29
 photo_cameraImage coming soon 5413006000 CPL VALVE X RBC350-RBC420 €16.72
32
 photo_cameraImage coming soon 5415050000 STARTER/REWIND ASSY RBC420E X RBC420E €159.53
33
 photo_cameraImage coming soon 452766-2 RBC RBK RBK 410 €5.28
34
 photo_cameraImage coming soon 452767-0 STARTER BRACKET RBC / RBK 410 €3.23
35
 photo_cameraImage coming soon 233993-8 SPIRAL SPRING X RBC 410 / RBK410 €7.79
36
 photo_cameraImage coming soon 452768-8 STARTER GUIDE X RBC 410 / RBK41 €2.14
37
 photo_cameraImage coming soon 5415001050 RETURN SPRING X RBC / RBK 410 €1.43
38
 photo_cameraImage coming soon 5415001060 WASHER X RBC / RBK 410 €1.43
39
 photo_cameraImage coming soon 5415001220 WASHER ELASTASTICAX RBC RBK 410 €2.14
40
 photo_cameraImage coming soon 5245001010 SCREW X RBC RBK 410 €2.76
41
 photo_cameraImage coming soon 5415001140 STARTER CABLE X RBC 260/410 / RBK 410 €8.74
42
 photo_cameraImage coming soon 5305002110 STARTER KNOB X RBC260 / RBK41 €7.79
43
 photo_cameraImage coming soon 5415504500 STARTER HOUSING RBC350-420 €14.76
44
 photo_cameraImage coming soon 6218501500 SCREW X RBC350-RBC420 €1.43
45
 photo_cameraImage coming soon 5415504600 CYLINDER CASE X RBC 410 / RBK €25.05
46
 photo_cameraImage coming soon 5416503500 RUBBER X RBC350-RBC420 €7.79
47
 photo_cameraImage coming soon 5416505300 DAMPERX RBC420E €3.95
48
 photo_cameraImage coming soon 0140059610 SCREW M5X14 X RBC350-RBC420 €1.43
50
 photo_cameraImage coming soon 0119059660 BOLT X RBC350-RBC420 €2.76
51
 photo_cameraImage coming soon 0119059790 BOLT X RBC / RBK 410 M5X22 €2.14
52
 photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
56
 Gasoline Tank for Brushcutter Makita RBC421 454558-5 Gasoline Tank for Brushcutter Makita RBC421 €15.97
57
 photo_cameraImage coming soon 0561059990 HOSE CLAMP XRBC230-310 / 520 €1.89
58
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
60
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
61
 photo_cameraImage coming soon 168765-1 TUBE X RBC350-RBC420 €4.99
62
 Fuel Hose for Brushcutter Makita RBC421 168766-9 Fuel Hose for Brushcutter Makita RBC421 €5.95
63
 photo_cameraImage coming soon 5416057000 SHANK PROTECTION €3.95
64
 photo_cameraImage coming soon 0230059990 COMPASS X RBC260 / 410 / RBK 410 €1.43
66
 photo_cameraImage coming soon 0140059630 SCREW M5X14 X RBC350-RBC420 €1.37
69
 Electronic Coil for Brushcutter Makita RBC421 168587-9 Electronic Coil for Brushcutter Makita RBC421 €24.50
70
 photo_cameraImage coming soon 5417001010 POLAR WHEEL X RBC / RBK 410 €179.92
71
 photo_cameraImage coming soon 0655009940 PLUG CAP X RBC410 / RBK410RBC520 €3.23
72
 photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
73
 photo_cameraImage coming soon 965603021 NGK SPARK PLUG BPMR7A €5.56
74
 photo_cameraImage coming soon 5417500300 TUBE X RBC350-RBC420 €3.23
75
 photo_cameraImage coming soon 0016706160 BOLT M6X16 X RBC / RBK 410 €1.43
76
 photo_cameraImage coming soon 0200069920 WASHER M6 X RBC310 / 410 / RBK410 €2.77
78
 photo_cameraImage coming soon 5607005000 COMPLETE CABLE X RBC350-RBC420-HT225 €6.11
80
 photo_cameraImage coming soon 346443-5 SUPPORT X RBC350-RBC420 €20.93
81
 photo_cameraImage coming soon 0119069900 BOLT M6X14 RBC350-RBC420 €2.03
82
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31

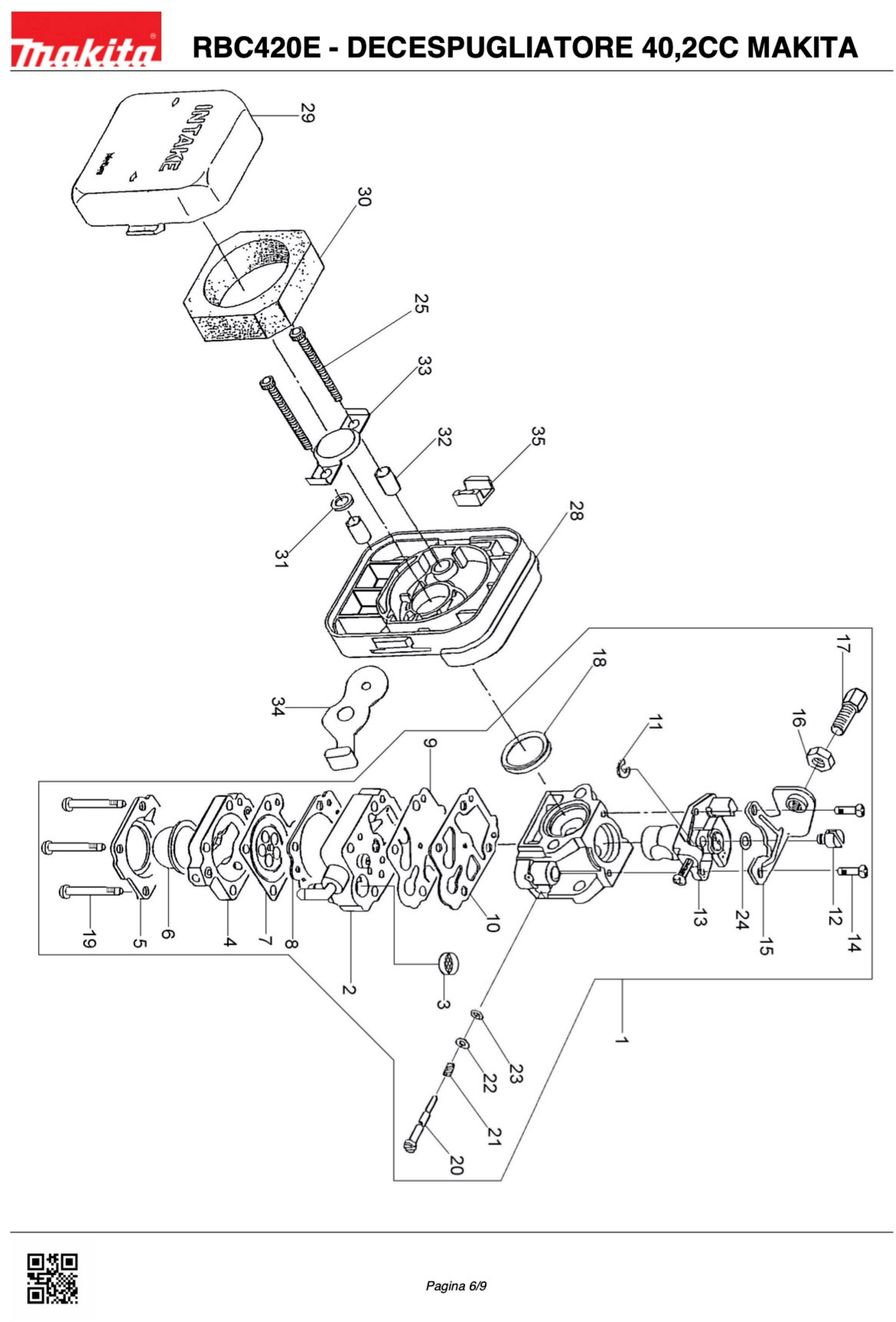

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
2
 photo_cameraImage coming soon 5236046130 BODY PUMP CPL FOR RBC350-RBC42 €61.62
3
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
4
 photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
5
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
6
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
7
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
8
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
9
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
10
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
11
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
12
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
13
 photo_cameraImage coming soon 5416041010 VALVE CPL RBC350 €89.49
15
 photo_cameraImage coming soon 5236052020 CABLE SUPPORT RBC350-RBC420 €25.16
16
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
17
 photo_cameraImage coming soon 5216008010 CABLE ADJUST SCREW X RBC260 310 €5.43
18
 photo_cameraImage coming soon 5236018020 GASKET FOR RBC 260/230 / 310 €5.43
19
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
20
 photo_cameraImage coming soon 5416041020 REGULATION SCREW RBC350-RBC €21.07
21
 photo_cameraImage coming soon 5806080110 SPRING X RBC350-RBC420 €7.36
22
 photo_cameraImage coming soon 5216006040 WASHER X RBC350-RBC420 €2.03
23
 photo_cameraImage coming soon 5216006050 GASKET X RBC350-RBC420 €5.77
24
 photo_cameraImage coming soon 5426005030 WASHER X-RBC350 RBC420 €7.06
25
 photo_cameraImage coming soon 0119059810 BOLT M5X50 XRBC / RBK410 €2.12
28
 photo_cameraImage coming soon 453981-1 FILTER HOUSING €10.76
29
 photo_cameraImage coming soon 453982-9 FILTER COVER €7.58
30
 photo_cameraImage coming soon 443180-3 AIR FILTER €10.76
31
 photo_cameraImage coming soon 424523-8 WASHER X RBC415-RBC350 €3.84
32
 photo_cameraImage coming soon 332044-5 BUSHING €3.74
33
 photo_cameraImage coming soon 5233013040 PLATE X RBC350-RBC420 €5.74
34
 photo_cameraImage coming soon 346627-5 AIR LEVER €10.76
35
 photo_cameraImage coming soon 5313003110 BRACKET COVER X RBC350-420 €13.92

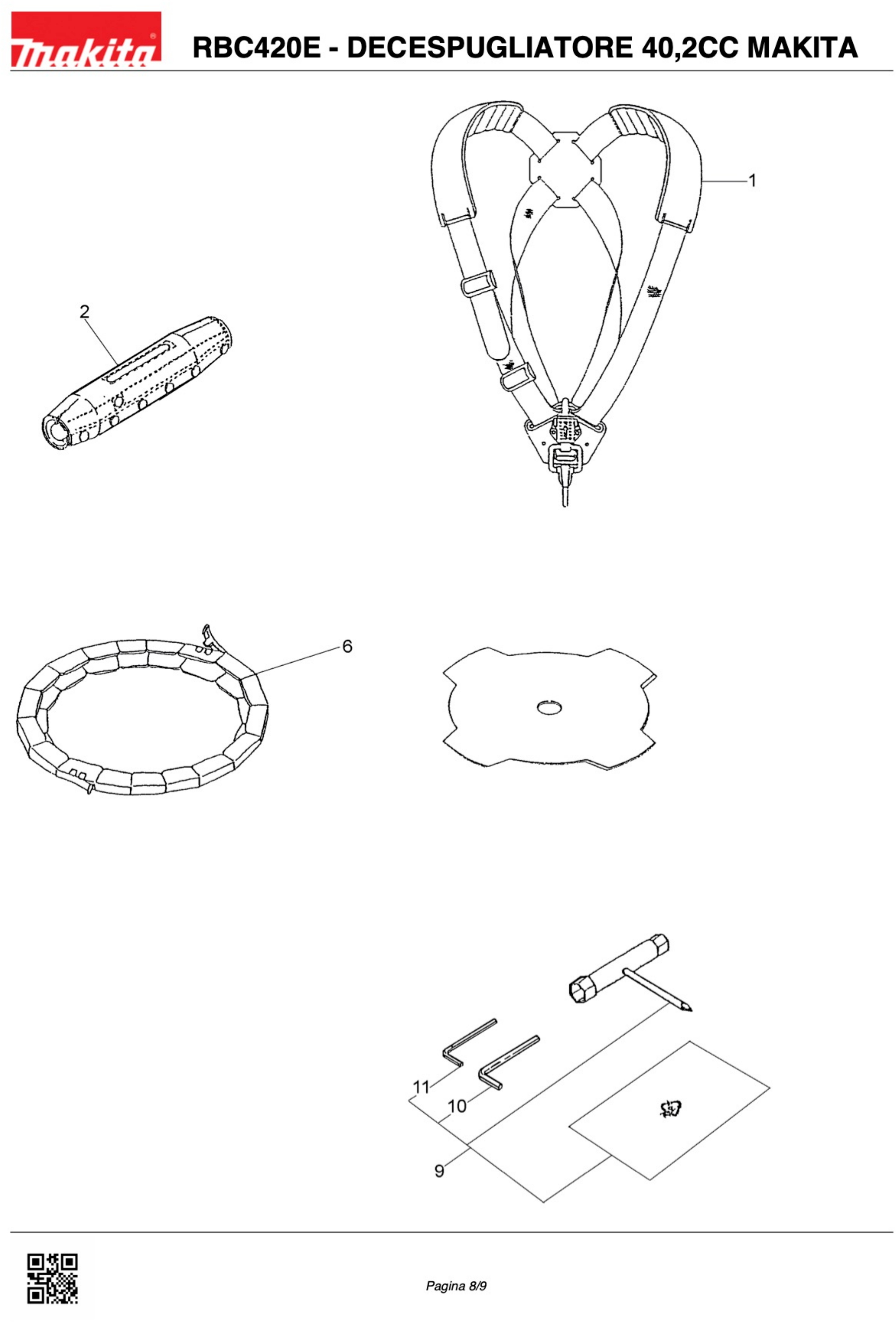

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6417015003 HARNESS CPL FOR RBC420E €81.27
2
 photo_cameraImage coming soon 6257500100 CUSHION RBC260/310/420E/525E €31.31
6
 photo_cameraImage coming soon 6418500701 BLADE COVER MS251.4 €12.95
9
 photo_cameraImage coming soon 6419038001 SERVICE KEYS RBC420E €19.72
10
 photo_cameraImage coming soon 0717059990 WRENCHE €2.61
11
 photo_cameraImage coming soon 0717049990 WRENCHE €2.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for BruschCutter RBC420E

We are MAKITA original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC420E.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita RBC420E

RBC420E - BRUSHCUTTER 40,2CC MAKITA pag.1
1 6411026000 SHAFT PIPE COMP RBC350/420
2 6301501500 OUTER SNAPPING RING X RBC525
4 424403-8 DAMPER X RBC 410
6 0600179850 BALL BEARING 6003DD X RBC / K 410
7 0031435000 INNER SNAP RING X RBC410 / 520 / RBK410
8 0031517000 OUTER SNAP RING X RBC 410 RBK410
9 6411502600 CLUTCH CASE X RBC 410
11 6301501600 WASHER X RBC520
12 6407006000 BAND ASS'Y X RBC350-420
13 6411502101 STOPPER RBC350/420E/525E
14 318732-8 STOPPER X RBC525
15 6411501300 WING NUT RBC350/420E/525E
16 6401032010 BUSH MS3500/4200/RBC350/351
17 0016706500 BOLT X RBC350-420
18 6202500400 BOLT X RBC 410 / RBK410
19 267429-5 WASHER 6
20 0119069910 HEX SOCKET HD BOLT M6X18 RBC4
21 0022706000 NUT M6 X PB500R
22 0043406350 SCREW X RBC525
24 6353001000 GEAR CASE ASSY RBC410/RBC420E
25 0600079990 BALL BEARING 627 X RBC415
26 6413003000 CUTTER SHAFT SET RBC410/RBC42
27 0600129970 BALL BEARING 6201 X RBC415
28 0600129980 BALL BEARING 6001ZZ
29 6413500400 OIL SEAL RBC410/RBC420E
30 0031428000 INNER SNAP RING X RBC410 / 520
31 0031432000 INNER SNAP RING X RBC260 / 310/410
32 0031512000 OUTER SNAP RING X RBC260 / 520RBK410
33 6413500500 SPACER RBC410/RBC420E
34 0011306320 BOLT ASSY M6x32 RBC410/RBC420E
35 0011306140 BOLT ASSY M6x14 RBC410/420E
36 346441-9 CLAMP WASHER
37 326053-4 RECEIVE WASHER X RBC410
38 264058-5 NUT M10 X RBC 410 / RBC520
39 6308503300 NUT M10 RBC410/RBC420E
40 266671-5 OIL CAP
41 412099-7 GUARD
42 922213-2 SCREW M5X12 EBH341U
45 6414507300 HANDLE RBC420E/MS4200E w/hole
46 6414507400 HANDLE RBC420E/MS4200E/RBC525E
47 6274501000 GRIP RBC260L/U/RBC420E/MS4200E
48 6414507201 HANDLE HOLDER RBC420E/525E/MS
49 6254503802 HANDLE HOLDER 1 RBC420E/525E
50 6404506200 STOPPER RBC420E/MS4200E/RBC52
51 6404506600 BUSH RBC420E/MS4200E/RBC525E
52 6415017000 CONTROL LEVER ASSY RBC420E/MS
53 0119069930 SOCKET HD BOLT M6x30 RBC420E M6X30 MOD RBC415
54 0032006000 SPRING WASHER X RBC / RBK410-G2400R
55 0119059840 SCREW M5X25 MOD RBC415
58 6358008003 PROTECTOR ASS'Y MS3500 / 3510/4200 /
59 6358007000 PROTECTOR ASS'Y X RBC420E
60 6358003002 PROTECTOR COMPLETE
61 6418501201 PROTECTOR CLAMP X RBC420E
62 0100069790 SCREW M6X30 X RBC2110
63 140424-9 PROTECTOR COMPLETE RBC2510
64 0043605400 PAN HD SCREW M5X40 RBK250 - EM4251/4340
65 0021805000 NUT M5 DBC260L/U/RBC3101 X RBC201-221-251
68 140897-6 CLUTCH (MS4211)
69 6202500400 BOLT M6x14 RBC410/420E/525E X RBC 410 / RBK410
70 267429-5 WASHER 6
71 0032006000 SPRING WASHER M6 RBC310/RBC420   X RBC / RBK410-G2400R
RBC420E - BRUSHCUTTER 40,2CC MAKITA pag.2
1 5411005001 CRANKCASE ASSY RBC420E/MS4200E
2 213546-9 OIL SEAL 15 X PB500R-RBC525
3 0600159880 BALL BEARING 6202C3 X PB500R
4 318630-6 CYLINDER X RBC 410 / RBK 410
5 442156-7 CYLINDER GASKET X RBC420E
6 5411501200 CRANK CASE GASKET X RBC410 / RBK 410
7 0119069990 HEX SOCKET HEADBOLT M6X18 RBC
8 0119059940 HEX SOCKET HEAD BOLT M5X30 RB
10 5412001000 CRANKSHAFT COMPLETE X RBC / RBK 410
11 318631-4 PISTON X RBC410 / RBK410
12 257309-3 PISTON RING RBC410 / RBK4
13 257797-4 PISTON PIN
14 212085-6 NEEDLE CAGE 1014
15 233983-1 CLIP EBH341 P01
16 0323039990 WOODRUFF KEY X RBC350-RBC420
18 5323006000 MUFFLER X RBC350-RBC420
19 0119069780 BOLT M6X60 X RBC350-RBC420
20 5413500100 MUFFLER COVER X RBC350-420
21 5323500200 MUFFLER GASKET X RBC RBK / 410
22 453971-4 INSULATOR X RBC350-RBC420
23 5403500600 INSULATOR GASKET X RBC350-
24 5416504000 CARBURETOR GASKET RBC350P02
25 442160-6 LEAD VALVE GASKET
26 0119059640 BOLT M5X25 X RBC415
27 0140069910 SCREW M6X16 X RBC350-RBC420
28 0140059550 SCREW M5X14 X RBC350-RBC420
29 5413006000 LEAD VALVE ASSY X RBC350-RBC420
32 5415050000 STARTER/REWIND ASSY RBC420E X RBC420E
33 452766-2 STARTER REEL RBC / RBK 410
34 452767-0 STARTER RATCHET RBC / RBK 410
35 233993-8 SPIRAL SPRING X RBC 410 / RBK410
36 452768-8 STARTER RATCHET GUIDE X RBC 410 / RBK41
37 5415001050 FRICTION SPRING RBC410/420E
38 5415001060 WASHER X RBC / RBK 410
39 5415001220 SPRING WASHER X RBC RBK 410
40 5245001010 SCREW X RBC RBK 410
41 5415001140 STARTER ROPE X RBC 260/410 / RBK 410
42 5305002110 STARTER KNOB X RBC260 / RBK41
43 5415504500 STARTER COVER RBC350-420 P15
44 6218501500 SCREW X RBC350-RBC420
45 5415504600 CYLINDER COVER X RBC 410 / RBK
46 5416503500 DAMPER X RBC350-RBC420
47 5416505300 DAMPERX RBC420E
48 0140059610 SCREW M5X14 X RBC350-RBC420
49 0140059560 SCREW M5X14 X RBC350-RBC420
50 0119059660 BOLT X RBC350-RBC420 -
51 0119059790 BOLT X RBC / RBK 410 M5X22
52 0031005000 WASHER X RBC230 / 410 / RBK410
56 454558-5 TANK
57 0561059990 HOSE CLAMP XRBC230-310 / 520
58 452920-8 TANK CAP
60 163447-0 GASOLIN FILTER X DCS230T
61 168765-1 TUBE COMPLETE X RBC350-RBC420
62 168766-9 TUBE
63 5416057000 FUEL TANK BRACKET ASSY RBC
64 0230059990 SPACER X RBC260 / 410 / RBK 410
66 0140059630 SCREW M5X14 X RBC350-RBC420
69 168587-9 IGNITION COIL
70 5417001010 FLY WHEEL X RBC / RBK 410
71 0655009940 SPARK PLUG COVER X RBC410 / RBK410RBC520 P04
72 0654009931 PIN X RBC415-225-255
73 965603021 SPARK PLUG NGK BPMR7A
74 5417500300 TUBE X RBC350-RBC420
75 0016706160 BOLT M6X16 X RBC / RBK 410
76 0200069920 WASHER M6 X RBC310 / 410 / RBK410
77 0032006000 SPRING WASHER X RBC / RBK410-G2400R
78 5607005000 WIRE COMPLETE X RBC350-RBC420-HT225
80 346443-5 STAND X RBC350-RBC420
81 0119069900 BOLT M6X14 RBC350-RBC420
82 140436-2 STRAP COMPLETE EBH341U
RBC420E - BRUSHCUTTER 40,2CC MAKITA pag.3
1 168764-3 CARBURETOR X RBC350-RBC420
2 5236046130 PUMP BODY ASSY X RBC350-RBC42
3 5016004010 INLET SCREEN X RBC 260/230/310/225
4 5236046060 AIR PURGE BODY ASY DBC260L/U RBC350
5 5236046050 PRIMER PUMP COVER X RBC350-RBC42
6 424314-7 PRIMER PUMP EBH341
7 168574-8 DIAPHRAGM COMPLETE EBH341U
8 442154-1 DIAPHRAG GASKET EBH341U
9 WJ00009599 PUMP DIAPHRAGM X DCS230T
10 5246001030 PUMP GASKET RBC260-230-310-
11 5316005120 RING X RBC 260/230/310/225/2
12 5236018040 THROTTLE CABLE X RBC230-260-310-225-
13 5416041010 THROTTLE VALVE ASSY RBC350
15 5236052020 BRACKET CABLE MS3200/RBC350/4
16 5316005450 CABLE ADJUST NUT RBC230/260/31
17 5216008010 CABLE ADJUST SCREW RBC230/260
18 5236018020 GASKET X RBC 260/230 / 310
19 266582-4 SCREW 3X24 EBH341U
20 5416041020 HIGH SPEED NEEDLE RBC350/420E
21 5806080110 SPRING X RBC350-RBC420
22 5216006040 WASHER X RBC350-RBC420
23 5216006050 O-RING X RBC350-RBC420
24 5426005030 WASHER X RBC350-RBC420
25 0119059810 BOLT M5X50 XRBC / RBK410
28 453981-1 AIR CLEANER HOUSING
29 453982-9 AIR CLEANER COVER
30 443180-3 AIR FILTER
31 424523-8 WASHER X RBC415-RBC350
32 332044-5 SLEEVE
33 5233013040 PLATE X RBC350-RBC420
34 346627-5 CHOKE VALVE
35 5313003110 CLEANER COVER X RBC350-420
RBC420E - BRUSHCUTTER 40,2CC MAKITA pag.4
1 6417015003 BAND ASSY X RBC420E
2 6257500100 CUSHION RBC260/310/420E/525E
6 6418500701 BLADE COVER MS251.4
9 6419038001 SERVICE KEYS RBC420E
10 0717059990 HEX. WRENCH RBC350-RBC420
11 0717049990 HEX. WRENCH RBC350-RBC420

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC420E
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita RBC420E

Drawing Makita RBC420E

Download (1018.9KB)

You might also like

Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Makita SKU: DA00000118
Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Carburator Hose Grommet for Brushcutter Dolmar MS-27C Genuine parts Dolmar, Carburator Hose Grommet for Brushcutter MS-27C - Makita EM2600L Part for the following products: -  MS-27C - BRUSHCUTTER 25,7CC DOLMAR -  EM2600L -...
AVAILABLE €2.37
Details
3 Teeth Blade for Brushcutter Makita RBC310
Makita SKU: P-47385
3 Teeth Blade for Brushcutter Makita RBC310
3 Teeth Blade for Brushcutter Makita RBC310 Genuine spare part Makita, 3 Teeth Blade (255X1.4X25.4)MM for Brushcutters RBC2501 - RBC2511 - RBC3200 - RBC3210 - Dolmar MS254C - MS254U - MS3201C - MS3201U Part for the following products:...
AVAILABLE €14.78
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Fuel Hose for Brushcutter Makita RBC421
Makita SKU: 168766-9
Fuel Hose for Brushcutter Makita RBC421
Fuel Hose for Brushcutter Makita RBC421 Genuine replacement part Makita, Fuel Hose for Brushcutters RBC421 - RBC421L - MS3500 - MS3510 - MS4200 - MS4200E. Part for the following products: - MS3500 - BRUSHCUTTER 34,4CC DOLMAR - MS3510...
AVAILABLE €5.95
Details
Electronic Coil for Brushcutter Makita RBC421
Makita SKU: 168587-9
Electronic Coil for Brushcutter Makita RBC421
Electronic Coil for Brushcutter Makita RBC421 Genuine replacement part Makita, Electronic Coil for Brushcutters RBC350 - RBC351 - RBC410 - RBC420 - RBC421 - RBC421L - MS3500...
Last items in stock €24.50
Details
Piston for Brushcutter Makita RBC410 Sale
Makita SKU: 318631-4
Piston for Brushcutter Makita RBC410
Piston for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC - RBC420 -...
Available in 7/10 days €28.32
Details
Cylinder for Brushcutter Makita RBC410
Makita SKU: 318630-6
Cylinder for Brushcutter Makita RBC410
Cylinder for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - DECESPUGLIATORE 40,2CC -...
Last items in stock €66.15
Details
Piston Ring for Brushcutter Makita RBC410 Sale
Makita SKU: 257309-3
Piston Ring for Brushcutter Makita RBC410
Piston Ring for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Ring for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
Last items in stock €5.15
Details
Piston Pin for Brushcutter Makita RBC410 Sale
Makita SKU: 257797-4
Piston Pin for Brushcutter Makita RBC410
Piston Pin for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
AVAILABLE €3.65
Details
Piston Pin Circlip for Brushcutter Makita RBC410
Makita SKU: 233983-1
Piston Pin Circlip for Brushcutter Makita RBC410
Piston Pin Circlip for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin Circlip for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
AVAILABLE €1.55
Details
Cylinder Gasket for Brushcutter Makita RBC410
Makita SKU: 442156-7
Cylinder Gasket for Brushcutter Makita RBC410
Cylinder Gasket for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder Gasket for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
Last items in stock €3.48
Details
Gasoline Tank for Brushcutter Makita RBC421
Makita SKU: 454558-5
Gasoline Tank for Brushcutter Makita RBC421
Gasoline Tank for Brushcutter Makita RBC421 Genuine part Makita, Gasoline Tank for Brushcutters RBC421 - RBC201 - RBC420E - RBC420 - RBC351 - RBC350. Part for the following products:...
Last items in stock €15.97
Details
Clutch Ass'y for Brushcutter Dolmar MS4210
Makita SKU: 140897-6
Clutch Ass'y for Brushcutter Dolmar MS4210
Clutch Ass'y for Brushcutter Dolmar MS4210 Genuine replacement part Dolmar, Clutch Ass'y for Brushcutters MS3500 - MS3510 - MS4200 - MS4210 - MS4211 - MS5250E. Part for the following products: -  MS4200 - BRUSHCUTTER 40,2CC DOLMAR -...
Last items in stock €110.29
Details
Comments (0)
