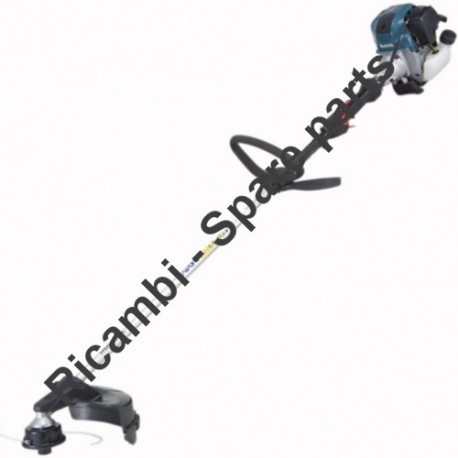

Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T

SKU: Makita EBH341L
€1.46
VAT included

Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Brushcutter EBH341L 33,5CC 4T.
Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T
  • Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T
  • Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T
  • Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T
  • Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T
  • Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T
Makita

Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T

SKU: Makita EBH341L Condition: New
€1.46
VAT included

Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Brushcutter EBH341L 33,5CC 4T.
settings 199 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
193 spare parts

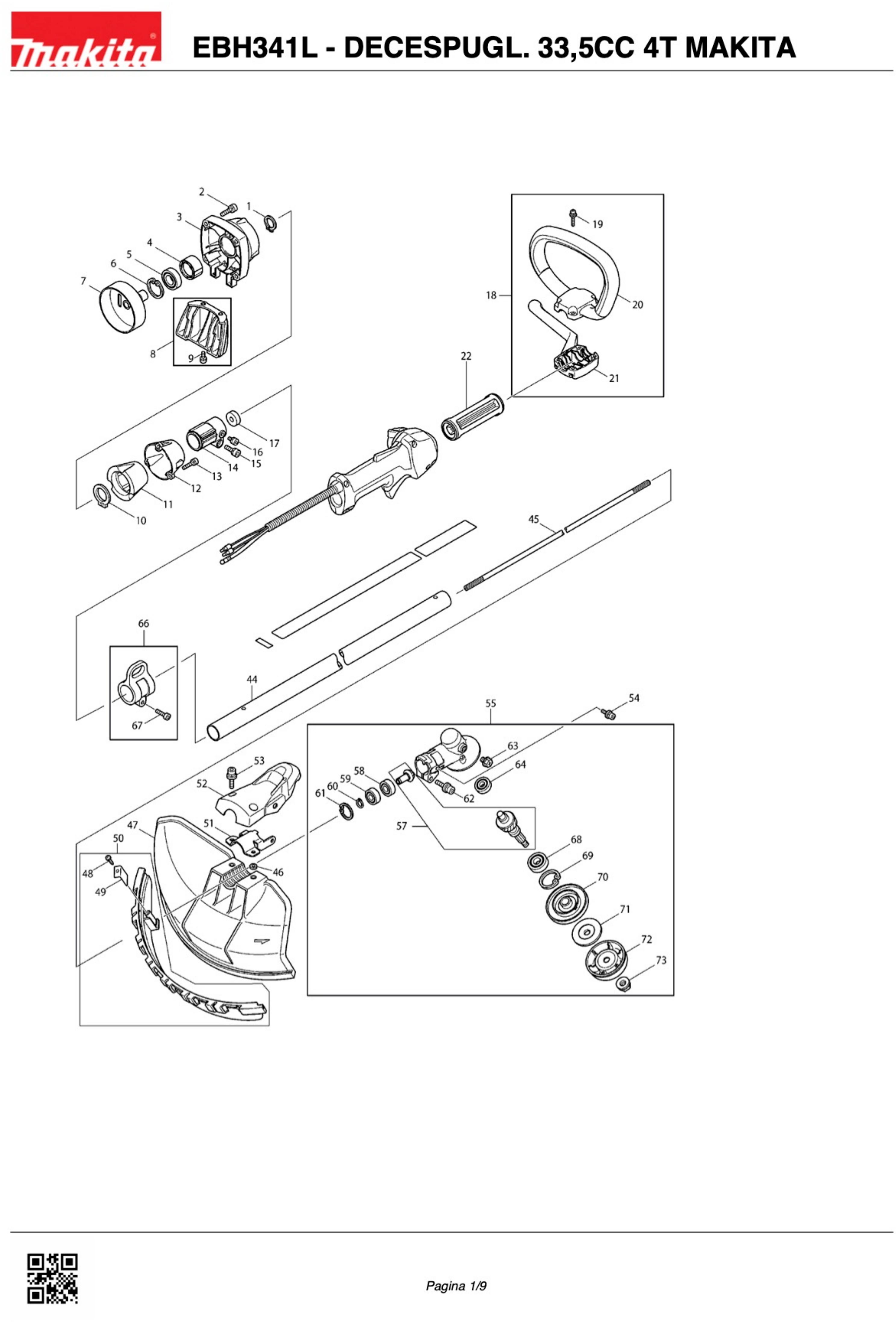

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Makita Power Tools Ext DIN471 Circlip-17 961057-5 Makita Power Tools Ext DIN471 Circlip-17 €1.47
2
 photo_cameraImage coming soon 922331-6 BOLT ESAG. CUT. 6x20 €1.53
3
 photo_cameraImage coming soon 318421-5 CLUTCH CASE EBH341U €18.98
4
 photo_cameraImage coming soon 451157-4 SPACER EBH341U €2.08
5
 photo_cameraImage coming soon 210126-2 BEARING 6003LLU €3.72
6
 photo_cameraImage coming soon 962153-2 RETAINING RING R35 €2.08
7
 photo_cameraImage coming soon 165577-3 CLUTCH DRUM EBH341U €13.08
8
 photo_cameraImage coming soon 195144-0 EBH341U HOLDER €3.96
9
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
10
 photo_cameraImage coming soon 961151-3 RETAINING RING S-32 EBH341U €1.40
11
 photo_cameraImage coming soon 424204-4 DAMPER EBH341U €5.94
12
 photo_cameraImage coming soon 318453-2 PIPE RETAINER EBH341U €6.63
13
 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH 922231-0 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH €1.35
14
 photo_cameraImage coming soon 318454-0 PIPE BRACKET EBH341U €11.07
16
 photo_cameraImage coming soon 922201-9 CAP HD SCREW M5X8 JR3020 5PK €1.44
17
 photo_cameraImage coming soon 443146-3 FELT RING EBH341U €1.44
18
 photo_cameraImage coming soon 195251-9 HANDLE CPL MS335.4C €20.81
19
 photo_cameraImage coming soon 911253-5 SCREW M 5 X 30 X JR3030T €1.42
20
 photo_cameraImage coming soon 451596-8 GRIP 28 MS335.4C €12.27
21
 photo_cameraImage coming soon 451597-6 GRIP BASE 28 MS335.4C €3.72
22
 photo_cameraImage coming soon 451600-3 SPACER 28 MS335.4C €13.84
44
 photo_cameraImage coming soon 140042-3 SHAFT PIPE COMP EBH341U €68.84
45
 photo_cameraImage coming soon 325675-7 SHAFT EBH341U €21.97
46
 photo_cameraImage coming soon 413143-3 WASHER MS335.4C €1.44
47
 photo_cameraImage coming soon 452259-9 PROTECTOR EBH341U €17.14
48
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
49
 photo_cameraImage coming soon 347050-7 BLADE €1.40
50
 photo_cameraImage coming soon 135753-3 LOWER PROTECTION €12.69
51
 photo_cameraImage coming soon 346072-4 PROTECTOR CLAMP EBH341U €2.77
52
 photo_cameraImage coming soon 451090-0 PROTECTOR COVER EBH341U €6.11
53
 photo_cameraImage coming soon 266280-0 HEX SOCKET HEAD BOLT M6X30 /EM4350 €1.42
54
 photo_cameraImage coming soon 922218-2 SCREW M5x14 EBH341U €1.53
55
 Gear Case Ass'y for Brushcutter Dolmar MS335.4C 123835-3 Gear Case Ass'y for Brushcutter Dolmar MS335.4C €79.05
57
 Makita Cutter Shaft Set 183K07-8 183K07-8 Makita Cutter Shaft Set 183K07-8 €96.59
58
 photo_cameraImage coming soon 210059-1 BEARING 6000 HR2010 €12.89
59
 photo_cameraImage coming soon 211062-5 BEARING 6000 X9524NB €7.81
60
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €2.17
61
 photo_cameraImage coming soon 257988-7 RETAINING RING R26 RBC2510 €1.44
62
 photo_cameraImage coming soon 922353-6 SCREW M6x30 HM1202C €1.46
63
 photo_cameraImage coming soon 265590-2 HEX BOLT M8x10 EBH253L/EBH341U €1.44
64
 photo_cameraImage coming soon 210081-8 BALL BEARING 629ZZ EBH341U €4.56
66
 photo_cameraImage coming soon 125558-9 HOOK EBH341U €7.58
67
 photo_cameraImage coming soon 922232-8 SCREW M5X20 €1.44
68
 photo_cameraImage coming soon 210116-5 BALL BEARING 6201LLU EBH341U €8.75
69
 Retaining Ring R32 for Powertools Makita 962151-6 Retaining Ring R32 for Powertools Makita €1.43
70
 Lower Flange for Brushcutter Dolmar MS-4300.4R 332114-0 Lower Flange for Brushcutter Dolmar MS-4300.4R €10.70
71
 photo_cameraImage coming soon 346355-2 CLAMP WASHER EBH253L/EBH341U €13.89
72
 photo_cameraImage coming soon 168526-9 CUP EBH253L/EBH341U/BBC231URD €6.83
73
 photo_cameraImage coming soon 264025-0 HEX NUT M10-17 EBH251U.BBC231 €3.22

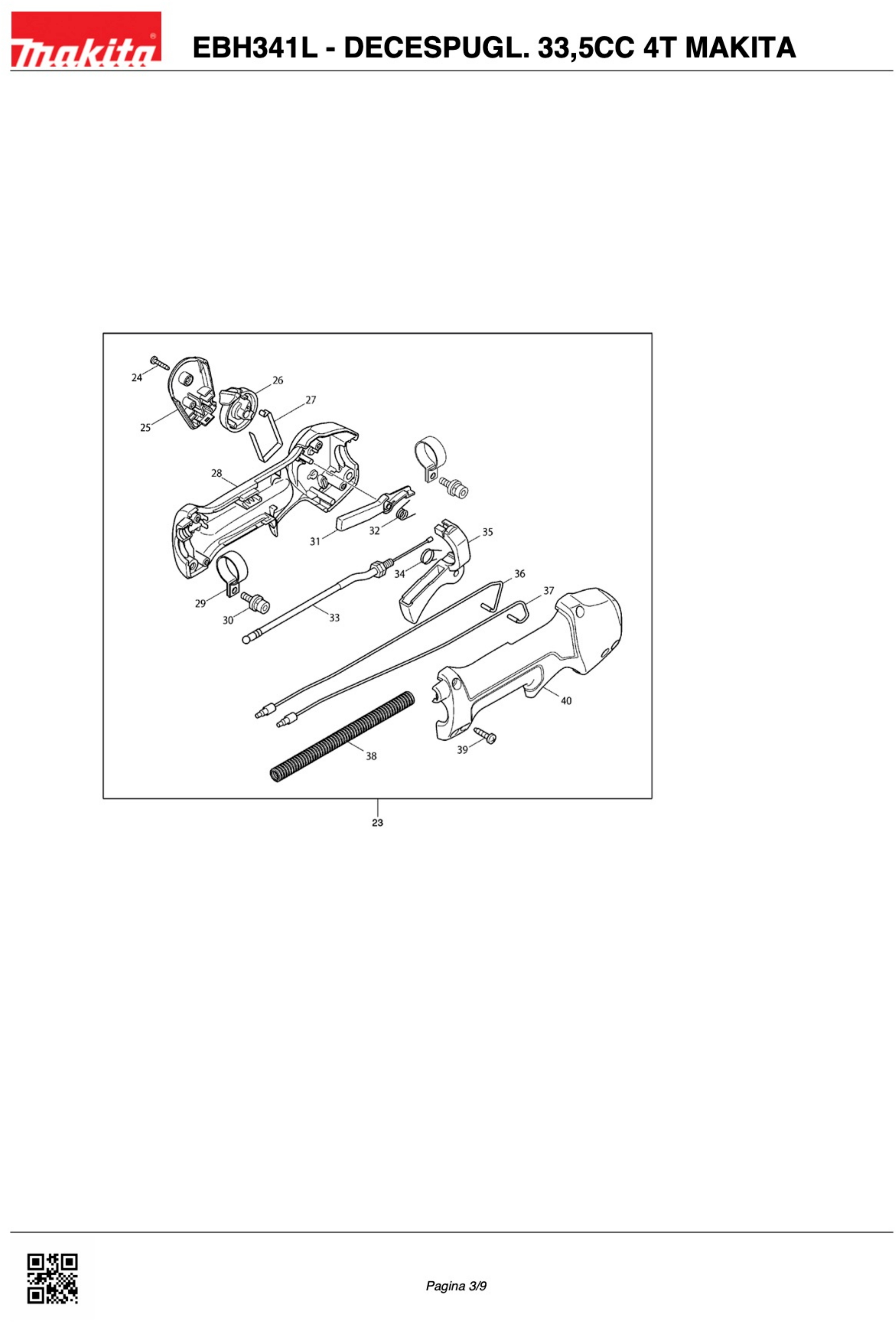

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
23
 photo_cameraImage coming soon 125760-4 CONTROL LEVER MS335.4C €42.30
24
 photo_cameraImage coming soon 266130-9 SCREW 3X16 X 6203/13 / 6313DW €1.46
25
 photo_cameraImage coming soon 451595-0 SWITCH COVER MS335.4C €2.18
26
 photo_cameraImage coming soon 451594-2 SWITCH LEVER MS335.4C €2.18
27
 photo_cameraImage coming soon 232251-9 LEAF SPRING EBH341U/EM2651LH €1.46
28
 photo_cameraImage coming soon 188831-8 LEVER CONTROLS HOSING MS335.4C €15.87
29
 photo_cameraImage coming soon 346249-1 CLAMP 28 MS335.4C €2.03
31
 photo_cameraImage coming soon 451593-4 BLOCK LEVER MS335.4C €2.18
32
 photo_cameraImage coming soon 233541-3 TORSION SPRING 7 EBH341U €2.18
33
 photo_cameraImage coming soon 168549-7 CONTROL WIRE MS335.4C €5.66
34
 photo_cameraImage coming soon 233540-5 SPRING TWIST 11 EBH341U €1.46
35
 photo_cameraImage coming soon 451592-6 THROTTLE LEVER MS335.4C P04 €3.28
36
 photo_cameraImage coming soon 638676-9 WIRE MS335.C €2.14
37
 photo_cameraImage coming soon 638677-7 WIRE MS335.4C €2.14
38
 photo_cameraImage coming soon 451602-9 TUBE MS335.4C €2.97

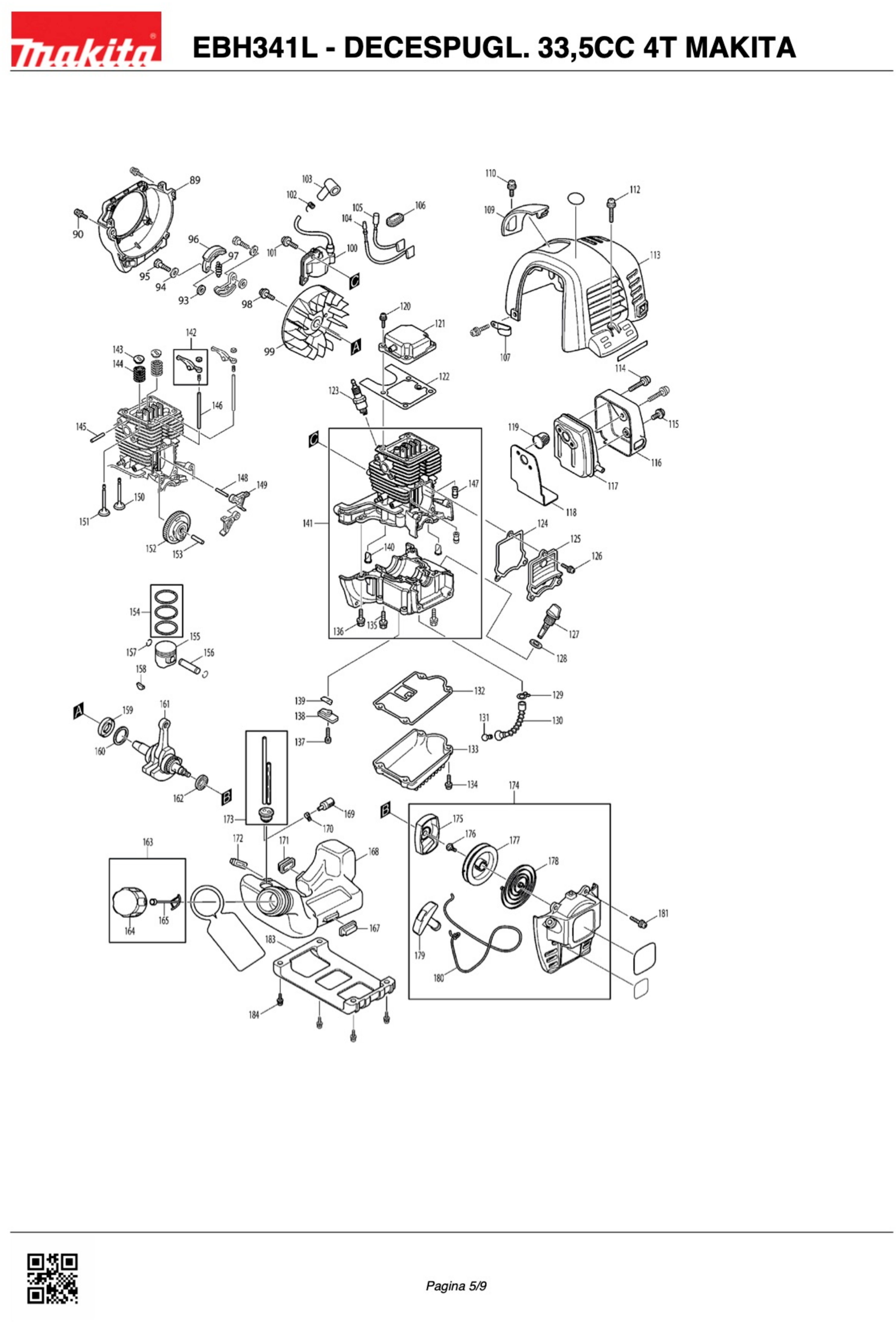

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
89
 photo_cameraImage coming soon 318614-4 BLOWER HOUSING EBH341U €36.26
90
 photo_cameraImage coming soon 922223-9 SCREW M5X16 EBH341U EX2650LH €1.46
93
 photo_cameraImage coming soon 253762-1 WASHER 8 X LS1040 €2.02
94
 photo_cameraImage coming soon 267832-0 WAVY WASHER 10 EBH341U €1.44
95
 photo_cameraImage coming soon 266571-9 SCREW M8X23 EBH341U €2.76
96
 photo_cameraImage coming soon 125757-3 CLUTCH CPL X EM3400L €17.15
97
 photo_cameraImage coming soon AN02010C00 TENSION SPRING 9 €4.89
98
 photo_cameraImage coming soon 265577-4 HEX HD BOLT M6X16 EBH €1.53
99
 photo_cameraImage coming soon 319035-3 FLYWHEEL EBH341U €23.86
100
 Electronic Coil for Brushcutter Makita EBH341U 168816-0 Electronic Coil for Brushcutter Makita EBH341U €28.06
101
 photo_cameraImage coming soon 922138-0 HS H BOLT M4X20 EBH341U/253L €9.01
102
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
103
 Spark Plug Cap for Brushcutter Makita EBH341U 424105-6 Spark Plug Cap for Brushcutter Makita EBH341U €1.62
107
 photo_cameraImage coming soon 345963-6 CLAMP EBH253L/EBH341U €1.44
109
 photo_cameraImage coming soon 451876-2 PLUG COVER EBH341U €2.30
110
 photo_cameraImage coming soon 266572-7 BOLT EBH341U €1.53
112
 photo_cameraImage coming soon 911213-7 SCREW M5X12 X 5143R €1.36
113
 photo_cameraImage coming soon 451875-4 CYLINER COVER EBH341U €21.03
114
 photo_cameraImage coming soon 266440-4 HEX SOCKET HD BOLT M5X40 EM265 €1.46
116
 photo_cameraImage coming soon 345915-7 MUFFLER COVER EBH253L/EBH341U €3.47
117
 photo_cameraImage coming soon 168469-5 EXHAUST MUFFLER EBH253L/341U €10.19
118
 photo_cameraImage coming soon 345916-5 MUFFLER GASKET EBH253L/EBH341U €2.97
119
 photo_cameraImage coming soon 324980-9 SPARK ARRESTER EBH253L/EBH341U €2.30
120
 photo_cameraImage coming soon 922217-4 SCREW M5X14 EBH341U €1.53
121
 photo_cameraImage coming soon 140419-2 ROCKER COVRR COMP EBH253L €14.05
122
 photo_cameraImage coming soon 162307-3 ROCKER COVER GASKET EBH341U €3.23
123
 photo_cameraImage coming soon 168534-0 SPARK PLUG EM2651LH/EBH341U/25 €12.23
124
 Cam Gear Cover Gasket for Brushcutter Makita EBH341L 162274-2 Cam Gear Cover Gasket for Brushcutter Makita EBH341L €2.76
125
 photo_cameraImage coming soon 318443-5 CAM GEAR COVER EM2651LH/EBH251 €5.38
126
 photo_cameraImage coming soon 922212-4 SCREW M5x12 €1.44
127
 photo_cameraImage coming soon 450565-6 OIL GAUGE EBH251L/341U €2.97
128
 photo_cameraImage coming soon 424100-6 GASKET EBH251L/341U €1.53
129
 photo_cameraImage coming soon 282020-8 HOSE CLAMP EM2651LH/EBH251L/ €1.44
130
 photo_cameraImage coming soon 424202-8 OIL TUBE EBH251L/341U €4.89
131
 photo_cameraImage coming soon 325666-8 OIL WEIGHT EM2651LH/EBH253L €2.14
132
 photo_cameraImage coming soon 162308-1 CASE GASKET EBH341U €4.26
133
 photo_cameraImage coming soon 318612-8 OIL CASE EBH341I €9.40
135
 photo_cameraImage coming soon 266573-5 HSS HD BOLT M5X33 EBH341U €1.51
136
 photo_cameraImage coming soon 922222-1 SCREW M5X16 €1.46
137
 photo_cameraImage coming soon 922112-8 SCREW M4X10 BPT350 €1.46
138
 photo_cameraImage coming soon 318440-1 RETAINER PLATE EBH251L/341U €2.97
139
 photo_cameraImage coming soon 346083-9 PLATE EBH341U €2.82
140
 photo_cameraImage coming soon 424201-0 CONTROL VALVE EBH341U €3.28
141
 Cylinder Block for Brushcutter Makita EBH341L 123992-7 Cylinder Block for Brushcutter Makita EBH341L €114.89
142
 photo_cameraImage coming soon 125554-7 ROCKET ARM ASSY EM2651LH/EBH34 €6.22
143
 photo_cameraImage coming soon 325912-9 SPRING RETAINER EBH341U €2.30
144
 photo_cameraImage coming soon 234181-0 COMPRESSION SPRING 13 EBH341U €1.53
145
 photo_cameraImage coming soon 256200-2 PIN 5 PER 2704 €1.46
146
 photo_cameraImage coming soon 256866-8 ROD 2.5 EBH341U €1.44
147
 photo_cameraImage coming soon 424200-2 SPACKER EM2651LH/EBH251L/341U €1.46
148
 photo_cameraImage coming soon 268239-3 PIN 4 EM2651LH/EBH €1.46
149
 photo_cameraImage coming soon 313169-4 CAM LIFTER EM2651LH/EBH251L €4.64
150
 photo_cameraImage coming soon 325913-7 EXHAUST VALVE EBH341U €6.58
151
 photo_cameraImage coming soon 325914-5 INTAKE VALVE EBH341U €6.58
152
 photo_cameraImage coming soon 125552-1 CAM GEAR ASSY EM2651LH/EBH341/ €17.46
153
 photo_cameraImage coming soon 268238-5 PIN 5 EBH341U €1.44
154
 Piston Ring Set for Brushcutter Makita EBH341L 195141-6 Piston Ring Set for Brushcutter Makita EBH341L €25.09
155
 Piston Set for Brushcutter Makita EBH341L 197454-1 Piston Set for Brushcutter Makita EBH341L €24.14 Not available for order
156
 Piston Pin for Brushcutter Makita EBH341L 257796-6 Piston Pin for Brushcutter Makita EBH341L €2.33
157
 Piston Pin Circlip for Brushcutter Makita RBC410 233983-1 Piston Pin Circlip for Brushcutter Makita RBC410 €1.55
158
 photo_cameraImage coming soon 254040-2 WOODRUFF KEY 3 EM2651LH/EBH341 €4.02
159
 Oil Seal 12 for Brushcutter Dolmar MS335.4C 213537-0 Oil Seal 12 for Brushcutter Dolmar MS335.4C €5.29
160
 Flat Washer 26 for Petrol Brushcutter Dolmar MS335.4C - MS-4300.4R 267425-3 Flat Washer 26 for Petrol Brushcutter Dolmar MS335.4C - MS-4300.4R €1.60
161
 photo_cameraImage coming soon 125756-5 CRANKSHAFT ASSY EBH341U €105.98
162
 Oil Seal 10 for Brushcutter Dolmar MS335.4C 213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C €3.20
163
 photo_cameraImage coming soon 127108-6 FUEL TANK CAP /PM7650H/EBH252L €13.75
165
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
167
 photo_cameraImage coming soon 424104-8 DAMPER EBH253L/EBH341U €2.97
168
 photo_cameraImage coming soon 451877-0 FUEL TANK EBH341U €23.86
169
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
170
 photo_cameraImage coming soon 345920-4 CLAMP EBH341U €1.44
171
 photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
172
 Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
173
 photo_cameraImage coming soon 162309-9 TUBE EBH341U €6.83
174
 photo_cameraImage coming soon 126475-6 RECOIL STARTER SET €33.73
175
 Starter Pulley for Brushcutter Makita EBH341L 168827-5 Starter Pulley for Brushcutter Makita EBH341L €4.75
176
 photo_cameraImage coming soon 266580-8 TAPPING SCREW M5X10 BH341U €1.44
177
 photo_cameraImage coming soon 451923-9 REEL STARTER EBH341U €6.83
178
 photo_cameraImage coming soon 232257-7 SPRING SPIRAL EBH341U €17.13
179
 photo_cameraImage coming soon 424317-1 STARTER KNOB EBH341U €4.89
180
 photo_cameraImage coming soon 444018-5 STARTER ROPE EBH341U €5.66
183
 photo_cameraImage coming soon 162310-4 TANK GUARD EBH341U €7.33
184
 photo_cameraImage coming soon 266809-2 P.H.SCREW M5X14 /DUH523/EBH341/BHX2500 €1.44

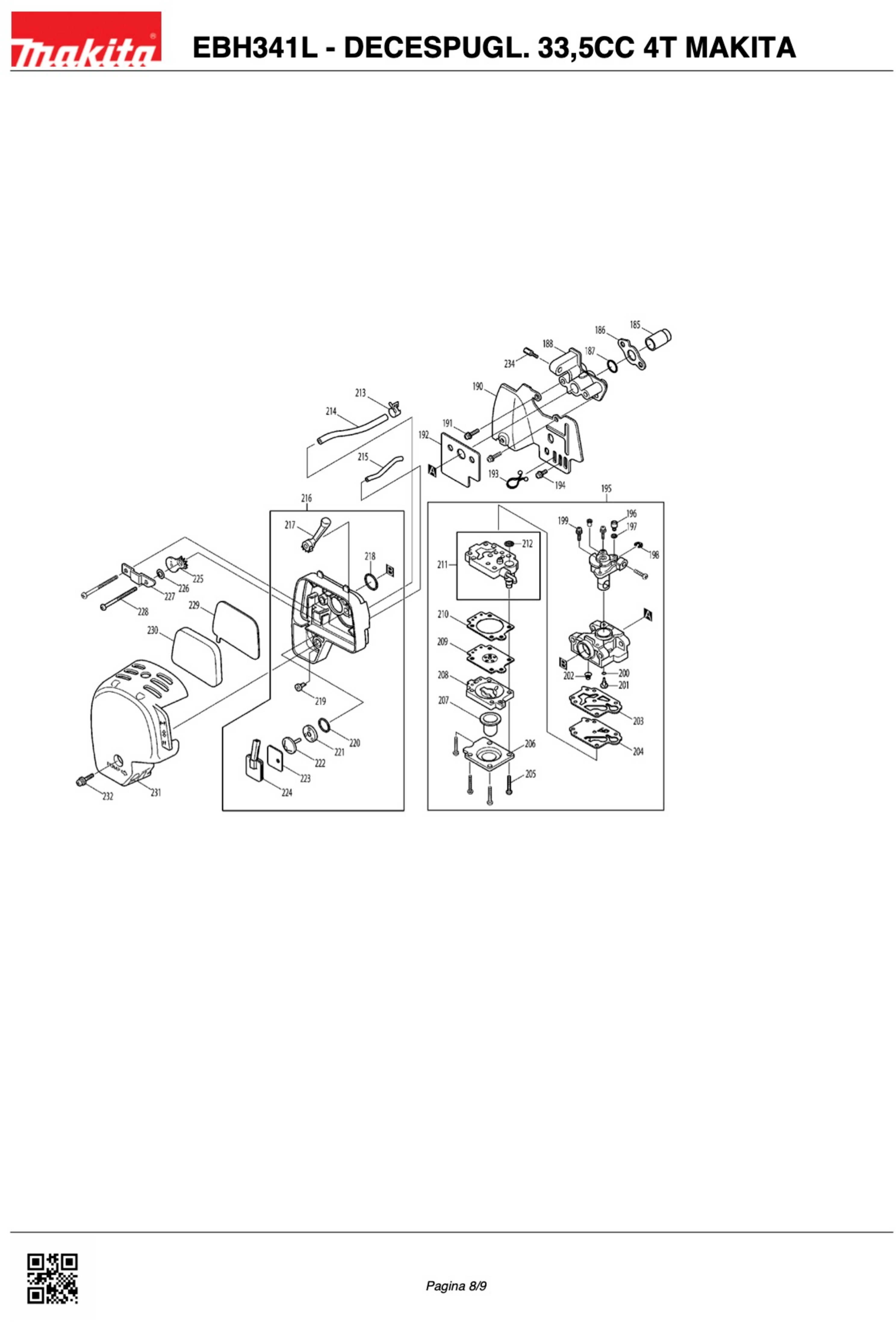

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
185
 photo_cameraImage coming soon 325915-3 INTAKE PIPE EBH341U €5.66
186
 photo_cameraImage coming soon 413120-5 INSULATOR GASKET EBH251L/341U €1.44
187
 photo_cameraImage coming soon 213063-9 GASKET 10 X HR2000 €5.24
188
 photo_cameraImage coming soon 451874-6 INSULATOR EBH341U €7.33
190
 Makita Carburetor Insulator for EBH341U 346261-1 Makita Carburetor Insulator for EBH341U €5.66
191
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
192
 photo_cameraImage coming soon 413138-6 CARBURETOR GASKET EBH341U €2.14
193
 photo_cameraImage coming soon 450562-2 CLAMP EBH251L/341U €1.53
194
 photo_cameraImage coming soon 922213-2 HEX BOLT M5X12 EBH253L/341U €1.51
195
 Carburator for Brushcutters Dolmar MS335.4 - MS335.4 168561-7 Carburator for Brushcutters Dolmar MS335.4 - MS335.4 €60.50
196
 photo_cameraImage coming soon 325922-6 SCREW CARBURATOR EBH341U €6.95
197
 photo_cameraImage coming soon 413140-9 WASHER EBH341U €2.18
198
 photo_cameraImage coming soon 257964-1 RETAINING RING E3 EBH341U €4.02
199
 photo_cameraImage coming soon WJ00096364 SCREW DCS230T €2.97
200
 photo_cameraImage coming soon 213538-8 RING 2 EBH341U €4.02
202
 photo_cameraImage coming soon 234183-6 SPRING 65-9 EBH341U €4.02
203
 Makita EBH341U Pump Gasket 442155-9 Makita EBH341U Pump Gasket €4.06
204
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
205
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
206
 photo_cameraImage coming soon 346270-0 PUMP COVER EBH341U €6.22
207
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
208
 photo_cameraImage coming soon 140438-8 CAM GEAR COVER GASKET EM2651LH €19.90
209
 Makita Diaphragm for EM2651UH 168620-7 Makita Diaphragm for EM2651UH €23.70
210
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
211
 photo_cameraImage coming soon 140437-0 PUMP BODY EBH341U €39.61
212
 photo_cameraImage coming soon WJ00014070 INLET SCREEN DCS230T €2.97
213
 photo_cameraImage coming soon 345918-1 CLAMP EBH341U €1.46
214
 photo_cameraImage coming soon 422055-9 BREATHER PIPE EM2651LH/EBH341U €2.97
215
 photo_cameraImage coming soon 422042-8 PIPE EBH251L/341U €1.44
216
 Cleaner Plate Assy for Petrol Blower Makita BHX2500 125468-0 Cleaner Plate Assy for Petrol Blower Makita BHX2500 €21.00
217
 Choke Lever for Brushcutter Makita EBH341L 451925-5 Choke Lever for Brushcutter Makita EBH341L €2.33
218
 photo_cameraImage coming soon 213540-1 O RING 15 EM2651LH/EBH253L/341 €1.46
219
 photo_cameraImage coming soon 424316-3 VALVE EBH341U €5.38
220
 photo_cameraImage coming soon 213539-6 O RING 14 EBH253L/EBH341U €1.53
221
 photo_cameraImage coming soon 451924-7 CHECK VALVE PLATE EBH253L €1.44
222
 photo_cameraImage coming soon 424315-5 CHECK VALVE EBH251L/341U €1.44
223
 Separator Gasket for Blower Makita BHX2501 168577-2 Separator Gasket for Blower Makita BHX2501 €1.62
224
 photo_cameraImage coming soon 168576-4 SEPARATOR PLATE EBH253L/341U €10.72
225
 photo_cameraImage coming soon 450560-6 CHOKE PLATE EBH251L/341U €1.44
226
 photo_cameraImage coming soon 423376-2 GASKET EBH251L/341U €1.47
227
 photo_cameraImage coming soon 345919-9 PLATE EBH253L/EBH341U €1.47
228
 photo_cameraImage coming soon 265188-5 PAN HD SCREW M5X68 EB €1.44
229
 Air Cleaner Element for Petrol Blower Makita BHX2500 443140-5 Air Cleaner Element for Petrol Blower Makita BHX2500 €2.14
230
 Air Cleaner Element Sponge for Petrol Blower Makita BHX2500 443141-3 Air Cleaner Element Sponge for Petrol Blower Makita BHX2500 €2.23
231
 photo_cameraImage coming soon 450561-4 AIR CLEANER COVER EBH251L/341U €4.59
234
 photo_cameraImage coming soon 325663-4 ADJUSTING SCREW MS335.4C €1.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brushcutter EBH341L 33,5CC 4T

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Brushcutter EBH341L 33,5CC 4T.

In the following table, look for the model of Brush Cutter and the respective parts of the code.
Makita EBH341L

BRUSHCUTTER EBH341L 33,5CC 4T MAKITA pag.1
# Part Num. Description
1 961057-5 RETAINING RING S17
2 922331-6 HEXAGON BOLT CUT. 6X20
3 318421-5 HOUSING CLUTCH EBH341U
4 451157-4 SPACER EBH341U
5 210126-2 BEARING 6003LLU
6 962153-2 RETAINING RING R35
7 165577-3 CLUTCH DRUM EBH341U
8 195144-0 SUPPORT EBH341U
9 911218-7 CYLINDER HEAD SCREW M5x14
10 961151-3 RETAINING RING S-32 EBH341U
11 424204-4 DAMPER EBH341U
12 318453-2 COVER CASE EBH341U
13 922231-0 BOLT M5X20
14 318454-0 PIPE BRACKET EBH341U
15 922331-6 HEXAGON BOLT CUT. 6X20
16 922201-9 SCREW HEAD HEX. M5X8
17 443146-3 FELT RING 8 EBH341U
18 195251-9 LOOP HANDLE SET MS335.4C
19 911253-5 SCREW M 5 X 30 X JR3030T
20 451596-8 LOOP HANDLE 28 MS335.4C
21 451597-6 HANDLE CLAMP 28 MS335.4C
22 451600-3 SPACER 28 MS335.4C
44 140042-3 SHAFT PIPE COMPLETE /EM4350UH/EBH341U
45 325675-7 SHAFT EBH341U
46 413143-3 WASHER MS335.4C
47 452259-9 PROTECTOR EBH341U
48 266326-2 TAPPING SCREW 4X18 X MT601
49 347050-7 CUTTER
50 135753-3 PROTECTOR EXTENSION ASSY/EM4350UH
51 346072-4 PROTECTOR CLAMP/EBH341U
52 451090-0 PROTECTOR COVER /EBH341U
53 266280-0 HEX SOCKET HEAD BOLT M6X30 /EM4350
54 922218-2 H.S.H. BOLT M5X14 WITH WR/DPB181
55 123835-3 GEAR CASE ASSEMBLY /EBH341L/EBH341U
57 183K07-8 CUTTER SHAFT SET
58 210059-1 BALL BEARING 6000 HR2010
59 211062-5 BALL BEARING 6000 X9524NB
60 961006-2 RETAINING RING S10
61 257988-7 RETAINING RING R26 RBC2510
62 922353-6 SCREW M6 X30 X HM1202C
63 265590-2 SCREW M8X10 EBH341U
64 210081-8 BALL BEARING 629ZZ EBH341U
66 125558-9 HANGER ASSEMBLY /EM4350UH/EBH341U
67 922232-8 HEX SOCKET HEAD BOLT M5X20
68 210116-5 BEARING 6201LLU EBH341U
69 962151-6 RETAINING RING R-32 /EM4350/DGA505
70 332114-0 RECIEVE WASHER /EBH341U/EM4351UH
71 346355-2 CLAMP WASHER
72 168526-9 CUP /EM4350UH/UX360D/EBH252L/EM4351UH
73 264025-0 HEX NUT M10-17/EM4350UH/UX360D/EBH252L
BRUSHCUTTER EBH341L 33,5CC 4T MAKITA pag.2
23 125760-4 CONTROL LEVER ASSEMBLY /EBH341L
24 266130-9 SCREW 3X16 X 6203/13 / 6313DW
25 451595-0 SWITCH COVER/ER2650LH/EBH341L
26 451594-2 SWITCH LEVER /ER2650LH/EBH341L
27 232251-9 LEAF SPRING/EM4350UH/EY2650H/ER2650LH
28 188831-8 LEVER CASE SET/EBH341L
29 346249-1 PIPE CLAMP 28 /EBH341L
30 922218-2 H.S.H. BOLT M5X14 WITH WR/DPB181
31 451593-4 LOCK LEVER MS335.4C
32 233541-3 TORSION SPRING 7 EBH341U
33 168549-7 CONTROL CABLE MS335.4C - EBH341L
34 233540-5 TORSION SPRING 11 EBH341U - EM4350UH/ER2650LH
35 451592-6 THROTTLE LEVER MS335.4C - EBH341L/EM4350RH
36 638676-9 LEAD UNIT MS335.C - EBH341L
37 638677-7 LEAD UNIT MS335.4C - EBH341L
38 451602-9 CORRUGATE TUBE MS335.4C - EBH341L
39 266326-2 TAPPING SCREW 4X18 X MT601
40 188831-8 LEVER CASE SET MS335.4C - EBH341L
BRUSHCUTTER EBH341L 33,5CC 4T MAKITA pag.3
89 318614-4 FLYWHEEL HOUSING EBH341U
90 922223-9 SCREW M5X16 EBH341U EX2650LH
93 253762-1 WASHER 8 X LS1040
94 267832-0 WAVE WASHER 10 EBH341U
95 266571-9 SCREW M8X23 EBH341U
96 125757-3 CLUTCH SHOE X EM3400L
97 AN02010C00 TENSION SPRING 9
98 265577-4 SCREW M6X16 EBH341U
99 319035-3 FLYWHEEL EBH341U
100 168816-0 IGNITION COIL EBH341U
101 922138-0 SCREW M4X20
102 324891-8 SPARK PLUG PLUG CAP SPRING EBH341 - EM4350/HTR7610/ER2650
103 424105-6 PLUG CAP EBH252L - EK7651H/PM7650H/EBH252L
104 632E38-3 LEAD UNIT EBH341U
105 632E39-1 LEAD UNIT EBH341U
106 424313-9 GROMMET EBH341U
107 345963-6 CLAMP EBH341U
109 451876-2 SPARK PLUG COVER EBH341U
110 266572-7 SCREW M5X8 EBH341U
112 911213-7 PAN HEAD SCREW M5X12 X 5143R EBH252L - DPB180/PM7650H
113 451875-4 CYLINDER COVER EBH341U - EW1060H
114 266440-4 HEX SOCKET HEAD BOLT M5X40 EBH341U - ER2650LH
115 265184-3 TRUSS HEAD SCREW M5X55 EBH341U - EBH252L
116 345915-7 MUFFLER COVER EBH341U - EBH252L
117 168469-5 EXHAUST MUFFLER EBH341U - EBH252L
118 345916-5 MUFFLER GASKET EBH341U - EBH251L/EBH341R/EPH1000
119 324980-9 SPARK ARRESTER EBH341U - EBH252L
120 922217-4 H.S.H. BOLT M5X14 EBH341U - AN942/AN943/EBH341U
121 140419-2 ROCKER COVER COMPLETE EBH341U
122 162307-3 ROCKER COVER GASKET EBH341U/EW1060H
123 168534-0 SPARK PLUG NGK CMR4A EBH341U - ER2650LH/EBH252L
124 162274-2 CAM GEAR COVER GASKET EBH341 - ER2650LH/EBH252L
125 318443-5 CAM GEAR COVER/ER2650LH/EBH252L EBH341U
126 922212-4 H S HBOLT M5 X 12 /GF600/CC300D/AF502
127 450565-6 OIL GUAGE /EBH252L/EW1060H - EBH341U
128 424100-6 OIL GUAGE GASKET /EBH252L/EW1060H EBH341U
129 282020-8 HOSE CLAMP EBH341U/ER2650LH/EBH252L/
130 424202-8 OIL TUBE EBH341U /BHX2500/EBH252L
131 325666-8 OIL WEIGHT/EY2650H/ER2650LH/EBH252L/ EBH341U
132 162308-1 CASE GASKET /EBH341U/EW1060H-EBH341U
133 318612-8 OIL CASE EBH341U
134 922217-4 H.S.H. BOLT M5X14 /AN942/AN943/EBH341U-EBH341U
135 266573-5 HEX. SOCKET HEAD BOLT M5X33 EBH341U
136 922222-1 HEX. SOCKET HEAD BOLT M5X16
137 922112-8 HEX. SOCKET HEAD BOLT M4X10 BPT350
138 318440-1 RETAINING PLATE EBH341U - EBH252L
139 346083-9 LEAD VALVE /PM7650H/ER2650LH/EBH252L - EBH341U
140 424201-0 CHECK VALVE/EM4350/PM7650/ER2650/EBH252 - EBH341U
141 123992-7 CYLINDER BLOCK ASSEMBLY /EBH341U
142 125554-7 ROCKER ARM ASSEMBLY /ER2650LH/EBH252L - EBH341U
143 325912-9 SPRING RETAINER EBH341U
144 234181-0 COMPRESSION SPRING 13 EBH341U
145 256200-2 PIN 5/EB7650TH/EM4350/EK7651/PM7650 FOR 2704
146 256866-8 ROD 2,5 EBH341U
147 424200-2 SPACER EBH341U/EM4350/ER2650LH/EBH252L/EY2650
148 268239-3 PIN 4 EBH341U/ER2650LH/EBH252L/EY2650H
149 313169-4 CAM LIFTER /ER2650LH/EBH252L/BHX2500 - EBH341U
150 325913-7 EXHAUST VALVE EBH341U/EW1060H
151 325914-5 INTAKE VALVE /EBH341U/EW1060H
152 125552-1 CAM GEAR ASSEMBLY /ER2650LH/EBH252L - EBH341U
153 268238-5 /EM4350/ER2650/EBH252/EY2650 - EBH341U
154 195141-6 PISTON RING SET /EBH341U
155 197454-1 PISTON SET EBH341U/EW1060H
156 257796-6 PISTON PIN EBH341U
157 233983-1 CLIP /EM4350/EBH341/EW1060/EM4351 - EBH341
158 254040-2 WOODRUFF KEY 3 /ER2650LH/EBH341U - EBH341U
159 213537-0 OIL SEAL 12/EM4350UH/EBH341U
160 267425-3 FLAT WASHER 26 EBH341U
161 125756-5 CRANKSHAFT ASSEMBLY /EBH341U
162 213769-9 OIL SEAL 10 /UK360D/ER/EX2650LH/EBH252L
163 127108-6 FUEL TANK CAP /PM7650H/EBH252L
164 127109-4 FUEL TANK CAP /EBH252L/EW1060H
165 140436-2 STRAP COMPLETE/HTR7610/EBH252L/EW1060H - EBH341U
167 424104-8 DAMPER /EBH252L/EW1060H - EBH341U
168 451877-0 FUEL TANK /EBH341U/EW1060H - EBH341U
169 163447-0 FUEL FILTER /EA3201S/PS-221TH/DCS231T - DCS230T
170 345920-4 HOSE CLAMP /EH7500W/EB7650TH/HTR7610 - EBH341U
171 424103-0 DAMPER EBH341U
172 424102-2 DAMPER EBH341U
173 162309-9 TUBE /EBH341U/EW1060H - EBH341U
174 126475-6 RECOIL STARTER SET
175 168827-5 RECOIL STARTER PULLEY
176 266580-8 TAPPING SCREW 5X10 /EBH341U/EW1060H - EBH341U
177 451923-9 REEL /EBH341U/EW1060H - EBH341U
178 232257-7 SPIRAL SPRING EBH341U
179 424317-1 STARTER KNOB EBH341U
180 444018-5 STARTER ROPE EBH341U
181 911218-7 P.H.SCREW M5X14 /DUH523/EBH341/BHX2500
183 162310-4 TANK GUARD EBH341U
184 266809-2 P.H.SCREW M5X14 /DUH523/EBH341/BHX2500
BRUSHCUTTER EBH341L 33,5CC 4T MAKITA pag.4
185 325915-3 INTAKE PIPE EBH341U
186 413120-5 INSULATOR GASKET /EBH252/EW1060/BHX2500 - EBH341U
187 213063-9 O-RING 10 /EBH252L/EW1060H - HR2000
188 451874-6 INSULATOR /EBH341U/EW1060H - EBH341U
190 346261-1 CARBURETOR INSULATOR/EPH1000/EBH341U - EBH341
191 922228-9 H.S.H. BOLT M5X18 /DUR362L/UX360D/DUR187 - EBH341U
192 413138-6 CARBURETOR GASKET /EBH341/EW1060/BHX2500 - EBH341P02
193 450562-2 CLAMP EBH341U - EBH252L
194 922213-2 H.S.H.BOLT M5X12 WITH WR EBH341U
195 168561-7 CARBURETOR EBH341U
196 325922-6 CARBURETOR SCREW EBH341U/EH7500W
HTR7610/PM7650H/EM2500L
197 413140-9 WASHER /PM7650H/ER2650LH/EBH252L
198 257964-1 STOP RING E3 /PM7650H/ER2650LH - EBH341U
199 WJ00096364 PAN HEAD SCREW M3X8/ER2650LH/EBH252L - DCS230T
200 213538-8 O RING 2/EH7500W/HTR7610/PM7650H/EM2500L - EBH341U
201 5926007011 JET # 36.5 /EBH341U
202 234183-6 CONICAL COMPRESSION SPRING 65-9 EBH341U - EM4350
203 442155-9 PUMP GASKET/EH7500W/PM7650H/ER2650LH - EBH341U
204 WJ00009599 PUMP DIAPHRAGM /EH7500W/HTR7610/PM7650H - DCS230T
205 266582-4 TAPPING SCREW 3X24/HTR7610/EM2500L EBH341U
206 346270-0 PRIMER PUMP COVER/HTR7610/EM2500/EBH252L - EBH341U
207 424314-7 PRIMER PUMP /HTR7610/EM2500L/ER2650LH - EBH341 (DA00001149)
208 140438-8 AIR PURGE BODY /ER2650LH/EY2650H - EBH341U
209 168620-7 METERING DIAPHRAGM/EM2500L/EBH252L - BHX2501
210 442154-1 METERING DIAPHRAGM GASKET/HTR7610/EM2500 - EBH341
211 140437-0 UMP BODY /ER2650LH/EBH252L/RBC3100/RBC3110 - EBH341U
212 WJ00014070 CARBURETOR INLET SCREEN /EH7500W/EM4350/HTR7610 - DCS230T
213 345918-1 HOSE CLAMP/EM4350/EK7651/ER2650/EBH252 - EBH341U
214 422055-9 BREATHER PIPE /ER2650LH/EBH341U
215 422042-8 PIPE /EBH252L/EW1060H - EBH341U
216 125468-0 CLEANER PLATE ASSEMBLY /EBH252L - EBH341U
217 451925-5 CHOKE LEVER /EBH252L/EW1060H/BHX2500 - EBH341U
218 213540-1 O RING 15 /EN4951SH/ER2650LH/EBH252L - EBH341U
219 424316-3 CHECK VALVE/EM4350/PM7650/ER2650/EBH252 - EBH341U
220 213539-6 O RING 14 /EBH252L/EW1060H/BHX2500 - EBH341U
221 451924-7 CHECK VALVE PLATE
222 424315-5 CHECK VALVE /EBH252L/EW1060H/BHX2500 - EBH341U
223 168577-2 SEPARATOR GASKET /EBH252/EW1060/BHX2500 - EBH341UP01
224 168576-4 SEPARATOR PLATE /EBH252L/EW1060H/BHX2500 - EBH341U
225 450560-6 CHOKE PLATE /EBH252L/EW1060H/BHX2500 - EBH341U
226 423376-2 GASKET /EBH252L/EW1060H/BHX2500 - EBH341U
227 345919-9 PLATE /EBH252L/EW1060H/BHX2500 - EBH341U
228 265188-5 SCREW M5X68 EBH341U
229 443140-5 AIR CLEANER ELEMENT /BHX2500/EBH252L - EBH341U
230 443141-3 AIR CLEANER ELEMENT /EBH252L - EBH341U
231 450561-4 AIR CLEANER COVER /EBH252/EW1060/BHX2500 - EBH341U
232 911218-7 P.H.SCREW M5X14 /DUH523/EBH341/BHX2500
234 325663-4 ADJUST SCREW/EBH341L - MS335.4C
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EBH341L
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita EBH341L

Drawing Makita EBH341L

Download (822.35KB)

You might also like

Cleaner Plate Assy for Petrol Blower Makita BHX2500
Makita SKU: 125468-0
Cleaner Plate Assy for Petrol Blower Makita BHX2500
Cleaner Plate Assy for Petrol Blower Makita BHX2500 Original replacement part Makita, Cleaner Plate Assy for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for...
on 10 Business Days Approx €21.00
Details
Air Cleaner Element for Petrol Blower Makita BHX2500
Makita SKU: 443140-5
Air Cleaner Element for Petrol Blower Makita BHX2500
Air Cleaner Element for Petrol Blower Makita BHX2500 Original replacement part Makita, Air Cleaner Element for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for the...
Usually Ships in: 7/10 Business Days Approx. €2.14
Details
Spark Plug Cap for Brushcutter Makita EBH341U
Makita SKU: 424105-6
Spark Plug Cap for Brushcutter Makita EBH341U
Spark Plug Cap for Brushcutter Makita EBH341U Genuine replacement part Makita, Spark Plug Cap for Brushcutters EBH252L - EBH252U - EBH341L - EBH341R - EM4340 - EM4340L - EBH341U. Part for the following products: - EBH252L -...
AVAILABLE €1.62
Details
Separator Gasket for Blower Makita BHX2501
Makita SKU: 168577-2
Separator Gasket for Blower Makita BHX2501
Separator Gasket for Blower Makita BHX2501 Genuine replacement part Makita, Separator Gasket for Blowers BHX2501 - Dolmar PB252.4. Part for the following products: - BHX2501 - BLOWER 24,5CC 4T...
AVAILABLE €1.62
Details
Cylinder Block for Brushcutter Makita EBH341L
Makita SKU: 123992-7
Cylinder Block for Brushcutter Makita EBH341L
Cylinder Block for Brushcutter Makita EBH341L Genuine spare part Makita, Cylinder Block Assembly for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: -  EBH341L - BRUSHCUTTER 33,5CC...
Last items in stock €114.89
Details
Piston Set for Brushcutter Makita EBH341L
Makita SKU: 197454-1
Piston Set for Brushcutter Makita EBH341L
Piston Set for Brushcutter Makita EBH341L Genuine spare part Makita, Piston Set for Brushcutters 4 STOKE EBH341L Part for the following products: -  EBH341L - BRUSHCUTTER 33,5CC 4T MAKITA - Code : 197454-1
Available in 7/10 days €24.14
Details
Starter Pulley for Brushcutter Makita EBH341L
Makita SKU: 168827-5
Starter Pulley for Brushcutter Makita EBH341L
Starter Pulley for Brushcutter Makita EBH341L Genuine spare part Makita, Starter Pulley for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: -  EBH341L - BRUSHCUTTER 33,5CC 4T...
on 7/10 Business Days Approx €4.75
Details
Gear Case Ass'y for Brushcutter Dolmar MS335.4C
Makita SKU: 123835-3
Gear Case Ass'y for Brushcutter Dolmar MS335.4C
Gear Case Ass'y for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Gear Case Assembly for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: -  MS-4300.4R - BACKPACK BRUSHCUTTER...
Last items in stock €79.05
Details
Piston Pin for Brushcutter Makita EBH341L
Makita SKU: 257796-6
Piston Pin for Brushcutter Makita EBH341L
Piston Pin for Brushcutter Makita EBH341L Genuine spare part Makita, Piston Pin for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: -  EBH341L - BRUSHCUTTER 33,5CC 4T MAKITA -...
on 7/10 Business Days Approx €2.33
Details
Cam Gear Cover Gasket for Brushcutter Makita EBH341L
Makita SKU: 162274-2
Cam Gear Cover Gasket for Brushcutter Makita EBH341L
Cam Gear Cover Gasket for Brushcutter Makita EBH341L Genuine spare part Makita, Cam Gear Cover Gasket for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: -  EBH341L - BRUSHCUTTER...
on 7/10 Business Days Approx €2.76
Details
Choke Lever for Brushcutter Makita EBH341L
Makita SKU: 451925-5
Choke Lever for Brushcutter Makita EBH341L
Choke Lever for Brushcutter Makita EBH341L Genuine spare part Makita, Choke Lever for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: - ...
Usually Ships in: 7/10 Business Days Approx. €2.33
Details
Oil Seal 12 for Brushcutter Dolmar MS335.4C
Makita SKU: 213537-0
Oil Seal 12 for Brushcutter Dolmar MS335.4C
Oil Seal 12 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 12 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: -  MS-430.4U - BRUSHCUTTER 43CC 4T DOLMAR -...
Last items in stock €5.29
Details
Oil Seal 10 for Brushcutter Dolmar MS335.4C
Makita SKU: 213769-9
Oil Seal 10 for Brushcutter Dolmar MS335.4C
Oil Seal 10 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 10 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: -  MS335.4C - BRUSHCUTTER 33,5cc 4T -  MS335.4U...
on 7/10 Business Days Approx €3.20
Details
Makita Cutter Shaft Set 183K07-8
Makita SKU: 183K07-8
Makita Cutter Shaft Set 183K07-8
Makita Cutter Shaft Set 183K07-8 Genuine replacement Makita, Cutter Shaft Set for EM4350RH - EBH341L - EM4350LH. Part for the following products: -  Makita EM4350RH -  Dolmar MS-4300.4U -  Makita...
Last items in stock €96.59
Details
Makita EBH341U Gasket
Makita SKU: 442155-9
Makita EBH341U Pump Gasket
Makita Gasket for Brushcutter EBH341U Genuine spare part Makita, Pump Gasket for Brushcutters EBH341U - DBC260L - MS350.4C - EX2650LHRH. Part for the following products: - MS350.4C – 34CC-4T BRUSHCUTTER DOLMAR - PB7650.4...
Last items in stock €4.06
Details
Makita Carburetor Insulator for EBH341U
Makita SKU: 346261-1
Makita Carburetor Insulator for EBH341U
Makita Carburetor Insulator for Bruschcutter EBH341U Original part Makita, Carburetor Insulator for Bruschcutter EBH341U. Part for the following products: -  Makita Bruschcutter EBH341U - Dolmar Bruschcutter MS335.4U -...
Last items in stock €5.66
Details
Comments (0)
