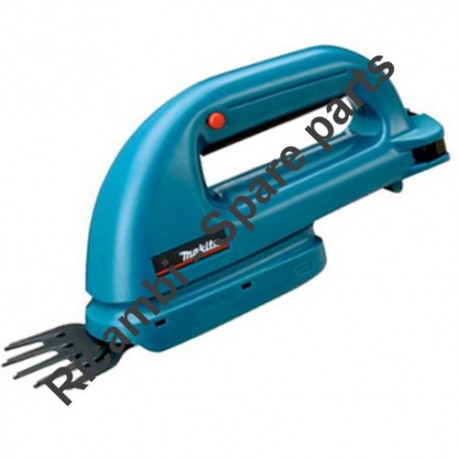

Makita Spare Parts for Cordless Grass Shear UM104DW
€53.28
VAT included
Makita Spare Parts for Cordless Grass Shear UM104DW
We have the original MAKITA parts and tool repair help you need to get your tools running like new again.Fix Your CORDLESS GRASS SHEAR 7,2V 100MM - UM104DW. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Cordless Grass Shear UM104DW
€53.28
VAT included
Makita Spare Parts for Cordless Grass Shear UM104DW
We have the original MAKITA parts and tool repair help you need to get your tools running like new again.Fix Your CORDLESS GRASS SHEAR 7,2V 100MM - UM104DW. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings
16 spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
16 spare parts
Page 1

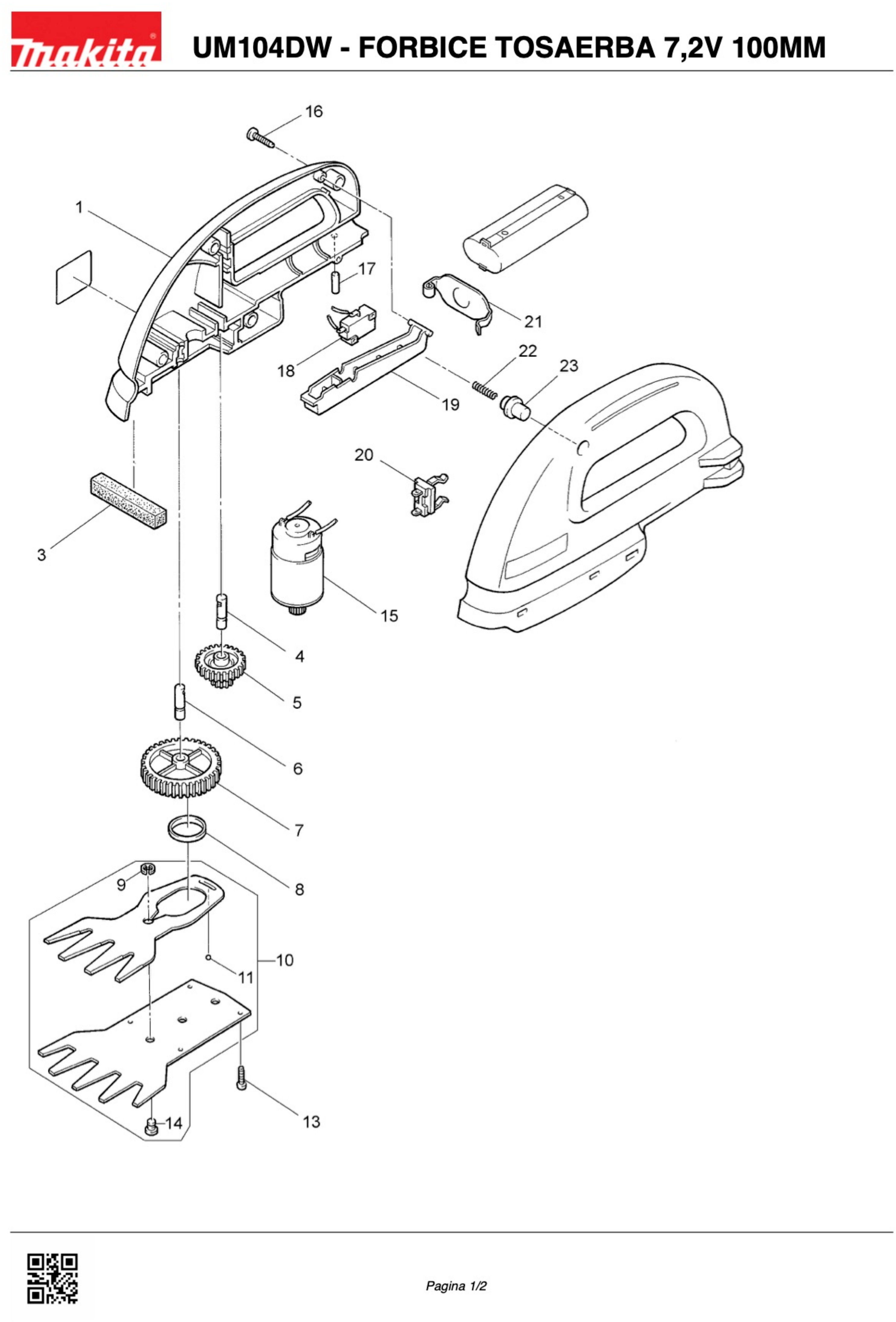

zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Makita Spare Parts for Cordless Grass Shear UM104DW
Fix Your CORDLESS GRASS SHEAR 7,2V 100MM - UM104DW. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Prining Scissor and the respective parts of the code.
| UM104DW - CORDLESS GRASS SHEAR 7,2V 100MM | ||
| # | Part Num. | Description |
| 1 | 182609-1 | HOUSING SET CPL X UM102DW |
| 3 | 423121-5 | SPONGE SEAL UM1000 / 70D |
| 4 | 321835-9 | SHAFT X UM1000D / 70D |
| 5 | 226804-4 | GEAR 14-34 UM1000 / 70D |
| 6 | 321835-9 | SHAFT X UM1000D / 70D |
| 7 | 221742-5 | GEAR 52 UM1000 / 70D |
| 8 | 257116-4 | RING 21 UM1000 / 70D |
| 9 | 961018-5 | STOP RING E5 |
| 10 | 125030-1 | GRASS SHEAR BLADE 100MM |
| 11 | 216040-0 | BALL 3.5 |
| 13 | 911128-8 | SCREW M4X16 X HR4000C |
| 14 | 256686-0 | PIN 7 X UM102DW |
| 15 | 629659-0 | 7.2V MOTOR X UM102DW |
| 16 | 265925-7 | SCREW 4X20 X 5014-5016 |
| 17 | 256085-6 | PIN 4 X UM102DW |
| 18 | 651944-3 | SWITCH DMC-1115-13 |
| 19 | 414157-5 | LEVER SWITCH XUH4510A / 6310A |
| 20 | 643918-8 | BATTERY CLAMP X SC130DRA |
| 21 | 342833-0 | PLATE X UM1000D / 1200D |
| 22 | 233077-2 | SPRING 4 X UM102DW |
| 23 | 415674-8 | START BUTTON X UM140DST |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
