Makita Spare Parts for Petrol Chainsaw DCS4301/45

SKU: DCS4301/45
€171.99
VAT included

Makita Spare Parts for Petrol Chainsaw DCS4301/45

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for DCS4301/45 - PETROL CHAINSAW 45CM 42,4cc MAK. CAT.
Makita Spare Parts for Petrol Chainsaw DCS4301/45
  • Makita Spare Parts for Petrol Chainsaw DCS4301/45
  • Makita Spare Parts for Petrol Chainsaw DCS4301/45
  • Makita Spare Parts for Petrol Chainsaw DCS4301/45
  • Makita Spare Parts for Petrol Chainsaw DCS4301/45
  • Makita Spare Parts for Petrol Chainsaw DCS4301/45
  • Makita Spare Parts for Petrol Chainsaw DCS4301/45
  • Makita Spare Parts for Petrol Chainsaw DCS4301/45
  • Makita Spare Parts for Petrol Chainsaw DCS4301/45
  • Makita Spare Parts for Petrol Chainsaw DCS4301/45

Makita Spare Parts for Petrol Chainsaw DCS4301/45

SKU: DCS4301/45 Condition: New
€171.99
VAT included

Makita Spare Parts for Petrol Chainsaw DCS4301/45

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for DCS4301/45 - PETROL CHAINSAW 45CM 42,4cc MAK. CAT.
settings 145 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

142 spare parts

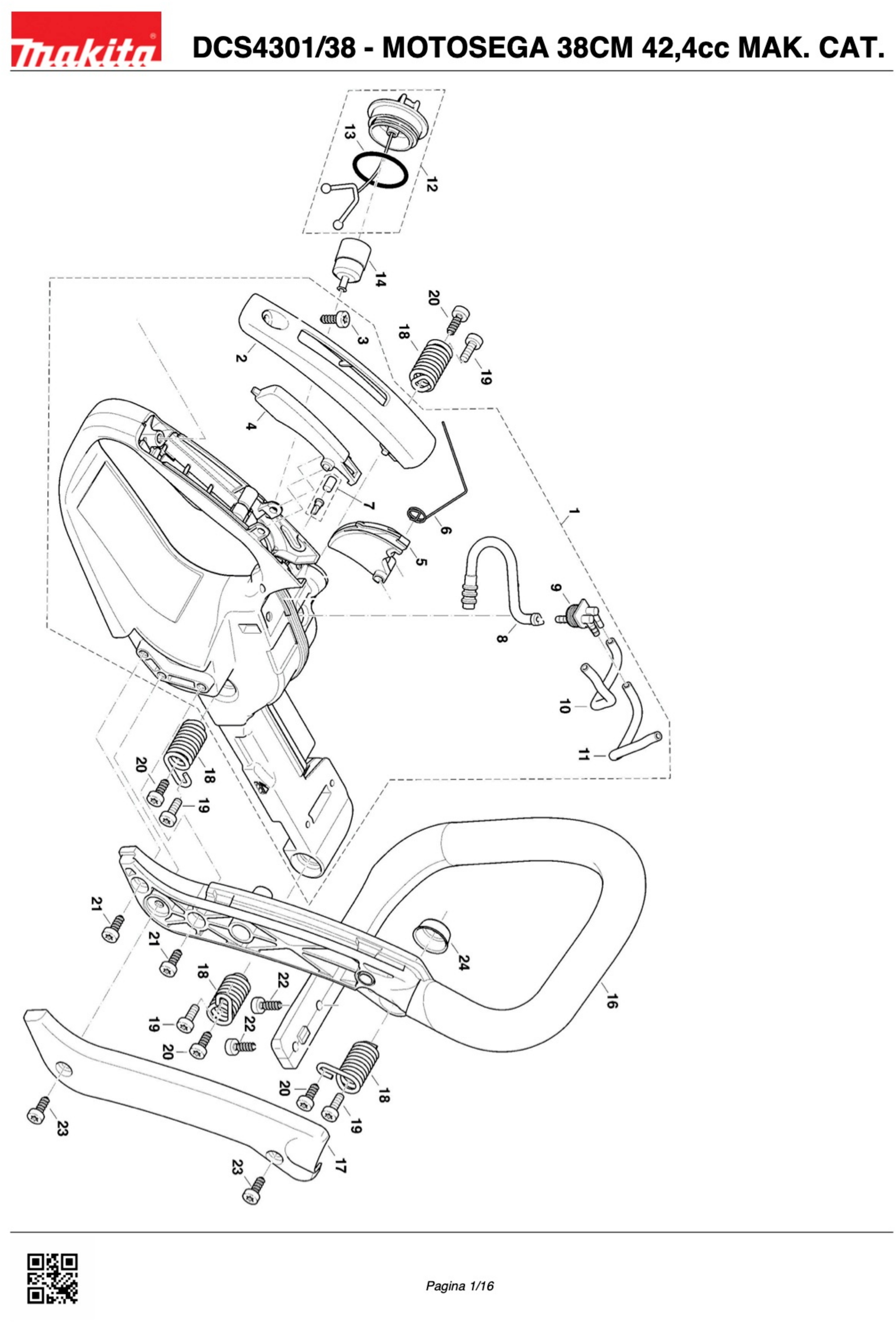

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 195114642 TANK BLUE CPL DCS3501-4301 €162.12
2
photo_cameraImage coming soon 456143-0 HANDLE COVER POST.PS350C €8.18
3
photo_cameraImage coming soon 266478-9 SCREW 5,5X16 (TORX) €1.47
4
photo_cameraImage coming soon 456142-2 RELEASE LEVER PS350C-420C €4.95
5
photo_cameraImage coming soon 195117020 ACCELERATOR LEVER PS350C-420C €5.69
6
photo_cameraImage coming soon 195117010 PS350C-420C SPRING €3.01
7
photo_cameraImage coming soon 170175010 VENT VALVE KSET €7.58
8
Fuel Hose for Chaisaws Makita EA3201S35A 424456-7 Fuel Hose for Chaisaws Makita EA3201S35A €16.31
9
photo_cameraImage coming soon 452018-1 FITTING CARCBURANTE PS32CTLC €1.43
10
photo_cameraImage coming soon 965452090 Fuel tube PS45 €21.97
11
photo_cameraImage coming soon 965452382 FUEL TUBE 1mt Diam. 3/5 €12.56
12
photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
13
photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
14
Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
16
photo_cameraImage coming soon 195310010 HANDLE TUBE PS350C €72.54
17
photo_cameraImage coming soon 195310650 ANTIVIBRATION HANDLE COVER BLUE PS350C €13.75
18
Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
19
photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
24
photo_cameraImage coming soon 195114160 COVER X SPRING PS350C-420C €6.76

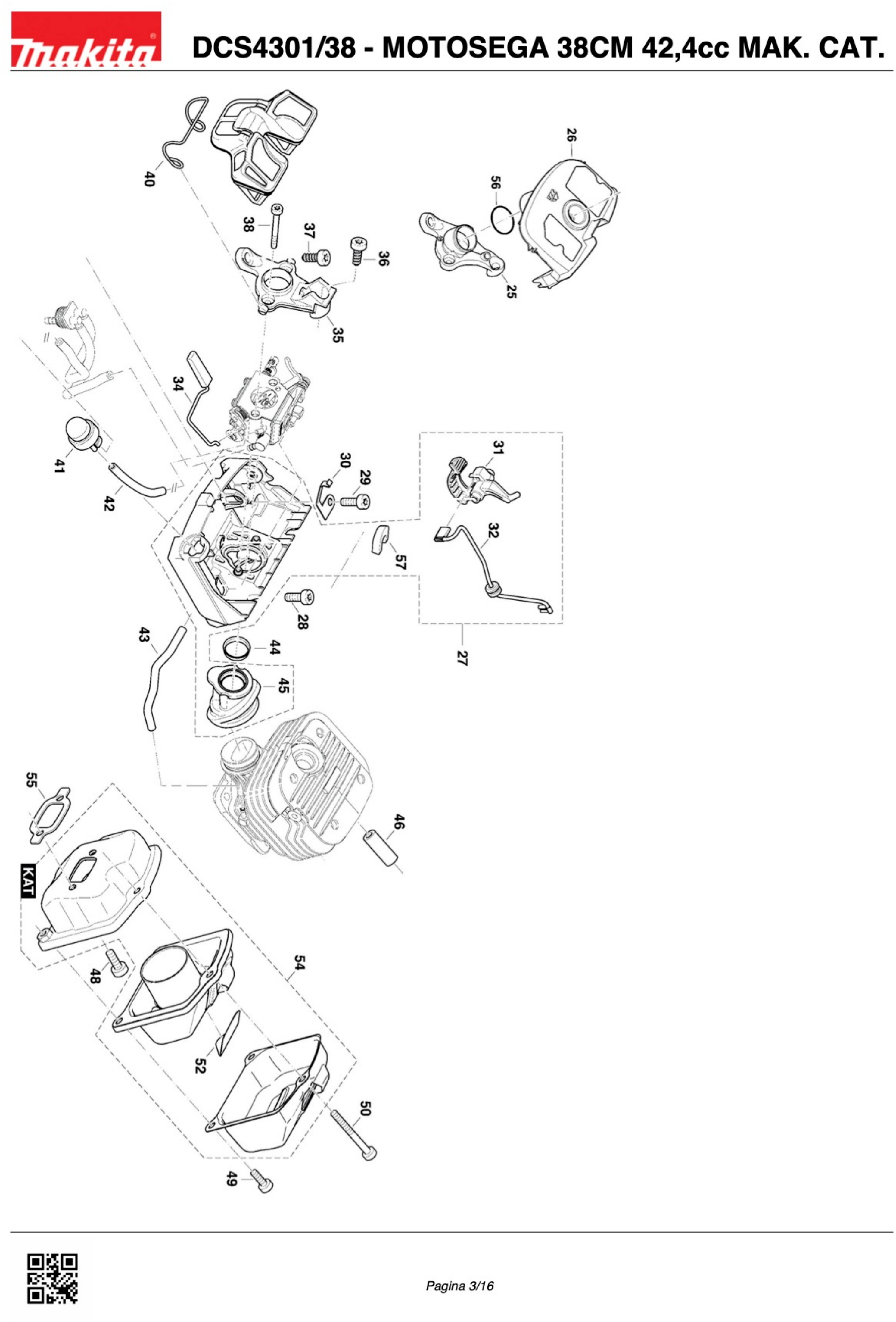

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
25
photo_cameraImage coming soon 456135-9 BLOCK CONNECTION PS350C €10.65
26
photo_cameraImage coming soon 123452-9 AIR FILTER NYLON PS350C-420C €27.23
27
photo_cameraImage coming soon 195131301 BASE X EA4300F €72.54
30
photo_cameraImage coming soon 346926-5 CONTACT PLATE PS350C €3.02
31
photo_cameraImage coming soon 195155020 STARTER FOR PS350C-420C €5.69
32
photo_cameraImage coming soon 195147010 POWER CABLE PS350C-420C €10.59
34
photo_cameraImage coming soon 195117110 PS350C-420C LEVER €7.24
35
photo_cameraImage coming soon 195171010 BLOCK CONNECTION PS350C-420C €10.59
38
photo_cameraImage coming soon 908004405 SCREW 4x40 PS3400TH €2.03
40
photo_cameraImage coming soon 181171050 LEVER FOR AIR DCS4600S €4.51
41
photo_cameraImage coming soon 010155011 VALVE TRIGGER DCS344 €6.30
44
photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
45
photo_cameraImage coming soon 424753-1 SUCTION HOSE PS350C €27.23
46
photo_cameraImage coming soon 325939-9 PS32CTLC SOCKET €1.40
50
photo_cameraImage coming soon 266606-6 SCREW M5X40 PS32CTLC €1.40
52
photo_cameraImage coming soon 195174280 PROTECTION SPARKS PS350C-420C €5.69
54
photo_cameraImage coming soon 195174550 CATALYTIC MUFFLER PS350C €108.21
55
photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
56
photo_cameraImage coming soon 213085-9 RING PS350C PS420C €1.36
57
photo_cameraImage coming soon 195131090 PS350C-420C RING €4.24

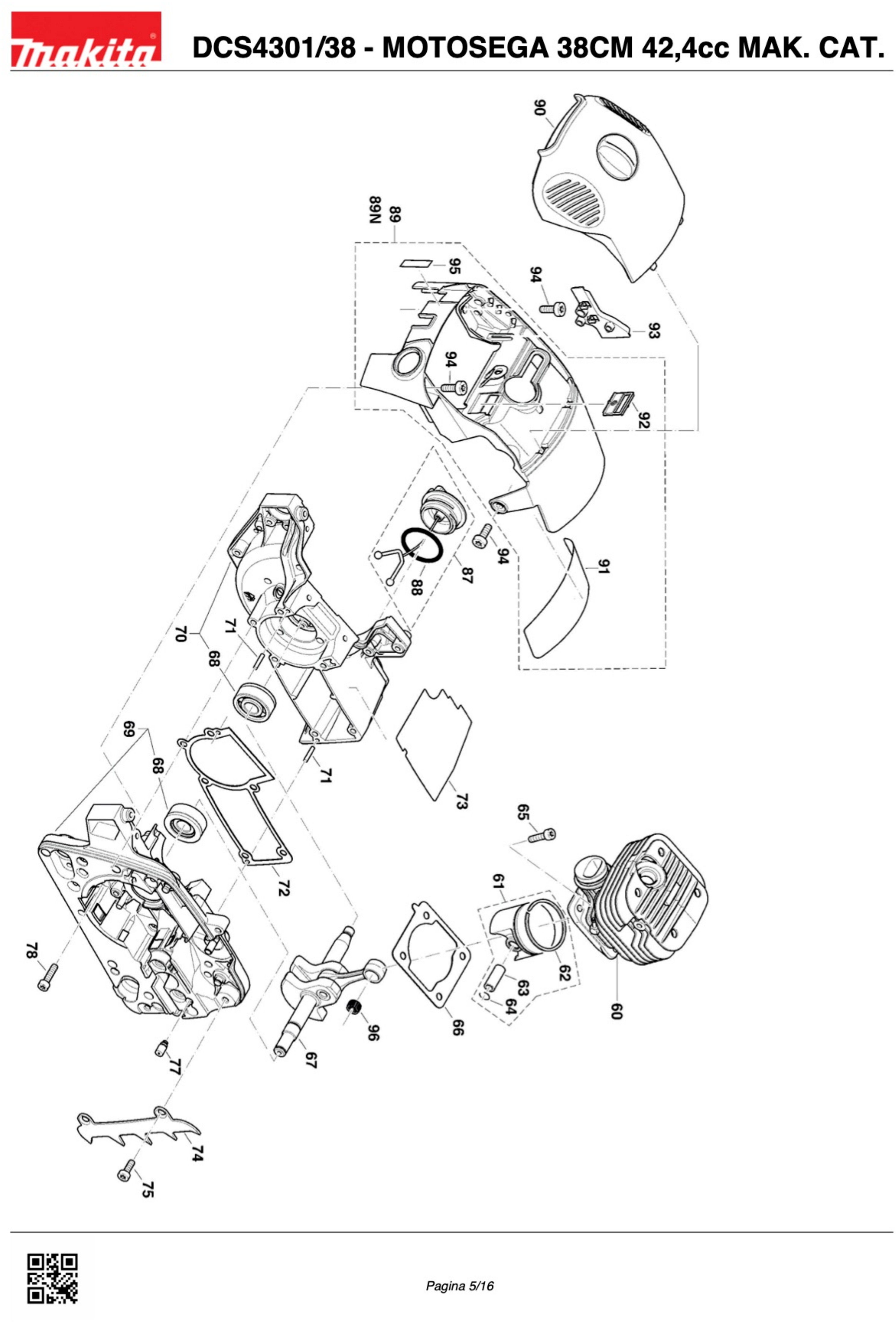

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
60
photo_cameraImage coming soon 319612-1 CYLINDER 42 €108.15
61
photo_cameraImage coming soon 957132020 PISTON DIAMETER 42 PS350C-420C €108.21
62
photo_cameraImage coming soon 257383-1 PISTON RING D.42 PS420SC €23.41
63
photo_cameraImage coming soon 195132030 PISTON PIN PS350C / 420C €23.30
64
photo_cameraImage coming soon 195132050 RING PIN PS350C-420C €2.01
65
photo_cameraImage coming soon 266960-8 SCREW X DCS6401 €1.43
66
photo_cameraImage coming soon 346925-7 GASKET PS350C-420C €4.26
68
photo_cameraImage coming soon 960123129 PS350C-420C BEARING €31.30
69
photo_cameraImage coming soon 195111640 BLUE CLUTCH SIDE CASE PS350 €139.78
70
photo_cameraImage coming soon 195111650 BLUE FLYWHEEL SIDE CARTER €126.32
71
photo_cameraImage coming soon 936430160 PIN 3X16 PS350C-420C €2.20
72
photo_cameraImage coming soon 195111065 GASKET X EA4300F €5.69
73
photo_cameraImage coming soon 346928-1 PROTECTIVE FILM PS350C €4.95
74
photo_cameraImage coming soon 195250010 HOOK PS350C-420C €18.17
77
Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
89
photo_cameraImage coming soon 195118650 BLUE BACKGROUND PS350C-420C €32.42
89N
photo_cameraImage coming soon 195118694 BLACK BOTTOM PS350C-PS420C €48.02
90
photo_cameraImage coming soon 195118601 BLUE FILTER COVER PS350C €15.59
91
photo_cameraImage coming soon 195118080 PROTECTOR PS350C €4.24
92
photo_cameraImage coming soon 195118140 PLATE CLOSING PS350C €8.14
93
photo_cameraImage coming soon 195155030 PS350-PS420C GUIDE €4.90
95
photo_cameraImage coming soon 980114928 LABEL STARTER FOR PS-460/500 €3.92
96
photo_cameraImage coming soon 212093-7 NEEDLE BEARING €7.29

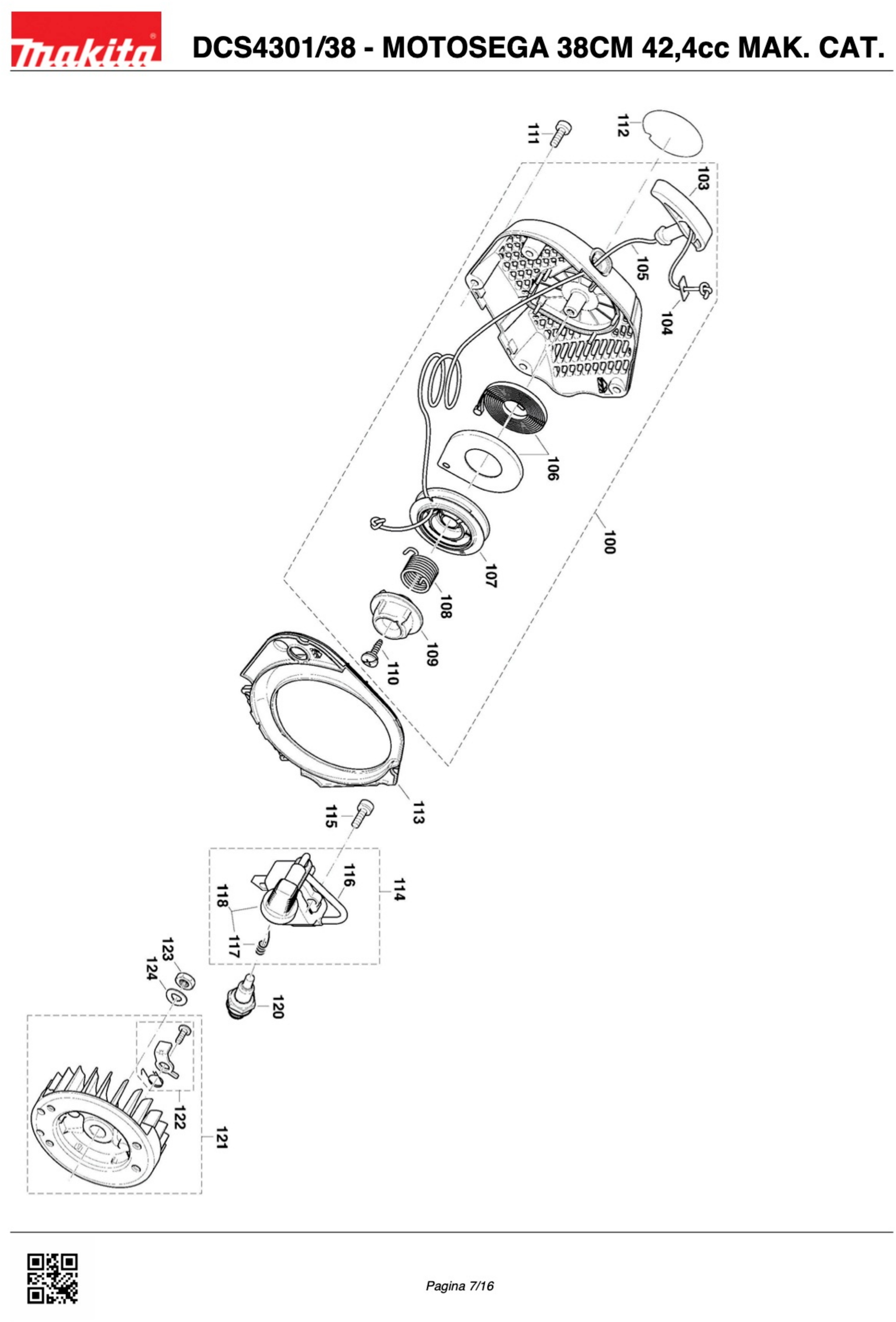

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
100
photo_cameraImage coming soon 161365-6 STARTING CPL BLU DCS3501 €88.60
103
photo_cameraImage coming soon 453783-5 GRIP STARTING PS32CTLC €3.92
104
photo_cameraImage coming soon 195160080 WASHER PS350C-420C €2.12
105
photo_cameraImage coming soon 444038-9 ROPE START PS32CTLC €2.08
106
Makita Starter Spring for EA3200S35A 195955-3 Makita Starter Spring for EA3200S35A €11.07
107
photo_cameraImage coming soon 455919-2 CABLE DRUM CPL. €6.06
108
photo_cameraImage coming soon 234253-1 SPRING TORSION 20 PS32CTLC €2.69
109
photo_cameraImage coming soon 195160020 STARTING PULLEY PS350C-420 €5.69
110
photo_cameraImage coming soon 195160010 PS350C-420C SCREW €2.01
112
photo_cameraImage coming soon 980115422 DCS4301 LABEL €5.50
113
photo_cameraImage coming soon 456137-5 DEFLECTOR PS350C-420C €8.18
114
Electronic Coil for Chainsaw Makita DCS4301/38 161357-5 Electronic Coil for Chainsaw Makita DCS4301/38 €77.43
115
photo_cameraImage coming soon 908805205 SCREW M5 + WASHER PS6400 / 7300 €34.71
116
photo_cameraImage coming soon 970502110 INSULATING HOSE M DCS4630/5030 €6.76
117
photo_cameraImage coming soon 965604180 SPRING DCS330S/390/430/520/430 €2.20
118
photo_cameraImage coming soon 957604220 HOOD CANDLE PS350C-420C €13.71
120
photo_cameraImage coming soon 965603040 NGK SPARK-CMR7A-5 €7.83
121
photo_cameraImage coming soon 185141100 FLYWHEEL PS460-500-4605-5105 €167.27
122
photo_cameraImage coming soon 181166100 STARTER PAWL CPL €30.02
123
photo_cameraImage coming soon 264022-6 NUT €1.43
124
photo_cameraImage coming soon 926208001 SPRING WASHER 8 €1.47

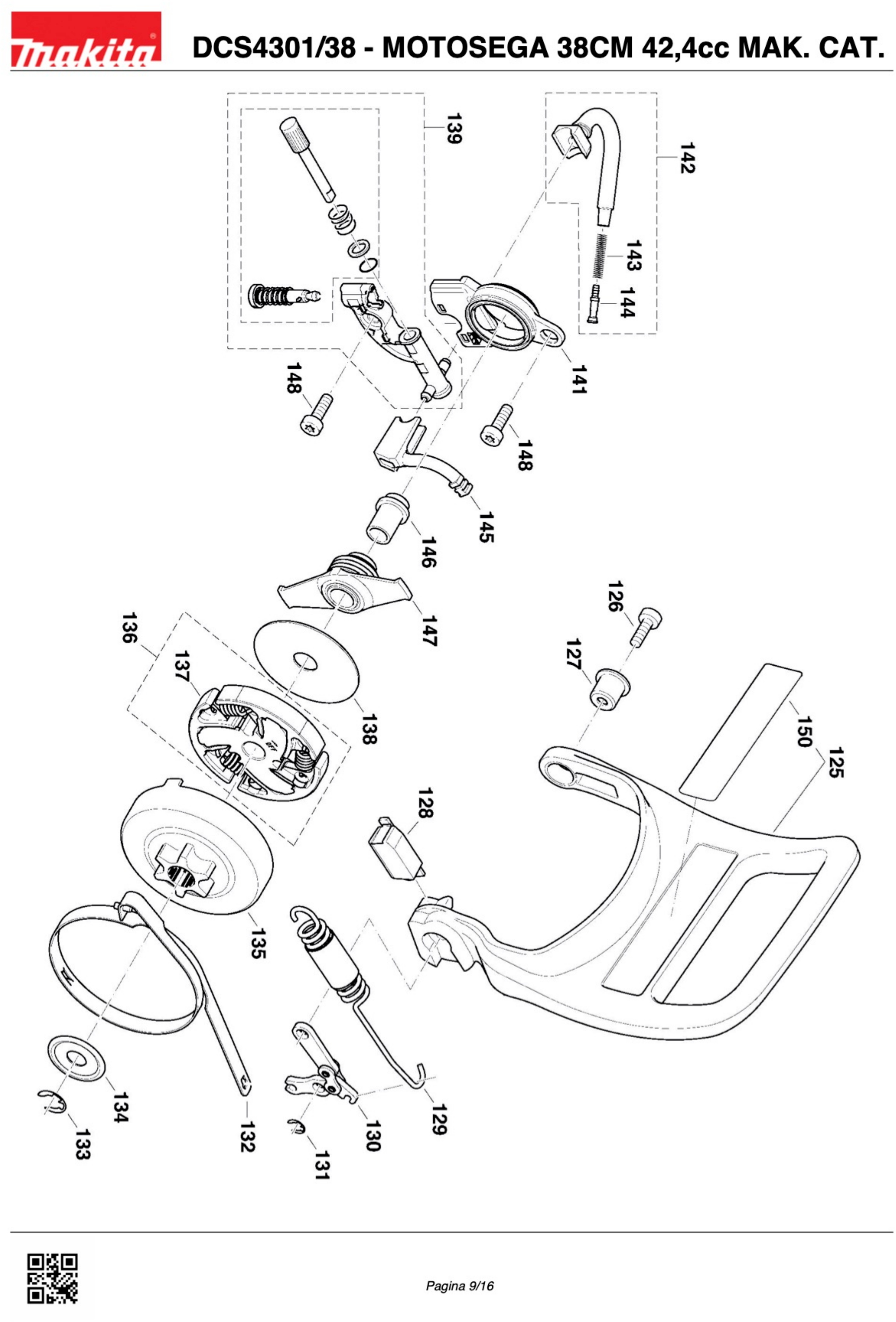

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
125
photo_cameraImage coming soon 195213500 HAND PROTECTION PS350C-420C €38.68
127
photo_cameraImage coming soon 325604-0 BUSHING DCS4600S-5000 €18.98
128
photo_cameraImage coming soon 181213170 X PROTECTION GUIDE DCS4600S €20.12
129
photo_cameraImage coming soon 181213023 SPRING TENSION X PS6100 €2.20
130
photo_cameraImage coming soon 181213100 LEVERAGE DCS4600S-5000 €21.75
131
photo_cameraImage coming soon 257934-0 RETAINING RING E-4 X UH6580 €1.47
132
photo_cameraImage coming soon 346029-5 BRAKE BAND SPRING €20.12
133
photo_cameraImage coming soon 259045-7 DISC X DCS6401 €1.47
134
Washer 29 for Chainsaw Dolmar PS6100/45 267820-7 Washer 29 for Chainsaw Dolmar PS6100/45 €7.53 Not available for order
135
photo_cameraImage coming soon 181223312 DRUM CLUTCH 325 "Z = 7 €37.93
136
Clutch Ass'y for Chainsaw Dolmar PS350C/40 123857-3 Clutch Ass'y for Chainsaw Dolmar PS350C/40 €26.65
137
photo_cameraImage coming soon 181184020 TENSION SPRING €2.69
138
photo_cameraImage coming soon 1182042 DISC GUIDE PS350C / 420C €3.51
141
photo_cameraImage coming soon 195245140 HOLDER OIL PUMP PS350C-420 €5.69
142
photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
143
photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
144
photo_cameraImage coming soon 001245020 HOSE STEM €1.47
145
photo_cameraImage coming soon 424178-9 PRESSURE LINE DCS4600S €20.12
146
photo_cameraImage coming soon 195245010 PS350C-420C SOCKET €9.48
147
Worm Screw for Chainsaw Dolmar PS4600S-5000 450956-1 Worm Screw for Chainsaw Dolmar PS4600S-5000 €18.99
150
photo_cameraImage coming soon 810449-4 LABEL €1.47

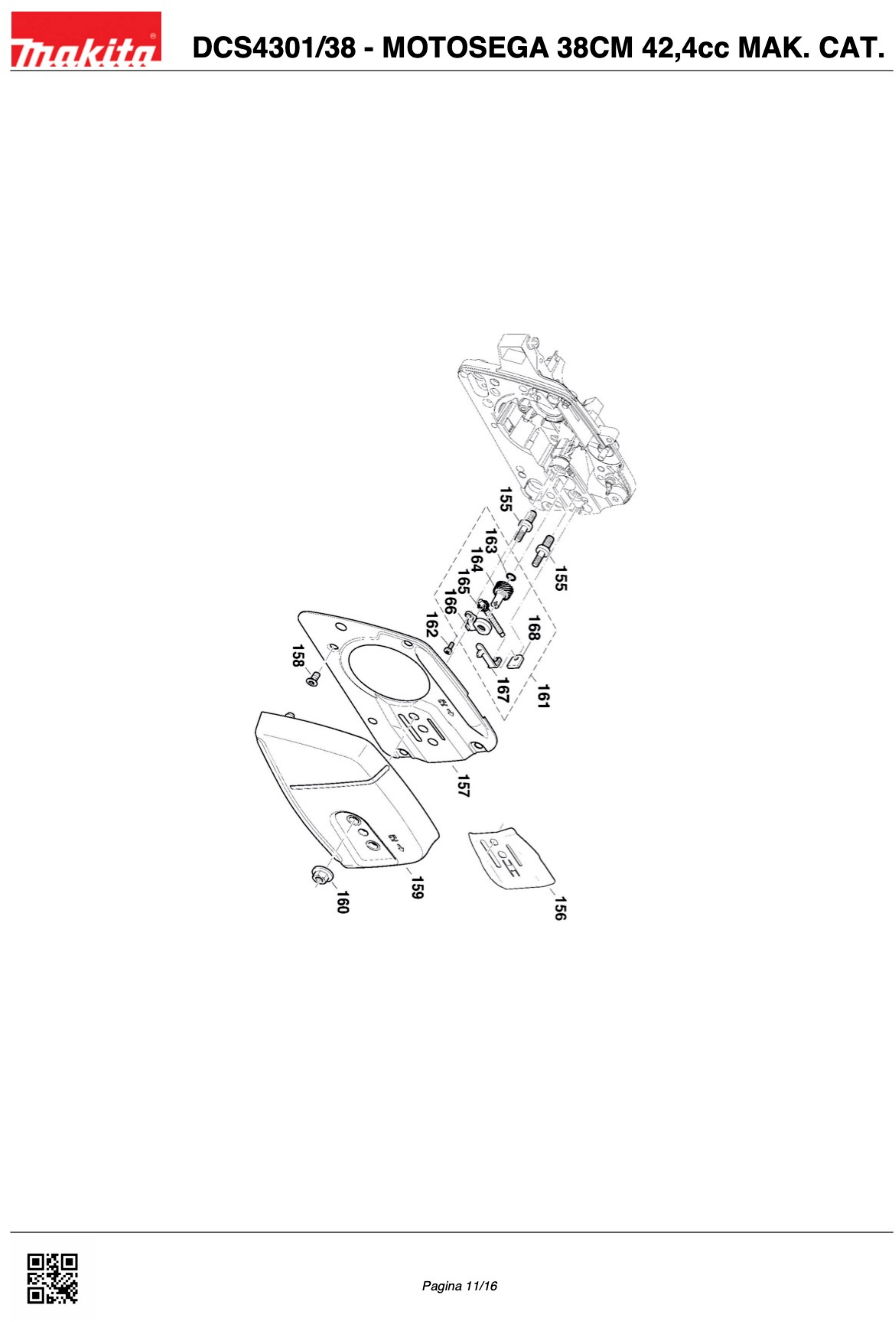

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
155
photo_cameraImage coming soon 266978-9 STUD M8 PS350C-420C €5.94
156
Guide Plate for Chainsaw Dolmar PS32C/35 346518-0 Guide Plate for Chainsaw Dolmar PS32C/35 €6.23
157
photo_cameraImage coming soon 346927-3 SPROCKET COVER PS350C-420C €9.52
158
Torx C.S. Head Screw M5X12 for Chainsaw Makita DCS4301/38 266477-1 Torx C.S. Head Screw M5X12 for Chainsaw Makita DCS4301/38 €2.12
159
photo_cameraImage coming soon 161791-9 SPROKET GUARD BLUE CPL €12.21
160
Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
161
photo_cameraImage coming soon 183H51-7 CHAIN TENSIONER CPL. €18.92
162
photo_cameraImage coming soon 915135100 FILLISTER (TORX)HEAD SCREW 3,5 €1.40
163
photo_cameraImage coming soon 963207020 SEAL 7 €2.84
164
photo_cameraImage coming soon 227744-9 GEAR 18 €20.12
165
photo_cameraImage coming soon 227743-1 GEAR 11 €22.84
166
photo_cameraImage coming soon 452667-4 COVER €9.01
167
photo_cameraImage coming soon 346300-7 SLEIGH €2.12
168
photo_cameraImage coming soon 452668-2 TENSIONER PLATE EA3200S €1.43

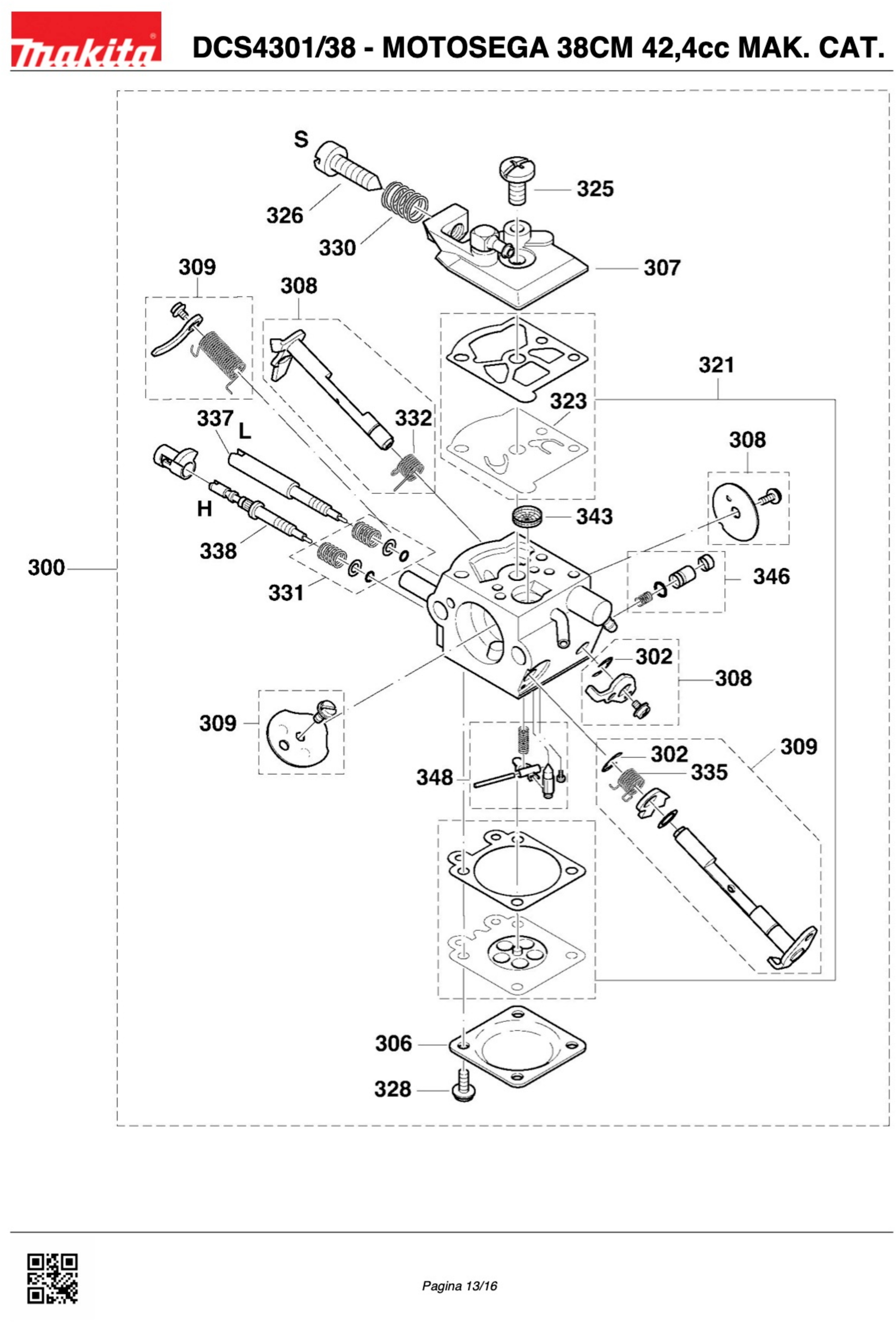

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
300
Dolmar Chainsaw PS350C Carburetor 161371-1 Dolmar Chainsaw PS350C Carburetor €61.00
302
photo_cameraImage coming soon 119151350 SHAFT CLIP €3.05
307
photo_cameraImage coming soon 195151350 TOP COVER PS350C-420 €18.17
308
photo_cameraImage coming soon 957151200 VALVE ACCELERATOR PS350C €38.68
309
photo_cameraImage coming soon 957151210 SHAFT THROTTLE PS350C-420 €42.90
321
Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C 957151220 Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C €40.61
323
photo_cameraImage coming soon 021151150 PUMP DIAPHR RUBBER DCS430/431/ €11.07
326
photo_cameraImage coming soon 378151210 SCREW MINIMUM PS3400TH €4.01
328
photo_cameraImage coming soon 378151220 SCREW PS3400TH €2.61
331
photo_cameraImage coming soon 957151240 SOFT / WASHER PS350C-420C €15.94
332
photo_cameraImage coming soon 001151310 SPRING DCS330S/390/430/520/DCS €2.69
335
photo_cameraImage coming soon 195151490 VALVE SPRING SHAFT ACCELERATOR €4.90
337
photo_cameraImage coming soon 195151520 SCREW PS350C L-420C €18.17
338
photo_cameraImage coming soon 195151530 SCREW H PS350C-420C €18.17
343
photo_cameraImage coming soon 021151180 SCREEN €3.85
346
photo_cameraImage coming soon 957151070 PUMP CARBURETOR PS3410TH €5.66
348
photo_cameraImage coming soon 957151230 PORTION CONTROL PS350C-420C €27.08
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
406
photo_cameraImage coming soon 444045141 SPOOL BAR 325"45CM €44.81
407
photo_cameraImage coming soon 512484772 CHAIN 45CM 0,325" 1,3mm 95VPX €31.52
408
photo_cameraImage coming soon 510084020 JERSEY WITH RIVETS PS-540 325 " €2.08
409
photo_cameraImage coming soon 510084040 JERSEY 325 "X 43 PS €1.40
411
photo_cameraImage coming soon 952020640 COVER PROTECTION CHAIN 38-45CM €8.90
413
photo_cameraImage coming soon 941719133 UNIVERSAL KEY 19/13 €5.15
414
photo_cameraImage coming soon 782025-3 TORX KEY €2.18

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Petrol Chainsaw DCS4301/45

Makita Original spare parts

sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for DCS4301/45 - PETROL CHAINSAW 45CM 42,4cc MAK. CAT.

Open PDF Diagram, check your spare part number position and then select it in the following table.
DCS4301/45

DCS4301/45 - CHAINSAW 45CM 42,4cc MAK. CAT.pag.1
# Part Num. Description
1 195114642 BLUE TANK CPL DCS3501-4301
2 456143-0 REAR HANDLE COVER PS350C
3 266478-9 SCREW 5,5X16 (TORX)
4 456142-2 RELEASE LEVER PS350C-420C
5 195117020 THROTTLE LEVER PS350C-420C
6 195117010 SPRING PS350C-420C
7 170175010 VENT VALVE KIT
8 424456-7 FUEL PIPE PS32CTLC
9 452018-1 FUEL FITTING PS32CTLCP
10 965452090 FUEL PIPE PS45
11 965452382 FUEL TUBE 1m Diam. 3/5
12 168823-3 TANK CAP PS32CTLC
13 213080-9 RING 29.5 PS32CTLC
14 163447-0 FUEL FILTER X DCS230T
16 195310010 PS350C TUBULAR HANDLE
17 195310650 ANTIVIBRATION HANDLE COVER BLUE PS350C
18 234189-4 COMPRESSION SPRING 12 PS32CTLc
19 266605-8 SCREW M5X16 PS32CTLC
20 266478-9 SCREW 5,5X16 (TORX)
21 266478-9 SCREW 5,5X16 (TORX)
22 266478-9 SCREW 5,5X16 (TORX)
23 266478-9 SCREW 5,5X16 (TORX)
24 195114160 COVER X SPRING PS350C-420C
DCS4301/45 - CHAINSAW 45CM 42,4cc MAK. CAT.pag.2
25 456135-9 CONNECTION BLOCK PS350C
26 123452-9 AIR FILTER NYLON PS350C-420C
27 195131301 BASE X EA4300F
28 266605-8 SCREW M5X16 PS32CTLC
29 266605-8 SCREW M5X16 PS32CTLC
30 346926-5 CONTACT PLATE PS350C
31 195155020 STARTER FOR PS350C-420C
32 195147010 IGNITION CABLE PS350C-420C
34 195117110 LEVER PS350C-420C
35 195171010 CONNECTION BLOCK PS350C-420C
36 266478-9 SCREW 5,5X16 (TORX)
37 266478-9 SCREW 5,5X16 (TORX)
38 908004405 SCREW 4X40 PS3400TH
40 181171050 LEVER FOR AIR FILTER DCS4600S
41 010155011 TRIGGER VALVE DCS344
42 965452090 FUEL PIPE PS45
43 965452090 FUEL PIPE PS45
44 346413-4 BUSCHING 17 PS32CTLC
45 424753-1 SUCTION HOSE PS350C
46 325939-9 BUSCHING PS32CTLC
48 266605-8 SCREW M5X16 PS32CTLC
49 266605-8 SCREW M5X16 PS32CTLC
50 266606-6 SCREW M5X40 PS32CTLC
52 195174280 SPARK PLUG GUARD PS350C-420C
54 195174550 CATALYTIC MUFFLER PS350C
55 346304-9 MUFFLER GASKET PS32CTLC
56 213085-9 RING PS350C - PS420C
57 195131090 RING PS350C-420C
DCS4301/45 - CHAINSAW 45CM 42,4cc MAK. CAT. Pag.3
60 319612-1 CYLINDER 42
61 957132020 PISTON DIAM. 42 PS350C-420C
62 257383-1 ELASTIC BAND D.42 PS420SC
63 195132030 PISTON PIN PS350C / 420C
64 195132050 PIN RING PS350C-420C
65 266960-8 SCREW X DCS6401
66 346925-7 SEAL PS350C-420C
67 195120100 CRANKSHAFT PS350C-420C
68 960123129 BEARING PS350C-420C
69 195111640 BLUE CLUTCH SIDE CASE PS350
70 195111650 BLUE FLYWHEEL SIDE CARTER
71 936430160 PIN 3X16 PS350C-420C
72 195111065 GASKET X EA4300F
73 346928-1 PS350C PROTECTIVE FILM
74 195250010 HARPIONE PS350C-420C
75 266605-8 SCREW M5X16 PS32CTLC
77 168504-9 PS32CTLC BREATHER VALVE
78 266960-8 SCREW X DCS6401
87 168823-3 PS32CTLC TANK CAP
88 213080-9 RING 29.5 PS32CTLC
89 195118650 BLUE BACKGROUND PS350C-420C
89N 195118694 BLACK BACKGROUND PS350C-PS420C
90 195118601 BLUE FILTER COVER PS350C
91 195118080 PS350C PROTECTIVE FILM
92 195118140 CLOSING PLATE PS350C
93 195155030 PS350-PS420C GUIDE
94 266605-8 SCREW M5X16 PS32CTLC
95 980114928 Labels. START. FOR PS-460/500
96 212093-7 NEEDLE BEARING
DCS4301/45 - CHAINSAW 45CM 42,4cc MAK. CAT. Pag.4
100 161365-6 STARTING CPL BLUE DCS3501
103 453783-5 STARTER KNOBS PS32CTLC
104 195160080 PS350C-420C WASHER
105 444038-9 STARTING ROPE PS32CTLC
106 195955-3 SPRING REWIND PS32CTLC
107 455919-2 STARTER SPOOL
108 234253-1 SPRING TORSION 20 PS32CTLC
109 195160020 STARTER PULLEY PS350C-420
110 195160010 SCREW PS350C-420C
111 266605-8 SCREW M5X16 PS32CTLC
112 980115422 DCS4301 LABEL
113 456137-5 DEFLECTOR PS350C-420C
114 161357-5 IGNITION COIL
115 908805205 SCREW M5 + WASHER PS6400 / 7300
116 970502110 INSULATION TUBE 6 / 0.5 (M)
117 965604180 SPRING
118 957604220 SPARK PLUG HOOD PS350C-420C
120 965603040 CANDLE NGK-CMR7A-5
121 185141100 FLYWHEEL PS460-500-4605-5105
122 181166100 COMPLETE STARTING RING
123 264022-6 NUT
124 926208001 ELASTIC WASHER 8
DCS4301/45 - CHAINSAW 45CM 42,4cc MAK. CAT. Pag.5
125 195213500 HAND PROTECTION PS350C-420C
126 266605-8 SCREW M5X16 PS32CTLC
127 325604-0 COMPASS DCS4600S-5000
128 181213170 GUIDE X PROTECTION DCS4600S
129 181213023 TENSION SPRING X PS6100
130 181213100 LEVERAGE DCS4600S-5000
131 257934-0 STOP RING E-4 X UH6580
132 346029-5 BRAKE BAND SPRING
133 259045-7 RING X DCS6401
134 267820-7 THICKNESS DISC PS350C-420C
135 181223312 CLUTCH DRUM 325 "Z = 7
136 123857-3 CLUTCH PS350C-420C
137 181184020 TRAINING SPRING
138 1182042 DISC GUIDE PS350C / 420C
139 161346-0 OIL PUMP - EA3201S PS32C
141 195245140 OIL PUMP SUPPORT PS350C-420
142 168645-1 SUCTION HOSE PS32CTLC
143 231975-4 SPRING OIL HOSE X DCS230T
144 001245020 TUBE
145 424178-9 OIL PIPE DCS4600S
146 195245010 BUSCHING PS350C-420C
147 450956-1 WORM SCREW DCS4600S-5000
148 266605-8 SCREW M5X16 PS32CTLC
150 810449-4 LABEL
DCS4301/45 - CHAINSAW 45CM 42,4cc MAK. CAT. Pag.6
155 266978-9 STUD BOLT M8 PS350C-420C
156 346518-0 PS32CTLC GUIDE PLATE
157 346927-3 SPROCKET COVER PS350C-420C
158 266477-1 SCREW M.5X12 X UH4520-5520-7020
159 161791-9 COMPLETE BLUE PINION CARTER
160 264055-1 NUT M8
161 183H51-7 CHAIN TENSIONER ASSEMBLED
162 915135100 SCREW 3.5 X 9.5
163 963207020 SEAL 7
164 227744-9 GEAR 18
165 227743-1 CHAIN TENSIONER SCREW 11
166 452667-4 COVER
167 346300-7 SLEIGH
168 452668-2 CHAIN TENSIONER PLATE EA3200S
DCS4301/45 - CHAINSAW 45CM 42,4cc MAK. CAT. Pag.7
300 161371-1 CARBURETOR X PS350SC-PS420SC
302 119151350 SAFETY WASHER
307 195151350 UPPER COVER PS350C-420
308 957151200 THROTTLE VALVE PS350C
309 957151210 THROTTLE SHAFT PS350C-420
321 957151220 GASKET KIT PS350C-420C
323 021151150 PUMP DIAPHRAGM
326 378151210 MINIMUM SCREW PS3400TH
328 378151220 SCREW PS3400TH
331 957151240 SPRINGS / WASHERS PS350C-420C
332 001151310 SPRING
335 195151490 SPRING VALVE SHAFT ACCEL.
337 195151520 SCREW L PS350C-420C
338 195151530 SCREW H PS350C-420C
343 021151180 PETROL FILTER
346 957151070 CARBURETOR PUMP PS3410TH
348 957151230 CONTROL PARTS PS350C-420C

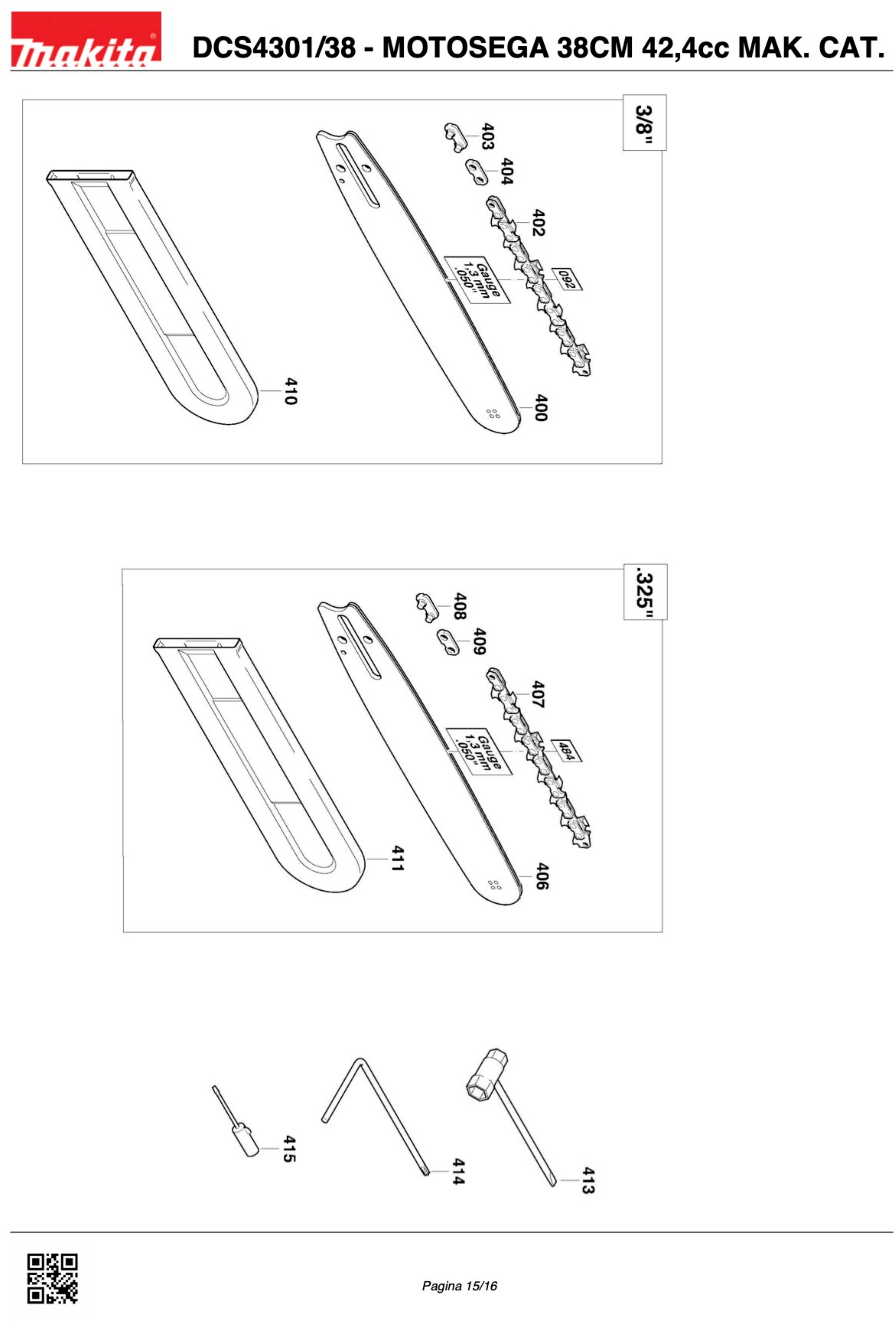

DCS4301/45 - CHAINSAW 45CM 42,4cc MAK. CAT. Pag.8
406 444045141 SPOOL BAR 325"45CM
407 512484772 CHAIN 45CM 0,325" 1,3mm 95VPX
408 510084020 MESH WITH RIVETS PS-540 325 "
409 510084040 MESH 325 "X PS 43
411 952020640 COVER PROTECTION CHAIN 38-45CM
413 941719133 UNIVERSAL KEY 19/13
414 782025-3 TORX KEY
415 783012-5 CARBURETTOR SCREWDRIVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DCS4301/45
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita DCS4301/45

Drawing Makita DCS4301/45

Download (1.84MB)

You might also like

Makita SKU: 021245007
Oil Pump for Electric Chainsaw Makita UC3500A Genuine replacement part Makita, Oil Pump for Electric Chainsaws UC3500A - UC4001A - UC4003A. Part for the following products: - ELECTRIC CHAINSAW UC3500A - ELECTRIC CHAINSAW UC4001A -...
AVAILABLE €38.40
Makita SKU: 232302-8
Circlip for Chainsaw Dolmar PS33/35 Original replacement part Dolmar, Piston Pin Circlip for Chainsaws PS33/35 - PS35C/40 - PS45/40 - EA3500S40B - DCS330S/30. Part for the following products: -  DCS330S/30 - CHAINSAW CM30 KW1,3 33CC...
AVAILABLE €1.41
Makita SKU: 010114050
Oil/Fuel Tank Cap for Chainsaw Dolmar PS33/35 Genuine part Dolmar, Oil/Fuel Tank Cap for Chainsaws PS33 - PS6400HS/45 - PS7310/50 - PS7900HS - PS7910/50. Part for the following products: -  PS33/35 - CHAINSAW 33CC DOLMAR 35CM -...
Last items in stock €9.60
Makita SKU: 963100043
Oil/Fuel Tank Cap O-Ring for Chainsaw Dolmar PS33/35 Genuine part Dolmar, Oil/Fuel Tank Cap O-Ring for Chainsaws PS33/35 - Makita DCS330S/30. Part for the following products: -  PS33/35 - MOTOSEGA 33CC DOLMAR 35CM -  DCS330S/30 -...
AVAILABLE €1.38
Makita SKU: 965450042
Oil Tank Cap Ass'y for Chainsaw Dolmar PS33/35 Genuine part Dolmar, Oil Tank Cap Ass'y for Chainsaws PS33/35 - Makita DCS330S/30. Part for the following products: -  PS33/35 - MOTOSEGA 33CC DOLMAR 35CM -  DCS330S/30 - CHAINSAW CM30...
Last items in stock €5.33
Makita SKU: 963224035
O-Ring (24X3,5)-(32X45) for Chainsaw Makita DCS330S/30 Genuine part Makita, Fuel Tank Cap O-Ring (24X3,5)-(32X45) for Chainsaw DCS330S/30 - DCS330S/35 - DCS330S/40. Part for the following products: - DCS330S.SB - CHAINSAW NO BAR -...
on 7/10 Business Days Approx €1.38
Makita SKU: 021180210
Clutch Ass'y for Chainsaw Dolmar PS33/35 Genuine part Dolmar, Clutch Ass'y for Chainsaws PS33/35 - Makita DCS330S/30. Part for the following products: -  PS33/35 - MOTOSEGA 33CC DOLMAR...
on 7/10 Business Days Approx €35.11
Makita SKU: 161357-5
Electronic Coil for Chainsaw Makita DCS4301/38 Genuine replacement part Makita, Electronic Coil for Chainsaws Makita DCS3501/40 - DCS4301/38 - DCS4301/45 - EA3500F40B. Part for the following products: -  DCS4301/38 - CHAINSAW 38CM...
Last items in stock €77.43
Makita SKU: 266477-1
Torx C.S. Head Screw M5X12 for Chainsaw Makita DCS4301/38 Genuine replacement part Makita, Torx C.S. Head Screw M5X12 for Chainsaws DCS4301/38 - DCS4301/45 - EA4300F - DCS460/45.  Part for the following products: -  DCS4301/38 -...
Last items in stock €2.12
Makita SKU: 161371-1
Dolmar Chainsaw PS350C Carburetor Genuine replacement part Makita Dolmar, Carburetor for Chainsaw PS350C/40 - PS420C/38 - PS420C/45 Catalized. Part for the following products: -  Chainsaw Dolmar PS350C/40 -  Chainsaw...
Last items in stock €61.00
Comments (0)
