Makita Spare Parts for Petrol Chainsaw DCS330S/30

SKU: Makita DCS330S/30
€3.92
VAT included

Makita Spare Parts for Petrol Chainsaw DCS330S/30

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Petrol Chainsaw DCS330S/30.
Makita Spare Parts for Petrol Chainsaw DCS330S/30
  • Makita Spare Parts for Petrol Chainsaw DCS330S/30
  • Makita Spare Parts for Petrol Chainsaw DCS330S/30
  • Makita Spare Parts for Petrol Chainsaw DCS330S/30
  • Makita Spare Parts for Petrol Chainsaw DCS330S/30
  • Makita Spare Parts for Petrol Chainsaw DCS330S/30
  • Makita Spare Parts for Petrol Chainsaw DCS330S/30
  • Makita Spare Parts for Petrol Chainsaw DCS330S/30
  • Makita Spare Parts for Petrol Chainsaw DCS330S/30
  • Makita Spare Parts for Petrol Chainsaw DCS330S/30
  • Makita Spare Parts for Petrol Chainsaw DCS330S/30
Makita

Makita Spare Parts for Petrol Chainsaw DCS330S/30

SKU: Makita DCS330S/30 Condition: New
€3.92
VAT included

Makita Spare Parts for Petrol Chainsaw DCS330S/30

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Petrol Chainsaw DCS330S/30.
settings 153 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
150 spare parts
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 957151700 CARBURETOR WT174 €132.82
23
 photo_cameraImage coming soon 001151320 THROTTLE SHAFT €10.64
24
 photo_cameraImage coming soon 001151310 SPRING DCS330S/390/430/520/DCS €2.69
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1A
 photo_cameraImage coming soon 001151670 ANGULAR NIPPLE 90° €4.14
1
 photo_cameraImage coming soon 021131110 CYLINDER D = 37 €174.83
2
 Cylinder Gasket for Chainsaw Makita DCS330S/30 965524043 Cylinder Gasket for Chainsaw Makita DCS330S/30 €2.97
3
 photo_cameraImage coming soon 021132111 PISTON ASS'Y €61.62
4
 photo_cameraImage coming soon 021132030 PISTON RING FOR 37MM €8.14
5
 Circlip for Chainsaw Dolmar PS33/35 232302-8 Circlip for Chainsaw Dolmar PS33/35 €1.41
6
 photo_cameraImage coming soon 021132020 PIN €13.65
7
 photo_cameraImage coming soon 021123010 CON-ROD €26.19
8
 photo_cameraImage coming soon 962640061 ROLLER 4X6 €1.49
9
 photo_cameraImage coming soon 957120021 CRANKSHAFT €209.41
11
 photo_cameraImage coming soon 108121010 STOP DISC 13.8 / 21X1 €2.89
12
 photo_cameraImage coming soon 021111600 HOUSING CLUTH €108.11
13
 photo_cameraImage coming soon 266945-4 SCREW M5X30 (TORX) €1.40
14
 photo_cameraImage coming soon 389213081 SCREW €3.84
15
 photo_cameraImage coming soon 001213042 PIN TENSIONER X PS 34 €5.13
16
 photo_cameraImage coming soon 905808254 BOLT 8X25 X 112 €2.24
20
 photo_cameraImage coming soon 991105207 SCREW M5X20 €2.00
21
 photo_cameraImage coming soon 010245010 AIR VENT VALVE DCS6000I/9010 €9.89
22
 Cranckcase Gasket for Chainsaw Makita DCS330S/30 965524011 Cranckcase Gasket for Chainsaw Makita DCS330S/30 €3.58
23
 photo_cameraImage coming soon 021111610 MAGNET HOUSING €108.11
24
 photo_cameraImage coming soon 936430160 PIN 3X16 PS350C-420C €2.20
26
 Oil Tank Cap Ass'y for Chainsaw Dolmar PS33/35 965450042 Oil Tank Cap Ass'y for Chainsaw Dolmar PS33/35 €5.33
27
 Oil/Fuel Tank Cap O-Ring for Chainsaw Dolmar PS33/35 963100043 Oil/Fuel Tank Cap O-Ring for Chainsaw Dolmar PS33/35 €1.38
28
 photo_cameraImage coming soon 962300011 NEEDLE BUSH 13 / 19X12 €9.12
29
 Snap ring 19x1 for Petrol Chaisaw Dolmar PS33/35 929319101 Snap ring 19x1 for Petrol Chaisaw Dolmar PS33/35 €1.35
30
 Radial Ring 13 for Chainsaw Makita DCS330S/30 962900049 Radial Ring 13 for Chainsaw Makita DCS330S/30 €7.42
31
 photo_cameraImage coming soon 934950240 BUSH 5X24 €1.34
35
 photo_cameraImage coming soon 908105124 SCREW M5X12 (TORX) €1.49
37
 photo_cameraImage coming soon 957250015 TOOTHED BAR COMPL. €12.90
38
 photo_cameraImage coming soon 938240643 RIVET €1.34
39
 photo_cameraImage coming soon 021213241 SPRING €2.00
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

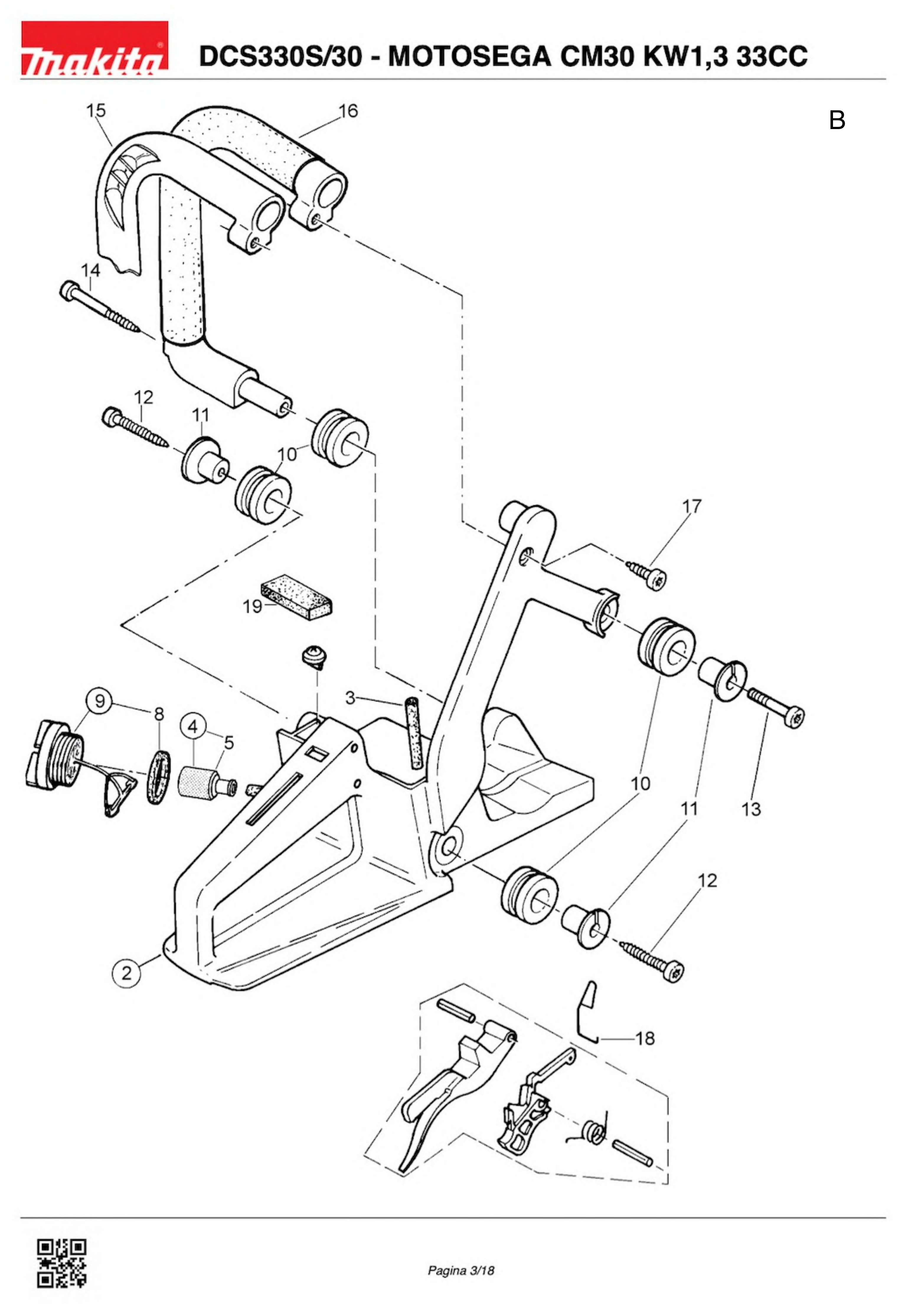

Esploso pagina 2
Pos. Item Price Buy
2
 photo_cameraImage coming soon 028114610 COMPLETE TANK €53.55
3
 photo_cameraImage coming soon 965452382 FUEL TUBE 1mt Diam. 3/5 €12.56
4
 Makita EK8100WS Fuel Filter 163532-9 Makita EK8100WS Fuel Filter €6.76
5
 photo_cameraImage coming soon 963601240 FELT €8.86
8
 O-Ring (24X3,5)-(32X45) for Chainsaw Makita DCS330S/30 963224035 O-Ring (24X3,5)-(32X45) for Chainsaw Makita DCS330S/30 €1.38
9
 Oil/Fuel Tank Cap for Chainsaw Dolmar PS33/35 010114050 Oil/Fuel Tank Cap for Chainsaw Dolmar PS33/35 €9.60
10
 Rubber Buffer for Petrol Chainsaw Dolmar PS45/40 965403491 Rubber Buffer for Petrol Chainsaw Dolmar PS45/40 €2.53
11
 photo_cameraImage coming soon 021114051 FIXING BUSH DCS430/431/4300I/5 €2.08
12
 photo_cameraImage coming soon 913455304 SCREW M5X30 (TORX) €2.09
13
 photo_cameraImage coming soon 266945-4 SCREW M5X30 (TORX) €1.40
14
 photo_cameraImage coming soon 266687-0 SCREW 5,5X45 €1.39
15
 photo_cameraImage coming soon 028310050 TUBULAR HANDLE €43.50
16
 photo_cameraImage coming soon 028310050 TUBULAR HANDLE €43.50
17
 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S 913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S €2.15
18
 photo_cameraImage coming soon 028117243 THROTTLE WIRE €2.00
19
 photo_cameraImage coming soon 965404440 GASKET €1.34
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

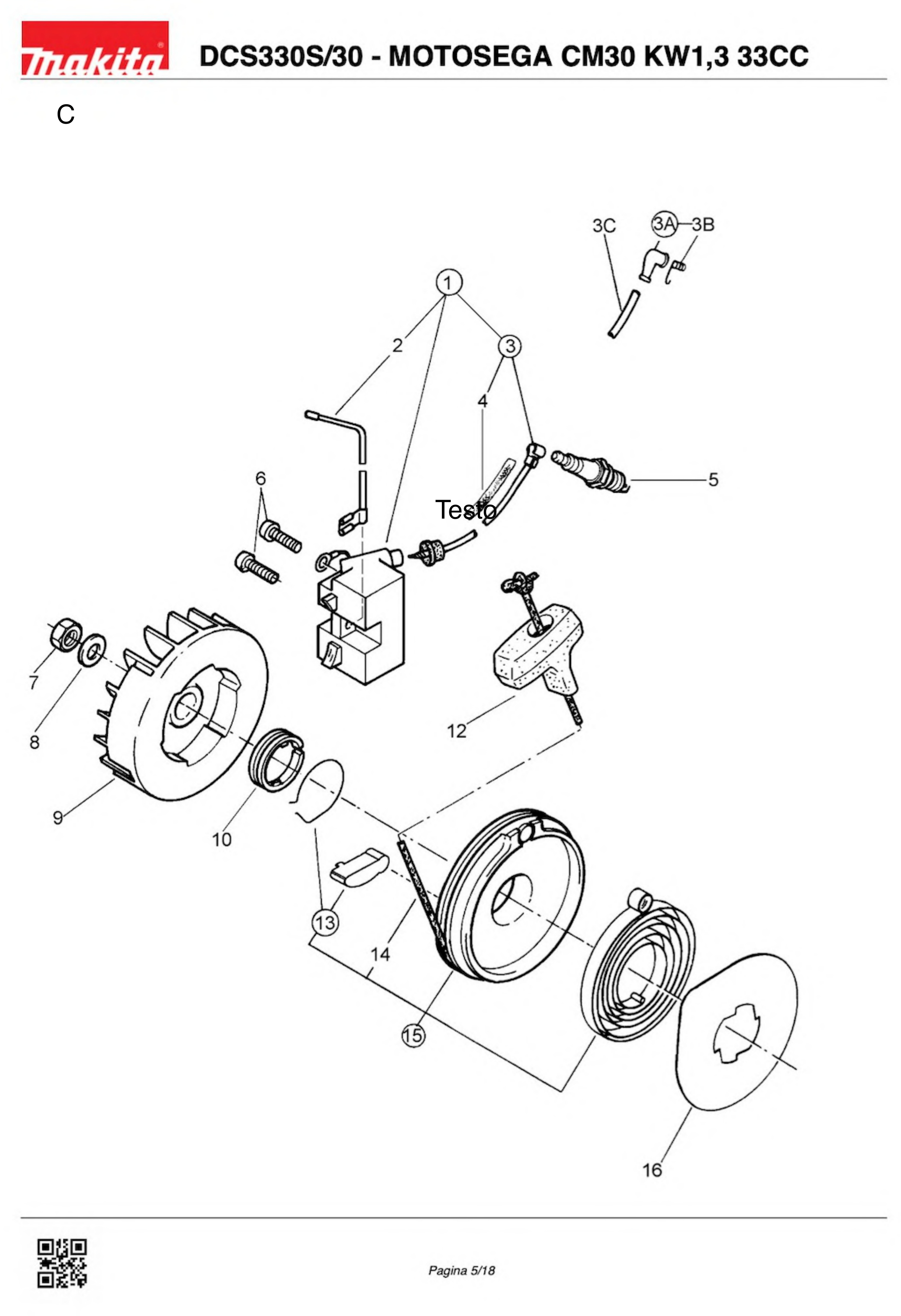

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 028142021 IGNITION ELECTRONIC ASSY COIL €125.91
2
 photo_cameraImage coming soon 028147000 SHORT CIRCUIT CABLE €4.14
3
 photo_cameraImage coming soon 021147010 COMPLETE IGNITION CABLE €9.47
3A
 photo_cameraImage coming soon 957604260 SPARK PLUG CAP CPL. €4.51
3B
 photo_cameraImage coming soon 965604180 SPRING DCS330S/390/430/520/430 €2.20
3C
 photo_cameraImage coming soon 970310200 POWER CABLE 1m €7.58
4
 photo_cameraImage coming soon 970502110 INSULATING HOSE M DCS4630/5030 €6.76
5
 photo_cameraImage coming soon 965603018-10 SPARK PLUG NGK-BPM-R6F €5.77
6
 photo_cameraImage coming soon 908305145 SCREW M5X14 (TORX) €1.34
7
 photo_cameraImage coming soon 264022-6 NUT €1.43
8
 photo_cameraImage coming soon 926208001 SPRING WASHER 8 €1.47
9
 photo_cameraImage coming soon 021141012 POLAR WHEEL CPL €81.59
10
 photo_cameraImage coming soon 021166040 SAFETY RING €1.49
12
 photo_cameraImage coming soon 965404031 STARTER HANDLE €5.14
13
 photo_cameraImage coming soon 028166030 SPRINGS €9.14
14
 photo_cameraImage coming soon 444038-9 ROPE START PS32CTLC €2.08
15
 Starter Ass'y for Chainsaw Dolmar PS33/35 021160001 Starter Ass'y for Chainsaw Dolmar PS33/35 €52.34
16
 photo_cameraImage coming soon 900004375 WASHER €2.24
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

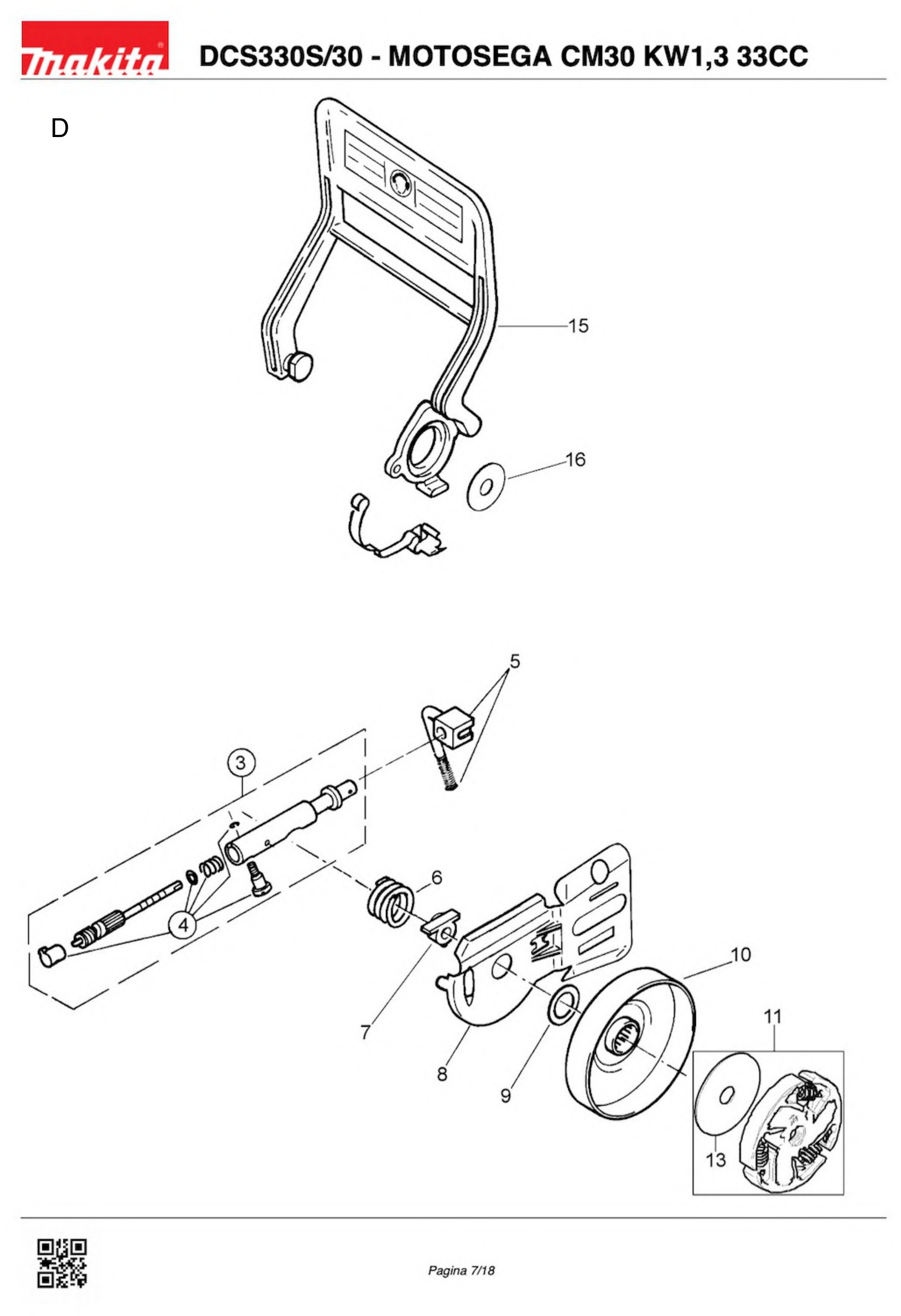

Esploso pagina 4
Pos. Item Price Buy
3
 Oil Pump for Electric Chainsaw Makita UC3500A 021245007 Oil Pump for Electric Chainsaw Makita UC3500A €38.40
4
 photo_cameraImage coming soon 957245270 OIL PUMP PARTS KIT X DES €9.12
5
 photo_cameraImage coming soon 965451962 SUCTION LINE ASSY €8.50
6
 photo_cameraImage coming soon 021245040 WORM €2.37
7
 photo_cameraImage coming soon 021245080 SEALING CAP €1.49
9
 photo_cameraImage coming soon 021224011 SHIM DCS330S/390/DCS9010 €2.14
10
 Clutch Drum 3/8" for Chainsaw Makita DCS330S/30 028223100 Clutch Drum 3/8" for Chainsaw Makita DCS330S/30 €25.42
11
 Clutch Ass'y for Chainsaw Dolmar PS33/35 021180210 Clutch Ass'y for Chainsaw Dolmar PS33/35 €35.11
13
 photo_cameraImage coming soon 001182080 DRIVING DISC FOR MOD.PS €4.14
15
 photo_cameraImage coming soon 021213034 HAND PROTECTION WITH SCREEN €10.58
16
 photo_cameraImage coming soon 021213340 WASHER 30/10 / 5,1 €1.34
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

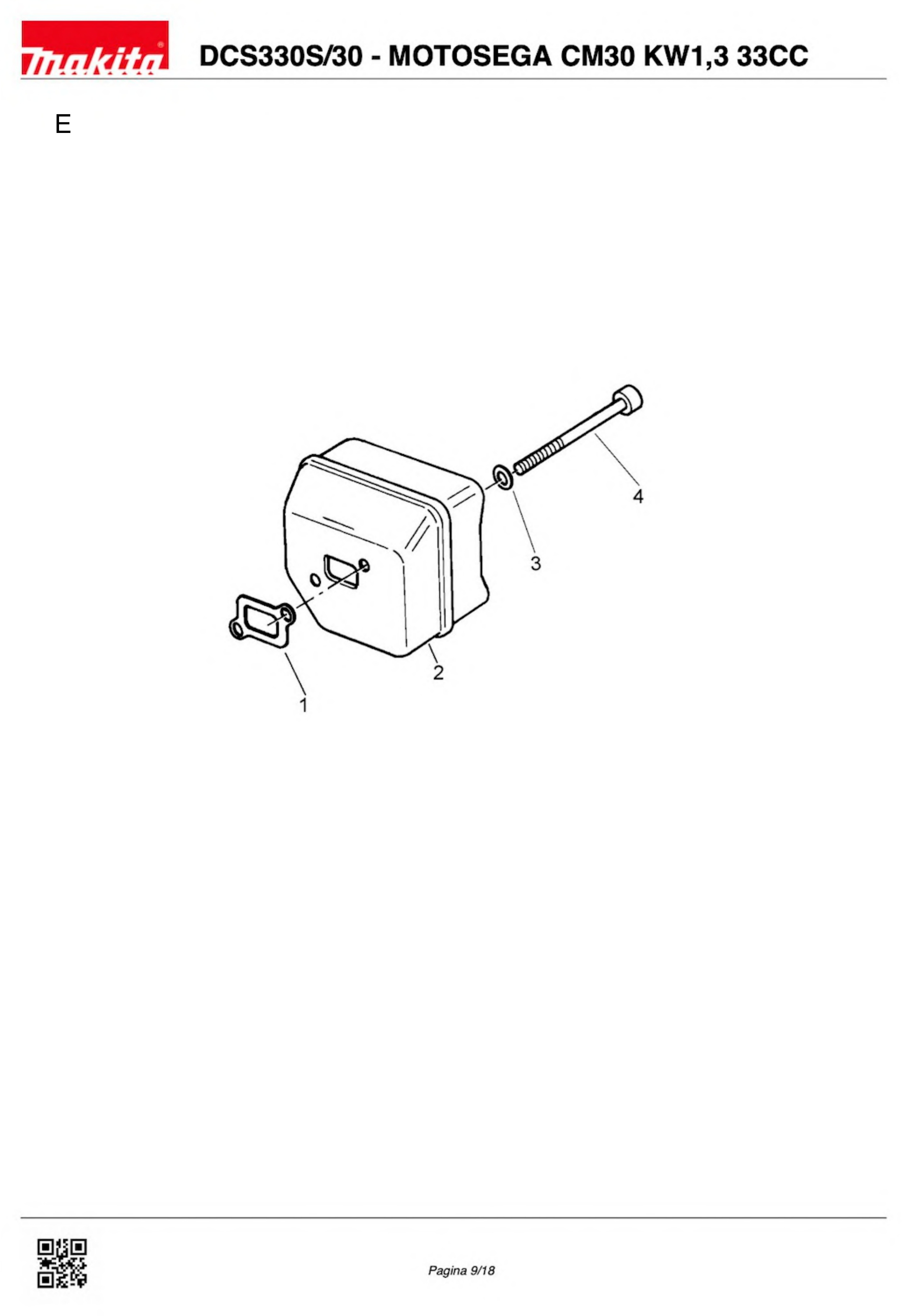

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 965524062 GASKET €2.89
2
 photo_cameraImage coming soon 021174301 MUFFLER €43.50
3
 photo_cameraImage coming soon 267821-5 SPRING WASHER 5 €1.47
4
 photo_cameraImage coming soon 908205605 SCREW M5X60 (TORX) €2.24
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

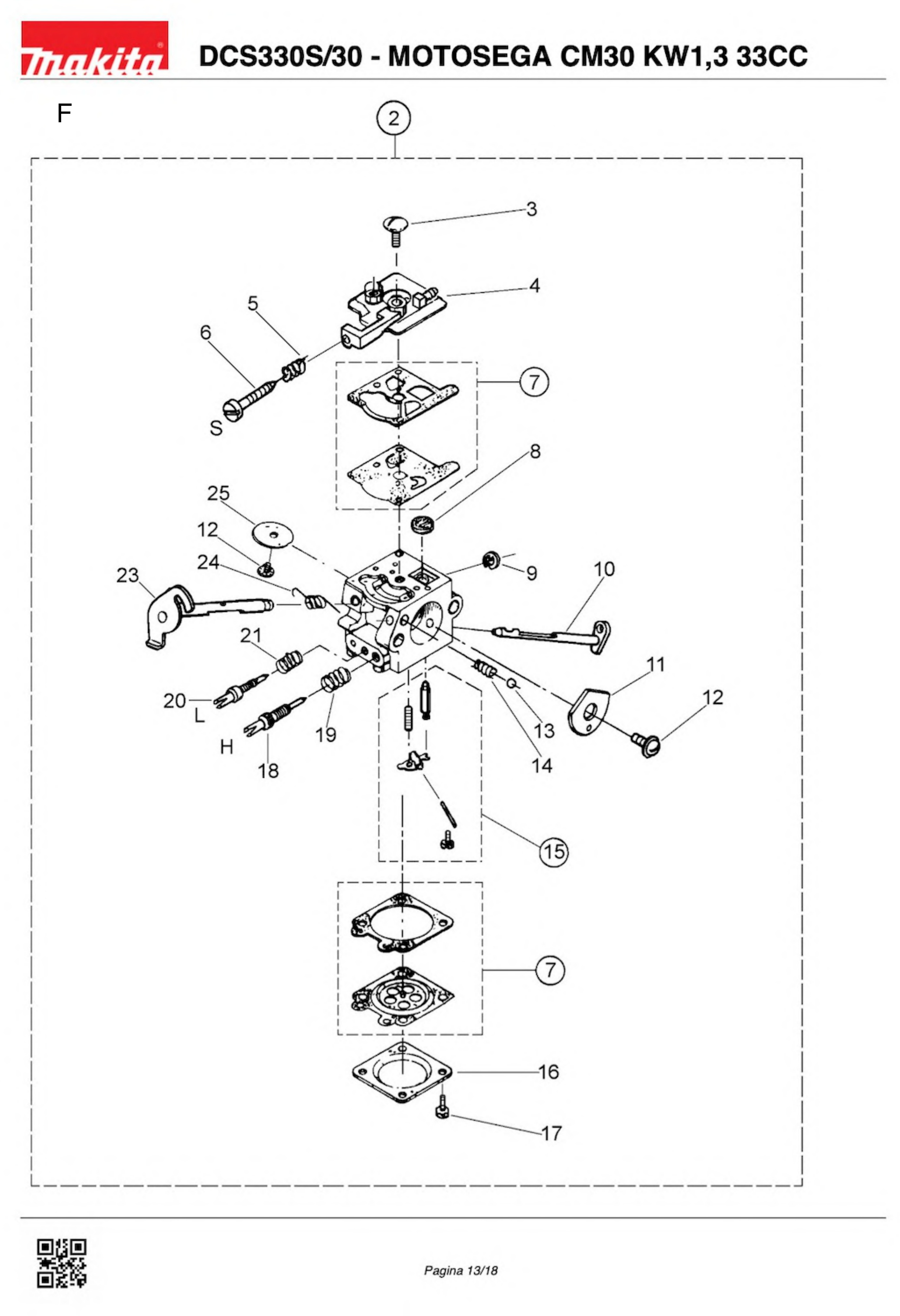

Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 957151700 CARBURETOR WT174 €132.82
3
 photo_cameraImage coming soon 965524120 GASKET €2.89
4
 photo_cameraImage coming soon 904505164 SCREW M5X16 €1.34
5
 photo_cameraImage coming soon 028118112 CONTACT PLATE €2.89
6
 photo_cameraImage coming soon 028118102 STOP SWITCH €2.00
7
 photo_cameraImage coming soon 028150740 CHOKE LEVER €2.89
8
 photo_cameraImage coming soon 965404421 GASKET €1.40
9A
 photo_cameraImage coming soon 267821-5 SPRING WASHER 5 €1.47
9
 photo_cameraImage coming soon 905105305 SCREW M5X30 €1.34
10
 photo_cameraImage coming soon 028150750 CHOKE LINKAGE €2.89
12
 photo_cameraImage coming soon 965404430 GASKET €1.49
14
 photo_cameraImage coming soon 965401011 RUBBER BUSHING DCS330S/390/430 €2.69
15
 photo_cameraImage coming soon 965524082 GASKET €3.38
16
 photo_cameraImage coming soon 028131063 INTERMEDIATE FLANGE €2.89
17
 photo_cameraImage coming soon 965524131 GASKET €2.89
18
 photo_cameraImage coming soon 965524092 GASKET €2.24
19
 photo_cameraImage coming soon 028118160 PLATE €1.49
20
 photo_cameraImage coming soon 965452090 Fuel tube PS45 €21.97
21
 photo_cameraImage coming soon 970502110 INSULATING HOSE M DCS4630/5030 €6.76
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

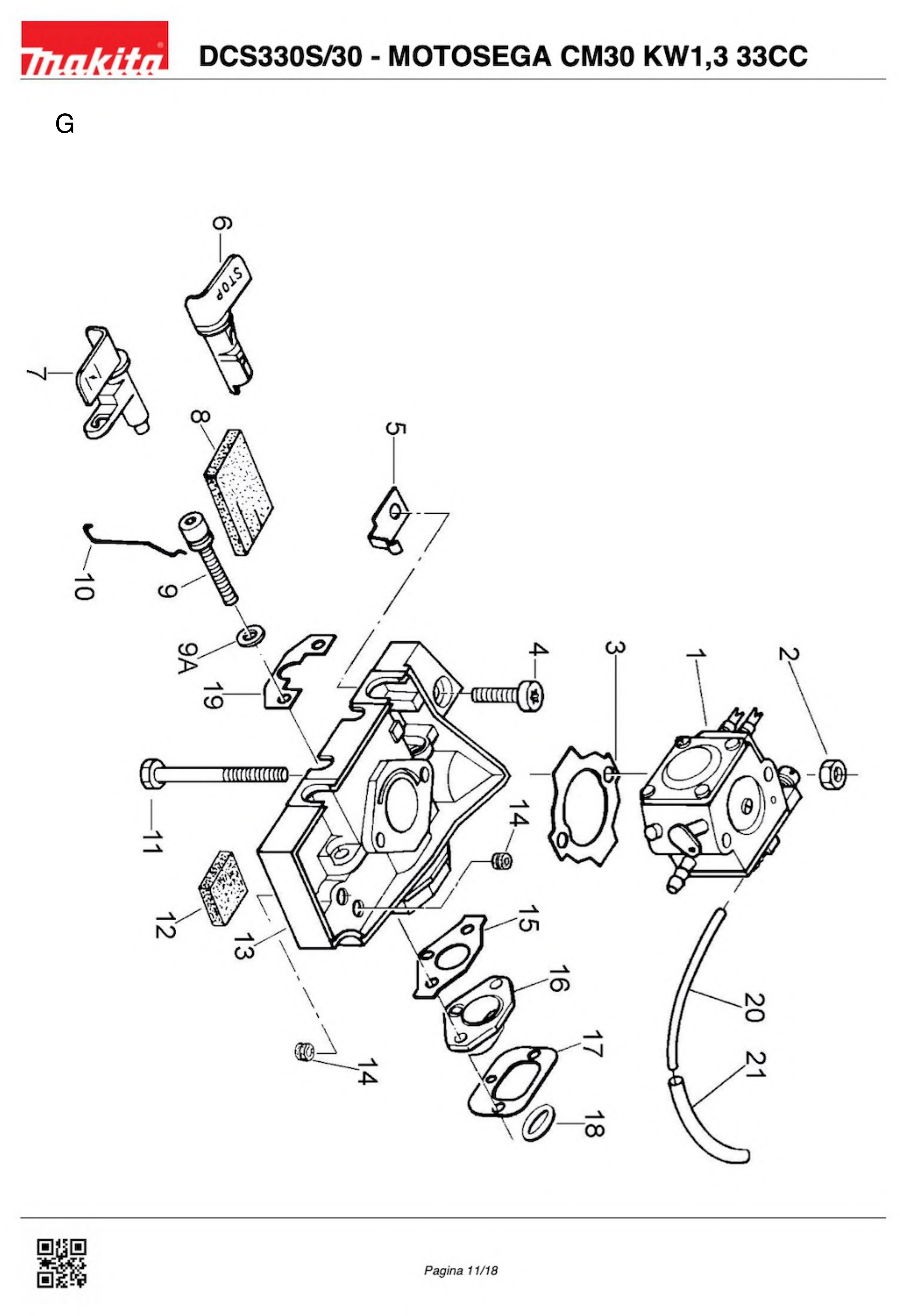

Esploso pagina 7
Pos. Item Price Buy
2
 photo_cameraImage coming soon 957151700 CARBURETOR WT174 €132.82
6
 photo_cameraImage coming soon 021151240 ADJUSTING SCREW (S) €6.39
7
 photo_cameraImage coming soon 021151540 GASKETS SERIES €24.36
8
 photo_cameraImage coming soon 021151180 SCREEN €3.85
15
 photo_cameraImage coming soon 957150040 SET OF CONTROL PIECES 330S/390 €19.00
18
 photo_cameraImage coming soon 001151515 ADJUSTING SCREW (H) €11.91
20
 photo_cameraImage coming soon 021151470 IDLING ADJUSTMENT SCREW (L) €11.91
21
 photo_cameraImage coming soon 021151480 SPRING (L) DPC6430/7331/8132/ €3.14
23
 photo_cameraImage coming soon 001151320 THROTTLE SHAFT €10.64
24
 photo_cameraImage coming soon 001151310 SPRING DCS330S/390/430/520/DCS €2.69
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

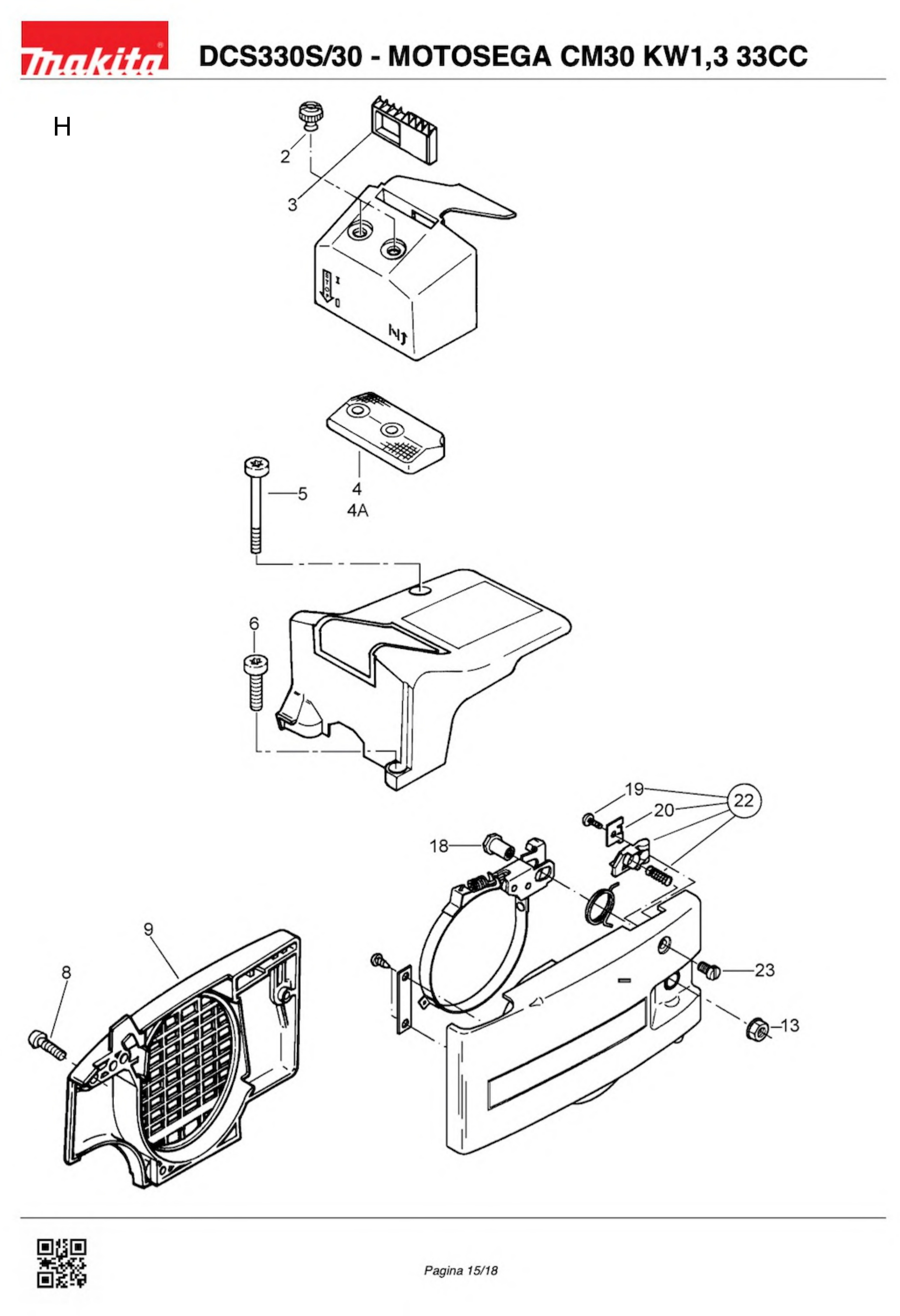

Esploso pagina 8
Pos. Item Price Buy
2
 photo_cameraImage coming soon 001118062 NUT €3.84
3
 photo_cameraImage coming soon 028118180 INSERT €2.24
4
 photo_cameraImage coming soon 028173041 AIR FILTER (NYLON) €9.14
4A
 photo_cameraImage coming soon 028173141 ROBKOFLOK AIR FILTER €10.64
5
 photo_cameraImage coming soon 908205605 SCREW M5X60 (TORX) €2.24
6
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
8
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
9
 photo_cameraImage coming soon 028112600 FAN HOUSING €13.71
13
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
18
 photo_cameraImage coming soon 021213130 AXLE €2.00
19
 photo_cameraImage coming soon 915135100 FILLISTER (TORX)HEAD SCREW 3,5 €1.40
20
 photo_cameraImage coming soon 028213051 WASHER €1.34
22
 photo_cameraImage coming soon 010213100 COMPLETE LOCKING LEVER €9.47
23
 photo_cameraImage coming soon 902005082 SCREW M5X8 €1.34
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

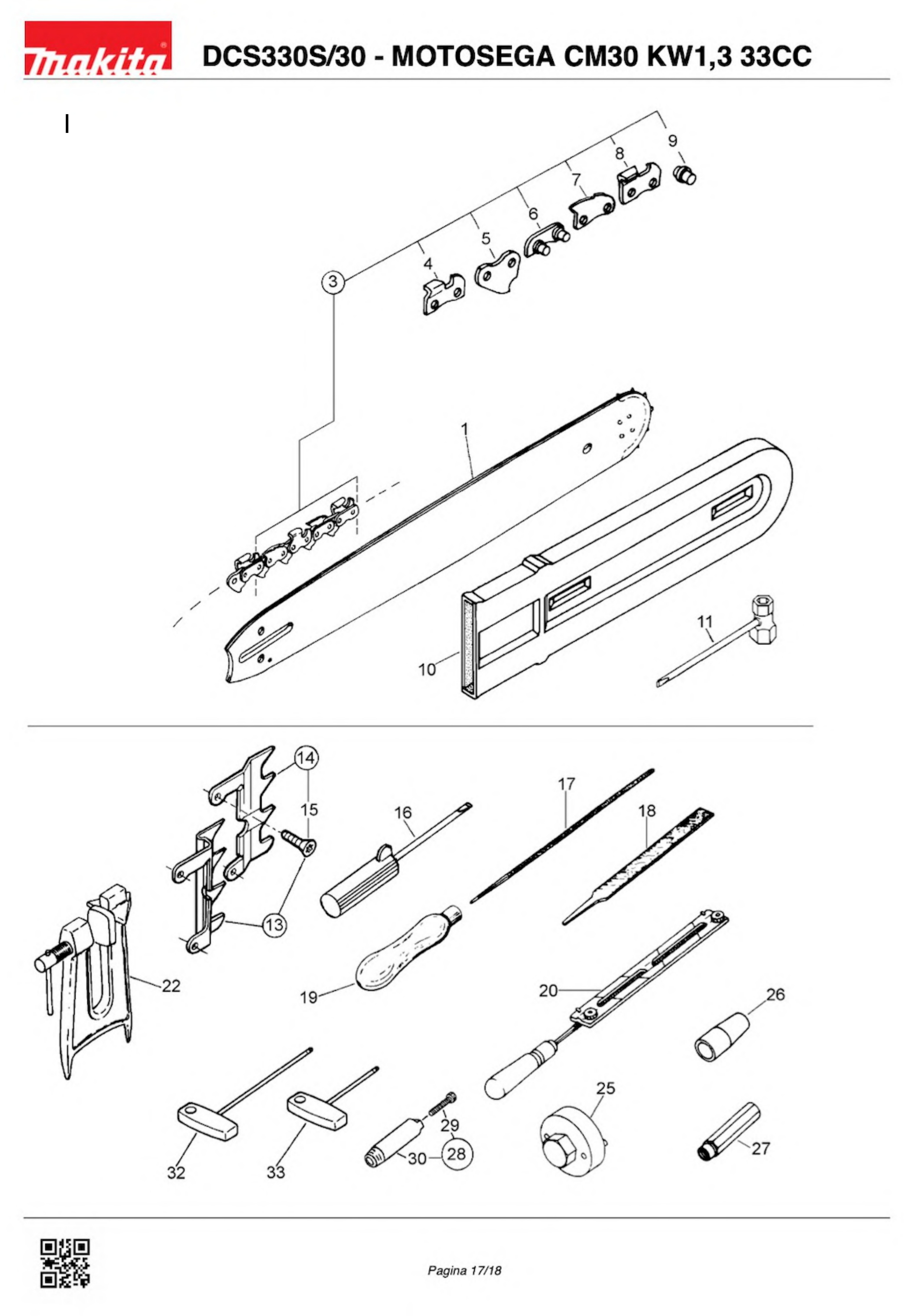

Esploso pagina 9
Pos. Item Price Buy
1
 photo_cameraImage coming soon 442030661 BAR 30CM SP.1,3MM €25.06
3
 photo_cameraImage coming soon 511492746 CHAIN EXTRAGUARD  46 T €19.24
4
 photo_cameraImage coming soon 566092100 RIGHT CUT TOOTH €3.67
5
 photo_cameraImage coming soon 559092000 DRIVE LINK €1.34
6
 photo_cameraImage coming soon 558092010 TIE STRAP WITH RIVETS 3/8" .050" €1.61
8
 photo_cameraImage coming soon 566092200 LEFT CUT TOOTH €3.67
9
 photo_cameraImage coming soon 591092037 RIVET €1.34
10
 photo_cameraImage coming soon 952100623 GUARD BAR 30 - 35CM €7.19
11
 photo_cameraImage coming soon 941716131 Universal wrench €9.41
13
 photo_cameraImage coming soon 957250015 TOOTHED BAR COMPL. €12.90
14
 photo_cameraImage coming soon 957250011 COMPLETE TOOTHED BAR €6.49
15
 photo_cameraImage coming soon 908105124 SCREW M5X12 (TORX) €1.49
17
 photo_cameraImage coming soon P-09117-12 ROUND FILE 4 MM. (5.32 ") €2.63
18
 photo_cameraImage coming soon 953003060-12 FLAT FILE FOR CHAIN €69.71
19
 photo_cameraImage coming soon 953004010 WOODEN HANDLE €2.95
20
 photo_cameraImage coming soon 953030010 SHARPENING TOOL MANUAL €18.28
22
 photo_cameraImage coming soon 953007000 BAR STOP FOR SHARPENING €35.50
25
 photo_cameraImage coming soon 944500690 SPECIAL KEY FOR CLUTCH €37.86
27
 photo_cameraImage coming soon 950500020 THREADED ROD €31.29
28
 photo_cameraImage coming soon 957428000 EXTRACTOR. + MOUNTING THICKNESS GAUGE €73.96
29
 photo_cameraImage coming soon 950203020 THREADED ROD €31.29
30
 photo_cameraImage coming soon 944500870 COMPLETE EXTRACTOR €51.31
32
 photo_cameraImage coming soon 944500862 TORX SCREWDRIVER (200MM.) €15.21
33
 photo_cameraImage coming soon 944500861 TORX SCREWDRIVER (100MM.) €13.09

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Petrol Chainsaw DCS330S/30

Makita Original spare parts

sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Petrol Chainsaw DCS330S/30.

Open PDF Diagram, check your spare part number position and then select it in the following table.
Makita DCS330S/30

Petrol Chainsaw DCS330S/30
A Pag.1
# Part Num. Description
1 021131110 CYLINDER D = 37
1A 001151670 JOINT 90
2 965524043 GASKET
3 021132111 COMPLETE PISTON
4 021132030 PISTON RING 37MM.
5 232302-8 PISTON PIN CIRCLIP
6 021132020 PIN
7 021123010 COMPLETE CONNECTING ROD
8 962640061 ROLLER 4X6
9 957120021 CRANKSHAFT
11 108121010 STOP WASHER 13.8 / 21X1
12 021111600 HOUSING CLUTH
13 266945-4 SCREW M5X30 (TORX)
14 389213081 TENSION SCREW
15 001213042 CHAIN TENSIONER PIN X PS 34
16 905808254 BOLT 8X25 X 112
20 991105207 SCREW M5X20
21 010245010 AIR VALVE X PS6000I-6800I
22 965524011 GASKET
23 021111610 MAGNET HOUSING
24 936430160 PIN 3X16 PS350C-420C
26 965450042 COMPLETE OIL TANK CAP
27 963100043 GASKET
28 962300011 NEEDLE BEARING 13 / 19X12
29 929319101 STOP RING 19X1
30 962900049 GASKET 13 X 19 X 4
31 934950240 BUSH 5X24
35 908105124 SCREW M5X12 (TORX)
37 957250015 COMPLETE TOOTHED BAR
38 938240643 RIVET
39 021213241 SPRING
B Pag.2
2 028114610 COMPLETE TANK
3 965452382 FUEL TUBE 1m Diam. 3/5
4 163532-9 FILTER
5 963601240 FELT
8 963224035 OR RING (24X3.5) (32X45)
9 010114050 TANK CAP DCS / PS33
10 965403491 RUBBER BUMPER
11 021114051 FIXING BUSH
12 913455304 SCREW M5X30 (TORX)
13 266945-4 SCREW M5X30 (TORX)
14 266687-0 SCREW 5,5X45
15 028310050 TUBULAR HANDLE
16 028310050 TUBULAR HANDLE
17 913455204 SCREW 5,5X20 (TORX)
18 028117243 THROTTLE WIRE
19 965404440 GASKET
C Pag.3
1 028142021 COIL
2 028147000 SHORT CIRCUIT CABLE
3 021147010 COMPLETE IGNITION CABLE
3A 957604260 COMPLETE CANDLE HAT
3B 965604180 SPRING
3C 970310200 IGNITION CABLE 1mt
4 970502110 INSULATION TUBE 6 / 0.5 (M)
5 965603018-10 SPARK PLUG NGK-BPM-R6F
6 908305145 SCREW M5X14 (TORX)
7 264022-6 NUT
8 926208001 ELASTIC WASHER 8
9 021141012 POLAR WHEEL
10 021166040 SAFETY RING
12 965404031 STARTER HANDLE BCX2510
13 028166030 SPRINGS
14 444038-9 STARTING ROPE PS32CTLC
15 021160001 STARTING ASS'Y
16 900004375 WASHER
D Pag.4
3 021245007 METAL OIL PUMP
4 957245270 OIL PUMP PARTS KIT X DES
5 965451962 SUCTION TUBE X OIL COMP.
6 021245040 WOORM
7 021245080 CLOSING CAP
9 021224011 SPACER
10 028223100 3/8 "CLUTCH DRUM
11 021180210 CLUTCH PS410 / 411
13 001182080 GUIDE DISC
15 021213034 HAND PROTECTION WITH SCREEN
16 021213340 WASHER 30/10 / 5,1
E Pag.5
1 965524062 GASKET
2 021174301 EXHAUST SILENCER
3 267821-5 ELASTIC WASHER
4 908205605 SCREW M5X60 (TORX)
F Pag.6
1 957151700 CARBURETOR WT174
3 965524120 SEAL
4 904505164 SCREW M5X16
5 028118112 CONTACT SHEET
6 028118102 STOP SWITCH
7 028150740 AIR VALVE LEVER
8 965404421 GASKET
9 905105305 SCREW M5X30
9A 267821-5 ELASTIC WASHER
10 028150750 AIR VALVE TIE
12 965404430 GASKET
14 965401011 RUBBER BUSH
15 965524082 GASKET
16 028131063 INTERMEDIATE FLANGE
17 965524131 GASKET
18 965524092 GASKET
19 028118160 PLATE
20 965452090 PS45 FUEL PIPE
21 970502110 INSULATION TUBE 6 / 0.5 (M)
G Pag.7
2 957151700 CARBURETOR WT174
6 021151240 ADJUSTMENT SCREW (S)
7 021151540 GASKET KIT
8 021151180 FUEL FILTER
15 957150040 CONTROL PARTS SERIES
18 001151515 ADJUSTMENT SCREW (H)
20 021151470 MINIMUM ADJUSTMENT SCREW (L)
21 021151480 SPRING (L)
23 001151320 BUTTERFLY VALVE SHAFT
24 001151310 SPRING
H Pag.8
2 001118062 NUT M5
3 028118180 INSERT
4 028173041 AIR FILTER (NYLON)
4A 028173141 ROBKOFLOK AIR FILTER
5 908205605 SCREW M5X60 (TORX)
6 266605-8 SCREW M5X16 PS32CTLC
8 266605-8 SCREW M5X16 PS32CTLC
9 028112600 FAN HOUSING
13 264055-1 NUT M8
18 021213130 AXLE
19 915135100 SCREW 3.5 X 9.5
20 028213051 WASHER
22 010213100 COMPLETE LOCKING LEVER
23 902005082 SCREW M5X8
I Pag.9
1 442030661 CHAIN BAR 30CM THICK 1,3MM
3 511492746 EXTRAGUARD CHAIN 46
4 566092100 RIGHT CUT TOOTH
5 559092000 DRIVE LINK
6 558092010 SWEATER WITH RIVETS
7 558092000 SAFETY HSNDLE
8 566092200 LEFT CUT TOOTH
9 591092037 RIVET
10 952100623 GUARD BAR 30 - 35CM
11 941716131 UNIVERSAL KEY 13/16
13 957250015 COMPLETE TOOTHED BAR
14 957250011 COMPLETE TOOTHED BAR
15 908105124 SCREW M5X12 (TORX)
16 783012-5 CARBURETTOR SCREWDRIVER
17 P-09117-12 ROUND FILE 4 MM. (5.32 ")
18 953003060-12 FLAT FILE FOR CHAIN
19 953004010 WOODEN HANDLE
20 953030010 SHARPENING TOOL MANUAL
22 953007000 BAR STOP FOR SHARPENING
25 944500690 SPECIAL KEY FOR CLUTCH
26 944500540 BUSHING
27 950500020 THREADED ROD
28 957428000 EXTRACTOR. + MOUNTING THICKNESS GAUGE
29 950203020 THREADED ROD
30 944500870 COMPLETE EXTRACTOR
32 944500862 TORX SCREWDRIVER (200MM.)
33 944500861 TORX SCREWDRIVER (100MM.)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DCS330S/30
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita DCS330S/30

Diagram Makita DCS330S/30

Download (1.08MB)

You might also like

Oil Pump for Electric Chainsaw Makita UC3500A
Makita SKU: 021245007
Oil Pump for Electric Chainsaw Makita UC3500A
Oil Pump for Electric Chainsaw Makita UC3500A Genuine replacement part Makita, Oil Pump for Electric Chainsaws UC3500A - UC4001A - UC4003A. Part for the following products: - ELECTRIC CHAINSAW UC3500A - ELECTRIC CHAINSAW UC4001A -...
AVAILABLE €38.40
Details
Circlip for Chainsaw Dolmar PS33/35
Makita SKU: 232302-8
Circlip for Chainsaw Dolmar PS33/35
Circlip for Chainsaw Dolmar PS33/35 Original replacement part Dolmar, Piston Pin Circlip for Chainsaws PS33/35 - PS35C/40 - PS45/40 - EA3500S40B - DCS330S/30. Part for the following products: -  DCS330S/30 - CHAINSAW CM30 KW1,3 33CC...
AVAILABLE €1.41
Details
Oil/Fuel Tank Cap for Chainsaw Dolmar PS33/35
Makita SKU: 010114050
Oil/Fuel Tank Cap for Chainsaw Dolmar PS33/35
Oil/Fuel Tank Cap for Chainsaw Dolmar PS33/35 Genuine part Dolmar, Oil/Fuel Tank Cap for Chainsaws PS33 - PS6400HS/45 - PS7310/50 - PS7900HS - PS7910/50. Part for the following products: -  PS33/35 - CHAINSAW 33CC DOLMAR 35CM -...
Last items in stock €9.60
Details
Oil/Fuel Tank Cap O-Ring for Chainsaw Dolmar PS33/35
Makita SKU: 963100043
Oil/Fuel Tank Cap O-Ring for Chainsaw Dolmar PS33/35
Oil/Fuel Tank Cap O-Ring for Chainsaw Dolmar PS33/35 Genuine part Dolmar, Oil/Fuel Tank Cap O-Ring for Chainsaws PS33/35 - Makita DCS330S/30. Part for the following products: -  PS33/35 - MOTOSEGA 33CC DOLMAR 35CM -  DCS330S/30 -...
AVAILABLE €1.38
Details
Oil Tank Cap Ass'y for Chainsaw Dolmar PS33/35
Makita SKU: 965450042
Oil Tank Cap Ass'y for Chainsaw Dolmar PS33/35
Oil Tank Cap Ass'y for Chainsaw Dolmar PS33/35 Genuine part Dolmar, Oil Tank Cap Ass'y for Chainsaws PS33/35 - Makita DCS330S/30. Part for the following products: -  PS33/35 - MOTOSEGA 33CC DOLMAR 35CM -  DCS330S/30 - CHAINSAW CM30...
Last items in stock €5.33
Details
O-Ring (24X3,5)-(32X45) for Chainsaw Makita DCS330S/30
Makita SKU: 963224035
O-Ring (24X3,5)-(32X45) for Chainsaw Makita DCS330S/30
O-Ring (24X3,5)-(32X45) for Chainsaw Makita DCS330S/30 Genuine part Makita, Fuel Tank Cap O-Ring (24X3,5)-(32X45) for Chainsaw DCS330S/30 - DCS330S/35 - DCS330S/40. Part for the following products: - DCS330S.SB - CHAINSAW NO BAR -...
on 7/10 Business Days Approx €1.38
Details
Clutch Ass'y for Chainsaw Dolmar PS33/35
Makita SKU: 021180210
Clutch Ass'y for Chainsaw Dolmar PS33/35
Clutch Ass'y for Chainsaw Dolmar PS33/35 Genuine part Dolmar, Clutch Ass'y for Chainsaws PS33/35 - Makita DCS330S/30. Part for the following products: -  PS33/35 - MOTOSEGA 33CC DOLMAR...
on 7/10 Business Days Approx €35.11
Details
Clutch Drum 3/8" for Chainsaw Makita DCS330S/30
Makita SKU: 028223100
Clutch Drum 3/8" for Chainsaw Makita DCS330S/30
Clutch Drum 3/8" for Chainsaw Makita DCS330S/30 Genuine part Makita, Clutch Drum 3/8" 6 T. for Chainsaw DCS330S/30 - DCS330S/40. Part for the following products: -  DCS330S/30 - CHAINSAW...
on 7/10 Business Days Approx €25.42
Details
Cylinder Gasket for Chainsaw Makita DCS330S/30
Makita SKU: 965524043
Cylinder Gasket for Chainsaw Makita DCS330S/30
Cylinder Gasket for Chainsaw Makita DCS330S/30 Genuine part Makita, Cylinder Gasket for Chainsaw DCS330S/30 -  DCS400/35  -  DCS400/40  -  PS33/35 Part for the following products: -  DCS330S/30 - MOTOSEGA CM30 KW1,3 33CC -...
on 7/10 Business Days Approx €2.97
Details
Cranckcase Gasket for Chainsaw Makita DCS330S/30
Makita SKU: 965524011
Cranckcase Gasket for Chainsaw Makita DCS330S/30
Cranckcase Gasket for Chainsaw Makita DCS330S/30 Genuine part Makita, Cranckcase Gasket for Chainsaw DCS330S/30 -  DCS400/35  -  DCS400/40  -  PS33/35 Part for the following products: -  DCS330S/30 - MOTOSEGA CM30 KW1,3 33CC -...
on 7/10 Business Days Approx €3.58
Details
Radial Ring 13 for Chainsaw Makita DCS330S/30
Makita SKU: 962900049
Radial Ring 13 for Chainsaw Makita DCS330S/30
Radial Ring 13 for Chainsaw Makita DCS330S/30 Genuine part Makita, Radial Ring 13X19X4 for Chainsaw DCS330S/30 -  DCS400/35  -  DCS400/40  -  PS33/35 Part for the following products: -  DCS330S/30 - MOTOSEGA CM30 KW1,3 33CC -...
on 7/10 Business Days Approx €7.42
Details
Starter Ass'y for Chainsaw Dolmar PS33/35
Makita SKU: 021160001
Starter Ass'y for Chainsaw Dolmar PS33/35
Starter Ass'y for Chainsaw Dolmar PS33/35 Genuine part Dolmar, Starter Ass'y for Chainsaws PS33/35 - Makita DCS330S/30. Part for the following products: -  PS33/35 - MOTOSEGA 33CC...
on 7/10 Business Days Approx €52.34
Details
Comments (0)
