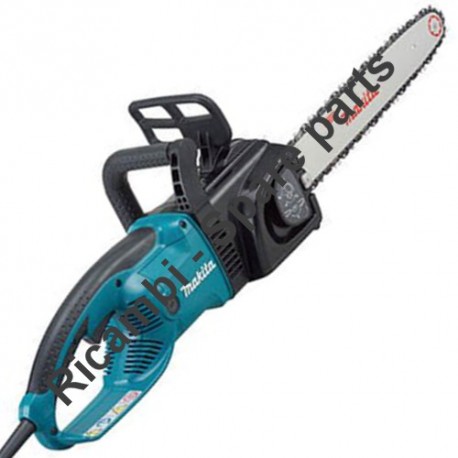

Makita Spare Parts for Electric Chainsaw UC4030A

SKU: Makita UC4030A
€28.17
VAT included

Makita Spare Parts for Electric Chainsaw UC4030A

Makita original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Electric Chainsaw UC4030A.

Fix Your Electric Chainsaw UC4030A. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Electric Chainsaw UC4030A
  • Makita Spare Parts for Electric Chainsaw UC4030A
  • Makita Spare Parts for Electric Chainsaw UC4030A
  • Makita Spare Parts for Electric Chainsaw UC4030A
  • Makita Spare Parts for Electric Chainsaw UC4030A
Makita

Makita Spare Parts for Electric Chainsaw UC4030A

SKU: Makita UC4030A Condition: New
€28.17
VAT included

Makita Spare Parts for Electric Chainsaw UC4030A

Makita original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Electric Chainsaw UC4030A.

Fix Your Electric Chainsaw UC4030A. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 86 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
86 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

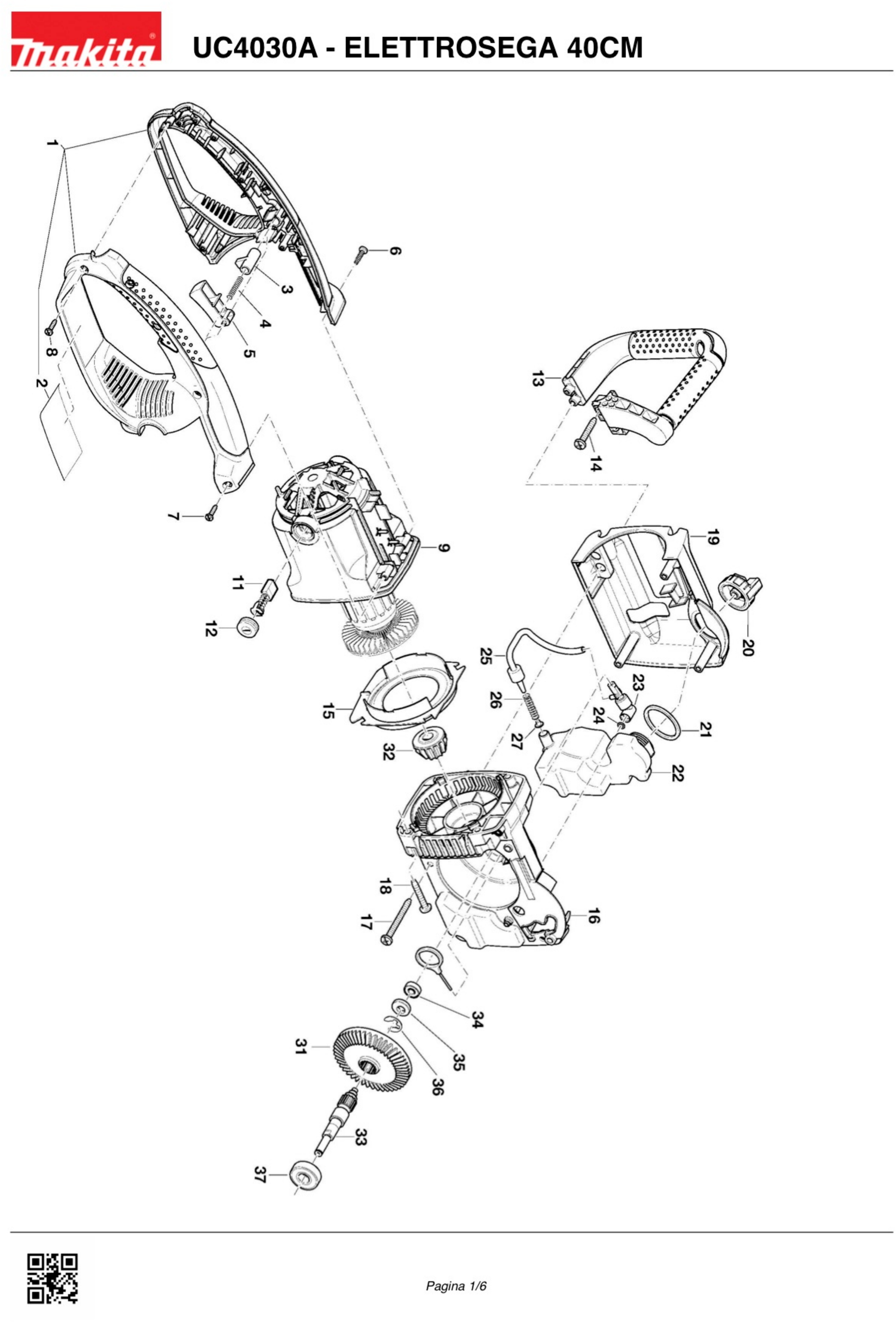

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 188818-0 BLUE REAR HANDLE UC3530A €26.56
2
 photo_cameraImage coming soon 810198-3 LABEL UC3530A-4030A €1.47
3
 photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.47
4
 photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.47
5
 photo_cameraImage coming soon 419411-2 LEVER SWITCH UC3530A-4030 €1.47
6
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
7
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
8
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
9
 photo_cameraImage coming soon 154867-9 MOTOR HOUSING COMP UC3530A/403 €37.93
11
 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F 181044-0 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F €9.91
12
 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
13
 photo_cameraImage coming soon 455487-5 FRONT GRIP €13.46
14
 photo_cameraImage coming soon 266173-1 SCREW PT 5X30 €1.47
15
 photo_cameraImage coming soon 419410-4 BAFFLE UC3530A-4030A €1.47
16
 photo_cameraImage coming soon 419408-1 GEAR BOX SX UC3530A €14.60
17
 photo_cameraImage coming soon 266044-2 SCREW PT.5X60 €6.04
18
 photo_cameraImage coming soon 266173-1 SCREW PT 5X30 €1.47
19
 photo_cameraImage coming soon 419412-0 BOX COVER €20.12
20
 Oil Tank Cap for Electric Chainsaws Makita UC3530A - UC4030A 154870-0 Oil Tank Cap for Electric Chainsaws Makita UC3530A - UC4030A €2.97
21
 Oil Tank Gasket for Electric Chainsaws Makita UC3530A - UC4030A 421959-2 Oil Tank Gasket for Electric Chainsaws Makita UC3530A - UC4030A €1.55
22
 photo_cameraImage coming soon 419407-3 OIL TANK UC3530A-4030A €5.43
23
 Oil Pump for Electric Chainsaw Dolmar ES2140A 187573-1 Oil Pump for Electric Chainsaw Dolmar ES2140A €5.48
24
 photo_cameraImage coming soon 213039-6 RING 6 X AN901 €1.47
25
 photo_cameraImage coming soon 421958-4 SUCTION LINE UC3530A-4030 €2.20
26
 photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
27
 photo_cameraImage coming soon 416274-7 PLUG OIL PIPE X DCS230T €1.47
31
 photo_cameraImage coming soon 226741-2 CPL GEARGE UC €4.24
32
 photo_cameraImage coming soon 226743-8 PINION UC3000-3500-4000A €4.89
33
 photo_cameraImage coming soon 324662-3 SPINDLE UC3530A-4030A €15.20
34
 Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €8.23
35
 photo_cameraImage coming soon 417405-1 CAM FOR UC3020A €1.47
36
 photo_cameraImage coming soon 259034-2 SAFETY WASHER X UC €1.54
37
 photo_cameraImage coming soon 211107-9 BEARING 6201 €9.40
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

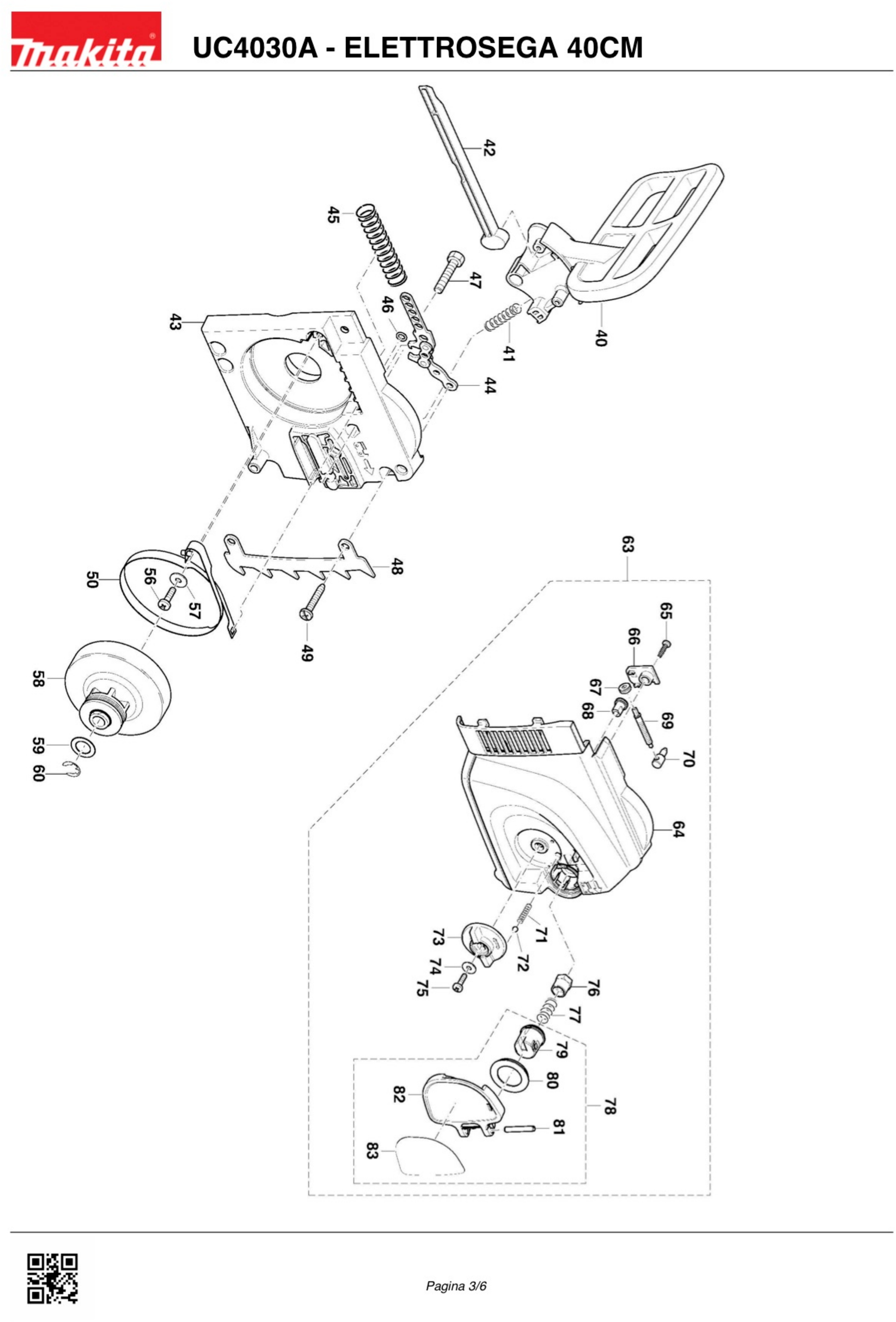

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
40
 photo_cameraImage coming soon 226213022 HAND PROTECTION UC3530A-4030A €22.17
41
 photo_cameraImage coming soon 233174-4 SPRING LOCK. X UC €1.54
42
 photo_cameraImage coming soon 419413-8 SWITCH LEVER UC3530A-4030 €1.47
43
 photo_cameraImage coming soon 318013-0 GEAR BOX €17.65
44
 photo_cameraImage coming soon 158044-5 RETAINING SPRING BRAKE X UC €6.61
45
 photo_cameraImage coming soon 234005-0 SPRING UC3530A-4030A €1.47
46
 photo_cameraImage coming soon 213039-6 RING 6 X AN901 €1.47
47
 photo_cameraImage coming soon 921452-1 BOLT 8X30 €1.58
48
 photo_cameraImage coming soon 345651-5 HOOK FOR UC3020A €2.30
49
 photo_cameraImage coming soon 266173-1 SCREW PT 5X30 €1.47
50
 photo_cameraImage coming soon 168426-3 BRAKE DRUM UC3530A-4030A €10.48
56
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
57
 photo_cameraImage coming soon 267195-4 WASHER 4 X DCS230T €1.47
58
 Clutch Drum for Electric Chainsaw Dolmar ES2140A 123886-6 Clutch Drum for Electric Chainsaw Dolmar ES2140A €28.06
59
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
60
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
64
 Sprocket Cover for Electric Chainsaw Dolmar ES2140A 154869-5 Sprocket Cover for Electric Chainsaw Dolmar ES2140A €9.79
65
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
66
 Tensioner Screw Pin Cover for Electric Chainsaw Makita UC3020A 419241-1 Tensioner Screw Pin Cover for Electric Chainsaw Makita UC3020A €1.63
67
 Tensioner Screw Gear for Chainsaw Makita UC3551A 227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A €7.99
68
 Gear 14 for Electric Chainsaw Makita UC3020A 227495-4 Gear 14 for Electric Chainsaw Makita UC3020A €7.71
69
 Tensioner Screw for Chainsaw Makita UC3020A 324620-9 Tensioner Screw for Chainsaw Makita UC3020A €2.39
70
 Tensioner Screw Pin for Electric Chainsaw Makita UC3020A 324621-7 Tensioner Screw Pin for Electric Chainsaw Makita UC3020A €1.96
71
 photo_cameraImage coming soon 233033-2 COMPRESSION SPRING 4 UC4020A €1.47
72
 photo_cameraImage coming soon 216008-6 BALL 4 €1.47
73
 photo_cameraImage coming soon 419233-0 DIAL 40 UC4020A/3520/3530A/403 €1.47
74
 photo_cameraImage coming soon 253874-0 FLAT WASHER 4 €2.74
75
 photo_cameraImage coming soon 915106-0 BINDING HD SCREW M4 UC4020A €1.47
76
 photo_cameraImage coming soon 252168-0 NUT M8-13 FOR UC3020A €4.06
77
 photo_cameraImage coming soon 231025-5 COMPRESION SPRING 8 X 8411DW €1.50
78
 photo_cameraImage coming soon 187089-6 COMPLETE LEVER UC3530A-4030A €4.06
79
 photo_cameraImage coming soon 317977-5 LEVER HOLDER FOR UC3020A €2.20
80
 photo_cameraImage coming soon 453061-3 WASHER 20 X UC3020A €1.47
81
 photo_cameraImage coming soon 951122-8 PIN EL. 4-28 FOR UC3020A €1.47
82
 photo_cameraImage coming soon 154763-1 LEVER ADJUSTMENT FOR UC3020A €2.20
83
 photo_cameraImage coming soon 816853-5 LABEL UC3030A-UC4030A €1.46
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

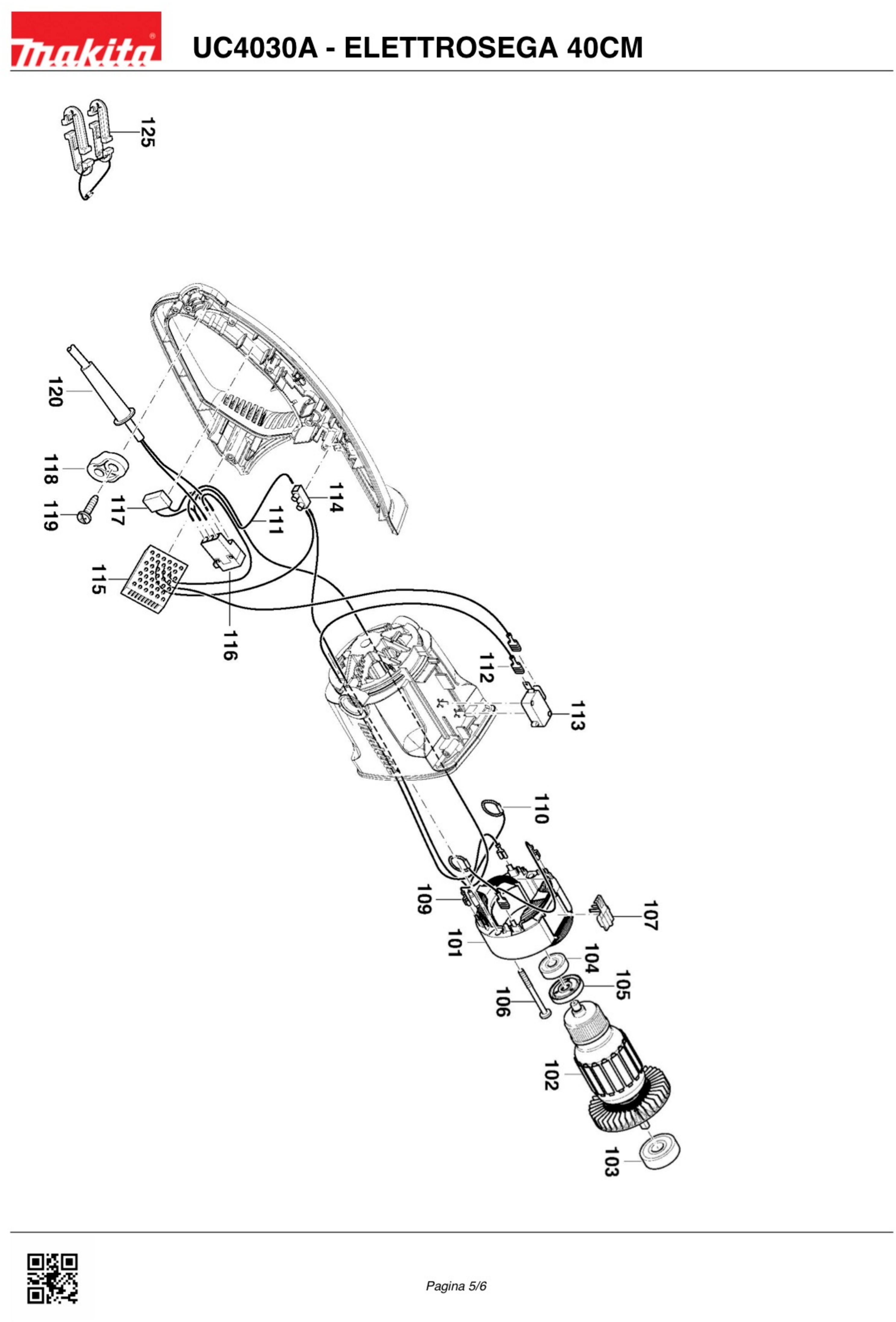

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon 639530-0 STATOR UC3530A-4030A €30.02
102
 photo_cameraImage coming soon 616969-4 ARMATURE UC3530A - UC4030A €42.85
103
 photo_cameraImage coming soon 211111-8 BEARING 6301 X UC €5.67
104
 photo_cameraImage coming soon 211057-8 BEARING 629 X UC €4.89
105
 photo_cameraImage coming soon 681666-1 INSULATING WASHER UC3530A-4030 €1.47
106
 photo_cameraImage coming soon 266095-5 SCREW 5x55 HR5001C €1.47
107
 photo_cameraImage coming soon 687080-9 CLAMP X ES-152A €1.46
109
 photo_cameraImage coming soon 638456-3 CABLE YELLOW UC3530A-4030A €2.18
110
 photo_cameraImage coming soon 638453-9 ORANGE CABLE UC3530A-4030A €4.01
111
 photo_cameraImage coming soon 970311720 ORANGE CABLE UC3530A-4030A €2.81
112
 photo_cameraImage coming soon 638454-7 CABLE BLACK UC3530A-4030A €2.81
113
 Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A 650577-1 Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A €2.97
114
 photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
115
 Controller 240V for Electric ChainsawS Makita UC3530A - UC4030A 631719-6 Controller 240V for Electric ChainsawS Makita UC3530A - UC4030A €54.59
116
 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A 651923-1 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A €14.89
117
 photo_cameraImage coming soon 645239-4 CAPACITOR 4326 €2.44
118
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
119
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
120
 photo_cameraImage coming soon 682574-9 CABLE SLEEVE 10-90 PC5000C €1.47
125
 photo_cameraImage coming soon 158024-1 CABLE CLAMP UH3000 €3.43
501
 photo_cameraImage coming soon 511492756 CHAINLOOP 3/8"-56 LINK sp.1,3 .0.50 €22.86
502
 Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 442040661 Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 €36.37

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Chainsaw UC4030A

Fix Your Electric Chainsaw UC4030A. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Electric Saws and the respective parts of the code.
Makita UC4030A

UC4030A ELECTRIC CHAINSAW 40CM pag.1
# Part Num. Description
1 188818-0 BLUE REAR HANDLE UC3530A
2 810198-3 LABEL UC3530A-4030A
3 416178-3 LOCK OFF BUTTON BUC121/122
4 233173-6 COMPRESSION SPRING 4 FOR UC3020A
5 419411-2 SWITCH LEVER UC3530A-4030
6 265995-6 * PT SCREW M4X18 X 6408 / 6221DW
7 265995-6 * PT SCREW M4X18 X 6408 / 6221DW
8 265995-6 * PT SCREW M4X18 X 6408 / 6221DW
9 154867-9 MOTOR HOUSING COMP UC3530A/403
11 181044-0 CARBON BRUSHES CB-153 (150/52/54)
12 643650-4 BRUSH HOLDER CAP
13 455487-5 FRONT HANDLE
14 266173-1 SCREW PT 5X30
15 419410-4 BAFFLE PLATE UC3530A/4030A
16 419408-1 GEAR HOUSING UC3530A/4030A
17 266044-2 PT SCREW PT.5X60
18 266173-1 PT SCREW PT 5X30
19 419412-0 HOUSING COVER
20 154870-0 OIL TANK CAP UC3530A
21 421959-2 SPONGE GASKET UC3530A
22 419407-3 OIL TANK UC3530A-4030A
23 187573-1 OIL PUMP COMPLETE
24 213039-6 O-RING 6 X AN901
25 421958-4 OIL TUBE UC3530A/4030A
26 231975-4 OIL TUBE SPRING X DCS230T
27 416274-7 OIL TUBE CAP X DCS230T
31 226741-2 STRAIGHT BEVEL GEAR 43 UC3530A
32 226743-8 STRAIGHT BEVEL GEAR 14 UC3530A
33 324662-3 SPINDLE UC3530A/4030A
34 211012-0 BALL BEARING X 9524NB
35 417405-1 CAM UC4020A/UC3520A/UC3530A/40
36 259034-2 RETAINING RING E UC3530A
37 211107-9 BALL BEARING 6201 X 9524NB
UC4030A ELECTRIC CHAINSAW 40CM pag.2
40 226213022 HAND GUARD UC3530A-4030A
41 233174-4 COMPRESSION SPRING X UC
42 419413-8 SWITCH LEVER UC3530A-4030
43 318013-0 BEARING HOUSING
44 158044-5 LINK PLATE COMP UC3530A/4030A
45 234005-0 COMPRESSION SPRING 9 UC3530A
46 213039-6 O-RING 6 X AN901
47 921452-1 HEX BOLT 8X30
48 345651-5 SPIKE BUMPER UC4020A/UC3520A
49 266173-1 PT SCREW PT 5X30
50 168426-3 BRAKE BAND UC3530A-4030A
56 266026-4 PT SCREW M4 X 12
57 267195-4 FLAT WASHER 4 X DCS230T
58 123886-6 CLUTCH DRUM 3/8" UC3530A
59 253215-0 FLAT WASHER 8 6510PBL / LVR
60 259033-4 RETAINING RING E UC3530A/4030A
63 187088-8 SPROCKET COVER ASSY
64 154869-5 SPROCKET COVER UC3530A
65 266007-8 PT SCREW M3 X10 HP2030
66 419241-1 COVER FOR UC3020A
67 227496-2 SPIRAL BEVEL GEAR 14 UC4020A
68 227495-4 SPIRAL BEVEL GEAR 14 UC4020A
69 324620-9 ADJUST SCREW X UC3020A
70 324621-7 ADJUST PIN
71 233033-2 COMPRRESSION SPRING 4 FOR UC3020A
72 216008-6 STEEL BALL 4
73 419233-0 DIAL 40 UC4020A/3520/3530A/403
74 253874-0 FLAT WASHER 4
75 915106-0 PT SCREW M4X8 FOR UC3020A
76 252168-0 HEX NUT M8-13 FOR UC3020A
77 231025-5 COMPRESSION SPRING 8 X 8411DW
78 187089-6 LEVER COMPLETE SET UC3530A-4030A
79 317977-5 LEVER HOLDER UC4020A/3520/3530
80 453061-3 CUP WASHER 20 X UC3020A
81 951122-8 SPRING PIN 4-28 2012NB/UC3530A
82 154763-1 LEVER COMPLETE UC4020A/3520A
83 816853-5 LABEL UC3030A-UC4030A
UC4030A ELECTRIC CHAINSAW 40CM pag.3
101 639530-0 FIELD UC3530A-4030A
102 616969-4 ARMATURE UC3530A - UC4030A
103 211111-8 BALL BEARING 6301 X UC
104 211057-8 BALL BEARING 629 X UC
105 681666-1 RESIN WASHER UC3530A/4030A
106 266095-5 PT SCREW 5 X 55 HR5001C
107 687080-9 CLAMP X ES-152A
109 638456-3 YELLOW CABLE UC3530A-4030A
110 638453-9 ORANGE CABLE UC3530A-4030A
111 970311720 ORANGE CABLE UC3530A-4030A
112 638454-7 BLACK CABLE UC3530A-4030A
113 650577-1 SWITCH SD-006-BB2AA-AA
114 654532-5 TERMINAL BLOCK HS7100/KP0800
115 631719-6 CONTROLLER 240V UC3530A/4030A
116 651923-1 SWITCH TG70B X 5903R
117 645239-4 NOISE SUPPRESSOR UC3530A/BO371
118 687124-5 STRAIN RELIEF 240V MT814/815
119 265995-6 *PT SCREW M4X18 X 6408 / 6221DW
120 682574-9 CORD GUARD10-90 PC5000C GA7050
125 158024-1 HOOK COMPLETE UH45/55/5580/657 UH3000
501 511492756 CHAIN EXTRA GUARD 56M
502 442040661 SPROCKET NOSE BAR 40CM SP.1,3MM x UC4000/1-UC4030A-DES400
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita UC4030A
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita UC4030A

Drawing Makita UC4030A

Download (672.53KB)

You might also like

Oil Pump for Electric Chainsaw Makita UC3500A
Makita SKU: 021245007
Oil Pump for Electric Chainsaw Makita UC3500A
Oil Pump for Electric Chainsaw Makita UC3500A Genuine replacement part Makita, Oil Pump for Electric Chainsaws UC3500A - UC4001A - UC4003A. Part for the following products: - ELECTRIC CHAINSAW UC3500A - ELECTRIC CHAINSAW UC4001A -...
AVAILABLE €38.40
Details
Oil Pump for Electric Chainsaw Dolmar ES2140A
Makita SKU: 187573-1
Oil Pump for Electric Chainsaw Dolmar ES2140A
Oil Pump for Electric Chainsaw Dolmar ES2140A Genuine part Dolmar, Oil Pump for Electric Chainsaws ES2135A - ES2140A - Makita UC3030A - UC3530A - UC4030A. Part for the following...
Last items in stock €5.48
Details
Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A
Makita SKU: 650577-1
Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A
Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A Genuine part Makita, Micro Switch SD-006-BB2AA-AA for Electric Chainsaws UC3030A - UC3530A - UC4030A - UC4051A. Part for the following products: - ES2135A - ELECTRIC...
AVAILABLE €2.97
Details
Clutch Drum for Electric Chainsaw Dolmar ES2140A
Makita SKU: 123886-6
Clutch Drum for Electric Chainsaw Dolmar ES2140A
Clutch Drum for Electric Chainsaw Dolmar ES2140A Genuine part Dolmar, Clutch Drum for Electric Chainsaws ES2135A - ES2136TLC - ES2140A - ES2141TLC. Part for the following products: - ES2135A...
Usually Ships in: 7/10 Business Days Approx. €28.06
Details
Sprocket Cover for Electric Chainsaw Dolmar ES2140A
Makita SKU: 154869-5
Sprocket Cover for Electric Chainsaw Dolmar ES2140A
Sprocket Cover for Electric Chainsaw Dolmar ES2140A Genuine part Dolmar, Sprocket Cover for Electric Chainsaws ES2135A - ES2140A - Makita UC3030A - UC3530A - UC4030A. Part for the following products: - ES2135A - ELECTRIC CHAINSAW...
Last items in stock €9.79
Details
Oil Tank Cap for Electric Chainsaws Makita UC3530A - UC4030A
Makita SKU: 154870-0
Oil Tank Cap for Electric Chainsaws Makita UC3530A - UC4030A
 Oil Tank Cap for Electric Chainsaws Makita UC3530A - UC4030A Genuine part Makita, Oil Tank Cap for Electric Chainsaws UC3030A - UC3530A - UC4030A - Dolmar ES2135A - ES2140A. Part for the following products: - UC3030A - ELECTRIC...
Usually Ships in: 7/10 Business Days Approx. €2.97
Details
Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30
Makita SKU: 442040661
Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30
Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 Genuine part Makita, Sprocket Nose Bar 40CM 16" SP.1,3MM for Chainsaw DCS330S/30 - DCS330S/40. Part for the following products: -  DCS330S/30 - CHAINSAW CM30 KW1,3 33CC -...
on 7/10 Business Days Approx €36.37
Details
Comments (0)
