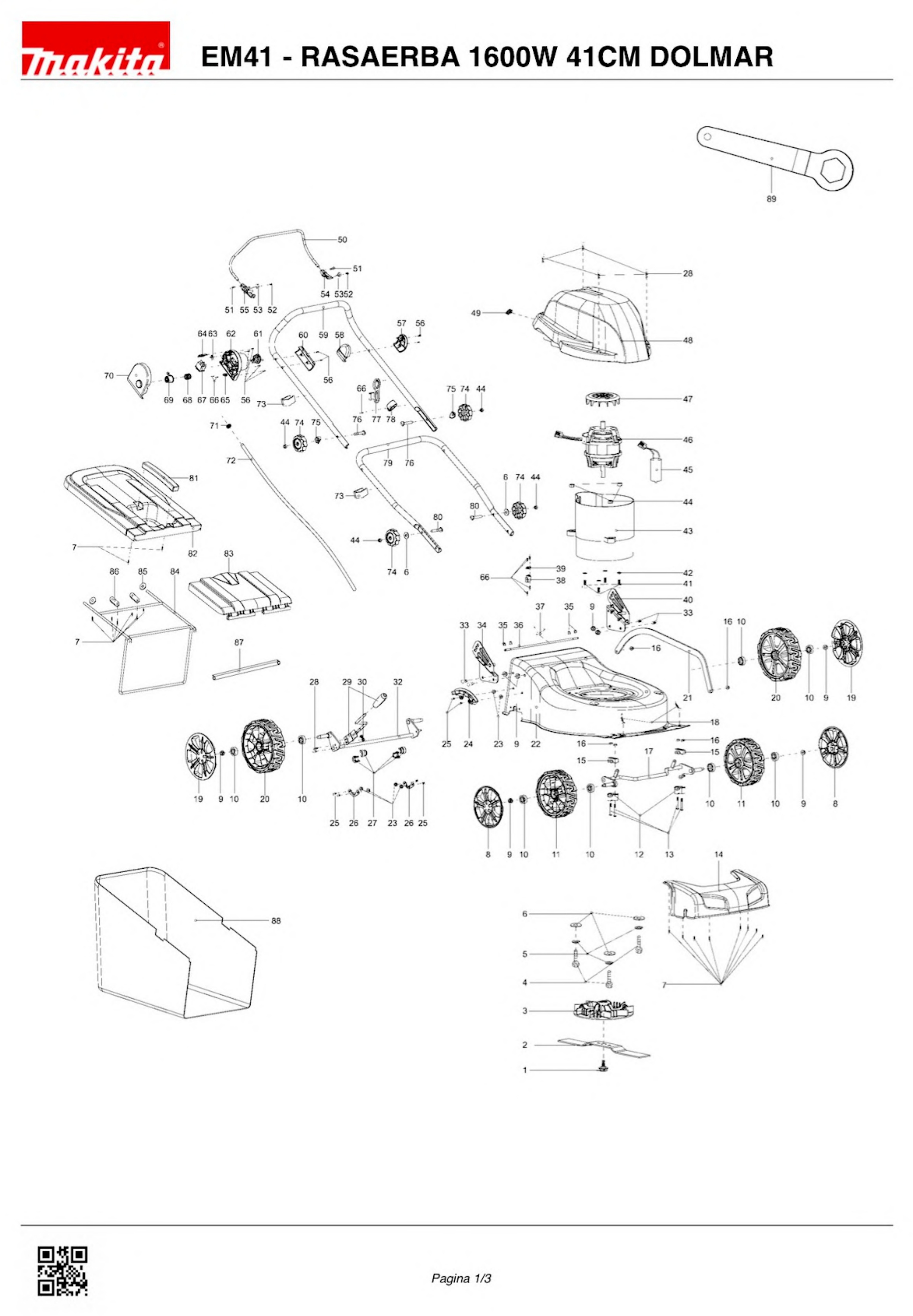

zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Makita Spare Parts for Lawn Mower EM41
We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower EM41.In the following table, look for the model of Lawn Mower and the respective parts of the code.
| Lawn Mower EM41 | ||
| # | Part Num. | Description |
| 1 | 671100802 | BLADE TIGHTEN BOLT |
| 2 | 671001427 | BLADE 410MM ELM4110 |
| 3 | 671005258 | BLADE PLATE ASS'Y |
| 4 | 671006017 | HEXAGON HEAD BOLTPLM |
| 5 | 671008002 | SPRING RINGPLM |
| 6 | 671007007 | WASHERELM |
| 7 | 671001054 | SELF-TAPPING SCREWELM |
| 8 | 671001176 | WHEEL COVERPLM |
| 9 | 671005028 | HEXAGONAL LOCKINGPLM |
| 10 | 671004012 | BALL BEARINGPLM |
| 11 | 671002012 | WHEEL ASSY.PLM |
| 12 | 671418001 | FIXED BRACKETPLM |
| 13 | 671002028 | TRIGGER BOLTPLM |
| 14 | 671420001 | FRONT COVERPLM4110 |
| 15 | 671445001 | PRESSING PLATE OFPLM |
| 16 | 671005005 | LOCKING NUTPLM |
| 17 | 671001428 | FRONT AXLEPLM4110 |
| 18 | 671011125 | EXTENSION SPRINGPLM |
| 19 | 671001177 | WHEEL COVERPLM |
| 20 | 671002013 | WHEEL ASSY.PLM |
| 21 | 671001429 | LINK RODPLM4110 |
| 22 | 671001211 | DECK REDPLM |
| 23 | 671005024 | HEXAGONAL LOCKINGPLM |
| 24 | 671001018 | HEIGHT ADJUSTMENTPLM |
| 25 | 671002019 | TRIGGER BOLTPLM |
| 26 | 671001244 | RING OF AXIS FIXINGPLM |
| 27 | 671340001 | BEARING SHELL |
| 28 | 671002029 | TRIGGER BOLTPLM |
| 29 | DA00001073 | HEIGHT ADJUSTMENT LEVER |
| 30 | 671005011 | HEXAGONAL LOCKINGPLM |
| 32 | 671001423 | REAR WHEELS AXLEPLM |
| 33 | 671006064 | HEXAGON HEAD BOLTPLM |
| 34 | 671001213 | BRACKET HANDLE,PLM |
| 35 | 671009017 | OPEN BLOCK RINGPLM |
| 36 | 671001498 | LONG POLEPLM4110 |
| 37 | 671011101 | SPRING OF REARPLM |
| 38 | 671260001 | CABLE HOLDERPLM |
| 39 | 671001023 | CABLE HOLDERELM |
| 40 | 671001212 | BRACKET HANDLE,PLM |
| 41 | 671001009 | MOTOR TIGHTEN BOLTPLM |
| 42 | 671080100 | OUTER GEAR LOCKING WASHER |
| 43 | 671290013 | ENGINE COVERPLM |
| 44 | 671005023 | HEXAGONAL NUT |
| 45 | DA00001197 | CAPACITOR ELM4410 |
| 46 | 671002016 | MOTORPLM |
| 47 | DA00001026 | FAN ELM4110 |
| 48 | 671449001 | MOTOR COVERPLM |
| 49 | 671284001 | JACKET 1 OF CABLEELM |
| 50 | 671001442 | LEVER, MOTOR BRAKEPLM |
| 51 | 671002025 | TRIGGER BOLTELM |
| 52 | 671001036 | SELF-TAPPING SCREWELM |
| 53 | 671011124 | SPRINGELM |
| 54 | 671279005 | LEFT PLUG-IN OF HANDELM |
| 55 | DA00001023 | DX CONNECTOR ELM3310-3710 |
| 56 | 671001005 | SELF-TAPPING SCREWELM |
| 57 | 671257001 | SUPPORTPLM |
| 58 | 671257002 | RIGHT HANDLE SUPPORTPLM |
| 59 | 671001467 | HANDLE, UPPER PARTPLM |
| 60 | 671451001 | PRESSING PLATE OFPLM |
| 61 | 671001071 | SWITCH BOX, LEFT ASSEMBLY |
| 62 | 671001071 | SWITCH BOX, LEFT ASSEMBLY |
| 63 | 671009002 | INDICATOR LIGHTELM |
| 64 | 671001043 | LAMPSHADEELM |
| 65 | 671491001 | STRAIN RELIEF CABLEELM |
| 66 | 671001003 | SELF-TAPPING SCREWELM |
| 67 | 671010040 | SWITCHELM |
| 68 | 671011079 | SPRING OF SAFETYELM |
| 69 | 671425002 | SAFETY BUTTONELM |
| 70 | DA00000985 | RIGHT BOX SHAFT ELM4110 |
| 71 | 671283001 | JACKET 1 OF CABLEELM |
| 72 | 671001072 | CABLE CONNECTIONPLM |
| 73 | 671177001 | CABLE CLIPPLM |
| 74 | 671530010 | STAR KNOB |
| 75 | 671001085 | WASHERPLM |
| 76 | 671006004 | FLAT HEAD BOLTPLM |
| 77 | 671001052 | CABLE HOLDERELM |
| 78 | 671328001 | BLOCK RINGPLM |
| 79 | 671001444 | HANDLE, LOWER PARTPLM |
| 80 | DA00000880 | FLAT HEAD BOLT |
| 81 | 671454001 | HANDLE OF GRASSPLM |
| 82 | 671455001 | GRASS-BOX, UPPERPLM4110 |
| 83 | 671456001 | DECK LIDPLM4110 |
| 84 | 671001435 | GRASS CATCHERPLM4110 |
| 85 | 671001436 | TIGHTEN PRESSING PLAPLM |
| 86 | 671001203 | PRESSING PLATE OFPLM |
| 87 | 671014170 | PRESSING PLATEPLM4110 |
| 88 | DA00000965 | BAG GRASS EM41 |
| 89 | 671002009 | HEXAGONAL KEY ELM3310-3710 |
