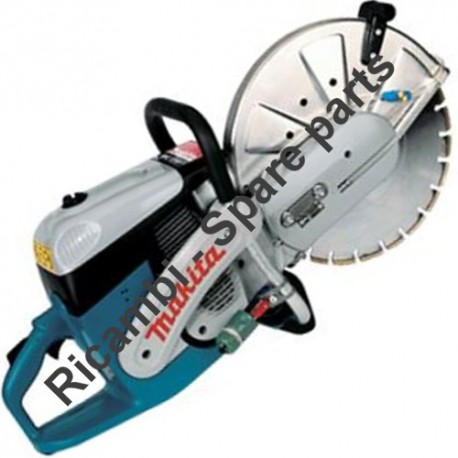

Makita Spare Parts for Power Cutter DPC9500
€435.39
VAT included
Makita Spare Parts for Power Cutter DPC9500
We have the original Spares MAKITA for Power Cutter 355MM 95CC - DPC9500 the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Power Cutter DPC9500. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Power Cutter DPC9500
€435.39
VAT included
Makita Spare Parts for Power Cutter DPC9500
We have the original Spares MAKITA for Power Cutter 355MM 95CC - DPC9500 the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Power Cutter DPC9500. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings
138 spare parts
description
8 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
138 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Page 3
zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Page 4
zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 398213600 SPROCKET GUARD, DPC70 | €52.34 | |
|
2
|
photo_cameraImage coming soon | 923210002 HEX NUT W/SHOULDER,DP | €1.88 | |
|
7
|
photo_cameraImage coming soon | 962300016 NEEDLE BEARING 309 | €9.91 | |
|
14
|
photo_cameraImage coming soon | 123181010 CLUTCH SHOE, DPC7000 (SET) | €24.70 | |
|
17
|
photo_cameraImage coming soon | 122182030 GUIDE DISC, DPC7000 | €4.14 | |
|
20
|
photo_cameraImage coming soon | 123174159 MUFFLER, DPC7000 | €78.06 | Not available for order |
|
21
|
photo_cameraImage coming soon | 398174600 HEAT SHIELD, DPC7000 | €14.90 | |
|
23
|
photo_cameraImage coming soon | 266946-2 SCREW M5X12 (TORX) | €1.40 | |
|
24
|
photo_cameraImage coming soon | 266474-7 SCREW M5X8 (TORX) | €1.47 | |
|
25
|
photo_cameraImage coming soon | 908006655 SCREW M6X65 (TORX) | €1.88 | |
|
26
|
photo_cameraImage coming soon | 928406000 WASHER 6 | €1.73 |
Page 5
zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Page 6
zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Page 7
zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Page 8
zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
3
|
photo_cameraImage coming soon | 957004310 KEY SET | €15.96 | |
|
4
|
|
950004001 Plastic Bag for Chainsaws Dolmar | €2.53 | |
|
5
|
photo_cameraImage coming soon | 944500791 ALLEN KEY | €7.58 | |
|
6
|
photo_cameraImage coming soon | 944500630 ALLEN KEY 5X304MM | €6.31 | |
|
7
|
photo_cameraImage coming soon | 941717191 UNIVERSAL KEY 17/19 | €7.58 | |
|
8
|
photo_cameraImage coming soon | 782025-3 TORX KEY | €2.18 | |
|
9
|
photo_cameraImage coming soon | 941717001 SIMPLE KEY 17 | €6.31 |
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Makita Spare Parts for Power Cutter DPC9500
Fix Your Power Cutter 355MM 95CC - DPC9500. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Power Cutter and the respective parts of the code.
| DPC9500 POWER CUTTER 355MM 95CC. pag.1 | ||
| # | Part Num. | Description |
| 1 | 031130004 | CYLINDER PISTON |
| 3 | 031132003 | PISTON A / B COMPL. 1,2mm |
| 6 | 119132060 | PISTON RING C12X1 |
| 7 | 965521023 | GASKET X D 133 |
| 8 | 908006205 | SCREW M6X20 |
| 11 | 254042-8 | KEY 3X3,7 |
| 12 | 962210121 | NEEDLE BEARING X DCS6401 |
| 15 | 962900054 | RADIAL RING 17 / 28X5.4 |
| 17 | 031111630 | CRANKCASE x DPC |
| 18 | 031111650 | CRANKCASE x DPC |
| 20 | 908005305 | SCREW M5X30 (TORX) |
| 21 | 957605112 | BREAK. SHORT CIRCUIT. COMPL. |
| 23 | 965551051 | SCREW M6X70 |
| 24 | 926206000 | ELASTIC WASHER 6 |
| 25 | 123213010 | SQ.NUT W/PIVOT, DPC70 |
| 26 | 924306400 | WASHER 6.4 |
| 27 | 922606000 | HEX NUT M6, DOLMAR, D |
| 29 | 936430160 | SPIRAL PIN 3X16, DCS4 |
| DPC9500 POWER CUTTER 355MM 95CC. pag.2 | ||
| 1 | 123310011 | TUBULAR HANDLE |
| 2 | 144310072 | STRENGTH.PIECE, DPC70 |
| 3 | 122310051 | STRENGTH.PIECE, DPC70 |
| 4 | 908006205 | SCREW M6X20 |
| 5 | 392320100 | FOOT, DPC9500 |
| 6 | 908006355 | SCREW M6X35 (TORX) |
| 11 | 119117021 | THROTTLE LEVER, DPC70 |
| 12 | 119117041 | SPRING |
| 13 | 935950400 | CYLINDRICAL PIN 5X40 |
| 14 | 119117030 | LOCKING LEVER |
| 15 | 935940240 | CYLINDRICAL PIN 4X24 |
| 16 | 119117052 | SPRING X PS6800I |
| 17 | 965451750 | BUTTON |
| 18 | 965551160 | PRESSURE SPRING |
| 19 | 965551150 | STOP PIN |
| 20 | 908005305 | SCREW M5X30 (TORX) |
| 25 | 123114600 | COMPLETE TANK |
| 27 | 965451560 | PLUG |
| 28 | 965402360 | RUBBER BUFFER |
| 30 | 965451901 | GAS CAP COMP.DCS / PS9010 |
| 31 | 963232045 | GASKET OR32X4.5 |
| 32 | 163532-9 | FILTER |
| 33 | 963601240 | FELT |
| 34 | 965450200 | SUCTION LINE |
| 36 | 965452490 | PLASTIC TUBE (1METRO) |
| 37 | 965452450 | FUEL TUBE |
| 38 | 965403131 | RUBBER BUFFER |
| 40 | 010114040 | ANGULAR SLEEVE COMPL. |
| DPC9500 POWER CUTTER 355MM 95CC. pag.3 | ||
| 1 | 031112600 | FAN HOUSING ASSY,DPC7 |
| 2 | 900004363 | SPACER 15 / 75.5X0.5 |
| 3 | 123163013 | REWIND SPRING |
| 4 | 123163020 | SPRING COVER 33 / 73X0.5 |
| 5 | 907204102 | SCREW M4X10 |
| 6 | 123162034 | STARTER PULLEY |
| 7 | 929314100 | SNAP RING, 14 X 1, DC |
| 8B | 985000165 | STARTER ROPE DIAM.4X100M |
| 10 | 965402262 | STARTER HANDLE X DCS9000 |
| 11 | 267821-5 | ELASTIC WASHER |
| 12 | 980114094 | LABEL |
| 15 | 965603021 | SPARK PLUG NGK BPMR7A |
| 16 | 957604240 | SPARK PLUG CAP, DPC70 |
| 20B | 010140010 | IGNITION ASSEMBLY, DP |
| 22 | 031166010 | STARTER RATCHET, DCS6 |
| 23 | 264022-6 | NUT |
| 24 | 926208001 | ELASTIC WASHER 8 |
| 25 | 908004125 | SCREW M4X12 (TORX) |
| DPC9500 POWER CUTTER 355MM 95CC. pag.4 | ||
| 1 | 398213600 | SPROCKET GUARD, DPC70 |
| 2 | 923210002 | HEX NUT W/SHOULDER,DP |
| 7 | 962300016 | NEEDLE BEARING 309 |
| 14 | 123181010 | CLUTCH SHOE, DPC7000 (SET) |
| 16 | 122184011 | CLUTCH SPRING, DPC700 |
| 17 | 122182030 | GUIDE DISC, DPC7000 |
| 20 | 123174159 | MUFFLER, DPC7000 |
| 21 | 398174600 | HEAT SHIELD, DPC7000 |
| 23 | 266946-2 | SCREW M5X12 (TORX) |
| 24 | 266474-7 | SCREW M5X8 (TORX) |
| 25 | 908006655 | SCREW M6X65 (TORX) |
| 26 | 928406000 | WASHER 6 |
| DPC9500 POWER CUTTER 355MM 95CC. pag.5 | ||
| 2 | 266605-8 | SCREW M5X16 PS32CTLC |
| 3 | 266606-6 | SCREW M5X40 PS32CTLC |
| 7B | 392118050 | FILTER COVER COMPL. |
| 8 | 921708000 | HEXAGONAL NUT M8 |
| 10 | 001173031 | COMPLETE FILTER |
| 11 | 001173000 | PREFILTER |
| 12 | 122173140 | AIR FILTER |
| 13 | 001173021 | INNER FILTER CPL., DP |
| 14 | 965401025 | RUBBER BUSH, DPC7000 |
| 15 | 963257070 | GASKET OR57X7 |
| 16 | 123118052 | COVER |
| 19 | 980113841 | IGNITION LABEL |
| 22 | 926105001 | ELASTIC RING 5 |
| 25 | 266946-2 | SCREW M5X12 (TORX) |
| 27 | 965518090 | GASKET |
| 28 | 965518031 | GASKET |
| 29 | 908405255 | SCREW M5X25 (TORX) |
| 31 | 965518111 | GASKET |
| 34 | 965402851 | RUBBER PLATE COVER |
| 36 | 031150730 | CHOKE SHAFT, DPC9500 |
| 37 | 965401011 | RUBBER BUSH, DCS340 |
| DPC9500 POWER CUTTER 355MM 95CC. pag.6 | ||
| 1 | 122151620 | CARBURETOR HS-239 |
| 6 | 957150100 | DIAPHRAGM SET + GASKETS |
| 7A | 113150150 | PUMP DIAPHRAGM |
| 7B | 001150151 | PUMP DIAPHRAGM |
| 10 | 144151315 | BUSH |
| 16 | 122151400 | WASHER |
| 17 | 100150350 | SAFETY WASHER |
| 21 | 113150261 | Choke Shutter |
| 23 | 113150380 | LOCKING BALL |
| 24 | 122151470 | IDLE ADJUSTMENT SCREW (L) |
| 25 | 144151480 | SPRING (L) |
| 29 | 957150010 | SERIES CONTROL PARTS 309 |
| 32 | 113150040 | WASHER COVER DIAM.9MM |
| 34 | 107150240 | ELASTIC RING |
| 35 | 107150230 | SCREEN |
| 42 | 122151551 | GOVERNOR VALVE, DPC7000 |
| 44 | 001150060 | WASHER 0.7MM |
| DPC9500 POWER CUTTER 355MM 95CC. pag.7 | ||
| 3 | 392341610 | PROTECTION HOOD, DPC9 |
| 4 | 395341600 | SWIVEL SEGMENT, DPC95 |
| 5 | 392341040 | BLOCK CLAMP |
| 6 | 908006255 | SCREW M6X25 |
| 8 | 920406000 | HEXAGONAL NUT M6, DPC |
| 9 | 908006205 | SCREW M6X20 |
| 15 | 392410600 | GUARD PLATE, DPC9500 |
| 16 | 392211610 | HAND PROTECTION |
| 17B | 900208202 | SCREW M8X20 |
| 18 | 926208001 | ELASTIC WASHER 8 |
| 19 | 920410000 | HEXAGONAL NUT M10 |
| 20 | 392221011 | V BELT PULLEY, DPC950 |
| 21 | 965300440 | V- BELT FO-Z SPZ 86 |
| 22 | 963815320 | PACKING RING, DPC7000 |
| 23 | 960102155 | BALL BEARING 15 / 35X11 |
| 24 | 398211090 | BUSH |
| 25 | 900005009 | SPACER 20 / 15X10 |
| 26 | 929235150 | SNAP RING 35X1.5, DPC |
| 27 | 962900036 | RADIAL RING, DPC7000 |
| 28 | 939144140 | KEY 4X4X14 |
| 29 | 398228013 | SPINDLE, DPC7000 D. 20 |
| 30 | 929145175 | SNAP RING 45X1.75,DPC |
| 31 | 907310204 | SCREW M10X20 |
| 40 | 985000870 | CLAMP LEVER |
| 41 | 925300000 | WASHER 8X14X0.5 |
| 42 | 392341090 | RUBBER THICKNESS |
| 43 | 392341031 | WASHER-1 |
| 44 | 392341050 | WASHER-2 |
| 45 | 392341070 | HEX HEAD SCREW |
| 50 | 392228350 | PRESSURE DISC, DPC950 DIAM. 20 |
| 52 | 392228050 | ADAPTOR 20MM TO 7/8" - DIAM. 20-22.2 |
| 55 | 900910204 | SCREW M10X20 |
| DPC9500 POWER CUTTER 355MM 95CC. pag.8 | ||
| 1A | 966144150 | METAL CUTTING DISC 350MM |
| 1B | 966144120 | STONE CUTTING DISC |
| 3 | 957004310 | KEY SET |
| 4 | 950004001 | PLASTIC CASE |
| 5 | 944500791 | ALLEN KEY |
| 6 | 944500630 | ALLEN KEY 5X304MM |
| 7 | 941717191 | UNIVERSAL KEY 17/19 |
| 8 | 782025-3 | TORX KEY |
| 9 | 941717001 | SIMPLE KEY 17 |
