Makita Spare Parts for Motor Pump EPH1000X

Name: Makita Spare Parts for Motor Pump EPH1000X
Brand: Makita
SKU: Makita EPH1000X
Availability: InStock

SKU: Makita EPH1000X

€1.64

VAT included

Makita Spare Parts for Water Pump EPH1000X

Makita genuine spare parts for the repair or replacement of High Pressure 4 Stroke Water Pump 33,5CC 4T EPH1000X.

Fix Your High Pressure 4 Stroke Water Pump 33,5CC 4T EPH1000X. All Spares can be supplied at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

161 spare parts

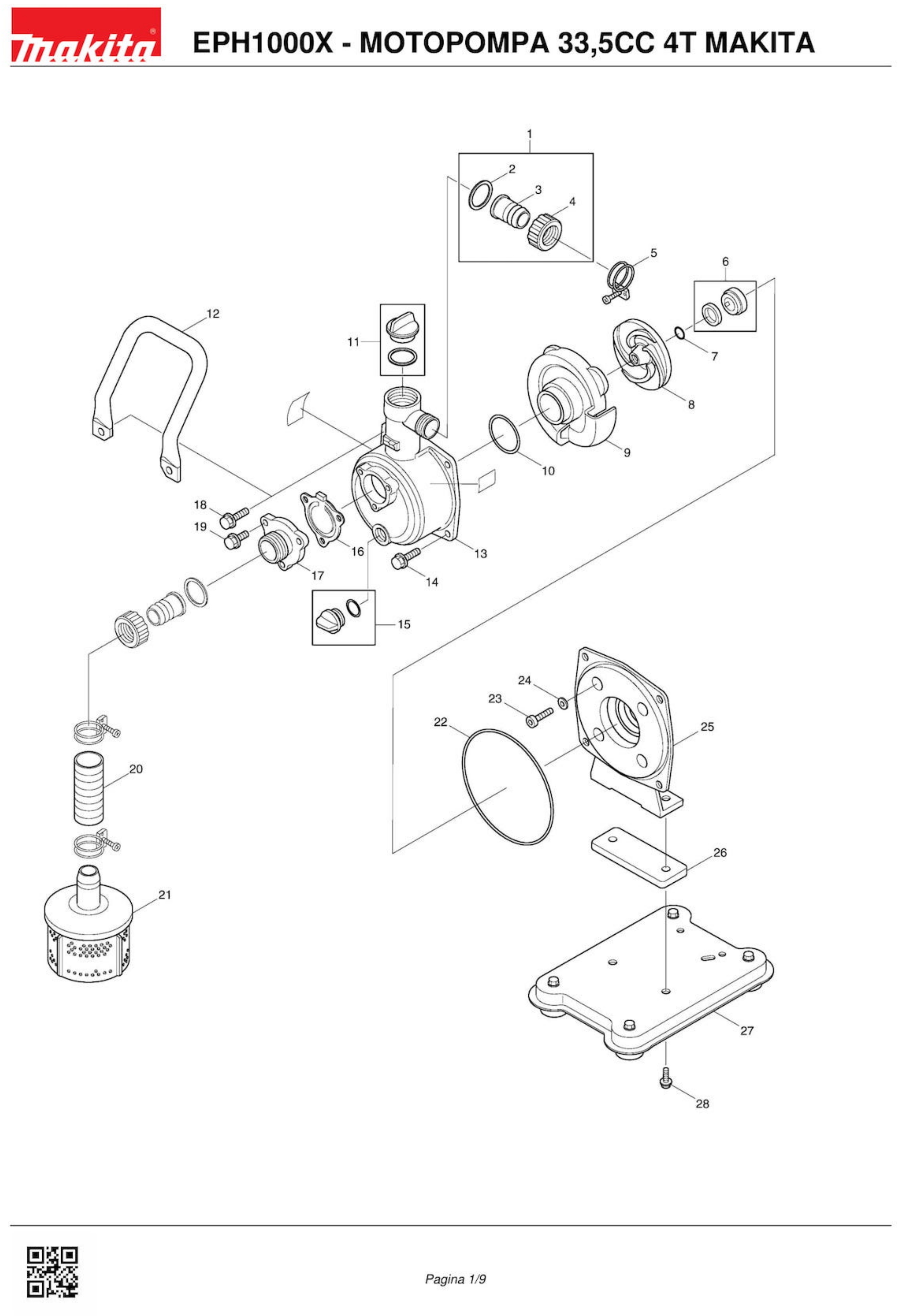

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1	Image coming soon	6255008000 THROTTLE LEVER X MP352.4	€10.27
1	Image coming soon	XKO0000128 FITTING COMPL. X MP352.4Z	€13.31
2	Image coming soon	0630059920 THROTTLE CABLE X MP352.4	€8.73
2	Image coming soon	K000340065 GASKET FITTING X MP352.4Z	€3.57
3	Image coming soon	K000340782 FITTING X MP352.4Z	€3.57
4	Image coming soon	K000340781 NUT X FITTING MP352.4Z	€4.76
5	Image coming soon	K940019032 CLAMP MP352.4Z	€3.57
6	Image coming soon	XKO0000170 SEAL X MP352.4Z	€79.02
7	Image coming soon	K000110114 WASHER FOR MP352.4Z	€3.57
8	Image coming soon	XKO0120081 FAN FOR MP352.4Z	€30.38
9	Image coming soon	K000110255 FAN HOUSING X MP352.4Z	€51.99
10	Image coming soon	K889855042 RING X MP652.4Z	€3.57
11	Image coming soon	K000118450 CAP X MP352.4Z	€11.78
12	Image coming soon	K000114277 HANDLE X MP352.4Z	€46.60
13	Image coming soon	K000115108 HOUSING PUMP X MP352.4Z	€104.96
14	Image coming soon	K743119045 SCREW X MP352.4Z	€3.57
16	Image coming soon	K000113326 MEMBRANE VALVE X MP352.4Z	€17.63
17	Image coming soon	K000113325 FLANGE X MP352.4Z	€20.00
18	Image coming soon	K743119046 SCREW X MP352.4Z	€3.57
19	Image coming soon	K743119032 SCREW X MP352.4Z	€3.57
20	Image coming soon	K000113837 SUCTION HOSE MP352.4Z	€51.99
21	Image coming soon	K000118193 FILTER X MP352.4Z	€26.27
22	Image coming soon	K890255031 RING FOR MP352.4Z	€7.90
23	Image coming soon	K734532057 HEX SCREW	€3.57
24	Image coming soon	K854255006 SEAL X MP352.4Z	€3.57
25	Image coming soon	K000110256 FLANGE SUPPORT X MP352.4Z	€95.45
26	Image coming soon	K000116487 SPACER X MP352.4Z	€15.46
27	Image coming soon	K000117126 CRANKCASE X MP352.4Z	€79.02
28	Image coming soon	K743119047 HEX SCREW X MP352.4Z	€3.57

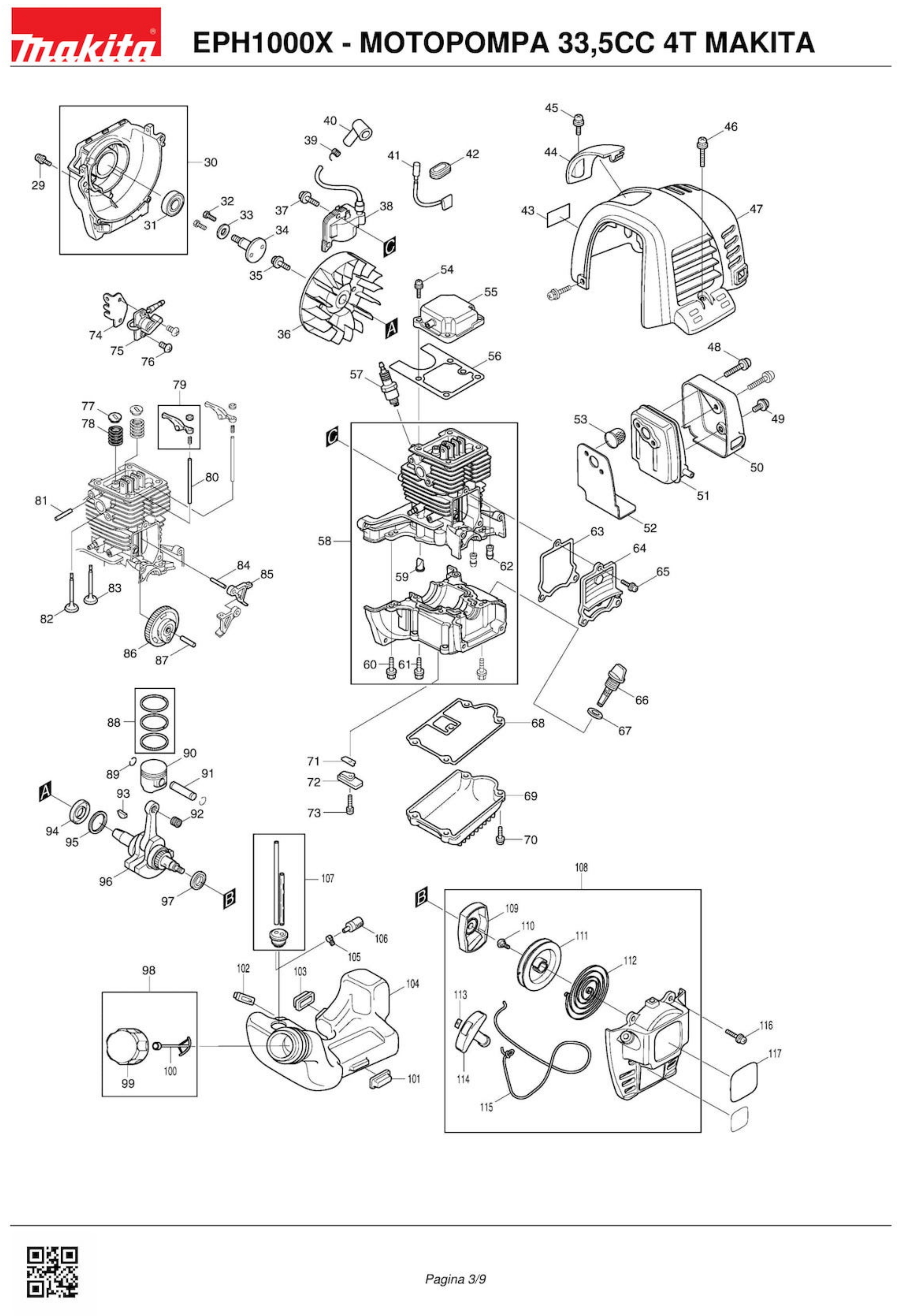

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
29	Image coming soon	0119059531 SCREW M5 X 16 X MS351-4U	€2.14
30	Image coming soon	5935006000 FLYWHEEL HOUSING X MP352.4Z	€26.27
31	Image coming soon	0600159970 BEARING X MP352.4Z	€7.90
32	Image coming soon	0119089970 SCREW X MP352.4Z	€1.95
33	Image coming soon	0200169970 WASHER FOR MP352.4Z	€1.31
34	Image coming soon	5932501200 POST MP352.4Z	€51.99
35	Image coming soon	0130069940 SCREW M6X16 FOR BHX2500	€1.89
36	Image coming soon	5937006011 FLYWHEEL X MP352.4Z	€20.00
37	Image coming soon	0043704200 SCREW M4X20 FOR BHX2500	€1.89
38		168816-0 Electronic Coil for Brushcutter Makita EBH341U	€28.06
39	Image coming soon	0654009931 PIN X RBC415-225-255	€3.68
40		424105-6 Spark Plug Cap for Brushcutter Makita EBH341U	€1.62
41	Image coming soon	5257018001 WIRE COMP. RBC201	€3.95
42	Image coming soon	5257500300 RUBBER X HT2256D-HT2276E	€2.76
43	Image coming soon	5929505200 LABEL, TRADE MARK	€1.95
44	Image coming soon	5935500500 SPARK PLUG COVER X MS351-4U	€6.81
45	Image coming soon	0140059921 SCREW M5 X 8 X MP352.4Z	€1.43
46	Image coming soon	0140059370 SCREW M5 X 12 X MP352.4Z	€1.43
47	Image coming soon	5935500800 CYLINDER COVER	€16.65
48	Image coming soon	0119059520 SCREW M5 X 40 RBC201	€3.68
49	Image coming soon	0140059962 SCREW M 5 X 6 MS251.4	€1.44
50	Image coming soon	5923503400 MUFFLER COVER MS251.4	€10.18
51	Image coming soon	168469-5 EXHAUST MUFFLER EBH253L/341U	€10.19
52	Image coming soon	5923501601 MUFFLER PROTECTION MS251.4	€11.39
53	Image coming soon	5923008011 SPARK PROTECTOR FOR BHX2500	€19.53
54	Image coming soon	0043605160 SCREW M 5 X 16 X MS251.4	€1.89
55	Image coming soon	5931004000 HEAD COVER X MS351-4U	€17.13
56	Image coming soon	162307-3 ROCKER COVER GASKET EBH341U	€3.23
57	Image coming soon	0650109950 SPARK PLUG CMR6A X MS251.A	€12.34
58	Image coming soon	5931009000 CYLINDER CPL X MP352.4Z	€179.54
59	Image coming soon	424201-0 CONTROL VALVE EBH341U	€3.28
60	Image coming soon	0119059470 SCREW M 5 X 16 X MS351-4U	€1.43
61	Image coming soon	266573-5 HSS HD BOLT M5X33 EBH341U	€1.51
62	Image coming soon	424200-2 SPACKER EM2651LH/EBH251L/341U	€1.46
63		162274-2 Cam Gear Cover Gasket for Brushcutter Makita EBH341L	€2.76
64	Image coming soon	5921500502 SIDE COVER X MS251.4	€13.66
65	Image coming soon	0043605140 SCREW M5X14 X RBC225-255	€1.89
66	Image coming soon	5926500600 OIL CAP X MS251.4	€3.23
67	Image coming soon	0213169990 MS351-4U OIL COVER CAP GASKET	€2.76
68	Image coming soon	5936500100 MS351-4U OIL PAN GASKET	€17.13
69	Image coming soon	374650000 BCX3410 OIL PAN	€19.53
70	Image coming soon	0043605180 COMPLETE SCREW X RBC230 / RBC520	€1.89
71	Image coming soon	5921501000 PLATE X MS251.4	€7.06
72	Image coming soon	5921501100 RETAINING PLATE X MS251.4	€7.06
73	Image coming soon	0119049960 SCREW M 4 X 10 X MS351-4U	€1.43
74	Image coming soon	5937500201 PLATE MP352.4Z	€2.93
75	Image coming soon	0660000361 SWITCH X MP352.4Z	€11.78
76	Image coming soon	0043104080 SCREW M4X8 SX	€1.31
77	Image coming soon	5933500300 VALVE SPRING COVER X MS351-4U	€3.95
78	Image coming soon	5933500200 SPRING VALVE X MS351-4U	€2.76
79	Image coming soon	125554-7 ROCKET ARM ASSY EM2651LH/EBH34	€6.22
80	Image coming soon	5933500000 AUCTION X MS351-4U	€2.14
81	Image coming soon	256200-2 PIN 5 PER 2704	€1.46
82	Image coming soon	5933500500 INTAKE VALVE X MS351-4U	€22.16
83	Image coming soon	5933500400 EXHAUST VALVE X MS351-4U	€22.16
84	Image coming soon	5923500600 CAM LIFTING SHAFT X MS251.4	€1.89
85	Image coming soon	313169-4 CAM LIFTER EM2651LH/EBH251L	€4.64
86	Image coming soon	125552-1 CAM GEAR ASSY EM2651LH/EBH341/	€17.46
87	Image coming soon	5923500501 CAM SHAFT MS251.4	€3.68
88		195141-6 Piston Ring Set for Brushcutter Makita EBH341L	€25.09
89		233983-1 Piston Pin Circlip for Brushcutter Makita RBC410	€1.55
91	Image coming soon	5932500900 PIN PISTON X EM4340L	€5.28
92	Image coming soon	212085-6 ROLLER CAGE 1014	€6.81
93	Image coming soon	0323039990 KEY X RBC350-RBC420	€3.68
94		213537-0 Oil Seal 12 for Brushcutter Dolmar MS335.4C	€5.29
95	Image coming soon	5932501000 WASHER ALB. A GOM. MS351-4U	€3.23
96	Image coming soon	5932008000 CRANKSHAFT MP352.4Z	€116.84
97		213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C	€3.20
98	Image coming soon	125472-9 CAP SERBATOIO CPL	€10.67
99	Image coming soon	5926016000 TANK CAP MP352.4Z	€6.90
100		140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110	€8.31
101	Image coming soon	5196500302 MP352.4Z SHOCK ABSORBER	€40.84
102		424102-2 Tank Damper for Brushcutter Makita RBC2110	€1.30
103	Image coming soon	424103-0 DAMPER EBH341U	€1.44
104	Image coming soon	5936500200 FUEL TANK MS351-4U	€41.57
105	Image coming soon	0561059990 HOSE CLAMP XRBC230-310 / 520	€1.89
106		163447-0 Gasoline Filter for Chainsaw Makita DCS230T	€4.49
107	Image coming soon	162309-9 TUBE EBH341U	€6.83
108		195142-4 Dolmar Recoil Starter Set for MS335.4C	€43.54
109	Image coming soon	5315023000 STARTER PULLEY MS351-4U	€7.79
110	Image coming soon	5425003010 SCREW SET X RBC415-225-255	€3.95
111	Image coming soon	451923-9 REEL STARTER EBH341U	€6.83
112	Image coming soon	232257-7 SPRING SPIRAL EBH341U	€17.13
113	Image coming soon	5315001030 STOP X RBC415	€5.28
114	Image coming soon	5215002110 STARTER FOR RBC 230-225-255	€3.23
115	Image coming soon	5315022040 ROPE STARTER X MS351-4U	€10.18
116	Image coming soon	911218-7 HEAD SCREW CILIND. M5x14	€1.54
117	Image coming soon	5939503800 LABEL,MODEL	€2.93

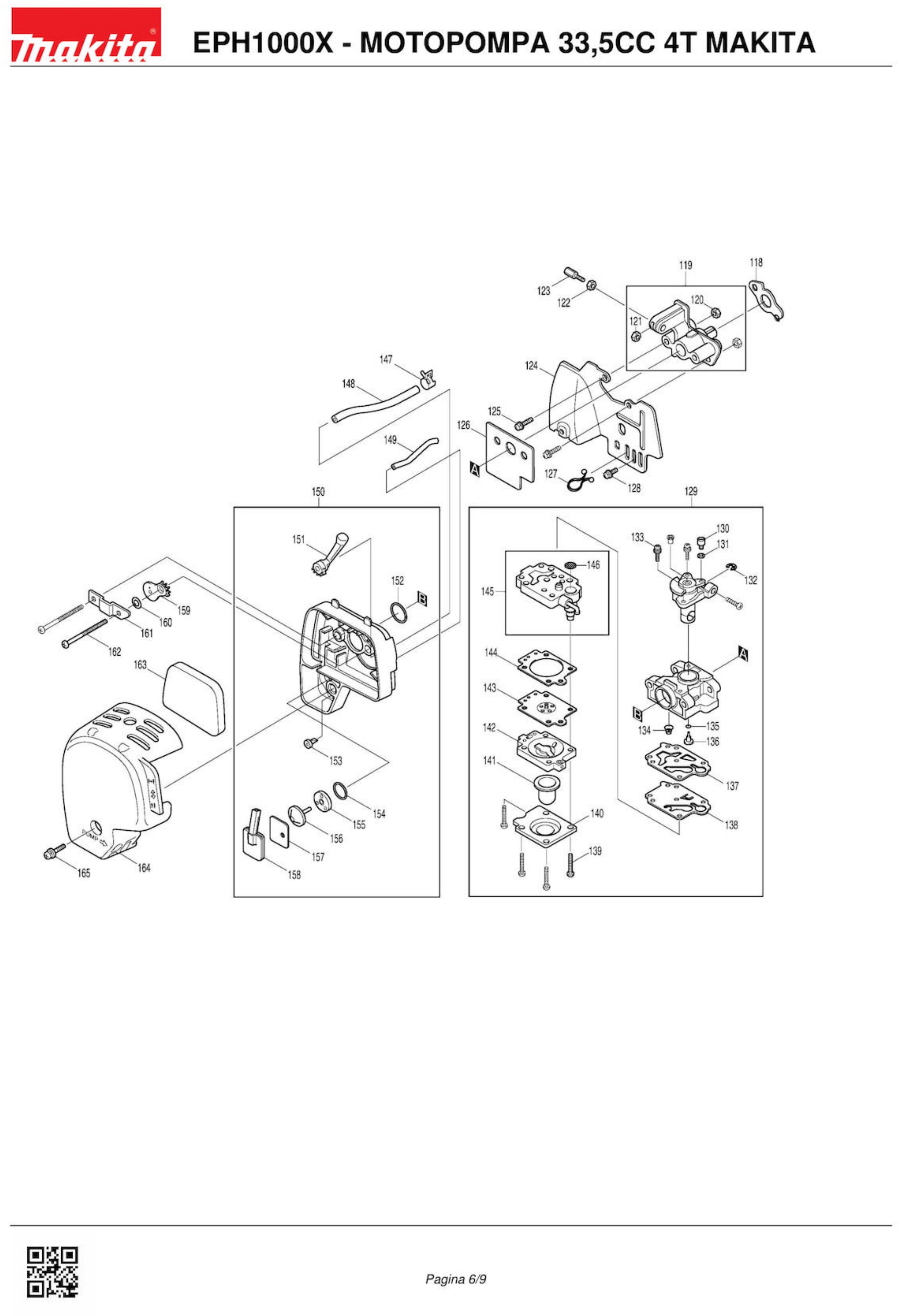

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
118	Image coming soon	413120-5 INSULATOR GASKET EBH251L/341U	€1.44
119		5923005002 Carburator Insulator for Brushcutter Makita EM4340L	€8.38
120	Image coming soon	0021705000 NUT M5 X RBC415	€1.54
121	Image coming soon	0022706000 NUT M6 X PB500R	€1.43
123	Image coming soon	0149069972 ADJUSTMENT SCREW FOR BHX2500	€6.10
124		346261-1 Makita Carburetor Insulator for EBH341U	€5.66
126	Image coming soon	413138-6 CARBURETOR GASKET EBH341U	€2.14
127	Image coming soon	5926501300 CLAMP MP352.4Z	€1.43
129	Image coming soon	168783-9 CARBURETOR X EW1060H	€95.45
130	Image coming soon	5236018040 THROTTLE CABLE FORRBC230-260-310-225-	€15.30
131	Image coming soon	5426005030 WASHER X-RBC350 RBC420	€7.06
132	Image coming soon	5316005120 RING FOR RBC 260/230/310/225/2	€6.10
133	Image coming soon	266581-6 SCREW M3X8 EBH341U	€2.18
134	Image coming soon	5926002020 SPRING PUMP X MS251.4	€10.46
135	Image coming soon	5246001010 GASKET FOR RBC 260/230/310 /	€6.10
136	Image coming soon	5936015010 JET MP352.4Z	€9.20
137	Image coming soon	5926002040 GASKET MS251.4	€10.41
138	Image coming soon	WJ00009599 PUMP DIAPHRAGM DCS230T	€13.50
139	Image coming soon	266582-4 SCREW 3x24 EBH341U	€2.18
140	Image coming soon	5236046050 PUMP COVER FOR RBC350-RBC42	€13.66
141		424314-7 Primer Bulb for Blower Makita BHX2501	€6.90
142	Image coming soon	5236046140 BODY X MS251.4	€55.95
143	Image coming soon	168574-8 CPL DIAPHRAGM EBH341U	€27.72
144	Image coming soon	442154-1 SEAL IRIS EBH341U	€4.64
145	Image coming soon	5936015020 PUMP BODY CPL. X MP352.4Z	€26.27
146	Image coming soon	5016004010 JOINT FOR RBC 260/230/310/225	€5.28
147	Image coming soon	0561080010 HOSE STOP X RBC 260 / RBC520	€1.89
148	Image coming soon	5931500900 VENT PIPE X MS351-4U	€8.74
149	Image coming soon	422042-8 PIPE EBH251L/341U	€1.44
150		125468-0 Cleaner Plate Assy for Petrol Blower Makita BHX2500	€21.00
151		451925-5 Choke Lever for Brushcutter Makita EBH341L	€2.33
152	Image coming soon	213540-1 O RING 15 EM2651LH/EBH253L/341	€1.46
153	Image coming soon	424316-3 VALVE EBH341U	€5.38
154	Image coming soon	0240139970 RING MS251.4	€2.84
155	Image coming soon	451924-7 CHECK VALVE PLATE EBH253L	€1.44
156	Image coming soon	424315-5 CHECK VALVE EBH251L/341U	€1.44
157		168577-2 Separator Gasket for Blower Makita BHX2501	€1.62
158	Image coming soon	5933501600 SEPARATOR X MS351-4U	€15.30
159	Image coming soon	450560-6 CHOKE PLATE EBH251L/341U	€1.44
160	Image coming soon	423376-2 GASKET EBH251L/341U	€1.47
161	Image coming soon	345919-9 PLATE EBH253L/EBH341U	€1.47
162	Image coming soon	265188-5 PAN HD SCREW M5X68 EB	€1.44
163		443141-3 Air Cleaner Element Sponge for Petrol Blower Makita BHX2500	€2.23
164	Image coming soon	450561-4 AIR CLEANER COVER EBH251L/341U	€4.59

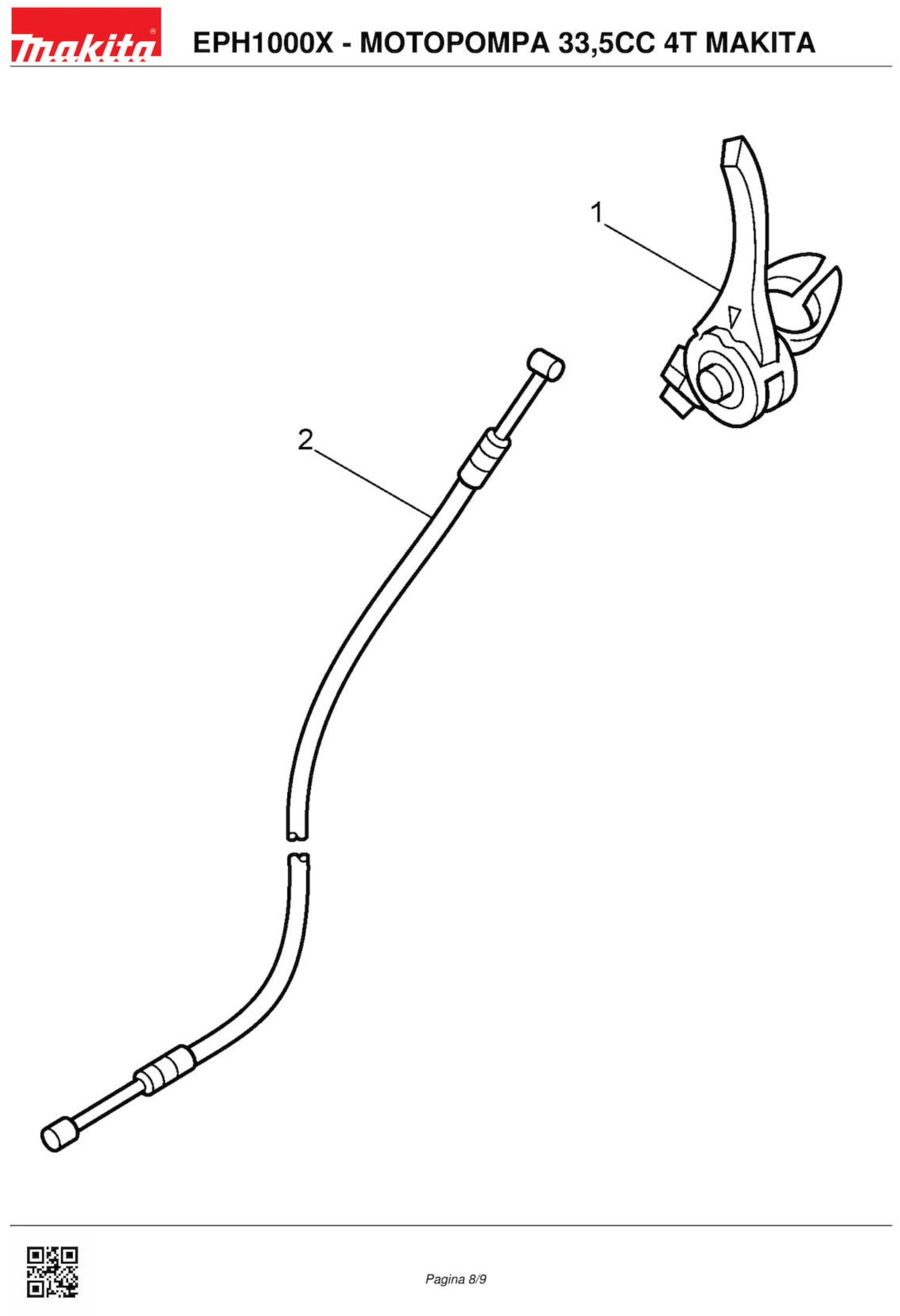

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Water Pump EPH1000X

Water Pump EPH1000X
#	Part Num.	Description
1	XKO0000128	COUPLING ASS'Y
2	K000340065	COUPLING PACKING
3	K000340782	NIPPLE
4	K000340781	COUPLING
5	K940019032	HOSE BAND
6	XKO0000170	MECHANICAL SEAL EPH1000X
7	K000110114	WASHER
8	XKO0120081	FAN
9	K000110255	CASING FAN
10	K889855042	O RING
11	K000118450	PLUG SET
12	K000114277	HANDLE EPH1000X
13	K000115108	PUMP CASING
14	K743119045	HEX. BOLT
15	XKO0000120	PLUG SET
16	K000113326	CHECK VALVE
17	K000113325	SUCTION FLANGE
18	K743119046	HEX. BOLT
19	K743119032	HEX. BOLT
20	K000113837	SUCTION HOSE
21	K000118193	STRAINER SET
22	K890255031	O RING
23	K734532057	HEX. SOCKET BOLT
24	K854255006	SEAL WASHER
25	K000110256	FLANGE BRACKET
26	K000116487	SPACER
27	K000117126	BASE SET
28	K743119047	HEX. BOLT
29	0119059531	SOCKET HEAD BOLT M5X16(W.SW)
30	5935006000	HOUSING, BLOWER CP
31	0600159970	BALL BEARING
32	0119089970	SOCKET HEAD BOLT
33	0200169970	WASHER
34	5932501200	SHAFT
35	0130069940	BOLT ASS'Y M6X16(W,SW)
36	5937006011	FLYWHEEL
37	0043704200	SCREW ASS'Y M4X20
38	168816-0	GYÚJTÁS/BHX2500
39	0654009931	PIN
40	424105-6	PLUG CAP
41	5257018001	WIRE COMPLETE
42	5257500300	GROMMET
43	5929505200	LABEL, TRADE MARK
44	5935500500	PLUG COVER
45	0140059921	SCREW M5X8
46	0140059370	SCREW ASS'Y M5X12
47	5935500800	CYLINDER COVER
48	0119059520	SOCKET HEAD BOLT M5X40
49	0140059962	SCREW M5X6
50	5923503400	MUFFLER COVER
51	168469-5	EXHAUST MUFFLER
52	5923501601	MUFFLER GURD
53	5923008011	SPARK ARRESTER
54	0043605160	SCREW ASS'Y M5X16(W,SW)
55	5931004000	ROCKER COVER COMPLETE
56	162307-3	ROCKER COVER GASKET
57	0650109950	SPARK PLUG CMR6A
58	5931009000	CYLINDER BLOCK SET
59	424201-0	CHECK VALVE
60	0119059470	SOCKET HEAD BOLT M5X16
61	266573-5	SOCKET HEAD BOLT M5X33
62	424200-2	ALKATRÉSZ/BHX2500
63	162274-2	CAM GEAR COVER GASKET ER2650LH
64	5921500502	CAMGEAR COVER
65	0043605140	CSAVAR M5X14 RBC250/220/RB
66	5926500600	OIL GAUGE
67	0213169990	GASKET
68	5936500100	CASE GASKET
69	374650000	OIL CASE
70	0043605180	SCREW RST250/RBC250/220/RB
71	5921501000	LEAD VALVE
72	5921501100	RETAINER PLATE
73	0119049960	SOCKET HEAD BOLT M4X10
74	5937500201	PLATE
75	0660000361	SWITCH
76	0043104080	SCREW M4X8L
77	5933500300	SPRING RETAINER
78	5933500200	VALVE SPRING
79	125554-7	SZELEP HIMBA /BHX2500
80	5933500000	PUSH ROD
81	256200-2	ROCKER SHAFT
82	5933500500	VALVE
83	5933500400	VALVE
84	5923500600	CAM LIFTER SHAFT
85	313169-4	CAM LIFTER
86	125552-1	CAM GEAR ASS'Y
87	5923500501	CAM GEAR SHAFT
88	195141-6	PISTON RING SET
89	233983-1	CIRCLIP
90	318613-6	PISTON
91	5932500900	PISTON PIN
92	212085-6	NEEDLE ROLLER BEARING
93	0323039990	WOODRUFF KEY
94	213537-0	OIL SEAL (L)
95	5932501000	CLIP
96	5932008000	CRANKSHAFT CT
97	213769-9	OIL SEAL S EM4250
98	125472-9	FUEL TANK CAP ASS'Y
99	5926016000	CAP, FUEL TANK ASS'Y
100	140436-2	ROD RBC/RBL/RBK/RST, ÚJ
101	5196500302	DAMPER MP352.4Z
102	424102-2	DAMPER MP352.4Z
103	424103-0	DAMPER MP352.4Z
104	5936500200	FUEL TANK
105	0561059990	CLAMP RBC220/22
106	163447-0	FILTER RST250/RBC250/220/RBL
107	162309-9	TUBE
108	195142-4	COVER STARTER AY
109	5315023000	PULLEY
110	5425003010	SCREW KIT RBC225/255
111	451923-9	REEL
112	232257-7	SPIRAL SPRING
113	5315001030	STOPPER
114	5215002110	INDÍTÓGOMB RBC225/255
115	5315022040	STARTER ROPE
116	911218-7	SCREW ASS'Y M5X14
117	5939503800	LABEL,MODEL
118	413120-5	TÖMÍTÉS
119	5923005002	INSULATOR COMPLETE MCZ
120	0021705000	NUT M5
121	0022706000	NUT M6
122	0022706000	NUT M6
123	0149069972	ADJUST SCREW
124	346261-1	CARBURETOR INSULATOR
125	0043605180	SCREW RST250/RBC250/220/RB
126	413138-6	CARBURATOR GASKET EBH341
127	5926501300	CLAMP
128	0140059370	SCREW ASS'Y M5X12
129	168783-9	CARBURETOR
130	5236018040	FORGÓRÉSZ RBL250/RBC225/255
131	5426005030	WASHER
132	5316005120	RING RBL250/RBC225/255
133	266581-6	SCREW RBL250/RBC22
134	5926002020	PUMP SPRING
135	5246001010	GASKET RBL250/RBC225/255
136	5936015010	JET
137	5926002040	PUMP GASKET
138	WJ00009599	DIAPHRAGM RBL250/RBC22
139	266582-4	PUMP COVER SCREW
140	5236046050	PRIMER PUMP COVER
141	424314-7	PRIMER PUMP
142	5236046140	AIR PURGE BODY ASS'Y
143	168574-8	DIAPHRAGM CPL EBH341U
144	442154-1	DIAPHRAGM GASKET
145	5936015020	BODY-ASSY-PUMP
146	5016004010	BODY PUMP RBL250/RBC225/255
147	0561080010	HOSE CLAMP
148	5931500900	BREATHER PIPE
149	422042-8	PIPE
150	125468-0	FILTER PLATE BHX2500
151	451925-5	CHOKE LEVER EM-4250
152	213540-1	O RING P15
153	424316-3	CHECK VALVE (1)
154	0240139970	O RING P14
155	451924-7	CHECK VALVE PLATE
156	424315-5	CHECK VALVE
157	168577-2	GASKET SEPARATOR
158	5933501600	SEPARATOR PLATE
159	450560-6	CHOKE PLATE
160	423376-2	GASKET RBC230
161	345919-9	PLATE
162	265188-5	SCREW M5X68 (W, SW SUS)
163	443141-3	FILTER EBH341U
164	450561-4	COVER AIR FILTER EM4250
165	911218-7	SCREW ASS'Y M5X14
1	6255008000	THROTTLE LEVER X MP352.4
2	0630059920	THROTTLE CABLE X MP352.4

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita EPH1000X

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Diagram Makita EPH1000X

Download (601.37KB)

Makita SKU: 163447-0

Gasoline Filter for Chainsaw Makita DCS230T

Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T - DCS231TC - DCS232TC Part for the following...

Last items in stock €4.49

Details

Makita SKU: 125468-0

Cleaner Plate Assy for Petrol Blower Makita BHX2500

Cleaner Plate Assy for Petrol Blower Makita BHX2500 Original replacement part Makita, Cleaner Plate Assy for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for...

on 10 Business Days Approx €21.00

Details

Air Cleaner Element for Petrol Blower Makita BHX2500

Makita SKU: 443141-3

Air Cleaner Element Sponge for Petrol Blower Makita BHX2500

Air Cleaner Element Sponge for Petrol Blower Makita BHX2500 Original replacement part Makita, Air Cleaner Element Sponge for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4....

Usually Ships in: 7/10 Business Days Approx. €2.23

Details

Makita SKU: 168577-2

Separator Gasket for Blower Makita BHX2501

Separator Gasket for Blower Makita BHX2501 Genuine replacement part Makita, Separator Gasket for Blowers BHX2501 - Dolmar PB252.4. Part for the following products: - BHX2501 - BLOWER 24,5CC 4T...

AVAILABLE €1.62

Details

Makita SKU: 5923005002

Carburator Insulator for Brushcutter Makita EM4340L

Carburator Insulator for Brushcutter Makita EM4340L Genuine replacement part Makita, Carburator Insulator Compl. for Brushcutters EBH341R - EM4340 - EM4340L - EM4341. Part for the following...

AVAILABLE €8.38

Details

Makita SKU: 195141-6

Piston Ring Set for Brushcutter Makita EBH341L

Piston Ring Set for Brushcutter Makita EBH341L Genuine spare part Makita, Piston Ring Set Set for Brushcutters 4 STOKE EBH341L - EBH341R - MS335.4C - MS350.4C Part for the following products: - EBH341L - BRUSHCUTTER 33,5CC 4T MAKITA...

Last items in stock €25.09

Details

Makita SKU: 162274-2

Cam Gear Cover Gasket for Brushcutter Makita EBH341L

Cam Gear Cover Gasket for Brushcutter Makita EBH341L Genuine spare part Makita, Cam Gear Cover Gasket for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: - EBH341L - BRUSHCUTTER...

on 7/10 Business Days Approx €2.76

Details

Makita SKU: 451925-5

Choke Lever for Brushcutter Makita EBH341L

Choke Lever for Brushcutter Makita EBH341L Genuine spare part Makita, Choke Lever for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: - ...

Usually Ships in: 7/10 Business Days Approx. €2.33

Details

Makita SKU: 213537-0

Oil Seal 12 for Brushcutter Dolmar MS335.4C

Oil Seal 12 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 12 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: - MS-430.4U - BRUSHCUTTER 43CC 4T DOLMAR -...

Last items in stock €5.29

Details

Makita SKU: 213769-9

Oil Seal 10 for Brushcutter Dolmar MS335.4C

Oil Seal 10 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 10 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: - MS335.4C - BRUSHCUTTER 33,5cc 4T - MS335.4U...

on 7/10 Business Days Approx €3.20

Details

Makita SKU: 346261-1

Makita Carburetor Insulator for EBH341U

Makita Carburetor Insulator for Bruschcutter EBH341U Original part Makita, Carburetor Insulator for Bruschcutter EBH341U. Part for the following products: - Makita Bruschcutter EBH341U - Dolmar Bruschcutter MS335.4U -...

Last items in stock €5.66

Details

Makita SKU: 195142-4

Dolmar Recoil Starter Set for MS335.4C

Dolmar Recoil Starter Set for MS335.4C Genuine replacement part Dolmar, Complete Recoil Starter Assembly for Dolmar and Makita 4-stroke engines. Specifically designed for MS335.4C/U brushcutters and MP352.4Z water pumps. Part...

Last items in stock €43.54

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Spare Parts for Motor Pump EPH1000X

Makita Spare Parts for Water Pump EPH1000X

Makita Spare Parts for Motor Pump EPH1000X

Makita Spare Parts for Water Pump EPH1000X

Makita Spare Parts for Water Pump EPH1000X

Data sheet

Specific References

Download

Diagram Makita EPH1000X

You might also like

News

Notes

Products

Our company
