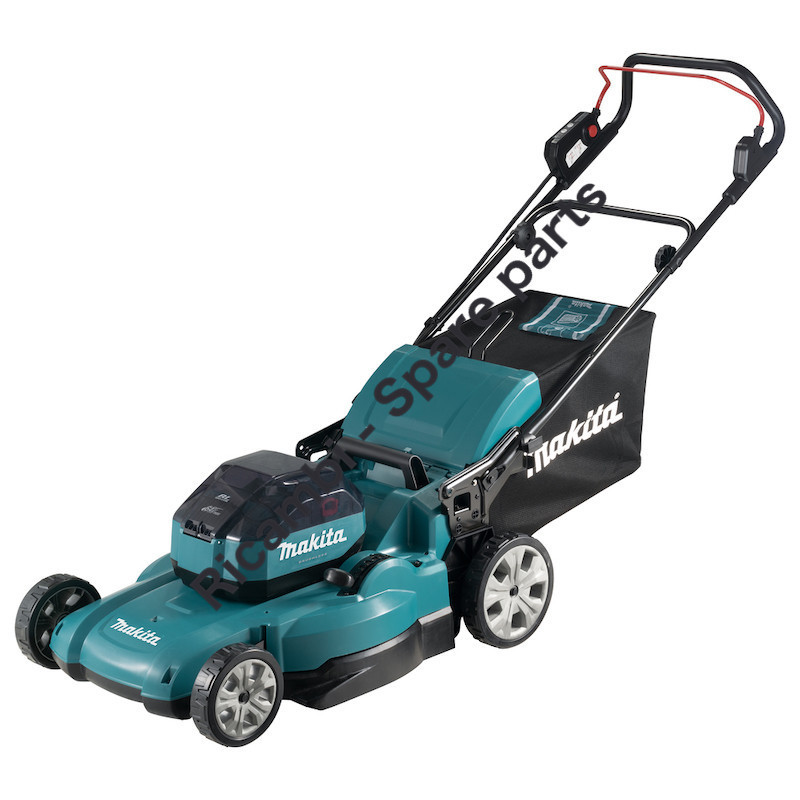

Makita LM002J Lawn Mower Parts

SKU: Makita DLM382
€6.81
VAT included

Makita LM002J Cordless Lawn Mower Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower LM002J.

Makita LM002J Lawn Mower Parts
  • New
  • Makita LM002J Lawn Mower Parts
  • Makita LM002J Lawn Mower Parts Diagram
  • Makita LM002J Lawn Mower Parts Diagram - 1
  • Makita LM002J Lawn Mower Parts Diagram - 2
  • Makita LM002J Lawn Mower Parts Diagram - 3
Makita

Makita LM002J Lawn Mower Parts

SKU: Makita DLM382 Condition: New
€6.81
VAT included

Makita LM002J Cordless Lawn Mower Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower LM002J.

settings 100 Spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
100 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 327424-8 SWITCH LEVER €8.63
2
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
3
 photo_cameraImage coming soon 183U73-5 SWITCH BOX SET €7.67
4
 photo_cameraImage coming soon 231227-3 COMPRESSION SPRING 15 €1.32
5
 photo_cameraImage coming soon 459856-2 SWITCH LEVER SUPPORT R €3.11
6
 photo_cameraImage coming soon 459857-0 LOCK-OFF BUTTON €2.03
7
 photo_cameraImage coming soon 911536-3 SCREW M4X20 €1.32
8
 photo_cameraImage coming soon 632T11-3 SWITCH UNIT €14.64
9
 photo_cameraImage coming soon 141E30-3 SWITCH CIRCUIT COMPLETE €22.05
10
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
11
 photo_cameraImage coming soon 687123-7 STRAIN RELIEF MT601 €1.32
12
 photo_cameraImage coming soon 183U73-5 SWITCH BOX SET €7.67
13
 photo_cameraImage coming soon 183U21-4 LEVER BOX SET €3.83
14
 photo_cameraImage coming soon 459863-5 SWITCH LEVER SUPPORT L €2.65
15
 photo_cameraImage coming soon 232575-3 TORSION SPRING 12 €1.32
16
 photo_cameraImage coming soon 911536-3 SCREW M4X20 €1.32
17
 photo_cameraImage coming soon 183U21-4 LEVER BOX SET €3.83
18
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
19
 photo_cameraImage coming soon 699175-6 CONNECTING CORD / POWER SUPPLY CORD €17.02
20
 photo_cameraImage coming soon 327871-3 UPPER HANDLE €33.56
21
 photo_cameraImage coming soon 265C08-1 THUMB SCREW M8X50 €1.32
22
 photo_cameraImage coming soon 265C06-5 KNOB M8 €2.65
23
 photo_cameraImage coming soon 413944-9 CLAMP €2.03
24
 photo_cameraImage coming soon 911163-6 PAN HEAD SCREW M4X35 €1.32
25
 photo_cameraImage coming soon 122A72-2 LOWER HANDLE R/L SET €33.56
26
 photo_cameraImage coming soon 258004-8 PIN 2.5 €1.32
27
 photo_cameraImage coming soon 413943-1 KNOB €2.17
28
 photo_cameraImage coming soon 234121-8 SPRING COMPRESSION 8 FS6300R €1.32
29
 photo_cameraImage coming soon 327877-1 SLEEVE €2.64
30
 photo_cameraImage coming soon 327876-3 LOCK PIN €3.20
31
 photo_cameraImage coming soon 265C07-3 HSH BOLT M8 €1.32
32
 photo_cameraImage coming soon 141E26-4 BATTERY COVER COMPLETE €24.94
33
 photo_cameraImage coming soon 231037-8 SPRING 7 9607/09 / GA / 3612BR €1.32
34
 photo_cameraImage coming soon 459852-0 LOCK LEVER €1.32
35
 photo_cameraImage coming soon 327875-5 ROD 6 €1.32
36
 photo_cameraImage coming soon LC961018-5 EXT E-RING JIS JE-5 €1.32
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
37
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
38
 photo_cameraImage coming soon 122A74-8 BATTERY HOUSING SET €17.02
40
 photo_cameraImage coming soon 232716-1 TORSION SPRING 9 €0.74
42
 photo_cameraImage coming soon 232718-7 COMPRESSION SPRING 11 €0.74
44
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
45
 photo_cameraImage coming soon 265B00-1 TAPPING SCREW 4X12 €1.21
46
 photo_cameraImage coming soon 632S59-9 TERMINAL €17.02
47
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
48
 photo_cameraImage coming soon 413932-6 CORD COVER €2.03
49
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
50
 photo_cameraImage coming soon 122B29-9 UPPER COVER SET €22.05
51
 photo_cameraImage coming soon 643535-4 LOCK KEY €5.16
53
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
54
 photo_cameraImage coming soon 620G27-2 CONTROLLER €284.09
55
 photo_cameraImage coming soon 422757-7 SPONGE €1.32
56
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
57
 photo_cameraImage coming soon 687123-7 STRAIN RELIEF MT601 €1.32
58
 photo_cameraImage coming soon 687051-6 STRAIN RELIEF HM 1500 €2.03
59
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
60
 photo_cameraImage coming soon 413930-0 LOWER COVER €22.05
61
 photo_cameraImage coming soon 319869-4 MOTOR HOUSING UPPER €11.27
62
 photo_cameraImage coming soon 253455-0 WAVE WASHER 19 €1.32
63
 photo_cameraImage coming soon 265B29-7 TAPPING SCREW 2X8 €1.32
64
 photo_cameraImage coming soon 620B88-2 CONTROLLER B €29.01
65
 photo_cameraImage coming soon 629A87-5 STATOR €105.73
66
 photo_cameraImage coming soon 652031-1 SCREW M3x6 €1.32
67
 photo_cameraImage coming soon 210141-6 BALL BEARING 6000DDW €2.03
68
 photo_cameraImage coming soon 519711-1 ROTOR ASSY €87.50
69
 Ball Bearing 6004LLU for Bruschcutter Makita EM4351UH 211387-7 Ball Bearing 6004LLU for Bruschcutter Makita EM4351UH €6.70
70
 photo_cameraImage coming soon 313391-3 MOTOR HOUSING LOWER €14.64
71
 photo_cameraImage coming soon 911681-4 SCREW M5x60 €1.32
72
 photo_cameraImage coming soon 911243-8 SCREW M5x25 HR2010 €1.32
73
 photo_cameraImage coming soon 413928-7 MOTOR SUPPORT €14.64
74
 photo_cameraImage coming soon 459853-8 DEFLECTOR €3.11
75
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
76
 photo_cameraImage coming soon 265C22-7 HEX BOLT M8X30 €1.32
77
 photo_cameraImage coming soon 240229-8 FAN 170 €5.99
78
 photo_cameraImage coming soon 313392-1 BLADE SUPPORT 530 €7.67
79
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
80
 photo_cameraImage coming soon 191V96-5 MOWER BLADE 530 SET €38.75
81
 photo_cameraImage coming soon 265A69-9 HEX BOLT M10X35 €1.32
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
83
 photo_cameraImage coming soon 141H22-0 REAR SHIELD COMPLETE €12.94
84
 photo_cameraImage coming soon 327418-3 ROD 6 €2.65
85
 photo_cameraImage coming soon 232721-8 TORSION SPRING 8 €2.03
86
 photo_cameraImage coming soon 347867-8 HANDLE SUPPORT R €19.41
87
 photo_cameraImage coming soon 266420-0 SCREW 5PER20 HR2800 €1.32
88
 photo_cameraImage coming soon 265C05-7 HEX BOLT M5X20 €1.32
89
 photo_cameraImage coming soon LC961018-5 EXT E-RING JIS JE-5 €1.32
90
 photo_cameraImage coming soon 347866-0 HANDLE SUPPORT L €17.02
91
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
92
 photo_cameraImage coming soon 413938-4 REAR GRIP €3.83
93
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
94
 photo_cameraImage coming soon 162993-0 HEIGHT ADJUST PLATE €11.27
95
 photo_cameraImage coming soon 266816-5 TAPPING SCREW M3X12 €1.32
96
 photo_cameraImage coming soon 413939-2 KNOB €2.65
97
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
98
 photo_cameraImage coming soon 413919-8 DECK COVER €46.03
99
 photo_cameraImage coming soon 413920-3 REAR DECK COVER €5.16
100
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
135
 photo_cameraImage coming soon 162A27-5 GRASS CATCHER FRAME €22.05
136
 photo_cameraImage coming soon 162B25-5 GRASS CATCHER BAG €33.56
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon 413918-0 DECK €87.50
102
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
103
 photo_cameraImage coming soon 347870-9 PLATE €1.32
104
 photo_cameraImage coming soon 232717-9 TENSION SPRING 17 €3.83
105
 photo_cameraImage coming soon 961012-7 RETAINING RING E6 €1.32
106
 photo_cameraImage coming soon 253731-2 FLAT WASHER 8 €1.32
107
 photo_cameraImage coming soon 253731-2 FLAT WASHER 8 €1.32
108
 photo_cameraImage coming soon 347873-3 REAR CONNECTING ROD €14.64
109
 photo_cameraImage coming soon 347871-7 FRONT CONNECTING ROD €11.27
110
 photo_cameraImage coming soon 253731-2 FLAT WASHER 8 €1.32
111
 photo_cameraImage coming soon 961012-7 RETAINING RING E6 €1.32
112
 photo_cameraImage coming soon 267281-1 WASHER 8 X GA9010C €1.32
113
 photo_cameraImage coming soon 313389-0 ROD HOLDER €14.64
114
 photo_cameraImage coming soon 327872-1 HEIGHT ADJUST LEVER €5.16
115
 photo_cameraImage coming soon 232715-3 TORSION SPRING 9 €1.32
116
 photo_cameraImage coming soon 327873-9 ROD 7 €2.03
117
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
118
 photo_cameraImage coming soon 347869-4 PLATE €1.32
119
 photo_cameraImage coming soon 265324-3 SCREW M8X12 €2.65
120
 photo_cameraImage coming soon 141E34-5 FRONT WHEEL COMPLETE 180 €19.41
121
 photo_cameraImage coming soon 210163-6 BALL BEARING 6001DDW €2.65
122
 photo_cameraImage coming soon 162989-1 FRONT AXLE €14.64
123
 photo_cameraImage coming soon 347869-4 PLATE €1.32
124
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
125
 photo_cameraImage coming soon 252301-4 HEX LOCK NUT M6-10 €1.32
126
 photo_cameraImage coming soon 265324-3 SCREW M8X12 €2.65
127
 photo_cameraImage coming soon 141E35-3 REAR WHEEL COMPLETE 230 €22.05
128
 photo_cameraImage coming soon 210163-6 BALL BEARING 6001DDW €2.65
129
 photo_cameraImage coming soon 912207-5 COUNTERSUNK HEAD SCREW M5 X10 €1.32
130
 photo_cameraImage coming soon 313390-5 REAR AXLE HOLDER €3.83
131
 photo_cameraImage coming soon 162990-6 REAR AXLE €24.94
132
 photo_cameraImage coming soon 347865-2 CLAMP 19 €2.03
133
 photo_cameraImage coming soon 266424-2 SCREW 4X20 TM 3000 €1.32
134
 photo_cameraImage coming soon 252301-4 HEX LOCK NUT M6-10 €1.32

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita LM002J Cordless Lawn Mower Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower LM002J.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita DLM382

Makita Cordless Lawn Mower LM002J Parts List
Pag.1
Pos. Part Num. Description
1 327424-8 SWITCH LEVER
2 266424-2 TAPPING SCREW 4X20
3 183U73-5 SWITCH BOX SET
4 231227-3 COMPRESSION SPRING 15
5 459856-2 SWITCH LEVER SUPPORT R
6 459857-0 LOCK-OFF BUTTON
7 911536-3 PAN HEAD SCREW M4X20
8 632T11-3 SWITCH UNIT
9 141E30-3 SWITCH CIRCUIT COMPLETE
10 266424-2 TAPPING SCREW 4X20
11 687123-7 CORD CLAMP
12 183U73-5 SWITCH BOX SET
13 183U21-4 LEVER BOX SET
14 459863-5 SWITCH LEVER SUPPORT L
15 232575-3 TORSION SPRING 12
16 911536-3 PAN HEAD SCREW M4X20
17 183U21-4 LEVER BOX SET
18 266424-2 TAPPING SCREW 4X20
19 699175-6 CONNECTING CORD / POWER SUPPLY CORD
20 327871-3 UPPER HANDLE
21 265C08-1 THUMB SCREW M8X50
22 265C06-5 KNOB M8
23 413944-9 CLAMP
24 911163-6 PAN HEAD SCREW M4X35
25 122A72-2 LOWER HANDLE R/L SET
26 258004-8 PIN 2.5
27 413943-1 KNOB
28 234121-8 COMPRESSION SPRING 8
29 327877-1 SLEEVE
30 327876-3 LOCK PIN
31 265C07-3 HSH BOLT M8
32 141E26-4 BATTERY COVER COMPLETE
33 231037-8 COMPRESSION SPRING 7
34 459852-0 LOCK LEVER
35 327875-5 ROD 6
36 LC961018-5 RETAINING RING E-5
52 8046H9-4 INDICATION LABEL
Pag.2
37 266424-2 TAPPING SCREW 4X20
38 122A74-8 BATTERY HOUSING SET
39 413942-3 LOCK LEVER
40 232716-1 TORSION SPRING 9
41 413940-7 SPRING HOLDER UPPER
42 232718-7 COMPRESSION SPRING 11
43 413941-5 SPRING HOLDER
44 266424-2 TAPPING SCREW 4X20
45 265B00-1 TAPPING SCREW 4X12
46 632S59-9 TERMINAL
47 266424-2 TAPPING SCREW 4X20
48 413932-6 CORD COVER
49 266424-2 TAPPING SCREW 4X20
50 122B29-9 UPPER COVER SET
51 643535-4 LOCK KEY
53 266424-2 TAPPING SCREW 4X20
54 620G27-2 CONTROLLER
55 422757-7 SPONGE
56 266424-2 TAPPING SCREW 4X20
57 687123-7 CORD CLAMP
58 687051-6 CORD CLAMP
59 266424-2 TAPPING SCREW 4X20
60 413930-0 LOWER COVER
61 319869-4 MOTOR HOUSING UPPER
62 253455-0 WAVE WASHER 19
63 265B29-7 TAPPING SCREW 2X8
64 620B88-2 CONTROLLER B
65 629A87-5 STATOR
66 652031-1 PAN HEAD SCREW M3X6
67 210141-6 BALL BEARING 6000DDW
68 519711-1 ROTOR ASSY
69 211387-7 BALL BEARING 6004LLU
70 313391-3 MOTOR HOUSING LOWER
71 911681-4 PAN HEAD SCREW M5X60
72 911243-8 PAN HEAD SCREW M5X25
73 413928-7 MOTOR SUPPORT
74 459853-8 DEFLECTOR
75 266424-2 TAPPING SCREW 4X20
76 265C22-7 HEX BOLT M8X30
77 240229-8 FAN 170
78 313392-1 BLADE SUPPORT 530
79 266424-2 TAPPING SCREW 4X20
80 191V96-5 MOWER BLADE 530 SET
81 265A69-9 HEX BOLT M10X35
137 8113M9-4 SPECIFICATION LABEL
138 8113M3-6 SPECIFICATION LABEL
pag.3
82 8043Y5-3 LABEL
83 141H22-0 REAR SHIELD COMPLETE
84 327418-3 ROD 6
85 232721-8 TORSION SPRING 8
86 347867-8 HANDLE SUPPORT R
87 266420-0 TAPPING SCREW 5X20
88 265C05-7 HEX BOLT M5X20
89 LC961018-5 RETAINING RING E-5
90 347866-0 HANDLE SUPPORT L
91 266424-2 TAPPING SCREW 4X20
92 413938-4 REAR GRIP
93 266424-2 TAPPING SCREW 4X20
94 162993-0 HEIGHT ADJUST PLATE
95 266816-5 TAPPING SCREW M3X12
96 413939-2 KNOB
97 266424-2 TAPPING SCREW 4X20
98 413919-8 DECK COVER
99 413920-3 REAR DECK COVER
100 266424-2 TAPPING SCREW 4X20
135 162A27-5 GRASS CATCHER FRAME
136 162B25-5 GRASS CATCHER BAG
Pag.4
101 413918-0 DECK
102 266424-2 TAPPING SCREW 4X20
103 347870-9 PLATE
104 232717-9 TENSION SPRING 17
105 961012-7 RETAINING RING E-6
106 253731-2 FLAT WASHER 8
107 253731-2 FLAT WASHER 8
108 347873-3 REAR CONNECTING ROD
109 347871-7 FRONT CONNECTING ROD
110 253731-2 FLAT WASHER 8
111 961012-7 RETAINING RING E-6
112 267281-1 FLAT WASHER 8
113 313389-0 ROD HOLDER
114 327872-1 HEIGHT ADJUST LEVER
115 232715-3 TORSION SPRING 9
116 327873-9 ROD 7
117 266424-2 TAPPING SCREW 4X20
118 347869-4 PLATE
119 265324-3 HEX BOLT M8X12
120 141E34-5 FRONT WHEEL COMPLETE 180
121 210163-6 BALL BEARING 6001DDW
122 162989-1 FRONT AXLE
123 347869-4 PLATE
124 266424-2 TAPPING SCREW 4X20
125 252301-4 HEX LOCK NUT M6-10
126 265324-3 HEX BOLT M8X12
127 141E35-3 REAR WHEEL COMPLETE 230
128 210163-6 BALL BEARING 6001DDW
129 912207-5 COUNTERSUNK HEAD SCREW M5X10
130 313390-5 REAR AXLE HOLDER
131 162990-6 REAR AXLE
132 347865-2 CLAMP 19
133 266424-2 TAPPING SCREW 4X20
134 252301-4 HEX LOCK NUT M6-10
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DLM382
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita LM002J Parts Drawing

Makita LM002J Parts Drawing

Download (1.22MB)

You might also like

Makita DLM432 Front Shaft
Makita SKU: 165668-0
Makita DLM432 Front Shaft
Makita Front Shaft for Battery Lawnmower DLM432 Original Makita spare part, Front Shaft for Electric Lawnmower DLM432. Spare part compatible with the following products: - Makita Battery Lawn Mower DLM432 - Part Number: 165668-0
Usually Ships in: 7/10 Business Days Approx. €19.41
Details
Comments (0)
No customer reviews for the moment.
