Makita

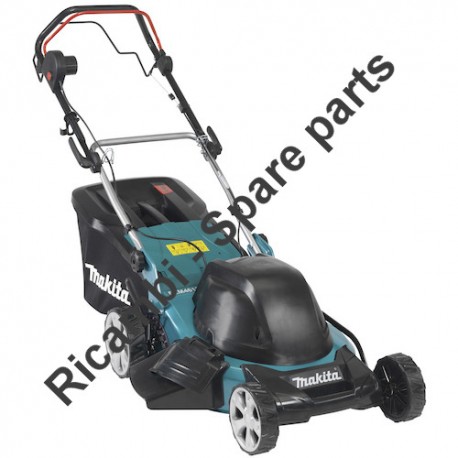

Makita Spare Parts for Lawn Mower ELM4613

SKU: Makita ELM4613
€2.21
VAT included

Makita Spare Parts for Lawn Mower ELM4613

Makita genuine spare parts or replacement parts for to fix Lawn Mower ELM4613.
Makita Spare Parts for Lawn Mower ELM4613
  • Makita Spare Parts for Lawn Mower ELM4613
  • Makita Spare Parts for Lawn Mower ELM4613
Makita

Makita Spare Parts for Lawn Mower ELM4613

SKU: Makita ELM4613 Condition: New
€2.21
VAT included

Makita Spare Parts for Lawn Mower ELM4613

Makita genuine spare parts or replacement parts for to fix Lawn Mower ELM4613.
settings 92 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
92 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

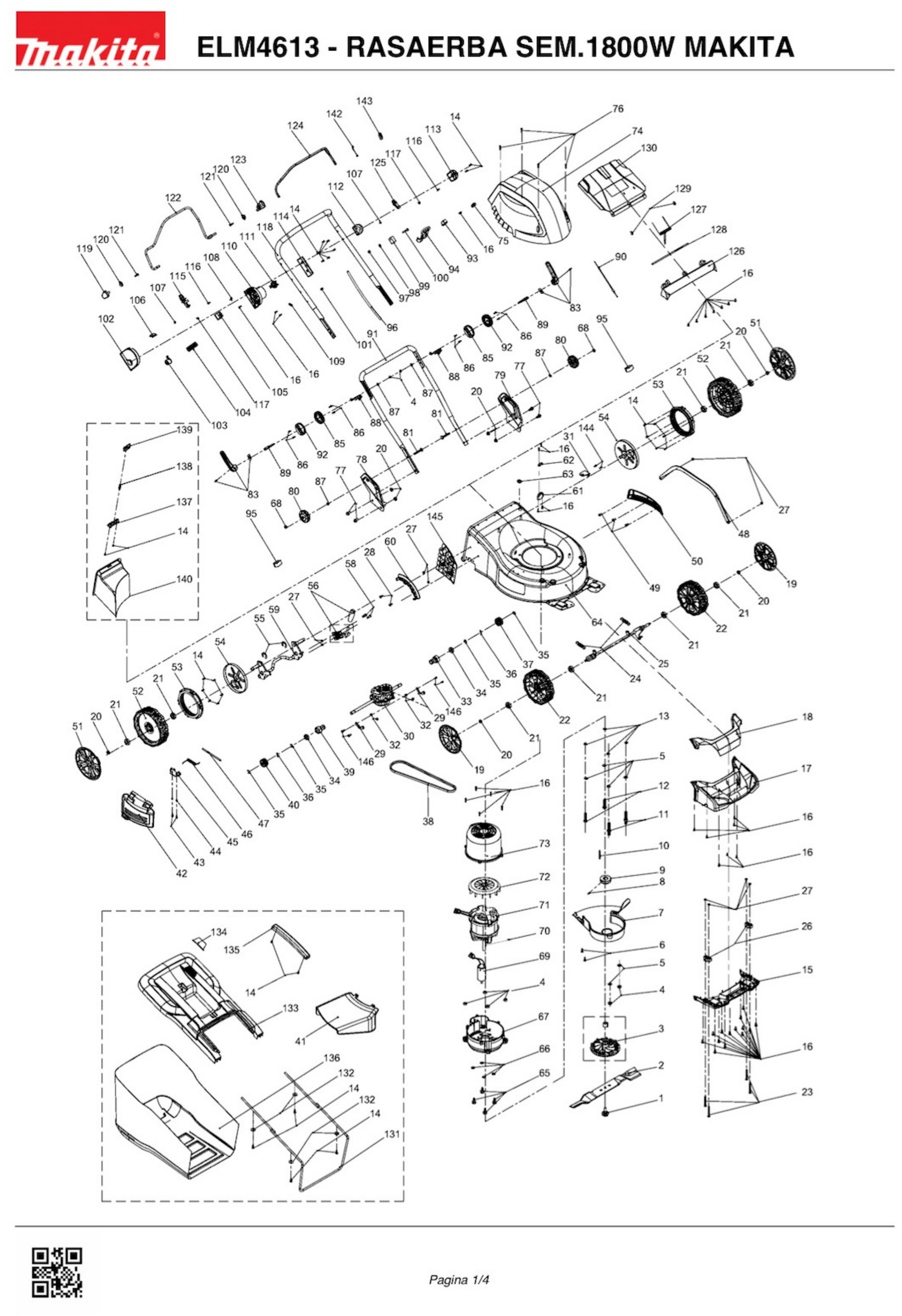

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 671100802 BLADE TIGHTEN BOLT €5.12
2
 photo_cameraImage coming soon 671146102 BLADE 460 €34.00
3
 photo_cameraImage coming soon 671005057 EM460S BLADE HUB €24.69
4
 photo_cameraImage coming soon 671005008 NUT M8 PLM4110-4610-4611 €2.21
5
 photo_cameraImage coming soon 671007007 WASHERELM €1.47
6
 photo_cameraImage coming soon 671001037 SCREW 5X16 €1.44
7
 photo_cameraImage coming soon 671996001 BELT COVER €14.02
8
 photo_cameraImage coming soon 671030050 SCREW M6X8 PM5120-5120S €1.79
9
 photo_cameraImage coming soon 671004009 PULLEY EM460S €21.85
10
 photo_cameraImage coming soon 671090037 WOODRUFF €2.12
11
 photo_cameraImage coming soon 671003044 SCREW M8X17X35 PLM4110-4610-11 €2.77
12
 photo_cameraImage coming soon 671006025 SCREW M8x35 PLM4110-4610-4611 €2.06
13
 photo_cameraImage coming soon 671008002 SPRING RINGPLM €2.15
14
 photo_cameraImage coming soon 671001005 SELF-TAPPING SCREWELM €2.15
16
 photo_cameraImage coming soon 671001003 SELF-TAPPING SCREWELM €2.15
19
 photo_cameraImage coming soon 671003014 180MM HUB COVER €6.38
20
 photo_cameraImage coming soon 671005028 HEXAGONAL LOCKINGPLM €2.15
21
 photo_cameraImage coming soon 671004012 BEARING 6201Z ELM4110 €13.07
22
 photo_cameraImage coming soon 671002012 WHEEL 175 ELM4110 €20.92
23
 photo_cameraImage coming soon 671006119 SCREW M6X60 €2.14
24
 photo_cameraImage coming soon 671011230 SPRING €1.78
26
 photo_cameraImage coming soon 671445001 BUSH ELM4110 €2.85
27
 photo_cameraImage coming soon 671005005 LOCKING NUTPLM €2.15
28
 photo_cameraImage coming soon 671002020 SCREW M6X16 €1.79
29
 photo_cameraImage coming soon 671001244 ELM4110 PLATE €2.15
30
 photo_cameraImage coming soon 671502038 TRACTION GROUP €130.36
32
 photo_cameraImage coming soon 671005024 HEXAGONAL LOCKINGPLM €2.15
33
 photo_cameraImage coming soon 671002035 BEARING BOX PM5120-S €13.39
34
 photo_cameraImage coming soon DA00001029 CUSHION FOR ELM4611 €5.28
35
 photo_cameraImage coming soon 671090020 WASHER PLM4110-4610-4611 €2.06
36
 photo_cameraImage coming soon 671090001 5X21,5 PIN €2.06
37
 photo_cameraImage coming soon DA00001090 PINION SX PLM4110-4610-4611 €12.63
38
 photo_cameraImage coming soon 671001273 BELT 710MM €9.32
40
 photo_cameraImage coming soon DA00001091 PINION DX PLM4611 €12.63
41
 photo_cameraImage coming soon 671930001 SIDE PROTECTION €15.98
42
 photo_cameraImage coming soon 671929001 LATERAL DRAIN COVER €9.32
43
 photo_cameraImage coming soon 671002010 SCREW M5X12 €2.08
44
 photo_cameraImage coming soon 671080040 ELASTIC WASHER €1.44
45
 photo_cameraImage coming soon 671001571 PLATE PM5100S3 €5.73
46
 photo_cameraImage coming soon 671011205 SPRING €3.24
47
 photo_cameraImage coming soon 671001019 ROOD PM5100S3 €5.28
51
 photo_cameraImage coming soon 671030150 200MM HUB COVER €6.38
52
 photo_cameraImage coming soon 671020140 WHEEL D200 EM460S €28.71
53
 photo_cameraImage coming soon DA00000602 WHEEL GEAR PLM4110-4610 €8.51
54
 photo_cameraImage coming soon 671650010 INTERNAL WHEEL COVER €6.57
55
 photo_cameraImage coming soon 671009003 WASHER D.19X1.5 PLM4611 €2.06
56
 photo_cameraImage coming soon 671500201 HEIGHT ADJUSTMENT LEVER €12.07
60
 photo_cameraImage coming soon 671010670 HEIGHT ADJUSTMENT PLATE €7.17
61
 photo_cameraImage coming soon 671260001 CABLE SUPPORT ELM4110 €2.03
62
 photo_cameraImage coming soon 671001023 ELM3310 STRING CABLE €2.03
63
 photo_cameraImage coming soon 671800104 CORD PROTECTING X PLM5600 €1.44
65
 photo_cameraImage coming soon 671001009 MOTOR TIGHTEN BOLTPLM €2.03
66
 photo_cameraImage coming soon 671080100 TOOTH WASHER €1.44
67
 photo_cameraImage coming soon 671997001 LOWER DEFLECTOR €27.54
68
 photo_cameraImage coming soon 671005023 HEXAGONAL NUT €2.06
69
 photo_cameraImage coming soon 671030620 CAPACITOR 25MF €20.48
70
 photo_cameraImage coming soon 671009019 AXLE RING €2.12
71
 photo_cameraImage coming soon DA00000850 1800W EM460S ENGINE €267.87
72
 photo_cameraImage coming soon 671327001 FAN ELM4110 €20.92
73
 photo_cameraImage coming soon 671625001 UPPER DEFLECTOR €20.48
75
 photo_cameraImage coming soon 671284001 JACKET 1 OF CABLEELM €2.03
77
 photo_cameraImage coming soon 671006064 HEXAGON HEAD BOLTPLM €2.15
80
 photo_cameraImage coming soon 671530010 PLM5600 KNOB €3.11
81
 photo_cameraImage coming soon DA00000880 FLAT HEAD BOLT €2.76
83
 photo_cameraImage coming soon 671005141 ADJUSTING LEVER €12.07
85
 photo_cameraImage coming soon 671058001 LOWER TOOTHED RING €3.24
87
 photo_cameraImage coming soon 671011890 WASHER 16 €2.14
89
 photo_cameraImage coming soon 671005141 ADJUSTING LEVER €12.07
90
 photo_cameraImage coming soon DA00000851 TRACTION CABLE €10.69
92
 photo_cameraImage coming soon 671068001 UPPER RING ADJUSTMENT €2.66
95
 photo_cameraImage coming soon 671611001 CABLE SUPPORT €2.14
96
 photo_cameraImage coming soon 671001072 CABLE CONNECTIONPLM €13.71
97
 photo_cameraImage coming soon 671005016 NUT M6 PLM4110-4610-4611 €2.01
98
 photo_cameraImage coming soon 671007008 WASHER PLM4110-4610-4611 €2.06
99
 photo_cameraImage coming soon 671336001 HOLDER PLM4110-4610-4611 €2.06
100
 photo_cameraImage coming soon 671006077 SCREW M6X35 PM5120-5120S €1.39
101
 photo_cameraImage coming soon 671283001 BUSHING 1 ELM3310-3710 €2.15
103
 photo_cameraImage coming soon 671425003 SECURITY KEY €1.78
104
 photo_cameraImage coming soon 671011079 SPRING OF SAFETYELM €10.75
105
 photo_cameraImage coming soon 671010040 ELM3310-3710 SWITCH €10.75
106
 photo_cameraImage coming soon 671001043 LAMPSHADEELM €2.03
108
 photo_cameraImage coming soon 671069001 LH SWITCH BOX €5.59
109
 photo_cameraImage coming soon 671491001 ELM3710 CABLE CLAMP €2.03
110
 photo_cameraImage coming soon 671069001 LH SWITCH BOX €5.59
111
 photo_cameraImage coming soon 671069001 LH SWITCH BOX €5.59
112
 photo_cameraImage coming soon 671084001 RIGHT SUPPORT €1.78
114
 photo_cameraImage coming soon 671451001 ELM4110 PLATE €3.04
115
 photo_cameraImage coming soon 671072001 DX CONNECTOR €2.27
116
 photo_cameraImage coming soon 671001036 SELF-TAPPING SCREWELM €2.03
117
 photo_cameraImage coming soon 671011124 SPRINGELM €2.03
119
 photo_cameraImage coming soon 671466002 DX SUPPORT EM460S €4.49
120
 photo_cameraImage coming soon 671391001 WASHER €2.06
121
 photo_cameraImage coming soon 671105502 SCREW M5X16 €1.40
123
 photo_cameraImage coming soon 671466001 SUPPORT SX EM460S €4.49
125
 photo_cameraImage coming soon 671071001 LH CONNECTOR €1.78

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Lawn Mower ELM4613

Makita genuine spare parts or replacement parts for to fix Lawn Mower ELM4613.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita ELM4613
Lawn Mower ELM4613
# Part Num. Description
1 671100802 SCREW M10X40
2 671146102 BLADE 460
3 671005057 BLADE HUB EM460S
4 671005008 NUT M8 PLM4110-4610-4611
5 671007007 WASHER 8 ELM3310-3710
6 671001037 SCREW 5X16
7 671996001 BELT COVER
8 671030050 SCREW M6X8 PM5120-5120S
9 671004009 EM460S PULLEY
10 671090037 WOODRUFF
11 671003044 SCREW M8X17X35 PLM4110-4610-11
12 671006025 SCREW M8X35 PLM4110-4610-4611
13 671008002 WASHER ELM4110
14 671001005 SCREW M4X16 ELM3310-3710
15 671927001 SUPPORT
16 671001003 SCREW 4X12 ELM3310-3710
17 671926001 FRONT
18 671925001 FRONT PANEL COVER
19 671003014 180MM HUB COVER
20 671005028 NUT M8 ELM4110
21 671004012 BEARING 6201Z ELM4110
22 671002012 WHEEL 175 ELM4110
23 671006119 SCREW M6X60
24 671011230 SPRING
25 671002362 FRONT AXLE
26 671445001 PLATE ELM4110
27 671005005 NUT M6 ELM4110
28 671002020 SCREW M6X16
29 671001244 ELM4110 PLATE
30 671502038 TRACTION GROUP
31 671002577 PLATE
32 671005024 NUT M6 ELM4110
33 671002035 PM5120-S BEARING BOX
34 DA00001029 BEARING FOR ELM4611
35 671090020 WASHER PLM4110-4610-4611
36 671090001 PLUG 5X21.5
37 DA00001090 PINION SX PLM4110-4610-4611
38 671001273 BELT 710MM
39 671002085 BEARING BOX
40 DA00001091 PINION DX PLM4611
41 671930001 SIDE PROTECTION
42 671929001 LATERAL DRAIN COVER
43 671002010 SCREW M5X12
44 671080040 ELASTIC WASHER
45 671001571 PLATE PM5100S3
46 671011205 SPRING
47 671001019 PM5100S3 ROD
48 671002364 BAR
49 671010310 SCREW 4,2X8
50 671928001 PROTECTION
51 671030150 200MM HUB COVER
52 671020140 WHEEL D200 EM460S
53 DA00000602 WHEEL GEAR PLM4110-4610
54 671650010 INTERNAL COVER WHEEL
55 671009003 WASHER D.19X1,5 PLM4611
56 671500201 HEIGHT ADJUSTMENT LEVER
58 671002041 SCREW M6X17
59 671002367 REAR AXLE
60 671010670 HEIGHT ADJUSTMENT PLATE
61 671260001 CABLE SUPPORT ELM4110
62 671001023 STRAIGHTENING CLAMP ELM3310
63 671800104 CORD PROTECTING X PLM5600
64 671001818 BLUE FRAME ELM4613
65 671001009 SCREW ELM4110
66 671080100 TOOTH WASHER
67 671997001 LOWER DEFLECTOR
68 671005023 NUT M8
69 671030620 CAPACITOR 25MF
70 671009019 RING
71 DA00000850 1800W EM460S ENGINE
72 671327001 ELM4110 FAN
73 671625001 UPPER DEFLECTOR
74 671995001 ENGINE COVER
75 671284001 BUSH 2 ELM3310-3710
76 671003079 SCREW M5X12
77 671006064 SCREW M8X6 ELM4110
78 671017100 RIGHT SUPPORT BLUE ELM4613
79 671001709 BLUE LEFT SUPPORT ELM4613
80 671530010 PLM5600 KNOB
81 DA00000880 SCREW M8X35 ELM4410
83 671005141 ADJUSTING LEVER
85 671058001 LOWER TOOTHED RING
86 DA00000840 SCREW 3X10
87 671011890 WASHER 16
88 671002361 CABLE SUPPORT
89 671005141 ADJUSTING LEVER
90 DA00000851 TRACTION CABLE
91 671017070 LOWER HANDLE
92 671068001 UPPER RING ADJUSTMENT
93 671800102 RING D24
94 671479001 FIXED CABLE
95 671611001 CABLE SUPPORT
96 671001072 CABLE 1350MM ELM4110
97 671005016 NUT M6 PLM4110-4610-4611
98 671007008 WASHER PLM4110-4610-4611
99 671336001 SUPPORT PLM4110-4610-4611
100 671006077 SCREW M6X35 PM5120-5120S
101 671283001 BUSH 1 ELM3310-3710
102 671081001 SWITCH BOX
103 671425003 SAFETY BUTTON
104 671011079 SPRING ELM3310-3710
105 671010040 ELM3310-3710 SWITCH
106 671001043 SCREEN ELM3310-3710
107 671001021 SCREW 4X10
108 671069001 LEFT SWITCH BOX
109 671491001 STRAIGHTENING CLAMP ELM3710
110 671069001 LEFT SWITCH BOX
111 671069001 LEFT SWITCH BOX
112 671084001 RIGHT SUPPORT
113 671083001 LEFT SUPPORT
114 671451001 ELM4110 PLATE
115 671072001 RH CONNECTOR
116 671001036 SCREW 3X10 ELM3310-3710
117 671011124 SPRING EM3310-3710
118 671001713 UPPER HANDLE
119 671466002 SUPPORT DX EM460S
120 671391001 WASHER
121 671105502 SCREW M5X16
122 671002594 TRACTION LEVER
123 671466001 SUPPORT SX EM460S
124 671001852 MOTOR BRAKE LEVER
125 671071001 LH CONNECTOR
126 671932001 BLUE COVER
127 671011203 SPRING
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita ELM4613
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita ELM4613

Diagram Makita ELM4613

Download (347.99KB)

You might also like

Einhell EM1650 -20% Sale
Einhell Italia s.r.l. SKU: EM1650
Electric Lawn Mower 1600 Watts Einhell EM1650
Electric Lawn Mower 1600 Watts Einhell EM1650 Powerful electric lawn, ergonomic and space saving with adjustable cutting height. Technical Data: - Voltage: 230 ~ 50 Hz - Power: 1600 W - Cutting height adjustment: 10-positions from 25...
Last items in stock €197.63 €247.03
Details
Electric Lawn Mower Makita 1400W ELM3800 -10% Sale
Makita SKU: ELM3800
Electric Lawn Mower Makita 1400W ELM3800
Electric Lawn Mower Makita 1400W ELM3800 Features: - Innovative Makita Design. - Polypropylene shell with UV and weather resistance. - Easy drainage of the picking basket provided already assembled. - Integrated transport handle. -...
Out-of-Stock €172.32 €191.47
Details
Comments (0)
