Makita

Makita Spare Parts for Brusch Cutter RBC320

SKU: Makita RBC320
€1.47
VAT included

Makita Spare Parts for Brusch Cutter RBC320

Makita Genuine spare parts or replacement parts for to repair Brusch Cutter RBC320.

Fix Your Brusch Cutter Makita RBC320. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Brusch Cutter RBC320
  • Makita Spare Parts for Brusch Cutter RBC320
  • Makita Spare Parts for Brusch Cutter RBC320
  • Makita Spare Parts for Brusch Cutter RBC320
  • Makita Spare Parts for Brusch Cutter RBC320
  • Makita Spare Parts for Brusch Cutter RBC320
Makita

Makita Spare Parts for Brusch Cutter RBC320

SKU: Makita RBC320 Condition: New
€1.47
VAT included

Makita Spare Parts for Brusch Cutter RBC320

Makita Genuine spare parts or replacement parts for to repair Brusch Cutter RBC320.

Fix Your Brusch Cutter Makita RBC320. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 228 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
220 spare parts

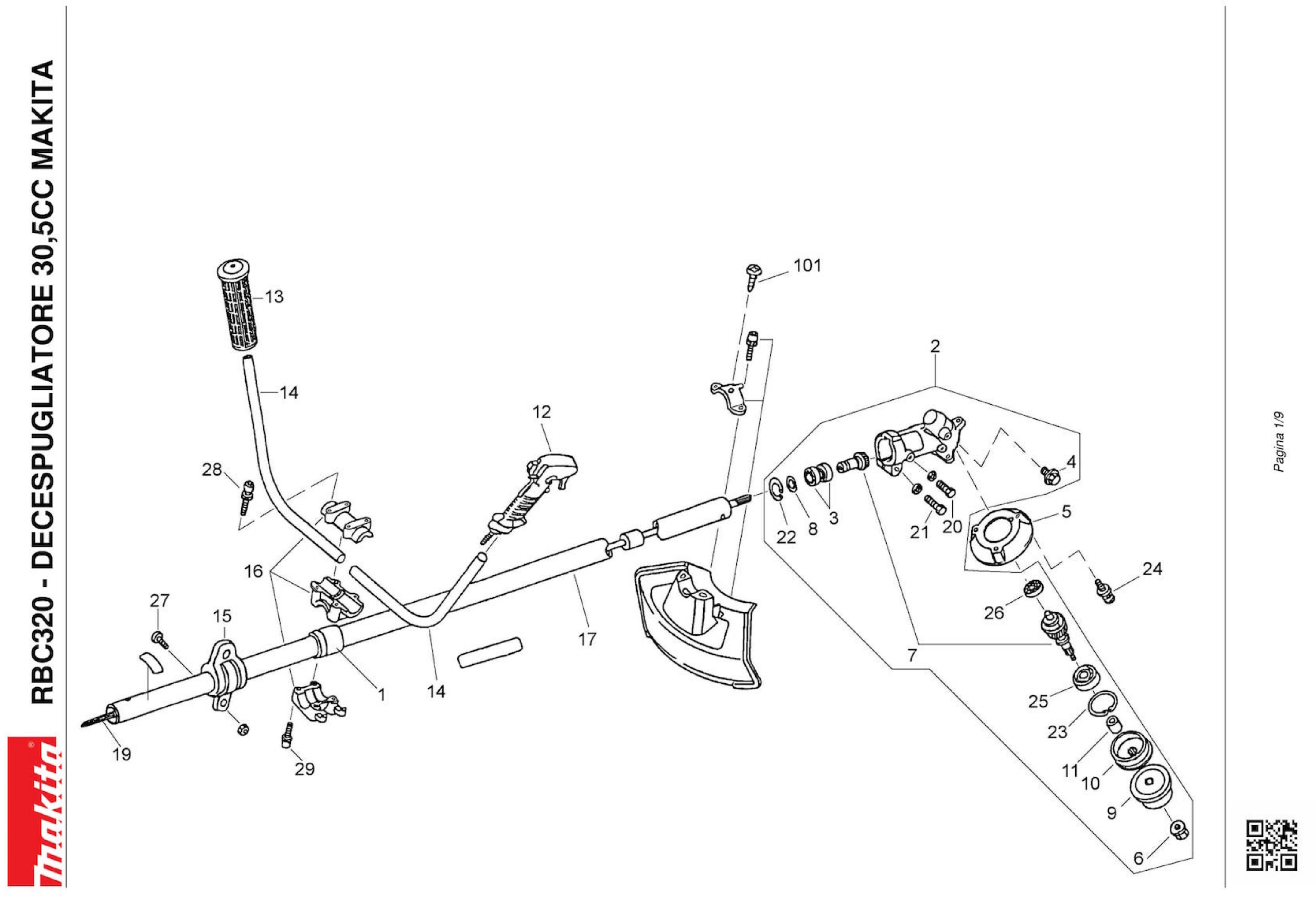

Esploso pagina 1
Pos. Item Price Buy
100
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
100
 Carburator Walbro for Brushcutter Dolmar MS3201C 5316021000 Carburator Walbro for Brushcutter Dolmar MS3201C €77.43
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6273001008 GEAR HOUSING CPL RBC321 €83.77
3
 photo_cameraImage coming soon 210049-4 BEARING 609ZZ EBH252L €6.29
4
 photo_cameraImage coming soon 266671-5 OIL CAP €3.23
5
 photo_cameraImage coming soon 412099-7 PROTECTION X DECESP. €3.95
6
 photo_cameraImage coming soon 264018-7 NUT M8 RBC2510 €1.44
7
 Cutter Shaft Set for Brushcutter Makita RBC3110 6273013000 Cutter Shaft Set for Brushcutter Makita RBC3110 €45.74
8
 photo_cameraImage coming soon 6253502600 STOP OUTSIDE X RBC310 / RBK410 €2.15
9
 Clamp Washer for Brushcutter Makita RBC310 6258500001 Clamp Washer for Brushcutter Makita RBC310 €25.23
10
 photo_cameraImage coming soon 6258503600 UPPER FLANGE RBC310 / K410 €29.92
11
 photo_cameraImage coming soon 6253501300 DISTANCE €5.28
12
 photo_cameraImage coming soon 6255059000 RBC320 THROTTLE LEVER €136.64
13
 photo_cameraImage coming soon 6304501000 HANDLE X RBC 310 €7.36
14
 photo_cameraImage coming soon 331941-2 HANDLE X RBC320 €35.52
15
 photo_cameraImage coming soon 6254023000 CPL SUPPORT X RBC321 €18.40
16
 photo_cameraImage coming soon 6414005001 HANDLEGRIP SUPPORT RBC351 €61.61
17
 photo_cameraImage coming soon 6271009000 COMPLETE SHAFT X RBC320 €237.79
19
 photo_cameraImage coming soon 6271500802 SHAFT X RBC321 €15.85
20
 photo_cameraImage coming soon 0011306120 M6X12 X RBC310 / 520 BOLT €1.44
22
 photo_cameraImage coming soon 0031424000 INNER SNAP RING X RBC260-230-225 €2.15
23
 photo_cameraImage coming soon 0031430000 INNER SNAP RING X RBC310 / RBK410 €2.77
24
 photo_cameraImage coming soon 922213-2 HEX BOLT M5X12 EBH253L/341U €1.51
25
 photo_cameraImage coming soon 0600109970 BEARING 6200DDU RBC321 €8.37
26
 photo_cameraImage coming soon 0600079990 BEARING 627 X RBC415 €16.17
27
 photo_cameraImage coming soon 0043605200 WASHER AND SCREW X RBC321 €1.54
28
 photo_cameraImage coming soon 0119059840 SCREW M5X25 MOD RBC415 €2.69
29
 photo_cameraImage coming soon 0119059890 SOCKET HEAD BOLT M5X25 XRBC225 €2.15
30
 photo_cameraImage coming soon 6202006000 BOLT FOR RBC310 €2.14
31
 photo_cameraImage coming soon 266457-7 SCREW M6FOR25 EBH252L €2.76
32
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
33
 photo_cameraImage coming soon 6271004001 CLUTCH HOUSING RBC321 €151.83
34
 photo_cameraImage coming soon 6272002002 CPL DRUM CLUTCH RBC321 €64.79
37
 photo_cameraImage coming soon 5317500700 SPARK PLUG COVER FOR RBC321 €7.33
39
 photo_cameraImage coming soon 5311007000 ENGINE CPL FOR RBC321 €199.62
40
 photo_cameraImage coming soon 5311501200 ENGINE GASKET FOR RBC321 €2.30
41
 photo_cameraImage coming soon 5312007001 CRANKSHAFT FOR MS2810 €123.95
42
 Cylinder for Brushcutter Makita RBC310 319255-9 Cylinder for Brushcutter Makita RBC310 €140.91
43
 photo_cameraImage coming soon 5216500200 DAMPER X RBC230-225-255 €1.40
44
 photo_cameraImage coming soon 5315504100 RUBBER FOR RBC321 €2.96
45
 photo_cameraImage coming soon 5316503100 DAMPER FOR RBC321 €4.89
46
 photo_cameraImage coming soon 5317010030 PLUG CAP RBC321 €2.96
47
 Electronic Coil for Brushcutter Makita RBC3210 5317010020 Electronic Coil for Brushcutter Makita RBC3210 €40.75 Not available for order
48
 photo_cameraImage coming soon 5317010010 FLYWHEEL FOR RBC321 €111.42
49
 Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
50
 Cylinder Gasket for Brushcutter Makita RBC310 5311500301 Cylinder Gasket for Brushcutter Makita RBC310 €3.08
51
 Insulator Gasket for Brushcutter Makita RBC310 5313502300 Insulator Gasket for Brushcutter Makita RBC310 €3.86
52
 photo_cameraImage coming soon 5313502200 MUFFLER GASKET FOR RBC321 €7.33
53
 photo_cameraImage coming soon 5313500500 ISOLATOR FOR RBC 310 €8.50
54
 photo_cameraImage coming soon 5313009001 MUFFLER FOR RBC321 €82.29
55
 Piston Pin for Brushcutter Makita RBC310 5312500400 Piston Pin for Brushcutter Makita RBC310 €3.08
56
 photo_cameraImage coming soon 319248-6 PISTON €53.68
57
 Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
58
 photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
59
 Piston Ring for Brushcutter Makita RBC310 5982500200 Piston Ring for Brushcutter Makita RBC310 €6.19
60
 photo_cameraImage coming soon 5315012000 STARTING BLOCK CPL FOR RBC321 €45.12
62
 photo_cameraImage coming soon 5315007010 STARTER REEL FOR RBC321 €18.40
63
 photo_cameraImage coming soon 5315007020 SCREW FOR RBC351 €3.46
64
 photo_cameraImage coming soon 5415003020 STARTER SPRING FOR RBC260 €7.33
65
 photo_cameraImage coming soon 5215002110 STARTER FOR RBC 230-225-255 €3.23
66
 photo_cameraImage coming soon 5235024022 STARTER ROPE RBK250-RBC225-2 €17.13
67
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
68
 photo_cameraImage coming soon 5316502001 TANK MS3210 €44.71
69
 photo_cameraImage coming soon 6272500000 WASHER FOR RBC321 €1.54
70
 photo_cameraImage coming soon 0011605200 BOLT X RBC321 €1.54
71
 photo_cameraImage coming soon 0016606160 M6X16 X RBC321 BOLT €1.54
72
 photo_cameraImage coming soon 0021705000 NUT M5 X RBC415 €1.54
73
 Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
74
 photo_cameraImage coming soon 0062610060 RING X RBC321 €1.54
75
 photo_cameraImage coming soon 0031432000 INTERNAL LOCK X RBC260 / 310/410 €2.77
76
 photo_cameraImage coming soon 0600129950 BALL BEARING X RBC260 €17.01
77
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
78
 photo_cameraImage coming soon 0119059570 M5X30 RBC321 BOLT €1.86
79
 photo_cameraImage coming soon 0119059630 M5X20 X PB500R BOLT €2.99
81
 photo_cameraImage coming soon 0119059670 SCREW M5X55 X RBC415 €2.96
82
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
83
 photo_cameraImage coming soon 0119059950 BOLT M5X18 XRBC230 / 310/225 €2.30
84
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
85
 photo_cameraImage coming soon 0200069920 WASHER M6 X RBC310 / 410 / RBK410 €2.77
86
 photo_cameraImage coming soon 267817-6 WASHER 8 EBH252L €1.46
87
 photo_cameraImage coming soon 0323039990 KEY X RBC350-RBC420 €3.68
88
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
89
 Piston Pin Needle Bearing for Brushcutter Makita RBC310 0610089990 Piston Pin Needle Bearing for Brushcutter Makita RBC310 €7.60
90
 photo_cameraImage coming soon 0650149721 SPARK PLUG BMR7A RBK250 €19.05
91
 photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
92
 photo_cameraImage coming soon 6165500200 WHIRE X HT2276E €3.46
93
 photo_cameraImage coming soon 0851179972 FUEL TUBE MS2810 €15.85
94
 photo_cameraImage coming soon 6271500301 UPPER HALF-SHELL 1 RBC321 €14.05
95
 photo_cameraImage coming soon 6271500401 LOWER HALF-SHELL 2 RBC321 €14.05
96
 photo_cameraImage coming soon 6271500105 UPPER SPACER FOR MS2810 €7.33
97
 photo_cameraImage coming soon 6271500205 LOWER SPACER FOR MS2810 €6.57
98
 photo_cameraImage coming soon 0119059950 BOLT M5X18 XRBC230 / 310/225 €2.30
99
 photo_cameraImage coming soon 0119059900 BOLT M5X12 X RBC225-255 €2.08
100
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
100
 Carburator Walbro for Brushcutter Dolmar MS3201C 5316021000 Carburator Walbro for Brushcutter Dolmar MS3201C €77.43
101
 photo_cameraImage coming soon 0150059940 SCREW X RBK250-RBC225-RBC255 €1.41
101
 photo_cameraImage coming soon 5236046130 BODY PUMP CPL FOR RBC350-RBC42 €61.62
101
 photo_cameraImage coming soon 6272003020 CLUTCH SPRING €4.89
101
 photo_cameraImage coming soon 6417015003 HARNESS CPL FOR RBC420E €81.27
102
 photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
103
 photo_cameraImage coming soon 5236052020 CABLE SUPPORT RBC350-RBC420 €25.16
104
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
104
 photo_cameraImage coming soon 6119019000 KIT KEY SERVICE X RBC225-255 €24.76
105
 photo_cameraImage coming soon 0717049990 WRENCHE €2.73
105
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
106
 photo_cameraImage coming soon 6277500200 CUSHION X RBC320 €66.86
106
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
107
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
108
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
109
 photo_cameraImage coming soon 5036002010 JET FOR RBC230 / 310/225/255 €11.07
110
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
111
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
112
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
113
 photo_cameraImage coming soon 5236018020 GASKET FOR RBC 260/230 / 310 €5.43
114
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
115
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
116
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
118
 photo_cameraImage coming soon 5316020020 SCREW FOR CABLE RBC321 €5.13
119
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
120
 photo_cameraImage coming soon 5236052030 WASHER FOR RBC321 €9.80
121
 photo_cameraImage coming soon 5313503200 AIR FILTER COVER RBC321 €8.37
122
 Air Cleaner Element for Brushcutter Makita RBC2510 443167-5 Air Cleaner Element for Brushcutter Makita RBC2510 €3.03
123
 photo_cameraImage coming soon 5013502400 CPL AIR FILTER PLATE RBC321 €17.81
124
 photo_cameraImage coming soon 5313015000 AIR FILTER SUPPORT RBC321 €12.48
125
 photo_cameraImage coming soon 0140059730 SCREW M5X50 X RBC260 / 310 €2.69
126
 photo_cameraImage coming soon 0031104000 WASHER X RBC225-255 €1.86
127
 photo_cameraImage coming soon 0150049980 SCREW M4X8 X RBC225-255 €1.54
128
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

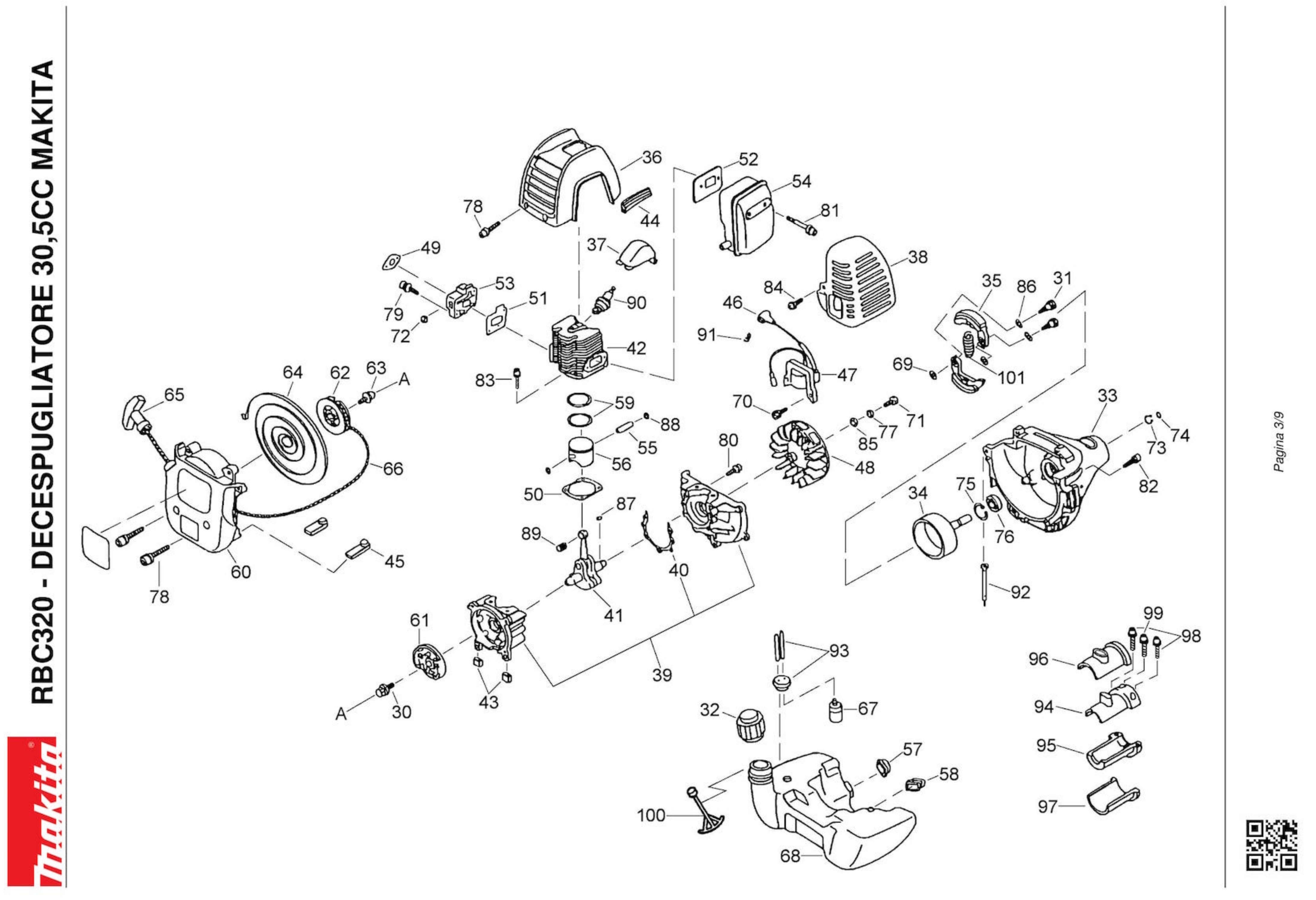

Esploso pagina 2
Pos. Item Price Buy
30
 photo_cameraImage coming soon 6202006000 BOLT FOR RBC310 €2.14
31
 photo_cameraImage coming soon 266457-7 SCREW M6FOR25 EBH252L €2.76
32
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
33
 photo_cameraImage coming soon 6271004001 CLUTCH HOUSING RBC321 €151.83
34
 photo_cameraImage coming soon 6272002002 CPL DRUM CLUTCH RBC321 €64.79
37
 photo_cameraImage coming soon 5317500700 SPARK PLUG COVER FOR RBC321 €7.33
39
 photo_cameraImage coming soon 5311007000 ENGINE CPL FOR RBC321 €199.62
40
 photo_cameraImage coming soon 5311501200 ENGINE GASKET FOR RBC321 €2.30
41
 photo_cameraImage coming soon 5312007001 CRANKSHAFT FOR MS2810 €123.95
42
 Cylinder for Brushcutter Makita RBC310 319255-9 Cylinder for Brushcutter Makita RBC310 €140.91
43
 photo_cameraImage coming soon 5216500200 DAMPER X RBC230-225-255 €1.40
44
 photo_cameraImage coming soon 5315504100 RUBBER FOR RBC321 €2.96
45
 photo_cameraImage coming soon 5316503100 DAMPER FOR RBC321 €4.89
46
 photo_cameraImage coming soon 5317010030 PLUG CAP RBC321 €2.96
47
 Electronic Coil for Brushcutter Makita RBC3210 5317010020 Electronic Coil for Brushcutter Makita RBC3210 €40.75 Not available for order
48
 photo_cameraImage coming soon 5317010010 FLYWHEEL FOR RBC321 €111.42
49
 Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
50
 Cylinder Gasket for Brushcutter Makita RBC310 5311500301 Cylinder Gasket for Brushcutter Makita RBC310 €3.08
51
 Insulator Gasket for Brushcutter Makita RBC310 5313502300 Insulator Gasket for Brushcutter Makita RBC310 €3.86
52
 photo_cameraImage coming soon 5313502200 MUFFLER GASKET FOR RBC321 €7.33
53
 photo_cameraImage coming soon 5313500500 ISOLATOR FOR RBC 310 €8.50
54
 photo_cameraImage coming soon 5313009001 MUFFLER FOR RBC321 €82.29
55
 Piston Pin for Brushcutter Makita RBC310 5312500400 Piston Pin for Brushcutter Makita RBC310 €3.08
56
 photo_cameraImage coming soon 319248-6 PISTON €53.68
57
 Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
58
 photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
59
 Piston Ring for Brushcutter Makita RBC310 5982500200 Piston Ring for Brushcutter Makita RBC310 €6.19
60
 photo_cameraImage coming soon 5315012000 STARTING BLOCK CPL FOR RBC321 €45.12
62
 photo_cameraImage coming soon 5315007010 STARTER REEL FOR RBC321 €18.40
63
 photo_cameraImage coming soon 5315007020 SCREW FOR RBC351 €3.46
64
 photo_cameraImage coming soon 5415003020 STARTER SPRING FOR RBC260 €7.33
65
 photo_cameraImage coming soon 5215002110 STARTER FOR RBC 230-225-255 €3.23
66
 photo_cameraImage coming soon 5235024022 STARTER ROPE RBK250-RBC225-2 €17.13
67
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
68
 photo_cameraImage coming soon 5316502001 TANK MS3210 €44.71
69
 photo_cameraImage coming soon 6272500000 WASHER FOR RBC321 €1.54
70
 photo_cameraImage coming soon 0011605200 BOLT X RBC321 €1.54
71
 photo_cameraImage coming soon 0016606160 M6X16 X RBC321 BOLT €1.54
72
 photo_cameraImage coming soon 0021705000 NUT M5 X RBC415 €1.54
73
 Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
74
 photo_cameraImage coming soon 0062610060 RING X RBC321 €1.54
75
 photo_cameraImage coming soon 0031432000 INTERNAL LOCK X RBC260 / 310/410 €2.77
76
 photo_cameraImage coming soon 0600129950 BALL BEARING X RBC260 €17.01
77
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
78
 photo_cameraImage coming soon 0119059570 M5X30 RBC321 BOLT €1.86
79
 photo_cameraImage coming soon 0119059630 M5X20 X PB500R BOLT €2.99
81
 photo_cameraImage coming soon 0119059670 SCREW M5X55 X RBC415 €2.96
82
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
83
 photo_cameraImage coming soon 0119059950 BOLT M5X18 XRBC230 / 310/225 €2.30
84
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
85
 photo_cameraImage coming soon 0200069920 WASHER M6 X RBC310 / 410 / RBK410 €2.77
86
 photo_cameraImage coming soon 267817-6 WASHER 8 EBH252L €1.46
87
 photo_cameraImage coming soon 0323039990 KEY X RBC350-RBC420 €3.68
88
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
89
 Piston Pin Needle Bearing for Brushcutter Makita RBC310 0610089990 Piston Pin Needle Bearing for Brushcutter Makita RBC310 €7.60
90
 photo_cameraImage coming soon 0650149721 SPARK PLUG BMR7A RBK250 €19.05
91
 photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
92
 photo_cameraImage coming soon 6165500200 WHIRE X HT2276E €3.46
93
 photo_cameraImage coming soon 0851179972 FUEL TUBE MS2810 €15.85
94
 photo_cameraImage coming soon 6271500301 UPPER HALF-SHELL 1 RBC321 €14.05
95
 photo_cameraImage coming soon 6271500401 LOWER HALF-SHELL 2 RBC321 €14.05
96
 photo_cameraImage coming soon 6271500105 UPPER SPACER FOR MS2810 €7.33
97
 photo_cameraImage coming soon 6271500205 LOWER SPACER FOR MS2810 €6.57
99
 photo_cameraImage coming soon 0119059900 BOLT M5X12 X RBC225-255 €2.08
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

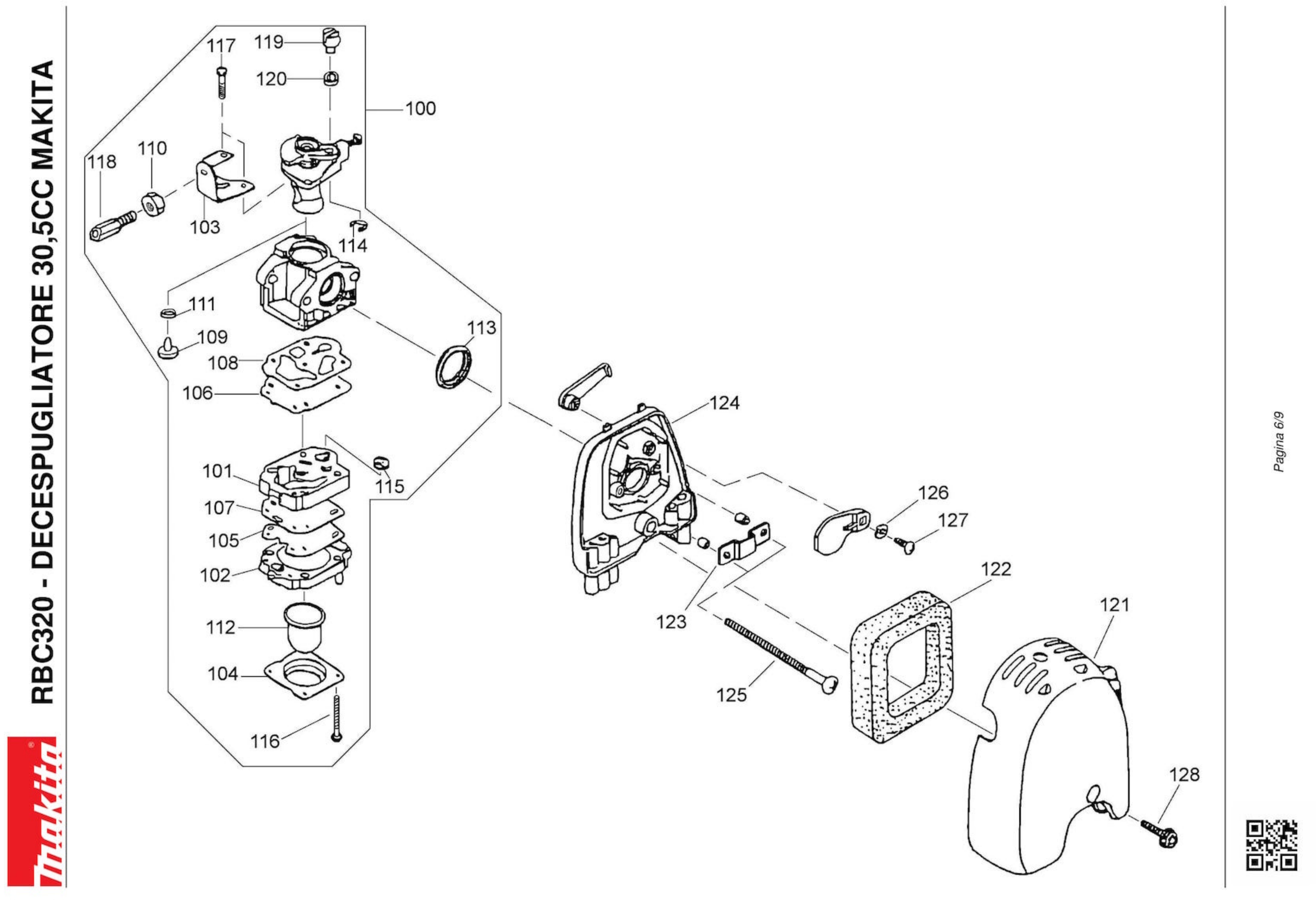

Esploso pagina 3
Pos. Item Price Buy
102
 photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
103
 photo_cameraImage coming soon 5236052020 CABLE SUPPORT RBC350-RBC420 €25.16
104
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
104
 photo_cameraImage coming soon 6119019000 KIT KEY SERVICE X RBC225-255 €24.76
105
 photo_cameraImage coming soon 0717049990 WRENCHE €2.73
105
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
106
 photo_cameraImage coming soon 6277500200 CUSHION X RBC320 €66.86
106
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
107
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
108
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
109
 photo_cameraImage coming soon 5036002010 JET FOR RBC230 / 310/225/255 €11.07
110
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
111
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
112
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
113
 photo_cameraImage coming soon 5236018020 GASKET FOR RBC 260/230 / 310 €5.43
114
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
115
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
116
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
118
 photo_cameraImage coming soon 5316020020 SCREW FOR CABLE RBC321 €5.13
119
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
120
 photo_cameraImage coming soon 5236052030 WASHER FOR RBC321 €9.80
121
 photo_cameraImage coming soon 5313503200 AIR FILTER COVER RBC321 €8.37
122
 Air Cleaner Element for Brushcutter Makita RBC2510 443167-5 Air Cleaner Element for Brushcutter Makita RBC2510 €3.03
123
 photo_cameraImage coming soon 5013502400 CPL AIR FILTER PLATE RBC321 €17.81
124
 photo_cameraImage coming soon 5313015000 AIR FILTER SUPPORT RBC321 €12.48
125
 photo_cameraImage coming soon 0140059730 SCREW M5X50 X RBC260 / 310 €2.69
126
 photo_cameraImage coming soon 0031104000 WASHER X RBC225-255 €1.86
127
 photo_cameraImage coming soon 0150049980 SCREW M4X8 X RBC225-255 €1.54
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

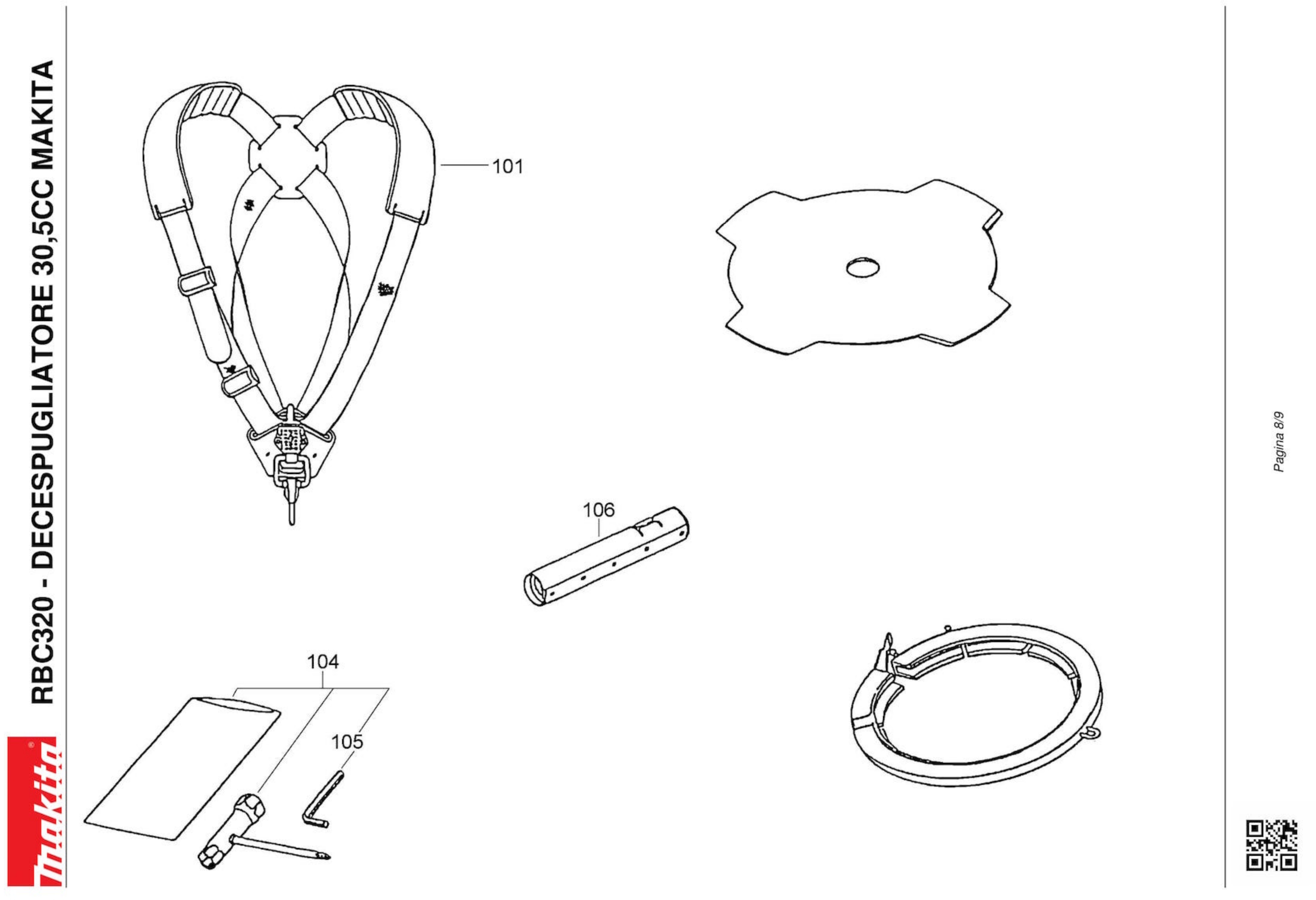

Esploso pagina 4
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brusch Cutter RBC320

Makita Genuine spare parts or replacement parts for to repair Brusch Cutter RBC320.

Fix Your Brusch Cutter Makita RBC320. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita RBC320

Brusch Cutter RBC320
# Part Num. Dewcription
2 6273001008 GEARBOX CPL RBC321
3 210049-4 EBH252L 609ZZ BEARING
4 266671-5 OIL CAP
5 412099-7 GUARD
6 264018-7 NUT M8 RBC2510
7 6273013000 CUTTER SHAFT GEAR SET MS2810
8 6253502600 OUTER LOCK X RBC310 / RBK410
9 6258500001 CLAMP WASHERX RBC 310 / RBK410
10 6258503600 UPPER FLANGE RBC310 / K410
11 6253501300 SPACER
12 6255059000 RBC320 THROTTLE LEVER
13 6304501000 HANDLE X RBC 310
14 331941-2 HANDLE X RBC320
15 6254023000 CPL SUPPORT X RBC321
16 6414005001 HANDLE SUPPORT RBC351
17 6271009000 COMPLETE SHAFT X RBC320
19 6271500802 SHAFT X RBC321
20 0011306120 M6X12 X RBC310 / 520 BOLT
22 0031424000 INNER SNAP RING X RBC260-230-225-
23 0031430000 INNER SNAP RING X RBC310 / RBK410
24 922213-2 SCREW M5X12 EBH341U
25 0600109970 BEARING 6200DDU RBC321
26 0600079990 BEARING 627 X RBC415
27 0043605200 WASHER AND SCREW X RBC321
28 0119059840 SCREW M5X25 MOD RBC415
29 0119059890 BOLT AND WASHER M5X25 XRBC225-
101 0150059940 SCREW X RBK250-RBC225-RBC255
30 6202006000 X RBC310 BOLT
31 266457-7 SCREW M6X25 EBH252L
32 452920-8 TANK CAP
33 6271004001 CLUTCH COVER RBC321
34 6272002002 CPL DRUM CLUTCH RBC321
35 6272003000 CLUTCH X RBC321
36 5315503900 CYLINDER CARTER X RBC321
37 5317500700 SPARK PLUG COVER X RBC321
38 5313503800 MUFFLER COVER X MS2810
39 5311007000 ENGINE UNIT CPL X RBC321
40 5311501200 ENGINE GASKET X RBC321
41 5312007001 CRANKSHAFT X MS2810
42 319255-9 CYLINDER
43 5216500200 RUBBER X RBC230-225-255
44 5315504100 RUBBER X RBC321
45 5316503100 DAMPER X RBC321
46 5317010030 SPARK PLUG HOOD RBC321
47 5317010020 COIL X RBC321
48 5317010010 FLYWHEEL X RBC321
49 442177-9 SEAL
50 5311500301 CYLINDER GASKET X MS2810
51 5313502300 INSULATING GASKET X RBC321
52 5313502200 GASKET FOR EXHAUST X RBC321
53 5313500500 ISOLATOR X RBC 310
54 5313009001 MUFFLER X RBC321
55 5312500400 PIN / RBC 310
56 319248-6 PISTON
57 424102-2 EBH341U DAMPER
58 424103-0 EBH341U DAMPER
59 5982500200 PISTON RING X RBC 230/310
60 5315012000 STARTER CPL X RBC321
61 5245007000 PULLEY STARTER
62 5315007010 REEL STARTER X RBC321
63 5315007020 SCREW X RBC351
64 5415003020 STARTER SPRING X RBC260
65 5215002110 STARTER X RBC 230-225-255
66 5235024022 ROPE RBK250-RBC225-2
67 163447-0 FUEL FILTER X DCS230T
68 5316502001 TANK MS3210
69 6272500000 WASHER X RBC321
70 0011605200 BOLT X RBC321
71 0016606160 M6X16 X RBC321 BOLT
72 0021705000 NUT M5 X RBC415
73 0031512000 RING X RBC260 / 520RBK410
74 0062610060 RING X RBC321
75 0031432000 INTERNAL LOCKING RBC260 / 310/410
76 0600129950 BALL BEARING X RBC260
77 0032006000 WASHER X RBC / RBK410-G2400R
78 0119059570 M5X30 RBC321 BOLT
79 0119059630 M5X20 X PB500R BOLT
81 0119059670 SCREW M5X55 X RBC415
82 0119059730 BOLT 260/230/225/255
83 0119059950 M5X18 BOLT XRBC230 / 310/225 /
84 911218-7 CYLINDER HEAD SCREW. M5x14
85 0200069920 WASHER M6 X RBC310 / 410 / RBK410
86 267817-6 WASHER 8 EBH252L
87 0323039990 WOODRUFF X RBC350-RBC420
88 233976-8-4 CIRCLIP
89 0610089990 NEEDLE BEARING X RBC260 / 230/310 /
90 0650149721 SPARK PLUG BMR7A
91 0654009931 PIN / RBC415-225-255
92 6165500200 WHIRE X HT2276E
93 0851179972 FUEL TUBE MS2810
94 6271500301 PIPE BRACKET RBC321
95 6271500401 PIPE BRACKET RBC321
96 6271500105 HOLDER X MS2810
97 6271500205 SPACER INF.X MS2810
98 0119059950 M5X18 BOLT XRBC230 / 310/225 /
99 0119059900 M5X12 X RBC225-255 BOLT
100 140436-2 STRAP EBH341U
101 6272003020 CLUTCH SPRING
100 5316021000 CARBURETOR X RBC321
101 5236046130 BODY PUMP CPL X RBC350-RBC42
102 5236046060 CPL AIR FILTER BODY RBC350
103 5236052020 CABLE SUPPORT RBC350-RBC420
104 5236046050 PUMP COVER X RBC350-RBC42
105 168574-8 CPL DIAPHRAGM EBH341U
106 WJ00009599 PUMP DIAPHRAGM X DCS230T
107 442154-1 DIAPHRAGM EBH341U GASKET
108 5246001030 PUMP GASKET RBC260-230-310-
109 5036002010 JET X RBC230 / 310/225/255
110 5316005450 NUT RBC260 / 310
111 5246001010 GASKET X RBC 260/230/310 /
112 424314-7 PRIMING PUMP EBH341
113 5236018020 GASKET X RBC 260/230 / 310
114 5316005120 RING X RBC 260/230/310/225/2
115 5016004010 CONNECTION X RBC 260/230/310/225
116 266582-4 SCREW 3X24 EBH341U
118 5316020020 SCREW X CABLE RBC321
119 5236018040 THROTTLE CABLE XRBC230-260-310-225-
120 5236052030 WASHER X RBC321
121 5313503200 AIR FILTER COVER RBC321
122 443167-5 AIR FILTER RBC2510
123 5013502400 CPL AIR FILTER PLATE RBC321
124 5313015000 AIR FILTER SUPPORT RBC321
125 0140059730 SCREW M5X50 X RBC260 / 310
126 0031104000 WASHER X RBC225-255
127 0150049980 SCREW M4X8 X RBC225-255
128 911218-7 CYLINDER HEAD SCREW. M5x14
101 6417015003 BAND CPL X RBC420E
104 6119019000 KEY RBC350-RBC420
105 0717049990 KEY RBC350-RBC420
106 6277500200 CUSHION X RBC320

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC320
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita RBC320

Diagram Makita RBC320

Download (605.28KB)

You might also like

Chainsaw Makita EA3200S35A -20% Sale
Makita SKU: EA3200S35A
Chainsaw Makita EA3200S35A
Chainsaw Bar 35 cm Makita EA3200S35A Features: - Chainsaw with primer for a quick and easy engine start. - Metal arpion. - Steel vibration dampers: 4 steel springs to reduce vibration. - Metal oil pump with adjustable capability.
Last items in stock €224.34 €280.43
Details
Brush Cutter Makita EM2600L -15% Sale
Makita SKU: EM2600L
Brush Cutter Makita EM2600L
Brush Cutter Makita EM2600L Features: - Very versatile bushers suitable for garden care. - Ideal for the demanding user who does not want to give up quality, reliability and safety. - Innovative and ergonomic design. - Anti-vibrating...
Out-of-Stock €282.44 €332.29
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Details
Piston Pin for Brushcutter Makita RBC310
Makita SKU: 5312500400
Piston Pin for Brushcutter Makita RBC310
Piston Pin for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C - RBC3200 Part...
AVAILABLE €3.08
Details
Piston Ring for Brushcutter Makita RBC310
Makita SKU: 5982500200
Piston Ring for Brushcutter Makita RBC310
Piston Ring for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Ring for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.19
Details
Cylinder Gasket for Brushcutter Makita RBC310
Makita SKU: 5311500301
Cylinder Gasket for Brushcutter Makita RBC310
Cylinder Gasket for Brushcutter Makita RBC310 Genuine spare part Makita, Cylinder Gasket for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
Last items in stock €3.08
Details
Insulator Gasket for Brushcutter Makita RBC310
Makita SKU: 5313502300
Insulator Gasket for Brushcutter Makita RBC310
Insulator Gasket for Brushcutter Makita RBC310 Genuine spare part Makita, Insulator Gasket for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 -...
Last items in stock €3.86
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Electronic Coil for Brushcutter Makita RBC3210
Makita SKU: 5317010020
Electronic Coil for Brushcutter Makita RBC3210
Electronic Coil for Brushcutter Makita RBC3210 Genuine spare part Makita, Electronic Coil for Brushcutters RBC321 - RBC3210 - RBC281 - RBC320. Part for the following products: - MS3201C...
Out-of-Stock €40.75
Details
Carburator Walbro for Brushcutter Dolmar MS3201C
Makita SKU: 5316021000
Carburator Walbro for Brushcutter Dolmar MS3201C
Carburator Walbro for Brushcutter Dolmar MS3201C Genuine part Dolmar, Carburator Walbro for Brushcutter MS3201C - MS3210 - MS3212 - Makita RBC3110 - RBC3210 - RBC320. Part for the following products: - MS2810 - BRUSHCUTTER 27,2CC...
Last items in stock €77.43
Details
Cylinder for Brushcutter Makita RBC310
Makita SKU: 319255-9
Cylinder for Brushcutter Makita RBC310
Cylinder for Brushcutter Makita RBC310 Genuine spare part Makita, Cylinder for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C - RBC3200...
Last items in stock €140.91
Details
Air Cleaner Element for Brushcutter Makita RBC2510
Makita SKU: 443167-5
Air Cleaner Element for Brushcutter Makita RBC2510
Air Cleaner Element for Brushcutter Makita RBC2510 Genuine part Makita, Air Cleaner Sponge Element for Brushcutters RBC2510 - RBC225-255 - MS2501 - MS2810. Part for the following products: - MS254C...
AVAILABLE €3.03
Details
Clamp Washer for Brushcutter Makita RBC310
Makita SKU: 6258500001
Clamp Washer for Brushcutter Makita RBC310
Clamp Washer for Brushcutter Makita RBC310 Genuine spare part Makita, Clamp Washer for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321. Part for the following products:...
on 7/10 Business Days Approx €25.23
Details
Cutter Shaft Set for Brushcutter Makita RBC3110
Makita SKU: 6273013000
Cutter Shaft Set for Brushcutter Makita RBC3110
Cutter Shaft Set for Brushcutter Makita RBC3110 Genuine spare part Makita, Cutter Shaft Gear Set for Brushcutters RBC3110 - RBC3212. Part for the following products: -  RBC3110 - BRUSHCUTTER 30,5CC MAKITA -  MS3212 - BRUSHCUTTER...
Last items in stock €45.74
Details
Comments (0)
