Makita

Makita Spare Parts for Chainsaw EA3201S

SKU: Makita EA3201S
€55.02
VAT included

Makita Spare Parts for Chainsaw EA3201S

We have the Makita original Spare Parts for Chainsaw EA3201S, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Chainsaw EA3201S. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Chainsaw EA3201S
  • Makita Spare Parts for Chainsaw EA3201S
  • Makita Spare Parts for Chainsaw EA3201S
  • Makita Spare Parts for Chainsaw EA3201S
  • Makita Spare Parts for Chainsaw EA3201S
  • Makita Spare Parts for Chainsaw EA3201S
  • Makita Spare Parts for Chainsaw EA3201S
  • Makita Spare Parts for Chainsaw EA3201S
Makita

Makita Spare Parts for Chainsaw EA3201S

SKU: Makita EA3201S Condition: New
€55.02
VAT included

Makita Spare Parts for Chainsaw EA3201S

We have the Makita original Spare Parts for Chainsaw EA3201S, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Chainsaw EA3201S. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 179 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
167 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

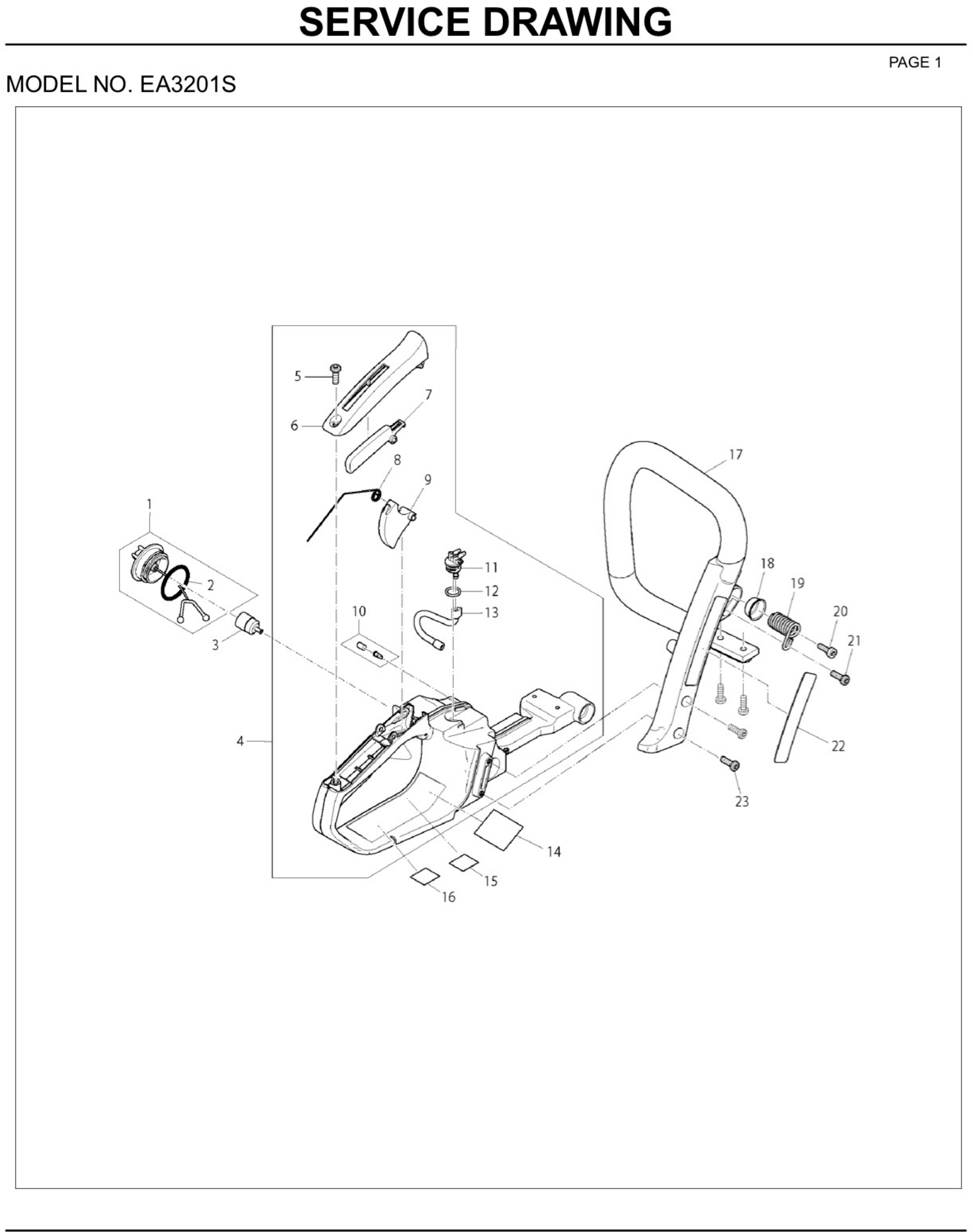

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 168507-3 TANK CAP COMPLETE €2.86
2
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
3
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
4
 photo_cameraImage coming soon 195758-5 TANK CPL BLUE EA3201S35A €46.64
5
 photo_cameraImage coming soon 266651-1 SCREW 5,5X16 PS32CTLC €1.40
6
 photo_cameraImage coming soon 452021-2 COVER HANDLE PS32CTLC €2.15
7
 photo_cameraImage coming soon 452020-4 RELEASE LEVER PS32CTLC €1.40
8
 photo_cameraImage coming soon 231866-9 SPRING TORSION 10 PS32CTLC €1.43
9
 photo_cameraImage coming soon 452019-9 ACCELERATOR LEVER PS32CTLC €1.40
10
 photo_cameraImage coming soon 195762-4 BREATHER VALVE PS32CTLC €3.84
11
 photo_cameraImage coming soon 452018-1 FITTING CARCBURANTE PS32CTLC €1.43
12
 photo_cameraImage coming soon 213586-7 RING 11.5 PS32CTLC €1.43
13
 Fuel Hose for Chaisaws Makita EA3201S35A 424456-7 Fuel Hose for Chaisaws Makita EA3201S35A €16.31
17
 photo_cameraImage coming soon 452036-9 FRONT HANDLE PS32CTLC €32.07
18
 photo_cameraImage coming soon 346517-2 BELLEVILLE WASHER 6 PS32CTLC €1.40
19
 Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
20
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

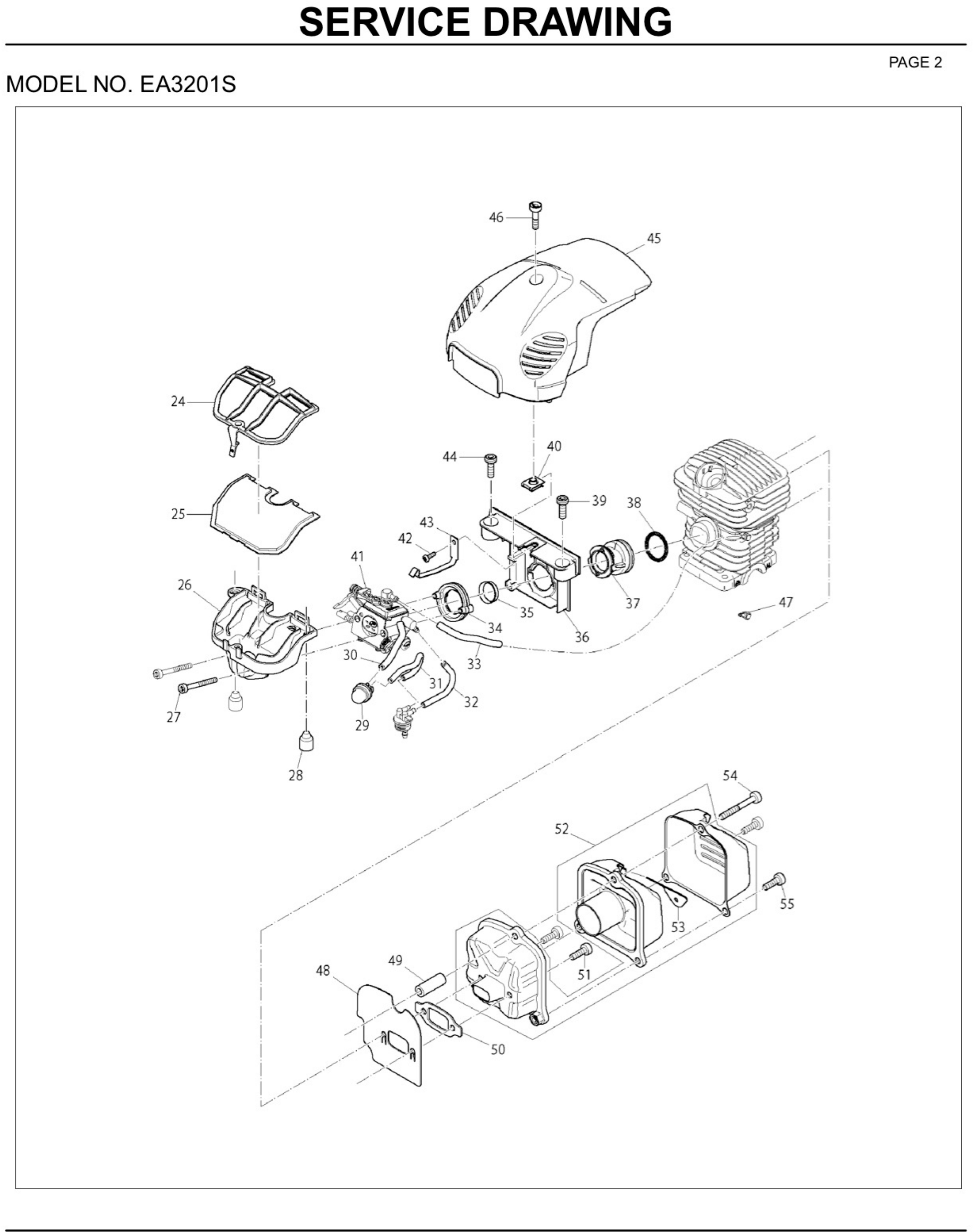

Esploso pagina 2
Pos. Item Price Buy
24
 photo_cameraImage coming soon 452031-9 FILTER COVER PS32CTLC €1.40
25
 Air Cleaner for Chaisaw Makita EA3201S35A 423414-0 Air Cleaner for Chaisaw Makita EA3201S35A €3.87
26
 photo_cameraImage coming soon 452030-1 PS32CTLC FUND €3.35
27
 photo_cameraImage coming soon 266604-0 SCREW M4X40 PS32CTLC €1.40
28
 Damper for Chainsaw Dolmar PS32CTLC 424173-9 Damper for Chainsaw Dolmar PS32CTLC €2.18
29
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
30
 photo_cameraImage coming soon 422067-2 PIPE 2,5X55 PS32CTLC €2.15
31
 photo_cameraImage coming soon 422065-6 PIPE 2,5X55 PS32CTLC €3.17
32
 photo_cameraImage coming soon 422068-0 PIPE 3x70 PS32CTLC €1.40
33
 photo_cameraImage coming soon 422066-4 PIPE 2,5X72 PS32CTLC €2.08
34
 photo_cameraImage coming soon 318634-8 FLANGE PS32CTLC €2.15
35
 photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
36
 photo_cameraImage coming soon 452024-6 INTERMEDIATE FLANGE PS32CTLC €3.13
37
 photo_cameraImage coming soon 424340-6 SUCTION SLEEVE PS32CTLC €7.70
38
 photo_cameraImage coming soon 233971-8 CIRCLIP PS32CTLC €2.20
40
 photo_cameraImage coming soon 264044-6 PLATE M5 PS32CTLC €1.40
41
 photo_cameraImage coming soon 168602-9 CARBURETOR PS32 €107.25
42
 photo_cameraImage coming soon 266421-8 SCREW 3PER10 HR2800 €1.40
43
 photo_cameraImage coming soon 346290-4 PS32CTLC CONTACT €1.40
45
 photo_cameraImage coming soon 452023-8 PS32CTLC COVER €4.43
46
 photo_cameraImage coming soon 266607-4 SCREW M5X20 PS32CTLC €1.43
47
 photo_cameraImage coming soon 325938-1 FITTING THE PS32CTLC €2.08
48
 photo_cameraImage coming soon 346306-5 INSULATING PLATE PS32CTLC €1.40
49
 photo_cameraImage coming soon 325939-9 PS32CTLC SOCKET €1.40
50
 photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
52
 photo_cameraImage coming soon 168604-5 MUFFLER PS32CTLC €79.01
53
 photo_cameraImage coming soon 346294-6 DISC GUARD PS32CTLC €1.40
54
 photo_cameraImage coming soon 266606-6 SCREW M5X40 PS32CTLC €1.40
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

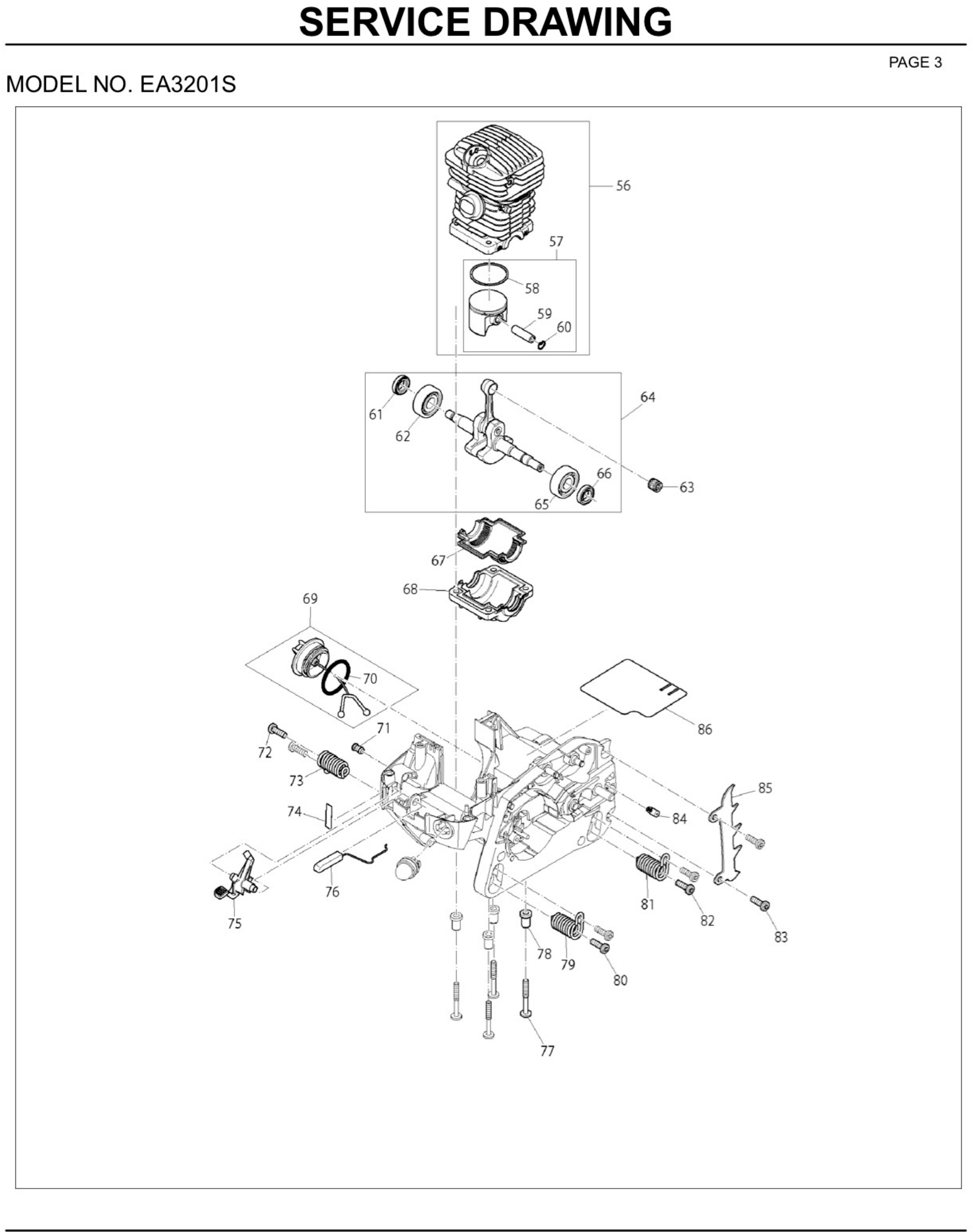

Esploso pagina 3
Pos. Item Price Buy
56
 Makita EA3201S Cylinder + Piston Kit 195759-3 Makita EA3201S Cylinder + Piston Kit €96.97
57
 Piston Set for Chainsaw Makita EA3201S 195760-8 Piston Set for Chainsaw Makita EA3201S €24.68
58
 photo_cameraImage coming soon 325991-7 PISTON RING 38 PS32CTLC €3.84
59
 photo_cameraImage coming soon 325992-5 PISTON PIN PS32CTLC €2.08
60
 photo_cameraImage coming soon 233988-1 RING PIN PS220CTLC €1.40
61
 photo_cameraImage coming soon 213582-5 SEAL OIL 12 PS32CTLC €6.73
62
 photo_cameraImage coming soon 211341-1 BEARING 6201 PS32CTLC €3.92
63
 photo_cameraImage coming soon 212086-4 CAGE ROLLER 810 PS32CTLC €8.67
64
 photo_cameraImage coming soon 195956-1 CRANKSHAFT PS32CTLC €88.75
67
 photo_cameraImage coming soon 424339-1 SEAL PS32CTLC €5.15
68
 photo_cameraImage coming soon 318633-0 COVER LOWER PS32CTLC €3.84
75
 photo_cameraImage coming soon 452025-4 LEVER AIR PS32CTLC €1.40
76
 photo_cameraImage coming soon 452022-0 LEVERAGE PS32CTLC €1.47
77
 photo_cameraImage coming soon 266608-2 SCREW 5x40 PS32CTLC €1.40
78
 photo_cameraImage coming soon 325946-2 SOCKET 6 PS32CTLC €1.40
84
 Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
85
 photo_cameraImage coming soon 346301-5 HARPOON PS32CTLC €2.12
86
 photo_cameraImage coming soon 346385-3 INSULATING PLATE PS32CTLC €3.84
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

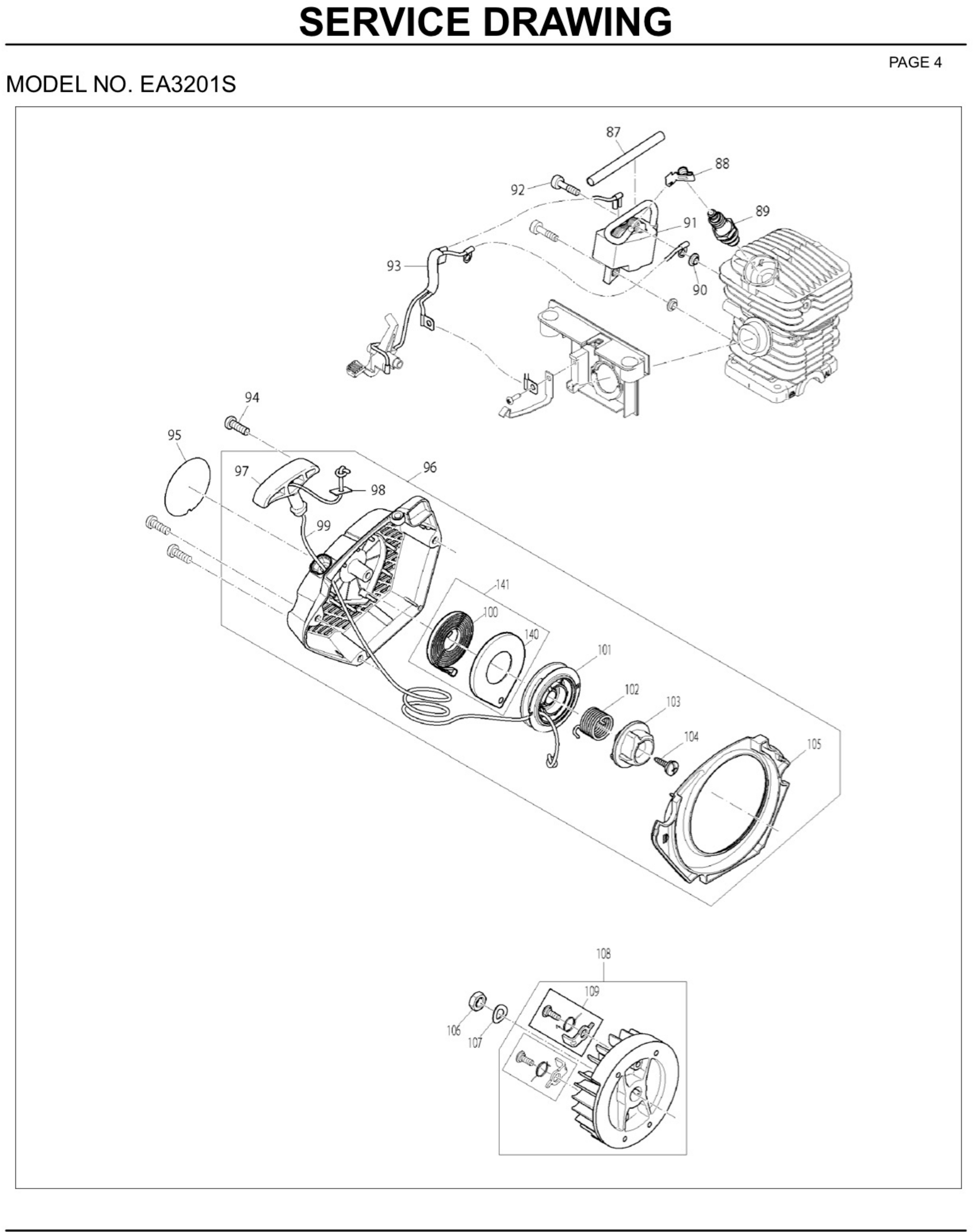

Esploso pagina 4
Pos. Item Price Buy
87
 photo_cameraImage coming soon 444029-0 ISOLATING TUBE 6-95 PS32 €1.40
88
 photo_cameraImage coming soon 346445-1 SPARK PLUG CONNECTOR PS32 €2.08
89
 photo_cameraImage coming soon 168401-9 SPARK PLUG BHX2501/PS32  - NGKBPMR8Y - BPMR7A €10.75
90
 photo_cameraImage coming soon 452670-5 INSULATING WASHER PS32CTLC €1.40
91
 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A 126270-4 Electronic Coil for Chainsaws Makita EA3200S40B - EA3201S35A €55.00
92
 photo_cameraImage coming soon 266631-7 SCREW M5X20 PS32CTLC €1.40
93
 photo_cameraImage coming soon 168601-1 CABLES PS32CTLC €3.92
96
 photo_cameraImage coming soon 168608-7 STARTING CPL BLUE EA3201S35A €40.59
97
 photo_cameraImage coming soon 453783-5 GRIP STARTING PS32CTLC €3.92
98
 photo_cameraImage coming soon 267847-7 WASHER QUADRA 4 PS32CTLC €1.40
99
 photo_cameraImage coming soon 444038-9 ROPE START PS32CTLC €2.08
101
 photo_cameraImage coming soon 453785-1 REEL START PS32CTLC €5.52
102
 photo_cameraImage coming soon 234253-1 SPRING TORSION 20 PS32CTLC €2.69
103
 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A 453786-9 Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A €4.63
104
 photo_cameraImage coming soon 266777-9 SCREW 5X1 PS32CTLC €1.40
105
 photo_cameraImage coming soon 452026-2 BAFFLE PS32CTLC €3.35
106
 photo_cameraImage coming soon 264053-5 NUT M8X1 PS32CTLC €1.40
107
 photo_cameraImage coming soon 267822-3 WASHER 8 PS32CTLC €1.47
108
 photo_cameraImage coming soon 140480-9 FLYWHEEL PS32CTLC €27.55
109
 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A 195761-6 Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A €2.84
141
 Makita Starter Spring for EA3200S35A 195955-3 Makita Starter Spring for EA3200S35A €11.07
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

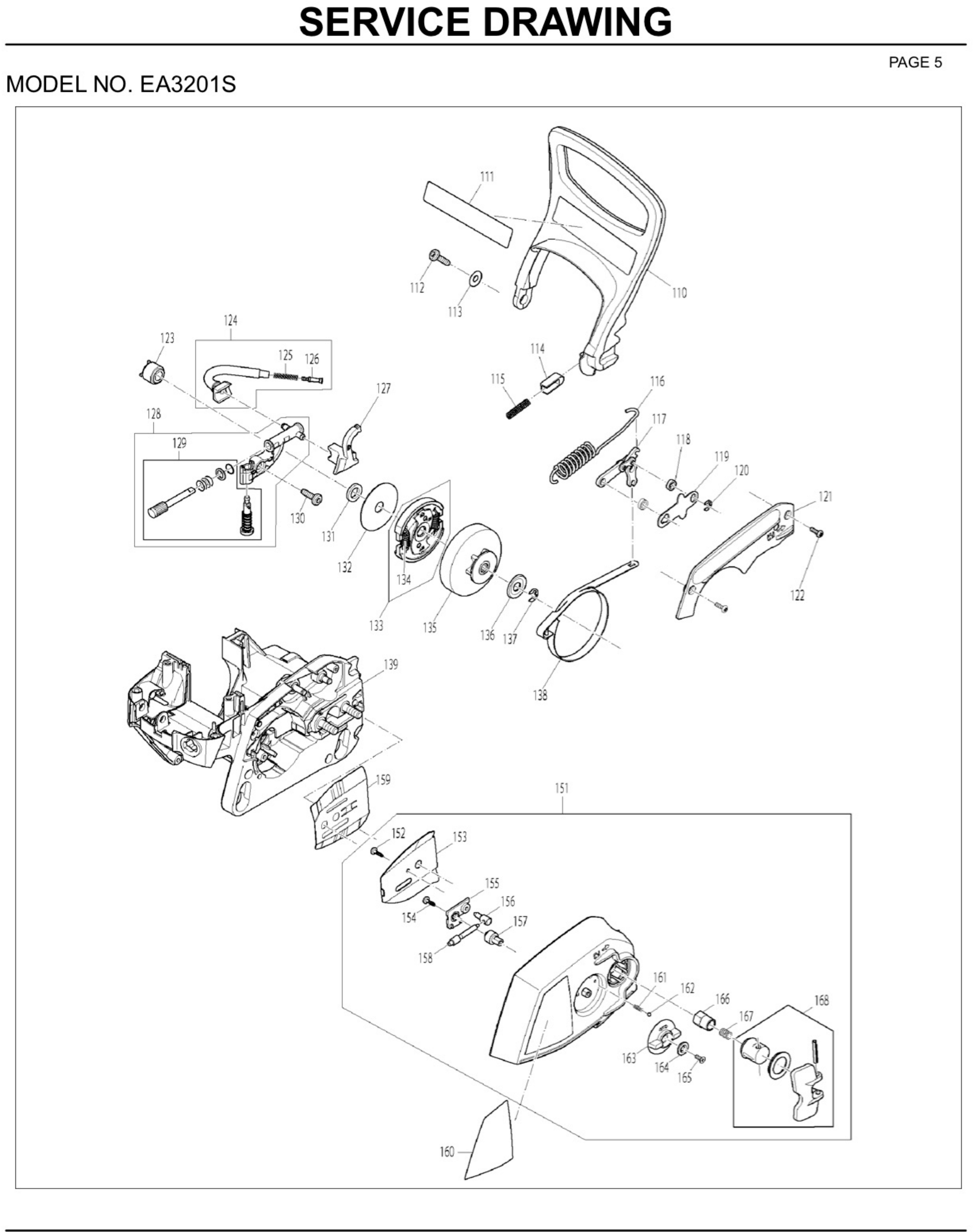

Esploso pagina 5
Pos. Item Price Buy
110
 Hand Guard for Petrol Chainsaw Makita EA3200S35A 452032-7 Hand Guard for Petrol Chainsaw Makita EA3200S35A €6.26
111
 Makita Label for Chainsaw Makita DCS230T 810075-9 Makita Label for Chainsaw Makita DCS230T €2.84
112
 photo_cameraImage coming soon 266627-8 SCREW 4,7X16 PS32CTLC €1.40
113
 photo_cameraImage coming soon 267066-5 FLAT WASHER 5 X6811DW €1.40
114
 photo_cameraImage coming soon 313212-9 PS32CTLC GUIDE €1.47
115
 photo_cameraImage coming soon 234210-9 SPRING COMPRESSION 6 PS32CTLC €1.47
116
 photo_cameraImage coming soon 231868-5 SPRING TENSION 10 PS32CTLC €2.08
117
 photo_cameraImage coming soon 163500-2 LEVERAGE PS32CTLC €21.54
118
 photo_cameraImage coming soon 325947-0 SOCKET 6 €1.40
119
 photo_cameraImage coming soon 346299-6 SPACER PS32CTLC €1.40
120
 photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.44
121
 photo_cameraImage coming soon 452033-5 PS32CTLC COVER €2.15
123
 Worm Screw for Chainsaw Makita EA3201S35A 452035-1 Worm Screw for Chainsaw Makita EA3201S35A €5.30
124
 photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
125
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.48
126
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.47
127
 photo_cameraImage coming soon 424342-2 PIPE PS32CTLC €5.30
131
 photo_cameraImage coming soon 267430-0 WASHER 10 PS32CTLC €1.40
132
 photo_cameraImage coming soon 267431-8 WASHER 10 PS32CTLC €1.40
133
 photo_cameraImage coming soon 168607-9 CLUTCH PS32C-EA3201S €8.50
134
 photo_cameraImage coming soon 231873-2 SPRING TENSION 5 PS32CTLC €1.40
135
 photo_cameraImage coming soon 140980-9 CLUTCH DRUM ASSY PS32C - New Cod. 140A30-6 €18.84
136
 photo_cameraImage coming soon 267451-2 WASHER 8 PS32CTLC €1.40
137
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
138
 photo_cameraImage coming soon 346298-8 SPRING BRAKE PS32CTLC €4.81
139
 photo_cameraImage coming soon 140482-5 ENGINE HOUSING COMPLETE EA3201 €34.85
151
 photo_cameraImage coming soon 140510-6 SPROCKET GUARD TLC COMPLETE B €36.12
152
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
153
 photo_cameraImage coming soon 346309-9 GUIDE PLATE EA3201S35B/PS32TL €1.49
155
 Cover for Chainsaw Makita EA3201S35A 417403-5 Cover for Chainsaw Makita EA3201S35A €1.62
156
 photo_cameraImage coming soon 324068-5 ADJUST PIN EA3201S35B/PS32TLC €2.01
157
 photo_cameraImage coming soon 226681-4 HELICAL GEAR 17 EA3201S35B €4.05
158
 Helical mm 8 Chain Tensioner for Chainsaw Dolmar PS220TH 226534-7 Helical mm 8 Chain Tensioner for Chainsaw Dolmar PS220TH €16.15
159
 Guide Plate for Chainsaw Dolmar PS32C/35 346518-0 Guide Plate for Chainsaw Dolmar PS32C/35 €6.23
161
 photo_cameraImage coming soon 233033-2 COMPRESSION SPRING 4 UC4020A €1.47
162
 photo_cameraImage coming soon 216008-6 BALL 4 €1.47
163
 photo_cameraImage coming soon 419233-0 DIAL 40 UC4020A/3520/3530A/403 €1.47
164
 photo_cameraImage coming soon 253874-0 FLAT WASHER 4 €2.74
165
 photo_cameraImage coming soon 915106-0 BINDING HD SCREW M4 UC4020A €1.47
166
 photo_cameraImage coming soon 264042-0 HEX.NUT M8-13 PS32TLC/EA3201S €1.49
167
 photo_cameraImage coming soon 231025-5 COMPRESION SPRING 8 X 8411DW €1.50
168
 photo_cameraImage coming soon 195764-0 WING GRIP SET PS32TLC/EA3201S3 €13.51

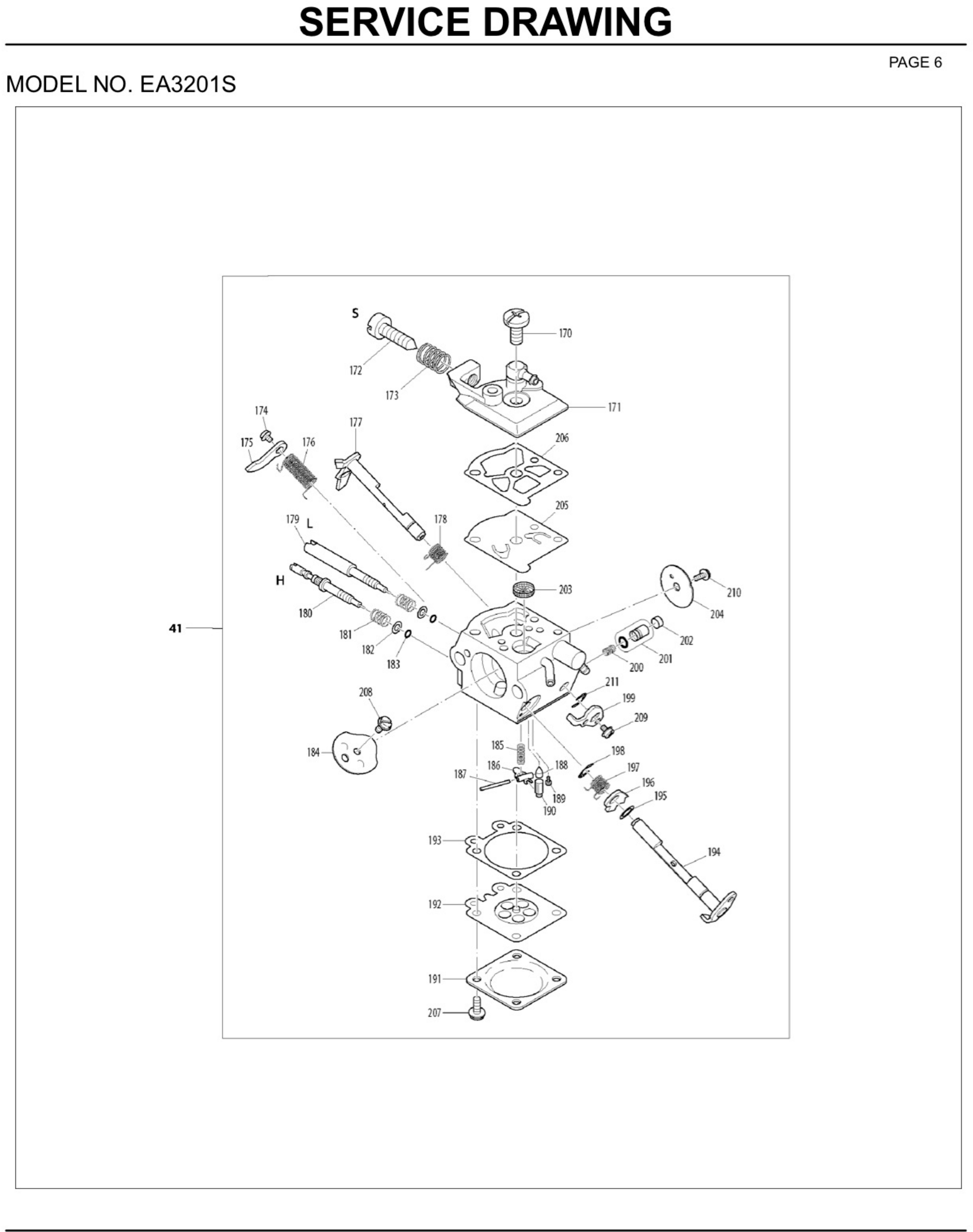

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
A01
 Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita 165246-6 Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita €29.60
A02
 photo_cameraImage coming soon 419560-5 CHAIN COVER €2.94
A03
 photo_cameraImage coming soon 511291752 CHAIN BAR 35 CM €32.12
A04
 photo_cameraImage coming soon 782026-1 UNIVERSAL WRENCH €5.16
170
 photo_cameraImage coming soon WJ00096166 PS32CTLC SCREW €2.77
171
 photo_cameraImage coming soon WJ00213750 PS32CTLC COVER €12.69
172
 photo_cameraImage coming soon WJ00096369 SCREW MINIMUM PS32CTLC €2.69
173
 photo_cameraImage coming soon WJ00098356 56 SPRING PS32CTLC €1.40
174
 photo_cameraImage coming soon WJ00096475 75 SCREW PS32CTLC €1.44
175
 photo_cameraImage coming soon WJ00183519 LEVER ACCELERATOR PS32CTLC €3.13
176
 photo_cameraImage coming soon WJ00983585 SPRING - PS32 €2.69
177
 photo_cameraImage coming soon WJ00223556 SHAFT ASSEMBLY THROTTLE PS32 €11.35
178
 photo_cameraImage coming soon WJ00098494 SPRING - PS32 €2.77
179
 photo_cameraImage coming soon WJ01023908 SCREW L PS32CTLC €11.07
180
 photo_cameraImage coming soon WJ01024001 SCREW H PS32CTLC €5.13
181
 photo_cameraImage coming soon WJ00098404 PS32CRLC SPRING €2.69
182
 photo_cameraImage coming soon WJ00136152 WASHER PS32CTLC €2.08
183
 photo_cameraImage coming soon WJ00016105 PS32CTLC RING €2.08
184
 photo_cameraImage coming soon WJ00062150 AIR VALVE PS32CTLC €3.84
185
 photo_cameraImage coming soon WJ00983270 PS32CTLC SPRING €2.08
186
 photo_cameraImage coming soon WJ00166114 PS32CTLC LEVER €2.69
187
 photo_cameraImage coming soon WJ00014477 PIN DCS230T €2.77
188
 photo_cameraImage coming soon WJ00008282 VALVE DCS230T €10.18
189
 photo_cameraImage coming soon WJ00963226 PS32CTLC SCREW €2.22
190
 photo_cameraImage coming soon WJ00088271 PIN PS32CTLC €2.69
191
 Cover-Metering Diaphragm for Chainsaw Makita DCS230T WJ00021158 Cover-Metering Diaphragm for Chainsaw Makita DCS230T €3.04
192
 Lower Carburator Diaphram Gasket for Chainsaw Dolmar PS32CTLC WJ00095613 Lower Carburator Diaphram Gasket for Chainsaw Dolmar PS32CTLC €15.38
193
 Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC WJ00092192 Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC €5.97
194
 photo_cameraImage coming soon WJ00223784 SHAFT THROTTLE PS32CTLC €16.65
195
 photo_cameraImage coming soon WJ00013690 WASHER PS32CTLC €1.40
196
 photo_cameraImage coming soon WJ00016682 PS32CTLC LEVER €3.13
197
 photo_cameraImage coming soon WJ00983584 PS32CTLC SPRING €3.13
198
 photo_cameraImage coming soon WJ00001673 RING RETAINING PS32CTLC €1.44
199
 photo_cameraImage coming soon WJ00183366 LEVER-THROTTLE - PS32 €4.43
200
 photo_cameraImage coming soon WJ00983164 PS32CRLC SPRING €2.69
202
 photo_cameraImage coming soon WJ00088229 PS32CTLC CAP €1.44
203
 photo_cameraImage coming soon WJ00014070 INLET SCREEN DCS230T €2.97
204
 photo_cameraImage coming soon WJ00343439 PS32CTLC VALVE €3.84
205
 Upper Carburator Diaphram Gasket for Chainsaw Dolmar PS32CTLC WJ00009589 Upper Carburator Diaphram Gasket for Chainsaw Dolmar PS32CTLC €4.97
206
 Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC WJ00092225 Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC €3.87
207
 photo_cameraImage coming soon WJ00096589 PS32CTLC SCREW €2.77

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chainsaw EA3201S

Fix Your Chainsaw EA3201S. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Chainsaw and the respective parts of the code.
Makita EA3201S
CHAINSAW MAKITA EA3201S pag.1
# Part Num. Description
1 168507-3 TANK CAP COMPLETE
2 213080-9 O RING 29.5
3 163447-0 GASOLINE FILTER
4 195758-5 TANK ASSEMBLY A BLUE
5 266651-1 H.L. TAPPING SCREW 5.5X16
6 452021-2 GRIP SHELL
7 452020-4 CATCH LEVER
8 231866-9 TORSION SPRING 10
9 452019-9 THROTTLE LEVER
10 195762-4 AIR VALVE SET
11 452018-1 FUEL NIPPLE
12 213586-7 O RING 11.5
13 424456-7 FUEL LINE
14 869091-8 EA3201S NAME PLATE
17 452036-9 TUBULAR HANDLE
18 346517-2 CUP W ASHER 6
19 234189-4 COMPRESSION SPRING 12
20 266605-8 H.L. SOCKET HEAD BOLT M5X16
21 266651-1 H.L. TAPPING SCREW 5.5X16
22 891898-4 MAKITA LOGO LABEL
23 266651-1 H.L. TAPPING SCREW 5.5X16
CHAINSAW MAKITA EA3201S pag.2
24 452031-9 AIR FILTER COVER
25 423414-0 AIR FILTER
26 452030-1 INTAKE MANIFOLD
27 266604-0 H.L. SOCKET HEAD BOLT M4X40
28 424173-9 DAMPING PLUG
29 168398-2 PRIMER PUMP
30 422067-2 TUBE 2.5-55
31 422065-6 TUBE 2.5-112
32 422068-0 TUBE 3-70
33 422066-4 TUBE 2.5-72
34 318634-8 FLANGE RING
35 346413-4 BUSH 17
36 452024-6 INTERMEDIATE FLANGE
37 424340-6 INTAKE HOSE
38 233971-8 RING SPRING
39 266651-1 H.L. TAPPING SCREW 5.5X16
40 264044-6 SNAP NUT M5
41 168602-9 CARBURETOR
42 266421-8 TAPPING SCREW 3X10
43 346290-4 CONTACT SPRING
44 266651-1 H.L. TAPPING SCREW 5.5X16
45 452023-8 HOOD
46 266607-4 H.L. SOCKET HEAD BOLT M5X20
47 325938-1 ANGULAR NIPPLE
48 346306-5 COOLING PLATE
49 325939-9 CONNECTING LINK
50 346304-9 GASKET
51 266605-8 H.L. SOCKET HEAD BOLT M5X16
52 168604-5 MUFFLER COMPLETE
53 346294-6 SPARK ARRESTER SCREEN
54 266606-6 H.L. SOCKET HEAD BOLT M5X40
55 266605-8 H.L. SOCKET HEAD BOLT M5X16
CHAINSAW MAKITA EA3201S pag.3
56 195759-3 CYLINDER PISTON SET
57 195760-8 PISTON SET
58 325991-7 PISTON RING 38
59 325992-5 PISTON PIN 8
60 233988-1 RING SPRING 8
61 213582-5 OIL SEAL 12
62 211341-1 BALL BEARING 6201
63 212086-4 NEEDLE CAGE 810
64 195956-1 CRANK SHAFT SET
65 211341-1 BALL BEARING 6201
66 213582-5 OIL SEAL 12
67 424339-1 CRANK CASE SEALING
68 318633-0 CRANKCASE UNDERSIDE
69 168507-3 TANK CAP COMPLETE
70 213080-9 O RING 29.5
71 452727-2 PLUG
72 266651-1 H.L. TAPPING SCREW 5.5X16
73 234189-4 COMPRESSION SPRING 12
74 816917-5 INDICATION LABEL
75 452025-4 CHOKE LEVER
76 452022-0 THROTTLE LINKAGE
77 266608-2 H.L.TAPPING SCREW 5X40
78 325946-2 BUSH 6
79 234189-4 COMPRESSION SPRING 12
80 266651-1 H.L. TAPPING SCREW 5.5X16
81 234189-4 COMPRESSION SPRING 12
82 266651-1 H.L. TAPPING SCREW 5.5X16
83 266651-1 H.L. TAPPING SCREW 5.5X16
84 168504-9 VENT VALVE
85 346301-5 SPIKE BAR
86 346385-3 HEAT PROTECTION FOIL
CHAINSAW MAKITA EA3201S pag.4
87 444029-0 ISOLATING TUBE 6-95
88 346445-1 SPARK PLUG CONNECTOR
89 168401-9 SPARK PLUG
90 452670-5 ISOLATING WASHER
91 126270-4 IGNITION COIL ASSEMBLY
92 266631-7 H.L. SOCKET HEAD BOLT M5X20
93 168601-1 CABLE HARNESS
94 266651-1 H.L. TAPPING SCREW 5.5X16
95 891901-1 EA3201S MODEL NO. LABEL
96 168608-7 STARTER COMPLETE BLUE
97 453783-5 STARTER GRIP
98 267847-7 SQUARE WASHER 4
99 444038-9 STARTER ROPE
100 234252-3 REW IND SPRING
101 453785-1 REEL
102 234253-1 TORSION SPRING 20
103 453786-9 CAM PLATE
104 266777-9 TAPPING SCREW 5X12
105 452026-2 AIR GUIDE PLATE
106 264053-5 HEX. NUT M8X1
107 267822-3 SPRING W ASHER 8
108 140480-9 FLYW HEEL COMPLETE
109 195761-6 RATCHET SET
CHAINSAW MAKITA EA3201S pag.5
110 452032-7 HAND GUARD
111 810075-9 CAUTION LABEL
112 266627-8 H.L. TAPPING SCREW 4.7X16
113 267066-5 FLAT W ASHER 5
114 313212-9 HAND GUARD GUIDE
115 234210-9 COMPRESSION SPRING 6
116 231868-5 TENSION SPRING 10
117 163500-2 LINK PLATE COMPLETE
118 325947-0 BUSH 6
119 346299-6 SPACER SHEET METAL
120 961011-9 STOP RING E-4
121 452033-5 BRAKE COVER
122 266421-8 TAPPING SCREW 3X10
123 452035-1 PUMP DRIVE
124 168645-1 OIL SUCTION LINE COMPLETE
125 234207-8 COMPRESSION SPRING 6
126 452666-6 NIPPLE
127 424342-2 OIL PRESSURE LINE
128 168503-1 OIL PUMP COMPLETE
129 195872-7 OIL PUMP ADJUSTMENT SET
130 266627-8 H.L. TAPPING SCREW 4.7X16
131 267430-0 FLAT W ASHER 10
132 267431-8 FLAT W ASHER 10
133 168607-9 CLUTCH COMPLETE
134 231873-2 TENSION SPRING 5
135 140980-9 CLUTCH DRUM ASSEMBLY
136 267451-2 FLAT W ASHER 8
137 259033-4 RETAINING RING E TYPE 6
138 346298-8 BRAKE BAND
139 140482-5 ENGINE HOUSING COMPLETE TLC B
140 453784-3 SPRING CASSETTE
141 195955-3 REW IND SPRING SET
151 140510-6 SPROCKET GUARD TLC COMPLETE B
152 266007-8 TAPPING SCREW BIND PT 3X10
153 346309-9 GUIDE PLATE
154 266007-8 TAPPING SCREW BIND PT 3X10
155 417403-5 COVER
156 324068-5 ADJUST PIN
157 226681-4 HELICAL GEAR 17
158 226534-7 HELICAL GEAR 8
159 346518-0 GUIDE PLATE
160 892502-8 INDICATION LABEL
161 233033-2 COMPRESSION SPRING 4
162 216008-6 STEEL BALL 4
163 419233-0 DIAL 40
164 253874-0 FLAT WASHER 4
165 915106-0 BINDING HEAD SCREW M4X8
166 264042-0 HEX. NUT M8-13
167 231025-5 COMPRESSION SPRING 8
168 195764-0 WING GRIP SET
CHAINSAW MAKITA EA3201S pag.6
170 WJ00096166 SCREW
171 WJ00213750 COVER ASSEMBLY-PUMP
172 WJ00096369 SCREW-IDLE ADJ
173 WJ00098356 SPRING
174 WJ00096475 SCREW
175 WJ00183519 LEVER-CHOKE
176 WJ00983585 SPRING
177 WJ00223556 SHAFT ASSEMBLY-THROTTLE
178 WJ00098494 SPRING
179 WJ01023908 NEEDLE-IDLE
180 WJ01024001 NEEDLE-HIGH SPEED
181 WJ00098404 SPRING
182 WJ00136152 WASHER
183 WJ00016105 RING-O
184 WJ00062150 VALVE-CHOKE
185 WJ00983270 SPRING
186 WJ00166114 LEVER-METERING
187 WJ00014477 PIN-METERING LEVER
188 WJ00008282 VALVE-INLET NEEDLE
189 WJ00963226 SCREW
190 WJ00088271 PLUG-W ELCH
191 WJ00021158 COVER-METERING DIAPHRAGM
192 WJ00095613 DIAPHRAGM ASSEMBLY-METERING
193 WJ00092192 GASKET-METERING DIAPHRAGM
194 WJ00223784 SHAFT ASSEMBLY-CHOKE
195 WJ00013690 WASHER
196 WJ00016682 LEVER-FAST IDLE
197 WJ00983584 SPRING
198 WJ00001673 RING-RETAINING
199 WJ00183366 LEVER-THROTTLE
200 WJ00983164 SPRING
201 WJ00160511 PISTON ASSMBLY-ACCELERATOR
202 WJ00088229 PLUG-CUP
203 WJ00014070 INLET SCREEN
204 WJ00343439 VALVE-THROTTLE
205 WJ00009589 DIAPHRAGM-PUMP
206 WJ00092225 GASKET-PUMP
207 WJ00096589 SCREW ASSEMBLY
208 WJ00096475 SCREW
209 WJ00096475 SCREW
210 WJ00096475 SCREW
211 WJ00001673 RING-RETAINING
A01 165246-6 SPROCKET NOSE BAR 14" 35CM 3/8" .043 1,1 MM
A02 419560-5 CHAIN COVER
A03 511291752 CHAIN 14" / 35cm 3/8"P
A04 782026-1 UNIVERSAL WRENCH
A05 783012-5 SCREW DRIVER 13/16
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EA3201S
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita EA3201S

Drawing Makita EA3201S

Download (1.18MB)

You might also like

Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A
Makita SKU: 453786-9
Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A
Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the...
on 7/10 Business Days Approx. €4.63
Details
Guide Plate for Chainsaw Dolmar PS32C/35
Makita SKU: 346518-0
Guide Plate for Chainsaw Dolmar PS32C/35
Guide Plate for Chainsaw Dolmar PS32C/35 Genuine parts Dolmar, Guide Plate for Chainsaw PS32C/35 - Chainsaw 33CC 35CM-1,1MM - PS35C/40 - Chainsaw 35CC 40CM - Makita EA3200S40B - EA3201S35A -EA3500S40B Part for the following products:...
AVAILABLE €6.23
Details
Fuel Hose for Chaisaws Makita EA3201S35A
Makita SKU: 424456-7
Fuel Hose for Chaisaws Makita EA3201S35A
Fuel Hose for Chaisaws Makita EA3201S35A Genuine parts Makita, Fuel Hose for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM MAKITA -...
AVAILABLE €16.31
Details
Air Cleaner for Chaisaw Makita EA3201S35A
Makita SKU: 423414-0
Air Cleaner for Chaisaw Makita EA3201S35A
Air Cleaner for Chaisaw Makita EA3201S35A Genuine parts Makita, Air Cleaner for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM...
AVAILABLE €3.87
Details
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Makita SKU: WJ00092225
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Upper Carburator Cover Gasket for Chainsaws Dolmar PS32CTLC - PS32C/35 - Makita  EA3200S40B - EA3201S35A Part for the following products: - PS32C/35 -...
AVAILABLE €3.87
Details
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Makita SKU: WJ00092192
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC Genuine parts Dolmar, Lower Carburator Cover Gasket for Chainsaws PS32CTLC - PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC Part for the following products: -...
AVAILABLE €5.97
Details
Gasoline Primer Pump for Chainsaw Makita DCS230T
Makita SKU: 168398-2
Gasoline Primer Pump for Chainsaw Makita DCS230T
Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...
AVAILABLE €6.24
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Details
Makita Label for Chainsaw Makita DCS230T
Makita SKU: 810075-9
Makita Label for Chainsaw Makita DCS230T
Makita Label for Chainsaw Makita DCS230T Genuine parts for Makita, Makita Label for Chainsaws DCS230T - EA3200S35A - EA3201S35A Part for the following products: - Chainsaw Makita DCS230T -...
AVAILABLE €2.84
Details
Venting Valve for Chainsaw Dolmar PS32CTLC
Makita SKU: 168504-9
Venting Valve for Chainsaw Dolmar PS32CTLC
Venting Valve for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Venting Valve for Chainsaws Dolmar PS32CTLC - PS32C/35 - PS3400TH - PS350C - PS420C - PS460 - PS4605...
on 7/10 Business Days Approx €3.70
Details
Worm Screw for Chainsaw Makita EA3201S35A
Makita SKU: 452035-1
Worm Screw for Chainsaw Makita EA3201S35A
Worm Screw for Chainsaw Makita EA3201S35A Genuine part Makita, Worm Screw for Chainsaws Makita EA3201S35A - EA3200S40B - EA3500S40B - Dollmar PS32C/35 - PS32CTLC - PS35C/40. Part for the following products: - EA3201S35A - CHAINSAW...
Usually Ships in: 7/10 Business Days Approx. €5.30
Details
Clutch Drum Ass'y for Chainsaw Makita EA3200S
Makita SKU: 140M30-8
Clutch Drum Ass'y for Chainsaw Makita EA3200S
Clutch Drum Ass'y for Chainsaw Makita EA3200S Genuine replacement part Makita, Clutch Drum Ass'y for Chainsaws EA3200S - EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35...
Last items in stock €16.90
Details
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A
Makita SKU: 195761-6
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A
Starter Pawl for Chainsaws Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Starter Pawl PS32CTLC for Chainsaws Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following products: - EA3200S40B...
AVAILABLE €2.84
Details
Damper for Chainsaw Dolmar PS32CTLC
Makita SKU: 424173-9
Damper for Chainsaw Dolmar PS32CTLC
Damper for Chainsaw Dolmar PS32CTLC Genuine replacement part VALEX, Damper for Chainsaws PS32CTLC - PS32C/35 - PS35C/40. Part for the following products: - PS32C/35 - CHAINSAW 33CC 35CM-1,1MM...
on 7/10 Business Days Approx. €2.18
Details
Cover for Chainsaw Makita EA3201S35A
Makita SKU: 417403-5
Cover for Chainsaw Makita EA3201S35A
Cover for Chainsaw Makita EA3201S35A Genuine replacement part Makita, Cover for Chainsaw Makita EA3201S - EA3201S35A - Dolmar PS32CTLC. Parts for the following products: -  EA3201S - MOTOSEGA 33CC 35CM MAKITA -  EA3201S35A - Chainsaw...
Last items in stock €1.62
Details
Piston Set for Chainsaw Makita EA3201S
Makita SKU: 195760-8
Piston Set for Chainsaw Makita EA3201S
Piston Set for Chainsaw Makita EA3201S Genuine replacement part Makita, Piston Set for Chainsaw Makita  EA3201S - EA3200S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following...
Last items in stock €24.68
Details
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Makita SKU: WJ00021158
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Cover-Metering Diaphragm for Chainsaw Makita DCS230T Genuine part Makita, Cover-Metering Diaphragm for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW...
Last items in stock €3.04
Details
Hand Guard for Petrol Chainsaw Makita EA3200S35A
Makita SKU: 452032-7
Hand Guard for Petrol Chainsaw Makita EA3200S35A
Hand Guard for Petrol Chainsaw Makita EA3200S35A Genuine spare part Makita, Hand Guard for Petrol Chainsaw Makita EA3200S35A - EA3500S35B - EA3201S35A - Dolmar PS32C/40. Part for the following products: -  Chainsaw Makita EA3200S35A...
Last items in stock €6.26
Details
Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita
Makita SKU: 165246-6
Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita
Sprocket Bar 14” 35cm 043” for Electric Chainsaws Makita Genuine part Makita, Sprocket Bar 14” 35cm with 3/8” pitch, .043” gauge chain for Electric - Petrol Chainsaws. Part for the following products: - ELECTRIC CHAINSAW MAKITA...
on 7/10 Business Days Approx €29.60
Details
Makita EA3201S Cylinder + Piston Kit
Makita SKU: 195759-3
Makita EA3201S Cylinder + Piston Kit
Makita EA3201S Cylinder + Piston Kit Genuine replacement part Makita, Cylinder + Piston Kit for Chainsaw Makita  EA3201S - EA3200S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the following products:...
Last items in stock €96.97
Details
Comments (0)
