Makita Spare Parts for Electric Chainsaws UC4003A

SKU: Makita UC4003A
€5.24
VAT included

Makita Spare Parts for Electric Chainsaw UC4003A

Makita genuine replacement parts for to replace broken parts for to fix Electric Chainsaw UC4003A.

Fix Your Electric Chainsaw UC4003A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Electric Chainsaws UC4003A
  • Makita Spare Parts for Electric Chainsaws UC4003A
  • Makita Spare Parts for Electric Chainsaws UC4003A
  • Makita Spare Parts for Electric Chainsaws UC4003A
  • Makita Spare Parts for Electric Chainsaws UC4003A
  • Makita Spare Parts for Electric Chainsaws UC4003A
Makita

Makita Spare Parts for Electric Chainsaws UC4003A

SKU: Makita UC4003A Condition: New
€5.24
VAT included

Makita Spare Parts for Electric Chainsaw UC4003A

Makita genuine replacement parts for to replace broken parts for to fix Electric Chainsaw UC4003A.

Fix Your Electric Chainsaw UC4003A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 51 Spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Electric Chainsaw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

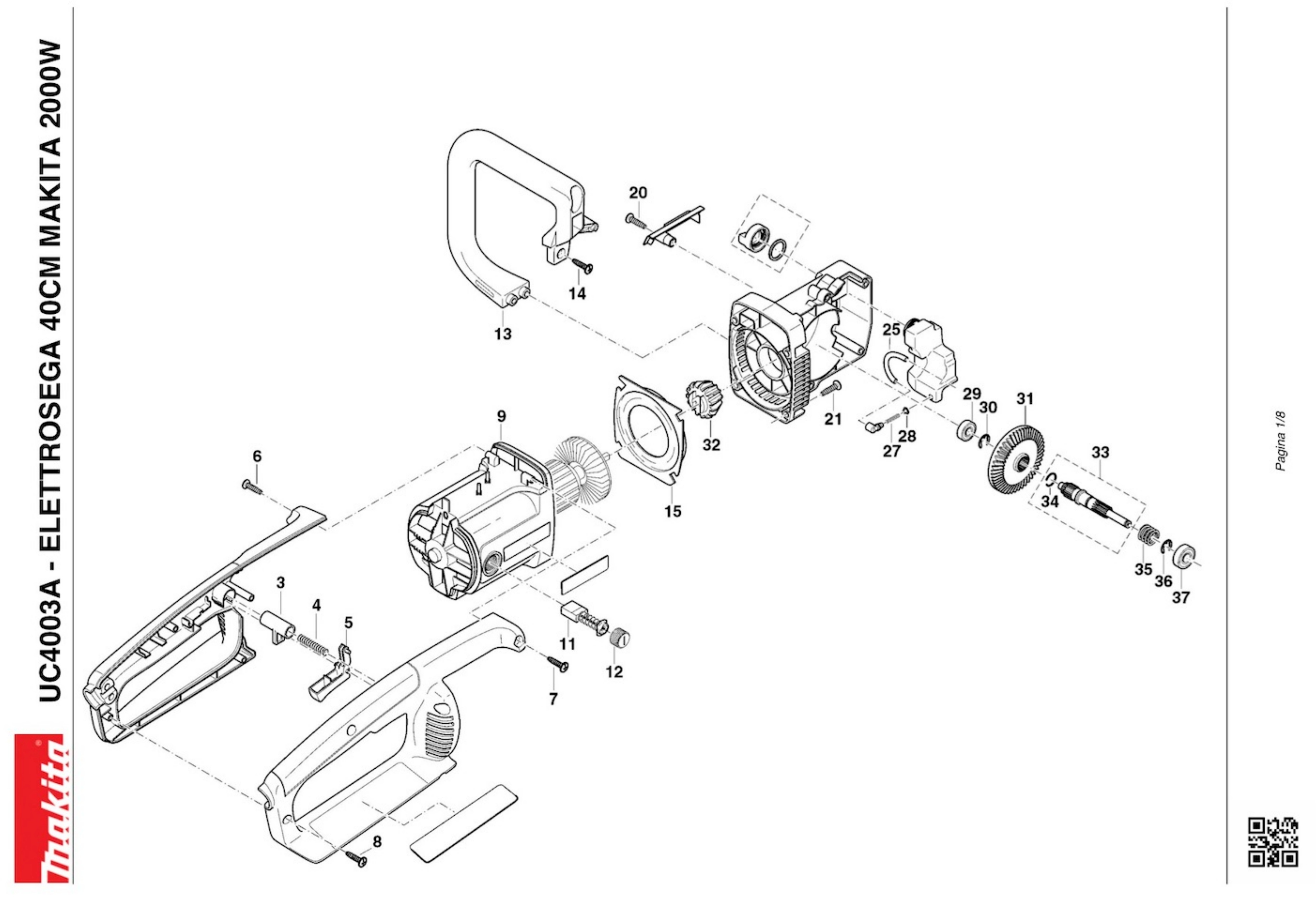

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.32
4
 photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.32
6
 photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
7
 photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
8
 photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
9
 photo_cameraImage coming soon 225111660 HOUSING MOTOR X UC3000-3500 €28.38
12
 photo_cameraImage coming soon 643755-0 CAP BRUSH HOLDER X UB1101 €2.14
13
 photo_cameraImage coming soon 225310021 HANDLE CX UC3000-3500 €10.13
14
 photo_cameraImage coming soon 913550255 SCREW 5X25 X UC €1.43
15
 photo_cameraImage coming soon 225118010 GUIDE PLATE X UC €1.86
20
 photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
21
 photo_cameraImage coming soon 913550255 SCREW 5X25 X UC €1.43
25
 photo_cameraImage coming soon 965452382 FUEL TUBE 1mt Diam. 3/5 €12.56
28
 photo_cameraImage coming soon 416274-7 PLUG OIL PIPE X DCS230T €1.47
29
 photo_cameraImage coming soon 960101084 BEARING 608Z X UC €5.25
30
 photo_cameraImage coming soon 259034-2 SAFETY WASHER X UC €1.54
31
 photo_cameraImage coming soon 226741-2 CPL GEARGE UC €4.24
32
 photo_cameraImage coming soon 226743-8 PINION UC3000-3500-4000A €4.89
35
 photo_cameraImage coming soon 021245040 WORM €2.37
36
 photo_cameraImage coming soon 259034-2 SAFETY WASHER X UC €1.54
37
 photo_cameraImage coming soon 211107-9 BEARING 6201 €9.40
41
 photo_cameraImage coming soon 233174-4 SPRING LOCK. X UC €1.54
42
 photo_cameraImage coming soon 316875-0 GEAR HOUSING €19.42
43
 photo_cameraImage coming soon 913550255 SCREW 5X25 X UC €1.43
44
 photo_cameraImage coming soon 913550555 SCREW 5X55 UC3000-3500-4000A €1.42
45
 photo_cameraImage coming soon 901505354 SCREW M5X35 X UC €1.40
46
 photo_cameraImage coming soon 001213042 PIN TENSIONER X PS 34 €5.13
47
 photo_cameraImage coming soon 921452-1 BOLT 8X30 €1.58
49
 Oil Pump for Electric Chainsaw Makita UC3500A 021245007 Oil Pump for Electric Chainsaw Makita UC3500A €38.40
50
 photo_cameraImage coming soon 203245002 HOLDER OIL PUMP X DES €2.78
51
 photo_cameraImage coming soon 915135100 FILLISTER (TORX)HEAD SCREW 3,5 €1.40
52
 photo_cameraImage coming soon 028213521 SPRING X UC3000-3500-4000A €1.40
53
 photo_cameraImage coming soon 158044-5 RETAINING SPRING BRAKE X UC €6.61
54
 photo_cameraImage coming soon 930304030 FIXING WASHER X UC €1.43
55
 photo_cameraImage coming soon 225213050 BRAKE SPRING X UC €4.53
57
 photo_cameraImage coming soon 225184012 PRESSURE SPRING UC3000-3500 €1.25
60
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
61
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
64
 photo_cameraImage coming soon 915835100 SCREW 3.5X9.5 CU €1.43
66
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
103
 photo_cameraImage coming soon 211111-8 BEARING 6301 X UC €5.67
104
 photo_cameraImage coming soon 211057-8 BEARING 629 X UC €4.89
105
 photo_cameraImage coming soon 970802610 SPACER X UC3000-3500-40 €1.43
106
 photo_cameraImage coming soon 913550555 SCREW 5X55 UC3000-3500-4000A €1.42
107
 photo_cameraImage coming soon 687080-9 CLAMP X ES-152A €1.46
109
 photo_cameraImage coming soon 970311330 CABLE (YELLOW) X UC3000-3500 €1.43
110
 photo_cameraImage coming soon 632681-8 CABLE (ORANGE) XUC3000-3500 €2.14
113
 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A 970001200 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A €5.18 Not available for order
114
 photo_cameraImage coming soon 965404430 GASKET €1.49
115
 photo_cameraImage coming soon 965404430 GASKET €1.49
116
 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A 651923-1 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A €14.89
117
 photo_cameraImage coming soon 970109810 CAPACITOR XUC3000-3500-4000 €2.75
118
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.32
119
 photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
120
 photo_cameraImage coming soon 682574-9 CABLE SLEEVE 10-90 PC5000C €1.47
700
 Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 442040661 Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 €36.37
702
 photo_cameraImage coming soon 511492756 CHAINLOOP 3/8"-56 LINK sp.1,3 .0.50 €22.86
703
 photo_cameraImage coming soon 558092010 TIE STRAP WITH RIVETS 3/8" .050" €1.61
710
 photo_cameraImage coming soon 952010640 CHAIN BAR COVER 40CM €11.29
711
 photo_cameraImage coming soon 941713001 UNIVERSAL KEY X DES380 €4.23
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

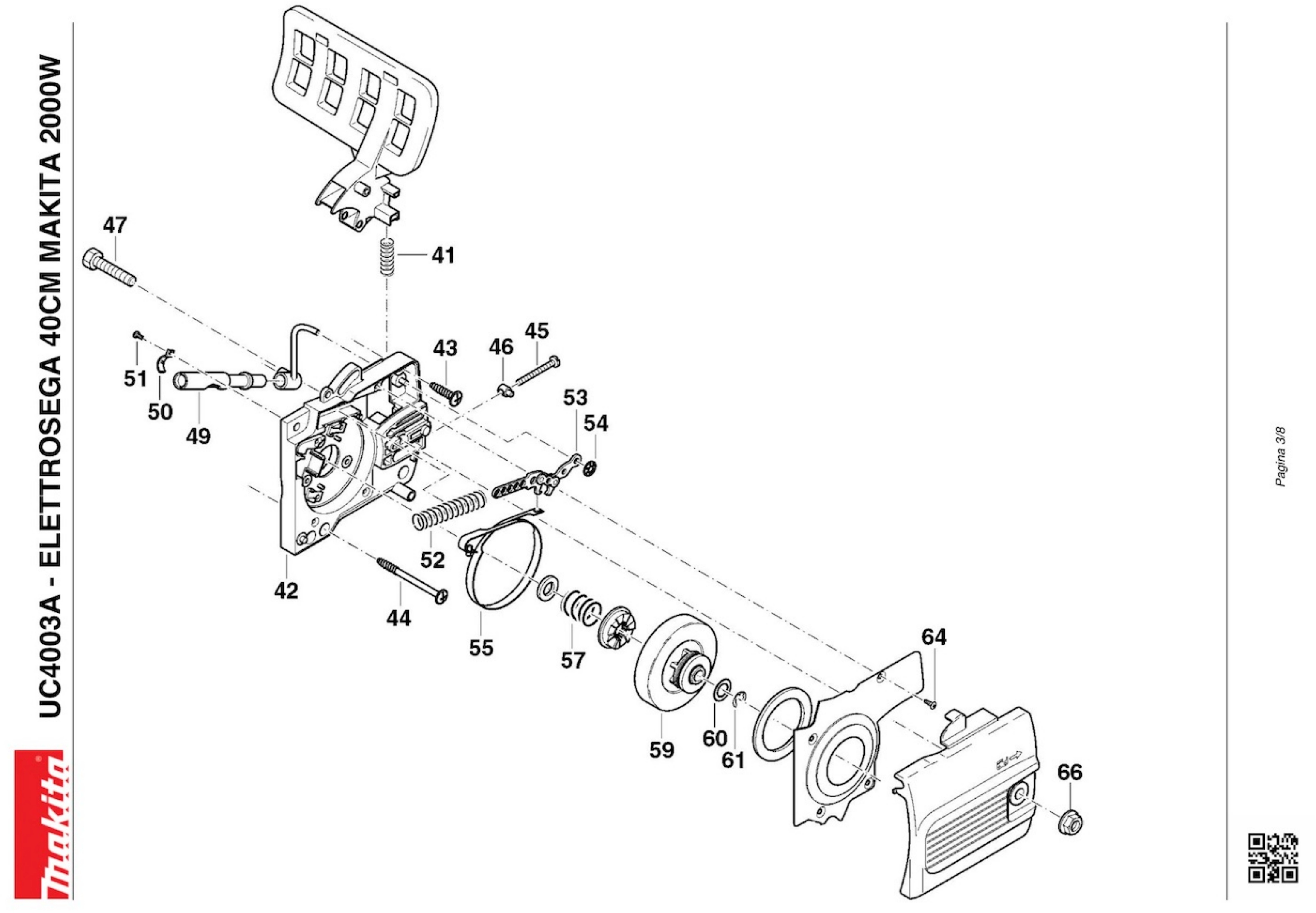

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
41
 photo_cameraImage coming soon 233174-4 SPRING LOCK. X UC €1.54
42
 photo_cameraImage coming soon 316875-0 GEAR HOUSING €19.42
44
 photo_cameraImage coming soon 913550555 SCREW 5X55 UC3000-3500-4000A €1.42
45
 photo_cameraImage coming soon 901505354 SCREW M5X35 X UC €1.40
46
 photo_cameraImage coming soon 001213042 PIN TENSIONER X PS 34 €5.13
47
 photo_cameraImage coming soon 921452-1 BOLT 8X30 €1.58
49
 Oil Pump for Electric Chainsaw Makita UC3500A 021245007 Oil Pump for Electric Chainsaw Makita UC3500A €38.40
50
 photo_cameraImage coming soon 203245002 HOLDER OIL PUMP X DES €2.78
51
 photo_cameraImage coming soon 915135100 FILLISTER (TORX)HEAD SCREW 3,5 €1.40
52
 photo_cameraImage coming soon 028213521 SPRING X UC3000-3500-4000A €1.40
53
 photo_cameraImage coming soon 158044-5 RETAINING SPRING BRAKE X UC €6.61
54
 photo_cameraImage coming soon 930304030 FIXING WASHER X UC €1.43
55
 photo_cameraImage coming soon 225213050 BRAKE SPRING X UC €4.53
57
 photo_cameraImage coming soon 225184012 PRESSURE SPRING UC3000-3500 €1.25
60
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
61
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
64
 photo_cameraImage coming soon 915835100 SCREW 3.5X9.5 CU €1.43
66
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

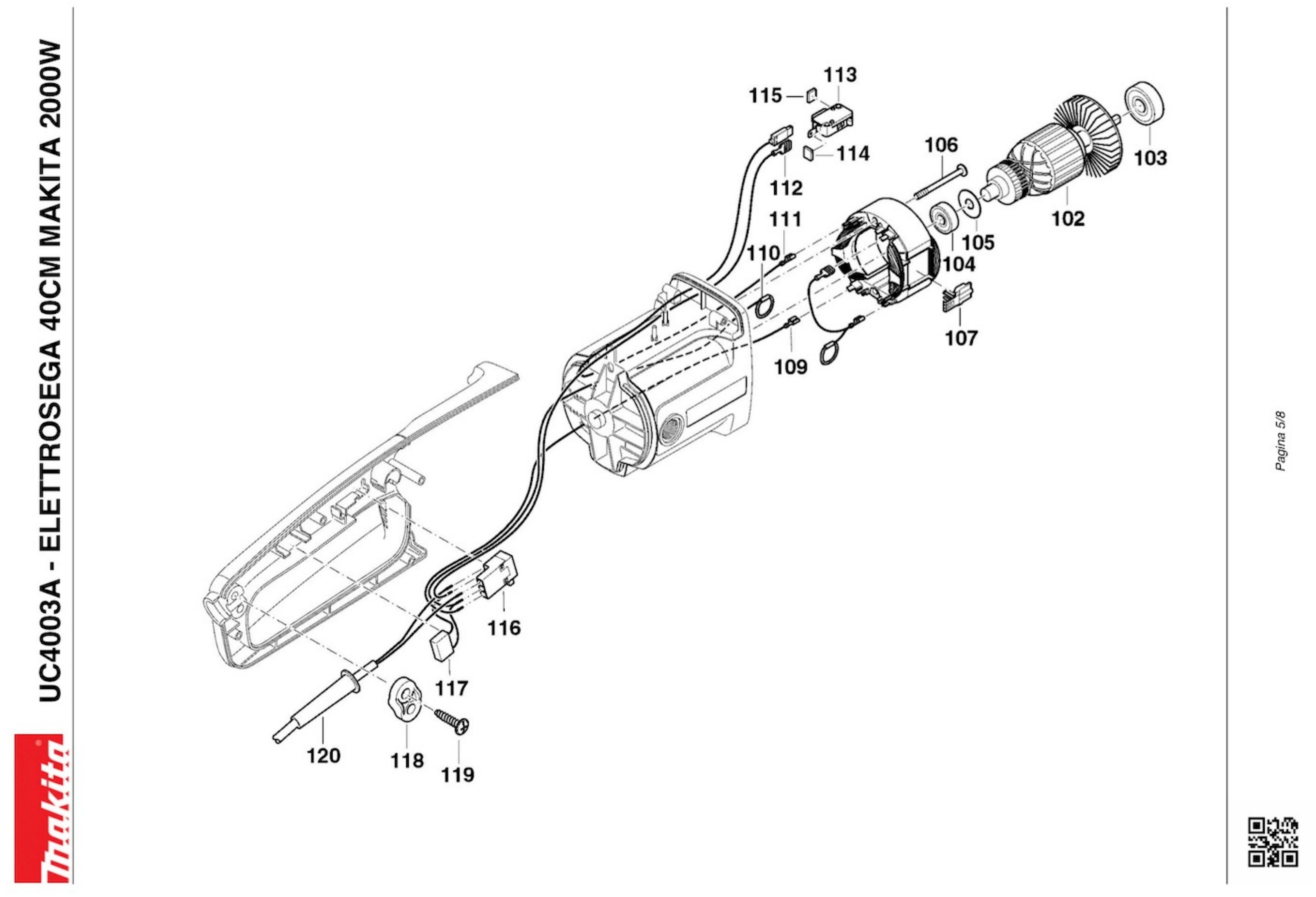

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
103
 photo_cameraImage coming soon 211111-8 BEARING 6301 X UC €5.67
104
 photo_cameraImage coming soon 211057-8 BEARING 629 X UC €4.89
105
 photo_cameraImage coming soon 970802610 SPACER X UC3000-3500-40 €1.43
107
 photo_cameraImage coming soon 687080-9 CLAMP X ES-152A €1.46
109
 photo_cameraImage coming soon 970311330 CABLE (YELLOW) X UC3000-3500 €1.43
110
 photo_cameraImage coming soon 632681-8 CABLE (ORANGE) XUC3000-3500 €2.14
113
 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A 970001200 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A €5.18 Not available for order
114
 photo_cameraImage coming soon 965404430 GASKET €1.49
116
 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A 651923-1 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A €14.89
117
 photo_cameraImage coming soon 970109810 CAPACITOR XUC3000-3500-4000 €2.75
118
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.32
120
 photo_cameraImage coming soon 682574-9 CABLE SLEEVE 10-90 PC5000C €1.47
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

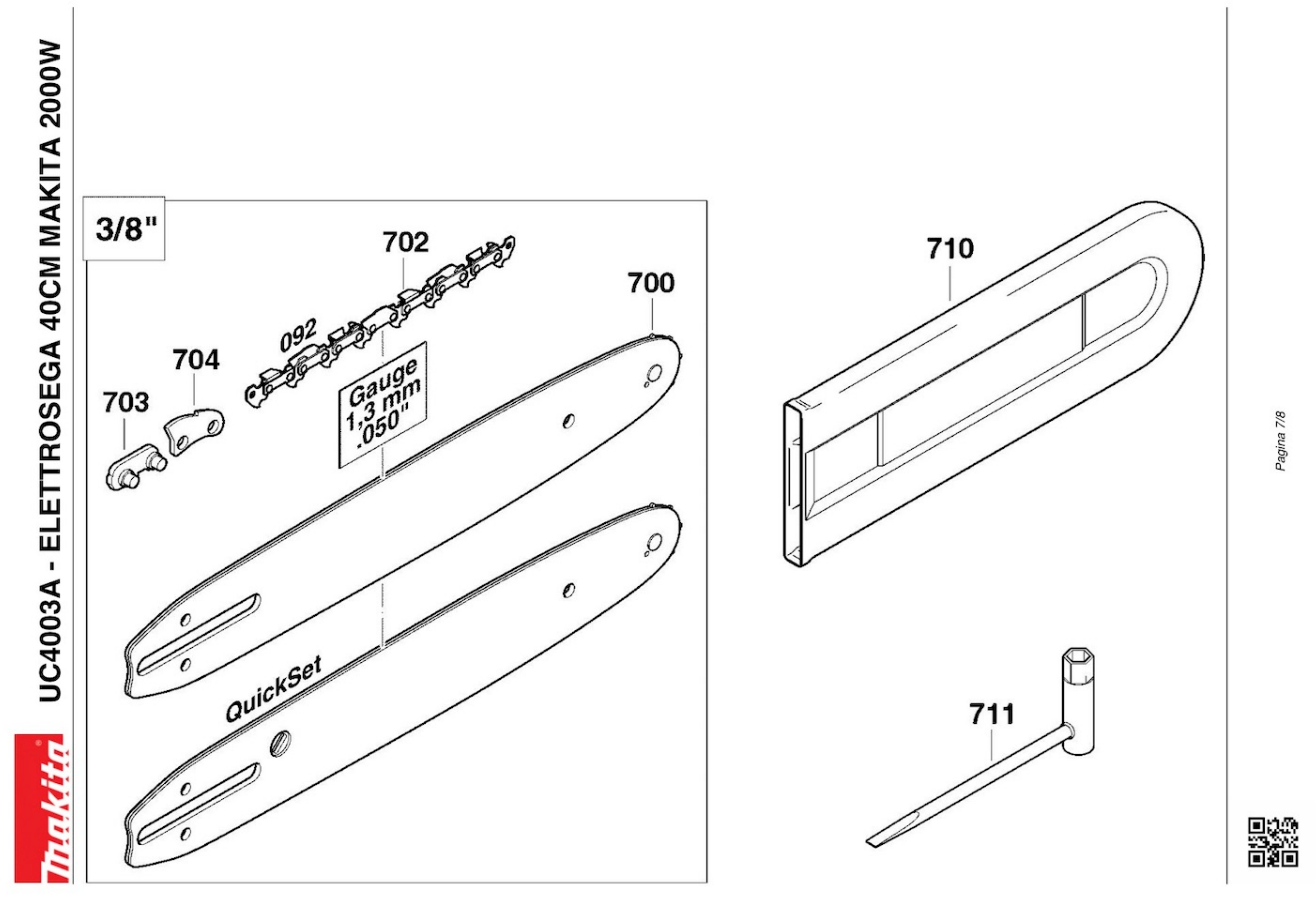

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
700
 Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 442040661 Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 €36.37
702
 photo_cameraImage coming soon 511492756 CHAINLOOP 3/8"-56 LINK sp.1,3 .0.50 €22.86
703
 photo_cameraImage coming soon 558092010 TIE STRAP WITH RIVETS 3/8" .050" €1.61
710
 photo_cameraImage coming soon 952010640 CHAIN BAR COVER 40CM €11.29
711
 photo_cameraImage coming soon 941713001 UNIVERSAL KEY X DES380 €4.23

Shipping and delivery information will be available shortly.

Makita Spare Parts for Electric Chainsaw UC4003A

Fix Your Electric Chainsaw UC4003A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Electric Saws and the respective parts of the code.
Makita UC4003A

Electric Chainsaws UC4003A
# Part Num. Description
3 416178-3 UNLOCKING BUTTON X UC3020A
4 233173-6 SPRING COMPRESSION 4 FOR UC3020A
5 416177-5 SWITCH X UC-ES
6 913540185 SCREW 4X18 UC3000-3500-4000A
7 913540185 SCREW 4X18 UC3000-3500-4000A
8 913540185 SCREW 4X18 UC3000-3500-4000A
9 225111660 HOUSING MOTOR X UC3000-3500-
11 957802410 CARBON BRUSHES X UH4520-5520-7020
12 643755-0 BRUSH CAP X UB1101
13 225310021 HANDLE CX UC3000-3500-
14 913550255 SCREW 5X25 X UC
15 225118010 GUIDE PLATE X UC
20 913540185 SCREW 4X18 UC3000-3500-4000A
21 913550255 SCREW 5X25 X UC
25 965452382 FUEL PIPE 1mt Diam.3 / 5.5
27 225245060 SPRING X ES2035A-ES2040A
28 416274-7 OIL PIPE CAP X DCS230T
29 960101084 BEARING 608Z X UC
30 259034-2 SAFETY WASHER X UC
31 226741-2 CPL GEARGE UC
32 226743-8 PINION UC3000-3500-4000A
33 225221030 SHAFT X UC3000-3500-4000A - DISCONTINUED
34 930912101 RING ES2035A-ES2040A
35 021245040 WORM
36 259034-2 SAFETY WASHER X UC
37 211107-9 BEARING 6201 X 9524NB
41 233174-4 SPRING X UC
42 316875-0 RIGHT GEAR HOUSING
43 913550255 SCREW 5X25 X UC
44 913550555 SCREW 5X55 UC3000-3500-4000A
45 901505354 SCREW M5X35 X UC
46 001213042 PIN CHAIN TENSIONER X PS 34
47 921452-1 HEXAGONAL BOLT 8X30
49 021245007 METAL OIL PUMP
50 203245002 HOLDER OIL PUMP X DES
51 915135100 SCREW 3.5 X 9.5
52 028213521 SPRING X UC3000-3500-4000A
53 158044-5 BRAKE SPRING X UC
54 930304030 WASHER X UC
55 225213050 BRAKE SPRING X UC
57 225184012 PRESSURE SPRING UC3000-3500-
59 225223112 CPL CLUTCH DRUM X UC
60 253215-0 FLAT WASHER 8 6510PBL / LVR
61 259033-4 SAFETY WASHER X UC
64 915835100 SCREW 3.5X9.5 CU
66 264055-1 NUT M8
102 970802351 ARMATURE 230-240V TYP225
103 211111-8 BEARING 6301 X UC
104 211057-8 BEARING 629 X UC
105 970802610 SPACER X UC3000-3500-40
106 913550555 SCREW 5X55 UC3000-3500-4000A
107 687080-9 CLAMP X ES-152A
109 970311330 CABLE (YELLOW) X UC3000-3500-
110 632681-8 CABLE (ORANGE) XUC3000-3500-
113 970001200 SWITCH X UC3000-3500-4000A
114 965404430 GASKET
115 965404430 GASKET
116 651923-1 SWITCH TG70B X 5903R
117 970109810 CAPACITOR XUC3000-3500-4000
118 687124-5 CABLE CLAMP MT953
119 913540185 SCREW 4X18 UC3000-3500-4000A
120 682574-9 CORD GUARD 10-90 PC5000C
700 442040661 SPROCKET NOSE BAR 40CM SP.1,3MM
702 511492756 CHAIN EXTRA GUARD SWEATERS 56
703 558092010 TIE STRIP WITH RIVETS
704 558092000 SAFETY TIE STRAP
710 952010640 COVER PROT.CATENA 40CM
711 941713001 KEY X DES380
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita UC4003A
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
Machine Type
Electric Chainsaw
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita UC4003A

Diagram Makita UC4003A

Download (644.45KB)

You might also like

Oil Pump for Electric Chainsaw Makita UC3500A
Makita SKU: 021245007
Oil Pump for Electric Chainsaw Makita UC3500A
Oil Pump for Electric Chainsaw Makita UC3500A Genuine replacement part Makita, Oil Pump for Electric Chainsaws UC3500A - UC4001A - UC4003A. Part for the following products: - ELECTRIC CHAINSAW UC3500A - ELECTRIC CHAINSAW UC4001A -...
AVAILABLE €38.40
Details
Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A
Makita SKU: 970001200
Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A
Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A Genuine part Makita, Micro Switch for Electric Chainsaws UC3000A - UC3001A - UC3500A - UC3501A. Part for the following products: - UC3000A - ELETTROSEGA 30CM MAKITA 1450W -...
AVAILABLE €5.18
Details
Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30
Makita SKU: 442040661
Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30
Sprocket Nose Bar 40CM for Chainsaw Makita DCS330S/30 Genuine part Makita, Sprocket Nose Bar 40CM 16" SP.1,3MM for Chainsaw DCS330S/30 - DCS330S/40. Part for the following products: -  DCS330S/30 - CHAINSAW CM30 KW1,3 33CC -...
on 7/10 Business Days Approx €36.37
Details
Comments (0)
No customer reviews for the moment.
