Makita Spare Parts for Chainsaw EA4300F45C

SKU: Makita EA4300F45C
€2.76
VAT included

Makita Spare Parts for Chainsaw EA4300F45C

We have the original Spares MAKITA for Chainsaw EA4300F45C the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Chainsaw EA4300F45C. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
Makita Spare Parts for Chainsaw EA4300F45C
  • Makita Spare Parts for Chainsaw EA4300F45C
  • Makita Spare Parts for Chainsaw EA4300F45C
  • Makita Spare Parts for Chainsaw EA4300F45C
  • Makita Spare Parts for Chainsaw EA4300F45C
  • Makita Spare Parts for Chainsaw EA4300F45C
  • Makita Spare Parts for Chainsaw EA4300F45C
  • Makita Spare Parts for Chainsaw EA4300F45C
  • Makita Spare Parts for Chainsaw EA4300F45C

Makita Spare Parts for Chainsaw EA4300F45C

SKU: Makita EA4300F45C Condition: New
€2.76
VAT included

Makita Spare Parts for Chainsaw EA4300F45C

We have the original Spares MAKITA for Chainsaw EA4300F45C the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Chainsaw EA4300F45C. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 143 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

134 spare parts

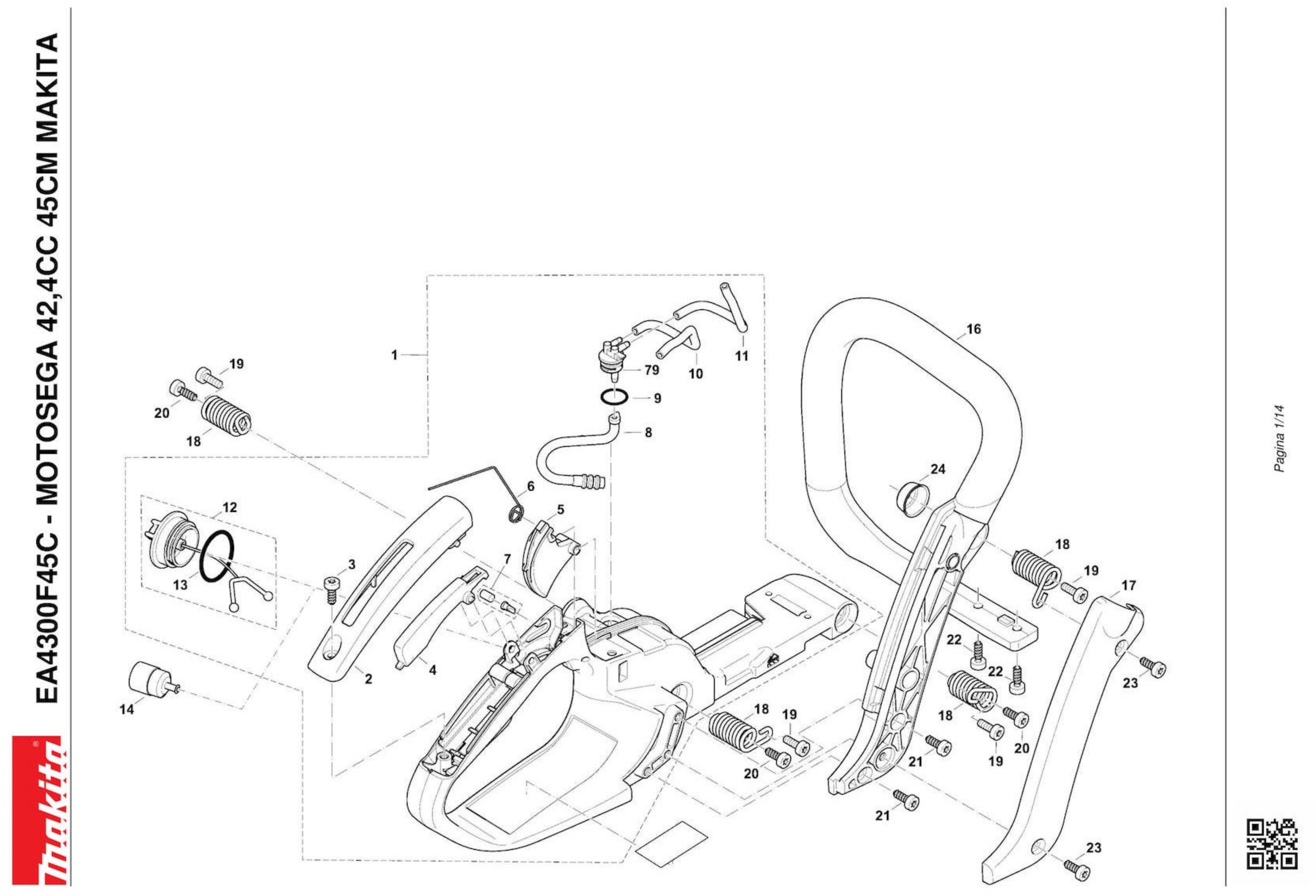

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 195114642 TANK BLUE CPL DCS3501-4301 €162.12
2
photo_cameraImage coming soon 456143-0 HANDLE COVER POST.PS350C €8.18
3
photo_cameraImage coming soon 266478-9 SCREW 5,5X16 (TORX) €1.47
4
photo_cameraImage coming soon 456142-2 RELEASE LEVER PS350C-420C €4.95
5
photo_cameraImage coming soon 195117020 ACCELERATOR LEVER PS350C-420C €5.69
6
photo_cameraImage coming soon 195117010 PS350C-420C SPRING €3.01
7
photo_cameraImage coming soon 170175010 VENT VALVE KSET €7.58
8
photo_cameraImage coming soon 195114070 FUEL TUBE €10.09
9
photo_cameraImage coming soon 963211020 O RING €3.54
10
photo_cameraImage coming soon 965452090 Fuel tube PS45 €21.97
11
photo_cameraImage coming soon 965452660 TUBE €21.54
12
photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
13
photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
14
Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
16
photo_cameraImage coming soon 195310010 HANDLE TUBE PS350C €72.54
18
Compression Spring 12 for Chainsaw Makita DCS3501 234189-4 Compression Spring 12 for Chainsaw Makita DCS3501 €1.46
19
photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
24
photo_cameraImage coming soon 195114160 COVER X SPRING PS350C-420C €6.76
79
photo_cameraImage coming soon 452018-1 FITTING CARCBURANTE PS32CTLC €1.43
500
photo_cameraImage coming soon 415045631 45CM SPES.1,5 GUIDE STAR €52.34
501
photo_cameraImage coming soon 514686772 POWER MATCH CHAIN SAW 45CM 0.325 " €41.03

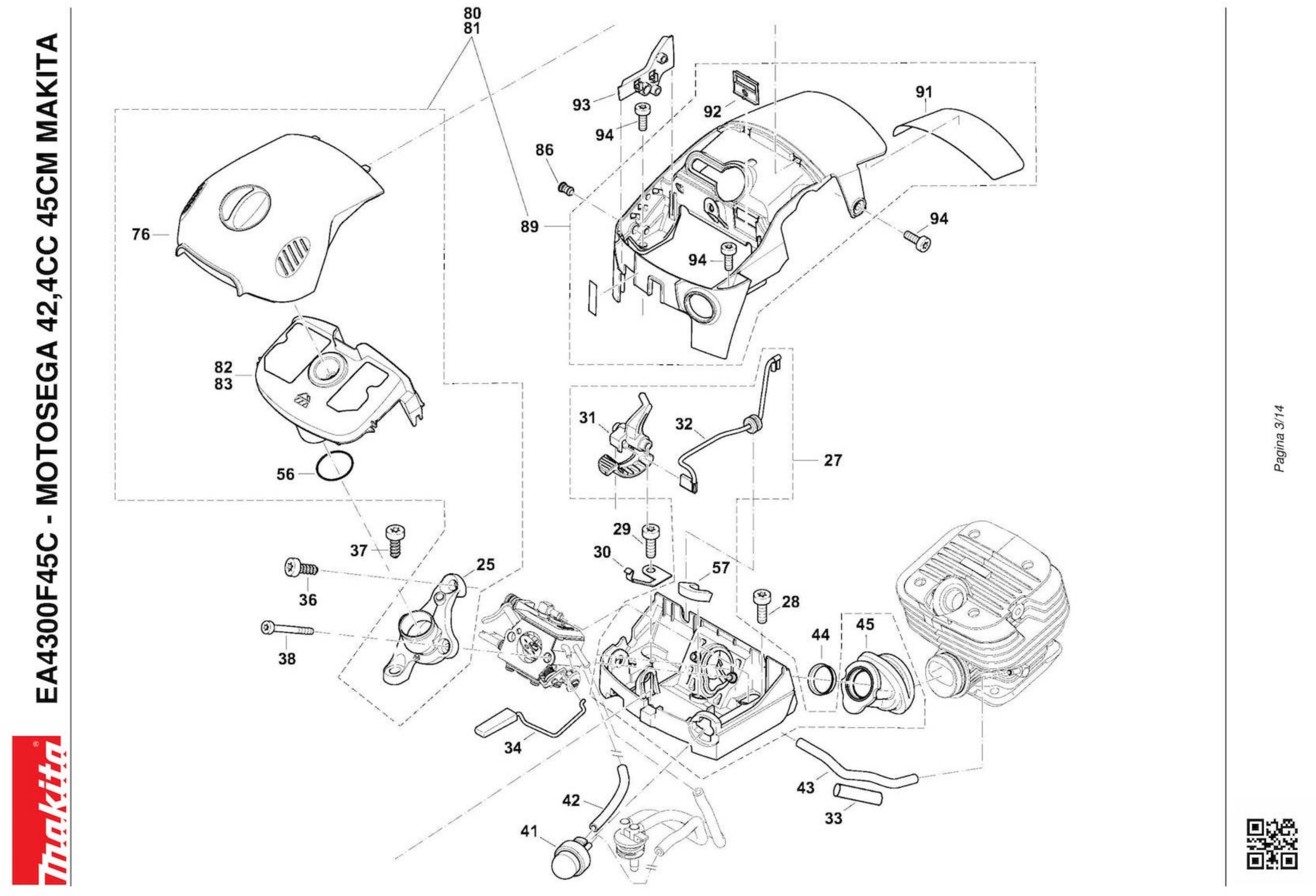

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
25
photo_cameraImage coming soon 456135-9 BLOCK CONNECTION PS350C €10.65
27
photo_cameraImage coming soon 195131301 BASE X EA4300F €72.54
30
photo_cameraImage coming soon 195155050 PLATE CONTACT PS350C €3.01
32
photo_cameraImage coming soon 195147010 POWER CABLE PS350C-420C €10.59
33
photo_cameraImage coming soon 970502110 INSULATING HOSE M DCS4630/5030 €6.76
34
photo_cameraImage coming soon 195117110 PS350C-420C LEVER €7.24
38
photo_cameraImage coming soon 908004406 SCREW €2.60
41
photo_cameraImage coming soon 010155011 VALVE TRIGGER DCS344 €6.30
44
photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
45
photo_cameraImage coming soon 424753-1 SUCTION HOSE PS350C €27.23
56
photo_cameraImage coming soon 213085-9 RING PS350C PS420C €1.36
57
photo_cameraImage coming soon 195131090 PS350C-420C RING €4.24
76
photo_cameraImage coming soon 456159-5 HOOD €6.38
80
photo_cameraImage coming soon 195173221 FILTER-SET €93.33
81
photo_cameraImage coming soon 195173211 FILTER-SET €103.89
82
photo_cameraImage coming soon 123453-7 CLOTH AIR FILTER PS350C-420 €23.37
83
photo_cameraImage coming soon 123452-9 AIR FILTER NYLON PS350C-420C €27.23
89
photo_cameraImage coming soon 195118694 BLACK BOTTOM PS350C-PS420C €48.02
91
photo_cameraImage coming soon 195118080 PROTECTOR PS350C €4.24
92
photo_cameraImage coming soon 195118141 INSERT X EA4300F €1.75

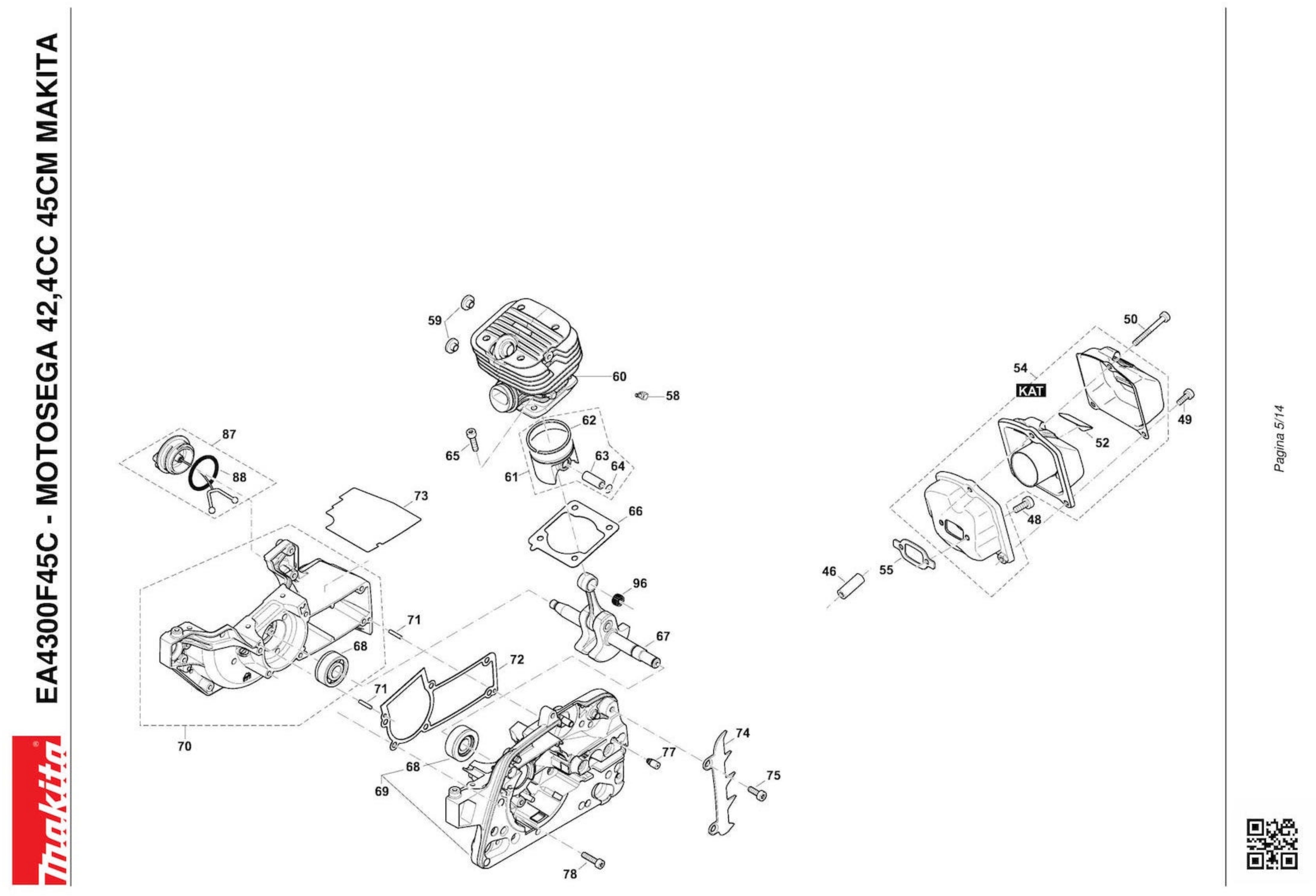

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
46
photo_cameraImage coming soon 325939-9 PS32CTLC SOCKET €1.40
49
photo_cameraImage coming soon 909005105 SCREW €1.57
50
photo_cameraImage coming soon 266606-6 SCREW M5X40 PS32CTLC €1.40
52
photo_cameraImage coming soon 195174280 PROTECTION SPARKS PS350C-420C €5.69
54
photo_cameraImage coming soon 195174550 CATALYTIC MUFFLER PS350C €108.21
55
photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
58
photo_cameraImage coming soon 325938-1 FITTING THE PS32CTLC €2.08
59
photo_cameraImage coming soon 451462-9 INSULATING WASHER €2.84
60
photo_cameraImage coming soon 319338-5 CYLINDER 42 €134.53
61
photo_cameraImage coming soon 957132020 PISTON DIAMETER 42 PS350C-420C €108.21
62
photo_cameraImage coming soon 257383-1 PISTON RING D.42 PS420SC €23.41
63
photo_cameraImage coming soon 195132030 PISTON PIN PS350C / 420C €23.30
64
photo_cameraImage coming soon 195132050 RING PIN PS350C-420C €2.01
65
photo_cameraImage coming soon 266960-8 SCREW X DCS6401 €1.43
66
photo_cameraImage coming soon 346925-7 GASKET PS350C-420C €4.26
68
photo_cameraImage coming soon 960123129 PS350C-420C BEARING €31.30
71
photo_cameraImage coming soon 936430160 PIN 3X16 PS350C-420C €2.20
72
photo_cameraImage coming soon 195111065 GASKET X EA4300F €5.69
73
photo_cameraImage coming soon 346928-1 PROTECTIVE FILM PS350C €4.95
74
photo_cameraImage coming soon 346301-5 HARPOON PS32CTLC €2.12
77
Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
96
photo_cameraImage coming soon 212093-7 NEEDLE BEARING €7.29

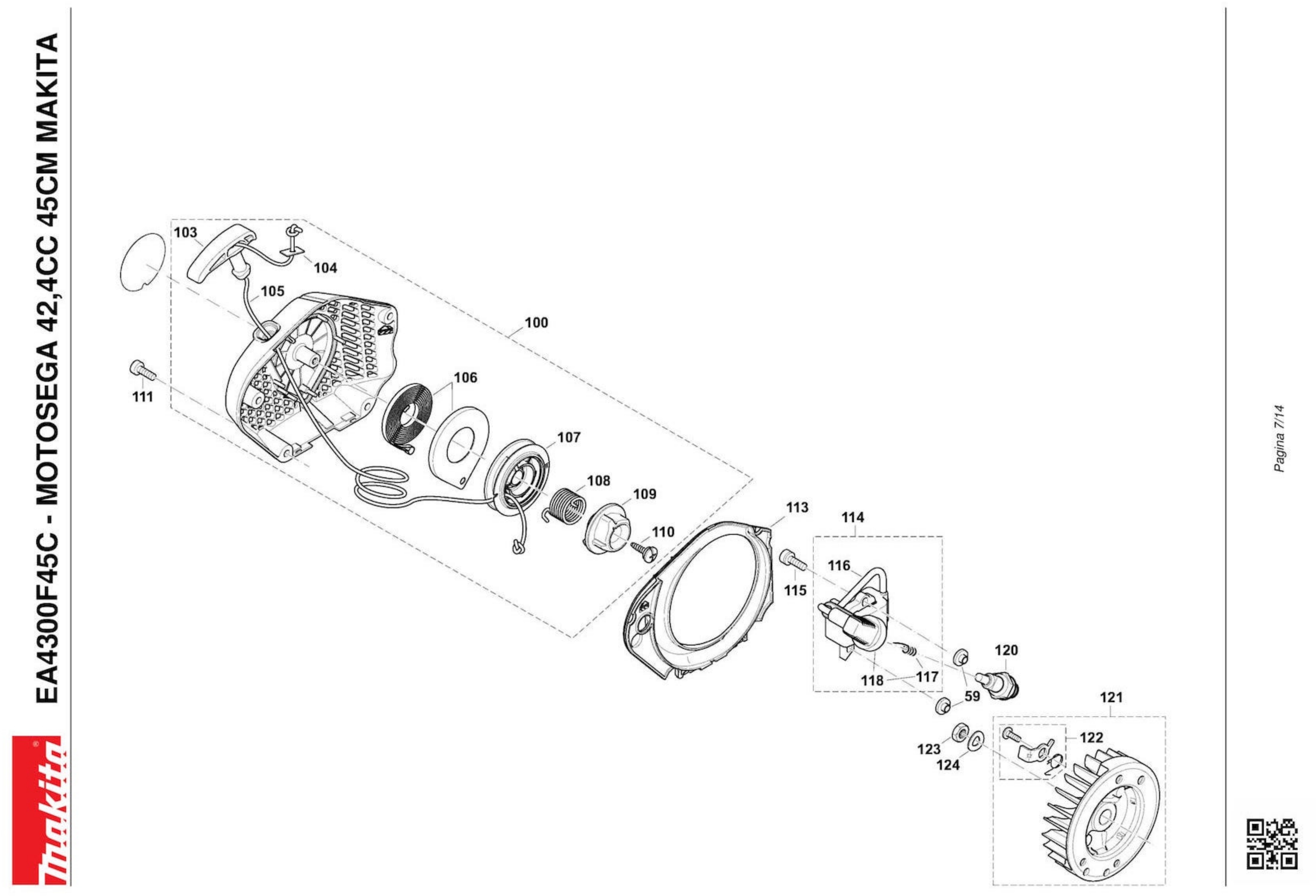

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
100
photo_cameraImage coming soon 161365-6 STARTING CPL BLU DCS3501 €88.60
103
photo_cameraImage coming soon 195160070 HANDLE STARTING PS350C €11.29
104
photo_cameraImage coming soon 195160080 WASHER PS350C-420C €2.12
105
photo_cameraImage coming soon 444038-9 ROPE START PS32CTLC €2.08
106
Makita Starter Spring for EA3200S35A 195955-3 Makita Starter Spring for EA3200S35A €11.07
107
photo_cameraImage coming soon 455919-2 CABLE DRUM CPL. €6.06
108
photo_cameraImage coming soon 234253-1 SPRING TORSION 20 PS32CTLC €2.69
109
photo_cameraImage coming soon 195160020 STARTING PULLEY PS350C-420 €5.69
110
photo_cameraImage coming soon 195160010 PS350C-420C SCREW €2.01
113
photo_cameraImage coming soon 456137-5 DEFLECTOR PS350C-420C €8.18
114
Electronic Coil for Chainsaw Makita DCS4301/38 161357-5 Electronic Coil for Chainsaw Makita DCS4301/38 €77.43
115
photo_cameraImage coming soon 908805205 SCREW M5 + WASHER PS6400 / 7300 €34.71
117
photo_cameraImage coming soon 965604180 SPRING DCS330S/390/430/520/430 €2.20
118
photo_cameraImage coming soon 957604220 HOOD CANDLE PS350C-420C €13.71
120
photo_cameraImage coming soon 965603040 NGK SPARK-CMR7A-5 €7.83
121
photo_cameraImage coming soon 185141100 FLYWHEEL PS460-500-4605-5105 €167.27
122
photo_cameraImage coming soon 185166100 STARER PAWL CPL €25.80
123
photo_cameraImage coming soon 264022-6 NUT €1.43
124
photo_cameraImage coming soon 926208001 SPRING WASHER 8 €1.47

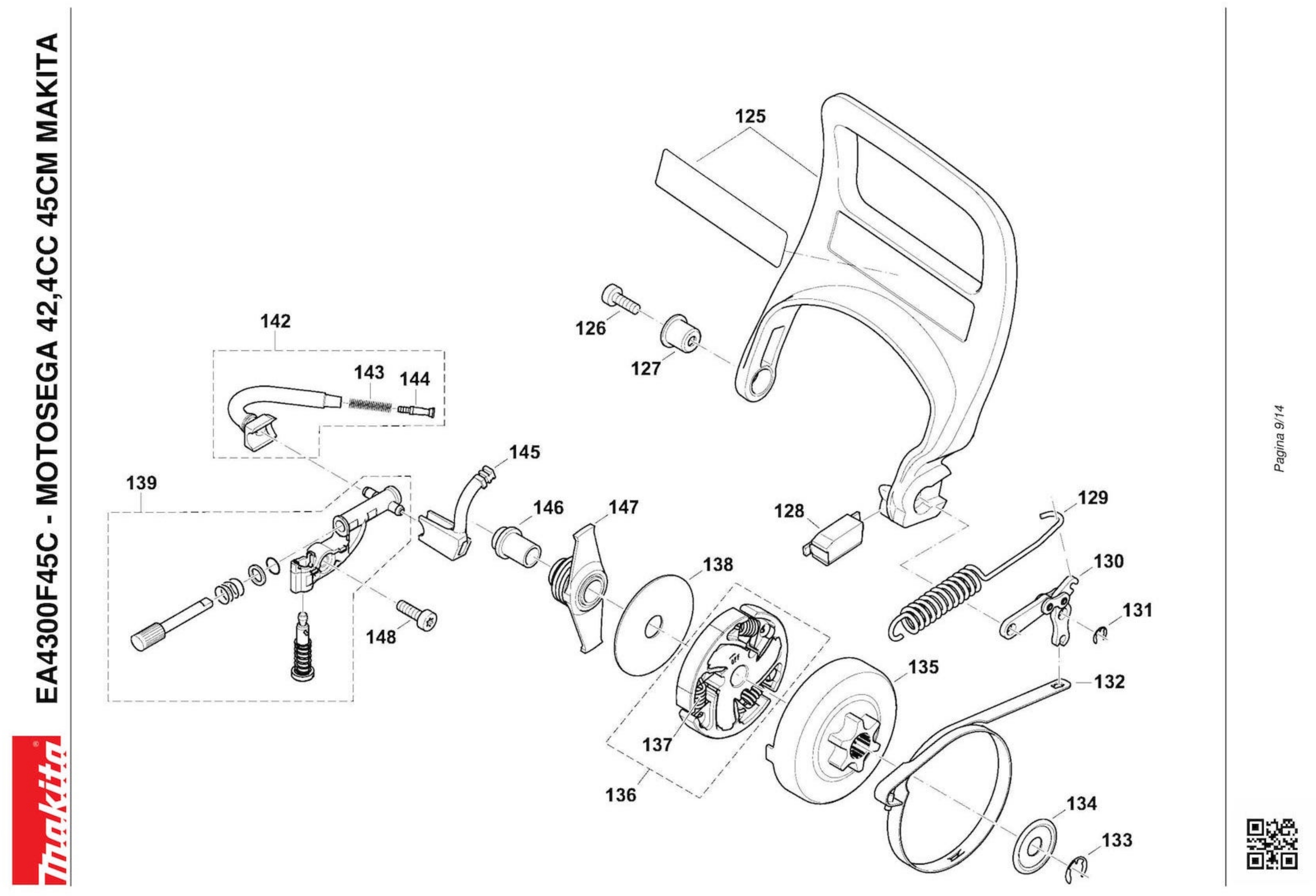

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
125
photo_cameraImage coming soon 195213500 HAND PROTECTION PS350C-420C €38.68
127
photo_cameraImage coming soon 325604-0 BUSHING DCS4600S-5000 €18.98
128
photo_cameraImage coming soon 181213170 X PROTECTION GUIDE DCS4600S €20.12
129
photo_cameraImage coming soon 181213023 SPRING TENSION X PS6100 €2.20
130
photo_cameraImage coming soon 181213100 LEVERAGE DCS4600S-5000 €21.75
131
photo_cameraImage coming soon 927304000 E'CLIP DCS4630/5030/5031/DCS46 €1.47
132
photo_cameraImage coming soon 346029-5 BRAKE BAND SPRING €20.12
133
photo_cameraImage coming soon 259045-7 DISC X DCS6401 €1.47
134
Washer 29 for Chainsaw Dolmar PS6100/45 267820-7 Washer 29 for Chainsaw Dolmar PS6100/45 €7.53 Not available for order
135
photo_cameraImage coming soon 181223312 DRUM CLUTCH 325 "Z = 7 €37.93
136
Clutch Ass'y for Chainsaw Dolmar PS350C/40 123857-3 Clutch Ass'y for Chainsaw Dolmar PS350C/40 €26.65
137
photo_cameraImage coming soon 181184020 TENSION SPRING €2.69
138
photo_cameraImage coming soon 001182042 DISC GUIDE PS350C / 420C €3.91
142
photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
143
photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
144
photo_cameraImage coming soon 001245020 HOSE STEM €1.47
145
photo_cameraImage coming soon 424178-9 PRESSURE LINE DCS4600S €20.12
146
photo_cameraImage coming soon 195245010 PS350C-420C SOCKET €9.48
147
Worm Screw for Chainsaw Dolmar PS4600S-5000 450956-1 Worm Screw for Chainsaw Dolmar PS4600S-5000 €18.99

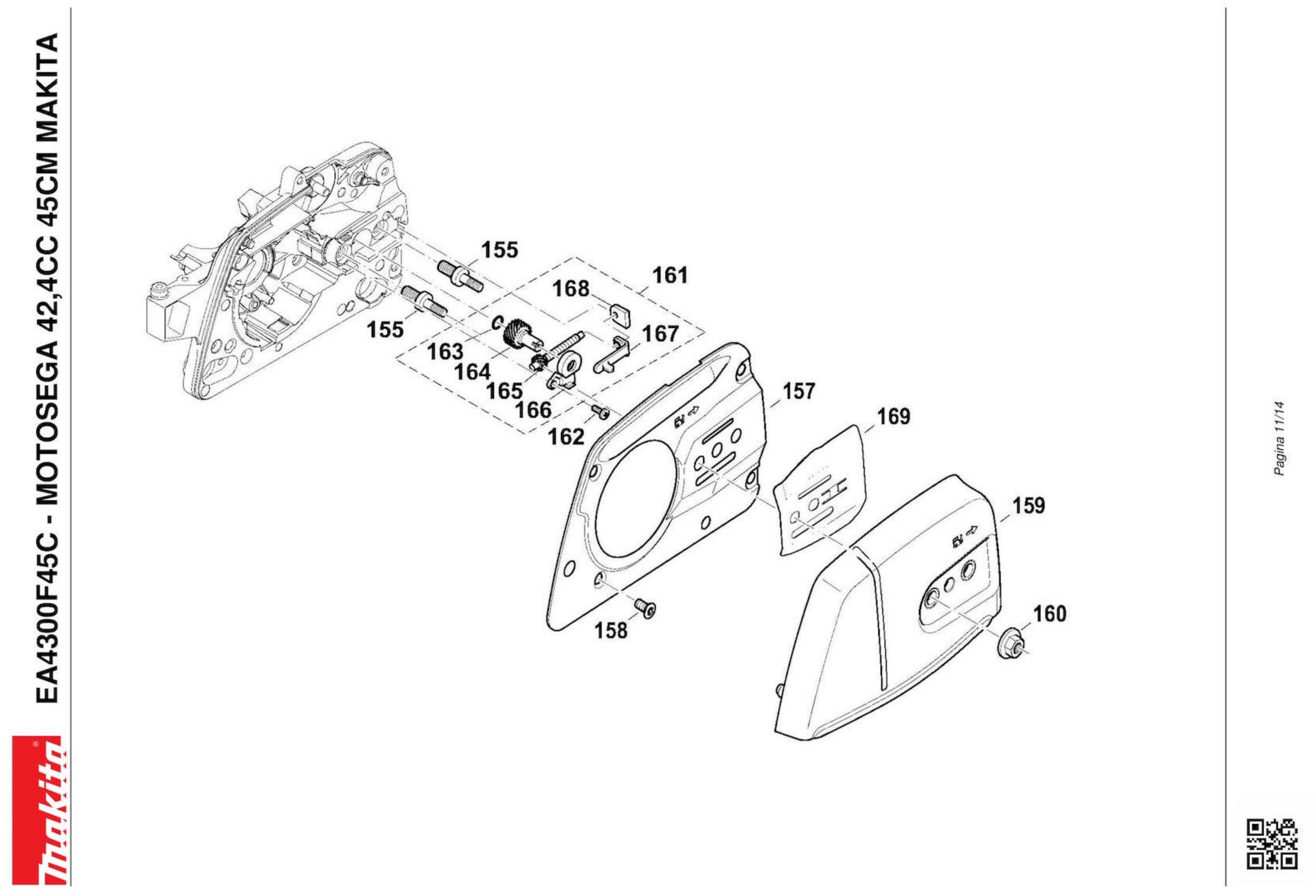

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
155
photo_cameraImage coming soon 266978-9 STUD M8 PS350C-420C €5.94
157
photo_cameraImage coming soon 346927-3 SPROCKET COVER PS350C-420C €9.52
158
photo_cameraImage coming soon 908105126 SCREW M.5X12 X UH4520-5520-7020 €2.20
159
photo_cameraImage coming soon 161791-9 SPROKET GUARD BLUE CPL €12.21
160
Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
161
photo_cameraImage coming soon 195213300 CHAIN TIGHTER PS350C-420C €41.23
163
photo_cameraImage coming soon 963207020 SEAL 7 €2.84
164
photo_cameraImage coming soon 226693-7 PINION DCS4600S-500 €18.81
165
photo_cameraImage coming soon 227743-1 GEAR 11 €22.84
166
photo_cameraImage coming soon 452667-4 COVER €9.01
167
photo_cameraImage coming soon 346300-7 SLEIGH €2.12
168
photo_cameraImage coming soon 181213260 NUT DCS4600S-5000 €2.69
169
Guide Plate for Chainsaw Dolmar PS32C/35 346518-0 Guide Plate for Chainsaw Dolmar PS32C/35 €6.23

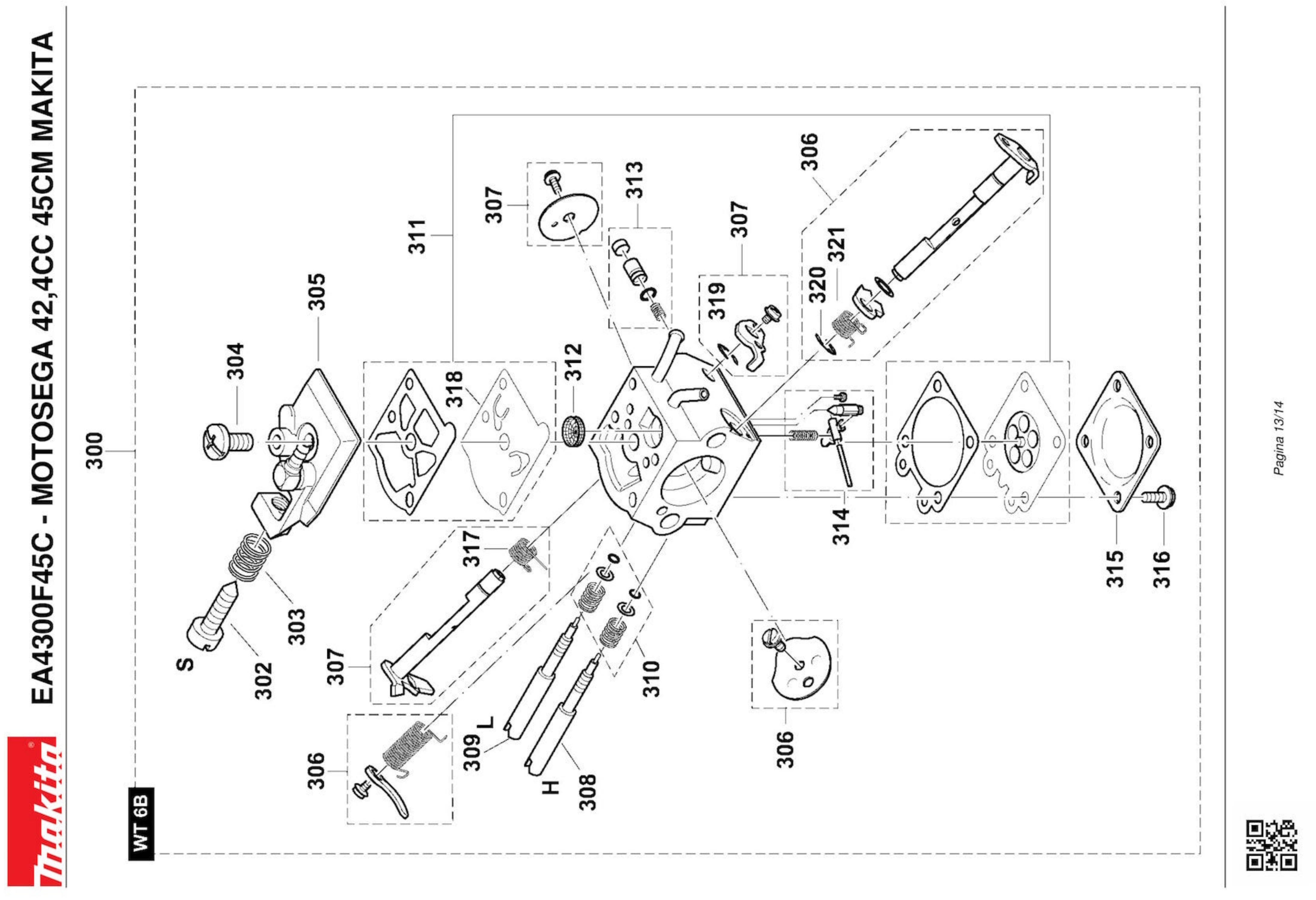

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
300
Dolmar Chainsaw PS350C Carburetor 161371-1 Dolmar Chainsaw PS350C Carburetor €61.00
302
photo_cameraImage coming soon 378151210 SCREW MINIMUM PS3400TH €4.01
303
photo_cameraImage coming soon 021151230 PRESSURE SPRING (S) DCS330S/35 €3.44
304
photo_cameraImage coming soon 118151190 FLAT SCREW 103/105/108/DCS3501 €2.94
305
photo_cameraImage coming soon 195151350 TOP COVER PS350C-420 €18.17
306
photo_cameraImage coming soon 957151210 SHAFT THROTTLE PS350C-420 €42.90
307
photo_cameraImage coming soon 957151200 VALVE ACCELERATOR PS350C €38.68
308
photo_cameraImage coming soon 195151530 SCREW H PS350C-420C €18.17
309
photo_cameraImage coming soon 195151520 SCREW PS350C L-420C €18.17
310
photo_cameraImage coming soon 957151240 SOFT / WASHER PS350C-420C €15.94
311
Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C 957151220 Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C €40.61
312
photo_cameraImage coming soon 021151180 SCREEN €3.85
313
photo_cameraImage coming soon 957151070 PUMP CARBURETOR PS3410TH €5.66
314
photo_cameraImage coming soon 957151230 PORTION CONTROL PS350C-420C €27.08
315
photo_cameraImage coming soon 021151120 DIAPHRAGMCOVER DCS330S/390/43/ €12.13
316
photo_cameraImage coming soon 378151220 SCREW PS3400TH €2.61
317
photo_cameraImage coming soon 001151310 SPRING DCS330S/390/430/520/DCS €2.69
318
photo_cameraImage coming soon 021151150 PUMP DIAPHR RUBBER DCS430/431/ €11.07
319
photo_cameraImage coming soon 119151350 SHAFT CLIP €3.05
321
photo_cameraImage coming soon 195151490 VALVE SPRING SHAFT ACCELERATOR €4.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chainsaw EA4300F45C

We have the original Spares MAKITA for Chainsaw EA4300F45C the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of Chainsaw and the respective parts of the code.
Makita EA4300F45C

Chaisaw EA4300F45C
# Part Num. Description
1 195114642 TANK BLUE CPL DCS3501-4301
2 456143-0 HANDLE COVER POST.PS350C
3 266478-9 SCREW 5,5X16 (TORX)
4 456142-2 LEVER PS350C-420C
5 195117020 THROTTLE LEVER PS350C-420C
6 195117010 SPRING PS350C-420C
7 170175010 KIT VALVE
8 195114070 FUEL PIPE
9 963211020 RING 11.5X2
10 965452090 FUEL PIPE PS45
11 965452660 PIPE
12 168823-3 PS32CTLC TANK CAP
13 213080-9 RING 29.5 PS32CTLC
14 163447-0 FUEL FILTER X DCS230T
16 195310010 PS350C HANDLE
17 195310651 HANDLE COVER X EA4300F
18 234189-4 COMPRESSION SPRING 12 PS32CTLC
19 266605-8 SCREW M5X16 PS32CTLC
20 266478-9 SCREW 5,5X16 (TORX)
21 266478-9 SCREW 5,5X16 (TORX)
22 266478-9 SCREW 5,5X16 (TORX)
23 266478-9 SCREW 5,5X16 (TORX)
24 195114160 SPRING COVER X PS350C-420C
79 452018-1 FUEL FITTING PS32CTLC
25 456135-9 PS350C CONNECTION BLOCK
27 195131301 BACK X EA4300F
28 266605-8 SCREW M5X16 PS32CTLC
29 266605-8 SCREW M5X16 PS32CTLC
30 195155050 CONTACT PLATE PS350C
31 195155021 STARTER LEVER EA4300F
32 195147010 STARTER CABLE PS350C-420C
33 970502110 INSULATING HOSE 6 / 0,5 (M)
34 195117110 LEVER PS350C-420C
36 266478-9 SCREW 5,5X16 (TORX)
37 266478-9 SCREW 5,5X16 (TORX)
38 908004406 LIVES
41 010155011 VALVE DCS344
42 965452090 FUEL TUBE PS45
43 965452090 FUEL TUBE PS45
44 346413-4 BUSH 17 PS32CTLC
45 424753-1 SUCTION HOSE PS350C
56 213085-9 RING PS350C - PS420C
57 195131090 RING PS350C-420C
76 456159-5 CAP
80 195173221 FILTER SET CLOTH X EA4300F
81 195173211 NYLON FILTER SET X EA4300F
82 123453-7 CLOTH AIR FILTER PS350C-420
83 123452-9 AIR FILTER NYLON PS350C-420C
86 195151300 CAP X EA4300F
89 195118694 BLACK BACK PS350C-PS420C
91 195118080 GUARD FILM PS350C
92 195118141 INSERT X EA4300F
93 195155031 GUIDE X EA4300F
94 266605-8 SCREW M5X16 PS32CTLC
46 325939-9 BUSH PS32CTLC
48 266605-8 SCREW M5X16 PS32CTLC
49 909005105 SCREW M5X10
50 266606-6 SCREW M5X40 PS32CTLC
52 195174280 SPARK ARRESTOR SCREEN PS350C-420C
54 195174550 CATALYTIC SILENCER PS350C
55 346304-9 GASKET SILENCER PS32CTLC
58 325938-1 FITTING L PS32CTLC
59 451462-9 INSULATING WASHER
60 319338-5 CYLINDER 42
61 957132020 PISTON DIAMETER.42 PS350C-420C
62 257383-1 PISTON RING D.42 PS420SC
63 195132030 PISTON PIN PS350C / 420C
64 195132050 CIRCLIP PS350C-420C
65 266960-8 SCREW X DCS6401
66 346925-7 GASKET PS350C-420C
67 195120300 CRANKSHAFT EA4300F
68 960123129 BEARING PS350C-420C
69 195111612 CRANKCASE CL SIDE BLUE EA4300F
70 195111622 CRANKCASE M SIDE BLUE EA4300F
71 936430160 PIN 3X16 PS350C-420C
72 195111065 GASKET X EA4300F
73 346928-1 PROTECTIVE FILM PS350C
74 346301-5 SPIKE PS32CTLC
75 266605-8 SCREW M5X16 PS32CTLC
77 168504-9 PS32CTLC VALVE
78 266960-8 SCREW X DCS6401
87 168823-3 PS32CTLC TANK CAP
88 213080-9 RING 29.5 PS32CTLC
96 212093-7 NEEDLE BEARING
59 451462-9 INSULATING WASHER
100 161365-6 STARTING CPL BLU DCS3501
103 195160070 STARTING HANDLE PS350C
104 195160080 WASHER PS350C-420C
105 444038-9 STARTING ROPE PS32CTLC
106 195955-3 SPRING PS32CTLC
107 455919-2 REEL
108 234253-1 TORSION SPRING 20 PS32CTLC
109 195160020 PULLEY STARTER PS350C-420
110 195160010 SCREW PS350C-420C
111 266605-8 SCREW M5X16 PS32CTLC
113 456137-5 DEFLECTOR PS350C-420C
114 161357-5 IGNITION COIL
115 908805205 SCREW M5 + WASHER PS6400 / 7300
116 970502110 INSULATION TUBE 6 / 0,5 (M)
117 965604180 SPRING
118 957604220 SPARK PLUG CAP PS350C-420C
120 965603040 SPARK PLUG-CMR7A-5
121 185141100 FLYWHEEL PS460-500-4605-5105
122 185166100 PAWL
123 264022-6 NUT
124 926208001 ELASTIC WASHER 8
125 195213500 GUARD PS350C-420C
126 266605-8 SCREW M5X16 PS32CTLC
127 325604-0 BUSH DCS4600S-5000
128 181213170 GUIDE X PROTECTION DCS4600S
129 181213023 SPRING TENSION X PS6100
130 181213100 DCS4600S-5000 LEVERAGE
131 927304000 SAFETY WASHER 4
132 346029-5 BRAKE BAND SPRING
133 259045-7 RING X DCS6401
134 267820-7 WASHER PS350C-420C
135 181223312 DRUM CLUTCH 325 "Z = 7
136 123857-3 CLUTCH PS350C-420C
137 181184020 SPRING
138 001182042 DISC GUIDE PS350C / 420C
139 161346-0 PS32C OIL PUMP - EA3201S
142 168645-1 SUCTION TUBE PS32CTLC
143 231975-4 SPRING OIL TUBE X DCS230T
144 001245020 HOSE STEM
145 424178-9 DCS4600S PRESSURE LINE
146 195245010 BUSH PS350C-420C
147 450956-1 ENDLESS DCS4600S-5000
148 266605-8 SCREW M5X16 PS32CTLC
155 266978-9 BOLT M8 PS350C-420C
157 346927-3 PINION COVER PS350C-420C
158 908105126 SCREW M.5X12 X UH4520-5520-7020
159 161791-9 SPROKET GUARD BLUE CPL
160 264055-1 NUT M8
161 195213300 CHAIN ​​TENSIONER PS350C-420C
162 915535100 SCREW 3.5 X 9.5
163 963207020 GASKET 7
164 226693-7 PINION DCS4600S-500
165 227743-1 SCREW CHAIN ​​TENSIONER 11
166 452667-4 CAP
167 346300-7 SLIDE
168 181213260 NUT DCS4600S-5000
169 346518-0 PS32CTLC GUIDE PLATE
300 161371-1 CARBURETOR X PS350SC-PS420SC
302 378151210 MINIMUM SCREW PS3400TH
303 021151230 PRESSURE SPRING (S)
304 118151190 SCREW
305 195151350 UPPER COVER PS350C-420
306 957151210 KIT CHOKE SHAFT PS350C-420
307 957151200 THROTTLE VALVE PS350C
308 195151530 SCREW H PS350C-420C
309 195151520 SCREW L PS350C-420C
310 957151240 SPRINGS / WASHERS PS350C-420C
311 957151220 GASKET KIT PS350C-420C
312 021151180 FUEL FILTER
313 957151070 CARBURETOR PUMP PS3410TH
314 957151230 PARTS PS350C-420C
315 021151120 MEMBRANE COVER
316 378151220 SCREW PS3400TH
317 001151310 SPRING
318 021151150 PUMP DIAPHRAGM
319 119151350 SAFETY WASHER
320 119151350 SAFETY WASHER
321 195151490 SPRING VALVE
500 415045631 CHAIN BAR 45CM 1,5 0,325"
501 514686772 CHAIN POWER MATCH 45CM 0,325"
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EA4300F45C
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita EA4300F45C

Diagram Makita EA4300F45C

Download (1.13MB)

You might also like

Makita SKU: 957151220
Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C Genuine parts Dolmar, Set Diaphram Gasket for Chainsaws Dolmar PS420SC/38 - PS420SC/45 Part for the following products: - Chainsaw Dolmar PS420SC/38 - Chainsaw Dolmar PS420SC/45 -...
Last items in stock €40.61
Makita SKU: 450956-1
Worm Screw for Chainsaw Dolmar PS4600S-5000 Genuine part Dolmar, Worm Screw for Chainsaw Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: - DCS3501/40 -...
Last items in stock €18.99
Makita SKU: 346518-0
Guide Plate for Chainsaw Dolmar PS32C/35 Genuine parts Dolmar, Guide Plate for Chainsaw PS32C/35 - Chainsaw 33CC 35CM-1,1MM - PS35C/40 - Chainsaw 35CC 40CM - Makita EA3200S40B - EA3201S35A -EA3500S40B Part for the following products:...
AVAILABLE €6.23
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Makita SKU: 195131040
Intake Manifold for Chainsaw Dolmar PS420SC Genuine parts Dolmar, Intake Manifold for Chainsaws Dolmar PS350C/40 - PS350SC/40 - PS420C/38 - PS420C/45 - PS420SC/38 - PS420SC/45 Part for the following products: - DCS3501/40 - CHAINSAW...
Last items in stock €29.38
Makita SKU: 168504-9
Venting Valve for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Venting Valve for Chainsaws Dolmar PS32CTLC - PS32C/35 - PS3400TH - PS350C - PS420C - PS460 - PS4605...
on 7/10 Business Days Approx €3.70
Makita SKU: 123857-3
Clutch Ass'y for Chainsaw Dolmar PS350C/40 Genuine replacement part Dolmar, Clutch Ass'y for Chainsaws PS350C/40 - PS350SC/40 - PS420C/38 - PS420C/45 - PS420SC/38. Part for the following products: - PS350C/40 - CHAINSAW 40CM 34,7cc...
Last items in stock €26.65
Makita SKU: 161357-5
Electronic Coil for Chainsaw Makita DCS4301/38 Genuine replacement part Makita, Electronic Coil for Chainsaws Makita DCS3501/40 - DCS4301/38 - DCS4301/45 - EA3500F40B. Part for the following products: -  DCS4301/38 - CHAINSAW 38CM...
Last items in stock €77.43
Makita SKU: 161371-1
Dolmar Chainsaw PS350C Carburetor Genuine replacement part Makita Dolmar, Carburetor for Chainsaw PS350C/40 - PS420C/38 - PS420C/45 Catalized. Part for the following products: -  Chainsaw Dolmar PS350C/40 -  Chainsaw...
Last items in stock €61.00
Comments (0)
