Makita

Makita Spare Parts for Electric Chainsaws 5016B

SKU: Makita 5016B
€16.76
VAT included

Makita Spare Parts for Electric Chainsaws 5016B

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Electric Chainsaws 5016B.
Makita Spare Parts for Electric Chainsaws 5016B
  • Makita Spare Parts for Electric Chainsaws 5016B
  • Makita Spare Parts for Electric Chainsaws 5016B
Makita

Makita Spare Parts for Electric Chainsaws 5016B

SKU: Makita 5016B Condition: New
€16.76
VAT included

Makita Spare Parts for Electric Chainsaws 5016B

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Electric Chainsaws 5016B.
settings 63 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
63 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

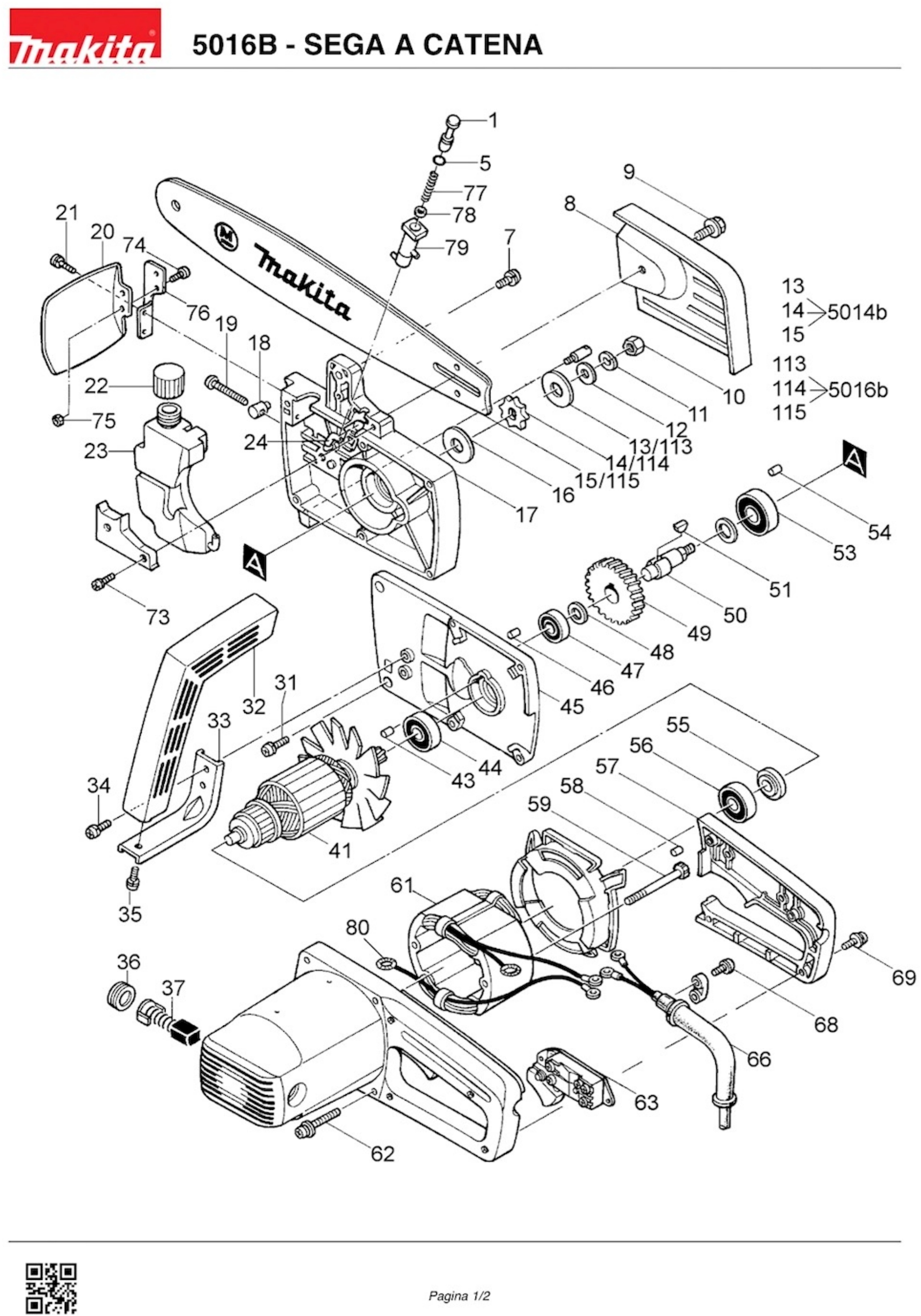

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 321261-2 OIL BUTTON X 5011B / 12B €9.31
5
 photo_cameraImage coming soon 213003-7 GASKET 6 5011NB / 14B €2.28
7
 photo_cameraImage coming soon 911223-4 HEAD SCREW CILIND. M5X16 €1.44
8
 photo_cameraImage coming soon 345160-4 BLADE COVER 5014B / 16B €20.82
9
 photo_cameraImage coming soon 251697-0 BOLT M8X17 €2.94
10
 photo_cameraImage coming soon 252043-0 NUT M8 / 13 5014B / 16B / 12B €1.53
11
 photo_cameraImage coming soon 942201-3 WASHER 8 €2.49
12
 photo_cameraImage coming soon 941201-0 FLAT WASHER 8 €3.18
13
 photo_cameraImage coming soon 253753-2 FLAT WASHER 12 €1.53
14
 Pitch Sprocket 9 for Electric Chain Saws Makita 5014B - 5016B 221504-1 Pitch Sprocket 9 for Electric Chain Saws Makita 5014B - 5016B €12.88
14
 photo_cameraImage coming soon 221514-8 SPROCKET 6 €18.25
15
 photo_cameraImage coming soon 341650-5 GUIDE BAR 40cm 16" 0,050" (1,3 mm) 59M 3/8" €68.50
15
 photo_cameraImage coming soon 345159-9 GUIDE BAR 35cm 14" 0,050" (1,3 mm) 76M. 1/4" €60.58
15A
 Makita UC3501A Chainsaw Chain 511492752 Makita UC3501A Chainsaw Chain €27.05
15B
 photo_cameraImage coming soon 511492756 CHAINLOOP 3/8"-56 LINK sp.1,3 .0.50 €22.86
16
 photo_cameraImage coming soon 253753-2 FLAT WASHER 12 €1.53
16
 photo_cameraImage coming soon 253813-0 FLAT WASHER 12 5012B/2708 €1.53
17
 Gears Housing for Electric Chain Saws Makita 5014B - 5016B 156916-8 Gears Housing for Electric Chain Saws Makita 5014B - 5016B €70.38
18
 photo_cameraImage coming soon 325549-2 PIN 5014B / 16B €4.21
19
 photo_cameraImage coming soon 265062-7 SCREW M5X40 5011NB / 14B / 16B €2.28
20
 photo_cameraImage coming soon 411747-5 GUARD X 5012B / 14B / 16B €4.21
21
 photo_cameraImage coming soon 911211-1 SCREW M5X12 €1.36
22
 photo_cameraImage coming soon 242054-3 CAP 5014B / 16B €4.85
23
 Oil Tank for Electric Chain Saws Makita 5014B - 5016B 155812-7 Oil Tank for Electric Chain Saws Makita 5014B - 5016B €13.95
24
 photo_cameraImage coming soon 412025-6 PIPE 4 5011NB / 14B / 16B €1.53
31
 photo_cameraImage coming soon 911231-5 SCREW M5X20 €1.29
32
 Side Handle for Electric Chain Saws Makita 5014B - 5016B 273603-5 Side Handle for Electric Chain Saws Makita 5014B - 5016B €19.37
33
 photo_cameraImage coming soon 322046-9 HOLDER KNOB 5014B / 16B €6.51
34
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
35
 photo_cameraImage coming soon 911211-1 SCREW M5X12 €1.36
36
 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
37
 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F 181044-0 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F €9.91
41
 photo_cameraImage coming soon 514557-0 ARMATURE X 5014B / 5016B €191.79
43
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €2.49
44
 Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
45
 photo_cameraImage coming soon 156969-7 COVER GEAR HOUSING 5014B / 16B €26.70
46
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
47
 Ball Bearing 6001DD for Makita 9218S 211131-2 Ball Bearing 6001DD for Makita 9218S €6.29
48
 photo_cameraImage coming soon 253052-2 WASHER 12 €1.40
49
 photo_cameraImage coming soon 221636-4 GEAR 53 5014B / 16B €31.04
50
 photo_cameraImage coming soon 325550-7 SHAFT 5014B / 16B €39.21
51
 photo_cameraImage coming soon 254032-1 CRESCENT KEY 5 €2.28
53
 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 211228-7 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 €8.71
54
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €2.49
55
 Armature Washer for Planer Makita 1100 681623-9 Armature Washer for Planer Makita 1100 €2.00
56
 photo_cameraImage coming soon 211087-9 BALL BEARING 6200DDW €8.75
57
 photo_cameraImage coming soon 414119-3 HANDLE COVER 5014B / 16B €9.31
58
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
59
 photo_cameraImage coming soon 911290-9 SCREW M5X65 €1.53
61
 photo_cameraImage coming soon 524508-5 STATOR X 5014B / 5016B €75.51
62
 photo_cameraImage coming soon 911266-6 CYLINDER HEAD SCREW M5X45 €1.53
63
 photo_cameraImage coming soon 651034-2 SWITCH €39.66
66
 Power Cord Guard 10/90 for for Makita Power Tools 682505-8 Power Cord Guard 10/90 for for Makita Power Tools €3.18
68
 photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
69
 photo_cameraImage coming soon 911151-3 SCREW M4X28 €1.36
73
 photo_cameraImage coming soon 911546-0 HEAD SCREW CILIND. M4X25 €1.36
74
 photo_cameraImage coming soon 911223-4 HEAD SCREW CILIND. M5X16 €1.44
75
 photo_cameraImage coming soon 252156-7 NUT M5 X 4191D €1.36
76
 photo_cameraImage coming soon 341772-1 PROTECTION HOLDER X5014 / 16B €5.60
77
 photo_cameraImage coming soon 231294-8 SPRING 6 X5012B €1.53
78
 photo_cameraImage coming soon 253811-4 WASHER 5 X 5012B €1.36
79
 Oil pump Body for Electric Chain Saws Makita 5014B - 5016B 152252-0 Oil pump Body for Electric Chain Saws Makita 5014B - 5016B €16.77
80
 photo_cameraImage coming soon 654019-7 RING TERMINAL 84 €1.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Chainsaws 5016B

MAKITA Original spare parts at the most competitive prices on the web

, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Electric Chainsaws 5016B.

In the following table, look for the model of the Electric Saws and the respective parts of the code.
Makita 5016B

Electric Chainsaws 5016B
# Part Num. Description
1 321261-2 OIL BUTTON X 5011B / 12B
5 213003-7 GASKET 6 5011NB / 14B
7 911223-4 CYLINDER HEAD SCREW M5X16
8 345160-4 BLADE COVER 5014B / 16B
9 251697-0 BOLT M8X17
10 252043-0 NUT M8 / 13 5014B / 16B / 12B
11 942201-3 WASHER 8
12 941201-0 FLAT WASHER 8
13 253753-2 FLAT WASHER 12 5011NB / 14B
14 221514-8 SPROCKET 6
14 221504-1 SPROCKET 9 5011NB / 14B
15 345159-9 GUIDE BAR 35cm 14" 0,050" (1,3 mm) 76M. 1/4"
15 341650-5 GUIDE BAR 40cm 16" 0,050" (1,3 mm) 59M 3/8"
15A 511492752 SAW CHAIN 14" 3/8" 1,3 MM 0,50" 52
15B 511492756 SAW CHAIN 16" 3/8" 1,3 MM 0,50" 56
16 253753-2 FLAT WASHER 12 5011NB / 14B
16 253813-0 FLAT WASHER 12 5012B/2708
17 156916-8 NEW GEAR HOUSING X 5014 / 16B
18 325549-2 PIN 5014B / 16B
19 265062-7 SCREW M5X40 5011NB / 14B / 16B
20 411747-5 GUARD X 5012B / 14B / 16B
21 911211-1 SCREW M5X12
22 242054-3 CAP 5014B / 16B
23 155812-7 OIL TANK 5014B / 16B
24 412025-6 PIPE 4 5011NB / 14B / 16B
31 911231-5 CYLINDER HEAD SCREW M5X20
32 273603-5 KNOB 5014B / 5016B
33 322046-9 HOLDER KNOB 5014B / 16B
34 911218-7 CYLINDER HEAD SCREW M5x14
35 911211-1 SCREW M5X12
36 643650-4 BRUSH HOLDER CAP
37 181044-0 CARBON BRUSH CB-153 (150/52/54)
41 514557-0 ARMATURE X 5014B / 5016B
43 263005-3 RUBBER PIN 6
44 211129-9 BEARING BALLS 6201DD NSK
45 156969-7 COVER GEAR HOUSING 5014B / 16B
46 263002-9 RUBBER PIN 4
47 211131-2 BEARING BALLS 6001DD
48 253052-2 WASHER 12
49 221636-4 GEAR 53 5014B / 16B
50 325550-7 SHAFT 5014B / 16B
51 254032-1 KEY 5
53 211228-7 BEARING BALLS 6202DD
54 263005-3 RUBBER PIN 6
55 681623-9 INSULATION WASHER
56 211087-9 BALL BEARING 6200DDW NSK
57 414119-3 HANDLE COVER 5014B / 16B
58 263002-9 RUBBER PIN 4
59 911290-9 SCREW M5X65
61 524508-5 STATOR X 5014B / 5016B
62 911266-6 CYLINDER HEAD SCREW M5X45
63 651034-2 SWITCH X 5014 / 16B
66 682505-8 CABLE HANDLE 10/90
68 911133-5 SCREW M4X18
69 911151-3 CYLINDER HEAD SCREW M4X28
73 911546-0 CYLINDER HEAD SCREW M4x25
74 911223-4 CYLINDER HEAD SCREW M5X16
75 252156-7 NUT M5 X 4191D
76 341772-1 PROTECTION HOLDER X5014 / 16B
77 231294-8 SPRING 6 X5012B
78 253811-4 WASHER 5 X 5012B
79 152252-0 PUMP BODY X 5014 / 16B
80 654019-7 TERMINAL RING 84
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
