Makita Spare Parts for Electric Hedge Trimmer UH4520

SKU: UH4520
€2.12
VAT included

Makita Spare Parts for Electric Hedge Trimmer UH4520

Makita genuine spare parts or replacement parts for to repair Electric Hedge Trimmer UH4520.
Makita Spare Parts for Electric Hedge Trimmer UH4520
  • Makita Spare Parts for Electric Hedge Trimmer UH4520
  • Makita Spare Parts for Electric Hedge Trimmer UH4520
  • Makita Spare Parts for Electric Hedge Trimmer UH4520
  • Makita Spare Parts for Electric Hedge Trimmer UH4520

Makita Spare Parts for Electric Hedge Trimmer UH4520

SKU: UH4520 Condition: New
€2.12
VAT included

Makita Spare Parts for Electric Hedge Trimmer UH4520

Makita genuine spare parts or replacement parts for to repair Electric Hedge Trimmer UH4520.
settings 6 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

6 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Hedge Trimmer UH4520

Makita genuine spare parts or replacement parts for to repair Electric Hedge Trimmer UH4520.

In the following table, look for the model of the Trimmer and the respective parts of the code.

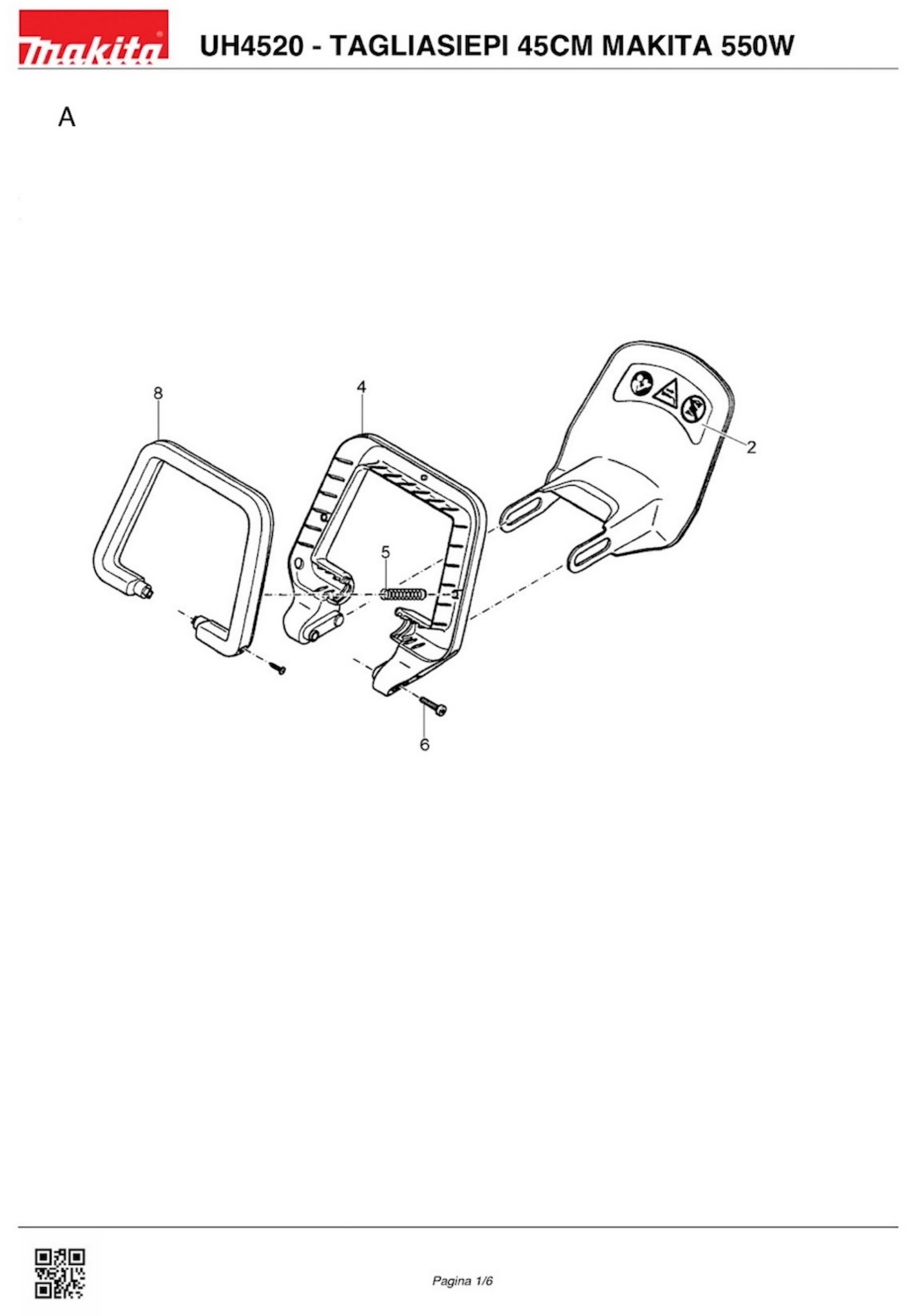

A Pag.1
2 980114856 HT4500 LABEL
4 220310110 HANDLE XUH4520-5520-7020
5 220145110 SPRING X UH4520-5520-7020
6 908005305 SCREW M5X30 (TORX)
8 220144110 LEVER X UH

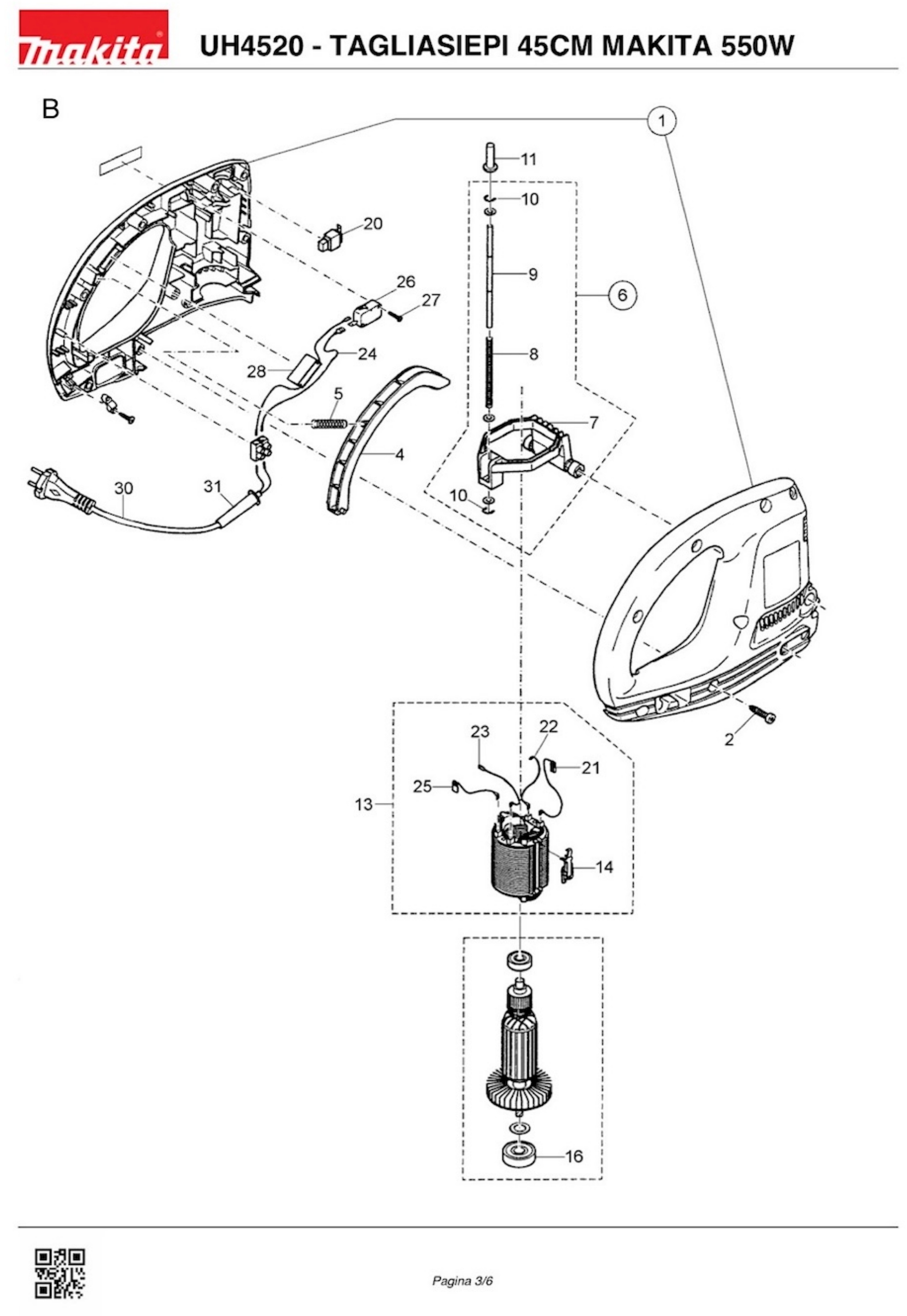

B Pag.2
1 220110610 MOTOR HOUSING CPL XUH4520-5520
2 913455204 SCREW 5.5X20 (TORX)
4 220144120 SWITCH HOLDER XUH4520-5520-7020
5 220145120 SPRING X UH4520-5520-7020
6 220144300 MOTOR SUPPORT KIT UH4520
7 220144130 SWITCH FORK X UH
8 220145130 SPRING X UH4520-5520-7020
9 220144140 ROD SWITCH X UH
10 927303200 RETAINING RING
11 220144150 PIN X UH
13 970800830 STATOR X UH4520-5520-7020
14 687059-0 JAW X UH4520-5520-7020
16 960102104 BEARING 6200 X UH
20 957800410 CARBON BRUSHES X UH4520-5520-7020
21 970311200 STATOR CORD X UH
22 970311210 STATOR CORDX UH
23 970311220 STATOR CORDX UH
24 970311230 SWITCH CORD
25 970311240 STATOR CORD
26 970001190 SWITCH XUH4520-5520-7020
27 914529194 SCREW DIN 7981 X UH
28 970109890 CAPACITOR XUH4520-5520-7020
30 970102110 COMPLETE CABLE X DES380
31 204152010 CORD GUARD C33:C47DES / UH4520-5520-

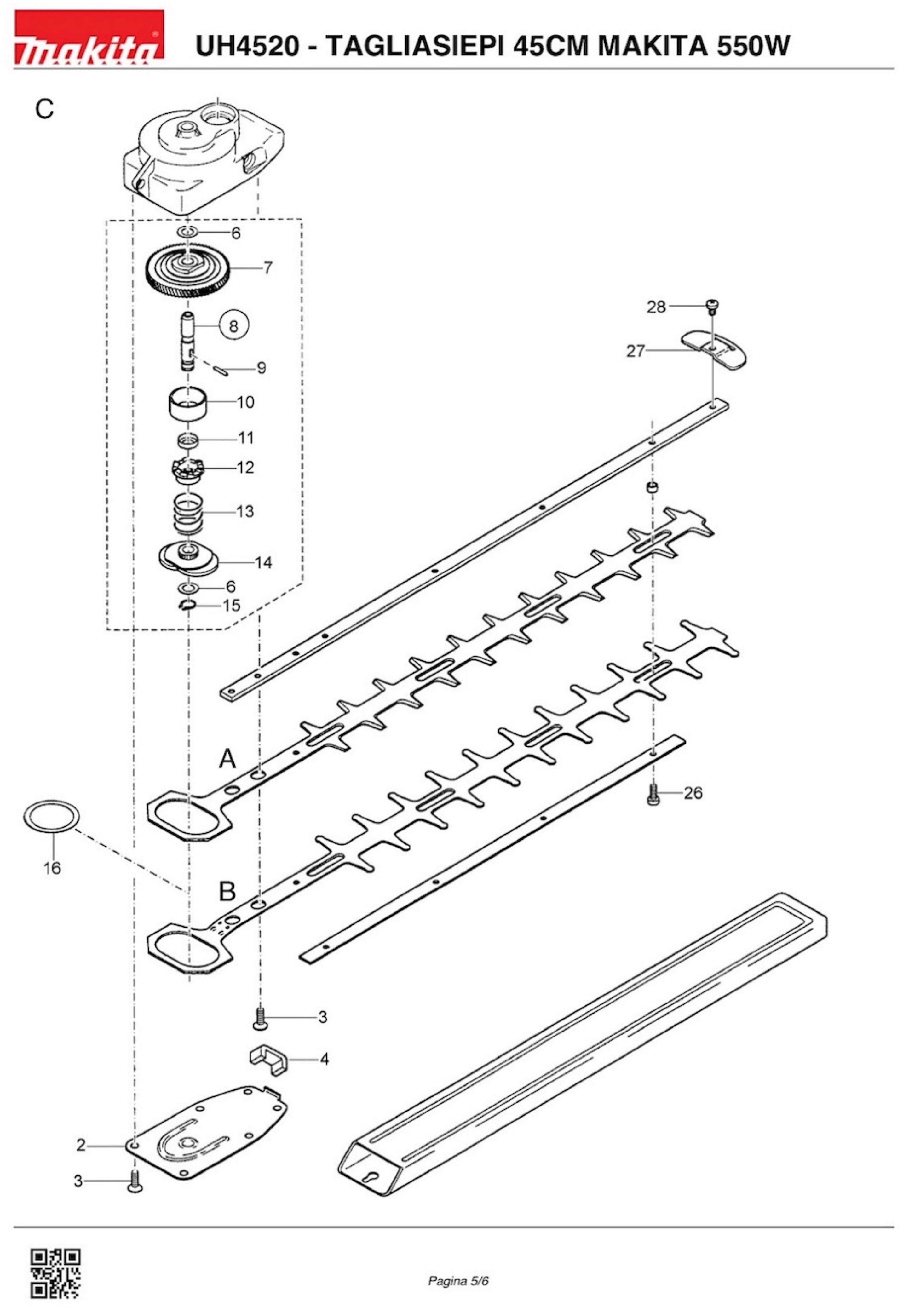

C Pag.3
2 220212110 GEAR CASE COVER X UH
3 908105126 SCREW M.5X12 X UH4520-5520-7020
4 965404860 JOINT X UH4520-5520-7020
6 220229220 WASHER X UH4520
7 220229010 CLUTCH X UH4520
8 220229210 SHAFT X UH4520
9 220229230 PIN X UH4520
10 220229240 SPACER X UH4520
11 220229250 SPRING GUIDE X UH4520
12 223129-7 GEAR X UH4520
13 220229150 SPRING X UH4520
14 150992-4 ECCENTRIC X UH4520
15 929110100 COVER RING
16 220229200 WASHER X UH4520
26 220233160 SCREW X UH4520
27 220233170 PROTECTION X UH4520
28 220233090 SCREW X UH4520
A 220233210 UPPER BLADE
B 220233310 LOWER BLADE
