Makita Spare Parts for BruschCutter RBC2501 24,5CC

Name: Makita Spare Parts for BruschCutter RBC2501 24,5CC
Brand: Makita
SKU: Makita RBC2501
Availability: InStock

SKU: Makita RBC2501

€1.61

VAT included

Makita Spare Parts for BruschCutter RBC2501 24,5CC

We have the original Spares MAKITA for BruschCutter RBC2501 24,5CC the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your BruschCutter RBC2501 24,5CC. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

143 spare parts

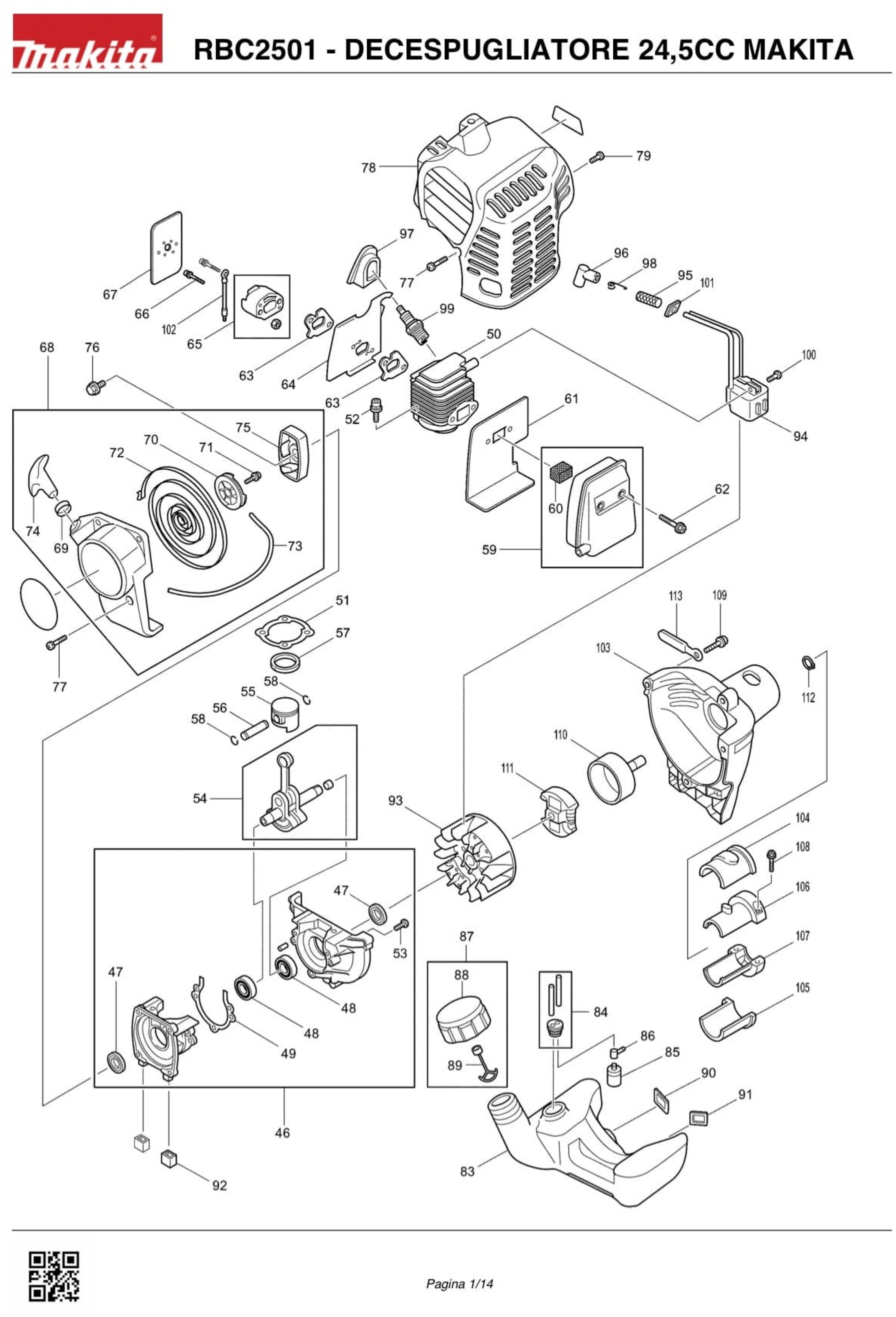

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
46	Image coming soon	5231011001 CPL MOTOR HOUSING XRBC255-22	€245.87
47	Image coming soon	213628-7 OIL SEAL RBC2510	€2.08
48	Image coming soon	210113-1 BALL BEARING 6001C3 MS3200E	€2.69
49	Image coming soon	424447-8 HOUSING GASKET RBC2510	€2.14	Not available for order
50	Image coming soon	318762-9 CYLINDER RBC2510	€85.14	Not available for order
51	Image coming soon	442171-1 CYLINDER GASKET RBC2510	€2.76	Not available for order
52	Image coming soon	0119059730 BOLT X RBC 260/230/225/255	€2.15	Not available for order
53	Image coming soon	0140059500 SCREW M5x25 X RBC225-255	€1.43
54	Image coming soon	5252016000 CRANKSHAFT X MS254C-MS254U	€219.08
55	Image coming soon	318766-1 PISTON RBC2510	€18.98
56	Image coming soon	257781-9 PISTON PIN EBH252L	€1.46	Not available for order
57	Image coming soon	257979-8 PISTON RING RBC2510	€4.43	Not available for order
58	Image coming soon	233976-8-4 CIRCLIP EBH252L RING (4pcs)	€6.01
59	Image coming soon	5253073000 MUFFLER X RBC2501-RBC2511	€56.02
61	Image coming soon	5253503100 MUFFLER GASKET MS254C	€16.65
63	Image coming soon	424448-6 INSULATING GASKET RBC2510	€1.43
64	Image coming soon	5233505201 INSULATOR X RBC225-RBC255	€11.33
65	Image coming soon	5423006000 FLANGE X MS254C-MS254U	€16.65
66	Image coming soon	0140059500 SCREW M5x25 X RBC225-255	€1.43
67	Image coming soon	5253500300 INSULATING GASKET X MS221	€2.08
68	Image coming soon	126010-0 RECOIL STARTER GROUP RBC2510	€24.55
70	Image coming soon	452915-1 HEAD REEL X RBK250-RBC225-255	€9.89
71	Image coming soon	5425003010 SCREW SET X RBC415-225-255	€3.83
72	Image coming soon	5235024032 SPIRAL SPRING X RBK250-RBC2	€17.07
73	Image coming soon	5255016020 STARTER ROPE RBC201	€12.69	Not available for order
74	Image coming soon	5225004020 STARTER KNOB HT2256D	€13.66	Not available for order
75	Image coming soon	5235025001 STARTER REEL X RBC225-255	€33.48
76	Image coming soon	5235504700 BOLT X RBC225 / 255	€10.13
83	Image coming soon	5256501801 FUEL TANK MS254C-U	€35.76
84	Image coming soon	162328-5 FUEL TUBE RBC2510	€5.94
85		163447-0 Gasoline Filter for Chainsaw Makita DCS230T	€3.83
86	Image coming soon	0561059990 HOSE CLAMP XRBC230-310 / 520	€1.32
87	Image coming soon	168668-9 FUEL TANK CAP COMPLETE RBC2510	€9.90	Not available for order
88		452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110	€41.20	Not available for order
89		140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110	€8.31	Not available for order
90		424102-2 Tank Damper for Brushcutter Makita RBC2110	€1.32
91	Image coming soon	424103-0 DAMPER EBH341U	€1.32
92	Image coming soon	5216500200 DAMPER X RBC230-225-255	€1.40
93	Image coming soon	5237034014 POLAR WHEEL X RBL250	€24.35
94	Image coming soon	168671-0 COIL RBC2510	€44.84
96	Image coming soon	0655009870 SPARK PLUG HOOD X MS254U-C	€6.63
97	Image coming soon	5197500100 COVER PLUG CAP RBC201	€3.13
98	Image coming soon	0654009931 PIN X RBC415-225-255	€3.68
99	Image coming soon	0650149721 SPARK PLUG BMR7A RBK250	€19.05	Not available for order
100	Image coming soon	0140049920 SCREW M4X20 X RBC225-255	€1.32	Not available for order
102	Image coming soon	6165500201 WIRE RBC201	€3.23
103	Image coming soon	140997-2 CLUTCH CARBASS RBC2510	€32.10
104	Image coming soon	6251506604 SPACER SUP. X RBC225	€8.70
105	Image coming soon	6251506703 SPACER X RBC225-255	€3.21
106	Image coming soon	6251509501 SEMI HOUSING SUP.X MS254U-MS254C	€3.90
107	Image coming soon	6251509600 SEMI HOUSING INF.X RBC225	€4.53
108	Image coming soon	0119059950 BOLT M5X18 XRBC230 / 310/225	€2.03
109	Image coming soon	0140059360 SCREW X MS254C-MS254U	€1.40
110		168675-2 Clutch Drum for Brush Cutter Makita RBC2510	€20.57
111		168672-8 Clutch Ass'y for Brushcutter Makita RBC2510	€16.28
112		0031512000 Outer Snap Ring for Brushcutter Makita RBC221	€2.00
113	Image coming soon	0566059980 CLAMP X RBC525	€3.83	Not available for order

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
99	Image coming soon	452917-7 FILTER COVER RBC2510	€3.47
100		443167-5 Air Cleaner Element for Brushcutter Makita RBC2510	€3.03
101	Image coming soon	0043105600 SCREW M5X60 X RBC230 / RST250	€1.40
102	Image coming soon	5233047001 FILTER PLARECPL X RBK250-RB	€17.03
104	Image coming soon	5233504801 AIR LEVER GROUP X RBC225-255	€2.14
105	Image coming soon	5233505002 AIR LEVER X RBC225-255	€1.43
106	Image coming soon	0031104000 WASHER X RBC225-255	€1.86
107	Image coming soon	0150049980 SCREW M4X8 X RBC225-255	€1.54
108	Image coming soon	43605140 SCREW M5X14 X RBC225-255	€1.29
110	Image coming soon	851149960 TUBE X RBK250-RBC225-255	€2.87
111	Image coming soon	168669-7 CARBURATOR RBC2510	€100.02
112	Image coming soon	5236046130 BODY PUMP CPL FOR RBC350-RBC42	€61.62	Not available for order
113	Image coming soon	5016004010 JOINT FOR RBC 260/230/310/225	€3.83	Not available for order
114	Image coming soon	5236046060 CPL AIR FILTER BODY RBC350	€33.70	Not available for order
115	Image coming soon	5236046050 PUMP COVER FOR RBC350-RBC42	€10.07	Not available for order
116		424314-7 Primer Bulb for Blower Makita BHX2501	€5.99	Not available for order
117	Image coming soon	168574-8 CPL DIAPHRAGM EBH341U	€24.94	Not available for order
118	Image coming soon	442154-1 SEAL IRIS EBH341U	€4.44	Not available for order
119	Image coming soon	5246001040 PUMP DIAPHRAGM RBC260 / 230/310/225	€13.12
120	Image coming soon	5246001030 PUMP GASKET RBC260-230-310-	€6.11	Not available for order
121	Image coming soon	5256013010 JET RBC2501-RBC2511-MS254C	€12.69
122	Image coming soon	5246001010 GASKET FOR RBC 260/230/310 /	€4.44	Not available for order
123	Image coming soon	5316005120 RING FOR RBC 260/230/310/225/2	€4.44	Not available for order
124	Image coming soon	5426005030 WASHER X-RBC350 RBC420	€5.16
125	Image coming soon	5236018040 THROTTLE CABLE FORRBC230-260-310-225-	€11.27	Not available for order
127	Image coming soon	5236052020 CABLE SUPPORT RBC350-RBC420	€25.16
128	Image coming soon	5316005450 NUT RBC260 / 310	€2.85
129	Image coming soon	5316020020 SCREW FOR CABLE RBC321	€5.13	Not available for order
130	Image coming soon	5236018020 GASKET FOR RBC 260/230 / 310	€5.43
131	Image coming soon	266582-4 SCREW 3x24 EBH341U	€2.03	Not available for order

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	BB752770 EXTERNAL TUBE D.24	€68.84
2	Image coming soon	BB544210 ANTIVIBRATION BUSHING D.24	€5.13
3	Image coming soon	BB540690 GAS CONTROL CABLE SUPPORT	€2.69
4	Image coming soon	BB391860 MOTOR SHAFT	€44.84
5	Image coming soon	BB030810 SCREW TCEI M 6 X 40	€1.33
6	Image coming soon	BB090040 FLAT WASHER D.6,4	€1.33
7	Image coming soon	BB542430 HORSE CROSS BODY	€4.85
9	Image coming soon	BB542440 CRUISE SUPPORT BODY	€5.61
10	Image coming soon	BB542450 CRUISE SUPPORT HAT	€4.18
11	Image coming soon	BB030630 SCREW TCEI M 6 X 25	€1.41
12	Image coming soon	BB722620 NYLON CUBE HANDLEBAR SUPPORT	€13.52
13	Image coming soon	BB511030 SPACER	€1.40
14	Image coming soon	BB570670 HANDBAG X EBC NBC	€32.49
15	Image coming soon	BB543490 NEW HANDLEBAR HANDLEBAR	€7.15
23	Image coming soon	BB540700 HOOK	€3.13
25	Image coming soon	BB752810 HARNESS	€9.89

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	BB120280 SEEGER RING	€1.40
2	Image coming soon	BB120290 SEEGER RING 24I	€1.40
3	Image coming soon	BB030800 TCB SCREW M 4 X 10	€1.41
4	Image coming soon	BB270410 BEARING 609 RS	€14.34
5	Image coming soon	BB270400 BEARING 609	€8.50
6		BB725250A Cutter Shaft Set for Brushcutter Makita RBC2501	€70.92
7	Image coming soon	BB481100 GEAR HOUSING D.24	€32.73
8	Image coming soon	BB060100 NUT M 5 FOR 4	€1.40
11	Image coming soon	BB270390 BEARING 608	€12.69
12	Image coming soon	BB391690 SHAFT	€24.35
13		BB420010 Lock Pin for Brushcutter Dolmar MS4520B	€1.44	Not available for order
14	Image coming soon	BB270420 BEARING 6001 2RS	€14.34
15	Image coming soon	BB120010 SEEGER RING 28I UNI 7437	€1.40
16	Image coming soon	BB091720 INTERNAL FLANGE	€12.69
17	Image coming soon	BB091730 FLANGE FOR D.24	€6.63
18	Image coming soon	BB060470 NUT M 10 FOR 1 FOR 12	€2.08
19	Image coming soon	BB725240/A GEAR HOUSING CPL RBC2501	€174.83
20	Image coming soon	BB542930 STONE GUARD D.24	€16.65
23	Image coming soon	BB511090 BLADE	€2.08
24	Image coming soon	P-47329 GUARD FOR ROD D.24	€17.44
25		P-47385 3 Teeth Blade for Brushcutter Makita RBC310	€14.78
27	Image coming soon	P-47282 CUP	€3.44

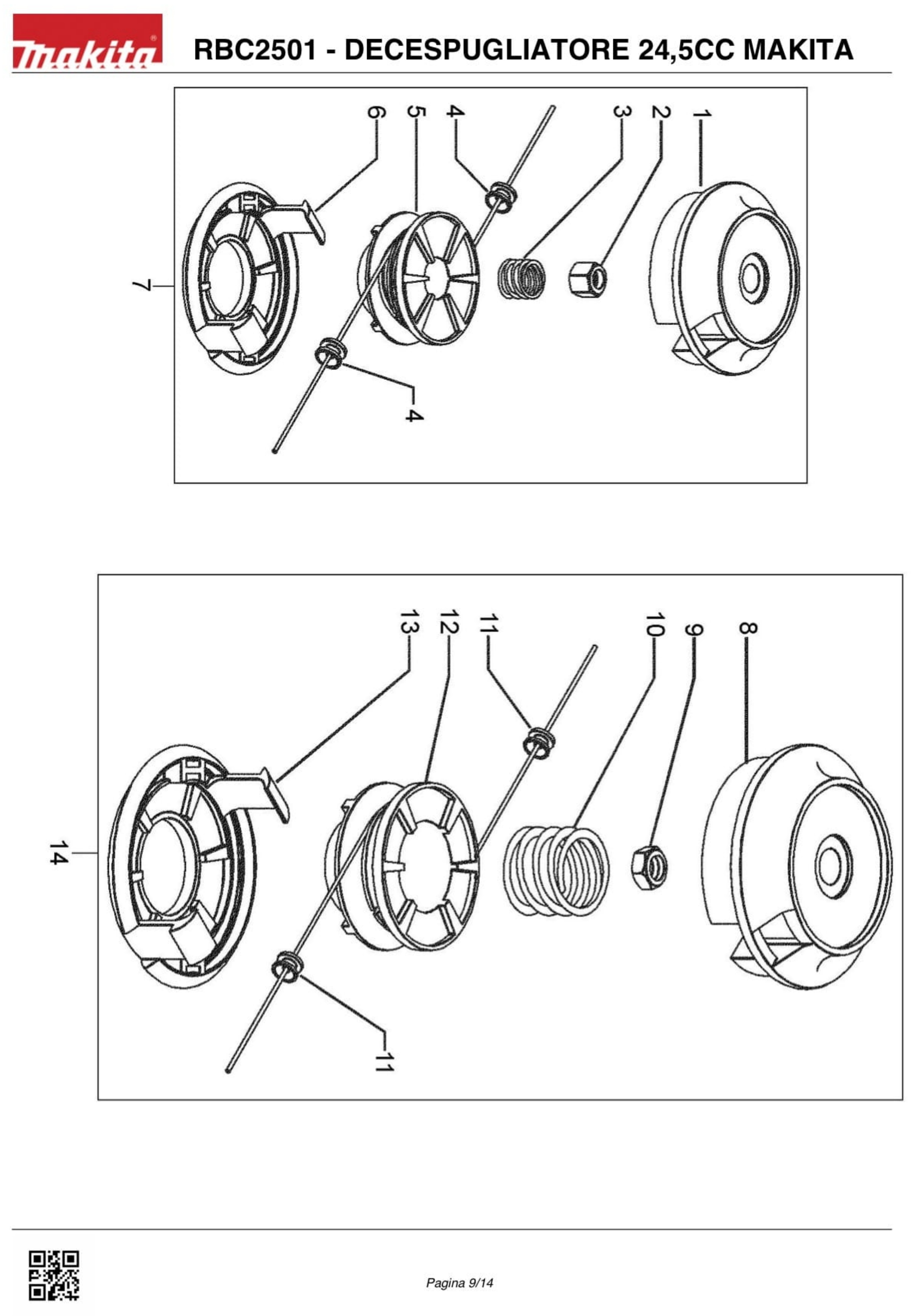

Page 5 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	BB543260 UPPER COVER FLASH LIGHT	€11.07
3	Image coming soon	BB180370 SPRING FOR HEAD FLASH LIGHT	€2.69
4	Image coming soon	BB091350 GUIDE WIRE BUSHING FOR HEAD	€2.69
5	Image coming soon	BB543280 REEL FOR HEAD FLASH LIGHT	€8.50
6	Image coming soon	BB543270 FLASH LIGHT FLANGE	€7.58
7	Image coming soon	P-47313 HEAD TAP AND GO M10FOR1.0F	€11.88
8	Image coming soon	BB542180 UPPER COVER FOR HEAD FLASH RAPID	€11.07
10	Image coming soon	BB180180 SPRING FOR AUTOMATIC HEAD	€2.69
11	Image coming soon	BB091350 GUIDE WIRE BUSHING FOR HEAD	€2.69
12	Image coming soon	P-47254 REEL FOR HEAD P-47422	€6.77
13	Image coming soon	BB542190 FLANGE	€7.58
14	Image coming soon	P-47307 MANUAL HEAD M10X1.0F	€13.52

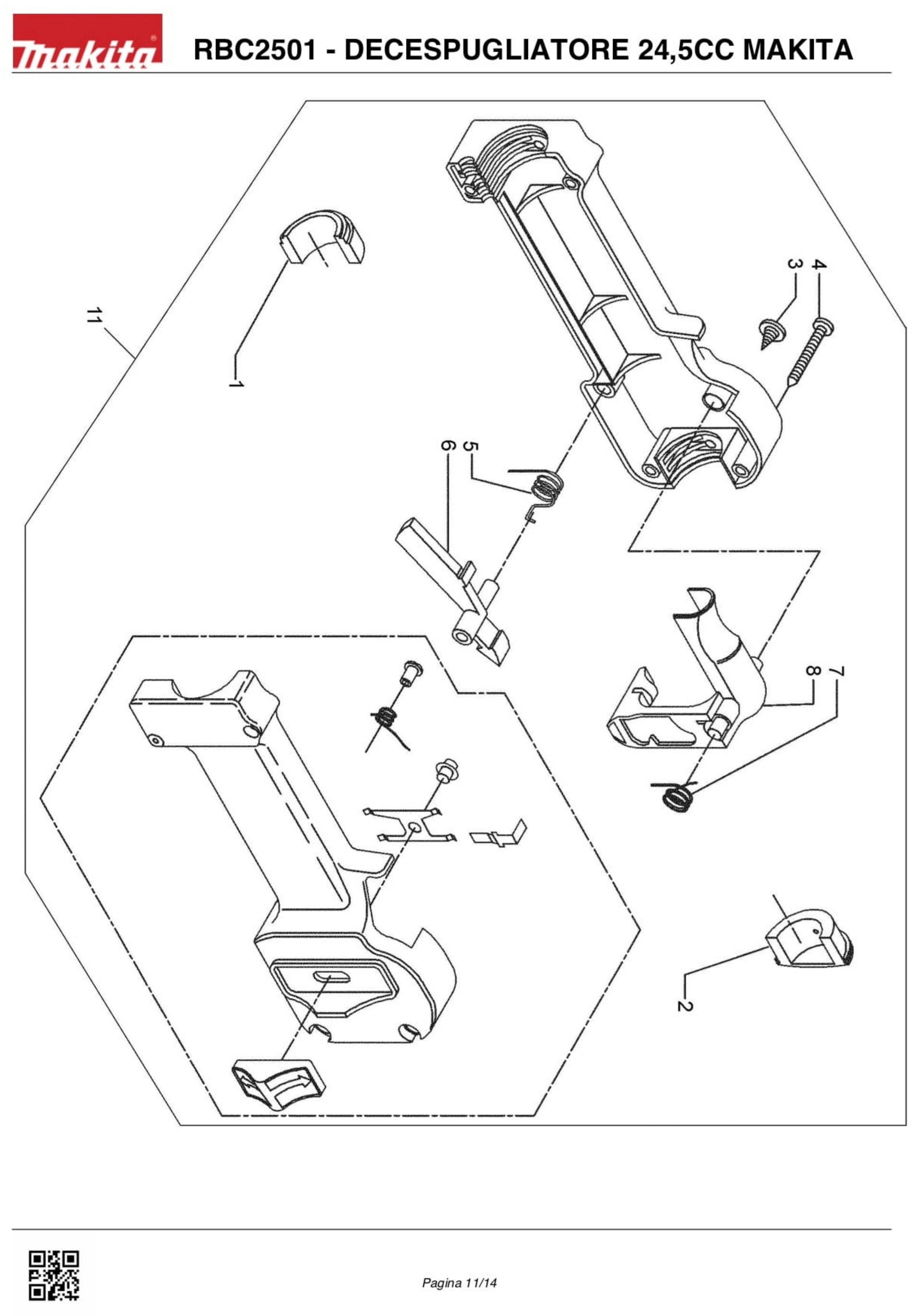

Page 6 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
3	Image coming soon	BB030650 SCREW 4 X 20	€1.25
4	Image coming soon	BB030860 SCREW 3.5 X 25	€1.40
5	Image coming soon	BB180230 SPRING FOR SAFETY LEVER	€1.40
6	Image coming soon	BB541410 CONTROL GAS SAFETY LEVER	€2.08
7	Image coming soon	BB180220 GAS SPRING LEVER	€1.40
8	Image coming soon	BB541400 GAS CONTROL LEVER	€2.08
11	Image coming soon	BB721440 CPL MANOPLE. X HANDLEBAR	€25.62

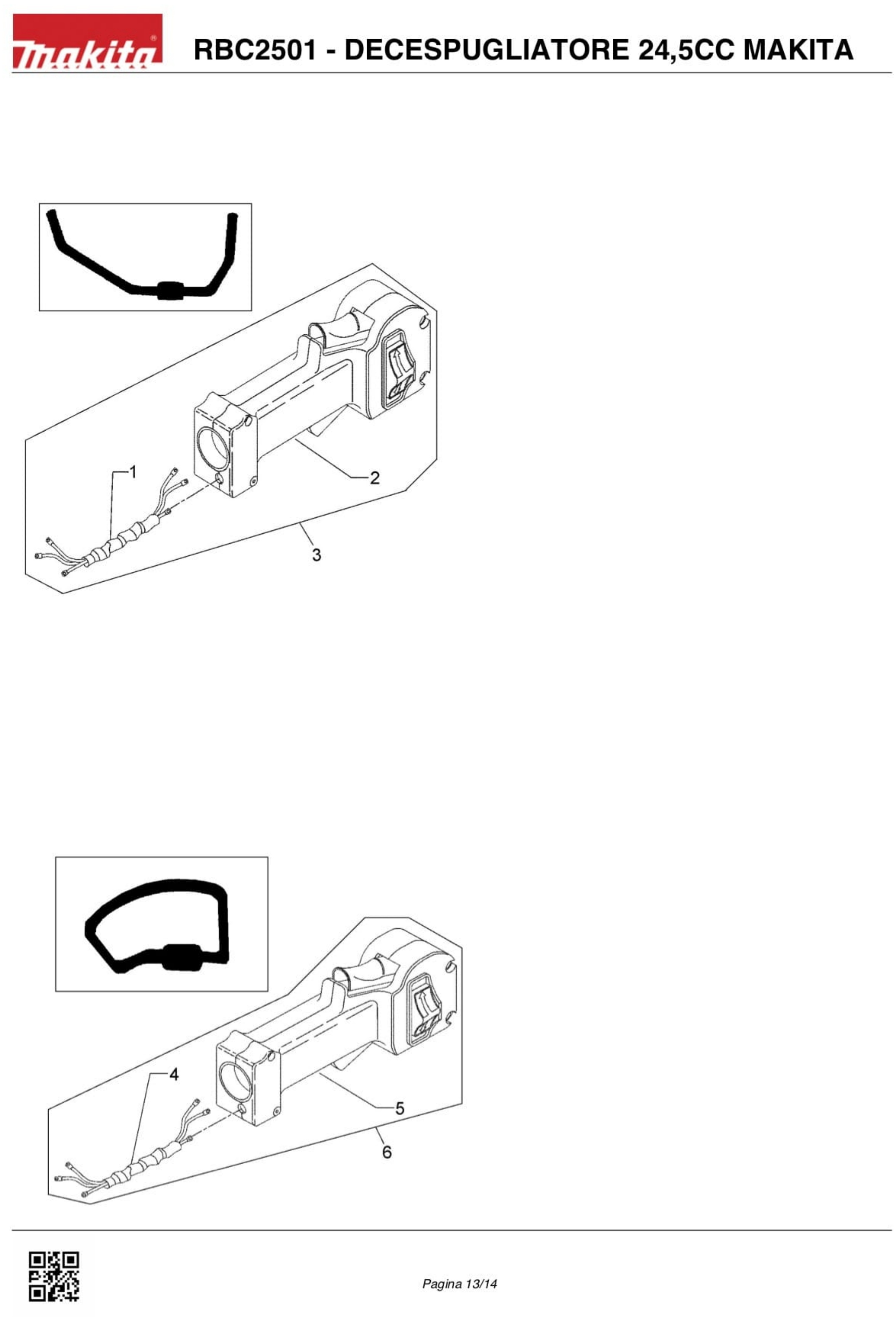

Page 7 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	BB752870 CONTROL CABLES KIT	€17.31
2	Image coming soon	BB721440 CPL MANOPLE. X HANDLEBAR	€25.62

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for BruschCutter RBC2501 24,5CC

Fix Your BruschCutter RBC2501 24,5CC. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.

RBC2501 - BRUSHCUTTER 24,5CC MAKITA pag.1
#	Part Num.	Description
46	5231011001	COMPLETE ENGINE CASE XRBC255-22
47	213628-7	SEAL OIL RBC2510
48	210113-1	BEARING 6001 RBC2510
49	424447-8	GASKET CARCASS RBC2510
50	318762-9	CYLINDER RBC2510
51	442171-1	CYLINDER GASKET RBC2510
52	0119059730	BOLT X RBC 260/230/225/255
53	0140059500	SCREW M5X25 X RBC225-255
54	5252016000	CRANKSHAFT X MS254C-MS254U
55	318766-1	PISTON RBC2510
56	257781-9	PISTON PIN EBH252L
57	257979-8	PISTON RING RBC2510
58	233976-8-4	CIRCLIP EBH252L (4pcs)
59	5253073000	MUFFLER X RBC2501-RBC2511
61	5253503100	MUFFLER GASKET MS254C
63	424448-6	INSULATING GASKET RBC2510
64	5233505201	INSULATOR X RBC225-RBC255
65	5423006000	FLANGE X MS254C-MS254U
66	0140059500	SCREW M5X25 X RBC225-255
67	5253500300	INSULATING GASKET X MS221
68	126010-0	STARTER GROUP RBC2510
70	452915-1	REEL X RBK250-RBC225-255
71	5425003010	SET SCREW X RBC415-225-255
72	5235024032	SPIRAL SPRING X RBK250-RBC2
73	5255016020	STARTER ROPE RBC201
74	5225004020	STARTER HANDLE HT2256D
75	5235025001	STARTER REEL X RBC225-255
76	5235504700	BOLT X RBC225 / 255
77	0140059350	SCREW M5 X 18 X MS254C-MS254U
83	5256501801	FUEL TANK MS254C-U
84	162328-5	FUEL TUBE RBC2510
85	163447-0	FUEL FILTER X DCS230T
86	0561059990	FILTER CLAMP XRBC230-310 / 520
87	168668-9	COMPLETE TANK CAP RBC2510
88	452920-8	TANK CAP
89	140436-2	ROD EBH341U
90	424102-2	SHOCK ABSORBER EBH341U
91	424103-0	SHOCK ABSORBER EBH341U
92	5216500200	GROMMET X RBC230-225-255
93	5237034014	POLAR WHEEL X RBL250
94	168671-0	COIL RBC2510
96	0655009870	SPARK PLUG HOOD X MS254U-C
97	5197500100	SPARK PLUG COVER RBC201
98	0654009931	PIN X RBC415-225-255
99	0650149721	SPARK PLUG BMR7A RBK250
100	0140049920	SCREW M4X20 X RBC225-255
102	6165500201	METAL ROW RBC201
103	140997-2	CLUTCH CASE RBC2510
104	6251506604	UPPER SPACER X RBC225
105	6251506703	LOWER SPACER X RBC225-255
106	6251509501	UPPER HALF CASE X MS254U-MS254C
107	6251509600	LOWER HALF CASE X RBC225
108	0119059950	BOLT M5X18 XRBC230 / 310/225 /
109	0140059360	SCREW X MS254C-MS254U
110	168675-2	CLUTCH DRUM RBC2510
111	168672-8	CLUTCH RBC2510
112	0031512000	EXT. RING X RBC260 / 520RBK410
113	566059980	BRACKET X RBC525
RBC2501 - BRUSHCUTTER 24,5CC MAKITA pag.2
99	452917-7	AIR FILTER COVER RBC2510
100	443167-5	AIR FILTER RBC2510
101	0043105600	SCREW M5X60 X RBC230 / RST250
102	5233047001	COMPLETE FILTER PLATE X RBK250-RB
104	5233504801	AIR LEVERAGE X RBC225-255
105	5233505002	AIR LEVER X RBC225-255
106	0031104000	WASHER X RBC225-255
107	0150049980	SCREW M4X8 X RBC225-255
108	0043605140	SCREW M5X14 X RBC225-255
110	851149960	TUBE X RBK250-RBC225-255
111	168669-7	CARBURETOR RBC2510
112	5236046130	COMPLETE PUMP BODY X RBC350-RBC42
113	5016004010	FITTING X RBC 260/230/310/225
114	5236046060	COMPLETE AIR FILTER BODY. RBC350
115	5236046050	PUMP COVER X RBC350-RBC42
116	424314-7	PRIMER PUMP EBH341
117	168574-8	COMPLETE DIAPHRAGM EBH341U
118	442154-1	EBH341U DIAPHRAGM GASKET
119	5246001040	DIAPHRAGM PUMP RBC260 / 230/310/225
120	5246001030	ROLLER PUMP RBC260-230-310
121	5256013010	JET RBC2501-RBC2511-MS254C
122	5246001010	GASKET X RBC 260/230/310
123	5316005120	RING X RBC 260/230/310/225/2
124	5426005030	WASHER X RBC350-RBC420
125	5236018040	CABLE ACC. XRBC230-260-310-225
127	5236052020	CABLE SUPPORT RBC350-RBC420
128	5316005450	DADO FERMA REGOLAT. RBC260 / 310
129	5316020020	SCREW X CABLE RBC321
130	5236018020	GASKET X RBC 260/230 / 310
131	266582-4	SCREW 3X24 EBH341U
RBC2501 - BRUSHCUTTER 24,5CC MAKITA pag.3
1	BB752770	EXTERNAL TUBE D.24
2	BB544210	ANTIVIBRATION BUSH D.24
3	BB540690	SUPPORT CABLE GAS CONTROL
4	BB391860	MOTOR SHAFT
5	BB030810	SCREW TCEI M 6 X 40
6	BB090040	FLAT WASHER D.6,4
7	BB542430	CRUSHER BODY SHELL
9	BB542440	SUPPORT CRUISE BODY
10	BB542450	CRUISE SUPPORT HAT
11	BB030630	SCREW TCEI M 6 X 25
12	BB722620	COMPLETE NYLON HANDLEBAR SUPPORT
13	BB511030	THICKNESS X IMPUGN SUPPORT M
14	BB570670	HANDLEBAR X EBC NBC
15	BB543490	NEW TYPE HANDLEBAR KNOB
23	BB540700	HOOK X HARNESS
25	BB752810	SUSPENDER
RBC2501 - BRUSHCUTTER 24,5CC MAKITA pag.4
1	BB120280	SEEGER RING
2	BB120290	SEEGER 24I RING
3	BB030800	SCREW TCB M 4 X 10
4	BB270410	BEARING 609 RS
5	BB270400	BEARING 609
6	BB725250A	CUTTER SHAFT SET
7	BB481100	GEAR CASE D.24
8	BB060100	NUT M 5 X 4
11	BB270390	BEARING 608
12	BB391690	GEAR CASE SPINDLE
13	BB420010	LOCKING PIN RING
14	BB270420	BEARING 6001 2RS
15	BB120010	SEEGER 28I UNI 7437 RING
16	BB091720	INTERNAL FLANGE
17	BB091730	DISC FIXING FLANGE X D.24
18	BB060470	NUT AUTOBL.M 10 X 1 X 12
19	BB725240/A	COMPLETE GEAR CASE X RBC2501
20	BB542930	SAFETY GUARD D.24
23	BB511090	WIRE BLADE CUTTER
24	P-47329	SHAFT SAFETY PROTECTION D.24
25	P-47385	BLADE 3 TEETH (255X1.4X25.4) MM
27	P-47282	FIXED SUPPORTING CUP
RBC2501 - BRUSHCUTTER 24,5CC MAKITA pag.5
1	BB543260	UPPER COVER FLASH LIGHT
3	BB180370	SPRING FOR FLASH LIGHT HEAD
4	BB091350	GUIDE BUSH X WIRE HEAD
5	BB543280	REEL X FLASH LIGHT TEST
6	BB543270	FLASH LIGHT STOP FLANGE
7	P-47313	HEAD BATTI AND GO M10X1.0F
8	BB542180	HEAD UPPER COVER FLASH RAPID
10	BB180180	SPRING X AUTOMATIC HEAD
11	BB091350	GUIDE BUSH X WIRE HEAD
12	P-47254	HED REEL P-47422
13	BB542190	FLANGE OF STOP TEST.RAPID
14	P-47307	MANUAL HEAD M10X1.0F
RBC2501 - BRUSHCUTTER 24,5CC MAKITA pag.6
3	BB030650	SCREW 4 X 20
4	BB030860	SCREW 3.5 X 25
5	BB180230	SPRING FOR SAFETY LEVER
6	BB541410	SAFETY LEVER CONTROL GAS
7	BB180220	SPRING FOR LEVER CONTROL GAS
8	BB541400	GAS CONTROL LEVER
11	BB721440	COMPLETE KNOB. X HANDLEBAR
RBC2501 - BRUSHCUTTER 24,5CC MAKITA pag.7
1	BB752870	CONTROL CABLES KIT
2	BB721440	COMPLETE KNOB. X HANDLEBAR

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita RBC2501

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
Machine Type: Brushcutters
MORE INFO:: [email protected]

Specific References

Condition New

Download

Drawing Makita RBC2501

Download (795.5KB)

Makita SKU: DA00000118

Carburator Hose Grommet for Brushcutter Dolmar MS-27C

Carburator Hose Grommet for Brushcutter Dolmar MS-27C Genuine parts Dolmar, Carburator Hose Grommet for Brushcutter MS-27C - Makita EM2600L Part for the following products: - MS-27C - BRUSHCUTTER 25,7CC DOLMAR - EM2600L -...

AVAILABLE €2.37

Details

Makita SKU: 168675-2

Clutch Drum for Brush Cutter Makita RBC2510

Clutch Drum for Brush Cutter Makita RBC2510 Genuine part Makita, Clutch Drum for Brush Cutters RBC2510 - RBC2511 - RBC221 - RBC2501 - RBC251 - Dolmar MS221 - MS253 - MS254C - MS254U. Part for the following products: - RBC2510 - BRUSH...

AVAILABLE €20.57

Details

Makita SKU: 452920-8

Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110

Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...

Out-of-Stock €41.20

Details

Makita SKU: 168672-8

Clutch Ass'y for Brushcutter Makita RBC2510

Clutch Ass'y for Brushcutter Makita RBC2510 Genuine part Makita, Clutch Assembly for Brushcutters RBC2510 - RBC2511 - RBC221 - RBC2501 - RBC251 - Dolmar MS221 - MS253...

Last items in stock €16.28

Details

Makita SKU: 424105-6

Spark Plug Cap for Brushcutter Makita EBH341U

Spark Plug Cap for Brushcutter Makita EBH341U Genuine replacement part Makita, Spark Plug Cap for Brushcutters EBH252L - EBH252U - EBH341L - EBH341R - EM4340 - EM4340L - EBH341U. Part for the following products: - EBH252L -...

AVAILABLE €1.32

Details

Makita SKU: 443167-5

Air Cleaner Element for Brushcutter Makita RBC2510

Air Cleaner Element for Brushcutter Makita RBC2510 Genuine part Makita, Air Cleaner Sponge Element for Brushcutters RBC2510 - RBC225-255 - MS2501 - MS2810. Part for the following products: - MS254C...

AVAILABLE €3.03

Details

Makita SKU: 213769-9

Oil Seal 10 for Brushcutter Dolmar MS335.4C

Oil Seal 10 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 10 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: - MS335.4C - BRUSHCUTTER 33,5cc 4T - MS335.4U...

on 7/10 Business Days Approx €3.11

Details

Makita SKU: BB725250A

Cutter Shaft Set for Brushcutter Makita RBC2501

Cutter Shaft Set for Brushcutter Makita RBC2501 Genuine spare part Makita, Cutter Shaft Set for Brushcutters RBC2501 - RBC2511 - RBC3200 - RBC3210. Part for the following...

on 7/10 Business Days Approx. €70.92

Details

Comments (0)

No customer reviews for the moment.

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Spare Parts for BruschCutter RBC2501 24,5CC

Makita Spare Parts for BruschCutter RBC2501 24,5CC

Makita Spare Parts for BruschCutter RBC2501 24,5CC

Makita Spare Parts for BruschCutter RBC2501 24,5CC

Makita Spare Parts for BruschCutter RBC2501 24,5CC

Data sheet

Specific References

Download

Drawing Makita RBC2501

You might also like

Notes

Products

News

Our company
