Makita Spare Parts for Electric Chainsaws UC3501A

SKU: Makita UC3501A
€5.93
VAT included

Makita Spare Parts for Electric Chainsaw UC3501A

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Chainsaw UC3501A.
Makita Spare Parts for Electric Chainsaws UC3501A
  • Makita Spare Parts for Electric Chainsaws UC3501A
  • Makita Spare Parts for Electric Chainsaws UC3501A
  • Makita Spare Parts for Electric Chainsaws UC3501A
  • Makita Spare Parts for Electric Chainsaws UC3501A
  • Makita Spare Parts for Electric Chainsaws UC3501A
Makita

Makita Spare Parts for Electric Chainsaws UC3501A

SKU: Makita UC3501A Condition: New
€5.93
VAT included

Makita Spare Parts for Electric Chainsaw UC3501A

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Chainsaw UC3501A.
settings 58 Spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Electric Chainsaw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
58 spare parts

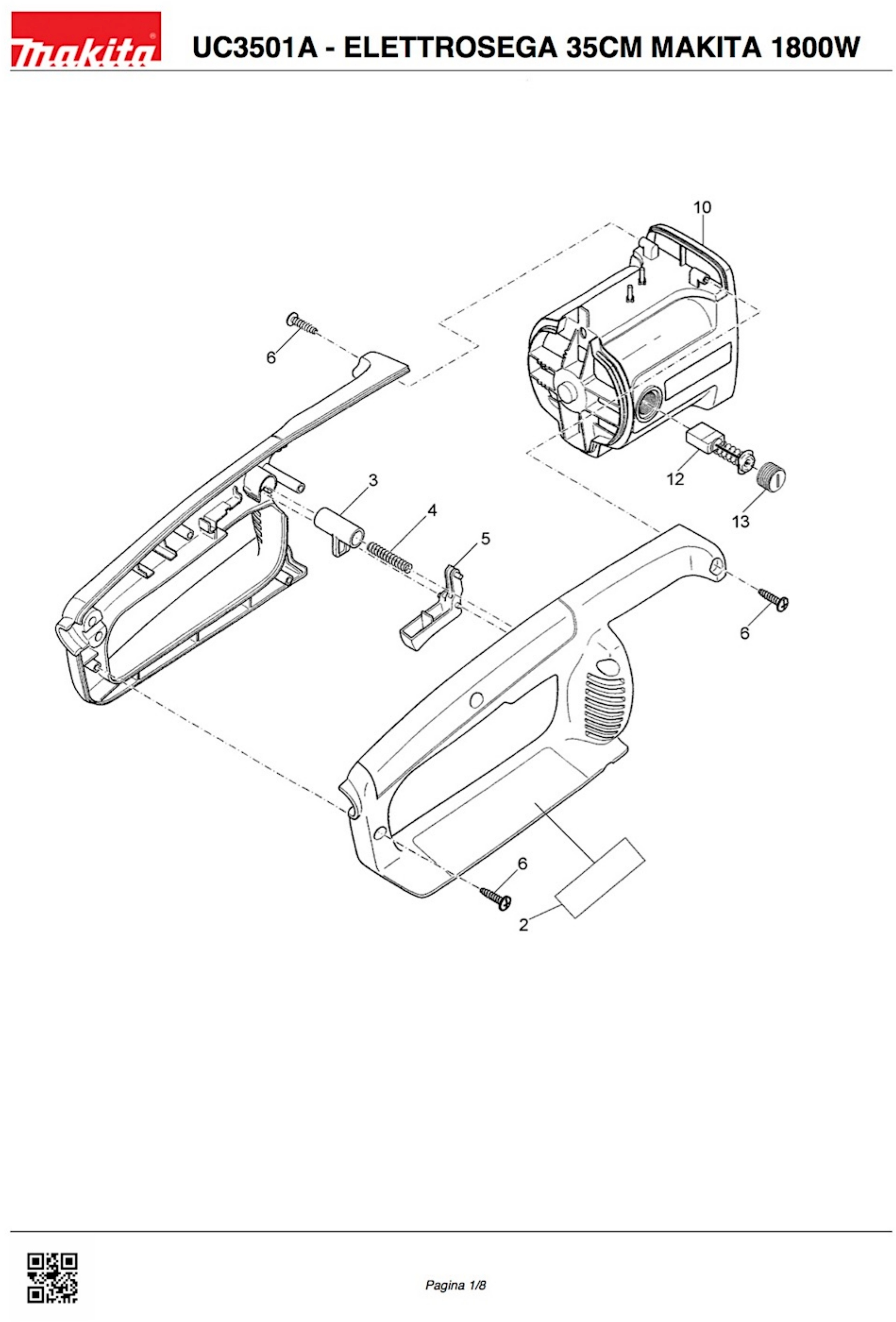

Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 Image coming soon 980114181 ES-31A LABEL €3.84
3
 Image coming soon 416178-3 RESET BUTTON X UC3020A €1.32
4
 Image coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.32
5
 Image coming soon 416177-5 LEVER SWITCH X UC-ES €0.12 Not available for order
6
 Image coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.32
10
 Image coming soon 225111660 HOUSING MOTOR X UC3000-3500 €28.38
12
 Image coming soon 957802410 CARBON BRUSHES X UH4520-5520-7020 €0.12 Not available for order
13
 Image coming soon 643755-0 CAP BRUSH HOLDER X UB1101 €2.14

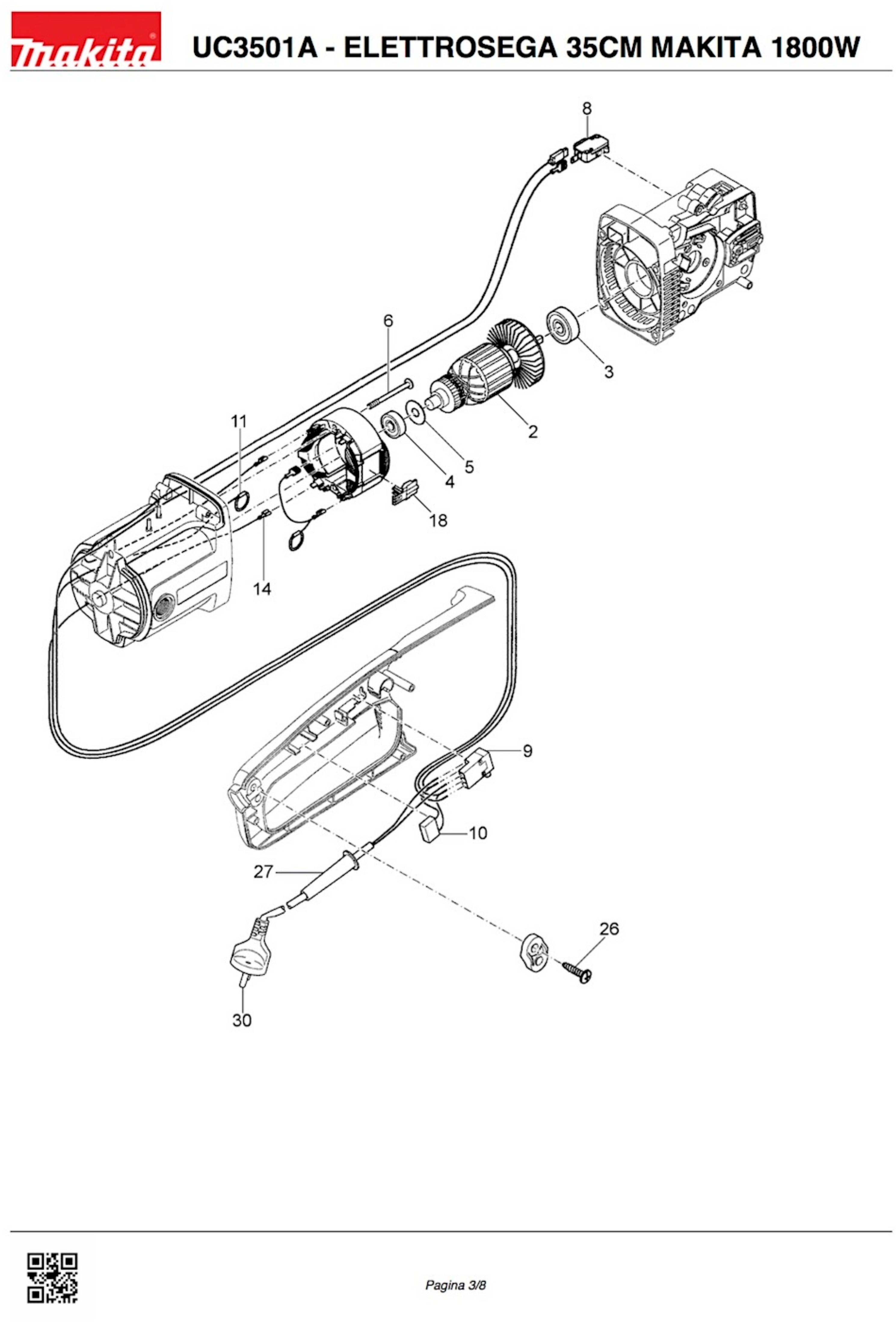

Page 2 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 Image coming soon 970802351 ARMATURE 230-240V TYP225 €0.12 Not available for order
3
 BEARING 6301 X UC 211111-8 BEARING 6301 X UC €5.67
4
 BEARING 629 X UC 211057-8 BEARING 629 X UC €4.89
5
 Image coming soon 970802610 SPACER X UC3000-3500-40 €1.43
6
 Image coming soon 913550555 SCREW 5X55 UC3000-3500-4000A €1.42
8
 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A 970001200 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A €5.18 Not available for order
9
 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A 651923-1 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A €12.96
10
 Image coming soon 970109810 CAPACITOR XUC3000-3500-4000 €2.75
11
 Image coming soon 632681-8 CABLE (ORANGE) XUC3000-3500 €2.14
14
 Image coming soon 970311330 CABLE (YELLOW) X UC3000-3500 €1.43
18
 Image coming soon 687080-9 CLAMP X ES-152A €1.46
26
 Image coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.32
27
 Image coming soon 682574-9 CABLE SLEEVE 10-90 PC5000C €1.47
30
 Image coming soon 970102110 COMPLETE CABLE X DES380 €19.17

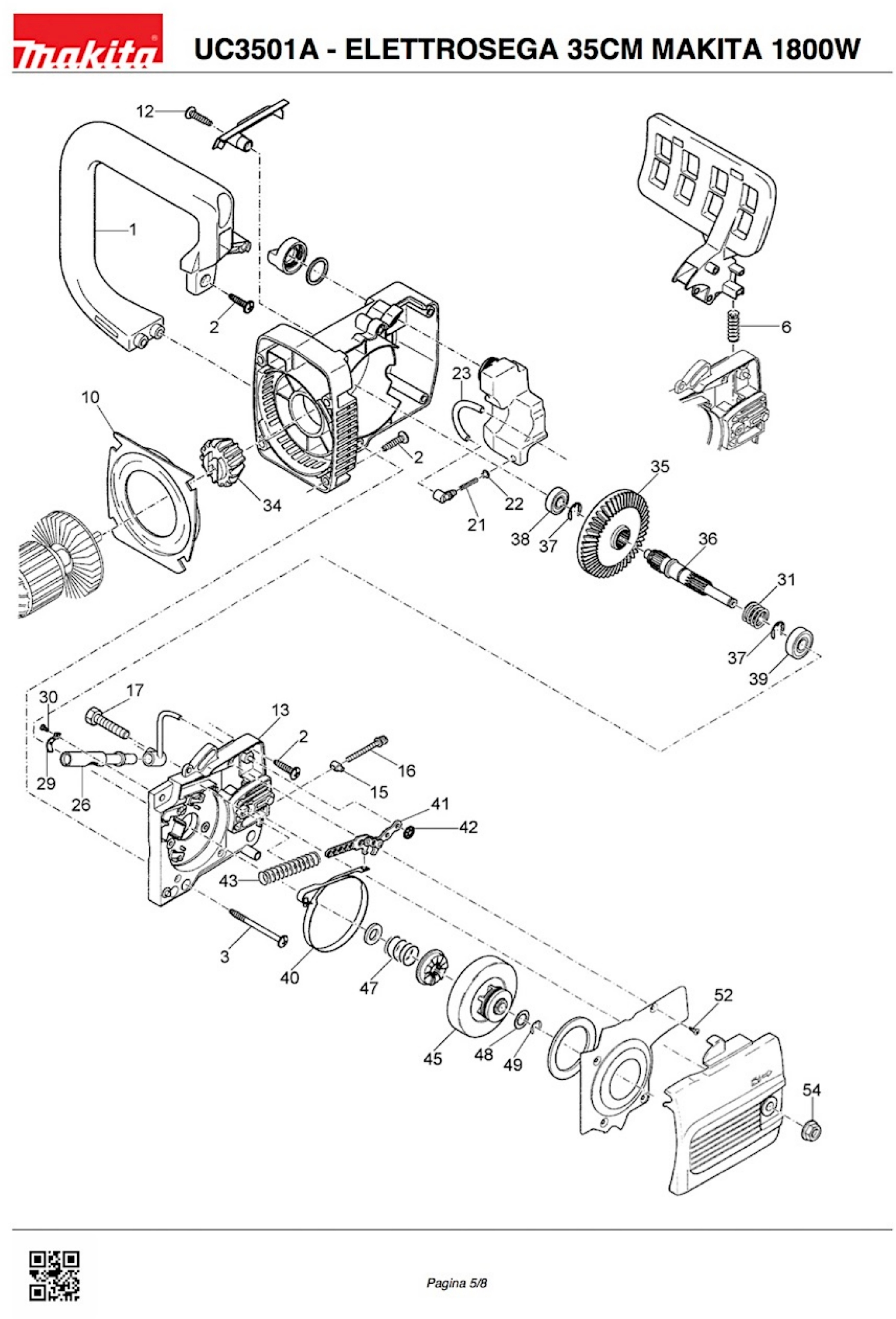

Page 3 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Image coming soon 225310021 HANDLE CX UC3000-3500 €10.13
2
 Image coming soon 913550255 SCREW 5X25 X UC €1.43
3
 Image coming soon 913550555 SCREW 5X55 UC3000-3500-4000A €1.42
6
 Image coming soon 233174-4 SPRING LOCK. X UC €1.54
10
 Image coming soon 225118010 GUIDE PLATE X UC €1.86
12
 Image coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.32
13
 Image coming soon 316875-0 GEAR HOUSING €19.42
15
 Image coming soon 001213042 PIN TENSIONER X PS 34 €5.13
16
 SCREW M5X35 X UC 901505354 SCREW M5X35 X UC €1.40
17
 Image coming soon 921452-1 BOLT 8X30 €1.58
21
 Image coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
22
 Image coming soon 416274-7 PLUG OIL PIPE X DCS230T €1.47
23
 Image coming soon 965452382 FUEL TUBE 1mt Diam. 3/5 €12.46
26
 Oil Pump for Electric Chainsaw Makita UC3500A 021245007 Oil Pump for Electric Chainsaw Makita UC3500A €38.40
29
 Image coming soon 203245002 HOLDER OIL PUMP X DES €2.78
30
 Image coming soon 915135100 FILLISTER (TORX)HEAD SCREW 3,5 €1.40
31
 WORM 021245040 WORM €2.37
34
 PINION UC3000-3500-4000A 226743-8 PINION UC3000-3500-4000A €4.89
35
 CPL GEARGE UC 226741-2 CPL GEARGE UC €4.24
36
 Image coming soon 225221030 SHAFT X UC3000-3500-4000A - DISCONTINUED €0.12 Not available for order
37
 Image coming soon 259034-2 SAFETY WASHER X UC €1.54
38
 BEARING 608Z X UC 960101084 BEARING 608Z X UC €5.16
39
 BEARING 6201 211107-9 BEARING 6201 €9.40
40
 Image coming soon 225213050 BRAKE SPRING X UC €4.53
41
 Image coming soon 158044-5 RETAINING SPRING BRAKE X UC €6.61
42
 Image coming soon 930304030 FIXING WASHER X UC €1.43
43
 Image coming soon 028213521 SPRING X UC3000-3500-4000A €1.40
45
 Image coming soon 225223112 CLUTCH DRUM X UC €0.12 Not available for order
47
 Image coming soon 225184012 PRESSURE SPRING UC3000-3500 €1.25
48
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.32
49
 LOCKWASHER X UC 259033-4 LOCKWASHER X UC €1.47
52
 Image coming soon 915835100 SCREW 3.5X9.5 CU €1.43
54
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.27

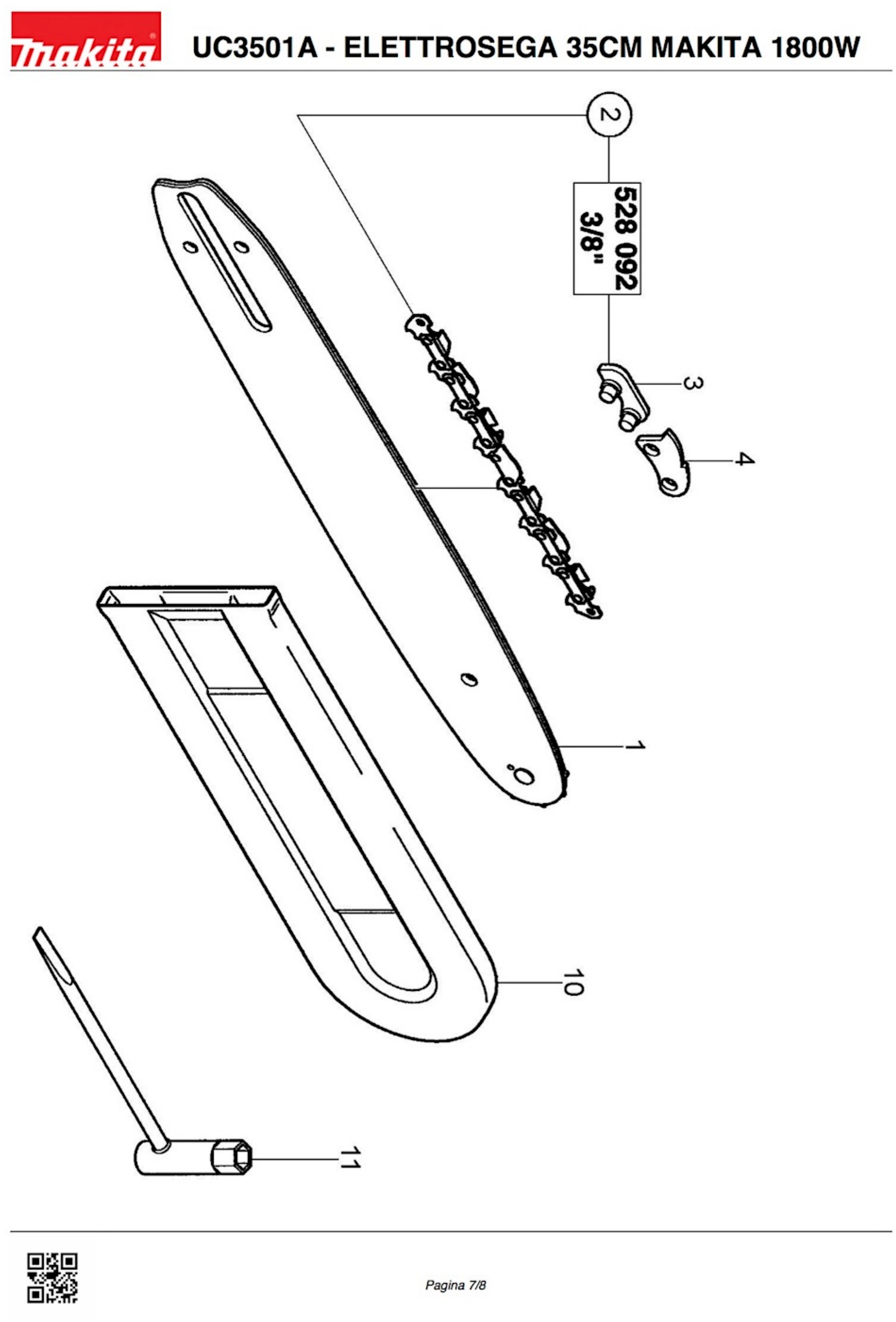

Page 4 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Image coming soon 442035661 CHAIN BAR 35CM SP.1,3MM €24.18
2
 Makita UC3501A Chainsaw Chain 511492752 Makita UC3501A Chainsaw Chain €27.05
3
 Image coming soon 558092010 TIE STRAP WITH RIVETS 3/8" .050" €1.61
4
 Image coming soon 558092000 SAFETY TIE STRAP 3/8" .050" €0.00 Not available for order
10
 Image coming soon 952010640 CHAIN BAR COVER 40CM €11.29
11
 Image coming soon 941713001 UNIVERSAL KEY X DES380 €4.23

Shipping and delivery information will be available shortly.

Makita Spare Parts for Electric Chainsaw UC3501A

We are MAKITA original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Chainsaw UC3501A.

In the following table, look for the model of the Electric Saws and the respective parts of the code.
Makita UC3501A

Electric Chainsaw UC3501A
Pag.1
# Part Num. Description
2 980114181 ES-31A LABEL
3 416178-3 UNLOCKING BUTTON X UC3020A
4 233173-6 SPRING 4 FOR UC3020A
5 416177-5 SWITCH X UC-ES
6 913540185 SCREW 4X18 UC3000-3500-4000A
10 225111660 MOTOR HOUSING X UC3000-3500
12 957802410 CARBON BRUSHES X UH4520-5520-7020
13 643755-0 CAP CARBON BRUSHES X UB1101
Pag.2
2 970802351 ARMATURE 230-240V TYP225
3 211111-8 BEARING 6301 X UC
4 211057-8 BEARING 629 X UC
5 970802610 SPACER X UC3000-3500-40
6 913550555 SCREW 5X55 UC3000-3500-4000A
8 970001200 SWITCH X UC3000-3500-4000A
9 651923-1 TG70B X 5903R SWITCH
10 970109810 CAPACITOR XUC3000-3500-4000
11 632681-8 CABLE (ORANGE) XUC3000-3500
14 970311330 CABLE (YELLOW) X UC3000-3500
18 687080-9 CLAMP X ES-152A
26 913540185 SCREW 4X18 UC3000-3500-4000A
27 682574-9 CORD GUARD 10-90 PC5000C
30 970102110 COMPLETE CABLE X DES380
Pag.3
1 225310021 HANDLE CX UC3000-3500
2 913550255 SCREW 5X25 X UC
3 913550555 SCREW 5X55 UC3000-3500-4000A
6 233174-4 SPRING X UC
10 225118010 GUIDE PLATE X UC
12 913540185 SCREW 4X18 UC3000-3500-4000A
13 316875-0 GERA HOUSING
15 001213042 PIN CHAIN TENSIONER X PS 34
16 901505354 SCREW M5X35 X UC
17 921452-1 HEXAGONAL BOLT 8X30
21 231975-4 SPRING OIL TUBE X DCS230T
22 416274-7 OIL TUBE CAP X DCS230T
23 965452382 FUEL TUBE 1mt Diam.3 / 5.5
26 021245007 METAL OIL PUMP
29 203245002 HOLDER OIL PUMP X DES
30 915135100 SCREW 3.5 X 9.5
31 021245040 WORM SCREW
34 226743-8 PINION UC3000-3500-4000A
35 226741-2 CPL GEAR UC
36 225221030 SHAFT X UC3000-3500-4000A - DISCONTINUED
37 259034-2 SAFETY WASHER X UC
38 960101084 BEARING 608Z X UC
39 211107-9 BEARING 6201 X 9524NB
40 225213050 BRAKE SPRING X UC
41 158044-5 BRAKE SPRING X UC
42 930304030 FIXING WASHER X UC
43 028213521 SPRING X UC3000-3500-4000A
45 225223112 CPL CLUTCH X UC
47 225184012 PRESSURE SPRING UC3000-3500 - DISCONTINUED
48 253215-0 WASHER 8 6510PBL / LVR
49 259033-4 SAFETY WASHER X UC
52 915835100 SCREW 3.5X9.5 CU
54 264055-1 NUT M8
Pag.4
1 442035661 CHAIN BAR 35CM SP.1,3MM
2 511492752 CHAIN EXTRA GUARD SWEATERS 52
3 558092010 TIE STRAP
4 558092000 SAFETY TIE STRAP
10 952010640 CHAIN BAR COVER 40CM
11 941713001 UNIVERSAL KEY X DES380
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
