Makita Spare Parts for Engine Brushcutter RBC221 - Version 2

SKU: Makita RBC221 - Versione 2
€2.02
VAT included

Makita Spare Parts for Engine Brushcutter RBC221 - Version 2

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Brushcutter RBC221 - Version 2.
Makita Spare Parts for Engine Brushcutter RBC221 - Version 2
  • Makita Spare Parts for Engine Brushcutter RBC221 - Version 2
  • Makita Spare Parts for Engine Brushcutter RBC221 - Version 2
  • Makita Spare Parts for Engine Brushcutter RBC221 - Version 2
  • Makita Spare Parts for Engine Brushcutter RBC221 - Version 2
  • Makita Spare Parts for Engine Brushcutter RBC221 - Version 2

Makita Spare Parts for Engine Brushcutter RBC221 - Version 2

SKU: Makita RBC221 - Versione 2 Condition: New
€2.02
VAT included

Makita Spare Parts for Engine Brushcutter RBC221 - Version 2

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Brushcutter RBC221 - Version 2.
settings 105 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

104 spare parts

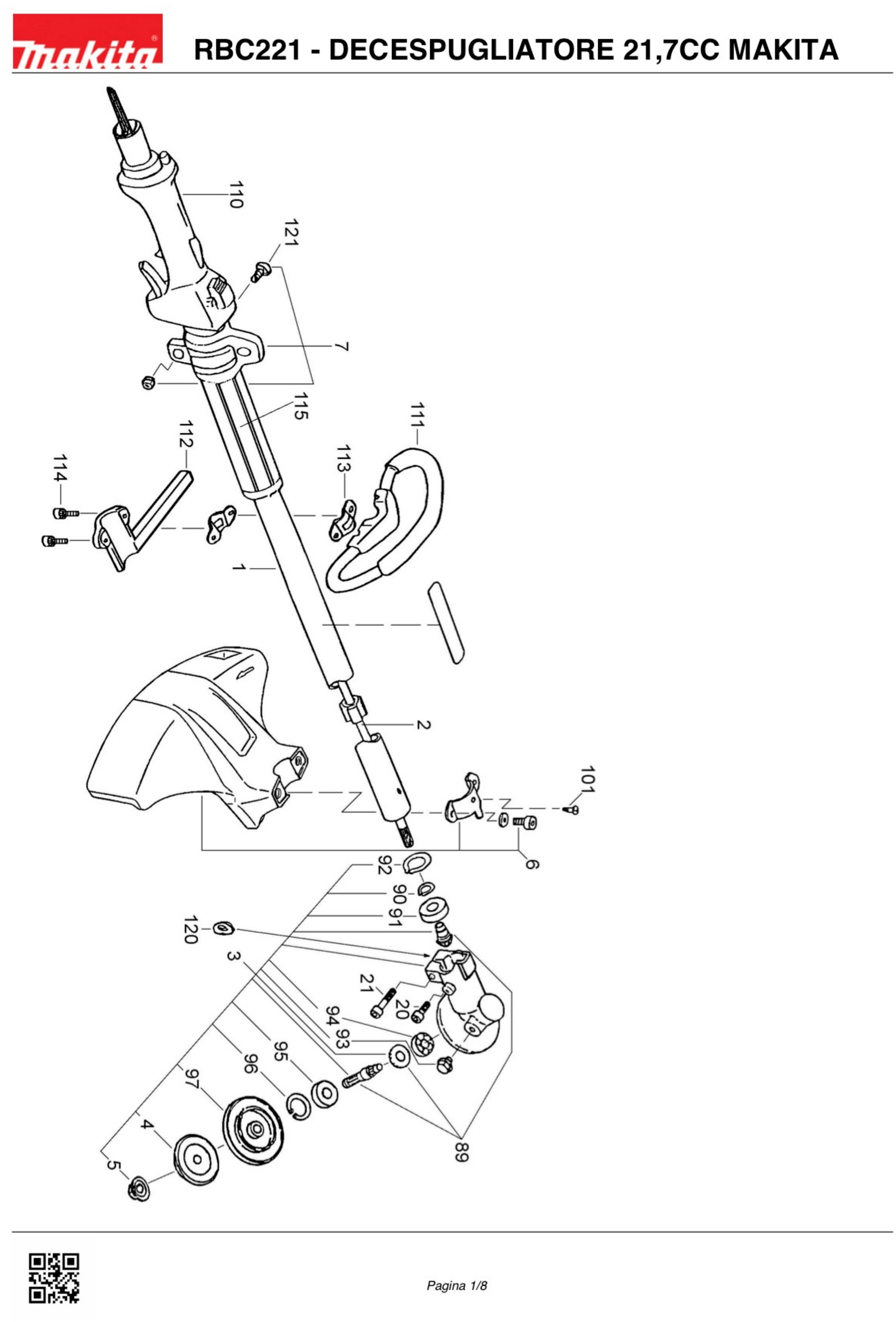

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 6211017001 TRASMISSION SHAFT ASSEMBLY XR BC225-2 €199.51
2
photo_cameraImage coming soon 324893-4 SHAFT EBH252L €72.17
3
photo_cameraImage coming soon 6193001006 GEAR HEAD X MS351-4U €143.38
4
photo_cameraImage coming soon 6258504502 EXTERNAL FLANGE X MS221 €25.79
5
photo_cameraImage coming soon 264018-7 NUT M8 RBC2510 €1.44
6
photo_cameraImage coming soon 6218008003 PROTECTOR ASS'Y €51.16
7
photo_cameraImage coming soon 6254019000 HANGHER ASS'Y X RBC225-255 €19.00
20
photo_cameraImage coming soon 0119059900 BOLT M5X12 X RBC225-255 €2.08
21
photo_cameraImage coming soon 0119059890 SOCKET HEAD BOLT M5X25 XRBC225 €2.15
89
Gear Set for Brushcutter Makita RBC221 6253013003 Gear Set for Brushcutter Makita RBC221 €97.41
90
photo_cameraImage coming soon 0031509000 OUTER SNAP RING X RBC251-221 €1.91
91
photo_cameraImage coming soon 210049-4 BEARING 609ZZ EBH252L €6.29
92
photo_cameraImage coming soon 0031424000 INNER SNAP RING X RBC260-230-225 €2.15
93
photo_cameraImage coming soon 6253011012 OIL CAP M6 X 9 RBC201 €1.97
94
photo_cameraImage coming soon DA00000158 BEARING 626ZZ €6.23
95
photo_cameraImage coming soon 6253503700 SEAL RING X RBC251-221 €19.63
97
photo_cameraImage coming soon 6258504401 INNER FLANGE XRBC251-221 €24.69
101
photo_cameraImage coming soon 0150059940 SCREW X RBK250-RBC225-RBC255 €1.41
110
photo_cameraImage coming soon 6215019000 CONTROL LEVER COMP. X MS221 €56.12
111
photo_cameraImage coming soon 6274004010 LOOP HANDLE RBC201 €26.92
112
photo_cameraImage coming soon 6274004020 LOOP HANDLE BAR RBC201 €20.99
114
photo_cameraImage coming soon 6274004040 SCREW M6 X 20 RBC201 €4.24
115
photo_cameraImage coming soon 6271501501 SPACER RBC201 €7.11
121
photo_cameraImage coming soon 0561059990 HOSE CLAMP XRBC230-310 / 520 €1.89

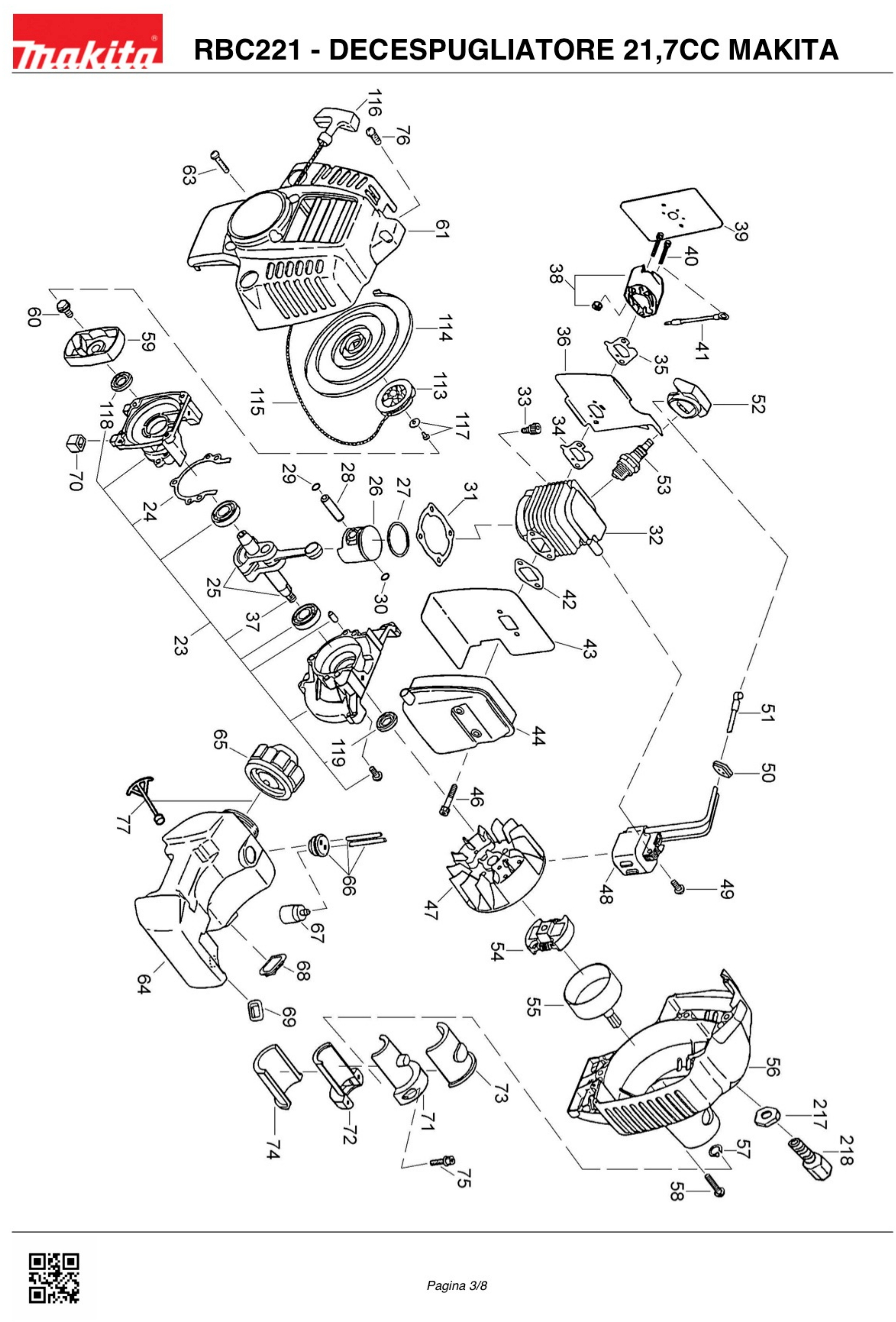

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
23
photo_cameraImage coming soon 5231011001 CPL MOTOR HOUSING XRBC255-22 €245.87
24
photo_cameraImage coming soon 424447-8 HOUSING GASKET RBC2510 €2.14
25
photo_cameraImage coming soon 5232011006 CRANKSHAFT CPL X RBK250 €199.51
26
photo_cameraImage coming soon 5212500700 PISTON X RBC221-225 €14.76
27
photo_cameraImage coming soon 5982500000 PISTON RING X RBC221-225 €3.95
28
photo_cameraImage coming soon 5212500801 PIN X RBC221-225 €2.76
29
photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
31
photo_cameraImage coming soon 442171-1 CYLINDER GASKET RBC2510 €2.76
33
photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
34
photo_cameraImage coming soon 424448-6 INSULATING GASKET RBC2510 €1.43
36
photo_cameraImage coming soon 5233505201 INSULATOR X RBC225-RBC255 €11.33
38
photo_cameraImage coming soon 141056-5 INSULATOR COMPLETE €6.81
39
photo_cameraImage coming soon 5253500300 INSULATING GASKET X MS221 €2.08
40
photo_cameraImage coming soon 0140059500 SCREW M5x25 X RBC225-255 €1.43
41
photo_cameraImage coming soon 6165501200 WIRE X RBC225-255-226-2 €6.79
42
photo_cameraImage coming soon 5233504302 MUFFLER GASKET X RBC225-2 €2.14
43
photo_cameraImage coming soon 5233505301 MUFFLER INSULATOR RBC225-25 €10.13
48
photo_cameraImage coming soon 5237031024 IGNITION COIL X RBK250-RBC225-255 €51.36
49
photo_cameraImage coming soon 0140049920 SCREW M4X20 X RBC225-255 €1.43
51
photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
52
photo_cameraImage coming soon 5237503301 SPARK PLUG CAP XRBC225-255 €25.05
53
photo_cameraImage coming soon 0650149721 SPARK PLUG BMR7A RBK250 €19.05
54
Clutch Ass'y for Brushcutter Makita RBC2510 168672-8 Clutch Ass'y for Brushcutter Makita RBC2510 €16.28
55
Clutch Drum for Brush Cutter Makita RBC2510 168675-2 Clutch Drum for Brush Cutter Makita RBC2510 €20.57
56
photo_cameraImage coming soon 5235029004 ENGINE CASE TRANSMISSION SIDE RBC €52.04
57
Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
59
photo_cameraImage coming soon 5235025001 STARTER REEL X RBC225-255 €33.48
60
photo_cameraImage coming soon 5235504700 BOLT X RBC225 / 255 €10.13
61
photo_cameraImage coming soon 5235027001 COMPLETE STARTER SIDE RBC225 €127.71
63
photo_cameraImage coming soon 0140059450 SCREW M5X18 X RBK250-RBC225 / 25 €2.14
64
photo_cameraImage coming soon 455630-6 TANK €16.11
65
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
66
photo_cameraImage coming soon 5236048002 TUBE X RBC225-255 €14.67
67
Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
68
photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
69
Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
70
photo_cameraImage coming soon 5216500200 DAMPER X RBC230-225-255 €1.40
71
photo_cameraImage coming soon 6251509501 SEMI HOUSING SUP.X MS254U-MS254C €3.90
72
photo_cameraImage coming soon 6251509600 SEMI HOUSING INF.X RBC225 €4.53
73
photo_cameraImage coming soon 6251506604 SPACER SUP. X RBC225 €8.70
74
photo_cameraImage coming soon 6251506703 SPACER X RBC225-255 €3.21
75
photo_cameraImage coming soon 0119059950 BOLT M5X18 XRBC230 / 310/225 €2.30
77
Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
113
photo_cameraImage coming soon 452915-1 HEAD REEL X RBK250-RBC225-255 €9.89
114
photo_cameraImage coming soon 5235024032 SPIRAL SPRING X RBK250-RBC2 €17.07
115
photo_cameraImage coming soon 5235024022 STARTER ROPE RBK250-RBC225-2 €17.13
116
photo_cameraImage coming soon 5215002110 STARTER FOR RBC 230-225-255 €3.23
117
photo_cameraImage coming soon 5425003010 SCREW SET X RBC415-225-255 €3.95
118
photo_cameraImage coming soon 213628-7 OIL SEAL RBC2510 €2.08
217
photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
218
photo_cameraImage coming soon 5216008010 CABLE ADJUST SCREW X RBC260 310 €5.43

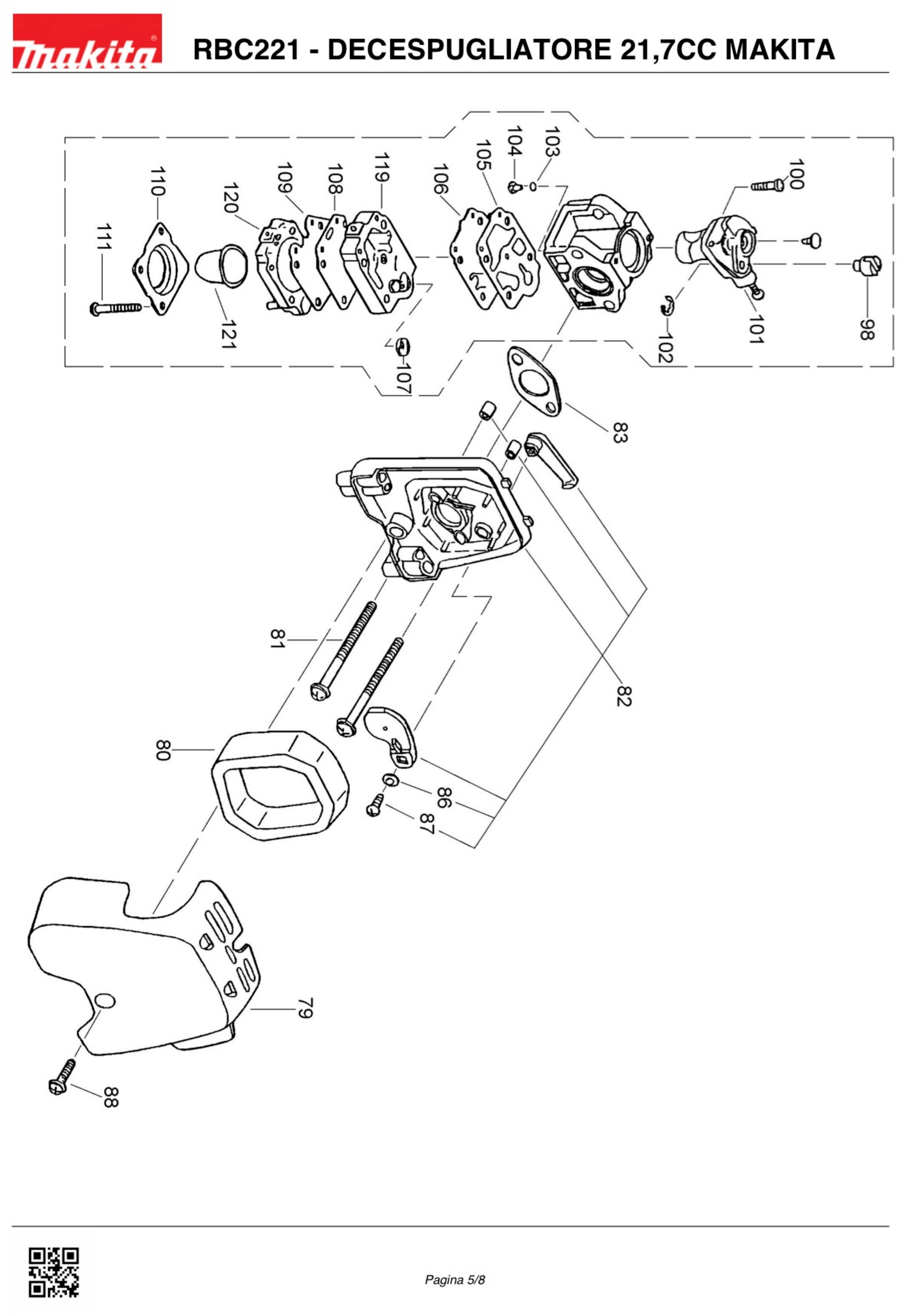

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
79
photo_cameraImage coming soon 453410-4 AIR FILTER HOUSING €3.84
80
Air Cleaner Element for Brushcutter Makita RBC2510 443167-5 Air Cleaner Element for Brushcutter Makita RBC2510 €3.03
81
photo_cameraImage coming soon 0140059470 SCREW M5X62 X RBL250-RBC225-255 €1.29
82
photo_cameraImage coming soon 5253014001 PLATE X MS221 €16.65
83
photo_cameraImage coming soon 5233504200 GASKET CARBURATOR XRBC22 €3.33
86
photo_cameraImage coming soon 0031104000 WASHER X RBC225-255 €1.86
87
photo_cameraImage coming soon 0150049980 SCREW M4X8 X RBC225-255 €1.54
88
photo_cameraImage coming soon 0043605140 SCREW M5X14 X RBC225-255 €1.89
98
photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
100
photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
101
photo_cameraImage coming soon 5256024010 THROTTLE VALVE ASS'Y MS221 €83.91
102
photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
103
photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
104
photo_cameraImage coming soon 5256024020 JET EH620 €13.05
105
photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
106
photo_cameraImage coming soon 5246001040 PUMP DIAPHRAGM RBC260 / 230/310/225 €13.12
107
photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
108
photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
109
photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
110
photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
111
photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
119
photo_cameraImage coming soon 5236046130 BODY PUMP CPL FOR RBC350-RBC42 €61.62
120
photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
121
Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90

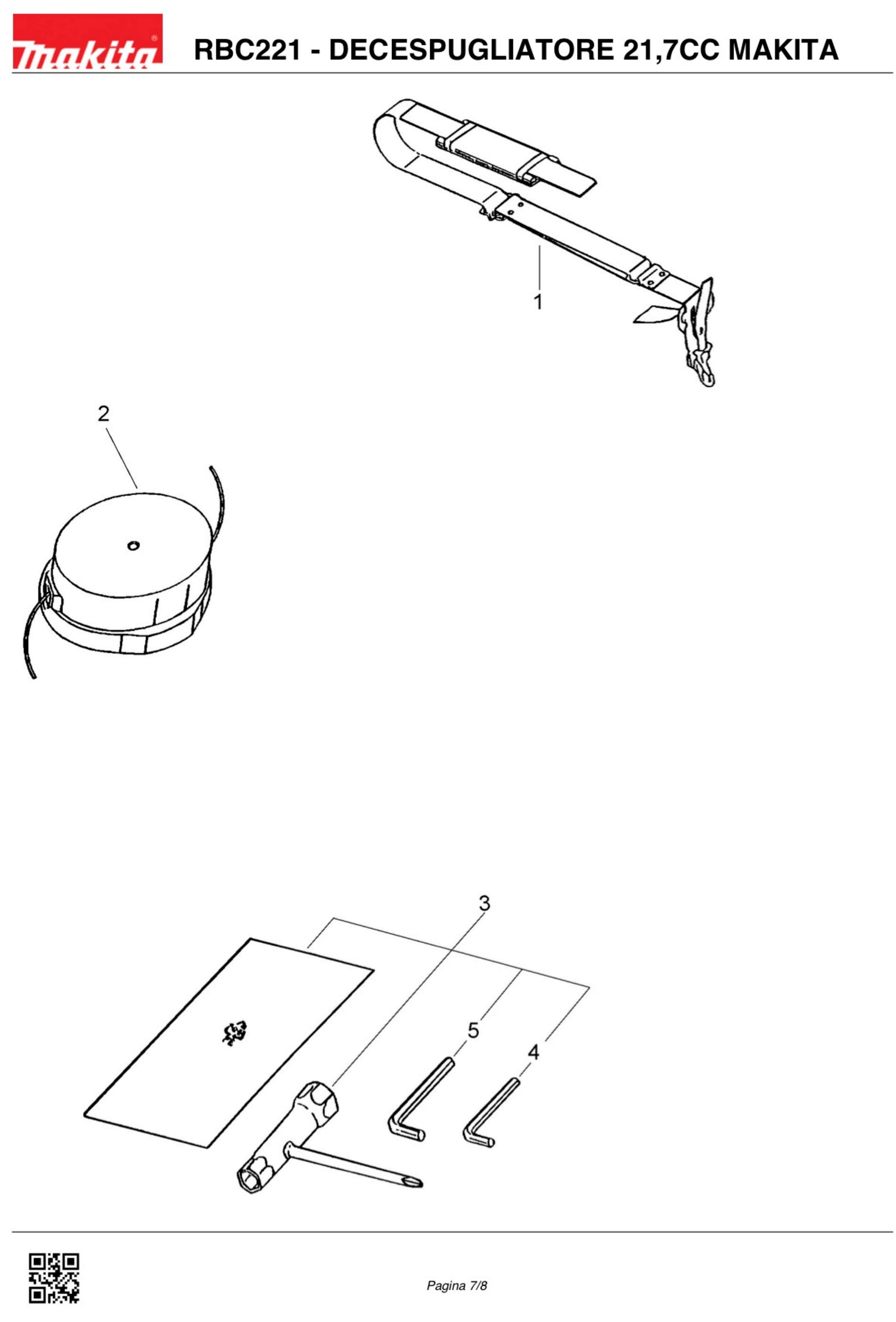

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 6207003002 BAND ASS'Y X RBC225-255 €16.64
2
photo_cameraImage coming soon B-01959 NYLON CUTTING HEAD M8X1.25F €45.27
3
photo_cameraImage coming soon 6279016001  TOOL KIT MS221 €9.02
4
photo_cameraImage coming soon 0717049990 WRENCHE €2.73
5
photo_cameraImage coming soon 0717059990 WRENCHE €2.61

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Engine Brushcutter RBC221 - Version 2

We are MAKITA original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Brushcutter RBC221 - Version 2.

In the following table, look for the model of Brush Cutter and the respective parts of the code.
Brushcutter RBC221 - Version 2

RBC221 - VERSION 2 ENGINE BRUSHCUTTER 21,7CC MAKITA PAG.1
# Part Num. Description
1 6211017001 COMPLETE SHAFT ASSEMBLY XRBC225-2
2 324893-4 TRANSMISSION SHAFT EBH252L
3 6193001006 GEAR HEAD X MS351-4U
4 6258504502 EXTERNAL FLANGE X MS221
5 264018-7 NUT M8 RBC2510
6 6218008003 PROTECTION FOR BRUSHCUTTER
7 6254019000 BELT SUPPORT X RBC225-255
20 0119059900 BOLT M5X12 X RBC225-255
21 0119059890 BOLT AND ROUND. M5X25 XRBC225
89 6253013003 GEAR SET X RBC251-221
90 0031509000 EXTERNAL STATION X RBC251-221
91 210049-4 BEARING 609ZZ EBH252L
92 0031424000 INTERNAL PIN XRBC260-230-225
93 6253011012 OIL CAP M6 X 9 RBC201
94 DA00000158 BEARING 626ZZ
95 6253503700 OIL PART X RBC251-221
97 6258504401 INTERNAL FLANGE XRBC251-221
101 0150059940 SCREW X RBK250-RBC225-RBC255
110 6215019000 CPL CONTROL LEVER X MS221
111 6274004010 HANDLE RBC201
112 6274004020 LOWER HANDLEGRIP RBC201
114 6274004040 SCREW M6 X 20 RBC201
115 6271501501 SPACER RBC201
121 0561059990 FASCETTA STOP FILTER X RBC230-310 / 520
RBC221 - ENGINE BRUSHCUTTER 21,7CC MAKITA PAG.2
23 5231011001 COMPLETE ENGINE CASE XRBC255-22
24 424447-8 CASE GASKET RBC2510
25 5232011006 COMPLETE SHAFT X RBK250
26 5212500700 PISTON X RBC221-225
27 5982500000 PISTON RING X RBC221-225
28 5212500801 PISTON PIN X RBC221-225
29 233976-8-4 CIRCLIP EBH252L (4pcs)
30 233976-8-4 CIRCLIP EBH252L (4pcs)
31 442171-1 CYLINDER GASKET RBC2510
32 5211501201 CYLINDER X RBC221 / 226/225
33 0119059730 BOLT X RBC 260/230/225/255
34 424448-6 INSULATING GASKET RBC2510
35 424448-6 INSULATING GASKET RBC2510
36 5233505201 INSULATOR X RBC225-RBC255
38 141056-5 ISOLATOR
39 5253500300 INSULATING GASKET X MS221
40 0140059500 SCREW M5X25 X RBC225-255
41 6165501200 GROUND CABLE X RBC225-255-226-2
42 5233504302 MUFFLER GASKET X RBC225-2
43 5233505301 MUFFLER INSULATOR X RBC225-25
48 5237031024 COIL X RBK250-RBC225-255
49 0140049920 SCREW M4X20 X RBC225-255
51 0654009931 PIN X RBC415-225-255
52 5237503301 SPARK PLUG CAP XRBC225-255
53 0650149721 SPARK PLUG BMR7A RBK250
54 168672-8 CLUTCH RBC2510
55 168675-2 CLUTCH DRUM RBC2510
56 5235029004 ENGINECASE TRANSMISSION SIDE
57 0031512000 EXTERNAL RING X RBC260 / 520RBK410
59 5235025001 REEL STARTING X RBC225-255
60 5235504700 BOLT X RBC225 / 255
61 5235027001 COMPLETE STARTER SHEET RBC225
63 0140059450 SCREW M5X18 X RBK250-RBC225 / 25
64 455630-6 TANK
65 452920-8 TANK CAP
66 5236048002 PETROL TUBE X RBC225-255
67 163447-0 FUEL FILTER X DCS230T
68 424103-0 EBH341U SHOCK ABSORBER
69 424102-2 EBH341U SHOCK ABSORBER
70 5216500200 RUBBER X RBC230-225-255
71 6251509501 UPPER HALF CASE X MS254U-MS254C
72 6251509600 LOWER HALF CASE X RBC225
73 6251506604 UPPER SPACER X RBC225
74 6251506703 LOWER SPACER X RBC225-255
75 0119059950 BOLT M5X18 XRBC230 / 310/225
77 140436-2 ROD EBH341U
113 452915-1 REEL X RBK250-RBC225-255
114 5235024032 SPIRAL SPRING X RBK250-RBC2
115 5235024022 STARTING CORD X RBK250-RBC225-2
116 5215002110 STARTER X RBC 230-225-255
117 5425003010 SET VITI X RBC415-225-255
118 213628-7 SEALING OIL RBC2510
119 213628-7 SEALING OIL RBC2510
217 5316005450 NUT RBC260 / 310
218 5216008010 SCREW X RBC260 310
RBC221 - ENGINE BRUSHCUTTER 21,7CC MAKITA PAG.3
79 453410-4 AIR FILTER CASE
80 443167-5 AIR FILTER RBC2510
81 0140059470 SCREW M5X62 X RBL250-RBC225-255
82 5253014001 COMPLETE PLATE X MS221
83 5233504200 CARBURETOR GASKET XRBC22
86 0031104000 WASHER X RBC225-255
87 0150049980 SCREW M4X8 X RBC225-255
88 0043605140 SCREW M5X14 X RBC225-255
98 5236018040 CABLE THROTTLE XRBC230-260-310-225
100 266581-6 SCREW M3X8 EBH341U
101 5256024010 VALVE X MS221
102 5316005120 RING X RBC 260/230/310/225/2
103 5246001010 GASKET X RBC 260/230/310
104 5256024020 EH620 INJECTOR
105 5246001030 PUMP GASKET RBC260-230-310
106 5246001040 DIAPHRAGM PUMP RBC260 / 230/310/225
107 5016004010 FITTING X RBC 260/230/310/225
108 442154-1 EBH341U DIAPHRAGM GASKET
109 168574-8 COMPLETE DIAPHRAGM EBH341U
110 5236046050 PUMP COVER X RBC350-RBC42
111 266582-4 SCREW 3X24 EBH341U
119 5236046130 COMPLETE PUMP BODY X RBC350-RBC42
120 5236046060 AIR FILTER BODY CPOMPLETO RBC350
121 424314-7 EBH341 PRIMING PUMP
RBC221 - ENGINE BRUSHCUTTER 21,7CC MAKITA PAG.4
1 6207003002 BELT SUPPORT X RBC225-255
2 B-01959 MANUAL HEAD M8X1.25F
3 6279016001 MS221 SERVICE KEYS KIT
4 0717049990 KEY X DICE RBC350-RBC420
5 0717059990 KEY X DICE RBC350-RBC420

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC221 - Versione 2
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita RBC221 - Vers. 2

Diagram Makita RBC221 - Vers. 2

Download (932.87KB)

You might also like

Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Makita SKU: 233976-8
Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.01
Makita SKU: 168672-8
Clutch Ass'y for Brushcutter Makita RBC2510 Genuine part Makita, Clutch Assembly for Brushcutters RBC2510 - RBC2511 - RBC221 - RBC2501 - RBC251 - Dolmar MS221 - MS253...
Last items in stock €16.28
Makita SKU: 6253013003
Gear Set for Brushcutter Makita RBC221 Genuine replacement part Makita, Gear Set XRBC251-221 for Brushcutter Makita RBC221 - Dolmar MS221. Part for the following products: -  MS221 - BRUSHCUTTER 21,7CC DOLMAR -  RBC221 - BRUSHCUTTER...
AVAILABLE €97.41
Makita SKU: 443167-5
Air Cleaner Element for Brushcutter Makita RBC2510 Genuine part Makita, Air Cleaner Sponge Element for Brushcutters RBC2510 - RBC225-255 - MS2501 - MS2810. Part for the following products: - MS254C...
AVAILABLE €3.03
Comments (0)
