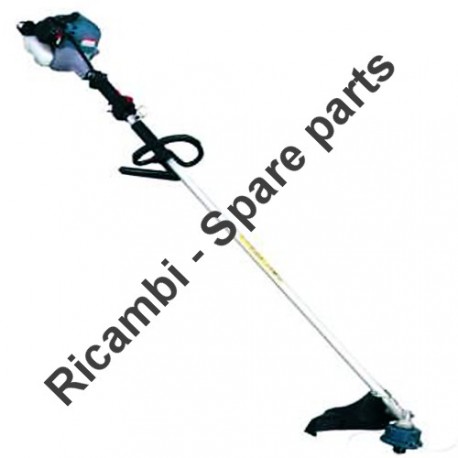

Makita Spare Parts for Brush Cutter RBC221 - Version 1

SKU: Makita RBC221 - Versione 1
€1.44
VAT included

Makita Spare Parts for Brush Cutter RBC221 - Version 1

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Service and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for  Brush Cutter RBC221 - Version 1.
Makita Spare Parts for Brush Cutter RBC221 - Version 1
  • Makita Spare Parts for Brush Cutter RBC221 - Version 1
  • Makita Spare Parts for Brush Cutter RBC221 - Version 1
  • Makita Spare Parts for Brush Cutter RBC221 - Version 1
  • Makita Spare Parts for Brush Cutter RBC221 - Version 1

Makita Spare Parts for Brush Cutter RBC221 - Version 1

SKU: Makita RBC221 - Versione 1 Condition: New
€1.44
VAT included

Makita Spare Parts for Brush Cutter RBC221 - Version 1

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Service and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for  Brush Cutter RBC221 - Version 1.
settings 76 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

75 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 6211025000 HOSE FOR PTR2500 €82.76
2
Trasmission Shaft for Brushcutter Makita RBC221 6201502101 Trasmission Shaft for Brushcutter Makita RBC221 €68.72
3
photo_cameraImage coming soon 6253011002 HOUSING COMPLETE GEARS RBC221 €141.27
4
photo_cameraImage coming soon 6258504500 EXTERNAL FLANGE X RBC221 / 251 €33.19
5
photo_cameraImage coming soon 264018-7 NUT M8 RBC2510 €1.44
6
photo_cameraImage coming soon 6218008003 PROTECTOR ASS'Y €51.16
7
photo_cameraImage coming soon 6254019000 HANGHER ASS'Y X RBC225-255 €19.00
8
photo_cameraImage coming soon 6165016001 COMPLETE HANDLEGRIP €76.92
9
photo_cameraImage coming soon 6165500601 THROTTLE TRIGGER €16.89
10
photo_cameraImage coming soon 6165500701 THROTTLE ROD €14.53
11
photo_cameraImage coming soon 6165009001 SWITCH €24.69
12
photo_cameraImage coming soon 0150049920 SELF-TAPPING SCREW €1.42
18
photo_cameraImage coming soon 0031106000 WASHER €1.44
19
photo_cameraImage coming soon 0023706000 NUT €1.44
20
photo_cameraImage coming soon 0119059900 BOLT M5X12 X RBC225-255 €2.08
21
photo_cameraImage coming soon 0119059890 SOCKET HEAD BOLT M5X25 XRBC225 €2.15
22
photo_cameraImage coming soon 0630039900 CABLE THROTTLR XRBC251 / RST250 €11.22
23
photo_cameraImage coming soon 6258504401 INNER FLANGE XRBC251-221 €24.69
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
23
photo_cameraImage coming soon 5231011001 CPL MOTOR HOUSING XRBC255-22 €245.87
24
photo_cameraImage coming soon 424447-8 HOUSING GASKET RBC2510 €2.14
26
photo_cameraImage coming soon 5212500700 PISTON X RBC221-225 €14.76
27
photo_cameraImage coming soon 5982500000 PISTON RING X RBC221-225 €3.95
28
photo_cameraImage coming soon 5212500801 PIN X RBC221-225 €2.76
29
photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
31
photo_cameraImage coming soon 442171-1 CYLINDER GASKET RBC2510 €2.76
33
photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
34
photo_cameraImage coming soon 424448-6 INSULATING GASKET RBC2510 €1.43
36
photo_cameraImage coming soon 5233505201 INSULATOR X RBC225-RBC255 €11.33
38
photo_cameraImage coming soon 5233038001 CARBURETTOR SPACER XRBC22 €5.25
39
photo_cameraImage coming soon 5233504102 SPACER GASKET €2.72
40
photo_cameraImage coming soon 0140059500 SCREW M5x25 X RBC225-255 €1.43
41
photo_cameraImage coming soon 6165501200 WIRE X RBC225-255-226-2 €6.79
42
photo_cameraImage coming soon 5233504302 MUFFLER GASKET X RBC225-2 €2.14
43
photo_cameraImage coming soon 5233505301 MUFFLER INSULATOR RBC225-25 €10.13
45
photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
48
photo_cameraImage coming soon 5237031022 COIL €157.25
49
photo_cameraImage coming soon 0140049920 SCREW M4X20 X RBC225-255 €1.43
51
Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
52
photo_cameraImage coming soon 5237503301 SPARK PLUG CAP XRBC225-255 €25.05
53
photo_cameraImage coming soon 054002-10 SPARK PLUG NGK - BM7A (10PZ) €46.29
54
Clutch Ass'y for Brushcutter Makita RBC2510 168672-8 Clutch Ass'y for Brushcutter Makita RBC2510 €16.28
55
Clutch Drum for Brush Cutter Makita RBC2510 168675-2 Clutch Drum for Brush Cutter Makita RBC2510 €20.57
56
photo_cameraImage coming soon 5235029004 ENGINE CASE TRANSMISSION SIDE RBC €52.04
57
Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
59
photo_cameraImage coming soon 5235025001 STARTER REEL X RBC225-255 €33.48
60
photo_cameraImage coming soon 5235504700 BOLT X RBC225 / 255 €10.13
61
photo_cameraImage coming soon 5235027001 COMPLETE STARTER SIDE RBC225 €127.71
62
Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
63
photo_cameraImage coming soon 0043605180 COMPLETE SCREW X RBC230 / RBC520 €1.89
64
photo_cameraImage coming soon 455630-6 TANK €16.11
65
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
66
photo_cameraImage coming soon 5236048002 TUBE X RBC225-255 €14.67
67
Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
68
photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
69
Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
70
photo_cameraImage coming soon 5216500200 DAMPER X RBC230-225-255 €1.40
71
photo_cameraImage coming soon 6251509501 SEMI HOUSING SUP.X MS254U-MS254C €3.90
72
photo_cameraImage coming soon 6251506901 LOWER HALF CASE €16.89
73
photo_cameraImage coming soon 6251506604 SPACER SUP. X RBC225 €8.70
74
photo_cameraImage coming soon 6251506703 SPACER X RBC225-255 €3.21
75
photo_cameraImage coming soon 0119059950 BOLT M5X18 XRBC230 / 310/225 €2.30
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
77
photo_cameraImage coming soon 168669-7 CARBURATOR RBC2510 €100.02
78
photo_cameraImage coming soon 5236504601 PETROL TUBE €2.72
79
photo_cameraImage coming soon 452917-7 FILTER COVER RBC2510 €3.47
80
Air Cleaner Element for Brushcutter Makita RBC2510 443167-5 Air Cleaner Element for Brushcutter Makita RBC2510 €3.03
81
photo_cameraImage coming soon 0043605650 SCREW M5X65 €2.77
82
photo_cameraImage coming soon 5233047001 FILTER PLARECPL X RBK250-RB €17.03
83
photo_cameraImage coming soon 5233504200 GASKET CARBURATOR XRBC22 €3.33
84
photo_cameraImage coming soon 5233504801 AIR LEVER GROUP X RBC225-255 €2.14
85
photo_cameraImage coming soon 5233505002 AIR LEVER X RBC225-255 €1.43
86
photo_cameraImage coming soon 0031104000 WASHER X RBC225-255 €1.86
87
photo_cameraImage coming soon 0150049980 SCREW M4X8 X RBC225-255 €1.54
88
photo_cameraImage coming soon 0043605140 SCREW M5X14 X RBC225-255 €1.89
101
photo_cameraImage coming soon 6207003002 BAND ASS'Y X RBC225-255 €16.64
103
photo_cameraImage coming soon 6119019000 KIT KEY SERVICE X RBC225-255 €24.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brush Cutter RBC221 - Version 1

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Service and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for  Brush Cutter RBC221 - Version 1.

In the following table, look for the model of Brush Cutter and the respective parts of the code.
Makita RBC221 - Versione 1

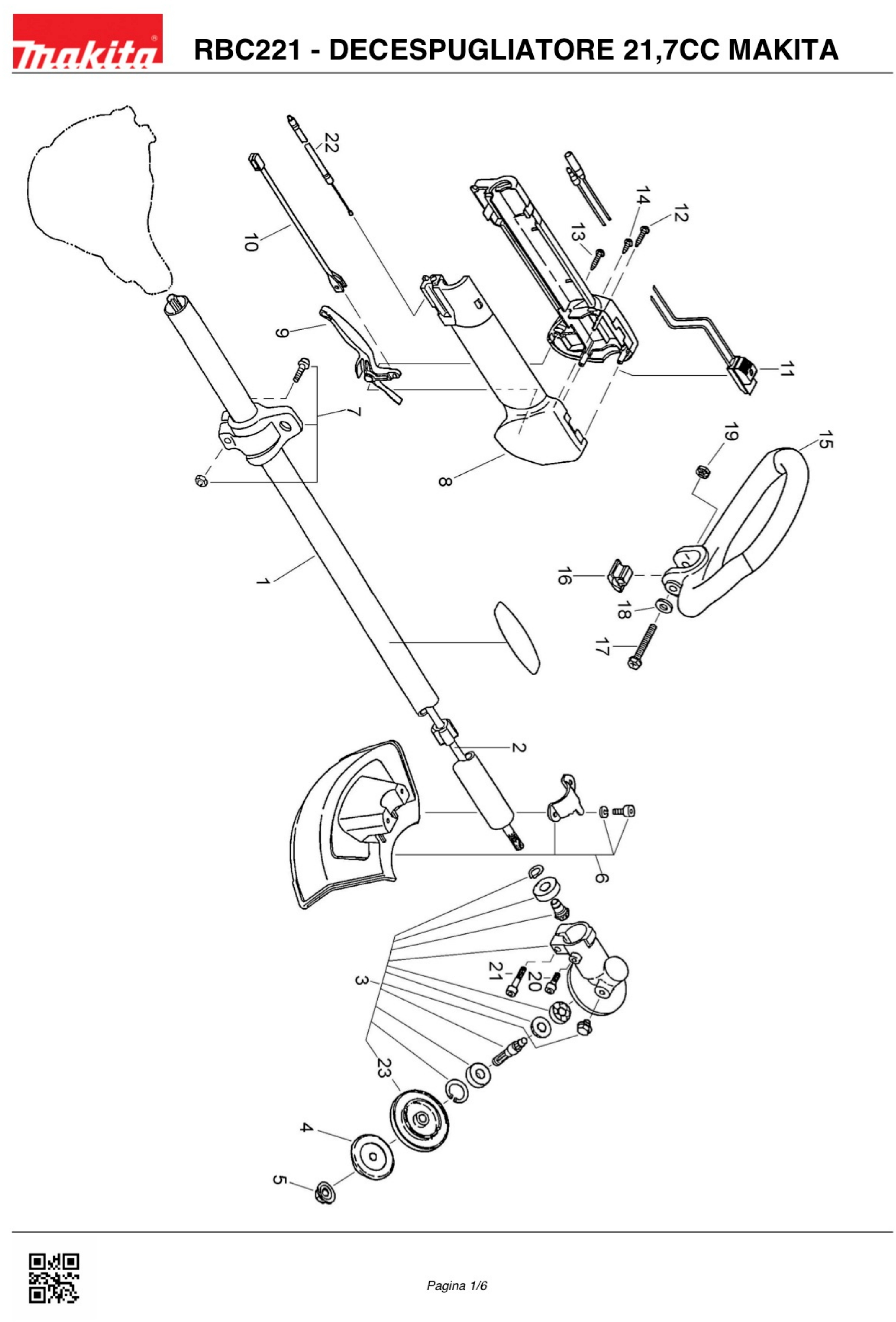

RBC221 VERSION 1 - BRUSH CUTTER 21,7CC MAKITA PAG.1
# Part Num. Description
1 6211025000 HOSE FOR PTR2500
2 6201502101 TRASMISSION SHAFT X RBK250 / RBC225-255
3 6253011002 HOUSING COMPLETE GEARS RBC221
4 6258504500 EXTERNAL FLANGE X RBC221 / 251
5 264018-7 NUT M8 RBC2510
6 6218008003 PROTECTION FOR BRUSHCUTTER
7 6254019000 BELT SUPPORT X RBC225-255
8 6165016001 COMPLETE HANDLEGRIP
9 6165500601 THROTTLE TRIGGER
10 6165500701 THROTTLE ROD
11 6165009001 SWITCH
12 0150049920 SELF-TAPPING SCREW
13 0150049920 SELF-TAPPING SCREW
18 0031106000 WASHER
19 0023706000 NUT
20 0119059900 BOLT M5X12 X RBC225-255
21 0119059890 BOLT AND WASHER M5X25 XRBC225
22 0630039900 CABLE THROTTLR XRBC251 / RST250
23 6258504401 INTERNAL FLANGE XRBC251-221

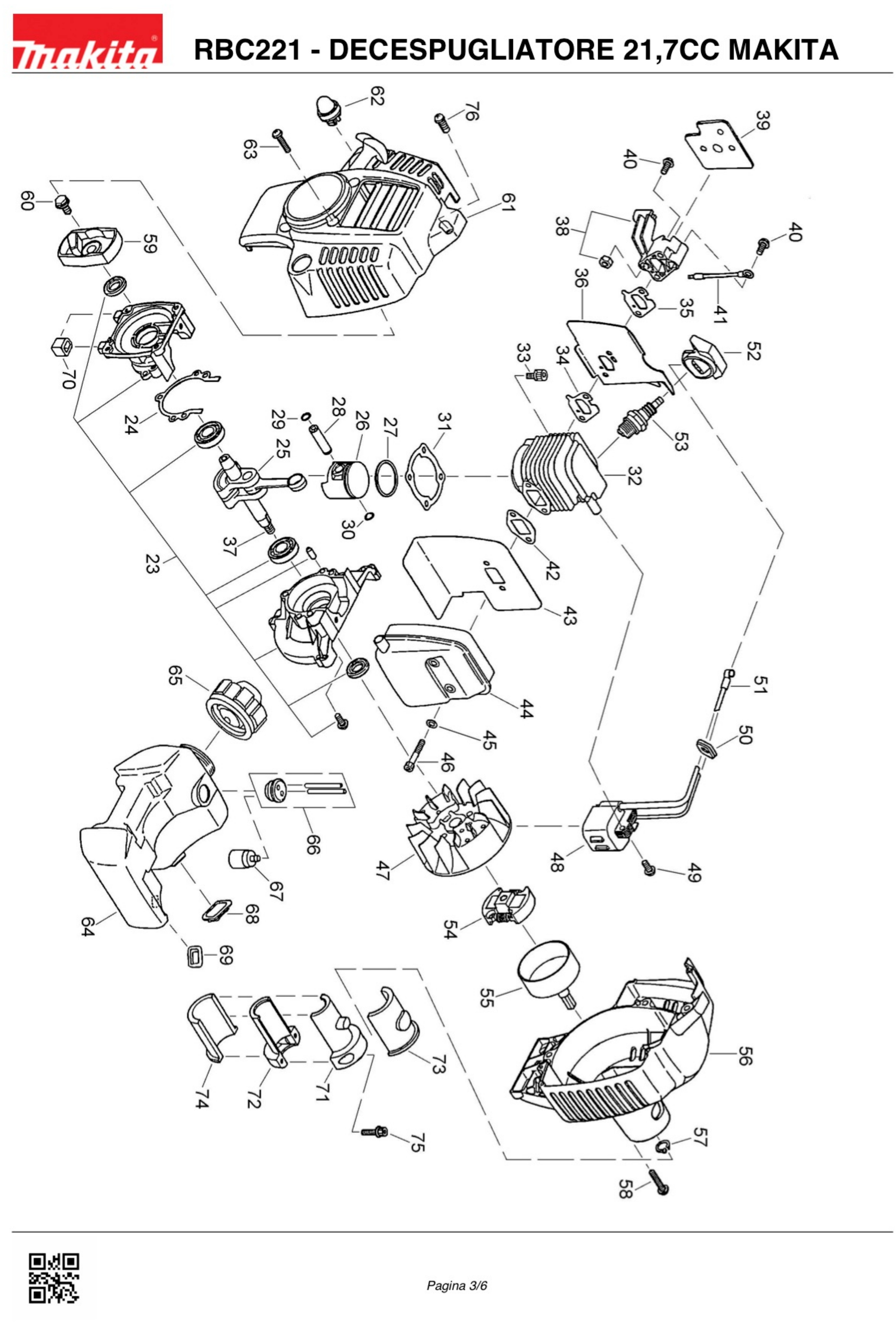

RBC221 - BRUSH CUTTER 21,7CC MAKITA PAG.2
23 5231011001 CPL ENGINE HOUSING XRBC255-22
24 424447-8 HOUSING GASKET RBC2510
26 5212500700 PISTON X RBC221-225
27 5982500000 PISTON RING X RBC221-225
28 5212500801 PIN X RBC221-225
29 233976-8-4 CIRCLIP EBH252L P (4pcs)
30 233976-8-4 CIRCLIP EBH252L (4pcs)
31 442171-1 CYLINDER GASKET RBC2510
32 5211501201 CYLINDER X RBC221 / 226/225
33 0119059730 BOLT X RBC 260/230/225/255
34 424448-6 INSULATING GASKET RBC2510
35 424448-6 INSULATING GASKET RBC2510
36 5233505201 INSULATOR X RBC225-RBC255
38 5233038001 CARBURETTOR SPACER XRBC22
39 5233504102 SPACER GASKET
40 0140059500 SCREW M5X25 X RBC225-255
41 6165501200 GROUND CABLE X RBC225-255-226-2
42 5233504302 MUFFLER GASKET X RBC225-2
43 5233505301 MUFFLER INSULATOR X RBC225-25
45 0031005000 WASHER X RBC230 / 410 / RBK410
48 5237031022 COIL
49 0140049920 SCREW M4X20 X RBC225-255
51 324891-8 SPARK PLUG SPRING EBH341
52 5237503301 SPARK PLUG COVER XRBC225-255
53 054002-10 SPARK PLUG NGK - BM7A (10PZ)
54 168672-8 CLUTCH RBC2510
55 168675-2 CLUTCH DRUM RBC2510
56 5235029004 ENGINE CASE TRANSMISSION SIDE RBC
57 0031512000 EXTERNAL RING X RBC260 / 520RBK410
59 5235025001 REEL STARTER X RBC225-255
60 5235504700 BOLT X RBC225 / 255
61 5235027001 COMPLETE STARTER SIDE RBC225
62 168398-2 PRIMER X DCS230T
63 0043605180 COMPLETE SCREW X RBC230 / RBC520
64 455630-6 TANK
65 452920-8 TANK CAP
66 5236048002 PETROL TUBE X RBC225-255
67 163447-0 FUEL FILTER X DCS230T
68 424103-0 EBH341U SHOCK ABSORBER
69 424102-2 EBH341U SHOCK ABSORBER
70 5216500200 RUBBER X RBC230-225-255
71 6251509501 UPPER HALF CASE X MS254U-MS254C
72 6251506901 LOWER HALF CASE
73 6251506604 UPPER SPACER X RBC225
74 6251506703 LOWER SPACER X RBC225-255
75 0119059950 BOLT M5X18 XRBC230 / 310/225

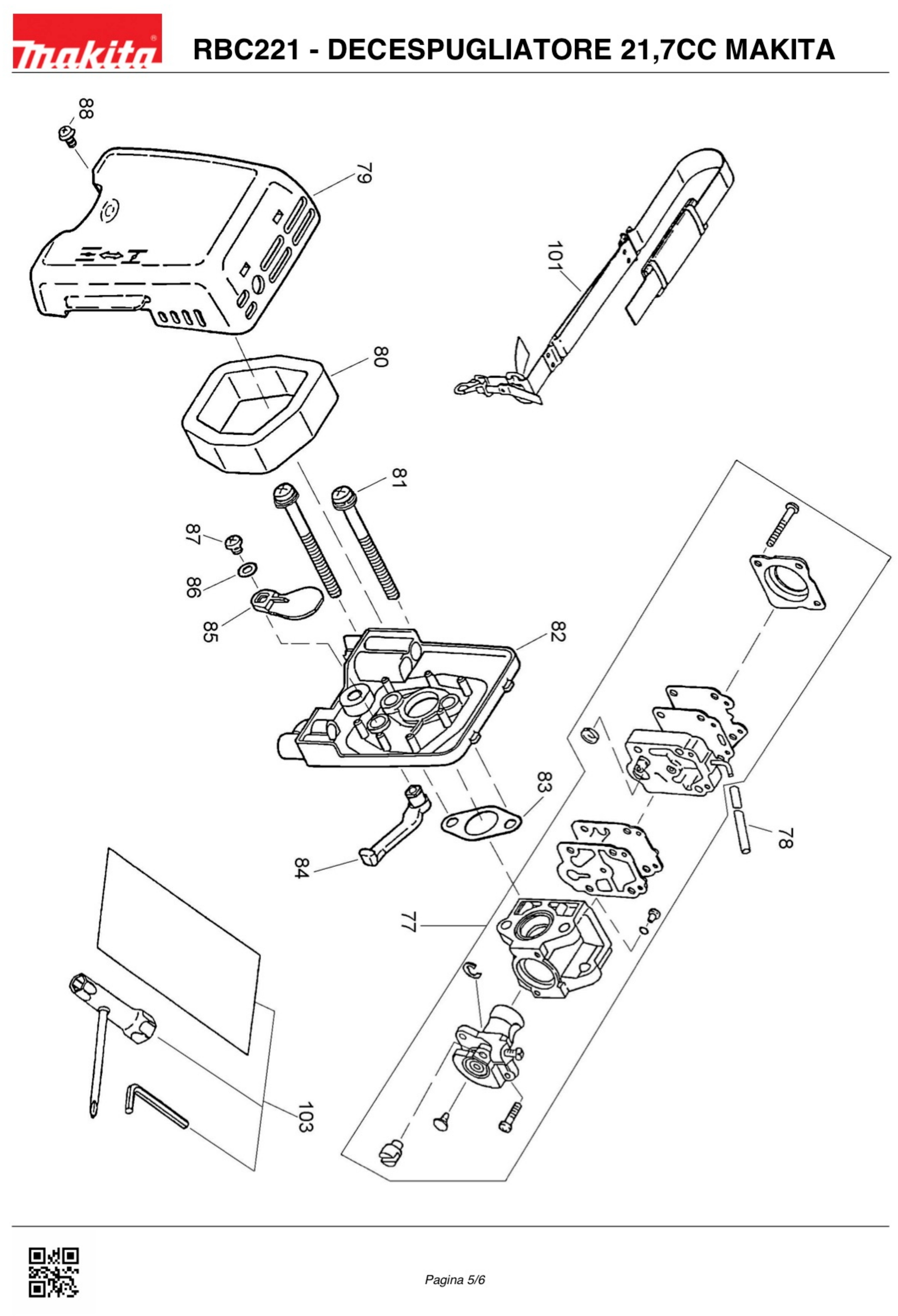

RBC221 - BRUSH CUTTER 21,7CC MAKITA PAG.3
77 168669-7 CARBURETOR RBC2510
78 5236504601 PETROL TUBE
79 452917-7 AIR FILTER COVER RBC2510
80 443167-5 AIR FILTER RBC2510
81 0043605650 SCREW M5X65
82 5233047001 FILTER PLATE CPL X RBK250-RB
83 5233504200 CARBURETOR GASKET XRBC22
84 5233504801 AIR LEVERAGE X RBC225-255
85 5233505002 AIR LEVER X RBC225-255
86 0031104000 WASHER X RBC225-255
87 0150049980 SCREW M4X8 X RBC225-255
88 0043605140 SCREW M5X14 X RBC225-255
101 6207003002 BELT SUPPORT X RBC225-255 A22
103 6119019000 KIT KEYS SERVICE X RBC225-255
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC221 - Versione 1
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita RBC221 - Ver. 1

Diagram Makita RBC221 - Ver. 1

Download (823.48KB)

You might also like

Makita SKU: 168398-2
Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...
AVAILABLE €6.24
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Makita SKU: 233976-8
Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...
AVAILABLE €6.01
Makita SKU: 168672-8
Clutch Ass'y for Brushcutter Makita RBC2510 Genuine part Makita, Clutch Assembly for Brushcutters RBC2510 - RBC2511 - RBC221 - RBC2501 - RBC251 - Dolmar MS221 - MS253...
Last items in stock €16.28
Makita SKU: 424105-6
Spark Plug Cap for Brushcutter Makita EBH341U Genuine replacement part Makita, Spark Plug Cap for Brushcutters EBH252L - EBH252U - EBH341L - EBH341R - EM4340 - EM4340L - EBH341U. Part for the following products: - EBH252L -...
AVAILABLE €1.62
Makita SKU: 443167-5
Air Cleaner Element for Brushcutter Makita RBC2510 Genuine part Makita, Air Cleaner Sponge Element for Brushcutters RBC2510 - RBC225-255 - MS2501 - MS2810. Part for the following products: - MS254C...
AVAILABLE €3.03
Makita SKU: 6201502101
Trasmission Shaft for Brushcutter Makita RBC221 Genuine replacement part Makita, Trasmission Shaft for Brushcutter Makita RBC221 - RBC256. Part for the following products: -  RBC256 - BRUSHCUTTER 24,5CC MAKITA -  RBC221 - BRUSHCUTTER...
Last items in stock €68.72
Comments (0)
