Makita

Makita Spare Parts for Bruschcutter RBC421

SKU: Makita RBC421
€1.44
VAT included

Makita Spare Parts for Bruschcutter RBC421

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC421.
Makita Spare Parts for Bruschcutter RBC421
  • Makita Spare Parts for Bruschcutter RBC421
  • Makita Spare Parts for Bruschcutter RBC421
  • Makita Spare Parts for Bruschcutter RBC421
  • Makita Spare Parts for Bruschcutter RBC421
Makita

Makita Spare Parts for Bruschcutter RBC421

SKU: Makita RBC421 Condition: New
€1.44
VAT included

Makita Spare Parts for Bruschcutter RBC421

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC421.
settings 150 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
149 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

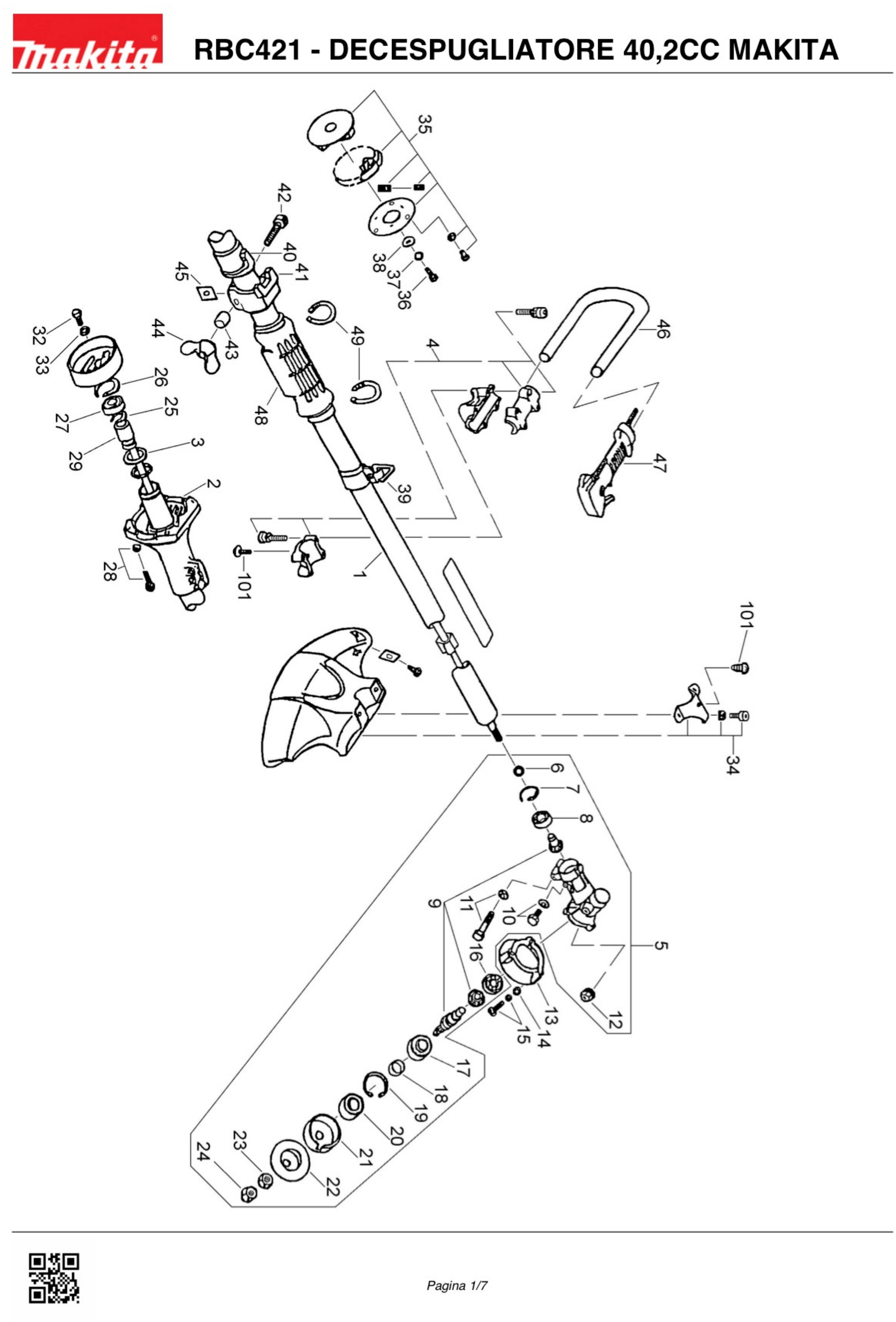

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6411502600 CLUTCH HOUSING X RBC 410 €187.94
3
 photo_cameraImage coming soon 6301501600 WASHER X RBC520 €3.23
4
 photo_cameraImage coming soon 6414005001 HANDLEGRIP SUPPORT RBC351 €61.61
5
 photo_cameraImage coming soon 6353001000 GEAR BOX X RBC 410 BOX €200.41
6
 Outer Snap Ring for Brushcutter Makita RBC221 0031512000 Outer Snap Ring for Brushcutter Makita RBC221 €2.00
7
 photo_cameraImage coming soon 0031428000 INNER SNAPRING X RBC410/520 €2.77
8
 photo_cameraImage coming soon 0600129980 BALL BEARING 6001ZZ €21.54
9
 photo_cameraImage coming soon 6413003000 SPINDLE X RBC410 €92.13
10
 photo_cameraImage coming soon 0011306140 BOLT WITH WASHER X RBC410 €1.40
11
 photo_cameraImage coming soon 0011306320 BOLT WITH WASHER X RBC410 €2.08
12
 photo_cameraImage coming soon 266671-5 OIL CAP €3.23
13
 photo_cameraImage coming soon 412099-7 PROTECTION X DECESP. €3.95
14
 photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
15
 photo_cameraImage coming soon 0119059900 BOLT M5X12 X RBC225-255 €2.08
16
 photo_cameraImage coming soon 0600079990 BEARING 627 X RBC415 €16.17
17
 photo_cameraImage coming soon 0600129970 BEARING 6201 X RBC415 €20.93
18
 photo_cameraImage coming soon 6413500500 SPACER X RBC410 €5.94
19
 photo_cameraImage coming soon 0031432000 INTERNAL LOCK X RBC260 / 310/410 €2.77
20
 photo_cameraImage coming soon 6413500400 OIL GASKET X RBC410 €3.84
21
 photo_cameraImage coming soon 326053-4 UPPER FLANGE X RBC410 €14.34
22
 photo_cameraImage coming soon 346441-9 EXTERNAL FLANGE €22.16
23
 photo_cameraImage coming soon 264058-5 NUT X RBC 410 / RBC520 €4.62
24
 photo_cameraImage coming soon 6308503300 NUT X RBC 410 / RBC520 €6.81
25
 photo_cameraImage coming soon 0031517000 EXTERNAL LOCK X RBC 410 RBK410 €1.43
26
 photo_cameraImage coming soon 0031435000 INTERNAL LOCK X RBC410 / 520 / RBK410 €3.23
27
 photo_cameraImage coming soon 0600179850 BALL BEARING 6003DD X RBC / K 410 €18.98
28
 photo_cameraImage coming soon 0119069910 COMPLETE BOLT X RBC 410 €2.03
29
 photo_cameraImage coming soon 424403-8 RUBBER X RBC 410 €5.14
32
 photo_cameraImage coming soon 6202500400 BOLT X RBC 410 / RBK410 €8.37
33
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.54
34
 photo_cameraImage coming soon 6218008003 PROTECTOR ASS'Y €51.16
35
 Clutch Ass'y for Brushcutter Dolmar MS4210 140897-6 Clutch Ass'y for Brushcutter Dolmar MS4210 €110.29
37
 photo_cameraImage coming soon 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R €1.54
39
 photo_cameraImage coming soon 6407006000 COMPLETE BELT X RBC350-420 €31.80
40
 photo_cameraImage coming soon 6411502101 CLAMP X RBC350-420 €23.25
41
 photo_cameraImage coming soon 318732-8 CLAMP X RBC525 €20.57
42
 photo_cameraImage coming soon 0016706500 BOLT X RBC350-420 €2.00
43
 photo_cameraImage coming soon 0230069970 SPACER X RBC350-420 €4.23
44
 photo_cameraImage coming soon 6411501300 KNOB X RBC350-RBC420 €8.11
45
 photo_cameraImage coming soon 0037108000 GASKET X RBC520 €1.43
46
 photo_cameraImage coming soon 6414505000 RBC351 SIDE HANDLE €29.42
47
 photo_cameraImage coming soon 6415034000 THROTTLE LEVER RBC351 €44.82
48
 photo_cameraImage coming soon 6414504000 KNOB X RBC351 €40.44
49
 photo_cameraImage coming soon 6414507000 SPRING X RBC351 €4.43
101
 photo_cameraImage coming soon 0150059940 SCREW X RBK250-RBC225-RBC255 €1.41
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

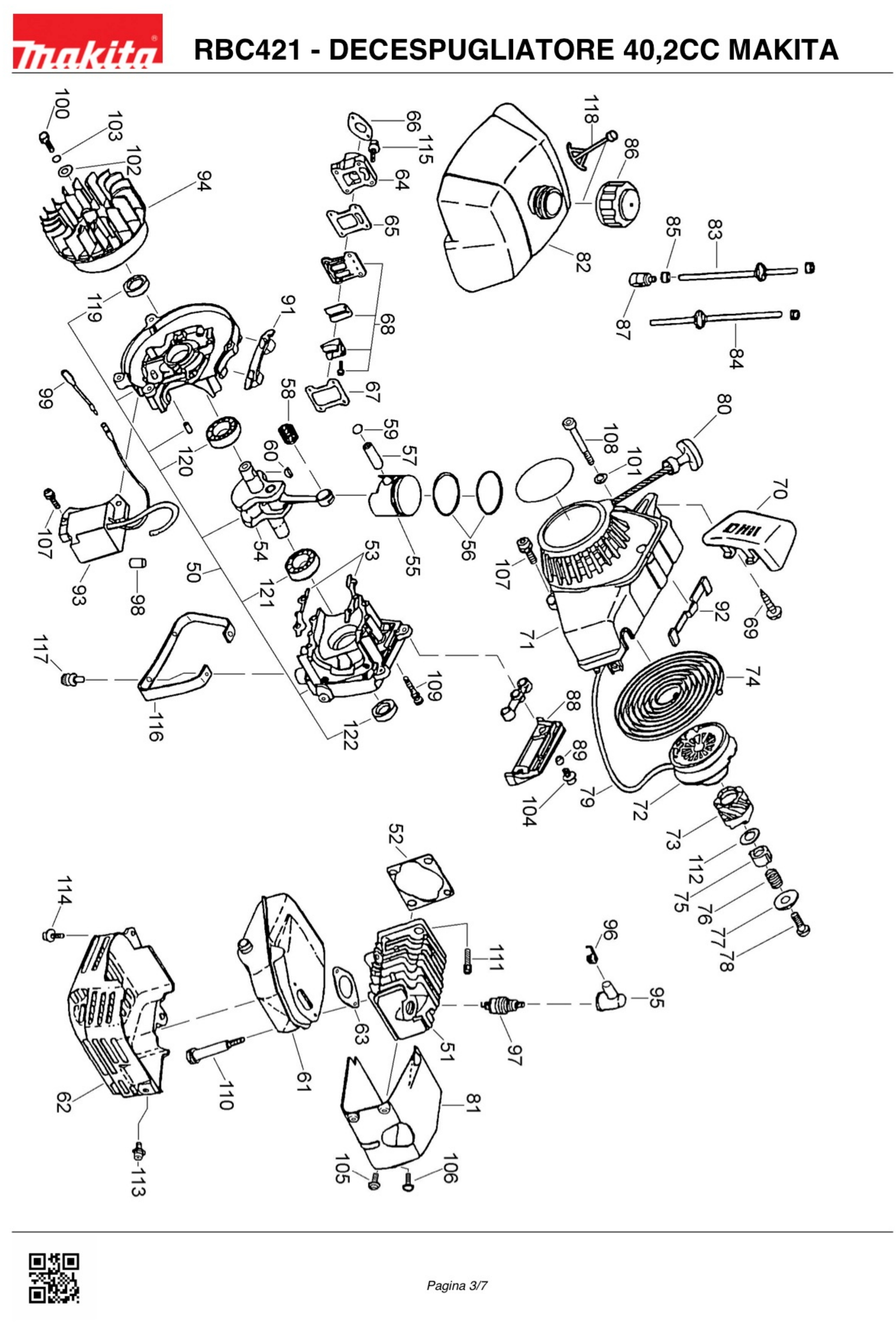

Esploso pagina 2
Pos. Item Price Buy
50
 photo_cameraImage coming soon 5411005000 ENGINE HOUSING ASSY RBC / RBK €281.77
51
 Cylinder for Brushcutter Makita RBC410 318630-6 Cylinder for Brushcutter Makita RBC410 €66.15
52
 Cylinder Gasket for Brushcutter Makita RBC410 442156-7 Cylinder Gasket for Brushcutter Makita RBC410 €3.48
53
 photo_cameraImage coming soon 5411501200 CRANK CASE GASKET X RBC410 / RBK 410 €3.23
54
 photo_cameraImage coming soon 5412001000 CRANK SHAFT ASSY X RBC / RBK 410 €225.46
55
 Piston for Brushcutter Makita RBC410 318631-4 Piston for Brushcutter Makita RBC410 €28.32 Not available for order
56
 Piston Ring for Brushcutter Makita RBC410 257309-3 Piston Ring for Brushcutter Makita RBC410 €5.15
57
 Piston Pin for Brushcutter Makita RBC410 257797-4 Piston Pin for Brushcutter Makita RBC410 €3.65
58
 photo_cameraImage coming soon 212085-6 ROLLER CAGE 1014 €6.81
59
 Piston Pin Circlip for Brushcutter Makita RBC410 233983-1 Piston Pin Circlip for Brushcutter Makita RBC410 €1.55
60
 photo_cameraImage coming soon 0323039990 KEY X RBC350-RBC420 €3.68
61
 photo_cameraImage coming soon 5323006000 MUFFLER X RBC350-RBC420 €63.40
62
 photo_cameraImage coming soon 5413500100 MUFFLER COVER X RBC350-420 €23.65
63
 photo_cameraImage coming soon 5323500200 MUFFLER GASKET X RBC RBK / 410 €5.28
64
 photo_cameraImage coming soon 453971-4 INSULATOR X RBC350-RBC420 €4.31
65
 photo_cameraImage coming soon 5403500600 INSULATOR GASKET X RBC350 €2.03
66
 photo_cameraImage coming soon 5416504000 CARBURETOR GASKET RBC350P02 €2.03
67
 photo_cameraImage coming soon 442160-6 BRACKET GASKET €2.14
68
 photo_cameraImage coming soon 5413006000 CPL VALVE X RBC350-RBC420 €16.72
69
 photo_cameraImage coming soon 6218501500 SCREW X RBC350-RBC420 €1.43
70
 photo_cameraImage coming soon 5415504500 STARTER HOUSING RBC350-420 €14.76
71
 photo_cameraImage coming soon 5415032000 STARTER ASSY X RBC / RBK 410 €146.15
72
 photo_cameraImage coming soon 452766-2 RBC RBK RBK 410 €5.28
73
 photo_cameraImage coming soon 452767-0 STARTER BRACKET RBC / RBK 410 €3.23
74
 photo_cameraImage coming soon 233993-8 SPIRAL SPRING X RBC 410 / RBK410 €7.79
75
 photo_cameraImage coming soon 452768-8 STARTER GUIDE X RBC 410 / RBK41 €2.14
76
 photo_cameraImage coming soon 5415001050 RETURN SPRING X RBC / RBK 410 €1.43
77
 photo_cameraImage coming soon 5415001060 WASHER X RBC / RBK 410 €1.43
78
 photo_cameraImage coming soon 5245001010 SCREW X RBC RBK 410 €2.76
79
 photo_cameraImage coming soon 5415001140 STARTER CABLE X RBC 260/410 / RBK 410 €8.74
80
 photo_cameraImage coming soon 5305002110 STARTER KNOB X RBC260 / RBK41 €7.79
81
 photo_cameraImage coming soon 5415504600 CYLINDER CASE X RBC 410 / RBK €25.05
82
 Gasoline Tank for Brushcutter Makita RBC421 454558-5 Gasoline Tank for Brushcutter Makita RBC421 €15.97
83
 photo_cameraImage coming soon 168765-1 TUBE X RBC350-RBC420 €4.99
84
 Fuel Hose for Brushcutter Makita RBC421 168766-9 Fuel Hose for Brushcutter Makita RBC421 €5.95
85
 photo_cameraImage coming soon 0561059990 HOSE CLAMP XRBC230-310 / 520 €1.89
86
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
87
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
88
 photo_cameraImage coming soon 5416057000 SHANK PROTECTION €3.95
89
 photo_cameraImage coming soon 0230059990 COMPASS X RBC260 / 410 / RBK 410 €1.43
91
 photo_cameraImage coming soon 5416503500 RUBBER X RBC350-RBC420 €7.79
92
 photo_cameraImage coming soon 5416503600 RUBBER X RBC350-RBC420 €7.79
93
 Electronic Coil for Brushcutter Makita RBC421 168587-9 Electronic Coil for Brushcutter Makita RBC421 €24.50
94
 photo_cameraImage coming soon 5417001010 POLAR WHEEL X RBC / RBK 410 €179.92
95
 photo_cameraImage coming soon 0655009940 PLUG CAP X RBC410 / RBK410RBC520 €3.23
96
 photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
97
 photo_cameraImage coming soon 965603021 NGK SPARK PLUG BPMR7A €5.56
98
 photo_cameraImage coming soon 5417500300 TUBE X RBC350-RBC420 €3.23
99
 photo_cameraImage coming soon 5607005000 COMPLETE CABLE X RBC350-RBC420-HT225 €6.11
100
 photo_cameraImage coming soon 0016706160 BOLT M6X16 X RBC / RBK 410 €1.43
102
 photo_cameraImage coming soon 0200069920 WASHER M6 X RBC310 / 410 / RBK410 €2.77
104
 photo_cameraImage coming soon 0140059630 SCREW M5X14 X RBC350-RBC420 €1.37
105
 photo_cameraImage coming soon 0140059610 SCREW M5X14 X RBC350-RBC420 €1.43
106
 photo_cameraImage coming soon 0140059560 SCREW M5X14 X RBC350-RBC420 €2.14
107
 photo_cameraImage coming soon 0119059790 BOLT X RBC / RBK 410 M5X22 €2.14
108
 photo_cameraImage coming soon 0119059660 BOLT X RBC350-RBC420 €2.76
109
 photo_cameraImage coming soon 0119059940 BOLT X RBC 410 / RBK 410 €2.14
110
 photo_cameraImage coming soon 0119069780 BOLT M6X60 X RBC350-RBC420 €6.11
111
 photo_cameraImage coming soon 0119069990 BOLT X RBC 410 / RBK 410 €181.44
112
 photo_cameraImage coming soon 5415001220 WASHER ELASTASTICAX RBC RBK 410 €2.14
113
 photo_cameraImage coming soon 0140069910 SCREW M6X16 X RBC350-RBC420 €2.14
114
 photo_cameraImage coming soon 0140059550 SCREW M5X14 X RBC350-RBC420 €2.14
115
 photo_cameraImage coming soon 0119059640 BOLT M5X25 X RBC415 €3.13
116
 photo_cameraImage coming soon 346443-5 SUPPORT X RBC350-RBC420 €20.93
117
 photo_cameraImage coming soon 0119069900 BOLT M6X14 RBC350-RBC420 €2.03
118
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
119
 photo_cameraImage coming soon 213546-9 OIL SEAL X PB500R-RBC525 €5.90
120
 photo_cameraImage coming soon 0600159880 BALL BEARING 6202C3 X PB500R €8.74
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

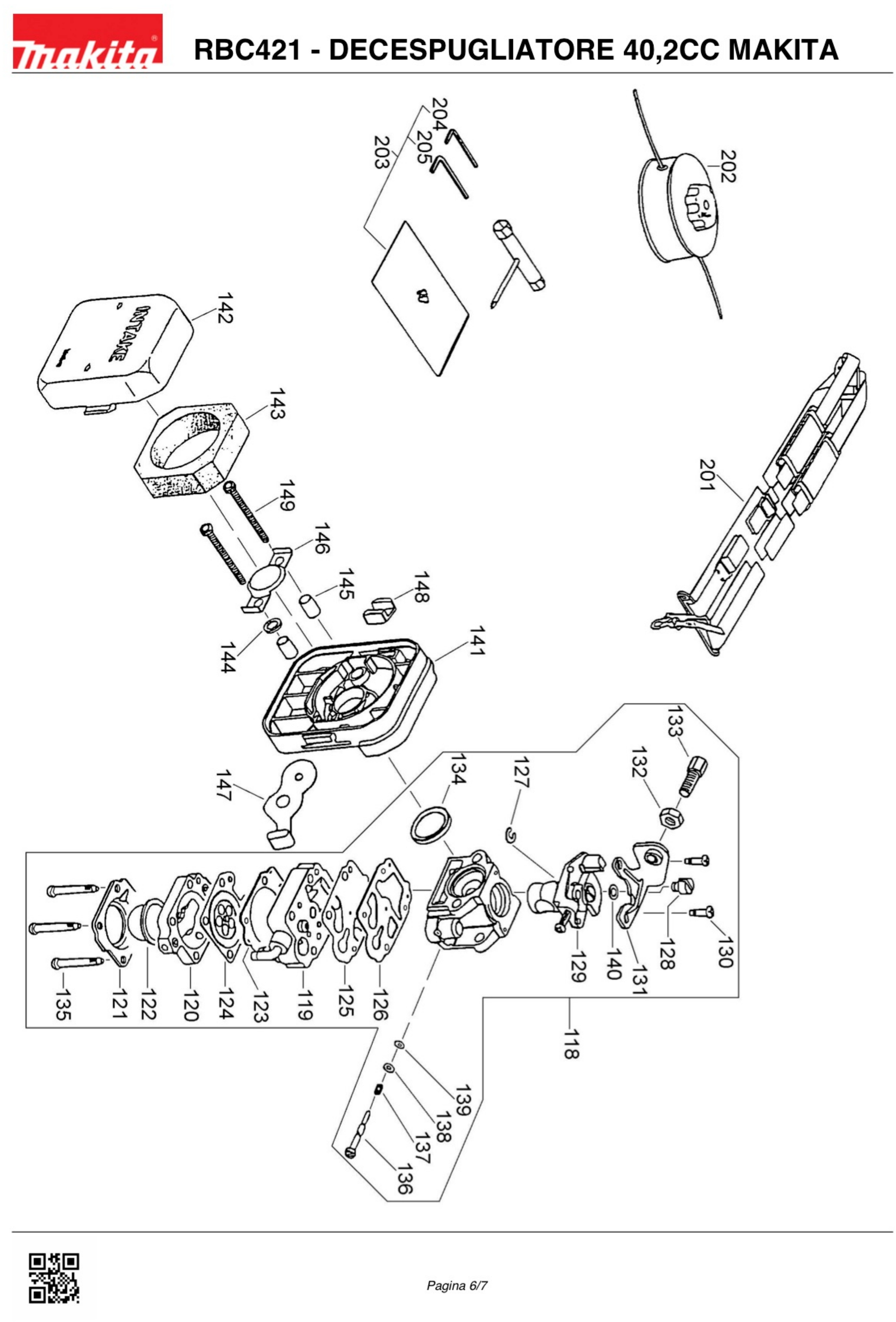

Esploso pagina 3
Pos. Item Price Buy
118
 photo_cameraImage coming soon 168764-3 CARBURETOR X RBC350-RBC420 €189.92
119
 photo_cameraImage coming soon 5236046130 BODY PUMP CPL FOR RBC350-RBC42 €61.62
120
 photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
121
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
122
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
123
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
124
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
125
 photo_cameraImage coming soon 5246001040 PUMP DIAPHRAGM RBC260 / 230/310/225 €13.12
126
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
127
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
128
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
129
 photo_cameraImage coming soon 5416041010 VALVE CPL RBC350 €89.49
131
 photo_cameraImage coming soon 5236052020 CABLE SUPPORT RBC350-RBC420 €25.16
132
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
133
 photo_cameraImage coming soon 5216008010 CABLE ADJUST SCREW X RBC260 310 €5.43
134
 photo_cameraImage coming soon 5236018020 GASKET FOR RBC 260/230 / 310 €5.43
135
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
136
 photo_cameraImage coming soon 5416041020 REGULATION SCREW RBC350-RBC €21.07
137
 photo_cameraImage coming soon 5806080110 SPRING X RBC350-RBC420 €7.36
138
 photo_cameraImage coming soon 5216006040 WASHER X RBC350-RBC420 €2.03
139
 photo_cameraImage coming soon 5216006050 GASKET X RBC350-RBC420 €5.77
140
 photo_cameraImage coming soon 5426005030 WASHER X-RBC350 RBC420 €7.06
141
 photo_cameraImage coming soon 453981-1 FILTER HOUSING €10.76
142
 photo_cameraImage coming soon 453982-9 FILTER COVER €7.58
143
 photo_cameraImage coming soon 443180-3 AIR FILTER €10.76
144
 photo_cameraImage coming soon 424523-8 WASHER X RBC415-RBC350 €3.84
145
 photo_cameraImage coming soon 332044-5 BUSHING €3.74
146
 photo_cameraImage coming soon 5233013040 PLATE X RBC350-RBC420 €5.74
147
 photo_cameraImage coming soon 346627-5 AIR LEVER €10.76
148
 photo_cameraImage coming soon 5313003110 BRACKET COVER X RBC350-420 €13.92
149
 photo_cameraImage coming soon 0119059810 BOLT M5X50 XRBC / RBK410 €2.12
201
 photo_cameraImage coming soon 6407003003 BELT X RBC350-RBC420 €62.99
202
 photo_cameraImage coming soon A-81658 HEAD TAP AND GO M10x1,25F €50.83
203
 photo_cameraImage coming soon 6419038000 HEX WRENCH X RBC350 €23.74
204
 photo_cameraImage coming soon 0717049990 WRENCHE €2.73
205
 photo_cameraImage coming soon 0717059990 WRENCHE €2.61

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for BruschCutter RBC421

We are MAKITA original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC421.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita RBC421

RBC421 - BRUSHCUTTER 40,2CC MAKITA -PAG. 1
Pos. Part Num. Description
1 6411028000 COMPLETE SHAFT ASSEMBLY X RBC351
2 6411502600 CLUTCH HOUSING X RBC 410
3 6301501600 WASHER X RBC520
4 6414005001 HANDLEGRIP SUPPORT RBC351
5 6353001000 GEAR BOX X RBC 410 BOX
6 0031512000 EXT. RING X RBC260 / 520RBK410
7 0031428000 INTERNAL RING X RBC410 / 520
8 0600129980 BALL BEARING 6001ZZ
9 6413003000 SPINDLE X RBC410
10 0011306140 BOLT WITH WASHER X RBC410
11 0011306320 BOLT WITH WASHER X RBC410
12 266671-5 OIL CAP
13 412099-7 PROTECTION X BRUSHCUTTER
14 0031005000 WASHER X RBC230 / 410 / RBK410
15 0119059900 BOLT M5X12 X RBC225-255
16 0600079990 BEARING 627 X RBC415
17 0600129970 BEARING 6201 X RBC415
18 6413500500 SPACER X RBC410
19 0031432000 INTERNAL LOCK X RBC260 / 310/410
20 6413500400 OIL GASKET X RBC410
21 326053-4 UPPER FLANGE X RBC410
22 346441-9 EXTERNAL FLANGE
23 264058-5 NUT X RBC 410 / RBC520
24 6308503300 NUT X RBC 410 / RBC520
25 0031517000 EXTERNAL LOCK X RBC 410 RBK410
26 0031435000 INTERNAL LOCK X RBC410 / 520 / RBK410
27 0600179850 BALL BEARING 6003DD X RBC / K 410
28 0119069910 COMPLETE BOLT X RBC 410
29 424403-8 RUBBER X RBC 410
32 6202500400 BOLT X RBC 410 / RBK410
33 267429-5 WASHER 6
34 6218008003 PROTECTION FOR BRUSHCUTTER
35 140897-6 CLUTCH (MS4211)
36 6202500400 BOLT X RBC 410 / RBK410
37 0032006000 ELASTIC WASHER X RBC / RBK410-G2400R
38 267429-5 WASHER 6
39 6407006000 COMPLETE BELT X RBC350-420
40 6411502101 CLAMP X RBC350-420
41 318732-8 CLAMP X RBC525
42 0016706500 BOLT X RBC350-420
43 0230069970 SPACER X RBC350-420
44 6411501300 KNOB X RBC350-RBC420
45 0037108000 GASKET X RBC520
46 6414505000 RBC351 SIDE HANDLE
47 6415034000 THROTTLE LEVER RBC351
48 6414504000 KNOB X RBC351
49 6414507000 SPRING X RBC351
101 0150059940 SCREW X RBK250-RBC225-RBC255
RBC421 - BRUSHCUTTER 40,2CC MAKITA - PAG.2
50 5411005000 ENGINE HOUSING ASSY RBC / RBK
51 318630-6 CYLINDER X RBC 410 / RBK 410
52 442156-7 CYLINDER GASKET X RBC420E
53 5411501200 CRANK CASE GASKET X RBC410 / RBK 410
54 5412001000 CRANK SHAFT ASSY X RBC / RBK 410
55 318631-4 PISTON X RBC410 / RBK410
56 257309-3 PISTON RING RBC410 / RBK4
57 257797-4 PISTON PIN
58 212085-6 NEEDLE BEARING 1014
59 233983-1 PISTON EBH341 PINK RING
60 0323039990 KEY X RBC350-RBC420
61 5323006000 MUFFLER X RBC350-RBC420
62 5413500100 MUFFLER COVER X RBC350-420
63 5323500200 MUFFLER GASKET X RBC RBK / 410
64 453971-4 INSULATOR X RBC350-RBC420
65 5403500600 INSULATOR GASKET X RBC350
66 5416504000 CARBURETOR GASKET RBC350P02
67 442160-6 LEAD VALVE GASKET
68 5413006000 CPL VALVE X RBC350-RBC420
69 6218501500 SCREW X RBC350-RBC420
70 5415504500 STARTER HOUSING RBC350-420
71 5415032000 STARTER ASSY X RBC / RBK 410
72 452766-2 RBC RBK RBK 410
73 452767-0 STARTER BRACKET RBC / RBK 410
74 233993-8 SPIRAL SPRING X RBC 410 / RBK410
75 452768-8 STARTER GUIDE X RBC 410 / RBK41
76 5415001050 RETURN SPRING X RBC / RBK 410
77 5415001060 WASHER X RBC / RBK 410
78 5245001010 SCREW X RBC RBK 410
79 5415001140 STARTER CABLE X RBC 260/410 / RBK 410
80 5305002110 STARTER KNOB X RBC260 / RBK41
81 5415504600 CYLINDER CASE X RBC 410 / RBK
82 454558-5 TANK
83 168765-1 TUBE X RBC350-RBC420
84 168766-9 TUBE COMPLETE
85 0561059990 CLAMP FAST FILTER XRBC230-310 / 520
86 452920-8 TANK CAP
87 163447-0 FUEL FILTER X DCS230T
88 5416057000 SHANK PROTECTION
89 0230059990 COMPASS X RBC260 / 410 / RBK 410
91 5416503500 RUBBER X RBC350-RBC420
92 5416503600 RUBBER X RBC350-RBC420
93 168587-9 COIL
94 5417001010 POLAR WHEEL X RBC / RBK 410
95 0655009940 SPARK PLUG CAP X RBC410 / RBK410RBC520
96 0654009931 PIN X RBC415-225-255
97 965603021 SPARK PLUG NGK BPMR7A
98 5417500300 TUBE X RBC350-RBC420
99 5607005000 COMPLETE CABLE X RBC350-RBC420-HT225
100 0016706160 BOLT M6X16 X RBC / RBK 410
101 0031005000 WASHER X RBC230 / 410 / RBK410
102 0200069920 WASHER M6 X RBC310 / 410 / RBK410
103 0032006000 X RBC / RBK410-G2400R ELASTIC WASHER
104 0140059630 SCREW M5X14 X RBC350-RBC420
105 0140059610 SCREW M5X14 X RBC350-RBC420
106 0140059560 SCREW M5X14 X RBC350-RBC420
107 0119059790 BOLT X RBC / RBK 410 M5X22
108 0119059660 BOLT X RBC350-RBC420
109 0119059940 BOLT X RBC 410 / RBK 410
110 0119069780 BOLT M6X60 X RBC350-RBC420
111 0119069990 BOLT X RBC 410 / RBK 410
112 5415001220 WASHER ELASTASTICAX RBC RBK 410
113 0140069910 SCREW M6X16 X RBC350-RBC420
114 0140059550 SCREW M5X14 X RBC350-RBC420
115 0119059640 BOLT M5X25 X RBC415
116 346443-5 SUPPORT X RBC350-RBC420
117 0119069900 BOLT M6X14 RBC350-RBC420
118 140436-2 ROD EBH341U
119 213546-9 OIL SEAL X PB500R-RBC525
120 0600159880 BALL BEARING 6202C3 X PB500R
121 0600159880 BALL BEARING 6202C3 X PB500R
122 213546-9 OIL SEAL X PB500R-RBC525
RBC421 - BRUSHCUTTER 40,2CC MAKITA - PAG.3
118 168764-3 CARBURETOR X RBC350-RBC420
119 5236046130 CPL PUMP BODY X RBC350-RBC42
120 5236046060 AIR FILTER BODY CPL. RBC350
121 5236046050 PUMP COVER X RBC350-RBC42
122 424314-7 PRIMING PUMP EBH341
123 168574-8 DIAPHRAGM CPL EBH341U
124 442154-1 DIAPHRAGM GASKET EBH341U
125 5246001040 PUMP DIAPHRAGM RBC260 / 230/310/225
126 5246001030 PUMP GASKET RBC260-230-310
127 5316005120 RING X RBC 260/230/310/225/2
128 5236018040 THROTTLE CABLE XRBC230-260-310-225
129 5416041010 VALVE CPL RBC350
131 5236052020 CABLE SUPPORT RBC350-RBC420
132 5316005450 NUT ADJUSTER RBC260 / 310
133 5216008010 SCREW REG CAVO ACC.XRBC260 310
134 5236018020 GASKET X RBC 260/230/310
135 266582-4 SCREW 3X24 EBH341U
136 5416041020 REGULATION SCREW RBC350-RBC
137 5806080110 SPRING X RBC350-RBC420
138 5216006040 WASHER X RBC350-RBC420
139 5216006050 GASKET X RBC350-RBC420
140 5426005030 WASHER X RBC350-RBC420
141 453981-1 FILTER HOUSING
142 453982-9 FILTER COVER
143 443180-3 AIR FILTER
144 424523-8 WASHER X RBC415-RBC350
145 332044-5 BUSHING
146 5233013040 PLATE X RBC350-RBC420
147 346627-5 AIR LEVER
148 5313003110 BRACKET COVER X RBC350-420
149 0119059810 BOLT M5X50 XRBC / RBK410
201 6407003003 BELT X RBC350-RBC420
202 A-81658 HEAD TAP AND GO M10x1,25F
203 6419038000 HEX WRENCH X RBC350
204 0717049990 HEX WRENCH X RBC350-RBC420
205 0717059990 HEX WRENCH RBC350-RBC420
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC421
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita RBC421

Diagram Makita RBC421

Download (879.23KB)

You might also like

Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Makita SKU: DA00000118
Carburator Hose Grommet for Brushcutter Dolmar MS-27C
Carburator Hose Grommet for Brushcutter Dolmar MS-27C Genuine parts Dolmar, Carburator Hose Grommet for Brushcutter MS-27C - Makita EM2600L Part for the following products: -  MS-27C - BRUSHCUTTER 25,7CC DOLMAR -  EM2600L -...
AVAILABLE €2.37
Details
3 Teeth Blade for Brushcutter Makita RBC310
Makita SKU: P-47385
3 Teeth Blade for Brushcutter Makita RBC310
3 Teeth Blade for Brushcutter Makita RBC310 Genuine spare part Makita, 3 Teeth Blade (255X1.4X25.4)MM for Brushcutters RBC2501 - RBC2511 - RBC3200 - RBC3210 - Dolmar MS254C - MS254U - MS3201C - MS3201U Part for the following products:...
AVAILABLE €14.78
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Fuel Hose for Brushcutter Makita RBC421
Makita SKU: 168766-9
Fuel Hose for Brushcutter Makita RBC421
Fuel Hose for Brushcutter Makita RBC421 Genuine replacement part Makita, Fuel Hose for Brushcutters RBC421 - RBC421L - MS3500 - MS3510 - MS4200 - MS4200E. Part for the following products: - MS3500 - BRUSHCUTTER 34,4CC DOLMAR - MS3510...
AVAILABLE €5.95
Details
Electronic Coil for Brushcutter Makita RBC421
Makita SKU: 168587-9
Electronic Coil for Brushcutter Makita RBC421
Electronic Coil for Brushcutter Makita RBC421 Genuine replacement part Makita, Electronic Coil for Brushcutters RBC350 - RBC351 - RBC410 - RBC420 - RBC421 - RBC421L - MS3500...
Last items in stock €24.50
Details
Piston for Brushcutter Makita RBC410 Sale
Makita SKU: 318631-4
Piston for Brushcutter Makita RBC410
Piston for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC - RBC420 -...
Available in 7/10 days €28.32
Details
Cylinder for Brushcutter Makita RBC410
Makita SKU: 318630-6
Cylinder for Brushcutter Makita RBC410
Cylinder for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - DECESPUGLIATORE 40,2CC -...
Last items in stock €66.15
Details
Piston Ring for Brushcutter Makita RBC410 Sale
Makita SKU: 257309-3
Piston Ring for Brushcutter Makita RBC410
Piston Ring for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Ring for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
Last items in stock €5.15
Details
Piston Pin for Brushcutter Makita RBC410 Sale
Makita SKU: 257797-4
Piston Pin for Brushcutter Makita RBC410
Piston Pin for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 - BRUSHCUTTER 40,2CC -...
AVAILABLE €3.65
Details
Piston Pin Circlip for Brushcutter Makita RBC410
Makita SKU: 233983-1
Piston Pin Circlip for Brushcutter Makita RBC410
Piston Pin Circlip for Brushcutter Makita RBC410 Genuine replacement part Makita, Piston Pin Circlip for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
AVAILABLE €1.55
Details
Cylinder Gasket for Brushcutter Makita RBC410
Makita SKU: 442156-7
Cylinder Gasket for Brushcutter Makita RBC410
Cylinder Gasket for Brushcutter Makita RBC410 Genuine replacement part Makita, Cylinder Gasket for Brushcutters RBC410 - RBK410 - RBC420 - RBC421 - RBC421L - MS4200 - MS4200E. Part for the following products: - RBC410 -...
Last items in stock €3.48
Details
Gasoline Tank for Brushcutter Makita RBC421
Makita SKU: 454558-5
Gasoline Tank for Brushcutter Makita RBC421
Gasoline Tank for Brushcutter Makita RBC421 Genuine part Makita, Gasoline Tank for Brushcutters RBC421 - RBC201 - RBC420E - RBC420 - RBC351 - RBC350. Part for the following products:...
Last items in stock €15.97
Details
Clutch Ass'y for Brushcutter Dolmar MS4210
Makita SKU: 140897-6
Clutch Ass'y for Brushcutter Dolmar MS4210
Clutch Ass'y for Brushcutter Dolmar MS4210 Genuine replacement part Dolmar, Clutch Ass'y for Brushcutters MS3500 - MS3510 - MS4200 - MS4210 - MS4211 - MS5250E. Part for the following products: -  MS4200 - BRUSHCUTTER 40,2CC DOLMAR -...
Last items in stock €110.29
Details
Comments (0)
