Makita Spare Parts for Lawn Mower EM37
€2.21
VAT included
Makita Spare Parts for Lawn Mower EM37
MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for ELECTRIC Lawn Mower EM37.
Makita Spare Parts for Lawn Mower EM37
€2.21
VAT included
Makita Spare Parts for Lawn Mower EM37
MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for ELECTRIC Lawn Mower EM37.
settings
59 spare parts
description

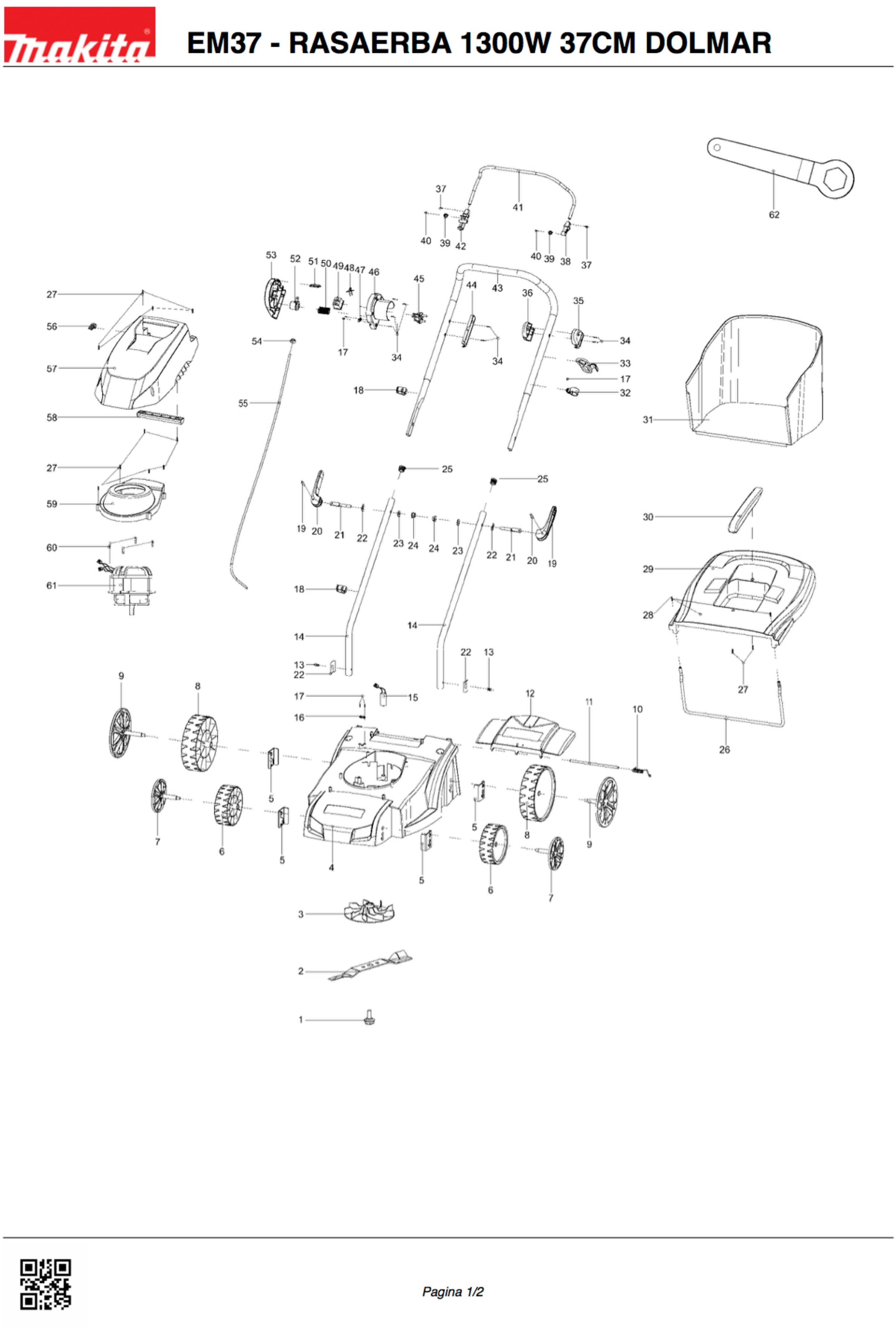

1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
59 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Makita Spare Parts for Lawn Mower EM37
MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for ELECTRIC Lawn Mower EM37.Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Lawn Mower and the respective parts of the code.
| Lawn Mower EM37 | ||
| 1 | 671001008 | SCREW M10 FOR ELM3310-3710 |
| 2 | 671014142 | BLADE 37 CM |
| 3 | 671492001 | FAN ELM3310-3710 |
| 4 | 671436002 | RED FRAME X EM37 |
| 5 | 671014150 | PLATE ELM3310-3710 |
| 6 | 671421001 | WHEEL WITH EL.125 ELM3310-3710 |
| 7 | 671001188 | FRONT HUB COVER ELM3310-3710 |
| 8 | 671419001 | REAR WHELL 175 ELM3310-3710 |
| 9 | 671001189 | REAR HUB COVER ELM3310-3710 |
| 10 | 671011121 | TORSION SPRING ELM3310-3710 |
| 11 | 671001027 | AXE ELM3710 |
| 12 | 671422001 | REAR COVER ELM3710 |
| 13 | 671001054 | SCREW 5X12 ELM3310-3710 |
| 14 | 671001421 | LOWER HANDLE ELM3310-3710 |
| 15 | 671001007 | CAPACITOR ELM3710 |
| 16 | 671001023 | ELM3310 CABLE CLAMP |
| 17 | 671001003 | SCREW 4X12 ELM3310-3710 |
| 18 | 671001051 | CABLE SUPPORT ELM3310-3710 |
| 19 | 671090040 | PLUG D.5,3X20 ELM3310-3710 |
| 20 | 671431001 | ELM3310-3710 ADJUSTMENT LEVER |
| 21 | 671001466 | SCREW M6X60 ELM3310-3710 |
| 22 | 671001420 | PLATE ELM3310-3710 |
| 23 | 671007007 | WASHER 8 ELM3310-3710 |
| 24 | 671005016 | NUT M6 PLM4110-4610-4611 |
| 25 | 671001198 | PLUG ELM3310-3710 |
| 26 | 671001417 | FRAME FOR BAG ELM3710 |
| 27 | DA00000873 | SCREW M4,2X15 ELM 3310-3710 |
| 28 | 671002007 | SCREW M4X12 ELM3310-3710 |
| 29 | 671424001 | OVER BAG ELM3710 |
| 30 | 671423001 | HANDLE BAG ELM3310-3710 |
| 31 | 671141402 | EM37 GRASS BAG |
| 32 | 671001083 | CLAMP ELM3310-3710 |
| 33 | 671001052 | SUPPORT FOR CABLE ELM 3310-3710 |
| 34 | 671001005 | SCREW M4X16 ELM3310-3710 |
| 35 | 671434002 | SUPPORT SX ELM3310-3710 |
| 36 | 671434001 | SUPPORT DX ELM3310-3710 |
| 37 | 671002025 | SCREW M4X8 ELM3310-3710 |
| 38 | 671279005 | CONNECTOR SX EM3310-3710 |
| 39 | 671011124 | SPRING EM3310-3710 |
| 40 | 671001036 | SCREW 3X10 ELM3310-3710 |
| 41 | 671014180 | ENGINE BRAKE LEVER ELM3710 |
| 42 | DA00001023 | DX CONNECTOR ELM3310-3710 |
| 43 | 671016150 | SUPERIOR HANDLE |
| 44 | 671428001 | PLATE ELM3310-3710 |
| 45 | 671001071 | PLUG ELM3310-3710 (COMPLETE) |
| 46 | 671001071 | PLUG ELM3310-3710 (COMPLETE) |
| 47 | 671491001 | ELM3710 CABLE CLAMP |
| 48 | 671009002 | LED ELM3310-3710 |
| 49 | 671010040 | ELM3310-3710 SWITCH |
| 50 | 671011079 | SPRING ELM3310-3710 |
| 51 | 671001043 | SCREEN ELM3310-3710 |
| 52 | 671425002 | SAFETY KEY ELM3310-710 |
| 53 | 671426001 | SWITCH BOX ELM3310-3710 |
| 54 | 671283001 | BUSH 1 ELM3310-3710 |
| 55 | 671001010 | CABLE 1250MM ELM3310-3710 |
| 56 | 671284001 | BUSH 2 ELM3310-3710 |
| 57 | 671433001 | ELM3710 ENGINE COVER |
| 58 | 671432001 | COVER ELM3710 |
| 59 | 671417001 | DEFLECTOR ELM3710 |
| 60 | 671001053 | SCREW 6X30 ELM3310-3710 |
| 61 | 671002014 | 1300W ELM3710 ENGINE |
| 62 | 671002009 | HEXAGONAL WRENCH ELM3310-3710 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EM37
