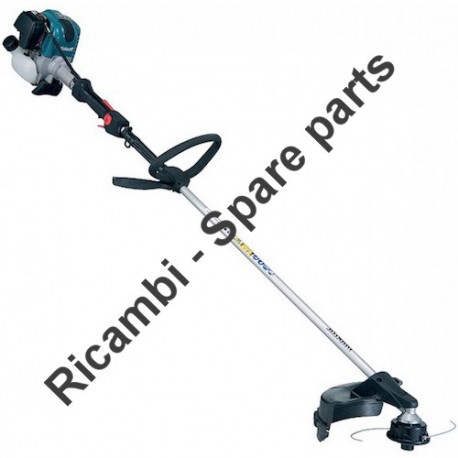

Makita Spare Parts for Brusch Cutter EBH252L
Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Brusch Cutter EBH252L.

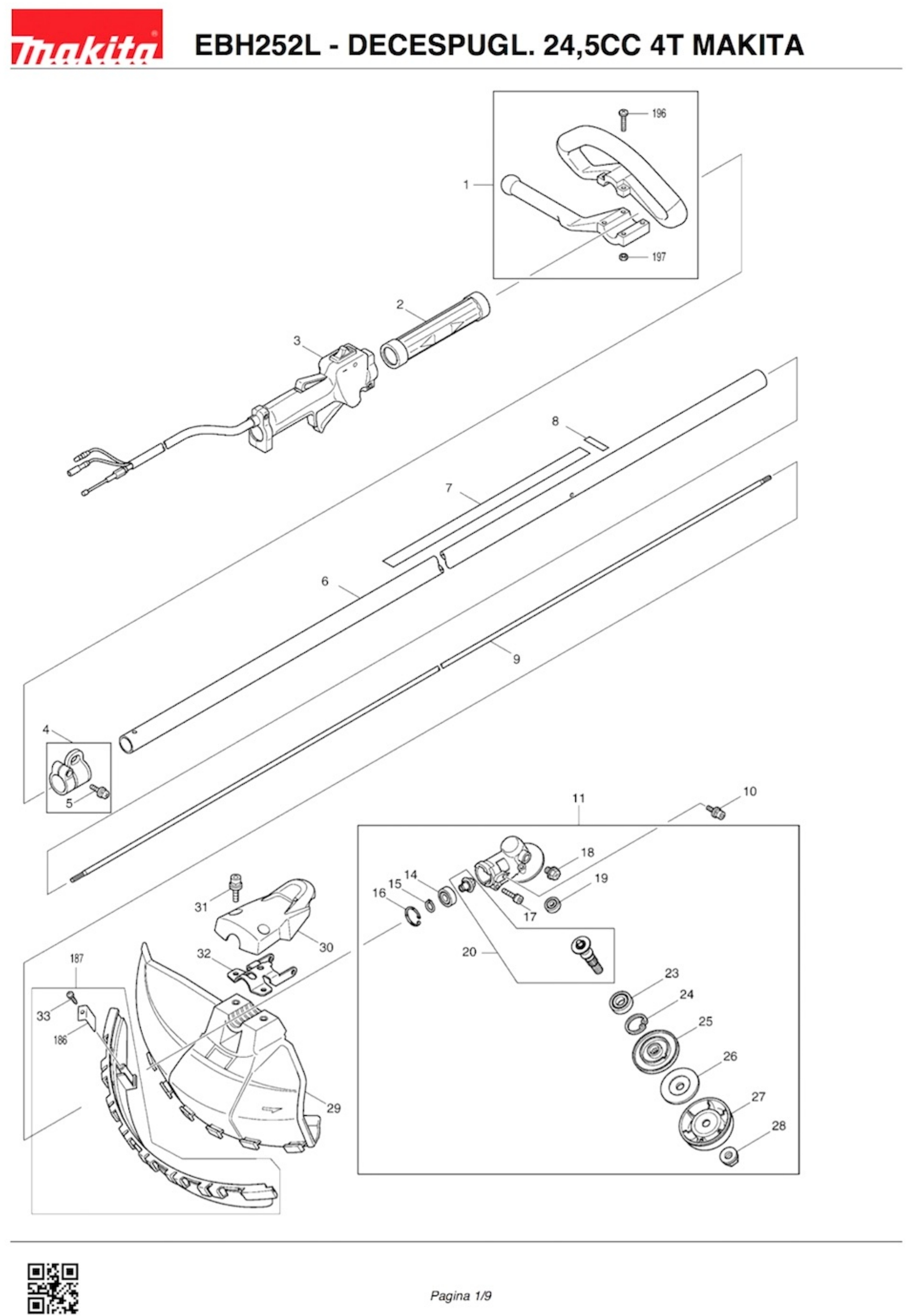

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
| Brusch Cutter EBH252L |
| # |
Part Num. |
Description |
| 1 |
195215-3 |
HANDLEBAR GRIP FOR BBC |
| 2 |
451601-1 |
SPACER EBH252L |
| 3 |
125759-9 |
CONTROL LEVER EBH252L |
| 4 |
195143-2 |
HOOK EBH252L |
| 5 |
911233-1 |
HEAD SCREW M5X20 3600H |
| 6 |
140041-5 |
AST EBH252L |
| 7 |
810535-1 |
SAFETY LABEL EBH252L |
| 8 |
806904-2 |
SERIAL NUMBER LABEL |
| 9 |
324893-4 |
TRANSMISSION SHAFT EBH252L |
| 10 |
922218-2 |
SCREW M5X14 EBH341U |
| 11 |
125556-3 |
GEAR HOUSING EBH252L |
| 14 |
210049-4 |
BEARING 609ZZ EBH252L |
| 15 |
961005-4 |
RETAINIG RING S9 |
| 16 |
962103-7 |
R-24 GN900SE RETAINIG RING |
| 17 |
922241-7 |
SCREW M5X25 |
| 18 |
265590-2 |
SCREW M8X10 EBH341U |
| 19 |
211019-6 |
BALL BEARING 626 EBH252L |
| 20 |
188866-9 |
CUTTER SHAFT SET EBH252L |
| 23 |
210115-7 |
BEARING 6001LLU EBH252L |
| 24 |
961108-4 |
RING CHECK S-28 |
| 25 |
331861-0 |
INTERNAL FLANGE EBH252L |
| 26 |
346355-2 |
EXTERNAL FLANGE |
| 27 |
168526-9 |
EBH341U CUP |
| 28 |
264025-0 |
NUT M10-17 EBH341U |
| 29 |
126216-0 |
PROTECTOR |
| 30 |
451097-6 |
HOLDER GUARD EBH252L |
| 31 |
922353-6 |
SCREW M6 X30 X HM1202C |
| 32 |
346073-2 |
PROTECTION FLANGE EBH252L |
| 33 |
266326-2 |
SCREW 4X18 X MT601 |
| 186 |
347050-7 |
BLADE |
| 187 |
135753-3 |
LOWER PROTECTION |
| 196 |
266583-2 |
SCREW M5X25 EBH252L |
| 197 |
264037-3 |
NUT M5 EBH252L |
| 3 |
125759-9 |
CONTROL LEVER EBH252L |
| 198 |
266584-0 |
SCREW M4X20 EBH252L |
| 199 |
638704-0 |
EBH252L SWITCH |
| 200 |
168579-8 |
CABLE CONTROL EBH252L |
| 201 |
451933-6 |
LEVER EBH252L |
| 202 |
233568-3 |
TORSION SPRING EBH252L |
| 203 |
451934-4 |
LEVER BLOCK EBH252L |
| 204 |
451936-0 |
HOOD EBH252L |
| 205 |
264038-1 |
NUT M5 EBH252L |
| 206 |
451935-2 |
CORRUGATE TUBE EBH252L |
| 207 |
922233-6 |
HEX SOCKET HD BOLT M5X20 X DCS230T |
| 34 |
922226-3 |
SCREW M 5 X 18 X 4341FCT |
| 35 |
922211-6 |
SCREW 5 X 12 X AN250HC |
| 36 |
424191-7 |
PIPE DAMPER 1 EBH252L |
| 37 |
318270-0 |
SPACER 1 EBH252L |
| 38 |
318271-8 |
SPACER 2 EBH252L |
| 39 |
424107-2 |
PIPE DAMPER 2 EBH252L |
| 40 |
922222-1 |
SCREW M5X16 |
| 41 |
318329-3 |
CLUTCH CASE EBH252L |
| 42 |
450569-8 |
SPACER EBH252L |
| 43 |
961052-5 |
RING CHECK S12 |
| 44 |
168475-0 |
CLUTCH DRUM FOR EBH252L |
| 45 |
210111-5 |
BEARING 6201LLU EBH252L |
| 46 |
962151-6 |
R32 RING |
| 47 |
195144-0 |
EBH341U SUPPORT |
| 48 |
911218-7 |
CYLINDER HEAD SCREW M5x14 |
| 49 |
911213-7 |
SCREW M5X12 X 5143R EBH252L |
| 50 |
450654-7 |
CYLINDER COVER EBH252L |
| 51 |
819312-8 |
LABEL MAKITA EBH341U |
| 52 |
450568-0 |
SPARK PLUG CAP EBH252L |
| 53 |
808633-3 |
LABEL 4T EH252L |
| 55 |
911128-8 |
SCREW M4X16 X HR4000C |
| 56 |
266440-4 |
SCREW M5X40 EBH341U |
| 57 |
265184-3 |
SCREW M5X55 EBH341U |
| 58 |
345915-7 |
EBH341U MUFFLER COVER |
| 59 |
168469-5 |
MUFFLER EBH341U |
| 60 |
345916-5 |
EBH341U MUFFLER GASKET |
| 61 |
140023-7 |
VALVE COVER EBH252L |
| 62 |
162275-0 |
COVER GASKET EBH252L |
| 63 |
922223-9 |
SCREW M5X16 EBH341U EX2650LH |
| 65 |
162274-2 |
CAM GEAR COVER GASKET EBH341 |
| 66 |
318443-5 |
EBH341U LATERAL COVER |
| 67 |
266495-9 |
SCREW M5X14 |
| 68 |
450565-6 |
EBH341U OIL CAP |
| 69 |
424100-6 |
GASKET OIL CAP EBH341U |
| 70 |
162276-8 |
GASKET OIL CUP EBH252L |
| 71 |
318442-7 |
OIL CUP EBH252L |
| 72 |
266495-9 |
SCREW M5X14 |
| 73 |
325666-8 |
FITTING EBH341U |
| 74 |
424202-8 |
OIL PIPE EBH341U |
| 75 |
282020-8 |
CLAMP EBH341U |
| 76 |
922111-0 |
SCREW EXAG. INC. 4X10 |
| 77 |
318440-1 |
EBH341U RETAINER PLATE |
| 78 |
346083-9 |
EBH341U PLATE |
| 79 |
135375-9 |
CYLINDER CPL EBH252L |
| 80 |
424201-0 |
EBH341U CONTROL VALVE |
| 81 |
266495-9 |
SCREW M5X14 |
| 82 |
424200-2 |
SPACER EBH341U |
| 83 |
125554-7 |
BALANCER EBH341U |
| 84 |
325668-4 |
SPRING BLOCK EBH252L VALVE |
| 85 |
234108-0 |
COMPRESSION SPRING 9 EBH252L |
| 86 |
256200-2 |
PIN 5 FOR 2704 |
| 87 |
326367-1 |
SUCTION VALVE EBH252L |
| 88 |
326366-3 |
EBH252L DISCHARGE VALVE |
| 89 |
125552-1 |
CAM GEAR EBH341U |
| 90 |
268238-5 |
PIN 5 EBH341U |
| 91 |
313169-4 |
CAM EBH341U CAM BALANCER |
| 92 |
268239-3 |
PIN 4 EBH341U |
| 93 |
256865-0 |
ROD 2,5 EBH252L |
| 94 |
195145-8 |
EBH252L PISTON RING |
| 95 |
233976-8-4 |
CIRCLIP |
| 96 |
318441-9 |
PISTON EBH252L |
| 97 |
257781-9 |
PISTON PIN EBH252L |
| 98 |
213089-1 |
SEAL 12 EBH252L |
| 99 |
267400-9 |
WASHER 23 |
| 100 |
135374-1 |
CRANK SHAFT EBH252L |
| 101 |
213769-9 |
OIL SEAL 10 |
| 102 |
424105-6 |
SPARK PLUG CAP EBH252L |
| 103 |
324891-8 |
SPARK PLUG SPRING EBH341 |
| 104 |
168816-0 |
IGNITION COIL EBH341U |
| 105 |
922138-0 |
SCREW M4X20 |
| 106 |
318343-9 |
FLYWHEEL EBH252L |
| 107 |
267812-6 |
WASHER 6 EBH252L |
| 108 |
161332-1 |
CLUTCH GEAR X MH-246.4DF |
| 109 |
267817-6 |
WASHER 8 EBH252L |
| 110 |
266457-7 |
SCREW M6X25 EBH252L |
| 111 |
265577-4 |
SCREW M6X16 EBH341U |
| 112 |
231858-8 |
CLUTCH SPRING EBH252L |
| 113 |
125472-9 |
CPL. TANK CAP |
| 114 |
140435-4 |
EBH341U TANK CAP |
| 115 |
140436-2 |
ROD EBH341U |
| 116 |
810455-9 |
EBH341U COLLAR PLATE |
| 117 |
424102-2 |
EBH341U DAMPER |
| 118 |
424103-0 |
EBH341U DAMPER |
| 119 |
424104-8 |
EBH341U DAMPER |
| 120 |
450566-4 |
FUEL TANK EBH252L |
| 121 |
163447-0 |
FUEL FILTER X DCS230T |
| 122 |
345920-4 |
CLAMP EBH341U |
| 123 |
168472-6 |
FUEL PIPE EBH252L |
| 124 |
195146-6 |
STARTING CPL EBH252L |
| 125 |
168483-1 |
STARTER PULLEY EBH252L |
| 126 |
266585-8 |
SCREW 5X12 EBH252L |
| 127 |
451938-6 |
FLANGE EBH252L |
| 128 |
451937-8 |
STARTER SPRING EBH252L |
| 129 |
232258-5 |
SPRING SPRING EBH252L |
| 130 |
325923-4 |
SWING ARM EBH252L |
| 131 |
424319-7 |
STARTER KNOB EBH252L |
| 132 |
444019-3 |
STARTER ROPE EBH252L |
| 133 |
809114-0 |
EBH252L LABEL |
| 183 |
806902-6 |
EBH252L ENGINE LABEL |
| 184 |
345964-4 |
EBH252L TANK PROTECTION |
| 185 |
806903-4 |
LABEL |
| 189 |
911546-0 |
CYLINDER HEAD SCREW M4x25 |
| 190 |
911213-7 |
SCREW M5X12 X 5143R EBH252L |
| 191 |
331835-1 |
SPACER EBH252L |
| 192 |
345963-6 |
HOCK EBH341U |
| 193 |
638664-6 |
CABLE EBH341U |
| 194 |
638665-4 |
CABLE EBH341U |
| 195 |
324980-9 |
SPARK ARRESTER EBH341U |
| 134 |
265188-5 |
SCREW M5X68 EBH341U |
| 135 |
345919-9 |
EBH341U FIXING PLATE |
| 136 |
423376-2 |
GASKET EBH341U |
| 137 |
450560-6 |
EBH341U AIR LEVER PLATE |
| 138 |
911218-7 |
CYLINDER HEAD SCREW M5x14 |
| 139 |
450561-4 |
AIR FILTER COVER EBH341U |
| 140 |
443141-3 |
FILTER EBH341U |
| 141 |
443140-5 |
PRE-FILTER EBH341U |
| 142 |
345918-1 |
CLAMP EBH341U |
| 143 |
422041-0 |
BREATHER TUBE EBH252L |
| 144 |
422042-8 |
TUBE EBH341U |
| 145 |
125468-0 |
EBH341U FILTER PLATE |
| 146 |
451925-5 |
CHOKE LEVER EBH341U |
| 147 |
213540-1 |
RING 15 EBH341U |
| 148 |
424316-3 |
EBH341U CHECK VALVE |
| 149 |
213539-6 |
RING 14 EBH341U |
| 150 |
451924-7 |
RETURN VALVE PLATE |
| 151 |
424315-5 |
EBH341U CONTROL VALVE |
| 152 |
168577-2 |
GASKET EBH341U |
| 153 |
168576-4 |
SEPARATOR EBH341U |
| 154 |
413121-3 |
CARBURETOR GASKET EBH252 |
| 155 |
922228-9 |
SCREW M5X18 EBH341U |
| 156 |
450559-1 |
EBH252L INSULATOR |
| 159 |
324961-3 |
SUCTION TUBE EBH252L |
| 160 |
413120-5 |
INSULATING GASKET EBH341U |
| 161 |
213078-6 |
RING 10 EBH341U |
| 162 |
922213-2 |
SCREW M5X12 EBH341U |
| 163 |
450562-2 |
CLAMP EBH341U |
| 165 |
168497-0 |
CARBURATOR EBH252L |
| 166 |
140437-0 |
PUMP BODY EBH341U |
| 167 |
352010-6 |
FILTER EBH252L |
| 168 |
442154-1 |
EBH341U DIAPHRAGM GASKET |
| 169 |
168574-8 |
DIAFRAMMA CPL EBH341U |
| 169 |
168574-8 |
DIAFRAMMA CPL EBH341U |
| 170 |
140438-8 |
BODY EBH341U |
| 171 |
424314-7 |
EBH341 PRIMING PUMP |
| 172 |
346270-0 |
EBH341U PUMP COVER |
| 173 |
266582-4 |
SCREW 3X24 EBH341U |
| 174 |
168575-6 |
EBH341U PUMP DIAPHRAGM |
| 175 |
442155-9 |
PUMP GASKET EBH341U |
| 176 |
325924-2 |
JET EBH252L |
| 177 |
213538-8 |
RING 2 EBH341U |
| 178 |
234183-6 |
SPRING 65-9 EBH341U |
| 179 |
266581-6 |
SCREW M3X8 EBH341U |
| 180 |
325922-6 |
CARBURETOR SCREW EBH341U |
| 181 |
413140-9 |
WASHER EBH341U |
| 182 |
257964-1 |
STILL RING E3 EBH341U |
| 500 |
B-05125 |
HEAD TAP&GO M10X1.25F |
