Makita Spare Parts for Lawn Mower ELM3700

SKU: Makita ELM3700
€4.46
VAT included

Makita Spare Parts for Lawn Mower ELM3700

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower ELM3700.
Makita Spare Parts for Lawn Mower ELM3700
  • Makita Spare Parts for Lawn Mower ELM3700
  • Makita Spare Parts for Lawn Mower ELM3700

Makita Spare Parts for Lawn Mower ELM3700

SKU: Makita ELM3700 Condition: New
€4.46
VAT included

Makita Spare Parts for Lawn Mower ELM3700

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower ELM3700.
settings 88 spare parts

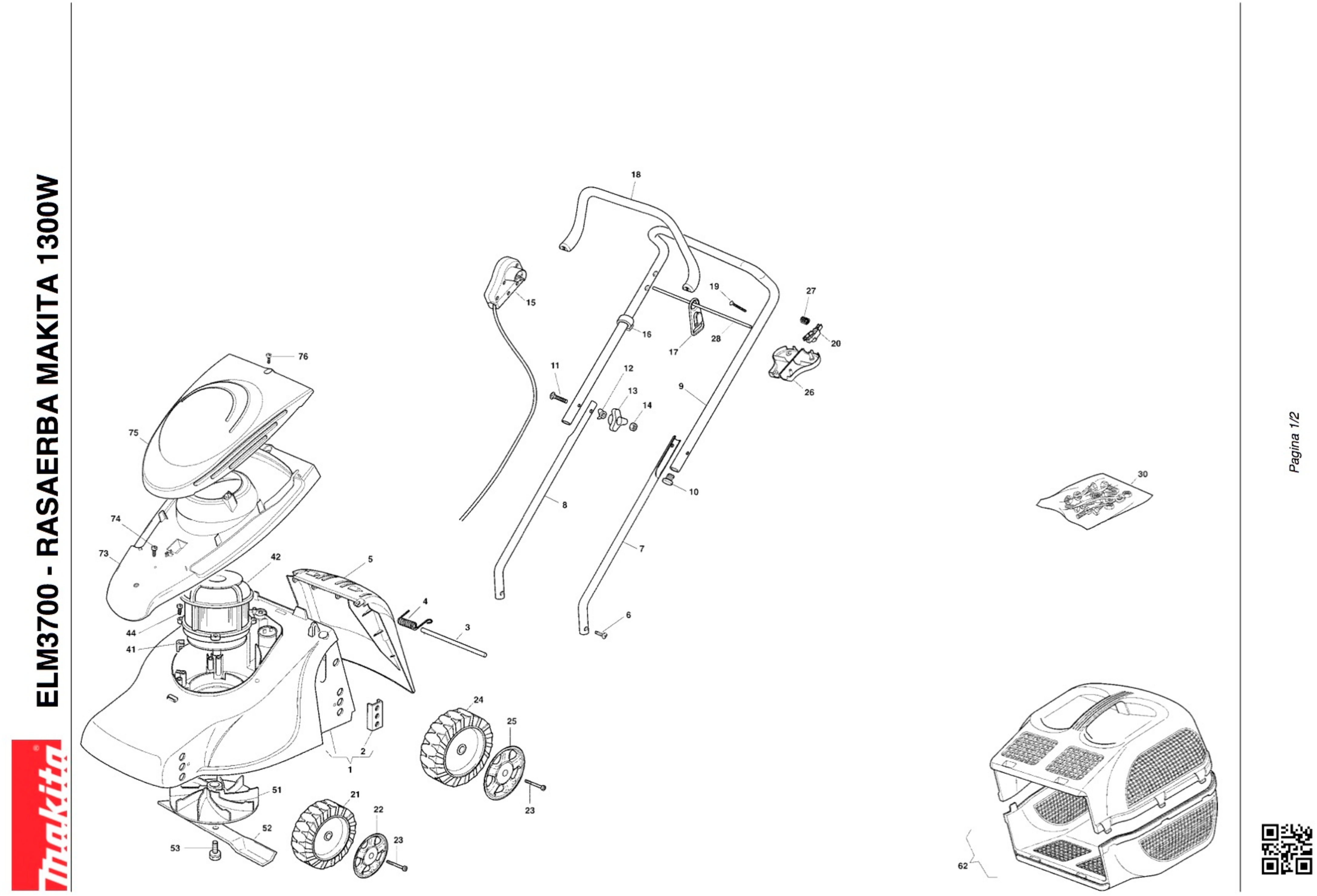

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

88 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 671001008 SCREW M10 FOR ELM3310-3710 €7.36
2
photo_cameraImage coming soon 671014142 BLADE 37 CM €21.38
3
photo_cameraImage coming soon 671492001 FAN ELM3310-3710 €24.01
4
photo_cameraImage coming soon 6001VV BALL BEARING 6001VVCMPS2L €8.22
4
photo_cameraImage coming soon 948001 RETAINING RING FOR D32 HOLE €2.93
5
photo_cameraImage coming soon 671014150 PLATE ELM3310-3710 €5.17
6
photo_cameraImage coming soon 6002VV BALL BEARING 6002VVCMPS2L €9.49
6
photo_cameraImage coming soon 671421001 WHEEL WITH EL.125 ELM3310-3710 €14.93
7
photo_cameraImage coming soon 671001188 FRONT HUB COVER ELM3310-3710 €10.01
7
Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.55
7
photo_cameraImage coming soon 987105 O-RING (S-10) €1.24
8
photo_cameraImage coming soon 626VVM BALL BEARING 626VVC2PS2L €5.14
8
photo_cameraImage coming soon 671419001 REAR WHELL 175 ELM3310-3710 €10.01
9
photo_cameraImage coming soon 671001189 REAR HUB COVER ELM3310-3710 €8.61
10
photo_cameraImage coming soon 671011121 TORSION SPRING ELM3310-3710 €2.81
11
photo_cameraImage coming soon 112819120/0 Screw €1.47
11
photo_cameraImage coming soon 671001027 AXE ELM3710 €2.79
12
photo_cameraImage coming soon 22680006/1 WASHER X PM4850S €1.29
12
photo_cameraImage coming soon 671422001 REAR COVER ELM3710 €25.00
13
photo_cameraImage coming soon 333945 BALL BEARING 608VV €2.43
13
photo_cameraImage coming soon 664399900 KNOB X PM 43 €3.60
13
photo_cameraImage coming soon 671001054 SELF-TAPPING SCREWELM €2.15
14
photo_cameraImage coming soon 112293200/0 Nut €1.74
14
photo_cameraImage coming soon 671001421 LOWER HANDLE ELM3310-3710 €38.94
15
photo_cameraImage coming soon 381600547/0 EM3511 MOTOR SAFETY €36.82
15
photo_cameraImage coming soon 671001007 CAPACITOR ELM3710 €12.67
16
photo_cameraImage coming soon 671001023 ELM3310 STRING CABLE €2.03
17
photo_cameraImage coming soon 314676 BUSH L3406 €6.06
17
photo_cameraImage coming soon 671001003 SELF-TAPPING SCREWELM €2.15
18
photo_cameraImage coming soon 671001051 CABLE SUPPORT ELM3310-3710 €1.64
19
photo_cameraImage coming soon 671090040 PLUG D.5,3X20 ELM3310-3710 €1.64
20
photo_cameraImage coming soon 671431001 ELM3310-3710 ADJUSTMENT LEVER €5.90
21
photo_cameraImage coming soon 671001466 SCREW M6X60 ELM3310-3710 €2.46
22
photo_cameraImage coming soon 671001420 PLATE ELM3310-3710 €1.64
22
Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH 930483 Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH €2.78
22
Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
23
photo_cameraImage coming soon 671007007 WASHERELM €1.47
23
Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
24
photo_cameraImage coming soon 671005016 NUT M6 PLM4110-4610-4611 €2.01
25
photo_cameraImage coming soon 671001198 CAP ELM3310-3710 €2.01
25
Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
26
photo_cameraImage coming soon 671001417 FRAME FOR BAG ELM3710 €35.69
26
photo_cameraImage coming soon 937631 CORD CLIP €1.37
27
photo_cameraImage coming soon 321628 Button Rev. D10vc2 €2.93
27
photo_cameraImage coming soon DA00000873 SCREWw M4,2X15 ELM 3310-3710 €2.14
28
photo_cameraImage coming soon 671002007 SCREW M4X12 ELM3310-3710 €1.64
29
photo_cameraImage coming soon 334379 FERRITE CORE €6.61
29
photo_cameraImage coming soon 671424001 OVER BAG ELM3710 €35.69
29
photo_cameraImage coming soon 994734 SWITCH (B) (2P SCREW TYPE) W/LOCK €14.05
30
photo_cameraImage coming soon 671423001 HANDLE BAG ELM3310-3710 €4.01
31
Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
32
photo_cameraImage coming soon 671001083 CLAMP ELM3310-3710 €1.64
33
photo_cameraImage coming soon 671001052 SUPPORT FOR CABLE ELM 3310-3710 €2.03
33
Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
34
photo_cameraImage coming soon 671001005 SELF-TAPPING SCREWELM €2.15
34
Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
35
photo_cameraImage coming soon 671434002 SUPPORT SX ELM3310-3710 €4.01
36
photo_cameraImage coming soon 671434001 SUPPORT DX ELM3310-3710 €4.01
36
photo_cameraImage coming soon 981373 TUBE (D) €1.37
37
photo_cameraImage coming soon 671002025 TRIGGER BOLTELM €2.08
38
photo_cameraImage coming soon 671279005 CONNECTOR SX EM3310-3710 €2.62
39
photo_cameraImage coming soon 671011124 SPRINGELM €2.03
40
photo_cameraImage coming soon 671001036 SELF-TAPPING SCREWELM €2.03
41
photo_cameraImage coming soon 671014180 ENGINE BRAKE LEVER ELM3710 €19.03
42
photo_cameraImage coming soon DA00001023 DX CONNECTOR ELM3310-3710 €2.73
43
photo_cameraImage coming soon 671016150 SUPERIOR HANDLE €44.33
44
photo_cameraImage coming soon 671428001 PLATE ELM3310-3710 €2.46
45
photo_cameraImage coming soon 671001071 PLUG ELM3310-3710 (COMPLETE) €38.87
47
photo_cameraImage coming soon 671491001 ELM3710 CABLE CLAMP €2.03
48
photo_cameraImage coming soon 671009002 INDICATOR LIGHTELM €6.44
49
photo_cameraImage coming soon 671010040 ELM3310-3710 SWITCH €10.75
50
photo_cameraImage coming soon 671011079 SPRING OF SAFETYELM €10.75
51
Hub Fan for Lawnmower Alpina AL1 38 E 322465602/1 Hub Fan for Lawnmower Alpina AL1 38 E €5.70
51
photo_cameraImage coming soon 671001043 LAMPSHADEELM €2.03
52
Winged Blade 37cm for Lawnmowers Alpina K 390 - C 390 181004142/0 Winged Blade 37cm for Lawnmowers Alpina K 390 - C 390 €15.96
52
photo_cameraImage coming soon 671425002 SAFETY KEY ELM3310-710 €2.03
53
Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E 381004352/1 Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E €3.90
53
photo_cameraImage coming soon 671426001 SWITCH BOX ELM3310-3710 €10.01
54
photo_cameraImage coming soon 671283001 BUSHING 1 ELM3310-3710 €2.15
55
photo_cameraImage coming soon 671001010 CABLE 1250MM ELM3310-3710 €14.20
56
photo_cameraImage coming soon 671284001 JACKET 1 OF CABLEELM €2.03
57
photo_cameraImage coming soon 671433001 ELM3710 ENGINE COVER €49.46
58
photo_cameraImage coming soon 671432001 COVER ELM3710 €1.86
59
photo_cameraImage coming soon 671417001 DEFLECTOR ELM3710 €16.77
60
photo_cameraImage coming soon 671001053 SCREW 6X30 ELM3310-3710 €1.64
61
photo_cameraImage coming soon 671002014 1300W ELM3710 ENGINE €154.35
62
photo_cameraImage coming soon 671002009 HEXAGONAL KEY ELM3310-3710 €6.44
604
photo_cameraImage coming soon 981205 SIDE HANDLE FOR M10 €8.55

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Lawn Mower ELM3700

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower ELM3700.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
MAKITA

Lawn Mower ELM3700
8 81006939/1 HANDLE LOWER DX ELM3300
11 112819120/0 SCREW X PM5150S
12 22680006/1 WASHER X PM4850S
13 664399900 KNOB X PM 43
14 112293200/0 NUT X PM4850S
15 381600547/0 EM3511 MOTOR SAFETY
17 22195101/4 CABLE STOP FOR ELM3300
18 322322880/1 SWITCH LEVER FOR ELM4100
19 112728685/0 SCREW 4X25
20 322230350/1 FULCR FOR EM3511 / ELM4100
21 122686083/0 WHEEL ANT.130mm EM3310 / 3511
22 22110497/0 WHEEL COVER FOR ELM3300
23 22524337/0 SCREW FOR EM3913
24 22686085/0 REAR WHEEL DIAM.160mm.
25 22110498/0 WHEEL COVER FOR ELM3300
26 22785144/0 SUPPORT FOR ELM3700
27 22450115/0 SPRING FOR ELM4100
28 22010250/0 ROD
30 81008669/0 SCREW SET FOR EM3511
42 18563651/0 COMPLETE ENGINE FOR ELM3700
51 322465602/1 HUB FOR ELM3300
53 381004352/1 SCREW FOR ELM3300
52 181004142/0 KNIFE ELM3700
