Makita

Makita Spare Parts for Lawn Mower ELM4611

SKU: Makita ELM4611
€2.21
VAT included

Makita Spare Parts for Lawn Mower ELM4611

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Lawn Mower ELM4611.
Makita Spare Parts for Lawn Mower ELM4611
  • Makita Spare Parts for Lawn Mower ELM4611
  • Makita Spare Parts for Lawn Mower ELM4611
Makita

Makita Spare Parts for Lawn Mower ELM4611

SKU: Makita ELM4611 Condition: New
€2.21
VAT included

Makita Spare Parts for Lawn Mower ELM4611

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Lawn Mower ELM4611.
settings 122 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
122 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

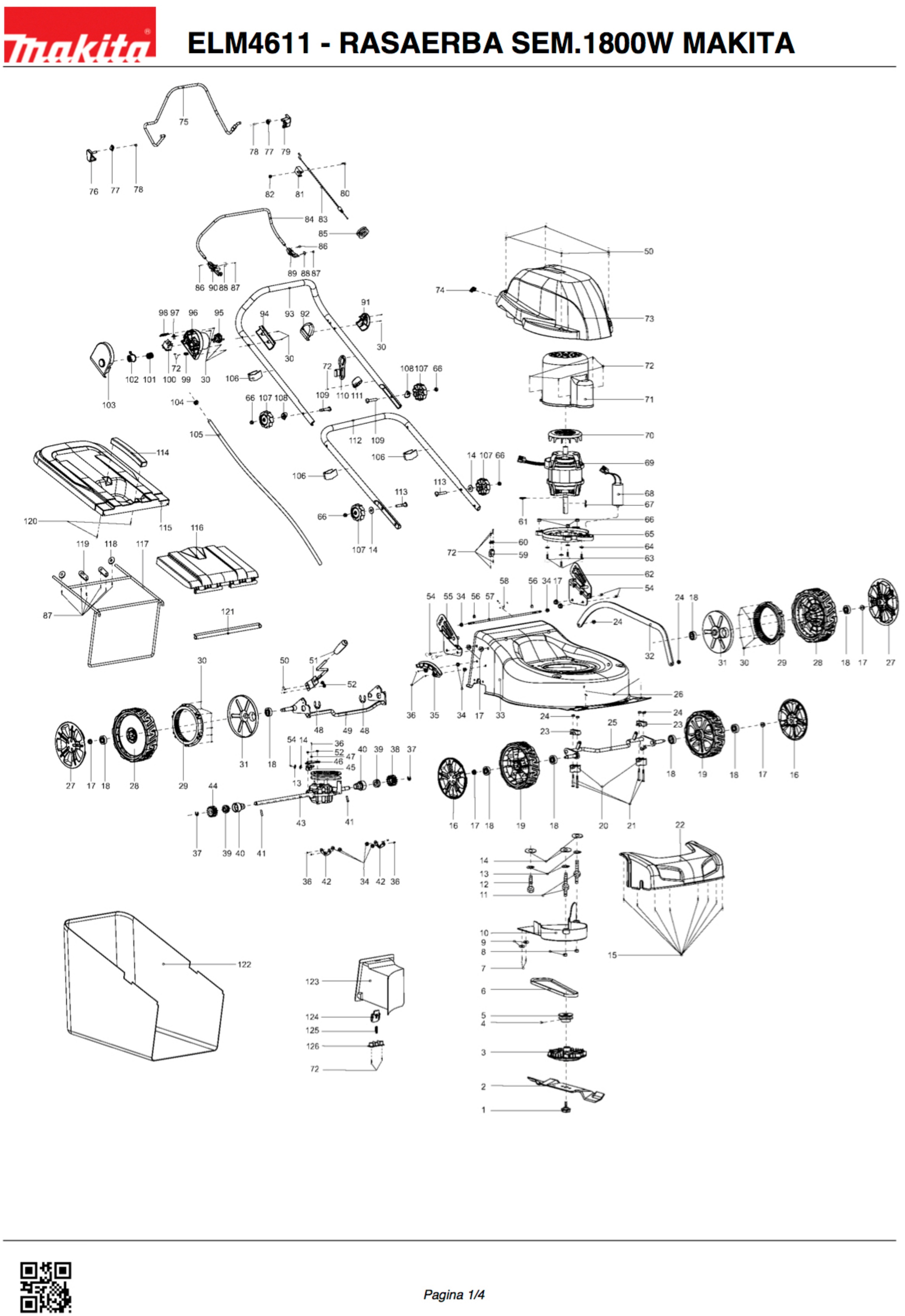

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 671001008 SCREW M10 FOR ELM3310-3710 €7.36
2
 photo_cameraImage coming soon 671001461 BLADE 46CM €25.43
3
 photo_cameraImage coming soon 671005057 EM460S BLADE HUB €24.69
4
 photo_cameraImage coming soon 671003005 SCREW M6X10 PLM4110-4610-4611 €2.14
5
 photo_cameraImage coming soon 671004009 PULLEY EM460S €21.85
6
 Rubber Belt 762MM for Lawnmower Makita ELM4611 671002043 Rubber Belt 762MM for Lawnmower Makita ELM4611 €19.79
7
 photo_cameraImage coming soon 671001045 SCREW PLM4110-4610-4611 €2.15
8
 photo_cameraImage coming soon 671005008 NUT M8 PLM4110-4610-4611 €2.21
9
 photo_cameraImage coming soon 671002075 WASHER 12/4 €2.21
10
 photo_cameraImage coming soon 671580013 BELT COVER PLM4110-4610-11 €16.65
11
 photo_cameraImage coming soon 671003044 SCREW M8X17X35 PLM4110-4610-11 €2.77
12
 photo_cameraImage coming soon 671006017 HEXAGON HEAD BOLTPLM €2.15
13
 photo_cameraImage coming soon 671008002 SPRING RINGPLM €2.15
14
 photo_cameraImage coming soon 671007007 WASHERELM €1.47
15
 photo_cameraImage coming soon 671001062 SCREW 4,2X10 PM5100S3 €1.36
16
 photo_cameraImage coming soon 671001176 COVER 175 ELM4110 €11.40
17
 photo_cameraImage coming soon 671005028 HEXAGONAL LOCKINGPLM €2.15
18
 photo_cameraImage coming soon 671004012 BEARING 6201Z ELM4110 €13.07
19
 photo_cameraImage coming soon 671002012 WHEEL 175 ELM4110 €20.92
20
 photo_cameraImage coming soon 671418001 BUSH ELM4110 €3.31
21
 photo_cameraImage coming soon 671002028 TRIGGER BOLTPLM €2.21
22
 photo_cameraImage coming soon 671459001 FRONT PLM4110-4610-4611 €39.23
23
 photo_cameraImage coming soon 671445001 BUSH ELM4110 €2.85
24
 photo_cameraImage coming soon 671005005 LOCKING NUTPLM €2.15
25
 photo_cameraImage coming soon 671001439 FRONT AXLE PLM4110-4610-11 €57.70
26
 photo_cameraImage coming soon 671011125 EXTENSION SPRINGPLM €2.77
27
 photo_cameraImage coming soon 671001177 COVER HUB 200 ELM4110 €11.40
28
 photo_cameraImage coming soon 671020140 WHEEL D200 EM460S €28.71
29
 photo_cameraImage coming soon 671464001 GEAR WHEEL PLM4110-4610 €8.81
30
 photo_cameraImage coming soon 671001005 SELF-TAPPING SCREWELM €2.15
31
 photo_cameraImage coming soon 671650010 INTERNAL WHEEL COVER €6.57
32
 photo_cameraImage coming soon 671001440 JUNCTION PLM4110-4610-4611 €22.18
33
 photo_cameraImage coming soon 671001181 BLUE FRAME ELM4611 €268.13
34
 photo_cameraImage coming soon 671005024 HEXAGONAL LOCKINGPLM €2.15
35
 photo_cameraImage coming soon 671001018 PLATE ADJUSTMENTAL.ELM4110 €5.28
36
 photo_cameraImage coming soon 671002019 TRIGGER BOLTPLM €2.21
37
 photo_cameraImage coming soon 671090020 WASHER PLM4110-4610-4611 €2.06
38
 photo_cameraImage coming soon DA00001090 PINION SX PLM4110-4610-4611 €12.63
39
 photo_cameraImage coming soon DA00001029 CUSHION FOR ELM4611 €5.28
40
 photo_cameraImage coming soon DA00000610 BEARING BOX €7.58
41
 photo_cameraImage coming soon 671090001 5X21,5 PIN €2.06
42
 photo_cameraImage coming soon 671001244 ELM4110 PLATE €2.15
43
 photo_cameraImage coming soon 671502016 TRANSMISSION PLM4110-4610 €142.26
44
 photo_cameraImage coming soon DA00001091 PINION DX PLM4611 €12.63
45
 photo_cameraImage coming soon 671001521 PLATE PLM4110-4610-4611 €3.69
46
 photo_cameraImage coming soon 671001460 PLATE PLM4110-4610-4611 €2.14
47
 photo_cameraImage coming soon 671008003 WASHER PLM4110-4610-4611 €2.06
48
 photo_cameraImage coming soon 671009003 WASHER D.19X1.5 PLM4611 €2.06
49
 photo_cameraImage coming soon 671144602 REAR AXLE PLM4110-4610 €85.67
50
 photo_cameraImage coming soon 671002029 TRIGGER BOLTPLM €2.15
51
 photo_cameraImage coming soon 671102602 ADJUSTMENT LEVER €14.04
52
 photo_cameraImage coming soon 671005011 HEXAGONAL LOCKINGPLM €2.21
54
 photo_cameraImage coming soon 671006064 HEXAGON HEAD BOLTPLM €2.15
55
 photo_cameraImage coming soon 671001213 SUPPORT SX RED PM410 €24.69
56
 photo_cameraImage coming soon 671009017 BRAKE RING ELM4110 €2.21
57
 photo_cameraImage coming soon 671001518 SUPPORT PLM4110-4610-4611 €7.02
58
 photo_cameraImage coming soon 671011101 ELM4110 SPRING €2.85
59
 photo_cameraImage coming soon 671260001 CABLE SUPPORT ELM4110 €2.03
60
 photo_cameraImage coming soon 671001023 ELM3310 STRING CABLE €2.03
61
 photo_cameraImage coming soon 671009019 AXLE RING €2.12
62
 photo_cameraImage coming soon 671001212 SUPPORT DX RED PM410 €24.35
63
 photo_cameraImage coming soon 671001009 MOTOR TIGHTEN BOLTPLM €2.03
64
 photo_cameraImage coming soon 671080100 TOOTH WASHER €1.44
65
 photo_cameraImage coming soon 671600012 EM460S ENGINE SUPPORT €11.48
66
 photo_cameraImage coming soon 671005023 HEXAGONAL NUT €2.06
67
 photo_cameraImage coming soon 671090037 WOODRUFF €2.12
68
 photo_cameraImage coming soon DA00001028 EM460S CAPACITOR €19.26
69
 photo_cameraImage coming soon DA00000850 1800W EM460S ENGINE €267.87
70
 photo_cameraImage coming soon 671327001 FAN ELM4110 €20.92
71
 photo_cameraImage coming soon 671461001 DEFLECTOR EM460S €27.49
72
 photo_cameraImage coming soon 671001003 SELF-TAPPING SCREWELM €2.15
73
 photo_cameraImage coming soon 671462001 EM460S ENGINE COVER €59.82
74
 photo_cameraImage coming soon 671284001 JACKET 1 OF CABLEELM €2.03
75
 photo_cameraImage coming soon 671001447 EM460S TRACTION LEVER €21.85
76
 photo_cameraImage coming soon 671466002 DX SUPPORT EM460S €4.49
77
 photo_cameraImage coming soon 671391001 WASHER €2.06
78
 photo_cameraImage coming soon 671105502 SCREW M5X16 €1.40
79
 photo_cameraImage coming soon 671466001 SUPPORT SX EM460S €4.49
80
 photo_cameraImage coming soon 671006011 SCREW M6X35 PLM4110-4610-4611 €2.14
81
 photo_cameraImage coming soon 671336001 HOLDER PLM4110-4610-4611 €2.06
82
 photo_cameraImage coming soon 671005016 NUT M6 PLM4110-4610-4611 €2.01
83
 photo_cameraImage coming soon 671001123 CABLE €50.66
84
 photo_cameraImage coming soon 671001442 LEVER, MOTOR BRAKEPLM €20.92
85
 photo_cameraImage coming soon 671178001 CABLE PLM4110-4610-4611 €2.15
86
 photo_cameraImage coming soon 671002025 TRIGGER BOLTELM €2.08
87
 photo_cameraImage coming soon 671001036 SELF-TAPPING SCREWELM €2.03
88
 photo_cameraImage coming soon 671011124 SPRINGELM €2.03
89
 photo_cameraImage coming soon 671279005 CONNECTOR SX EM3310-3710 €2.62
90
 photo_cameraImage coming soon DA00001023 DX CONNECTOR ELM3310-3710 €2.73
91
 photo_cameraImage coming soon 671257001 SUPPORT SX ELM4110 €4.98
92
 photo_cameraImage coming soon 671257002 RIGHT HANDLE SUPPORTPLM €4.98
93
 photo_cameraImage coming soon 671001437 EM460S SUPERIOR HANDLE €62.50
94
 photo_cameraImage coming soon 671451001 ELM4110 PLATE €3.04
95
 photo_cameraImage coming soon 671001071 PLUG ELM3310-3710 (COMPLETE) €38.87
96
 photo_cameraImage coming soon 671001071 PLUG ELM3310-3710 (COMPLETE) €38.87
97
 photo_cameraImage coming soon 671009002 INDICATOR LIGHTELM €6.44
98
 photo_cameraImage coming soon 671001043 LAMPSHADEELM €2.03
99
 photo_cameraImage coming soon 671491001 ELM3710 CABLE CLAMP €2.03
100
 photo_cameraImage coming soon 671010040 ELM3310-3710 SWITCH €10.75
101
 photo_cameraImage coming soon 671011079 SPRING OF SAFETYELM €10.75
102
 photo_cameraImage coming soon 671425002 SAFETY KEY ELM3310-710 €2.03
103
 photo_cameraImage coming soon DA00000985 RH SWITCH BOX ELM4110 €11.43
104
 photo_cameraImage coming soon 671283001 BUSHING 1 ELM3310-3710 €2.15
105
 photo_cameraImage coming soon 671001073 CABLE EM460S €13.93
106
 photo_cameraImage coming soon 671177001 CABLE CLIPPLM €2.03
107
 photo_cameraImage coming soon 671530010 PLM5600 KNOB €3.11
108
 photo_cameraImage coming soon 671001085 WASHERPLM €2.15
109
 photo_cameraImage coming soon 671006004 FLAT HEAD BOLTPLM €2.77
110
 photo_cameraImage coming soon 671001052 SUPPORT FOR CABLE ELM 3310-3710 €2.03
111
 photo_cameraImage coming soon 671328001 STILL RING ELM4410 €2.03
112
 photo_cameraImage coming soon 671001445 EM460S LOWER HANDLE €43.55
113
 photo_cameraImage coming soon DA00000880 FLAT HEAD BOLT €2.76
114
 photo_cameraImage coming soon 671454001 HANDLE BAG ELM4410 €5.43
115
 photo_cameraImage coming soon 671467001 COVER BAG PLM4110-4610 €41.61
116
 photo_cameraImage coming soon 671468001 COVER PLM4110-4610-4611 €47.57
117
 photo_cameraImage coming soon 671001443 FRAME BAG PLM4110-4610-4611 €53.25
118
 photo_cameraImage coming soon 671001436 TIGHTEN PRESSING PLAPLM €2.21
119
 photo_cameraImage coming soon 671001203 PRESSING PLATE OFPLM €2.21
120
 photo_cameraImage coming soon 671001054 SELF-TAPPING SCREWELM €2.15
121
 photo_cameraImage coming soon 671001353 PLATE PLM4110-4610-4611 €3.31
124
 photo_cameraImage coming soon 671316004 UTTON PLM4110-4610- €2.21
125
 photo_cameraImage coming soon 671011005 SCREW PLM4110-4610-4611 €1.47
126
 photo_cameraImage coming soon 671317001 PLATE PLM4110-4610-4611 €2.21

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Lawn Mower ELM4611

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Lawn Mower ELM4611.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita ELM4611
Lawn Mower ELM4611
# Part Num. Dewscription
1 671001008 SCREW M10 FOR ELM3310-3710
2 671001461 BLADE 46CM
3 671005057 EM460S BLADE HUB
4 671003005 SCREW M6X10 PLM4110-4610-4611
5 671004009 PULLEY EM460S
6 671002043 RUBBER BELT 762MM PLM4110-4610
7 671001045 SCREW PLM4110-4610-4611
8 671005008 NUT M8 PLM4110-4610-4611
9 671002075 WASHER 12/4
10 671580013 BELT COVER PLM4110-4610-11
11 671003044 SCREW M8X17X35 PLM4110-4610-11
12 671006017 SCREW M8X30 ELM4110
13 671008002 WASHER ELM4110
14 671007007 WASHER 8 ELM3310-3710
15 671001062 SCREW 4.2X10 PM5100S3
16 671001176 COVER 175 ELM4110
17 671005028 NUT M8 ELM4110
18 671004012 BEARING 6201Z ELM4110
19 671002012 WHEEL 175 ELM4110
20 671418001 BRONZINA ELM4110
21 671002028 SCREW M6X45 ELM4110
22 671459001 FRONT PLM4110-4610-4611
23 671445001 BRONZINA ELM4110
24 671005005 NUT M6 ELM4110
25 671001439 FRONT AXLE PLM4110-4610-11
26 671011125 SPRING ELM4110
27 671001177 COVER 200 ELM4110
28 671020140 WHEEL D200 EM460S
29 671464001 GEAR WHEEL PLM4110-4610
30 671001005 SCREW M4X16 ELM3310-3710
31 671650010 INTERNAL WHEEL COVER
32 671001440 JUNCTION PLM4110-4610-4611
33 671001181 BLUE FRAME ELM4611
34 671005024 NUT M6 ELM4110
35 671001018 PLATE ADJUSTMENTAL.ELM4110
36 671002019 SCREW M6X12 ELM4110
37 671090020 WASHER PLM4110-4610-4611
38 DA00001090 PINION SX PLM4110-4610-4611
39 DA00001029 BEARING FOR ELM4611
40 DA00000610 BEARING BOX
41 671090001 PLUG 5X21.5
42 671001244 PLATE ELM4110
43 671502016 TRANSMISSION PLM4110-4610
44 DA00001091 PINION DX PLM4611
45 671001521 PLATE PLM4110-4610-4611
46 671001460 PLATE PLM4110-4610-4611
47 671008003 WASHER PLM4110-4610-4611
48 671009003 WASHER D.19X1.5 PLM4611
49 671144602 REAR AXLE PLM4110-4610
50 671002029 SCREW M5X12 ELM4110
51 671102602 ADJUSTMENT LEVER
52 671005011 NUT M5 ELM4110
54 671006064 SCREW M8X6 ELM4110
55 671001213 SUPPORT SX RED PM410
56 671009017 BRAKE RING ELM4110
57 671001518 SUPPORT PLM4110-4610-4611
58 671011101 SPRING ELM4110
59 671260001 CABLE SUPPORT ELM4110
60 671001023 ELM3310 CABLE CLAMP
61 671009019 AXLE RING
62 671001212 SUPPORT DX RED PM410
63 671001009 SCREW ELM4110
64 671080100 WASHER
65 671600012 EM460S ENGINE SUPPORT
66 671005023 NUT M8
67 671090037 WOODRUF
68 DA00001028 EM460S CAPACITOR
69 DA00000850 1800W EM460S ENGINE
70 671327001 FAN ELM4110
71 671461001 DEFLECTOR EM460S
72 671001003 SCREW 4X12 ELM3310-3710
73 671462001 EM460S ENGINE COVER
74 671284001 BUSH 2 ELM3310-3710
75 671001447 EM460S TRACTION LEVER
76 671466002 DX SUPPORT EM460S
77 671391001 WASHER
78 671105502 SCREW M5X16
79 671466001 SUPPORT SX EM460S
80 671006011 SCREW M6X35 PLM4110-4610-4611
81 671336001 SUPPORT PLM4110-4610-4611
82 671005016 NUT M6 PLM4110-4610-4611
83 671001123 CABLE
84 671001442 ENGINE BRAKE LEVER ELM4110
85 671178001 CABLE PLM4110-4610-4611
86 671002025 SCREW M4X8 ELM3310-3710
87 671001036 SCREW 3X10 ELM3310-3710
88 671011124 SPRING EM3310-3710
89 671279005 CONNECTOR SX EM3310-3710
90 DA00001023 DX CONNECTOR ELM3310-3710
91 671257001 SUPPORT SX ELM4110
92 671257002 SUPPORT DX ELM4110
93 671001437 EM460S SUPERIOR HANDLE
94 671451001 PLATE ELM4110
95 671001071 PLUG ELM3310-3710 (COMPLETE)
96 671001071 PLUG ELM3310-3710 (COMPLETE)
97 671009002 LED ELM3310-3710
98 671001043 SCREEN ELM3310-3710
99 671491001 ELM3710 CABLE CLAMP
100 671010040 ELM3310-3710 SWITCH
101 671011079 SPRING ELM3310-3710
102 671425002 SAFETY KEY ELM3310-710
103 DA00000985 RH SWITCH BOX ELM4110
104 671283001 BUSHING 1 ELM3310-3710
105 671001073 CABLE EM460S
106 671177001 CABLE SUPPORT ELM4110
107 671530010 PLM5600 KNOB
108 671001085 WASHER ELM4110
109 671006004 SCREW M8X52
110 671001052 SUPPORT FOR CABLE ELM 3310-3710
111 671328001 STILL RING ELM4410
112 671001445 EM460S LOWER HANDLE
113 DA00000880 SCREW M8X35 ELM4410
114 671454001 ELM4410 BAG HANDLE
115 671467001 COVER BAG PLM4110-4610
116 671468001 COVER PLM4110-4610-4611
117 671001443 FRAME BAG PLM4110-4610-4611
118 671001436 WASHER ELM4110
119 671001203 PLATE ELM4110
120 671001054 SCREW 5X12 ELM3310-3710
121 671001353 PLATE PLM4110-4610-4611
124 671316004 BLOCK KEY PLM4110-4610-
125 671011005 SPRING PLM4110-4610-4611
126 671317001 PLATE PLM4110-4610-4611
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita ELM4611
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita ELM4611

Diagram Makita ELM4611

Download (452.15KB)

You might also like

Rubber Belt 762MM for Lawnmower Makita ELM4611
Makita SKU: 671002043
Rubber Belt 762MM for Lawnmower Makita ELM4611
Rubber Belt 762MM for Lawnmower Makita ELM4611 Genuine part Makita, Rubber Belt 762MM V10X790 FOR Lawnmower Makita ELM4611 - PLM4611 - PLM4621 - Dolmar PM4600S...
Last items in stock €19.79
Details
Comments (0)
