Makita

Makita Spare Parts for Lawn Mower ELM3311

SKU: Makita ELM3311
€2.21
VAT included

Makita Spare Parts for Lawn Mower ELM3311

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for repair Lawn Mower ELM3311.
Makita Spare Parts for Lawn Mower ELM3311
  • Makita Spare Parts for Lawn Mower ELM3311
  • Makita Spare Parts for Lawn Mower ELM3311
Makita

Makita Spare Parts for Lawn Mower ELM3311

SKU: Makita ELM3311 Condition: New
€2.21
VAT included

Makita Spare Parts for Lawn Mower ELM3311

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for repair Lawn Mower ELM3311.
settings 59 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Lawn Mowers
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
59 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

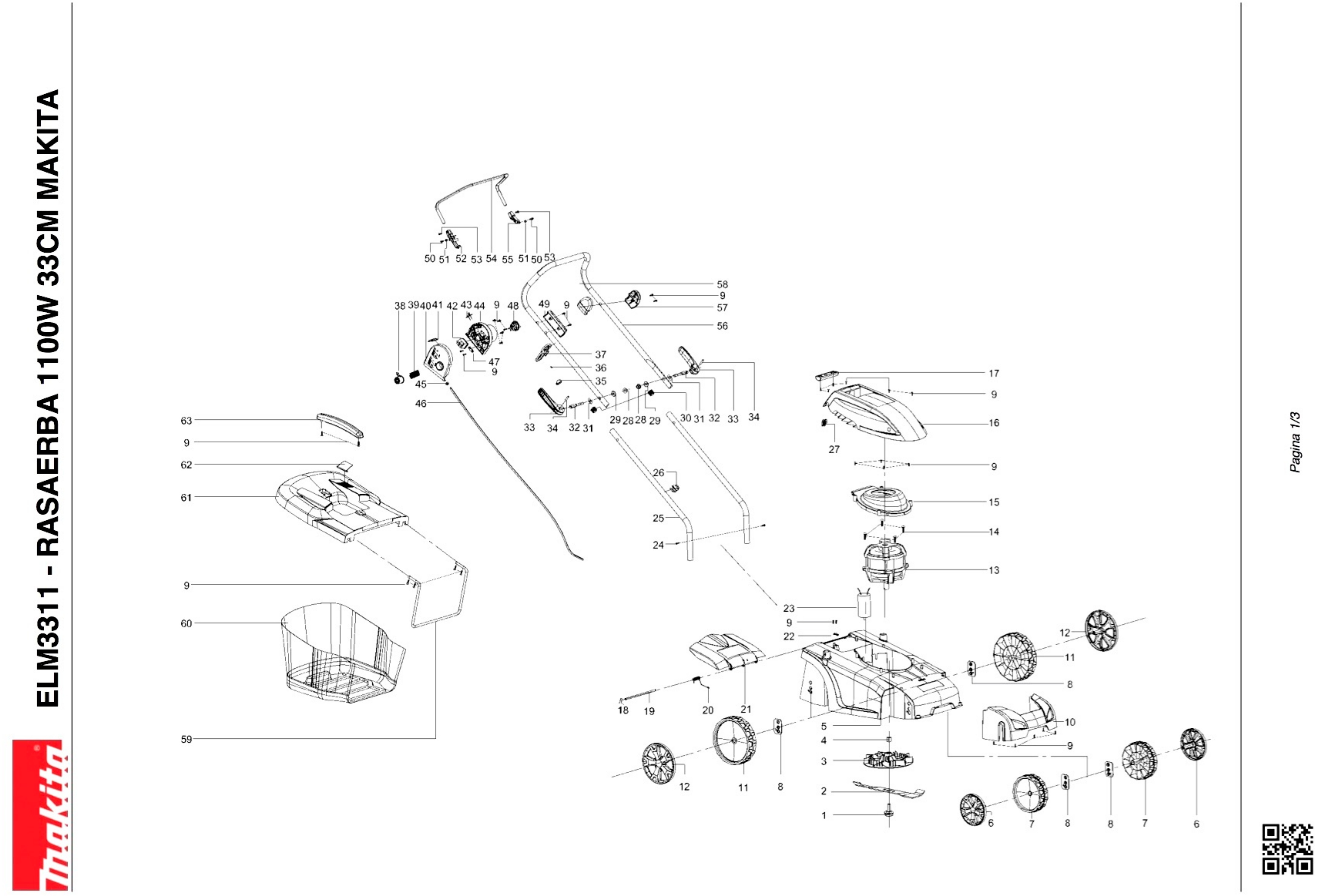

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 671001008 SCREW M10 FOR ELM3310-3710 €7.36
2
 photo_cameraImage coming soon 671002550 BLADE EM3300 €16.10
3
 photo_cameraImage coming soon 671492001 FAN ELM3310-3710 €24.01
4
 photo_cameraImage coming soon 671051300 BUSH €16.95
5
 photo_cameraImage coming soon 671005131 BLUE FRAME €0.12 Not available for order
6
 photo_cameraImage coming soon 671003028 HUB COVER €4.70
7
 photo_cameraImage coming soon 671919001 WHEEL D.140MM €8.72
8
 photo_cameraImage coming soon 671002281 PLATE €2.49
9
 photo_cameraImage coming soon 671107301 SCREW 4X16 €1.44
10
 photo_cameraImage coming soon 671909001 FRONT €0.12 Not available for order
11
 photo_cameraImage coming soon 671920001 WHEEL D.177MM €13.11
12
 photo_cameraImage coming soon 671003029 REAR WHEEL COVER €5.97
13
 photo_cameraImage coming soon 671002015 1100W ELM3310 ENGINE €120.18
14
 photo_cameraImage coming soon 671001053 SCREW 6X30 ELM3310-3710 €1.64
15
 photo_cameraImage coming soon 671912001 DEFLECTOR €0.12 Not available for order
16
 photo_cameraImage coming soon 671911001 ENGINE COVER €0.12 Not available for order
17
 photo_cameraImage coming soon 671913001 HANDLE €0.12 Not available for order
18
 photo_cameraImage coming soon 671090005 PIN €0.12 Not available for order
19
 photo_cameraImage coming soon 671001067 PIN 6X168 €0.12 Not available for order
20
 photo_cameraImage coming soon 671011214 SPRING €0.12 Not available for order
21
 photo_cameraImage coming soon 671918001 REAR COVER €0.12 Not available for order
22
 photo_cameraImage coming soon 671001023 ELM3310 STRING CABLE €2.03
23
 photo_cameraImage coming soon DA00001194 CAPACITOR €6.70
24
 photo_cameraImage coming soon 671001046 SCREW M8X19 PM5120-5120S €1.79
25
 photo_cameraImage coming soon 671001712 LOWER HANDLE €0.12 Not available for order
26
 photo_cameraImage coming soon 671277001 CABLE HOLDER €1.32
27
 photo_cameraImage coming soon 671284001 JACKET 1 OF CABLEELM €2.03
28
 photo_cameraImage coming soon 671005016 NUT M6 PLM4110-4610-4611 €2.01
29
 photo_cameraImage coming soon 671007007 WASHERELM €1.47
30
 photo_cameraImage coming soon 671001198 CAP ELM3310-3710 €2.01
31
 photo_cameraImage coming soon 671005136 REGULATOR €5.97
32
 photo_cameraImage coming soon 671005136 REGULATOR €5.97
33
 photo_cameraImage coming soon 671005136 REGULATOR €5.97
34
 photo_cameraImage coming soon 671005136 REGULATOR €5.97
35
 photo_cameraImage coming soon 671001083 CLAMP ELM3310-3710 €1.64
36
 photo_cameraImage coming soon 671001003 SELF-TAPPING SCREWELM €2.15
37
 photo_cameraImage coming soon 671001052 SUPPORT FOR CABLE ELM 3310-3710 €2.03
38
 photo_cameraImage coming soon 671425003 SECURITY KEY €1.78
39
 photo_cameraImage coming soon 671011079 SPRING OF SAFETYELM €10.75
40
 photo_cameraImage coming soon DA00000819 RIGHT SWITCH BOX €4.05
41
 photo_cameraImage coming soon 671001043 LAMPSHADEELM €2.03
42
 photo_cameraImage coming soon 671010040 ELM3310-3710 SWITCH €10.75
43
 photo_cameraImage coming soon 671069001 LH SWITCH BOX €5.59
44
 photo_cameraImage coming soon 671077001 LH SWITCH BOX €5.97
45
 photo_cameraImage coming soon 671283001 BUSHING 1 ELM3310-3710 €2.15
46
 photo_cameraImage coming soon 671010050 CABLE 1150MM ELM3310-3710 €13.18
47
 photo_cameraImage coming soon DA00001053 CABLE CLAMP €0.00 Not available for order
48
 photo_cameraImage coming soon DA00001131 POWER CABLE €11.28
49
 photo_cameraImage coming soon 671428001 PLATE ELM3310-3710 €2.46
50
 photo_cameraImage coming soon 671001036 SELF-TAPPING SCREWELM €2.03
51
 photo_cameraImage coming soon 671011124 SPRINGELM €2.03
52
 photo_cameraImage coming soon 671072001 DX CONNECTOR €2.27
53
 photo_cameraImage coming soon 671001021 SCREW 4X10 €0.12 Not available for order
54
 photo_cameraImage coming soon 671001648 ENGINE BRAKE LEVER €0.12 Not available for order
55
 photo_cameraImage coming soon 671071001 LH CONNECTOR €1.78
56
 photo_cameraImage coming soon 671001613 UPPER HANDLE €0.12 Not available for order
57
 photo_cameraImage coming soon 671073001 SUPPORT LH €0.12 Not available for order
58
 photo_cameraImage coming soon 671074001 RH SUPPORT €0.12 Not available for order
59
 photo_cameraImage coming soon 671002302 BAG FRAME €28.12
61
 photo_cameraImage coming soon 671914001 COVER BAG €22.26
62
 photo_cameraImage coming soon 671107101 LEVEL INDICATOR €2.14
63
 photo_cameraImage coming soon 671921001 BAG HANDLE €2.49

Shipping and delivery information will be available shortly.

Makita Spare Parts for Lawn Mower ELM3311

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for repair Lawn Mower ELM3311.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita ELM3311
Lawn Mower ELM3311
# Part Num. Description
1 671001008 SCREW M10 FOR ELM3310-3710
2 671002550 BLADE EM3300
3 671492001 FAN ELM3310-3710
4 671051300 BUSH
5 671005131 BLUE FRAME
6 671003028 HUB COVER
7 671919001 WHEEL D.140MM
8 671002281 PLATE
9 671107301 SCREW 4X16
10 671909001 FRONT
11 671920001 WHEEL D.177MM
12 671003029 REAR WHEEL COVER
13 671002015 1100W ELM3310 ENGINE
14 671001053 SCREW 6X30 ELM3310-3710
15 671912001 DEFLECTOR
16 671911001 ENGINE COVER
17 671913001 HANDLE
18 671090005 PIN
19 671001067 PIN 6X168
20 671011214 SPRING
21 671918001 REAR COVER
22 671001023 ELM3310 STRING CABLE
23 DA00001194 CAPACITOR
24 671001046 SCREW M8X19 PM5120-5120S
25 671001712 LOWER HANDLE
26 671277001 CABLE SUPPORT
27 671284001 BUSH 2 ELM3310-3710
28 671005016 NUT M6 PLM4110-4610-4611
29 671007007 WASHER 8 ELM3310-3710
30 671001198 PLUG ELM3310-3710
31 671005136 REGULATOR
32 671005136 REGULATOR
33 671005136 REGULATOR
34 671005136 REGULATOR
35 671001083 CLAMP ELM3310-3710
36 671001003 SCREW 4X12 ELM3310-3710
37 671001052 SUPPORT FOR CABLE ELM 3310-3710
38 671425003 SECURITY KEY
39 671011079 SPRING ELM3310-3710
40 DA00000819 RIGHT SWITCH BOX
41 671001043 SCREEN ELM3310-3710
42 671010040 ELM3310-3710 SWITCH
43 671069001 LH SWITCH BOX
44 671077001 LH SWITCH BOX
45 671283001 BUSH 1 ELM3310-3710
46 671010050 CABLE 1150MM ELM3310-3710
47 DA00001053 CABLE CLAMP
48 DA00001131 POWER CABLE
49 671428001 PLATE ELM3310-3710
50 671001036 SCREW 3X10 ELM3310-3710
51 671011124 SPRING EM3310-3710
52 671072001 DX CONNECTOR
53 671001021 SCREW 4X10
54 671001648 ENGINE BRAKE LEVER
55 671071001 LH CONNECTOR
56 671001613 UPPER HANDLE
57 671073001 SUPPORT LH
58 671074001 RH SUPPORT
59 671002302 BAG FRAME
61 671914001 COVER BAG
62 671107101 LEVEL INDICATOR
63 671921001 BAG HANDLE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita ELM3311
12 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Lawn Mowers
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita ELM3311

Diagram Makita ELM3311

Download (209.34KB)
