Makita Spare Parts for Electric Chainsaws UC3500A

SKU: Makita UC3500A
€32.54
VAT included

Makita Spare Parts for Electric Chainsaw UC3500A

We have the original Makita Spare Parts for Electric Chainsaw UC3500A, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Electric Chainsaw UC3500A. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Electric Chainsaws UC3500A
  • Makita Spare Parts for Electric Chainsaws UC3500A
  • Makita Spare Parts for Electric Chainsaws UC3500A
  • Makita Spare Parts for Electric Chainsaws UC3500A
  • Makita Spare Parts for Electric Chainsaws UC3500A

Makita Spare Parts for Electric Chainsaws UC3500A

SKU: Makita UC3500A Condition: New
€32.54
VAT included

Makita Spare Parts for Electric Chainsaw UC3500A

We have the original Makita Spare Parts for Electric Chainsaw UC3500A, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Electric Chainsaw UC3500A. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 53 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

48 spare parts
Pos. Item Price Buy
2
photo_cameraImage coming soon 913550255 SCREW 5X25 X UC €1.43
17
photo_cameraImage coming soon 632686-8 CABLE BLACK / WHITE UC3000-3500 €2.75
17
photo_cameraImage coming soon 921452-1 BOLT 8X30 €1.58
30
photo_cameraImage coming soon 915135100 FILLISTER (TORX)HEAD SCREW 3,5 €1.40
30
photo_cameraImage coming soon 970102110 COMPLETE CABLE X DES380 €19.17
40
photo_cameraImage coming soon 225213050 BRAKE SPRING X UC €4.53
40
photo_cameraImage coming soon 416179-1 SWITCH ROD UC3000-3500-4000A €2.14

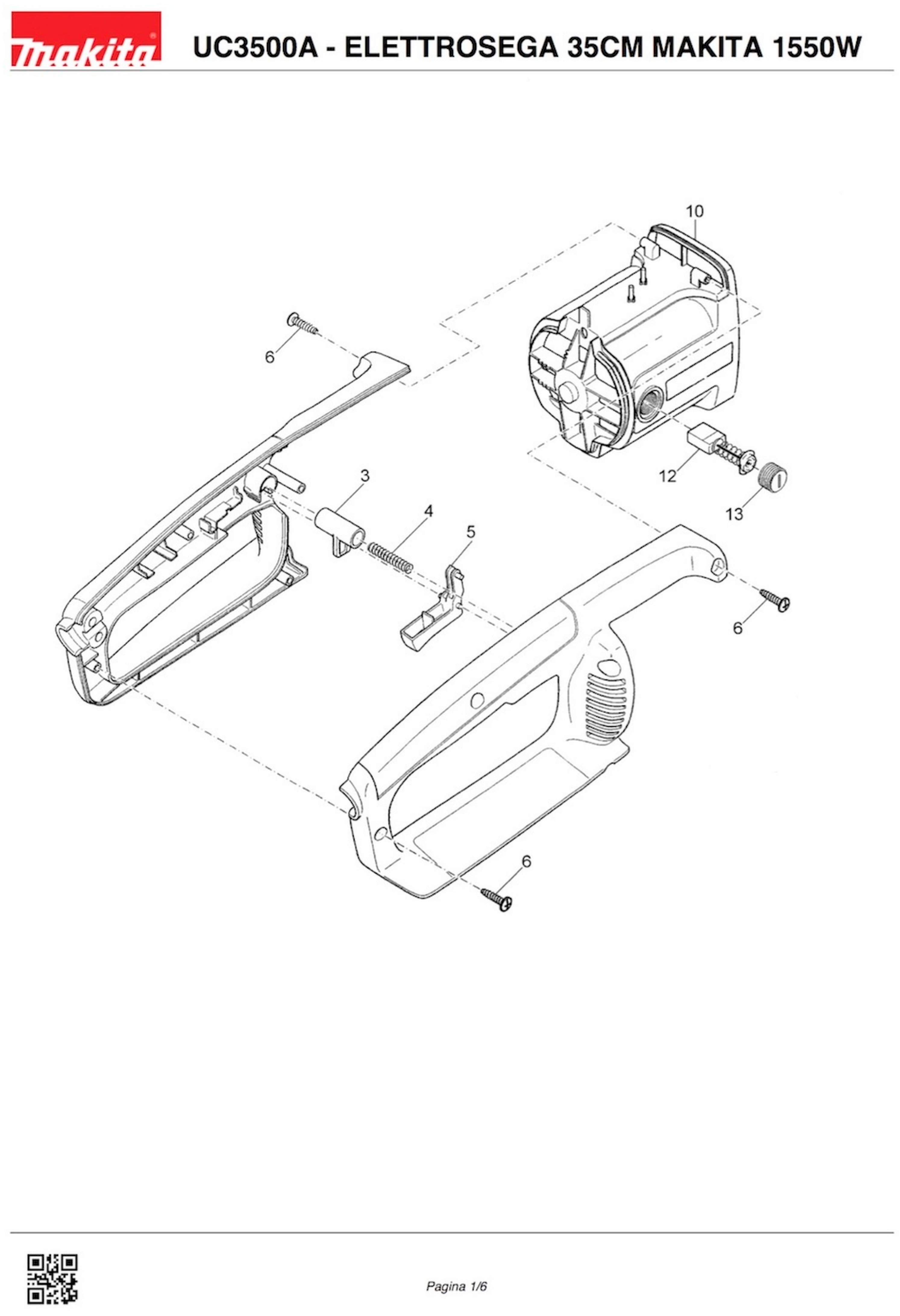

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 211111-8 BEARING 6301 X UC €5.67
3
photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.47
4
photo_cameraImage coming soon 211057-8 BEARING 629 X UC €4.89
4
photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.47
5
photo_cameraImage coming soon 970802610 SPACER X UC3000-3500-40 €1.43
6
photo_cameraImage coming soon 233174-4 SPRING LOCK. X UC €1.54
6
photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
6
photo_cameraImage coming soon 913550555 SCREW 5X55 UC3000-3500-4000A €1.42
10
photo_cameraImage coming soon 225111660 HOUSING MOTOR X UC3000-3500 €28.38
10
photo_cameraImage coming soon 225118010 GUIDE PLATE X UC €1.86
10
photo_cameraImage coming soon 970109810 CAPACITOR XUC3000-3500-4000 €2.75
13
photo_cameraImage coming soon 316875-0 GEAR HOUSING €19.42
13
photo_cameraImage coming soon 643755-0 CAP BRUSH HOLDER X UB1101 €2.14

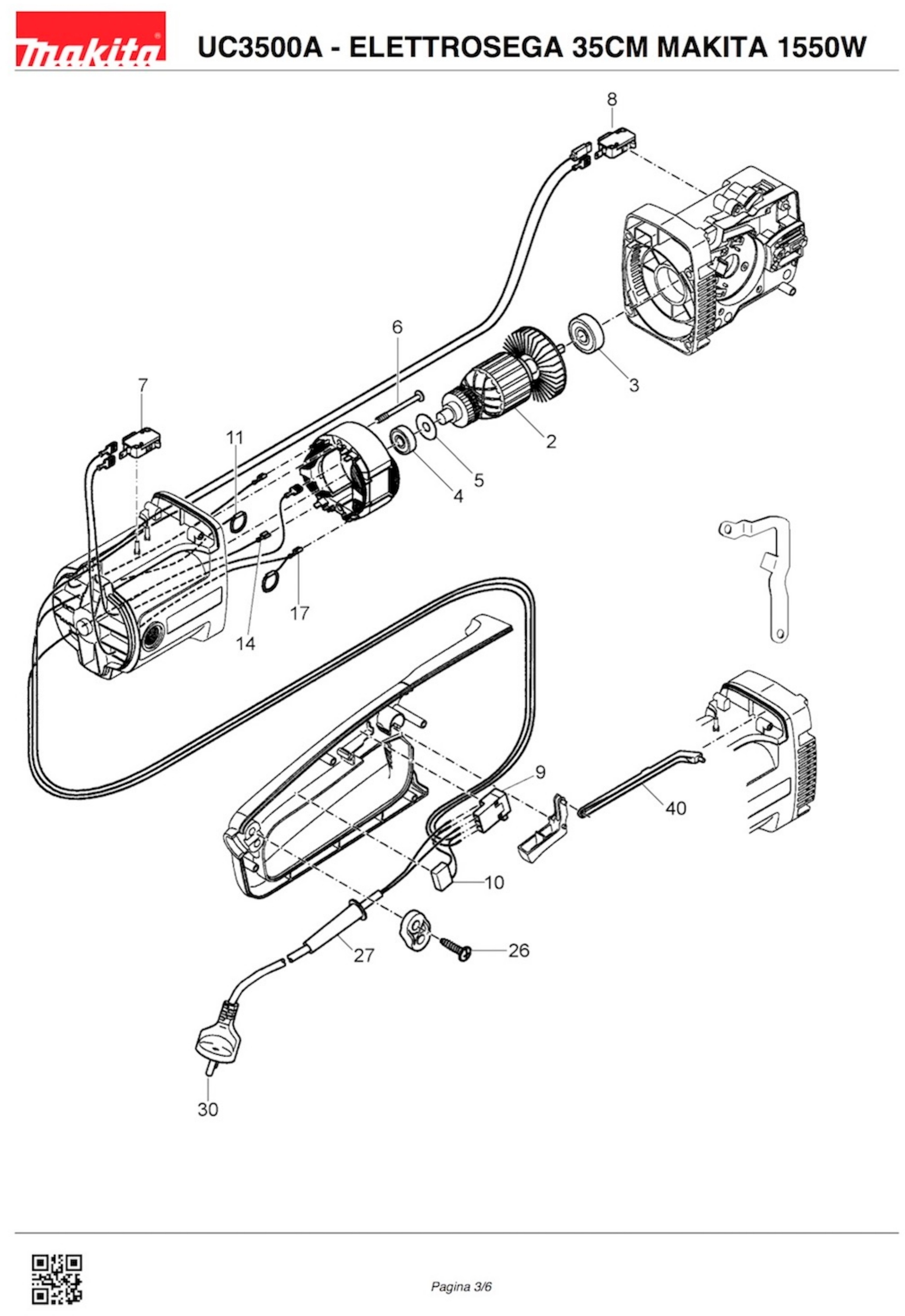

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
7
photo_cameraImage coming soon 970001180 SWITCH DES380 €10.13
8
Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A 970001200 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A €5.18 Not available for order
9
Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A 651923-1 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A €14.89
11
photo_cameraImage coming soon 632681-8 CABLE (ORANGE) XUC3000-3500 €2.14
14
photo_cameraImage coming soon 970311330 CABLE (YELLOW) X UC3000-3500 €1.43
26
Oil Pump for Electric Chainsaw Makita UC3500A 021245007 Oil Pump for Electric Chainsaw Makita UC3500A €38.40
27
photo_cameraImage coming soon 682574-9 CABLE SLEEVE 10-90 PC5000C €1.47

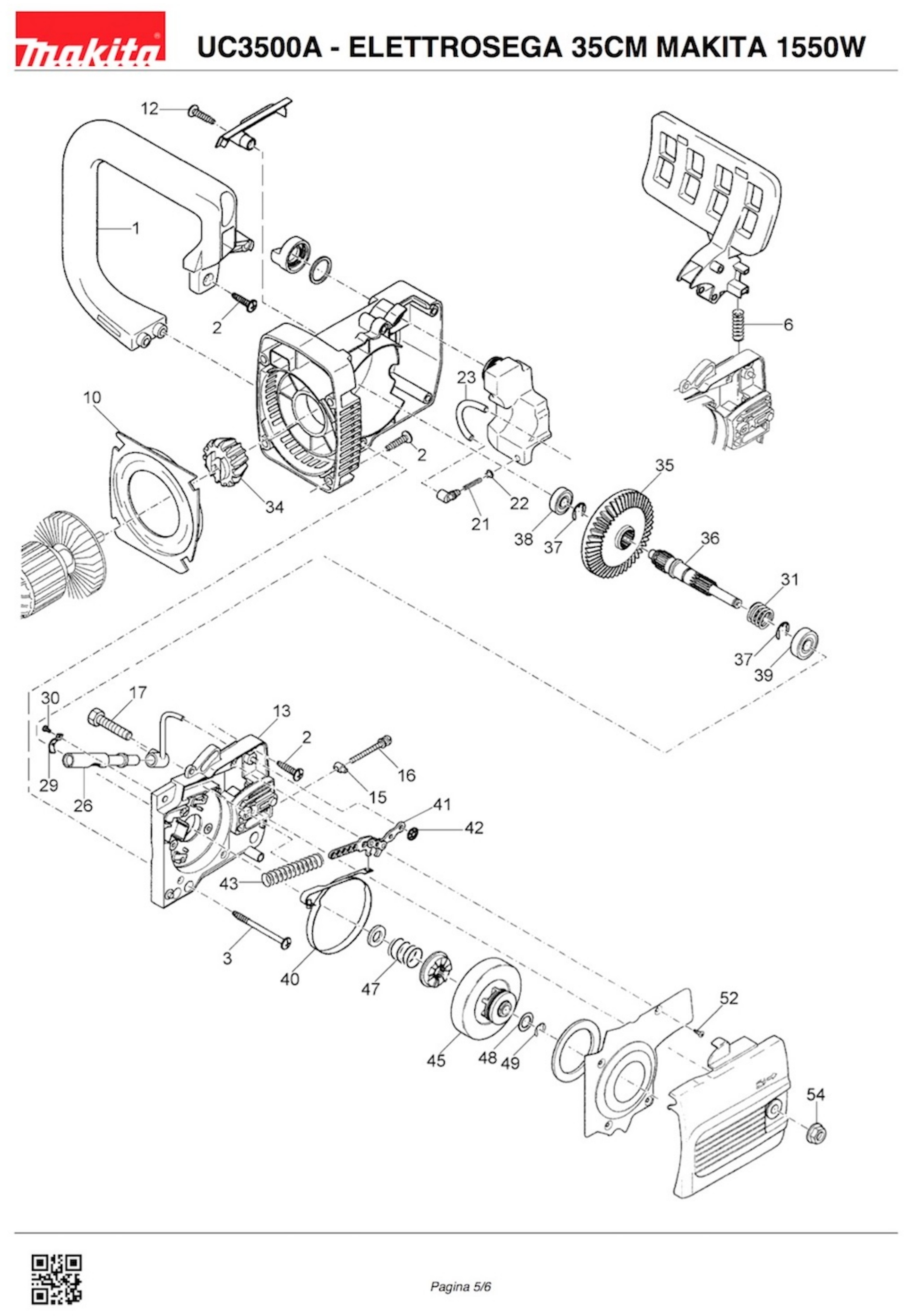

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 225310021 HANDLE CX UC3000-3500 €10.13
15
photo_cameraImage coming soon 001213042 PIN TENSIONER X PS 34 €5.13
16
photo_cameraImage coming soon 901505354 SCREW M5X35 X UC €1.40
21
photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
22
photo_cameraImage coming soon 416274-7 PLUG OIL PIPE X DCS230T €1.47
23
photo_cameraImage coming soon 965452382 FUEL TUBE 1mt Diam. 3/5 €12.56
29
photo_cameraImage coming soon 203245002 HOLDER OIL PUMP X DES €2.78
31
photo_cameraImage coming soon 021245040 WORM €2.37
34
photo_cameraImage coming soon 226743-8 PINION UC3000-3500-4000A €4.89
35
photo_cameraImage coming soon 226741-2 CPL GEARGE UC €4.24
37
photo_cameraImage coming soon 259034-2 SAFETY WASHER X UC €1.54
38
photo_cameraImage coming soon 960101084 BEARING 608Z X UC €5.25
39
photo_cameraImage coming soon 211107-9 BEARING 6201 €9.40
41
photo_cameraImage coming soon 158044-5 RETAINING SPRING BRAKE X UC €6.61
42
photo_cameraImage coming soon 930304030 FIXING WASHER X UC €1.43
43
photo_cameraImage coming soon 028213521 SPRING X UC3000-3500-4000A €1.40
47
photo_cameraImage coming soon 225184012 PRESSURE SPRING UC3000-3500 €1.25
48
Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
49
photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
52
photo_cameraImage coming soon 915835100 SCREW 3.5X9.5 CU €1.43
54
Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Chainsaw UC3500A

We have the original Makita Spare Parts for Electric Chainsaw UC3500A, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Electric Chainsaw UC3500A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Electric Saws and the respective parts of the code.
Makita UC3500A

Electric Chainsaws UC3500A
# Part Num. Description
3 416178-3 UNLOCKING BUTTON X UC3020A
4 233173-6 COMPRESSION SPRING 4 FOR UC3020A
5 416177-5 LEVER SWITCH X UC-ES
6 913540185 SCREW 4X18 UC3000-3500-4000A
10 225111660 HOUSING MOTOR X UC3000-3500
12 957802410 CARBON BRUSHES X UH4520-5520-7020
13 643755-0 CAP BRUSH HOLDER X UB1101
2 616733-3 ARMATURE X UC3000-3500-4000A
3 211111-8 BEARING 6301 X UC
4 211057-8 BEARING 629 X UC
5 970802610 SPACER X UC3000-3500-40
6 913550555 SCREW 5X55 UC3000-3500-4000A
7 970001180 SWITCH DES380
8 970001200 SWITCH X UC3000-3500-4000A
9 651923-1 SWITCH TG70B X 5903R
10 970109810 CAPACITOR XUC3000-3500-4000
11 632681-8 CABLE (ORANGE) XUC3000-3500
14 970311330 CABLE (YELLOW) X UC3000-3500
17 632686-8 CABLE BLACK / WHITE UC3000-3500
26 913540185 SCREW 4X18 UC3000-3500-4000A
27 682574-9 CORD GUARD HOSE 10-90 PC5000C
30 970102110 COMPLETE CABLE X DES380
40 416179-1 SWITCH ROD UC3000-3500-4000A
1 225310021 HANDLE CX UC3000-3500
2 913550255 SCREW 5X25 X UC
3 913550555 SCREW 5X55 UC3000-3500-4000A
6 233174-4 SPRING X UC
10 225118010 GUIDE PLATE X UC
12 913540185 SCREW 4X18 UC3000-3500-4000A
13 316875-0 GEAR HOUSING
15 001213042 PIN TENSIONER X PS 34
16 901505354 SCREW M5X35 X UC
17 921452-1 HEXAGONAL BOLT 8X30
21 231975-4 SPRING OIL TUBE X DCS230T
22 416274-7 OIL TUBE CAP X DCS230T
23 965452382 FUEL TUBE 1mt Diam.3 / 5.5
26 021245007 METAL OIL PUMP
29 203245002 HOLDER OIL PUMP X DES
30 915135100 SCREW 3.5 X 9.5
31 021245040 WORM
34 226743-8 PINION UC3000-3500-4000A
35 226741-2 CPL GEARGE UC
36 225221030 SHAFT X UC3000-3500-4000A - DISCONTINUED
37 259034-2 SAFETY WASHER X UC
38 960101084 BEARING 608Z X UC
39 211107-9 BEARING 6201 X 9524NB
40 225213050 BRAKE SPRING X UC
41 158044-5 RETAINING BRAKE SPRING X UC
42 930304030 FIXING WASHER X UC
43 028213521 SPRING X UC3000-3500-4000A
45 225223112 CLUTCH DRUM X UC
47 225184012 PRESSURE SPRING UC3000-3500
48 253215-0 FLAT WASHER 8 6510PBL / LVR
49 259033-4 SAFETY WASHER X UC
52 915835100 SCREW 3.5X9.5 CU
54 264055-1 NUT M8
