Makita Spare Parts for Electric Hedge Trimmer UH7580
Makita genuine spare parts or replacement parts for to repair Electric Hedge Trimmer UH7580.

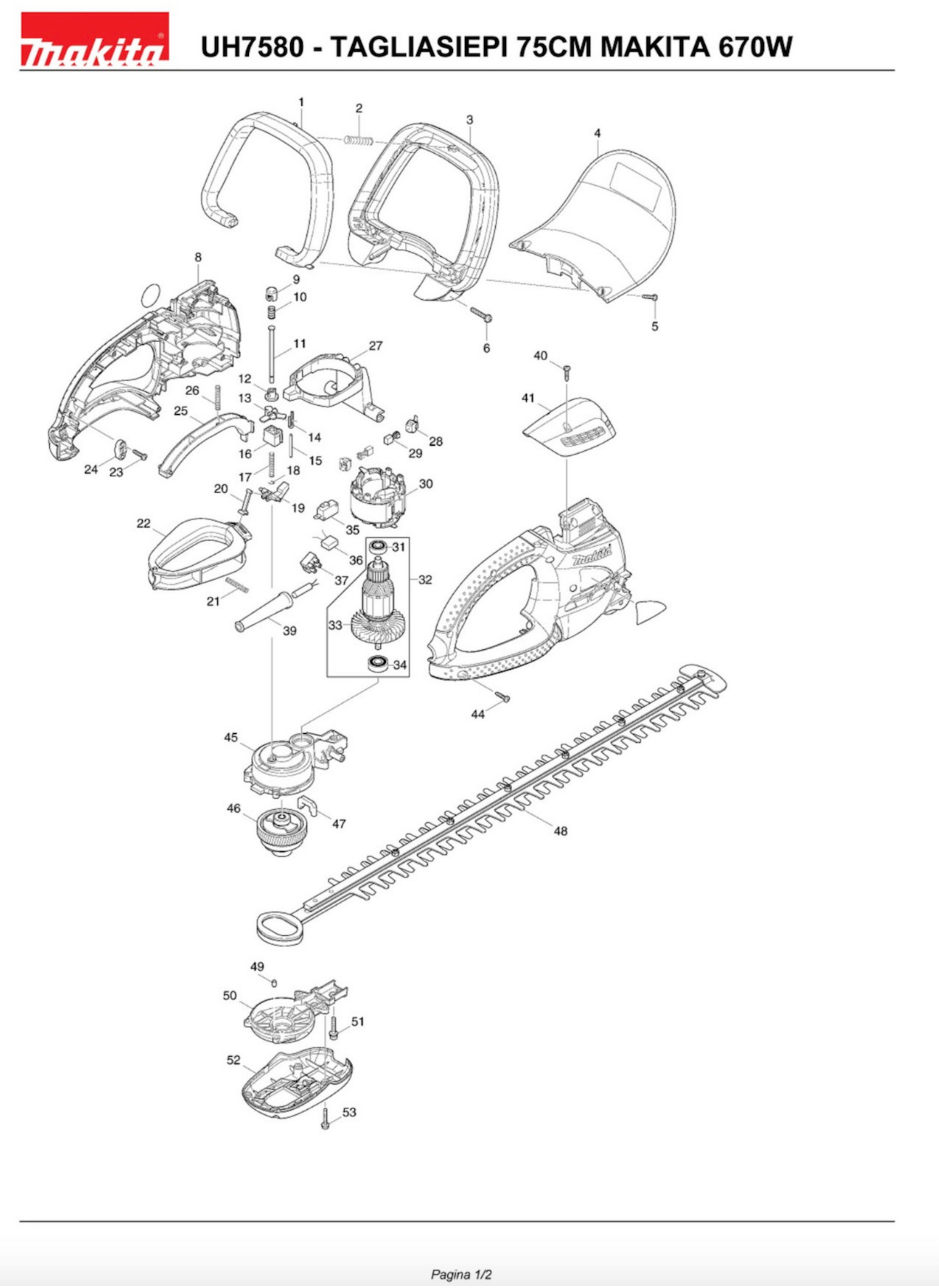

In the following table, look for the model of the Trimmer and the respective parts of the code.

| Electric Hedge Trimmer UH7580 |
| # |
Part Num. |
Description |
| 1 |
450444-8 |
LEVER SWITCH B X UH5570 |
| 2 |
233157-4 |
SPRING COMP. 9 X UH5570 |
| 3 |
450442-2 |
FRONT HANDLE UH5570 |
| 4 |
158629-7 |
HAND PROTECTION X UH5570 |
| 5 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 6 |
911253-5 |
SCREW M 5 X 30 X JR3030T |
| 8 |
188569-5 |
HOUSING MOT. X UH6580 |
| 9 |
417740-7 |
CAP X UH5570 |
| 10 |
233288-9 |
SPRING COMPRESSION 8 X RP1100C |
| 11 |
268077-3 |
PIN 5 X UH5570 |
| 12 |
417727-9 |
HOLDER CAP X UH5570 |
| 13 |
417736-8 |
ROCKER X UH5570 |
| 14 |
417735-0 |
CAP X UH5570 |
| 15 |
268078-1 |
PIN 3 X UH6580 |
| 16 |
417781-3 |
HOLDER PIN X UH5570 |
| 17 |
233156-6 |
SPRING COMP. 5 X UH5570 |
| 18 |
257934-0 |
RETAINING RING E-4 X UH6580 |
| 19 |
417737-6 |
LEVERAGE UH5570 |
| 20 |
417739-2 |
ROD X UH5570 |
| 21 |
233156-6 |
SPRING COMP. 5 X UH5570 |
| 22 |
417731-8 |
LEVER SWITCH. C X UH5570 |
| 23 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 24 |
687063-9 |
BOOT X 4304T |
| 25 |
450443-0 |
LEVER SWITCH. A X UH5570 |
| 26 |
233156-6 |
SPRING COMP. 5 X UH5570 |
| 27 |
417738-4 |
LEVER X UH6580 |
| 28 |
643936-6 |
BRUSH 8450 |
| 29 |
191962-4 |
CARBON BRUSHES CB-419 (406.407) 6408 |
| 30 |
594578-8 |
STATOR FOR UH6580 |
| 31 |
211032-4 |
BEARING X 1902 |
| 32 |
516499-4 |
ARMATURE FOR UH6580 |
| 33 |
241858-0 |
FAN 70 X 5704R |
| 34 |
211062-5 |
BEARING 6000 X9524NB |
| 35 |
650522-6 |
SWITCH X UH6580 |
| 36 |
645185-1 |
CAPACITOR SP6000K |
| 37 |
654531-7 |
CLAMP X 420S |
| 39 |
682503-2 |
SLEEVE PROTECTING_COVER X HM1500 |
| 40 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 41 |
450445-6 |
COVER SUP. X UH6580 |
| 44 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 45 |
318257-2 |
BOX ING. X UH6580 |
| 46 |
135217-7 |
GEAR X UH6580 |
| 47 |
443142-1 |
Dust Cap UH5570 |
| 48 |
194675-6 |
BLADE COMPLETE X UH7580 |
| 49 |
263002-9 |
RUBBER PIN 4 |
| 50 |
318265-3 |
COVER SCAT.INGR. UH6580 |
| 51 |
265182-7 |
SCREW M5x25 X UH5570 |
| 52 |
450440-6 |
COVER LOWER. UH5570 |
| 53 |
911546-0 |
HEAD SCREW CILIND. M4x25 |
