Makita

Makita Spare Parts for Electric Hedge Trimmer UH5570

SKU: Makita UH5570
€16.39
VAT included

Makita Spare Parts for Electric Hedge Trimmer UH5570

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Electric Hedge Trimmer UH5570.
Makita Spare Parts for Electric Hedge Trimmer UH5570
  • Makita Spare Parts for Electric Hedge Trimmer UH5570
  • Makita Spare Parts for Electric Hedge Trimmer UH5570
Makita

Makita Spare Parts for Electric Hedge Trimmer UH5570

SKU: Makita UH5570 Condition: New
€16.39
VAT included

Makita Spare Parts for Electric Hedge Trimmer UH5570

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Electric Hedge Trimmer UH5570.
settings 45 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approxox

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

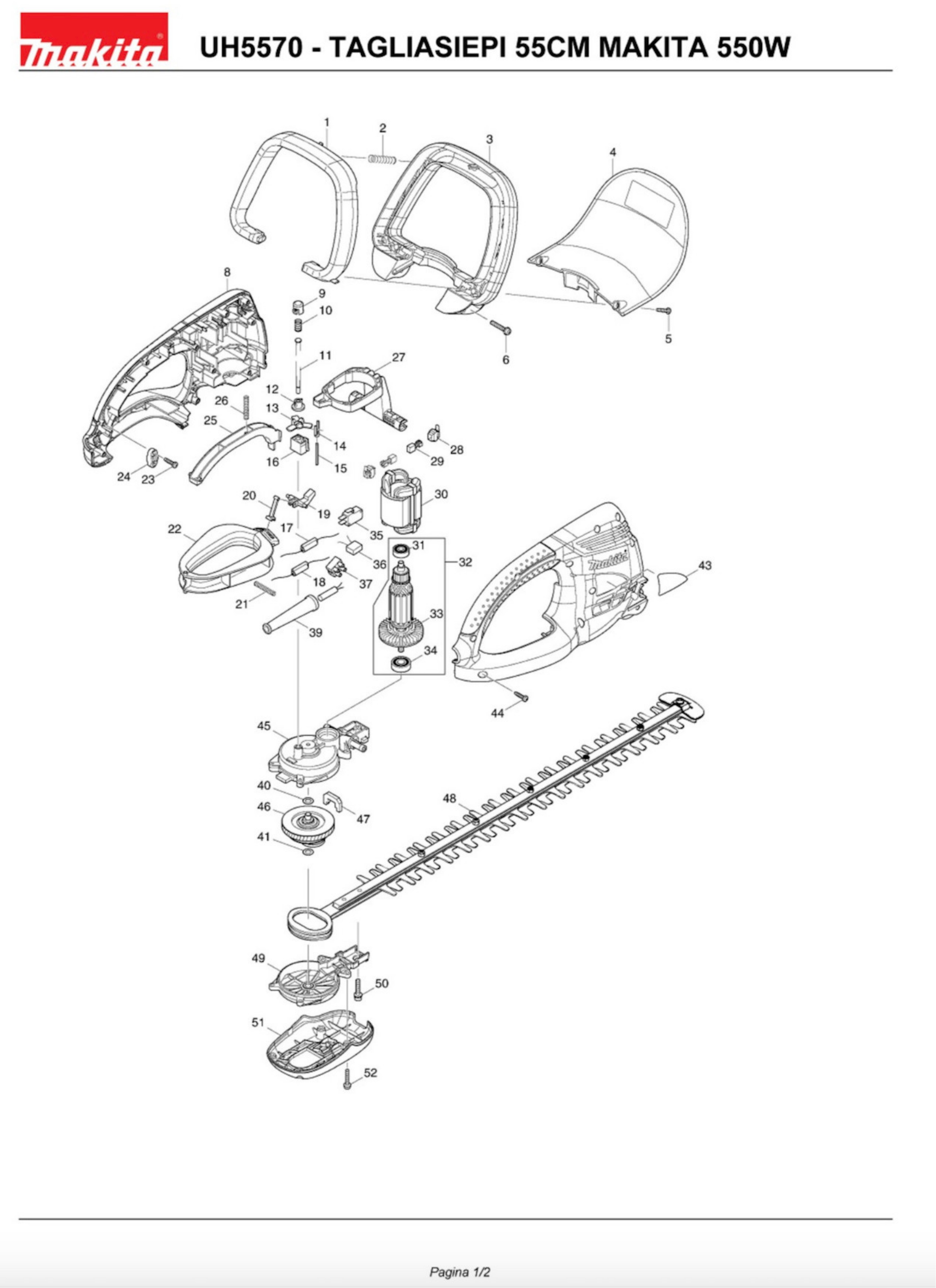

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 450444-8 LEVER SWITCH B X UH5570 €8.40
2
 photo_cameraImage coming soon 233157-4 SPRING COMP. 9 X UH5570 €1.38
3
 photo_cameraImage coming soon 450442-2 FRONT HANDLE UH5570 €14.17
4
 Hand Guard for Hedge Trimmer Makita UH5570 158629-7 Hand Guard for Hedge Trimmer Makita UH5570 €8.90
5
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
6
 photo_cameraImage coming soon 911253-5 SCREW M 5 X 30 X JR3030T €1.42
8
 photo_cameraImage coming soon 188567-9 HOUSING MOT. X UH5570 €35.33
9
 photo_cameraImage coming soon 417740-7 CAP X UH5570 €1.38
10
 photo_cameraImage coming soon 233288-9 SPRING COMPRESSION 8 X RP1100C €1.38
11
 photo_cameraImage coming soon 268077-3 PIN 5 X UH5570 €8.40
12
 photo_cameraImage coming soon 417727-9 HOLDER CAP X UH5570 €1.38
13
 photo_cameraImage coming soon 417736-8 ROCKER X UH5570 €1.38
14
 photo_cameraImage coming soon 417735-0 CAP X UH5570 €1.38
15
 photo_cameraImage coming soon 268237-7 ROD 3 X UH5570 €1.88
16
 photo_cameraImage coming soon 417781-3 HOLDER PIN X UH5570 €2.07
17
 photo_cameraImage coming soon 646206-2 COIL X UH5570 CH9-206 €1.47
18
 photo_cameraImage coming soon 646207-0 COIL X UH5570 CH9-207 €1.47
19
 photo_cameraImage coming soon 417737-6 LEVERAGE UH5570 €1.38
20
 photo_cameraImage coming soon 417739-2 ROD X UH5570 €1.38
21
 photo_cameraImage coming soon 233156-6 SPRING COMP. 5 X UH5570 €1.38
22
 photo_cameraImage coming soon 417731-8 LEVER SWITCH. C X UH5570 €4.39
23
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
24
 photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
25
 photo_cameraImage coming soon 450443-0 LEVER SWITCH. A X UH5570 €3.10
26
 photo_cameraImage coming soon 233156-6 SPRING COMP. 5 X UH5570 €1.38
27
 photo_cameraImage coming soon 450488-8 LEVER X UH5570 €5.90
28
 photo_cameraImage coming soon 643936-6 BRUSH 8450 €5.40
29
 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
30
 photo_cameraImage coming soon 621733-0 STATOR FOR UH5570 €17.92
31
 photo_cameraImage coming soon 211027-7 BEARING 627ZZ X UH5570 €2.19
32
 photo_cameraImage coming soon 515738-9 ARMATURE UH5570 €28.42
33
 photo_cameraImage coming soon 241850-6 FAN X HR2400 €3.84
34
 photo_cameraImage coming soon 211062-5 BEARING 6000 X9524NB €7.81
35
 photo_cameraImage coming soon 650628-0 SWITCH X UH4570 €5.24
36
 photo_cameraImage coming soon 645190-8 CAPACITOR X MT952 €3.18
37
 photo_cameraImage coming soon 654531-7 CLAMP X 420S €5.13
39
 photo_cameraImage coming soon 682503-2 SLEEVE PROTECTING_COVER X HM1500 €2.69
40
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
41
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
44
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
45
 photo_cameraImage coming soon 158625-5 BOX ING. X UH5570 €11.65
46
 photo_cameraImage coming soon 158623-9 GROUP GEAR X UH5570 €28.42
47
 photo_cameraImage coming soon 443142-1 Dust Cap UH5570 €1.38
48
 photo_cameraImage coming soon 194663-3 BLADE ASSEMBLED UH5570 €56.76
49
 photo_cameraImage coming soon 158626-3 COVER SCAT.INGR. UH5570 €6.88
50
 photo_cameraImage coming soon 265182-7 SCREW M5x25 X UH5570 €1.38
51
 photo_cameraImage coming soon 450440-6 COVER LOWER. UH5570 €7.50
52
 photo_cameraImage coming soon 911546-0 HEAD SCREW CILIND. M4X25 €1.36

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Hedge Trimmer UH5570

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Electric Hedge Trimmer UH5570.

In the following table, look for the model of the Trimmer and the respective parts of the code.
Makita UH5570

Electric Hedge Trimmer UH5570
# Part Num. Description
1 450444-8 LEVER SWITCH B X UH5570
2 233157-4 SPRING COMP. 9 X UH5570
3 450442-2 FRONT HANDLE UH5570
4 158629-7 HAND PROTECTION X UH5570
5 265995-6 SCREW M4X18 X 6408 / 6221DW
6 911253-5 SCREW M 5 X 30 X JR3030T
8 188567-9 HOUSING MOT. X UH5570
9 417740-7 CAP X UH5570
10 233288-9 SPRING COMPRESSION 8 X RP1100C
11 268077-3 PIN 5 X UH5570
12 417727-9 HOLDER CAP X UH5570
13 417736-8 ROCKER X UH5570
14 417735-0 CAP X UH5570
15 268237-7 ROD 3 X UH5570
16 417781-3 HOLDER PIN X UH5570
17 646206-2 COIL X UH5570 CH9-206
18 646207-0 COIL X UH5570 CH9-207
19 417737-6 LEVERAGE UH5570
20 417739-2 ROD X UH5570
21 233156-6 SPRING COMP. 5 X UH5570
22 417731-8 LEVER SWITCH. C X UH5570
23 265995-6 SCREW M4X18 X 6408 / 6221DW
24 687063-9 BOOT X 4304T
25 450443-0 LEVER SWITCH. A X UH5570
26 233156-6 SPRING COMP. 5 X UH5570
27 450488-8 LEVER X UH5570
28 643936-6 BRUSH 8450
29 191962-4 CARBON BRUSHES CB-419 (406.407) 6408
30 621733-0 STATOR FOR UH5570
31 211027-7 BEARING 627 ZZ X UH5570
32 515738-9 ARMATURE UH5570
33 241850-6 FAN X HR2400
34 211062-5 BEARING 6000 X9524NB
35 650628-0 SWITCH X UH4570
36 645190-8 CAPACITOR X MT952
37 654531-7 CLAMP X 420S
39 682503-2 SLEEVE PROTECTING_COVER X HM1500
40 253215-0 ROND. FLAT 8 6510PBL / LVR
41 253215-0 ROND. FLAT 8 6510PBL / LVR
43 865765-9 UH5570 LABEL
44 265995-6 SCREW M4X18 X 6408 / 6221DW
45 158625-5 BOX ING. X UH5570
46 158623-9 GROUP GEAR X UH5570
47 443142-1 Dust Cap UH5570
48 194663-3 BLADE ASSEMBLED UH5570
49 158626-3 COVER SCAT.INGR. UH5570
50 265182-7 SCREW M5x25 X UH5570
51 450440-6 COVER LOWER. UH5570
52 911546-0 HEAD SCREW CILIND. M4x25
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita UH5570
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita UH5570

Diagram Makita UH5570

Download (210.97KB)
