Makita Spare Parts for Trimmer EH5000W

SKU: Makita EH5000W Condition: New
€1.43
VAT included

Makita Spare Parts for Hedge Trimmer EH5000W

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer EH5000W.
settings 130 spare parts

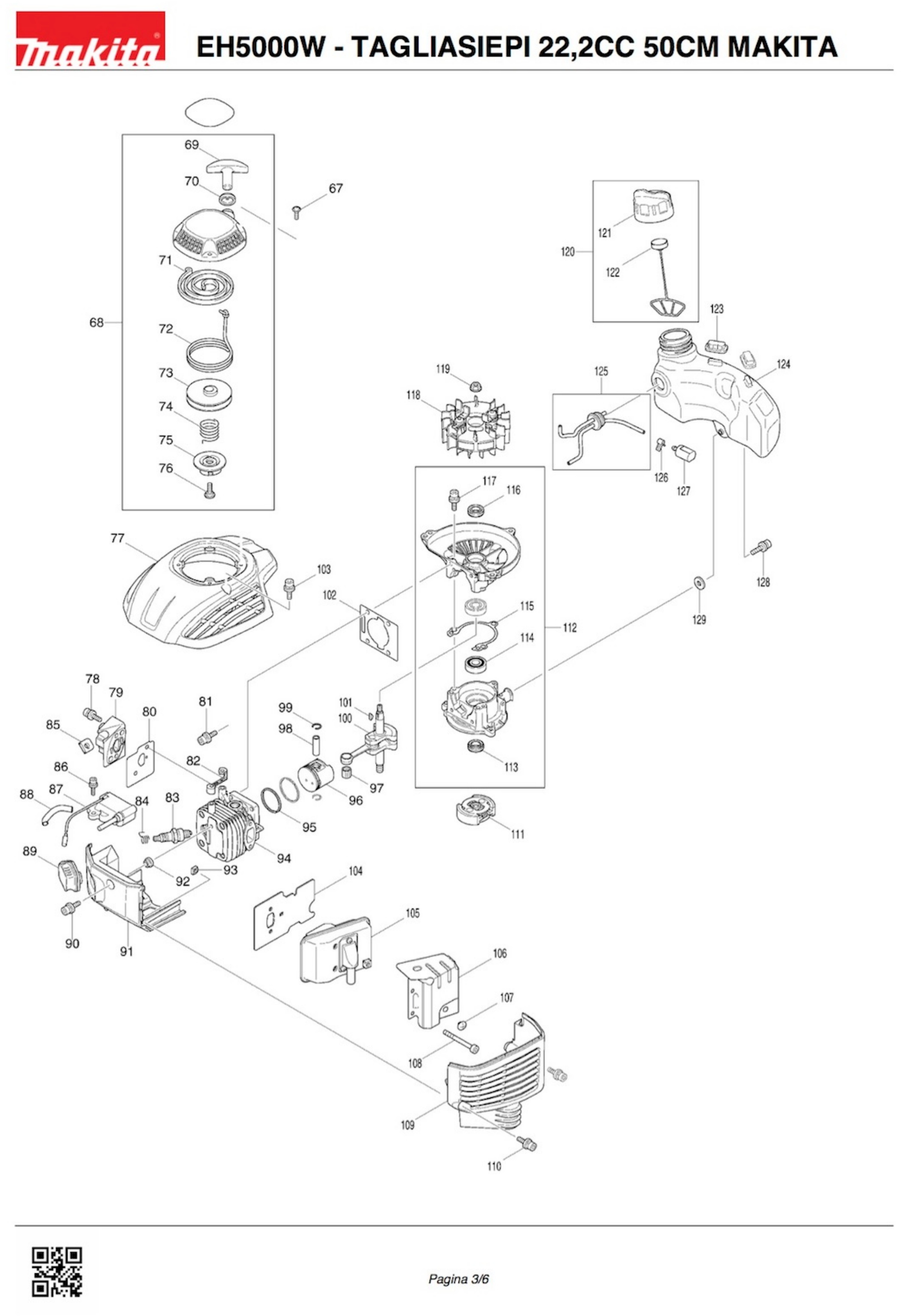

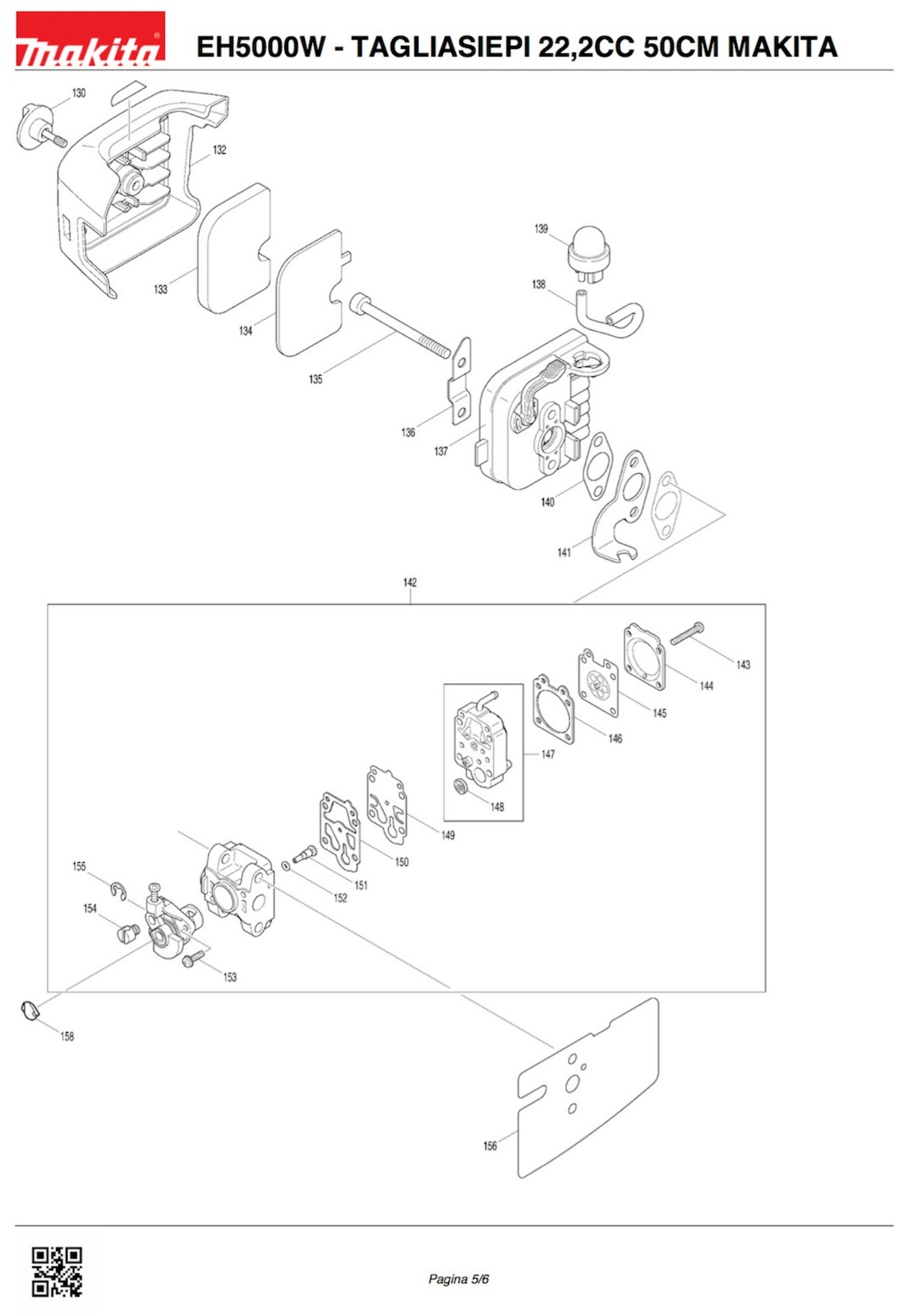

description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
130 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

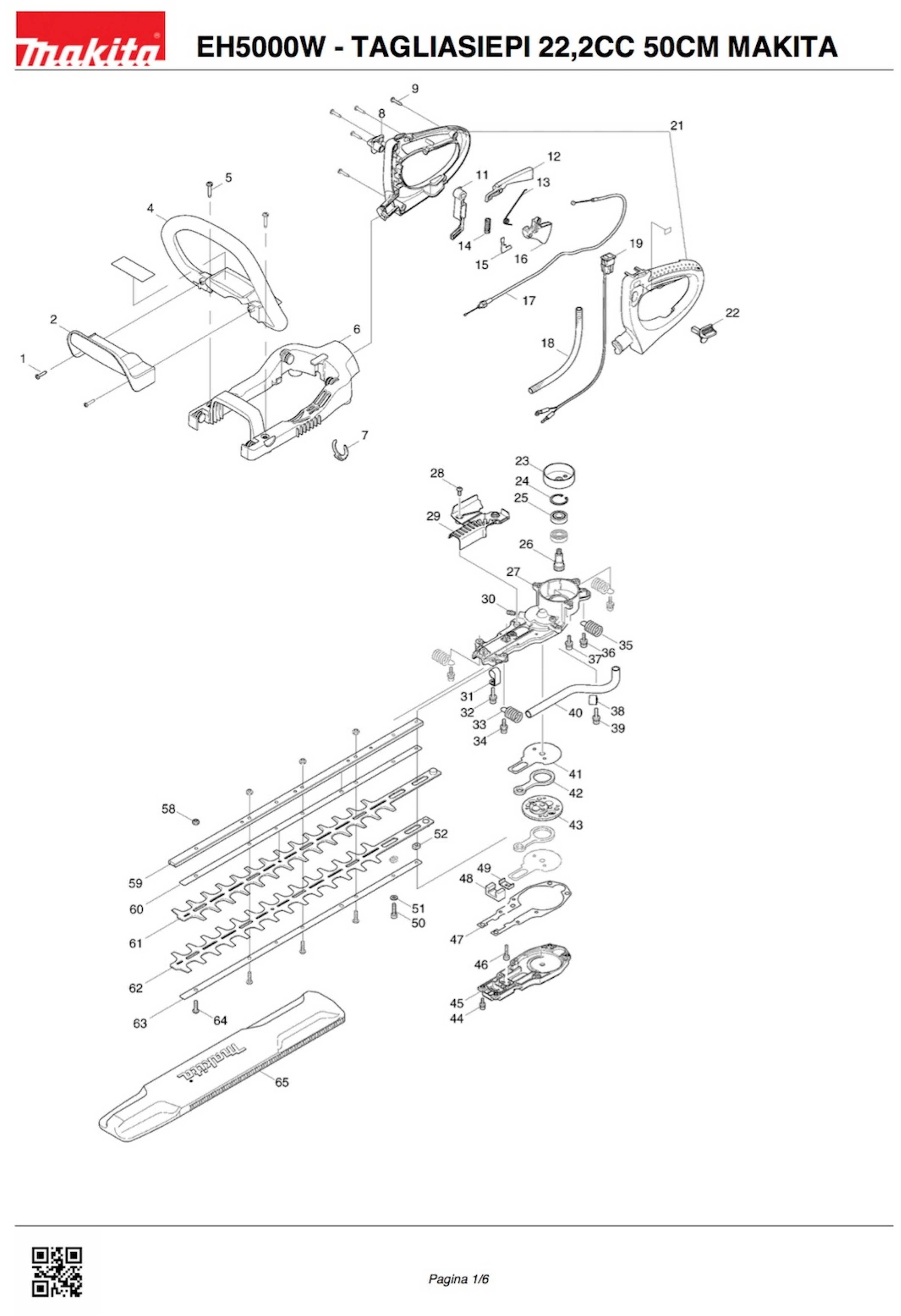

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
2
 photo_cameraImage coming soon 452322-8 GUARD X EH5000W €10.70
4
 photo_cameraImage coming soon 452321-0 FRONT HANDLE EH5000W €30.78
5
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.70
6
 photo_cameraImage coming soon 452319-7 BASE HANDLE X EH5000W €18.01
7
 photo_cameraImage coming soon 452323-6 RING LOCK 25 X EH5000W €2.25
8
 photo_cameraImage coming soon 452316-3 LOCKING LEVER B X EH5000W €2.89
9
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
11
 photo_cameraImage coming soon 452314-7 STOP FOR EH5000W €3.39
12
 photo_cameraImage coming soon 452313-9 LEVER B X EH5000W €3.39
13
 photo_cameraImage coming soon 233579-8 TORSION SPRING 8 X EH5000W €3.39
14
 photo_cameraImage coming soon 234204-4 COMPRESSION SPRING 8 X EH5000W €2.25
15
 photo_cameraImage coming soon 413153-0 PLATE X EH5000W €2.25
16
 photo_cameraImage coming soon 452312-1 LEVER A X EH5000W €3.39
17
 photo_cameraImage coming soon 168625-7 THROTTLE CABLE X EH5000W €10.70
18
 photo_cameraImage coming soon 452324-4 PIPE X EH5000W €4.15
19
 photo_cameraImage coming soon 125858-7 SWITCH X EH5000W €38.69
21
 photo_cameraImage coming soon 187049-8 REAR HANDLE X EH5000W €23.31
22
 photo_cameraImage coming soon 452315-5 LOCKING LEVER A X EH5000W €2.89
23
 Clutch Drum for Hedgetrimmer Makita EH5000W 168567-5 Clutch Drum for Hedgetrimmer Makita EH5000W €17.67
24
 photo_cameraImage coming soon 0031428000 INNER SNAPRING X RBC410/520 €2.77
25
 photo_cameraImage coming soon 0600129780 BEARING X EH7500S €9.20
26
 photo_cameraImage coming soon 227247-3 GEAR 9 X EH7500S €9.20
27
 Gear Case for Hedgetrimmer Makita EH5000W 141033-7 Gear Case for Hedgetrimmer Makita EH5000W €65.20
28
 photo_cameraImage coming soon 0119059400 SCREW M5 X 12 X EH7500S €1.44
29
 photo_cameraImage coming soon 451865-7 BAFFLE PLATE X EH7500S €3.95
30
 photo_cameraImage coming soon 243107-1 GREASE NIPPLE EH7500S €2.15
31
 photo_cameraImage coming soon 346253-0 HOLDER X EH7500S €2.15
32
 photo_cameraImage coming soon 0119059780 BOLT M5X12 RBC260 / 230RBK410 €1.97
33
 photo_cameraImage coming soon 234224-8 COMPRESSION SPRING 15 X EH5000W €5.55
34
 photo_cameraImage coming soon 0119059360 SCREW X EH7500S €2.15
35
 Compression Spring 15 for Hedgetrimmer Makita EH5000W 234202-8 Compression Spring 15 for Hedgetrimmer Makita EH5000W €4.58
36
 photo_cameraImage coming soon 0119059360 SCREW X EH7500S €2.15
37
 photo_cameraImage coming soon 0119059870 BOLT X RBC230 €2.89
38
 photo_cameraImage coming soon 346252-2 HOLDER X EH7500S €2.15
39
 photo_cameraImage coming soon 0119059780 BOLT M5X12 RBC260 / 230RBK410 €1.97
40
 photo_cameraImage coming soon 331896-1 PIPE X EH7500S €6.82
41
 photo_cameraImage coming soon 346255-6 PLATE ECCENTRICO X EH7500S €3.95
42
 Connect Rod for Hedgetrimmer Makita EH5000W 346251-4 Connect Rod for Hedgetrimmer Makita EH5000W €9.89
43
 Gear 43 for Hedge Trimmer Makita EH5000W 227248-1 Gear 43 for Hedge Trimmer Makita EH5000W €28.89
44
 photo_cameraImage coming soon 922128-3 BOLT M4x16 4300BA €1.44
45
 Gear Case Cover for Hedgetrimmer Makita EH5000W 318610-2 Gear Case Cover for Hedgetrimmer Makita EH5000W €18.48
46
 photo_cameraImage coming soon 922237-8 SCREW M5X22 X EH7500S €1.44
47
 photo_cameraImage coming soon 413137-8 GASKET EH7500S €3.95
48
 photo_cameraImage coming soon 443159-4 SEAL EH7500S €6.11
49
 photo_cameraImage coming soon 346256-4 HOLDER X EH7500S €3.22
50
 photo_cameraImage coming soon 922237-8 SCREW M5X22 X EH7500S €1.44
51
 photo_cameraImage coming soon 0031105003 WASHER X EH7500S €1.51
52
 photo_cameraImage coming soon 313211-1 SLEEVE 5 X EH5000W €2.53
58
 photo_cameraImage coming soon 264036-5 NUT M6-10 X EH7500S €2.25
59
 photo_cameraImage coming soon 326771-4 GUIDE BAR X EH5000W €33.54
60
 photo_cameraImage coming soon 346364-1 PLATE X EH5000W €5.58
61
 Blade 60 cm for Hedgetrimmer Makita EH5000W 725169-6 Blade 60 cm for Hedgetrimmer Makita EH5000W €84.48
62
 Blade 60 cm for Hedgetrimmer Makita EH5000W 725169-6 Blade 60 cm for Hedgetrimmer Makita EH5000W €84.48
63
 photo_cameraImage coming soon 346364-1 PLATE X EH5000W €5.58
64
 photo_cameraImage coming soon 266578-5 SCREW X EH7500S €2.32
67
 photo_cameraImage coming soon 0150049860 SCREW M4 X 14 X EH7500S €2.15
68
 photo_cameraImage coming soon 125753-1 STARTER CPL €41.61
69
 photo_cameraImage coming soon 5225004020 STARTER KNOB HT2256D €13.66
71
 photo_cameraImage coming soon 232258-5 SPRING AVVIAMENTO EBH252L €10.36
72
 photo_cameraImage coming soon 444028-2 STARTER ROPE EH7500S €3.95
73
 photo_cameraImage coming soon 452402-0 REEL X EH7500S €11.40
74
 photo_cameraImage coming soon 233991-2 SPRING X EH7500S €7.80
75
 photo_cameraImage coming soon 452403-8 CAM X X EH7500S €8.75
76
 photo_cameraImage coming soon 266585-8 SCREW 5X12 EBH252L €2.18
78
 photo_cameraImage coming soon 0119059450 SCREW M5 X 18 X EH7500S €2.15
79
 photo_cameraImage coming soon 451911-6 PLATE X EH7500S €7.80
80
 photo_cameraImage coming soon 346268-7 GASKET EH7500S €5.28
81
 photo_cameraImage coming soon 0119059870 BOLT X RBC230 €2.89
82
 photo_cameraImage coming soon 452556-3 SPACER X EH7500S €1.44
83
 photo_cameraImage coming soon 0650109950 SPARK PLUG CMR6A X MS251.A €12.34
84
 photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
85
 photo_cameraImage coming soon S198113530 RUBBER X DBC260 €2.15
86
 photo_cameraImage coming soon 0119049970 SCREW X M 4 X 20 X MS351-4U €1.44
87
 photo_cameraImage coming soon 168684-1 IGNITION COIL X EH7500S €66.69
89
 photo_cameraImage coming soon 424302-4 SPARK CAP EH7500S €3.22
90
 photo_cameraImage coming soon 0119059620 SCREW M5 X 18 X EH7500S €2.25
91
 photo_cameraImage coming soon 451860-7 CYLINDER COVER EH7500S €5.28
92
 photo_cameraImage coming soon 5503503001 SPACER X-HT2256D HT2276E €3.95
94
 photo_cameraImage coming soon 140508-3 CYLINDER X EH7500S €144.08
95
 photo_cameraImage coming soon 257334-4 PISTON RING 33 €3.95
96
 Piston for Brushcutter Dolmar MS26C 318858-6 Piston for Brushcutter Dolmar MS26C €13.46
97
 photo_cameraImage coming soon 0610089970 NEEDLE BEARING EH7500S €6.11
98
 photo_cameraImage coming soon S115323130 PISTON PIN EH7500S €2.77
99
 photo_cameraImage coming soon 234243-4 CAPACITOR CLIP €1.44
100
 photo_cameraImage coming soon 140429-9 CRANK SHAFT X EH7500S €70.90
101
 photo_cameraImage coming soon S034309031 WOODRUFF EH7500S €2.15
102
 photo_cameraImage coming soon 346267-9 GASKET EH7500S €2.77
103
 photo_cameraImage coming soon 0119059870 BOLT X RBC230 €2.89
104
 photo_cameraImage coming soon 346260-3 MUFFLER GASKET EH7500S €3.95
105
 photo_cameraImage coming soon 161555-1 MUFFLER EH7500S €84.76
106
 photo_cameraImage coming soon 346343-9 MUFFLER COVER €7.80
107
 photo_cameraImage coming soon 0140059962 SCREW M 5 X 6 MS251.4 €1.44
108
 photo_cameraImage coming soon 0119059550 SCREW X DBC260U €2.15
109
 photo_cameraImage coming soon 451861-5 MUFFLER COVERA EH7500S €6.11
110
 photo_cameraImage coming soon 0119059620 SCREW M5 X 18 X EH7500S €2.25
111
 Clutch Ass'y for Hedgetrimmer Makita EH5000W 141150-3 Clutch Ass'y for Hedgetrimmer Makita EH5000W €37.08
112
 photo_cameraImage coming soon 5231016000 BASE X EH7500S €105.92
113
 Oil Seal 10 for Brushcutter Dolmar MS335.4C 213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C €3.20
114
 photo_cameraImage coming soon 0600109980 BALL BEARING 6000 €14.77
115
 photo_cameraImage coming soon 413139-4 GASKET EH7500S €2.15
116
 Oil Seal 10 for Brushcutter Dolmar MS335.4C 213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C €3.20
117
 photo_cameraImage coming soon 0119059870 BOLT X RBC230 €2.89
118
 photo_cameraImage coming soon 126046-9 FLYWHEEL X EH7500S €23.31
119
 photo_cameraImage coming soon S020109118 NUT M6 X EH7500S €1.44
120
 photo_cameraImage coming soon 125770-1 TANK CAP CPL EH7500S €17.15
121
 photo_cameraImage coming soon 125840-6 TANK CAP X EH7500S €22.18
122
 photo_cameraImage coming soon 140624-1 ROD X EH7500S €6.82
123
 Makita Rubber for Brushcutter EM2651UH 424080-6 Makita Rubber for Brushcutter EM2651UH €1.65
124
 photo_cameraImage coming soon 451867-3 FUEL TANK X EH7500S €17.94
125
 photo_cameraImage coming soon 168568-3 FUEL TUBE X EH7500S €6.11
126
 photo_cameraImage coming soon 0561059990 HOSE CLAMP XRBC230-310 / 520 €1.89
127
 photo_cameraImage coming soon 5266500100 FUEL FILTER EH7500S €5.28
128
 photo_cameraImage coming soon 0119059350 SCREW M5X20 X EH7500S €2.25
129
 photo_cameraImage coming soon 452197-5 SPACER X EH7500S €2.32
130
 photo_cameraImage coming soon 265791-2 SCREW M4 X EH7500S €1.44
132
 photo_cameraImage coming soon 451859-2 AIR CLEANER COVER EH7500S €4.56
133
 photo_cameraImage coming soon 443157-8 AIR FILTER EH7500S €2.77
134
 photo_cameraImage coming soon 443158-6 AIR FILTER EH7500S €2.77
136
 photo_cameraImage coming soon 345919-9 PLATE EBH253L/EBH341U €1.47
137
 photo_cameraImage coming soon 126029-9 PLATE X EH7500S €7.80
138
 photo_cameraImage coming soon 412097-1 PIPE X EH7500S €2.15
139
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
140
 photo_cameraImage coming soon 5253503900 CARBURETOR GASKET X DBC260U €1.55
141
 photo_cameraImage coming soon 346334-0 CABLE BRACKET X EH7500S €3.22
142
 photo_cameraImage coming soon 168569-1 CARBURETOR X EH7500S €70.90
144
 photo_cameraImage coming soon 5316005030 PRIMER PUMP COVER X RBL250 €13.07
145
 Makita Diaphragm for EM2651UH 168620-7 Makita Diaphragm for EM2651UH €23.70
146
 photo_cameraImage coming soon 5016004130 GASKET X RBL250-RBC225-25 €5.55
147
 photo_cameraImage coming soon 140661-5 BODY ASSEMBLY PUMP EH7500S €36.84
148
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
149
 photo_cameraImage coming soon 5246001040 PUMP DIAPHRAGM RBC260 / 230/310/225 €13.12
150
 photo_cameraImage coming soon 5926002040 GASKET MS251.4 €10.41
151
 photo_cameraImage coming soon 326005-5 JET EH7500S €13.07
152
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
153
 photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
154
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
155
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
156
 photo_cameraImage coming soon 413147-5 CARBURETOR GASKET EH5000W €2.89
158
 photo_cameraImage coming soon 5259500300 CAP X MS251.4 €3.11
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
67
 photo_cameraImage coming soon 0150049860 SCREW M4 X 14 X EH7500S €2.15
68
 photo_cameraImage coming soon 125753-1 STARTER CPL €41.61
69
 photo_cameraImage coming soon 5225004020 STARTER KNOB HT2256D €13.66
71
 photo_cameraImage coming soon 232258-5 SPRING AVVIAMENTO EBH252L €10.36
72
 photo_cameraImage coming soon 444028-2 STARTER ROPE EH7500S €3.95
73
 photo_cameraImage coming soon 452402-0 REEL X EH7500S €11.40
74
 photo_cameraImage coming soon 233991-2 SPRING X EH7500S €7.80
75
 photo_cameraImage coming soon 452403-8 CAM X X EH7500S €8.75
76
 photo_cameraImage coming soon 266585-8 SCREW 5X12 EBH252L €2.18
78
 photo_cameraImage coming soon 0119059450 SCREW M5 X 18 X EH7500S €2.15
79
 photo_cameraImage coming soon 451911-6 PLATE X EH7500S €7.80
80
 photo_cameraImage coming soon 346268-7 GASKET EH7500S €5.28
82
 photo_cameraImage coming soon 452556-3 SPACER X EH7500S €1.44
83
 photo_cameraImage coming soon 0650109950 SPARK PLUG CMR6A X MS251.A €12.34
84
 photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
85
 photo_cameraImage coming soon S198113530 RUBBER X DBC260 €2.15
86
 photo_cameraImage coming soon 0119049970 SCREW X M 4 X 20 X MS351-4U €1.44
87
 photo_cameraImage coming soon 168684-1 IGNITION COIL X EH7500S €66.69
89
 photo_cameraImage coming soon 424302-4 SPARK CAP EH7500S €3.22
90
 photo_cameraImage coming soon 0119059620 SCREW M5 X 18 X EH7500S €2.25
91
 photo_cameraImage coming soon 451860-7 CYLINDER COVER EH7500S €5.28
92
 photo_cameraImage coming soon 5503503001 SPACER X-HT2256D HT2276E €3.95
94
 photo_cameraImage coming soon 140508-3 CYLINDER X EH7500S €144.08
95
 photo_cameraImage coming soon 257334-4 PISTON RING 33 €3.95
96
 Piston for Brushcutter Dolmar MS26C 318858-6 Piston for Brushcutter Dolmar MS26C €13.46
97
 photo_cameraImage coming soon 0610089970 NEEDLE BEARING EH7500S €6.11
98
 photo_cameraImage coming soon S115323130 PISTON PIN EH7500S €2.77
99
 photo_cameraImage coming soon 234243-4 CAPACITOR CLIP €1.44
100
 photo_cameraImage coming soon 140429-9 CRANK SHAFT X EH7500S €70.90
101
 photo_cameraImage coming soon S034309031 WOODRUFF EH7500S €2.15
102
 photo_cameraImage coming soon 346267-9 GASKET EH7500S €2.77
104
 photo_cameraImage coming soon 346260-3 MUFFLER GASKET EH7500S €3.95
105
 photo_cameraImage coming soon 161555-1 MUFFLER EH7500S €84.76
106
 photo_cameraImage coming soon 346343-9 MUFFLER COVER €7.80
107
 photo_cameraImage coming soon 0140059962 SCREW M 5 X 6 MS251.4 €1.44
108
 photo_cameraImage coming soon 0119059550 SCREW X DBC260U €2.15
109
 photo_cameraImage coming soon 451861-5 MUFFLER COVERA EH7500S €6.11
111
 Clutch Ass'y for Hedgetrimmer Makita EH5000W 141150-3 Clutch Ass'y for Hedgetrimmer Makita EH5000W €37.08
112
 photo_cameraImage coming soon 5231016000 BASE X EH7500S €105.92
113
 Oil Seal 10 for Brushcutter Dolmar MS335.4C 213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C €3.20
114
 photo_cameraImage coming soon 0600109980 BALL BEARING 6000 €14.77
115
 photo_cameraImage coming soon 413139-4 GASKET EH7500S €2.15
118
 photo_cameraImage coming soon 126046-9 FLYWHEEL X EH7500S €23.31
119
 photo_cameraImage coming soon S020109118 NUT M6 X EH7500S €1.44
120
 photo_cameraImage coming soon 125770-1 TANK CAP CPL EH7500S €17.15
121
 photo_cameraImage coming soon 125840-6 TANK CAP X EH7500S €22.18
122
 photo_cameraImage coming soon 140624-1 ROD X EH7500S €6.82
123
 Makita Rubber for Brushcutter EM2651UH 424080-6 Makita Rubber for Brushcutter EM2651UH €1.65
124
 photo_cameraImage coming soon 451867-3 FUEL TANK X EH7500S €17.94
125
 photo_cameraImage coming soon 168568-3 FUEL TUBE X EH7500S €6.11
126
 photo_cameraImage coming soon 0561059990 HOSE CLAMP XRBC230-310 / 520 €1.89
127
 photo_cameraImage coming soon 5266500100 FUEL FILTER EH7500S €5.28
128
 photo_cameraImage coming soon 0119059350 SCREW M5X20 X EH7500S €2.25
129
 photo_cameraImage coming soon 452197-5 SPACER X EH7500S €2.32
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
130
 photo_cameraImage coming soon 265791-2 SCREW M4 X EH7500S €1.44
132
 photo_cameraImage coming soon 451859-2 AIR CLEANER COVER EH7500S €4.56
133
 photo_cameraImage coming soon 443157-8 AIR FILTER EH7500S €2.77
134
 photo_cameraImage coming soon 443158-6 AIR FILTER EH7500S €2.77
136
 photo_cameraImage coming soon 345919-9 PLATE EBH253L/EBH341U €1.47
137
 photo_cameraImage coming soon 126029-9 PLATE X EH7500S €7.80
138
 photo_cameraImage coming soon 412097-1 PIPE X EH7500S €2.15
139
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
140
 photo_cameraImage coming soon 5253503900 CARBURETOR GASKET X DBC260U €1.55
141
 photo_cameraImage coming soon 346334-0 CABLE BRACKET X EH7500S €3.22
142
 photo_cameraImage coming soon 168569-1 CARBURETOR X EH7500S €70.90
144
 photo_cameraImage coming soon 5316005030 PRIMER PUMP COVER X RBL250 €13.07
145
 Makita Diaphragm for EM2651UH 168620-7 Makita Diaphragm for EM2651UH €23.70
146
 photo_cameraImage coming soon 5016004130 GASKET X RBL250-RBC225-25 €5.55
147
 photo_cameraImage coming soon 140661-5 BODY ASSEMBLY PUMP EH7500S €36.84
148
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
149
 photo_cameraImage coming soon 5246001040 PUMP DIAPHRAGM RBC260 / 230/310/225 €13.12
150
 photo_cameraImage coming soon 5926002040 GASKET MS251.4 €10.41
151
 photo_cameraImage coming soon 326005-5 JET EH7500S €13.07
152
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
153
 photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
154
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
155
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
156
 photo_cameraImage coming soon 413147-5 CARBURETOR GASKET EH5000W €2.89
158
 photo_cameraImage coming soon 5259500300 CAP X MS251.4 €3.11

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Hedge Trimmer EH5000W

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Hedge Trimmer EH5000W.

In the following table, look for the model of the Trimmer and the respective parts of the code.
Makita EH5000W

Trimmer EH5000W
# Part Num. Description
1 265995-6 SCREW M4X18 X 6408/6221DW
2 452322-8 GUARD X EH5000W
4 452321-0 FRONT HANDLE EH5000W
5 266041-8 SCREW PT 5X25
6 452319-7 BASE IMPUGNATURA X EH5000W
7 452323-6 ANELLO DI FERMO 25 X EH5000W
8 452316-3 LEVA DI BLOCCO B X EH5000W
9 265995-6 SCREW M4X18 X 6408/6221DW
11 452314-7 FERMO PER EH5000W
12 452313-9 LEVA B X EH5000W
13 233579-8 TORSION SPRING 8 X EH5000W
14 234204-4 COMPRESSION SPRING 8 X EH5000W
15 413153-0 PLATE X EH5000W
16 452312-1 LEVA A X EH5000W
17 168625-7 CAVO ACC. X EH5000W
18 452324-4 PIPE X EH5000W
19 125858-7 SWITCH X EH5000W
21 187049-8 IMPUGN.POSTERIORE X EH5000W
22 452315-5 LEVA DI BLOCCO A X EH5000W
23 168567-5 CLUTCH DRUM EH7500S
24 0031428000 INNER SNAPRING X RBC410/520
25 0600129780 BEARING X EH7500S
26 227247-3 GEAR 9 X EH7500S
27 141033-7 GEAR CASE X EH7500S
28 0119059400 SCREW M5 X 12 X EH7500S
29 451865-7 BAFFLE PLATE X EH7500S
30 243107-1 GREASE NIPPLE EH7500S
31 346253-0 HOLDER X EH7500S
32 0119059780 BOLT M5X12 RBC260/230RBK410
33 234224-8 COMPRESSION SPRING 15 X EH5000W
34 0119059360 SCREW X EH7500S
35 234202-8 COMPRESSION SPRING 15 X EH7500S
36 0119059360 SCREW X EH7500S
37 0119059870 BOLT X RBC230
38 346252-2 HOLDER X EH7500S
39 0119059780 BOLT M5X12 RBC260/230RBK410
40 331896-1 PIPE X EH7500S
41 346255-6 PLATE ECCENTRICO X EH7500S
42 346251-4 ROD EH7500S
43 227248-1 GEAR 43 X EH7500S
44 922128-3 BOLT M4X16 4300BA
45 318610-2 GEAR CASE COVER EH7500S
46 922237-8 SCREW M5X22 X EH7500S
47 413137-8 GASKET EH7500S
48 443159-4 SEAL EH7500S
49 346256-4 HOLDER X EH7500S
50 922237-8 SCREW M5X22 X EH7500S
51 0031105003 WASHER X EH7500S
52 313211-1 SLEEVE 5 X EH5000W
58 264036-5 NUT M6-10 X EH7500S
59 326771-4 GUIDE BAR X EH5000W
60 346364-1 PLATE X EH5000W
61 725169-6 SHEAR BLADE EH5000W
62 725169-6 SHEAR BLADE EH5000W
63 346364-1 PLATE X EH5000W
64 266578-5 SCREW X EH7500S
65 452328-6 BLADE COVER X EH5000W
67 0150049860 SCREW M4 X 14 X EH7500S
68 125753-1 STARTER CPL
69 5225004020 MANOPOLA AVVIAMENTO HT2256D
71 232258-5 SPRING AVVIAMENTO EBH252L
72 444028-2 STARTER ROPE EH7500S
73 452402-0 ROCCHETTO X EH7500S
74 233991-2 SPRING X EH7500S
75 452403-8 CAMMA X EH7500S
76 266585-8 SCREW 5X12 EBH252L
77 452948-6 CARTER VOLANO X EH7500S
78 0119059450 SCREW M5 X 18 X EH7500S
79 451911-6 PLATE X EH7500S
80 346268-7 GUARNIZ. ISOLANTE EH7500S
81 0119059870 BOLT X RBC230
82 452556-3 SPACER X EH7500S
83 0650109950 CANDELA CMR6A X MS251.A
84 0654009931 SPINOTTO X RBC415-225-255
85 S198113530 GOMMINO X DBC260
86 0119049970 SCREW X M 4 X 20 X MS351-4U
87 168684-1 IGNITION COIL X EH7500S
89 424302-4 SPARK CAP EH7500S
90 0119059620 SCREW M5 X 18 X EH7500S
91 451860-7 CYLINDER COVER EH7500S
92 5503503001 SPACER X HT2256D-HT2276E
94 140508-3 CYLINDER X EH7500S
95 257334-4 ANELLO PISTONE 33
96 318858-6 PISTON X DBC260U
97 0610089970 GABBIA RULLINI EH7500S
98 S115323130 PISTON PIN EH7500S
99 234243-4 CLIP
100 140429-9 CRANK SHAFT X EH7500S
101 S034309031 WOODRUFF EH7500S
102 346267-9 GASKET EH7500S
103 0119059870 BOLT X RBC230
104 346260-3 MUFFLER GASKET EH7500S
105 161555-1 MARMITTA EH7500S
106 346343-9 MUFFLER COVER
107 0140059962 SCREW M 5 X 6 MS251.4
108 0119059550 SCREW X DBC260U
109 451861-5 MUFFLER COVERA EH7500S
110 0119059620 SCREW M5 X 18 X EH7500S
111 141150-3 CLUTCH ASS'Y EH5000W
112 5231016000 BASAMENTO X EH7500S
113 213769-9 OIL SEAL 10
114 0600109980 CUSCINETTO A SFERE 6000
115 413139-4 GASKET EH7500S
116 213769-9 OIL SEAL 10
117 0119059870 BOLT X RBC230
118 126046-9 FLYWHEEL X EH7500S
119 S020109118 NUT M6 X EH7500S
120 125770-1 TANK CAP CPL EH7500S
121 125840-6 TANK CAP X EH7500S
122 140624-1 ROD X EH7500S
123 424080-6 GROMMET X DBC260U
124 451867-3 FUEL TANK X EH7500S
125 168568-3 FUEL TUBE X EH7500S
126 0561059990 HOSE CLAMP X RBC230-310/520
127 5266500100 FUEL FILTER EH7500S
128 0119059350 SCREW M5X20 X EH7500S
129 452197-5 SPACER X EH7500S
130 265791-2 SCREW M4 X EH7500S
132 451859-2 AIR CLEANER COVER EH7500S
133 443157-8 AIR FILTER EH7500S
134 443158-6 AIR FILTER EH7500S
136 345919-9 PLATE EBH341U
137 126029-9 PLATE X EH7500S
138 412097-1 PIPE X EH7500S
139 168398-2 POMPA ADESCAMENTO X DCS230T
140 5253503900 CARBURETOR GASKET X DBC260U
141 346334-0 CABLE BRACKET X EH7500S
142 168569-1 CARBURETOR X EH7500S
144 5316005030 PRIMER PUMP COVER X RBL250
145 168620-7 METERING DIAPHRAGM BHX2501
146 5016004130 GASKET X RBL250-RBC225-25
147 140661-5 BODY ASSEMBLY PUMP EH7500S
148 5016004010 INLET SCREEN RBC 260/230/310/225
149 5246001040 PUMP DIAPHRAGM RBC260/230/310/225
150 5926002040 GASKET MS251.4
151 326005-5 JET EH7500S
152 5246001010 GASKET X RBC 260/230/310/
153 266581-6 SCREW M3X8 EBH341U
154 5236018040 SWIVEL X RBC230-260-310-225
155 5316005120 RING X RBC 260/230/310/225/2
156 413147-5 CARBURETOR GASKET EH5000W
158 5259500300 CAP X MS251.4
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EH5000W
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita EH5000W

Diagram Makita EH5000W

Download (551.98KB)

You might also like

Gear Case for Hedgetrimmer Makita EH5000W
Makita SKU: 141033-7
Gear Case for Hedgetrimmer Makita EH5000W
Gear Case for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Gear Case for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: -  EH5000W -...
Last items in stock €65.20
Details
Connect Rod for Hedgetrimmer Makita EH5000W
Makita SKU: 346251-4
Connect Rod for Hedgetrimmer Makita EH5000W
Connect Rod for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Connect Rod for Hedgetrimmers EH5000W - EH6000W - EH7500W, EH7500S, EN4950H. Part for the following products: - 196256-2 - ACCEESORY HEDGETRIMMER 53.5CM 135...
Last items in stock €9.89
Details
Blade 60 cm for Hedgetrimmer Makita EH5000W
Makita SKU: 725169-6
Blade 60 cm for Hedgetrimmer Makita EH5000W
Blade 60 cm for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Blade 60 cm for Hedgetrimmers EH5000W - Dolmar HT2350D. Part for the following products: - EH5000W - HEDGETRIMMER 22,2CC 50CM MAKITA - HT2350D - HEDGETRIMMER...
Last items in stock €84.48
Details
Gear 43 for Hedge Trimmer Makita EH5000W
Makita SKU: 227248-1
Gear 43 for Hedge Trimmer Makita EH5000W
Gear 43 for Hedge Trimmer Makita EH5000W Genuine replacement part Makita, Gear 43 for Hedge Trimmers EH5000W - EH6000W - Dolmar HT2350D - HT2360D. Part for the following products: - 126293-2 - HEDGE TRIMMER X MH246.4D - 196256-2 -...
Last items in stock €28.89
Details
Piston for Brushcutter Dolmar MS26C
Makita SKU: 318858-6
Piston for Brushcutter Dolmar MS26C
Piston for Brushcutter Dolmar MS26C Genuine replacement part Dolmar, Piston for Brushcutters MS26C - MS-26U - Makita DBC260L - DBC260U. Part for the following products: -  MS26C...
Last items in stock €13.46
Details
Gear Case Cover for Hedgetrimmer Makita EH5000W
Makita SKU: 318610-2
Gear Case Cover for Hedgetrimmer Makita EH5000W
Gear Case Cover for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Gear Case Cover for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: -  EH5000W - HEDGETRIMMER 22,2CC 50CM MAKITA -  EH6000W...
Last items in stock €18.48
Details
Oil Seal 10 for Brushcutter Dolmar MS335.4C
Makita SKU: 213769-9
Oil Seal 10 for Brushcutter Dolmar MS335.4C
Oil Seal 10 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 10 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: -  MS335.4C - BRUSHCUTTER 33,5cc 4T -  MS335.4U...
on 7/10 Business Days Approx €3.20
Details
Clutch Drum for Hedgetrimmer Makita EH5000W
Makita SKU: 168567-5
Clutch Drum for Hedgetrimmer Makita EH5000W
Clutch Drum for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Clutch Drum for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: -  EH5000W -...
Last items in stock €17.67
Details
Clutch Ass'y for Hedgetrimmer Makita EH5000W
Makita SKU: 141150-3
Clutch Ass'y for Hedgetrimmer Makita EH5000W
Clutch Ass'y for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Clutch Ass'y for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: -  EH5000W -...
Last items in stock €37.08
Details
Compression Spring 15 for Hedgetrimmer Makita EH5000W
Makita SKU: 234202-8
Compression Spring 15 for Hedgetrimmer Makita EH5000W
Compression Spring 15 for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Compression Spring 15 for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: - ...
on 7/10 Business Days Approx €4.58
Details
Makita Rubber for Brushcutter EM2651UH
Makita SKU: 424080-6
Makita Rubber for Brushcutter EM2651UH
Makita Rubber for Brushcutter EM2651UH Genuine replacement part Makita Dolmar, Fuel Tank Buffer Rubber for Brushcutter EM2651UH - DBC260L. Part for the following products: -  Brushcutter Makita EM2651UH -  Trimmer Makita...
Last items in stock €1.65
Details
Comments (0)
