Makita Spare Parts for Brush Cutter EBH341U

SKU: Makita EBH341U
€17.46
VAT included

Makita Spare Parts for Brush Cutter EBH341U

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Brush Cutter EBH341U.
Makita Spare Parts for Brush Cutter EBH341U
  • Makita Spare Parts for Brush Cutter EBH341U
  • Makita Spare Parts for Brush Cutter EBH341U
  • Makita Spare Parts for Brush Cutter EBH341U
  • Makita Spare Parts for Brush Cutter EBH341U
  • Makita Spare Parts for Brush Cutter EBH341U
Makita

Makita Spare Parts for Brush Cutter EBH341U

SKU: Makita EBH341U Condition: New
€17.46
VAT included

Makita Spare Parts for Brush Cutter EBH341U

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Brush Cutter EBH341U.
settings 207 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
201 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

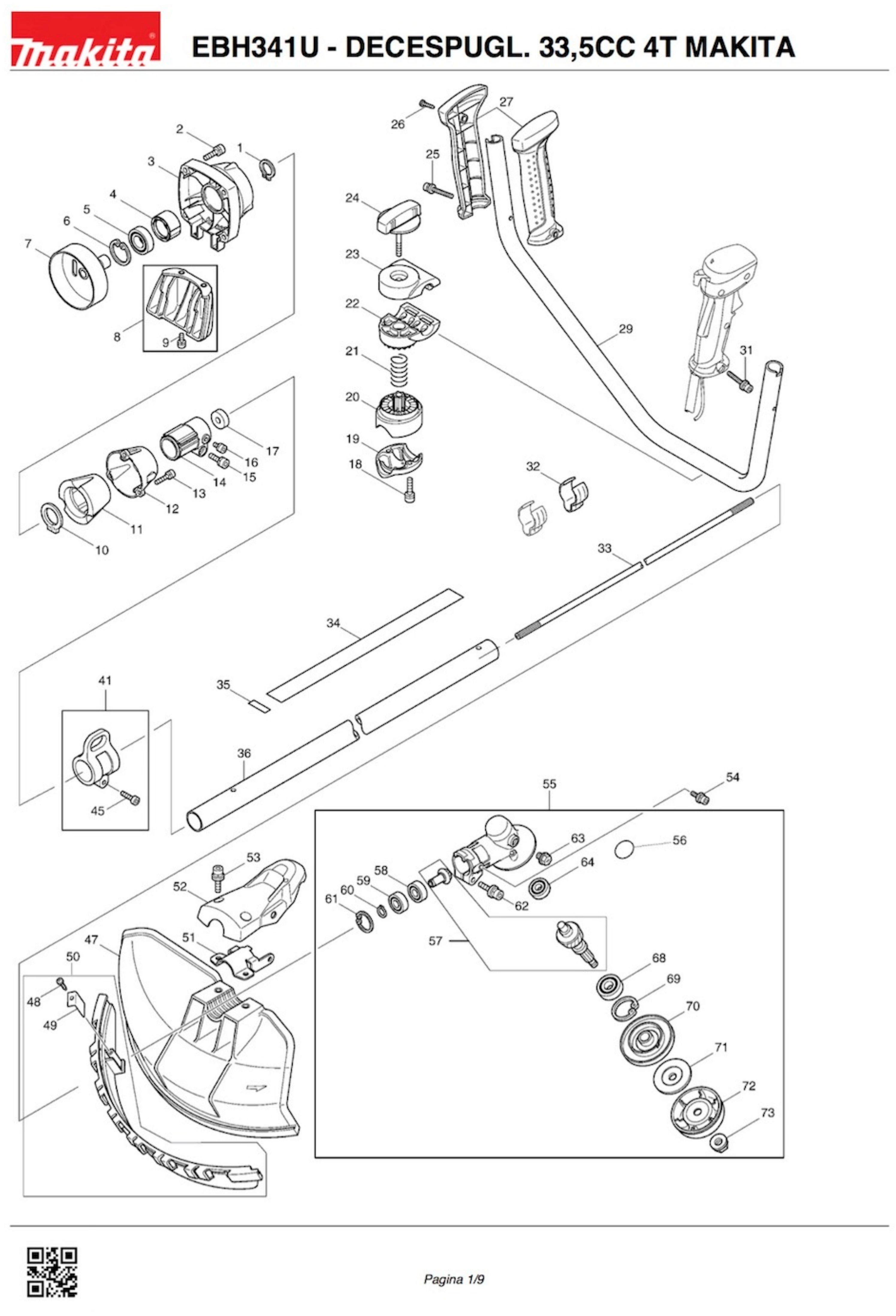

Esploso pagina 1
Pos. Item Price Buy
1
 Makita Power Tools Ext DIN471 Circlip-17 961057-5 Makita Power Tools Ext DIN471 Circlip-17 €1.47
2
 photo_cameraImage coming soon 922331-6 BOLT ESAG. CUT. 6x20 €1.53
3
 photo_cameraImage coming soon 318421-5 CLUTCH CASE EBH341U €18.98
4
 photo_cameraImage coming soon 451157-4 SPACER EBH341U €2.08
5
 photo_cameraImage coming soon 210126-2 BEARING 6003LLU €3.72
6
 photo_cameraImage coming soon 962153-2 RETAINING RING R35 €2.08
7
 photo_cameraImage coming soon 165577-3 CLUTCH DRUM EBH341U €13.08
8
 photo_cameraImage coming soon 195144-0 EBH341U HOLDER €3.96
9
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
10
 photo_cameraImage coming soon 961151-3 RETAINING RING S-32 EBH341U €1.40
11
 photo_cameraImage coming soon 424204-4 DAMPER EBH341U €5.94
12
 photo_cameraImage coming soon 318453-2 PIPE RETAINER EBH341U €6.63
13
 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH 922231-0 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH €1.35
14
 photo_cameraImage coming soon 318454-0 PIPE BRACKET EBH341U €11.07
16
 photo_cameraImage coming soon 922201-9 CAP HD SCREW M5X8 JR3020 5PK €1.44
17
 photo_cameraImage coming soon 443146-3 FELT RING EBH341U €1.44
18
 photo_cameraImage coming soon 922341-3 SCREW M6X25 €1.44
19
 photo_cameraImage coming soon 318422-3 PIPE CLAMP EBH341U €7.48
20
 photo_cameraImage coming soon 318423-1 PIPE HOLDER EBH341U €12.49
21
 photo_cameraImage coming soon 233202-5 COMPRESSION SPRING 20 HR160DW €1.57
22
 photo_cameraImage coming soon 318424-9 HANDLE HOLDER EBH341U €11.18
23
 photo_cameraImage coming soon 318425-7 HANDLE CLAMP EBH341U €11.18
24
 photo_cameraImage coming soon 168524-3 KNOB SX EBH252U €5.13
25
 photo_cameraImage coming soon 922256-4 SCREW M5 35 TO AN901 €1.57
26
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
27
 photo_cameraImage coming soon 188660-9 GRIP SET EBH341U €9.59
29
 Makita EBH341U Handlebar 331863-6 Makita EBH341U Handlebar €25.06
32
 photo_cameraImage coming soon 451525-1 WIRE CLAMP EBH341U €3.02
33
 photo_cameraImage coming soon 325675-7 SHAFT EBH341U €21.97
34
 photo_cameraImage coming soon 810500-0 CAUTION LABEL EBH341U €1.57
35
 photo_cameraImage coming soon 819760-1 LABEL EBH341U €1.57
36
 photo_cameraImage coming soon 140042-3 SHAFT PIPE COMP EBH341U €68.84
41
 photo_cameraImage coming soon 125558-9 HOOK EBH341U €7.58
45
 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T 922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T €1.44
47
 photo_cameraImage coming soon 452259-9 PROTECTOR EBH341U €17.14
49
 photo_cameraImage coming soon 347050-7 BLADE €1.40
50
 photo_cameraImage coming soon 135753-3 LOWER PROTECTION €12.69
51
 photo_cameraImage coming soon 346072-4 PROTECTOR CLAMP EBH341U €2.77
52
 photo_cameraImage coming soon 451090-0 PROTECTOR COVER EBH341U €6.11
53
 photo_cameraImage coming soon 922353-6 SCREW M6x30 HM1202C €1.46
54
 photo_cameraImage coming soon 922218-2 SCREW M5x14 EBH341U €1.53
55
 photo_cameraImage coming soon 126310-8 BODY GEAR €116.49
56
 Gasket 32 for Hex Collar Power Scrapers Makita HK1800 - HK1810 213459-4 Gasket 32 for Hex Collar Power Scrapers Makita HK1800 - HK1810 €1.43
57
 photo_cameraImage coming soon 188865-1 GEARS CASE EBH341U €94.89
58
 photo_cameraImage coming soon 210059-1 BEARING 6000 HR2010 €12.89
59
 photo_cameraImage coming soon 211062-5 BEARING 6000 X9524NB €7.81
60
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €2.17
61
 Retaining Ring R26 for Angle Grinder and Milling Machines Makita 962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita €1.47
63
 photo_cameraImage coming soon 265590-2 HEX BOLT M8x10 EBH253L/EBH341U €1.44
64
 photo_cameraImage coming soon 210081-8 BALL BEARING 629ZZ EBH341U €4.56
68
 photo_cameraImage coming soon 210116-5 BALL BEARING 6201LLU EBH341U €8.75
69
 Retaining Ring R32 for Powertools Makita 962151-6 Retaining Ring R32 for Powertools Makita €1.43
70
 photo_cameraImage coming soon 331860-2 RECIEVE WASHER EBH341U €12.49
71
 photo_cameraImage coming soon 346355-2 CLAMP WASHER EBH253L/EBH341U €13.89
72
 photo_cameraImage coming soon 168526-9 CUP EBH253L/EBH341U/BBC231URD €6.83
73
 photo_cameraImage coming soon 264025-0 HEX NUT M10-17 EBH251U.BBC231 €3.22
100
 Electronic Coil for Brushcutter Makita EBH341U 168816-0 Electronic Coil for Brushcutter Makita EBH341U €28.06
111
 photo_cameraImage coming soon 808633-3 LABEL 4 STROKE INDICATION EBH €1.61
135
 photo_cameraImage coming soon 266573-5 HSS HD BOLT M5X33 EBH341U €1.51
137
 photo_cameraImage coming soon 266569-6 SCREW M4X10 EBH341U €1.40
161
 photo_cameraImage coming soon 125756-5 CRANKSHAFT ASSY EBH341U €105.98
183
 photo_cameraImage coming soon 162310-4 TANK GUARD EBH341U €7.33
227
 photo_cameraImage coming soon 345919-9 PLATE EBH253L/EBH341U €1.47
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

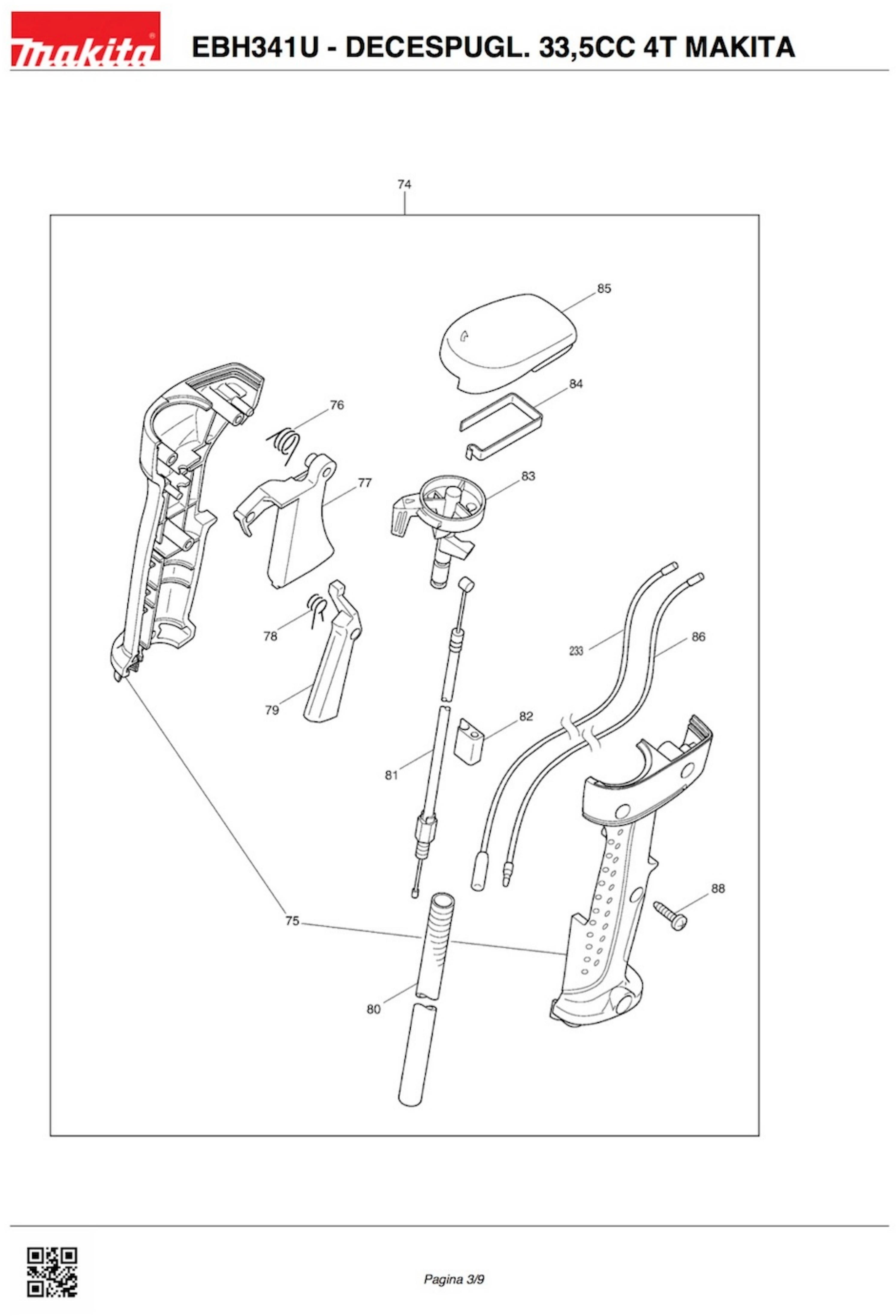

Esploso pagina 2
Pos. Item Price Buy
74
 photo_cameraImage coming soon 125545-8 CONTROLS LEVER EBH341U €39.83
75
 photo_cameraImage coming soon 183A09-4 EVER CASE EBH341U €17.14
76
 photo_cameraImage coming soon 233540-5 SPRING TWIST 11 EBH341U €1.46
77
 photo_cameraImage coming soon 451084-5 THROTTLE LEVER EBH341U/ELM2651 €2.34
78
 photo_cameraImage coming soon 233541-3 TORSION SPRING 7 EBH341U €2.18
79
 photo_cameraImage coming soon 451083-7 LOCK OFF LEVER EBH341U/EM2561L €2.34
80
 photo_cameraImage coming soon 451213-0 CORRUGATE TUBE EBH341U €5.77
81
 photo_cameraImage coming soon 168539-0 CONTROL CABLE EBH341U €7.48
82
 photo_cameraImage coming soon 451081-1 CABLE HOLDER EBH341U €1.57
83
 photo_cameraImage coming soon 451082-9 SWITCH LEVERZ EBH341U/ELM2651L €2.34
84
 photo_cameraImage coming soon 232251-9 LEAF SPRING EBH341U/EM2651LH €1.46
85
 photo_cameraImage coming soon 455722-1 SWITCH COVER EBH341UP03 €2.69
86
 photo_cameraImage coming soon 638663-8 LEAD UNIT EBH341U €3.02
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

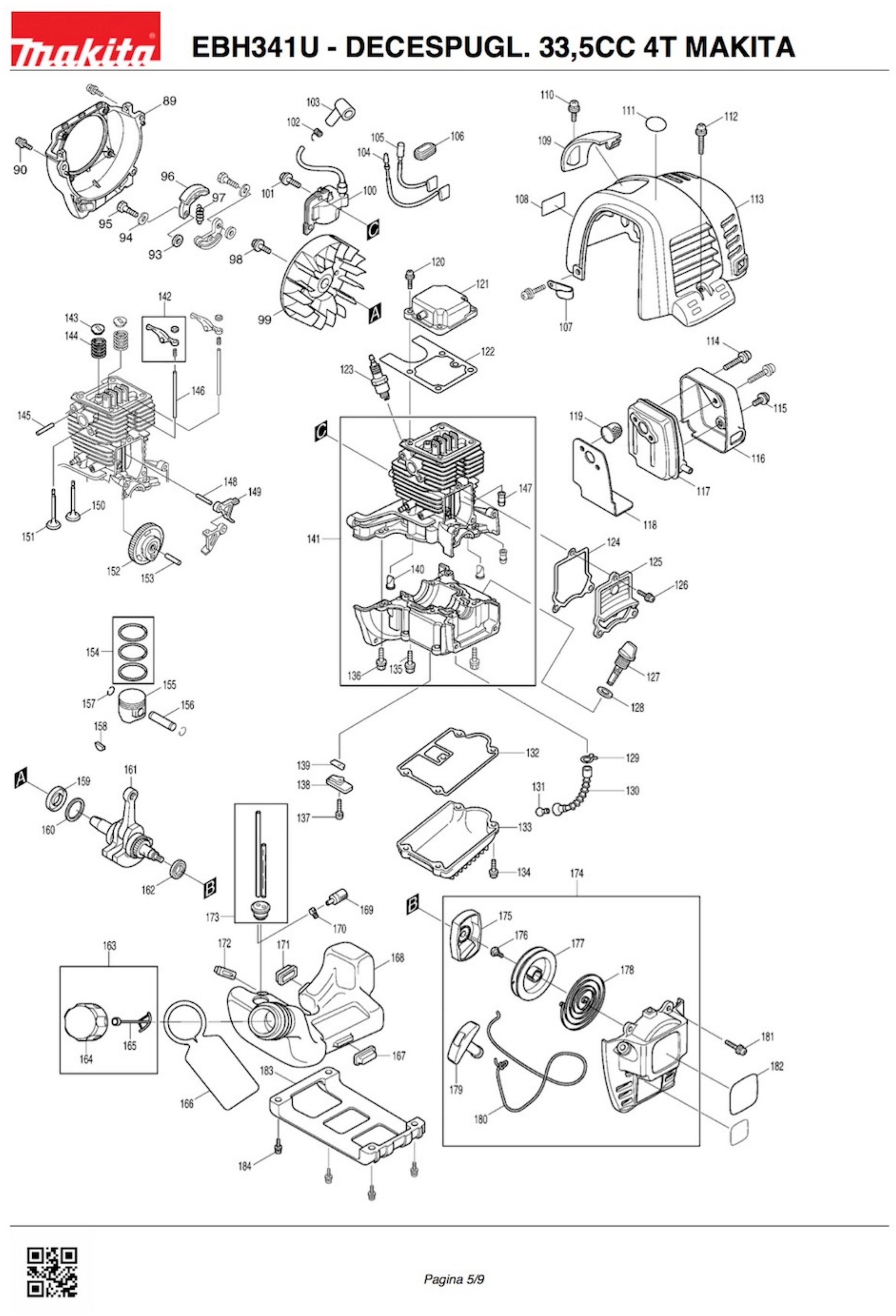

Esploso pagina 3
Pos. Item Price Buy
89
 photo_cameraImage coming soon 318614-4 BLOWER HOUSING EBH341U €36.26
90
 photo_cameraImage coming soon 922223-9 SCREW M5X16 EBH341U EX2650LH €1.46
93
 photo_cameraImage coming soon 267424-5 WASHER 8 EBH341U €1.38
94
 photo_cameraImage coming soon 267832-0 WAVY WASHER 10 EBH341U €1.44
95
 photo_cameraImage coming soon 266571-9 SCREW M8X23 EBH341U €2.76
96
 photo_cameraImage coming soon 125757-3 CLUTCH CPL X EM3400L €17.15
97
 photo_cameraImage coming soon AN02010C00 TENSION SPRING 9 €4.89
98
 photo_cameraImage coming soon 265577-4 HEX HD BOLT M6X16 EBH €1.53
99
 photo_cameraImage coming soon 319035-3 FLYWHEEL EBH341U €23.86
101
 photo_cameraImage coming soon 922138-0 HS H BOLT M4X20 EBH341U/253L €9.01
102
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
103
 Spark Plug Cap for Brushcutter Makita EBH341U 424105-6 Spark Plug Cap for Brushcutter Makita EBH341U €1.62
107
 photo_cameraImage coming soon 345963-6 CLAMP EBH253L/EBH341U €1.44
108
 photo_cameraImage coming soon 819312-8 MAKITA LOGO LABEL EBH253L/341U €1.61
109
 photo_cameraImage coming soon 451876-2 PLUG COVER EBH341U €2.30
110
 photo_cameraImage coming soon 266572-7 BOLT EBH341U €1.53
112
 photo_cameraImage coming soon 911213-7 SCREW M5X12 X 5143R €1.36
113
 photo_cameraImage coming soon 451875-4 CYLINER COVER EBH341U €21.03
114
 photo_cameraImage coming soon 266440-4 HEX SOCKET HD BOLT M5X40 EM265 €1.46
116
 photo_cameraImage coming soon 345915-7 MUFFLER COVER EBH253L/EBH341U €3.47
117
 photo_cameraImage coming soon 168469-5 EXHAUST MUFFLER EBH253L/341U €10.19
118
 photo_cameraImage coming soon 345916-5 MUFFLER GASKET EBH253L/EBH341U €2.97
119
 photo_cameraImage coming soon 324980-9 SPARK ARRESTER EBH253L/EBH341U €2.30
120
 photo_cameraImage coming soon 266495-9 SCREW M5X14 €1.61
121
 photo_cameraImage coming soon 140419-2 ROCKER COVRR COMP EBH253L €14.05
122
 photo_cameraImage coming soon 162307-3 ROCKER COVER GASKET EBH341U €3.23
123
 photo_cameraImage coming soon 168534-0 SPARK PLUG EM2651LH/EBH341U/25 €12.23
124
 Cam Gear Cover Gasket for Brushcutter Makita EBH341L 162274-2 Cam Gear Cover Gasket for Brushcutter Makita EBH341L €2.76
125
 photo_cameraImage coming soon 318443-5 CAM GEAR COVER EM2651LH/EBH251 €5.38
126
 photo_cameraImage coming soon 922212-4 SCREW M5x12 €1.44
127
 photo_cameraImage coming soon 450565-6 OIL GAUGE EBH251L/341U €2.97
128
 photo_cameraImage coming soon 424100-6 GASKET EBH251L/341U €1.53
129
 photo_cameraImage coming soon 282020-8 HOSE CLAMP EM2651LH/EBH251L/ €1.44
130
 photo_cameraImage coming soon 424202-8 OIL TUBE EBH251L/341U €4.89
131
 photo_cameraImage coming soon 325666-8 OIL WEIGHT EM2651LH/EBH253L €2.14
132
 photo_cameraImage coming soon 162308-1 CASE GASKET EBH341U €4.26
133
 photo_cameraImage coming soon 318612-8 OIL CASE EBH341I €9.40
136
 photo_cameraImage coming soon 266570-1 SCREW M5X16 EBH341U €1.40
138
 photo_cameraImage coming soon 318440-1 RETAINER PLATE EBH251L/341U €2.97
139
 photo_cameraImage coming soon 346083-9 PLATE EBH341U €2.82
140
 photo_cameraImage coming soon 424201-0 CONTROL VALVE EBH341U €3.28
141
 photo_cameraImage coming soon 135373-3 CYLINDER EBH341U €118.08
142
 photo_cameraImage coming soon 125554-7 ROCKET ARM ASSY EM2651LH/EBH34 €6.22
143
 photo_cameraImage coming soon 325912-9 SPRING RETAINER EBH341U €2.30
144
 photo_cameraImage coming soon 234181-0 COMPRESSION SPRING 13 EBH341U €1.53
145
 photo_cameraImage coming soon 256200-2 PIN 5 PER 2704 €1.46
146
 photo_cameraImage coming soon 256866-8 ROD 2.5 EBH341U €1.44
147
 photo_cameraImage coming soon 424200-2 SPACKER EM2651LH/EBH251L/341U €1.46
148
 photo_cameraImage coming soon 268239-3 PIN 4 EM2651LH/EBH €1.46
149
 photo_cameraImage coming soon 313169-4 CAM LIFTER EM2651LH/EBH251L €4.64
150
 photo_cameraImage coming soon 325913-7 EXHAUST VALVE EBH341U €6.58
151
 photo_cameraImage coming soon 325914-5 INTAKE VALVE EBH341U €6.58
152
 photo_cameraImage coming soon 125552-1 CAM GEAR ASSY EM2651LH/EBH341/ €17.46
153
 photo_cameraImage coming soon 268238-5 PIN 5 EBH341U €1.44
154
 Piston Ring Set for Brushcutter Makita EBH341L 195141-6 Piston Ring Set for Brushcutter Makita EBH341L €25.09
156
 Piston Pin for Brushcutter Makita EBH341L 257796-6 Piston Pin for Brushcutter Makita EBH341L €2.33
157
 Piston Pin Circlip for Brushcutter Makita RBC410 233983-1 Piston Pin Circlip for Brushcutter Makita RBC410 €1.55
158
 photo_cameraImage coming soon 254040-2 WOODRUFF KEY 3 EM2651LH/EBH341 €4.02
159
 Oil Seal 12 for Brushcutter Dolmar MS335.4C 213537-0 Oil Seal 12 for Brushcutter Dolmar MS335.4C €5.29
160
 Flat Washer 26 for Petrol Brushcutter Dolmar MS335.4C - MS-4300.4R 267425-3 Flat Washer 26 for Petrol Brushcutter Dolmar MS335.4C - MS-4300.4R €1.60
162
 Oil Seal 10 for Brushcutter Dolmar MS335.4C 213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C €3.20
163
 photo_cameraImage coming soon 125472-9 CAP SERBATOIO CPL €10.67
164
 photo_cameraImage coming soon 140435-4 FUEL TANK CAP EBH253L/341U €9.87
165
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
166
 photo_cameraImage coming soon 810455-9 CAUTION PLATE EM2651LH/EBH253L €2.18
167
 photo_cameraImage coming soon 424104-8 DAMPER EBH253L/EBH341U €2.97
168
 photo_cameraImage coming soon 451877-0 FUEL TANK EBH341U €23.86
169
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
170
 photo_cameraImage coming soon 345920-4 CLAMP EBH341U €1.44
171
 photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
172
 Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
173
 photo_cameraImage coming soon 162309-9 TUBE EBH341U €6.83
174
 Dolmar Recoil Starter Set for MS335.4C 195142-4 Dolmar Recoil Starter Set for MS335.4C €43.54
175
 photo_cameraImage coming soon 165606-2 PULLEY EBH341U €8.53
176
 photo_cameraImage coming soon 266580-8 TAPPING SCREW M5X10 BH341U €1.44
177
 photo_cameraImage coming soon 451923-9 REEL STARTER EBH341U €6.83
178
 photo_cameraImage coming soon 232257-7 SPRING SPIRAL EBH341U €17.13
179
 photo_cameraImage coming soon 424317-1 STARTER KNOB EBH341U €4.89
180
 photo_cameraImage coming soon 444018-5 STARTER ROPE EBH341U €5.66
182
 photo_cameraImage coming soon 816448-4 LABEL EBH341U €1.57

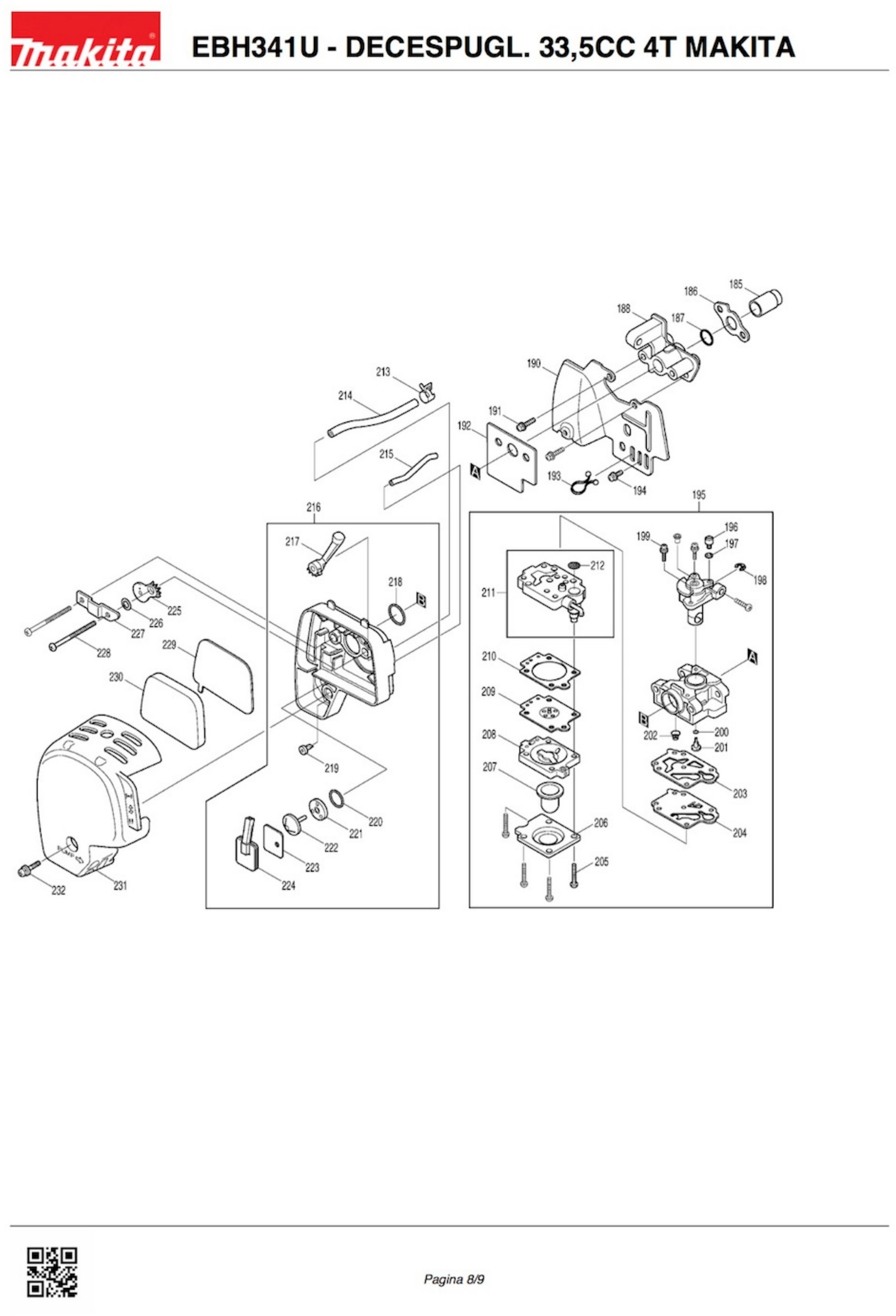

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
185
 photo_cameraImage coming soon 325915-3 INTAKE PIPE EBH341U €5.66
186
 photo_cameraImage coming soon 413120-5 INSULATOR GASKET EBH251L/341U €1.44
187
 photo_cameraImage coming soon 213063-9 GASKET 10 X HR2000 €5.24
188
 photo_cameraImage coming soon 451874-6 INSULATOR EBH341U €7.33
190
 Makita Carburetor Insulator for EBH341U 346261-1 Makita Carburetor Insulator for EBH341U €5.66
191
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
192
 photo_cameraImage coming soon 413138-6 CARBURETOR GASKET EBH341U €2.14
193
 photo_cameraImage coming soon 450562-2 CLAMP EBH251L/341U €1.53
194
 photo_cameraImage coming soon 922213-2 HEX BOLT M5X12 EBH253L/341U €1.51
195
 Carburator for Brushcutters Dolmar MS335.4 - MS335.4 168561-7 Carburator for Brushcutters Dolmar MS335.4 - MS335.4 €60.50
196
 photo_cameraImage coming soon 325922-6 SCREW CARBURATOR EBH341U €6.95
197
 photo_cameraImage coming soon 413140-9 WASHER EBH341U €2.18
198
 photo_cameraImage coming soon 257964-1 RETAINING RING E3 EBH341U €4.02
199
 photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
200
 photo_cameraImage coming soon 213538-8 RING 2 EBH341U €4.02
201
 photo_cameraImage coming soon 325921-8 JET EBH341U €14.32
202
 photo_cameraImage coming soon 234183-6 SPRING 65-9 EBH341U €4.02
203
 Makita EBH341U Pump Gasket 442155-9 Makita EBH341U Pump Gasket €4.06
204
 photo_cameraImage coming soon 168575-6 DIAPHRAGM PUMP EBH341U €8.90
205
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
206
 photo_cameraImage coming soon 346270-0 PUMP COVER EBH341U €6.22
207
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
208
 photo_cameraImage coming soon 140438-8 CAM GEAR COVER GASKET EM2651LH €19.90
209
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
210
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
211
 photo_cameraImage coming soon 140437-0 PUMP BODY EBH341U €39.61
212
 photo_cameraImage coming soon 352010-6 EBH252L FILTER €2.82
213
 photo_cameraImage coming soon 345918-1 CLAMP EBH341U €1.46
214
 photo_cameraImage coming soon 422055-9 BREATHER PIPE EM2651LH/EBH341U €2.97
215
 photo_cameraImage coming soon 422042-8 PIPE EBH251L/341U €1.44
216
 Cleaner Plate Assy for Petrol Blower Makita BHX2500 125468-0 Cleaner Plate Assy for Petrol Blower Makita BHX2500 €21.00
217
 Choke Lever for Brushcutter Makita EBH341L 451925-5 Choke Lever for Brushcutter Makita EBH341L €2.33
218
 photo_cameraImage coming soon 213540-1 O RING 15 EM2651LH/EBH253L/341 €1.46
219
 photo_cameraImage coming soon 424316-3 VALVE EBH341U €5.38
220
 photo_cameraImage coming soon 213539-6 O RING 14 EBH253L/EBH341U €1.53
221
 photo_cameraImage coming soon 451924-7 CHECK VALVE PLATE EBH253L €1.44
222
 photo_cameraImage coming soon 424315-5 CHECK VALVE EBH251L/341U €1.44
223
 Separator Gasket for Blower Makita BHX2501 168577-2 Separator Gasket for Blower Makita BHX2501 €1.62
224
 photo_cameraImage coming soon 168576-4 SEPARATOR PLATE EBH253L/341U €10.72
225
 photo_cameraImage coming soon 450560-6 CHOKE PLATE EBH251L/341U €1.44
226
 photo_cameraImage coming soon 423376-2 GASKET EBH251L/341U €1.47
228
 photo_cameraImage coming soon 265188-5 PAN HD SCREW M5X68 EB €1.44
229
 Air Cleaner Element for Petrol Blower Makita BHX2500 443140-5 Air Cleaner Element for Petrol Blower Makita BHX2500 €2.14
230
 Air Cleaner Element Sponge for Petrol Blower Makita BHX2500 443141-3 Air Cleaner Element Sponge for Petrol Blower Makita BHX2500 €2.23
231
 photo_cameraImage coming soon 450561-4 AIR CLEANER COVER EBH251L/341U €4.59

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brush Cutter EBH341U

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Brush Cutter EBH341U.

In the following table, look for the model of Brush Cutter and the respective parts of the code.
Makita EBH341U

Brush Cutter EBH341U
# Part Num. Description
1 961057-5 EXT DIN 471 CIRCLIP-17 10PK
2 922331-6 CAP HD SCREW M6X20 HM1800 5PK
3 318421-5 CLUTCH CASE EBH341U
4 451157-4 SPACER EBH341U
5 211338-0 BALL BEARING 6003LLU EBH341U
6 962153-2 RETAINING RING R-35 HP1631/415
7 165577-3 CLUTCH DRUM EBH341U
9 911218-7 PAN HD SCREW M5X14 W/CP 10PK
10 961151-3 RETAINING RING S-32 EBH341U
11 424204-4 DAMPER EBH341U
12 318453-2 PIPE RETAINER EBH341U
13 922231-0 CAP HD SCREW M5X20 HR2010 5PK
14 318454-0 PIPE BRACKET EBH341U
15 922331-6 CAP HD SCREW M6X20 HM1800 5PK
16 922201-9 CAP HD SCREW M5X8 JR3020 5PK
17 443146-3 FELT RING EBH341U
18 922341-3 CAP HD SCREW M6X25 5PK
19 318422-3 PIPE CLAMP EBH341U
20 318423-1 PIPE HOLDER EBH341U
21 233202-5 COMPRESSION SPRING 20 HR160DW
22 318424-9 HANDLE HOLDER EBH341U
23 318425-7 HANDLE CLAMP EBH341U
24 168796-0 KNOB 57 EBH341U/BBC231URD/EM26
25 922256-4 'HEX SOCKET BOLT M5X35 AG125
26 266326-2 TAPPING SCREW M4X18 10PK
27 188660-9 GRIP SET EBH341U
28 188660-9 GRIP SET EBH341U
29 331863-6 HANDLEBAR 22 EBH341U
31 922256-4 'HEX SOCKET BOLT M5X35 AG125
32 451525-1 WIRE CLAMP EBH341U
33 325675-7 SHAFT EBH341U
34 810500-0 CAUTION LABEL EBH341U
35 801D19-4 DATE CODE LABEL ER2650LH/ER255
36 140042-3 SHAFT PIPE COMP EBH341U
45 922233-6 HEX SOCKET HD BOLT M5X20 DCS23
47 452259-9 PROTECTOR EBH341U
48 266326-2 TAPPING SCREW M4X18 10PK
49 346074-0 CUTTER EM2651LH/EBH253L/341U
51 346072-4 PROTECTOR CLAMP EBH341U
52 451090-0 PROTECTOR COVER EBH341U
53 266579-3 HEX SOCKET HD BOLT M6X30 EBH
54 922218-2 HEX BOLT M5X14 EBH253L/EBH341U
57 187644-4 CUTTER SHAFT SET
58 211064-1 BALL BEARING 6000 2414NB/LC123
59 211062-5 BALL BEARING 6000ZZCM/2A EBH3
60 961006-2 EXT DIN 471 CIRCLIP-10 10PK
61 962105-3 UNTERNAL RETAINING RING- 5PK
62 922353-6 CAP HD SCREW M6X30 5PK
63 265590-2 HEX BOLT M8x10 EBH253L/EBH341U
64 210081-8 BALL BEARING 629ZZ EBH341U
68 210116-5 BALL BEARING 6201LLU EBH341U
69 962151-6 RETAINING RING R-32 EM2651LH
70 331860-2 RECIEVE WASHER EBH341U
71 346355-2 CLAMP WASHER EBH253L/EBH341U
72 168526-9 CUP EBH253L/EBH341U/BBC231URD
73 264025-0 HEX NUT M10-17 EBH251U.BBC231
75 188657-8 LEVER CASE SET EBH341U
76 233540-5 TORSION SPRING 11 EBH341U/ELM
77 451084-5 THROTTLE LEVER EBH341U/ELM2651
78 233541-3 TORSION SPRING 7 EBH341U/ELM26
79 451083-7 LOCK OFF LEVER EBH341U/EM2561L
80 451213-0 CORRUGATE TUBE EBH341U
81 168539-0 CONTROL CABLE EBH341U
82 451081-1 CABLE HOLDER EBH341U
83 451082-9 SWITCH LEVERZ EBH341U/ELM2651L
84 232251-9 LEAF SPRING EBH341U/EM2651LH
85 451085-3 SWITCH COVER EBH341U/ELM2651LH
86 638663-8 LEAD UNIT EBH341U
87 188657-8 LEVER CASE SET EBH341U
88 266326-2 TAPPING SCREW M4X18 10PK
89 318614-4 BLOWER HOUSING EBH341U
90 922223-9 HSH BOLT M5X16 EM2651LH/EBH251
93 253762-1 HARD WASHER 8 LS1040 5PK
94 267832-0 WAVE WASHER 10 EBH341U
95 266571-9 SHOULDER HEX BOLT M8X23 EBH341
96 168563-3 CLUTCH SHOE EBH341U
97 231863-5 TENSION SPRING 9 EBH341U
98 265577-4 HEX HD BOLT M6X16 EBH
99 318611-0 FLYWHEEL EBH341U
100 168501-5 IGINITION COIL EBH253L/341U
101 922138-0 HS H BOLT M4X20 EBH341U/253L
102 324891-8 PLUG CAP SPRING EM2651LH/EBH25
103 424105-6 PLUG CAP EBH251L/341U
104 638664-6 LEAD UNIT EBH253L/EBH341U
105 638665-4 LEAD UNIT EBH253L/EBH341U
106 424313-9 GROMMET EBH341U
107 345963-6 CLAMP EBH253L/EBH341U
108 819312-8 MAKITA LOGO LABEL EBH253L/341U
109 451876-2 PLUG COVER EBH341U
110 266572-7 BOLT EBH341U
111 808633-3 LABEL 4 STROKE INDICATION EBH
112 911213-7 PAN HEAD SCREW M5X12 10PK
113 451875-4 CYLINER COVER EBH341U
114 266440-4 HEX SOCKET HD BOLT M5X40 EM265
115 265184-3 TRUSS HD SCREW M5X5 EBH
116 345915-7 MUFFLER COVER EBH253L/EBH341U
117 168469-5 EXHAUST MUFFLER EBH253L/341U
118 345916-5 MUFFLER GASKET EBH253L/EBH341U
119 324980-9 SPARK ARRESTER EBH253L/EBH341U
120 922217-4 HEX SOCKET HD BOLT M5X14
121 140419-2 ROCKER COVRR COMP EBH253L
122 162307-3 ROCKER COVER GASKET EBH341U
123 168534-0 SPARK PLUG EM2651LH/EBH341U/25
124 162274-2 CAM GEAR COVER GASKET EM2651LH
125 318443-5 CAM GEAR COVER EM2651LH/EBH251
126 922212-4 CAP HD SCREW M5X12 5PK
127 450565-6 OIL GAUGE EBH251L/341U
128 424100-6 GASKET EBH251L/341U
129 282020-8 HOSE CLAMP EM2651LH/EBH251L/
130 424202-8 OIL TUBE EBH251L/341U
131 325666-8 OIL WEIGHT EM2651LH/EBH253L
132 162308-1 CASE GASKET EBH341U
133 318612-8 OIL CASE EBH341I
134 922217-4 HEX SOCKET HD BOLT M5X14
135 266573-5 HSS HD BOLT M5X33 EBH341U
136 922222-1 CAP HD SCREW M5X16 HM1200 5PK
137 922112-8 CAP HD SCREW M4X10 10PK
138 318440-1 RETAINER PLATE EBH251L/341U
139 346083-9 LEAD VALVE EM2651LH/EBH251L/
140 424201-0 CHECK VALVE EM2651LH/EBH251L
142 125554-7 ROCKET ARM ASSY EM2651LH/EBH34
143 325912-9 SPRING RETAINER EBH341U
144 234181-0 COMPRESSION SPRING 13 EBH341U
145 256200-2 PIN 5 EM2651LH/2704/EBH MODELS
146 256866-8 ROD 2.5 EBH341U
147 424200-2 SPACKER EM2651LH/EBH251L/341U
148 268239-3 PIN 4 EM2651LH/EBH
149 313169-4 CAM LIFTER EM2651LH/EBH251L
150 325913-7 EXHAUST VALVE EBH341U
151 325914-5 INTAKE VALVE EBH341U
152 125552-1 CAM GEAR ASSY EM2651LH/EBH341/
153 268238-5 PIN 5 EM2651LH/ EBH
154 195141-6 PISTON RING SET EBH341U
155 318613-6 PISTON EBH341U
156 257796-6 PISTON PIN EBH341U
157 233983-1 CLIP EBH341U
158 254040-2 WOODRUFF KEY 3 EM2651LH/EBH341
159 213537-0 OIL SEAL 12 EBH341U
160 267425-3 FLAT WASHER 26 EBH341U
161 125756-5 CRANKSHAFT ASSY EBH341U
162 213148-1 OIL SEAL 10 EM2651LH/EBH253L
164 140435-4 FUEL TANK CAP EBH253L/341U
165 140436-2 STRAP COMP EBH253L/EBH341U
166 810455-9 CAUTION PLATE EM2651LH/EBH253L
167 424104-8 DAMPER EBH253L/EBH341U
168 451877-0 FUEL TANK EBH341U
169 163447-0 GASOLIN FILTER DCS230T/EBH
170 345920-4 HOSE CLAMP EBH251L/341U
171 424103-0 GASKET EBH251L/341U
172 424102-2 PLATE EBH251L/341U
173 162309-9 TUBE EBH341U
174 195142-4 RECOIL STARTER SET EBH341U
175 165606-2 PULLEY EBH341U
176 266580-8 TAPPING SCREW M5X10 BH341U
177 451923-9 REEL EBH341U
178 232257-7 SPIRAL SPRING EBH341U
179 424317-1 STARTER KNOB EBH341U
180 444018-5 STARTER ROPE EBH341U
181 911218-7 PAN HD SCREW M5X14 W/CP 10PK
182 816448-4 LABEL EBH341U
183 162310-4 TANK GUARD EBH341U
184 911218-7 PAN HD SCREW M5X14 W/CP 10PK
185 325915-3 INTAKE PIPE EBH341U
186 413120-5 INSULATOR GASKET EBH251L/341U
187 213078-6 O-RING 10 EBH253L/EBH341U
188 451874-6 INSULATOR EBH341U
190 346261-1 CARBURETOR INSULATOR EBH341U
191 922228-9 HEX BOLT M5X18 EM2651LH/RBH253
192 413138-6 CARBURETOR GASKET EBH341U
193 450562-2 CLAMP EBH251L/341U
194 922213-2 HEX BOLT M5X12 EBH253L/341U
196 325922-6 SWIVEL EBH251L/341U
197 413140-9 WASHER EM2651LH/EBH251L/341U
198 257964-1 SROP RING E-3 EM2651LH/EBH251U
199 266581-6 PAN HD SCREW M3X8 EM2651LH/EBH
200 213538-8 O RING 2 EM2651LH/EBH253L/341U
201 325921-8 JET EBH341U
202 234183-6 CONICAL COMP SPRING 5-9EM2651L
203 442155-9 PUMP GASKET EM2651LH/EBH251L
204 168575-6 PUMP DIAPHRAGM EM2651LH/EBH253
205 266582-4 TAPPING SREW M3X24 EM2651LH
206 346270-0 PRIMER PUMP COVER EM2651LH/EBH
207 424314-7 PRIMER PUMP EM2651LH/EBH251L
208 140438-8 CAM GEAR COVER GASKET EM2651LH
209 168574-8 METERING DIAPHRAGME BH253L/341
210 442154-1 METERING DIAPHRAGM GASET EBH
212 352010-6 INLET SCREEN EM2651LH/EBH251L
213 345918-1 HOSE CLAMP EM2651LH/EBH251/341
214 422055-9 BREATHER PIPE EM2651LH/EBH341U
215 422042-8 PIPE EBH251L/341U
217 451925-5 CHOKE LEVER EBH251L/341U
218 213540-1 O RING 15 EM2651LH/EBH253L/341
219 424316-3 CHECK VALVE EM2651LH/EBH251L
220 213539-6 O RING 14 EBH253L/EBH341U
221 451924-7 CHECK VALVE PLATE EBH253L
222 424315-5 CHECK VALVE EBH251L/341U
223 168577-2 SEPARATOR GASKET EBH253L/341U
224 168576-4 SEPARATOR PLATE EBH253L/341U
225 450560-6 CHOKE PLATE EBH251L/341U
226 423376-2 GASKET EBH251L/341U
227 345919-9 PLATE EBH253L/EBH341U
228 265188-5 PAN HD SCREW M5X68 EB
229 443140-5 AIR CLEANER ELEMENT EBH/ELM
230 443141-3 AIR CLEANER ELEMENT EBH/ELM
231 450561-4 AIR CLEANER COVER EBH251L/341U
232 911218-7 PAN HD SCREW M5X14 W/CP 10PK
233 638671-9 LEAD UNIT EBH341U
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EBH341U
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita EBH341U

Diagram Makita EBH341U

Download (766.1KB)

You might also like

Cleaner Plate Assy for Petrol Blower Makita BHX2500
Makita SKU: 125468-0
Cleaner Plate Assy for Petrol Blower Makita BHX2500
Cleaner Plate Assy for Petrol Blower Makita BHX2500 Original replacement part Makita, Cleaner Plate Assy for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for...
on 10 Business Days Approx €21.00
Details
Air Cleaner Element for Petrol Blower Makita BHX2500
Makita SKU: 443140-5
Air Cleaner Element for Petrol Blower Makita BHX2500
Air Cleaner Element for Petrol Blower Makita BHX2500 Original replacement part Makita, Air Cleaner Element for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for the...
Usually Ships in: 7/10 Business Days Approx. €2.14
Details
Spark Plug Cap for Brushcutter Makita EBH341U
Makita SKU: 424105-6
Spark Plug Cap for Brushcutter Makita EBH341U
Spark Plug Cap for Brushcutter Makita EBH341U Genuine replacement part Makita, Spark Plug Cap for Brushcutters EBH252L - EBH252U - EBH341L - EBH341R - EM4340 - EM4340L - EBH341U. Part for the following products: - EBH252L -...
AVAILABLE €1.62
Details
Separator Gasket for Blower Makita BHX2501
Makita SKU: 168577-2
Separator Gasket for Blower Makita BHX2501
Separator Gasket for Blower Makita BHX2501 Genuine replacement part Makita, Separator Gasket for Blowers BHX2501 - Dolmar PB252.4. Part for the following products: - BHX2501 - BLOWER 24,5CC 4T...
AVAILABLE €1.62
Details
Piston Ring Set for Brushcutter Makita EBH341L
Makita SKU: 195141-6
Piston Ring Set for Brushcutter Makita EBH341L
Piston Ring Set for Brushcutter Makita EBH341L Genuine spare part Makita, Piston Ring Set Set for Brushcutters 4 STOKE EBH341L - EBH341R - MS335.4C - MS350.4C Part for the following products: -  EBH341L - BRUSHCUTTER 33,5CC 4T MAKITA...
Last items in stock €25.09
Details
Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T
Makita SKU: 922233-6
Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T
Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T Genuine part Makita, Hex Socket HD Bolt M5x20, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW...
on 7/10 Business Days Approx €1.44
Details
Piston Pin for Brushcutter Makita EBH341L
Makita SKU: 257796-6
Piston Pin for Brushcutter Makita EBH341L
Piston Pin for Brushcutter Makita EBH341L Genuine spare part Makita, Piston Pin for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: -  EBH341L - BRUSHCUTTER 33,5CC 4T MAKITA -...
on 7/10 Business Days Approx €2.33
Details
Cam Gear Cover Gasket for Brushcutter Makita EBH341L
Makita SKU: 162274-2
Cam Gear Cover Gasket for Brushcutter Makita EBH341L
Cam Gear Cover Gasket for Brushcutter Makita EBH341L Genuine spare part Makita, Cam Gear Cover Gasket for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: -  EBH341L - BRUSHCUTTER...
on 7/10 Business Days Approx €2.76
Details
Choke Lever for Brushcutter Makita EBH341L
Makita SKU: 451925-5
Choke Lever for Brushcutter Makita EBH341L
Choke Lever for Brushcutter Makita EBH341L Genuine spare part Makita, Choke Lever for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: - ...
Usually Ships in: 7/10 Business Days Approx. €2.33
Details
Oil Seal 12 for Brushcutter Dolmar MS335.4C
Makita SKU: 213537-0
Oil Seal 12 for Brushcutter Dolmar MS335.4C
Oil Seal 12 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 12 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: -  MS-430.4U - BRUSHCUTTER 43CC 4T DOLMAR -...
Last items in stock €5.29
Details
Makita EBH341U Handlebar
Makita SKU: 331863-6
Makita EBH341U Handlebar
Makita EBH341U Handlebar Genuine replacement part Makita, Handlebar 22 for Brushcutters EBH341U - MS335.4U - MS-430.4U. Part for the following products: - EBH341U - BRUSHCUTTER 33,5CC 4T MAKITA - MS335.4U - BRUSHCUTTER...
Last items in stock €25.06
Details
Makita EBH341U Gasket
Makita SKU: 442155-9
Makita EBH341U Pump Gasket
Makita Gasket for Brushcutter EBH341U Genuine spare part Makita, Pump Gasket for Brushcutters EBH341U - DBC260L - MS350.4C - EX2650LHRH. Part for the following products: - MS350.4C – 34CC-4T BRUSHCUTTER DOLMAR - PB7650.4...
Last items in stock €4.06
Details
Makita Carburetor Insulator for EBH341U
Makita SKU: 346261-1
Makita Carburetor Insulator for EBH341U
Makita Carburetor Insulator for Bruschcutter EBH341U Original part Makita, Carburetor Insulator for Bruschcutter EBH341U. Part for the following products: -  Makita Bruschcutter EBH341U - Dolmar Bruschcutter MS335.4U -...
Last items in stock €5.66
Details
Dolmar Recoil Starter Set for MS335.4C
Makita SKU: 195142-4
Dolmar Recoil Starter Set for MS335.4C
Dolmar Recoil Starter Set for MS335.4C Genuine replacement part Dolmar, Complete Recoil Starter Assembly for Dolmar and Makita 4-stroke engines. Specifically designed for MS335.4C/U brushcutters and MP352.4Z water pumps. Part...
Last items in stock €43.54
Details
Comments (0)
