Makita

Makita Spare Parts for Brusch Cutter EBH341R

SKU: Makita EBH341R
€1.63
VAT included

Makita Spare Parts for Brusch Cutter EBH341R

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Brusch Cutter EBH341R.
Makita Spare Parts for Brusch Cutter EBH341R
  • Makita Spare Parts for Brusch Cutter EBH341R
  • Makita Spare Parts for Brusch Cutter EBH341R
  • Makita Spare Parts for Brusch Cutter EBH341R
  • Makita Spare Parts for Brusch Cutter EBH341R
Makita

Makita Spare Parts for Brusch Cutter EBH341R

SKU: Makita EBH341R Condition: New
€1.63
VAT included

Makita Spare Parts for Brusch Cutter EBH341R

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Brusch Cutter EBH341R.
settings 199 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
198 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

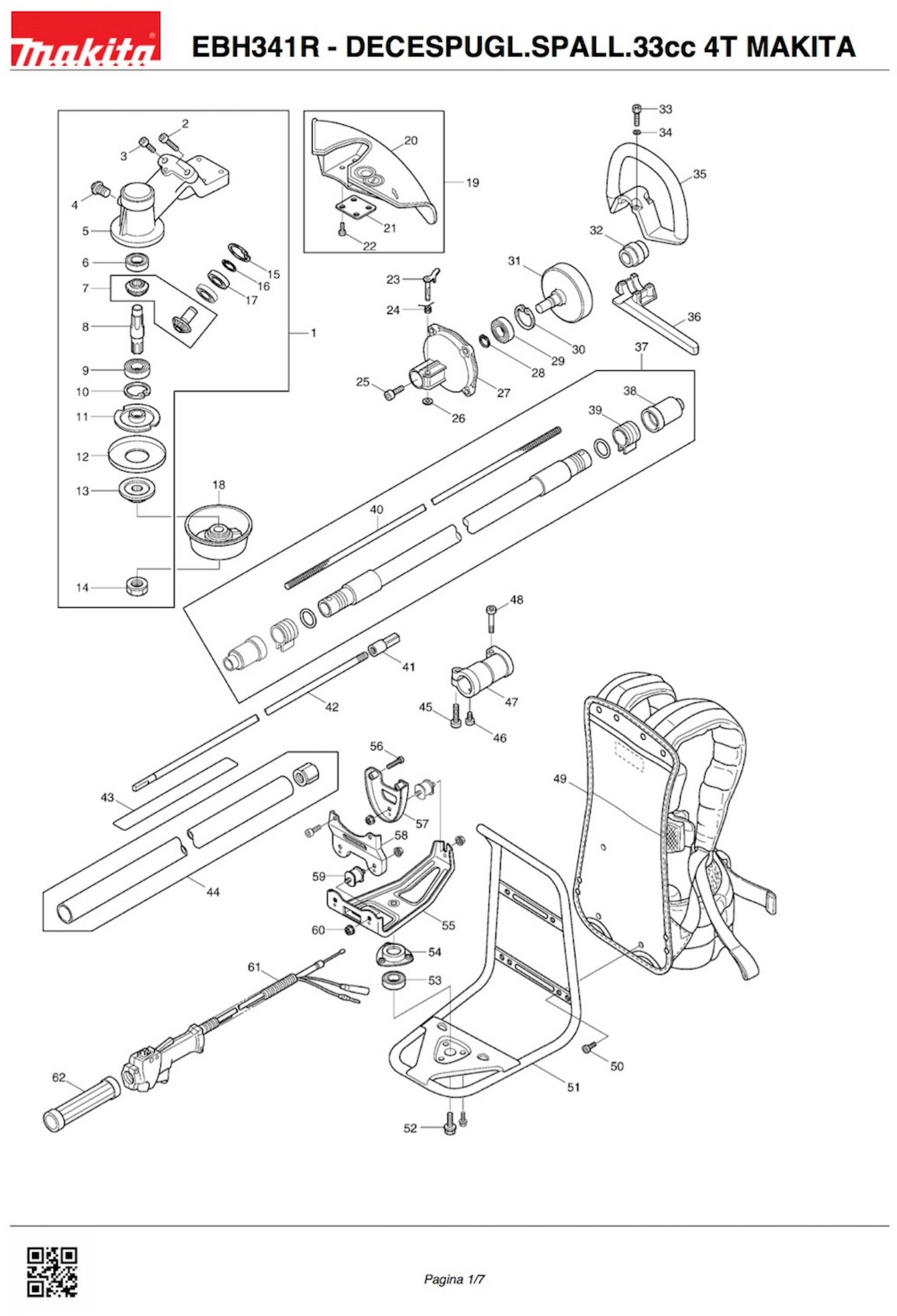

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon XNR0000496 GEARBOX CPL EBH341R €114.66
2
 photo_cameraImage coming soon XNR0000098 SCREW TORX M5X20 RBK350 €2.18
3
 photo_cameraImage coming soon 065051000N SCREW TORX M5X10 RBK350 €1.46
4
 photo_cameraImage coming soon 065060800N SCREW TORX M6X8 RBK350 €1.46
5
 photo_cameraImage coming soon 108230120N GEARBOX CPL EBH341R €41.57
6
 photo_cameraImage coming soon 035600000C BALL BEARING EBH341R €8.74
7
 photo_cameraImage coming soon 140077200N BEVEL GEAR EBH341R €33.68
8
 photo_cameraImage coming soon 175030300N SHAFT EBH341R €17.13
9
 photo_cameraImage coming soon 035600103N BALL BEARING 6001LL €22.50
10
 photo_cameraImage coming soon 045002800N LOCKING RING R-28 RBK350 €2.18
11
 photo_cameraImage coming soon XNR0000158 INTERNAL FLANGE RBK350 €14.96
12
 photo_cameraImage coming soon XNR0000473 COVER B EBH341R €3.23
13
 photo_cameraImage coming soon XNR0000348 FLANGE EBH341R €3.23
14
 photo_cameraImage coming soon 174932210N NUT X EBH341R €4.56
15
 photo_cameraImage coming soon 045002600N RING RETEGNO R-26 RBK350 €2.18
16
 photo_cameraImage coming soon 045001002N RING RETEGNO S-10 RBK350 €1.46
17
 photo_cameraImage coming soon 035600001C BEARING 6000Z X EBH341R €10.18
18
 photo_cameraImage coming soon XNR0000350 COVER FOR EBH341R €5.28
19
 photo_cameraImage coming soon 6118002000 BRUSHCUTTER PROTECTION €56.12
20
 photo_cameraImage coming soon 6118002010 PROTECTION FOR RBK420G €46.15
21
 photo_cameraImage coming soon 6118002020 PLATE FOR RBK420G €2.76
22
 photo_cameraImage coming soon 6118002030 SCREW M5 X 20 EBH341R €1.43
23
 photo_cameraImage coming soon 164619300N PIN FOR EBH341R €8.74
24
 photo_cameraImage coming soon 164619600N TORX SPRING FOR EBH341R €2.76
25
 photo_cameraImage coming soon 065061800N SCREW TORX M6X18 RBK350 €2.18
26
 photo_cameraImage coming soon XNR0000065 RETAINER RING E-5 RBK350 €1.46
27
 photo_cameraImage coming soon 103310100N CLUTCH CASING EBH341R €33.68
28
 photo_cameraImage coming soon XNR0000070 RETAINER RING S-15 X RBK350 €1.46
29
 photo_cameraImage coming soon 035620202C BEARING EBH341R €11.39
30
 photo_cameraImage coming soon XNR0000075 RETAINER RING R-35 RBK350 €1.46
31
 photo_cameraImage coming soon XNR0000183 CLUTCH DRUM €10.18
32
 photo_cameraImage coming soon 173248500N HANDLE SHOCK ABSORBER X EBH341R €4.56
33
 photo_cameraImage coming soon 065053000N SCREW X EBH341R €2.14
34
 photo_cameraImage coming soon 031050001N WASHER 5 X EBH341R €1.43
35
 photo_cameraImage coming soon 173148200N GRIP X EBH341R €33.68
36
 photo_cameraImage coming soon 174048410N LOWER HANDLE EBH341R €13.06
37
 photo_cameraImage coming soon XNR0000187 FLEXIBLE SHAFT €199.10
38
 photo_cameraImage coming soon 182420300N TUBE COVER X RBK350 €4.01
39
 photo_cameraImage coming soon 102118400N PIPE COVER X EBH341R €2.76
40
 Flexible Drive Shaft for Backpack Brushcutter Makita EBH341R XNR0000326 Flexible Drive Shaft for Backpack Brushcutter Makita EBH341R €65.20
41
 photo_cameraImage coming soon 102121200N JOINT X EBH341R €19.53
42
 photo_cameraImage coming soon 102121100N SHAFT X EBH341R €33.68
43
 photo_cameraImage coming soon 6119522100 ETICHETTA EBH341R €4.04
44
 photo_cameraImage coming soon 102120100N COMPLETE ROD X EBH341R €129.57
46
 photo_cameraImage coming soon 065050810N SCREW M5 X 8 X EBH341R €2.14
47
 photo_cameraImage coming soon 102119100N JOINT COVER X EBH341R €17.13
48
 photo_cameraImage coming soon 065053020N SCREW M5X30 EBH341R €2.14
49
 Harness Ass'y for Backpack Brushcutter Makita EBH341R XNR0000474 Harness Ass'y for Backpack Brushcutter Makita EBH341R €131.63
50
 photo_cameraImage coming soon 085051209N SCREW M5 X 12 X EBH341R €2.14
51
 photo_cameraImage coming soon 103415900N FRAME X BRACE X EBH341R €63.40
52
 photo_cameraImage coming soon 014082000N SCREW M8X20 EBH341R €2.14
53
 photo_cameraImage coming soon 035620102C BEARING EBH341R €13.06
54
 photo_cameraImage coming soon 164615811N BEARING BOX X EBH341R €14.76
55
 photo_cameraImage coming soon 106746100N ENGINE MOUNT X EBH341R €15.33
56
 photo_cameraImage coming soon 065052500N TORX SCREW M 5 X 25 X EH490V €2.14
57
 photo_cameraImage coming soon 106746600N REAR MOUNT X EBH341R €6.11
58
 photo_cameraImage coming soon 106746500N FRONT MOUNT EBH341R €6.81
59
 photo_cameraImage coming soon XNR0000234 DAMPER €11.55
60
 photo_cameraImage coming soon 030061400N NUT M6 X RBK350 €1.46
61
 photo_cameraImage coming soon XNR0000131 BCX2510 CONTROL LEVER €70.85
62
 photo_cameraImage coming soon 178724000N EBH341R COLLAR €4.56
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

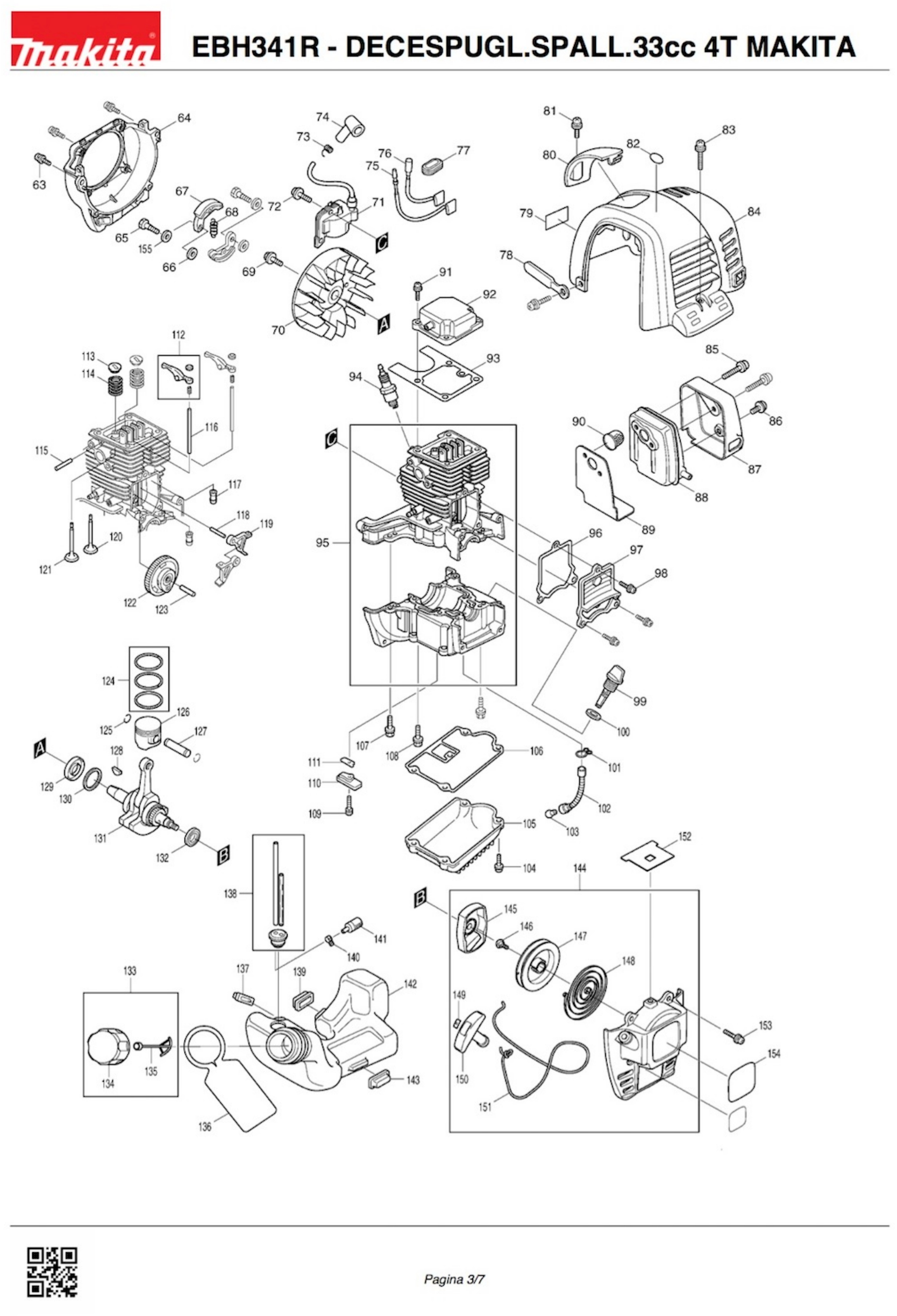

Esploso pagina 2
Pos. Item Price Buy
63
 photo_cameraImage coming soon 0119059531 SCREW M5 X 16 X MS351-4U €2.14
64
 photo_cameraImage coming soon 5935500200 FAN HOUSING X MS351-4U €63.40
65
 photo_cameraImage coming soon 266571-9 SCREW M8X23 EBH341U €2.76
66
 photo_cameraImage coming soon 0200089800 CLUTCH WASHER X MS351-4U €2.76
67
 photo_cameraImage coming soon 125757-3 CLUTCH CPL X EM3400L €17.15
68
 photo_cameraImage coming soon 5318003020 SPRING X MS351-4U €6.11
69
 photo_cameraImage coming soon 0130069940 SCREW M6X16 FOR BHX2500 €1.89
70
 photo_cameraImage coming soon 5937001021 FLYWHEEL EBH341R €17.13
71
 Electronic Coil for Brushcutter Makita EBH341U 168816-0 Electronic Coil for Brushcutter Makita EBH341U €28.06
72
 photo_cameraImage coming soon 0043704200 SCREW M4X20 FOR BHX2500 €1.89
73
 photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
74
 Spark Plug Cap for Brushcutter Makita EBH341U 424105-6 Spark Plug Cap for Brushcutter Makita EBH341U €1.62
75
 photo_cameraImage coming soon 5927003000 LEAD UNIT CPL MS251.4 €5.28
76
 photo_cameraImage coming soon 5257018001 WIRE COMP. RBC201 €3.95
77
 photo_cameraImage coming soon 5257500300 RUBBER X HT2256D-HT2276E €2.76
78
 photo_cameraImage coming soon 0566059980 CLAMP X RBC525 €3.95
79
 photo_cameraImage coming soon 5929505200 LABEL, TRADE MARK €1.95
80
 photo_cameraImage coming soon 5935500500 SPARK PLUG COVER X MS351-4U €6.81
81
 photo_cameraImage coming soon 0140059921 SCREW M5 X 8 X MP352.4Z €1.43
82
 photo_cameraImage coming soon 5929505400 ETICHETTA EBH341R €1.91
83
 photo_cameraImage coming soon 0140059370 SCREW M5 X 12 X MP352.4Z €1.43
84
 photo_cameraImage coming soon 5935500800 CYLINDER COVER €16.65
85
 photo_cameraImage coming soon 0119059520 SCREW M5 X 40 RBC201 €3.68
86
 photo_cameraImage coming soon 0140059962 SCREW M 5 X 6 MS251.4 €1.44
87
 photo_cameraImage coming soon 5923503400 MUFFLER COVER MS251.4 €10.18
88
 photo_cameraImage coming soon 168469-5 EXHAUST MUFFLER EBH253L/341U €10.19
89
 photo_cameraImage coming soon 5923501601 MUFFLER PROTECTION MS251.4 €11.39
90
 photo_cameraImage coming soon 5923008011 SPARK PROTECTOR FOR BHX2500 €19.53
91
 photo_cameraImage coming soon 0043605160 SCREW M 5 X 16 X MS251.4 €1.89
92
 photo_cameraImage coming soon 5931004000 HEAD COVER X MS351-4U €17.13
93
 photo_cameraImage coming soon 162307-3 ROCKER COVER GASKET EBH341U €3.23
94
 photo_cameraImage coming soon 0650109950 SPARK PLUG CMR6A X MS251.A €12.34
95
 photo_cameraImage coming soon 5931005000 Cylinder X MS351-4U €350.82
96
 Cam Gear Cover Gasket for Brushcutter Makita EBH341L 162274-2 Cam Gear Cover Gasket for Brushcutter Makita EBH341L €2.76
97
 photo_cameraImage coming soon 5921500502 SIDE COVER X MS251.4 €13.66
98
 photo_cameraImage coming soon 0043605140 SCREW M5X14 X RBC225-255 €1.89
99
 photo_cameraImage coming soon 5926500600 OIL CAP X MS251.4 €3.23
100
 photo_cameraImage coming soon 0213169990 MS351-4U OIL COVER CAP GASKET €2.76
101
 photo_cameraImage coming soon 0561059970 HOSE CLAMP X TUBE FOR BHX2500 €7.75
102
 photo_cameraImage coming soon 5926500200 OIL TUBE X MS251.4 €11.73
103
 photo_cameraImage coming soon 5926500300 FITTING X MS251.4 €4.30
104
 photo_cameraImage coming soon 0043605180 COMPLETE SCREW X RBC230 / RBC520 €1.89
105
 photo_cameraImage coming soon 374650000 BCX3410 OIL PAN €19.53
106
 photo_cameraImage coming soon 5936500100 MS351-4U OIL PAN GASKET €17.13
107
 photo_cameraImage coming soon 0119059470 SCREW M 5 X 16 X MS351-4U €1.43
108
 photo_cameraImage coming soon 266573-5 HSS HD BOLT M5X33 EBH341U €1.51
109
 photo_cameraImage coming soon 0119049960 SCREW M 4 X 10 X MS351-4U €1.43
110
 photo_cameraImage coming soon 5921501100 RETAINING PLATE X MS251.4 €7.06
111
 photo_cameraImage coming soon 5921501000 PLATE X MS251.4 €7.06
112
 photo_cameraImage coming soon 125554-7 ROCKET ARM ASSY EM2651LH/EBH34 €6.22
113
 photo_cameraImage coming soon 5933500300 VALVE SPRING COVER X MS351-4U €3.95
114
 photo_cameraImage coming soon 5933500200 SPRING VALVE X MS351-4U €2.76
115
 photo_cameraImage coming soon 256200-2 PIN 5 PER 2704 €1.46
116
 photo_cameraImage coming soon 5933500000 AUCTION X MS351-4U €2.14
117
 photo_cameraImage coming soon 424200-2 SPACKER EM2651LH/EBH251L/341U €1.46
118
 photo_cameraImage coming soon 5923500600 CAM LIFTING SHAFT X MS251.4 €1.89
119
 photo_cameraImage coming soon 313169-4 CAM LIFTER EM2651LH/EBH251L €4.64
120
 photo_cameraImage coming soon 5933500400 EXHAUST VALVE X MS351-4U €22.16
121
 photo_cameraImage coming soon 5933500500 INTAKE VALVE X MS351-4U €22.16
122
 photo_cameraImage coming soon 125552-1 CAM GEAR ASSY EM2651LH/EBH341/ €17.46
123
 photo_cameraImage coming soon 5923500501 CAM SHAFT MS251.4 €3.68
124
 Piston Ring Set for Brushcutter Makita EBH341L 195141-6 Piston Ring Set for Brushcutter Makita EBH341L €25.09
125
 Piston Pin Circlip for Brushcutter Makita RBC410 233983-1 Piston Pin Circlip for Brushcutter Makita RBC410 €1.55
127
 photo_cameraImage coming soon 5932500900 PIN PISTON X EM4340L €5.28
128
 photo_cameraImage coming soon 0323039990 KEY X RBC350-RBC420 €3.68
129
 photo_cameraImage coming soon 0440129950 RITEGNO OLIO X MS351-4U €7.89
130
 photo_cameraImage coming soon 5932501000 WASHER ALB. A GOM. MS351-4U €3.23
131
 photo_cameraImage coming soon 125756-5 CRANKSHAFT ASSY EBH341U €105.98
132
 Oil Seal 10 for Brushcutter Dolmar MS335.4C 213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C €3.20
133
 photo_cameraImage coming soon 125472-9 CAP SERBATOIO CPL €10.67
134
 photo_cameraImage coming soon 5926016000 TANK CAP MP352.4Z €6.90
135
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
136
 photo_cameraImage coming soon 6249501501 COLLAR PLATE MS251.4 €15.30
137
 Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
138
 photo_cameraImage coming soon 162309-9 TUBE EBH341U €6.83
139
 photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
140
 photo_cameraImage coming soon 0561059990 HOSE CLAMP XRBC230-310 / 520 €1.89
141
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
142
 photo_cameraImage coming soon 5936500200 FUEL TANK MS351-4U €41.57
143
 photo_cameraImage coming soon 5196500302 MP352.4Z SHOCK ABSORBER €40.84
144
 Dolmar Recoil Starter Set for MS335.4C 195142-4 Dolmar Recoil Starter Set for MS335.4C €43.54
145
 photo_cameraImage coming soon 5315023000 STARTER PULLEY MS351-4U €7.79
146
 photo_cameraImage coming soon 5425003010 SCREW SET X RBC415-225-255 €3.95
147
 photo_cameraImage coming soon 451923-9 REEL STARTER EBH341U €6.83
148
 photo_cameraImage coming soon 232257-7 SPRING SPIRAL EBH341U €17.13
149
 photo_cameraImage coming soon 5315001030 STOP X RBC415 €5.28
150
 photo_cameraImage coming soon 5215002110 STARTER FOR RBC 230-225-255 €3.23
151
 photo_cameraImage coming soon 5315022040 ROPE STARTER X MS351-4U €10.18
152
 photo_cameraImage coming soon 5935502400 GASKET EBH341R €2.76
153
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
154
 photo_cameraImage coming soon 6119521900 ETICHETTA EBH341R €1.29
155
 photo_cameraImage coming soon 267832-0 WAVY WASHER 10 EBH341U €1.44
155
 photo_cameraImage coming soon 413120-5 INSULATOR GASKET EBH251L/341U €1.44

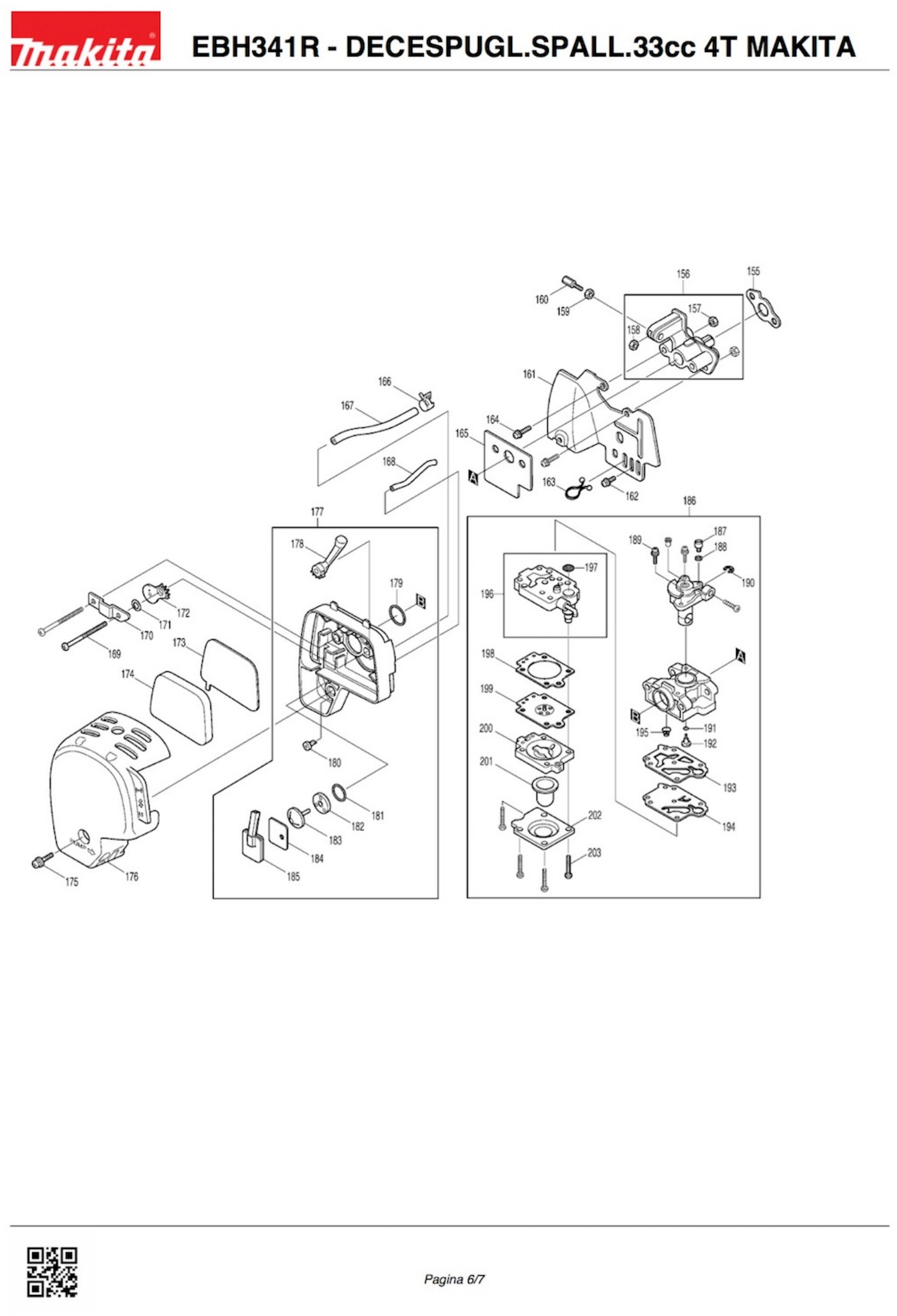

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
156
 Carburator Insulator for Brushcutter Makita EM4340L 5923005002 Carburator Insulator for Brushcutter Makita EM4340L €8.38
157
 photo_cameraImage coming soon 0021705000 NUT M5 X RBC415 €1.54
158
 photo_cameraImage coming soon 0022706000 NUT M6 X PB500R €1.43
160
 photo_cameraImage coming soon 0149069961 REGULATOR X EBH341R €9.03
161
 photo_cameraImage coming soon 5933500600 INSULATING PLATE X MS351-4U €10.18
163
 photo_cameraImage coming soon 5926501300 CLAMP MP352.4Z €1.43
165
 photo_cameraImage coming soon 413138-6 CARBURETOR GASKET EBH341U €2.14
166
 photo_cameraImage coming soon 0561080010 HOSE STOP X RBC 260 / RBC520 €1.89
167
 photo_cameraImage coming soon 5931500900 VENT PIPE X MS351-4U €8.74
168
 photo_cameraImage coming soon 422042-8 PIPE EBH251L/341U €1.44
169
 photo_cameraImage coming soon 265188-5 PAN HD SCREW M5X68 EB €1.44
170
 photo_cameraImage coming soon 345919-9 PLATE EBH253L/EBH341U €1.47
171
 photo_cameraImage coming soon 423376-2 GASKET EBH251L/341U €1.47
172
 photo_cameraImage coming soon 450560-6 CHOKE PLATE EBH251L/341U €1.44
173
 Air Cleaner Element for Petrol Blower Makita BHX2500 443140-5 Air Cleaner Element for Petrol Blower Makita BHX2500 €2.14
174
 Air Cleaner Element Sponge for Petrol Blower Makita BHX2500 443141-3 Air Cleaner Element Sponge for Petrol Blower Makita BHX2500 €2.23
176
 photo_cameraImage coming soon 450561-4 AIR CLEANER COVER EBH251L/341U €4.59
177
 Cleaner Plate Assy for Petrol Blower Makita BHX2500 125468-0 Cleaner Plate Assy for Petrol Blower Makita BHX2500 €21.00
178
 Choke Lever for Brushcutter Makita EBH341L 451925-5 Choke Lever for Brushcutter Makita EBH341L €2.33
179
 photo_cameraImage coming soon 213540-1 O RING 15 EM2651LH/EBH253L/341 €1.46
180
 photo_cameraImage coming soon 424316-3 VALVE EBH341U €5.38
181
 photo_cameraImage coming soon 0240139970 RING MS251.4 €2.84
182
 photo_cameraImage coming soon 451924-7 CHECK VALVE PLATE EBH253L €1.44
183
 photo_cameraImage coming soon 424315-5 CHECK VALVE EBH251L/341U €1.44
184
 Separator Gasket for Blower Makita BHX2501 168577-2 Separator Gasket for Blower Makita BHX2501 €1.62
185
 photo_cameraImage coming soon 5933501600 SEPARATOR X MS351-4U €15.30
186
 Carburator for Brushcutters Dolmar MS335.4 - MS335.4 168561-7 Carburator for Brushcutters Dolmar MS335.4 - MS335.4 €60.50
187
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
188
 photo_cameraImage coming soon 5426005030 WASHER X-RBC350 RBC420 €7.06
189
 photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
190
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
191
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
192
 photo_cameraImage coming soon 5936002010 NOZZLE X MS351-4U €21.55
193
 photo_cameraImage coming soon 5926002040 GASKET MS251.4 €10.41
194
 photo_cameraImage coming soon 5246001040 PUMP DIAPHRAGM RBC260 / 230/310/225 €13.12
195
 photo_cameraImage coming soon 5926002020 SPRING PUMP X MS251.4 €10.46
196
 photo_cameraImage coming soon 5926002140 COMPLETE PUMP BODY FOR EM4251 €48.01
197
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
198
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
199
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
200
 photo_cameraImage coming soon 5236046140 BODY X MS251.4 €55.95
201
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
202
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
203
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

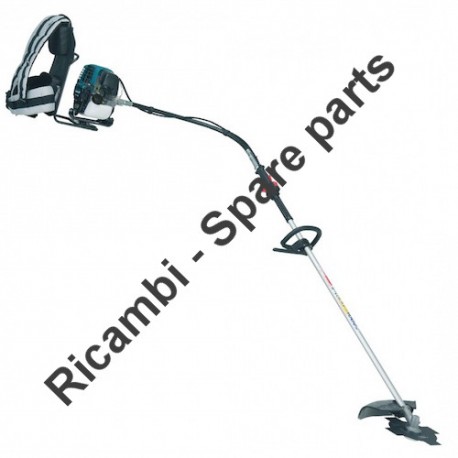

Makita Spare Parts for Brusch Cutter EBH341R

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Brusch Cutter EBH341R.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
195142-4

Brusch Cutter EBH341R
# Part Num. Description
1 XNR0000496 SCATOLA INGRANAGGI CPL EBH341R
2 XNR0000098 VITE TORX M5X20 RBK350
3 065051000N VITE TORX M5X10 RBK350
4 065060800N VITE TORX M6X8 RBK350
5 108230120N SCATOLA INGRANAGGI CPL EBH341R
6 035600000C CUSCINETTO A SFERA EBH341R
7 140077200N COPPIA CONICA EBH341R
8 175030300N ALBERINO EBH341R
9 035600103N CUSCINETTO A SFERE 6001LL
10 045002800N ANELLO RITEGNO R-28 RBK350
11 XNR0000158 FLANGIA INTERNA RBK350
12 XNR0000473 COPERCHIO B EBH341R
13 XNR0000348 FLANGIA EBH341R
14 174932210N DADO X EBH341R
15 045002600N ANELLO RITEGNO R-26 RBK350
16 045001002N ANELLO RITEGNO S-10 RBK350
17 035600001C CUSCINETTO 6000Z X EBH341R
18 XNR0000350 COPERCHIO X EBH341R
19 6118002000 PROTEZIONE PER DECESPUGLATORE
20 6118002010 PROTEZIONE X RBK420G
21 6118002020 PIASTRA X RBK420G
22 6118002030 VITE M5 X 20 EBH341R
23 164619300N PERNO X EBH341R
24 164619600N MOLLA TORSIONE X EBH341R
25 065061800N VITE TORX M6X18 RBK350
26 XNR0000065 ANELLO RITEGNO E-5 RBK350
27 103310100N CARCASSA FRIZIONE EBH341R
28 XNR0000070 ANELLO RITEGNO S-15 X RBK350
29 035620202C CUSCINETTO EBH341R
30 XNR0000075 ANELLO RITEGNO R-35 RBK350
31 XNR0000183 TAMBURO FRIZIONE
32 173248500N AMMORTIZZ. IMPUGNAT. X EBH341R
33 065053000N VITE X EBH341R
34 031050001N RONDELLA 5 X EBH341R
35 173148200N IMPUGNATURA X EBH341R
36 174048410N IMPUGNATURA INF.EBH341R
37 XNR0000187 ALBERO FLESSIBILE
38 182420300N COPRI TUBO X RBK350
39 102118400N COPRI TUBO X EBH341R
40 XNR0000326 ALBERO FLESSIBILE BHK3500
41 102121200N GIUNTO X EBH341R
42 102121100N ALBERO X EBH341R
43 6119522100 ETICHETTA EBH341R
44 102120100N ASTA COMPLETA X EBH341R
45 XNR0000098 VITE TORX M5X20 RBK350
46 065050810N VITE M5 X 8 X EBH341R
47 102119100N COPRI GIUNTO X EBH341R
48 065053020N VITE M5X30 EBH341R
49 XNR0000474 BRETELLE
50 085051209N VITE M5 X 12 X EBH341R
51 103415900N TELAIO X BRETELLE X EBH341R
52 014082000N VITE M8X20 EBH341R
53 035620102C CUSCINETTO EBH341R
54 164615811N SCATOLA CUSCINETTO X EBH341R
55 106746100N SUPPORTO MOTORE X EBH341R
56 065052500N VITE M 5 X 25 X EH490V
57 106746600N SUPPORTO POSTERIORE X EBH341R
58 106746500N SUPPORTO ANT. EBH341R
59 XNR0000234 ANTIVIBRANTE
60 030061400N DADO M6 X RBK350
61 XNR0000131 LEVA COMANDO BCX2510
62 178724000N COLLARE EBH341R
63 0119059531 VITE M5 X 16 X MS351-4U
64 5935500200 CARCASSA VENTOLA X MS351-4U
65 266571-9 VITE M8X23 EBH341U
66 0200089800 RONDELLA FRIZIONE X MS351-4U
67 125757-3 FRIZIONE CPL X EM3400L
68 5318003020 MOLLA X MS351-4U
69 0130069940 VITE M6X16 PER BHX2500
70 5937001021 VOLANO EBH341R
71 168816-0 BOBINA ACCENSIONE EBH341U
72 0043704200 VITE M4X20 PER BHX2500
73 0654009931 SPINOTTO X RBC415-225-255
74 424105-6 CAPPUCCIO CANDELA EBH252L
75 5927003000 CABLAGGIO CPL MS251.4
76 5257018001 CAVO ARRESTO RBC201
77 5257500300 GOMMINO X HT2256D-HT2276E
78 0566059980 STAFFA X RBC525
79 5929505200 ETICHETTA EPH1000X
80 5935500500 COPERCHIO CANDELA X MS351-4U
81 0140059921 VITE M5 X 8 X MP352.4Z
82 5929505400 ETICHETTA EBH341R
83 0140059370 VITE M5 X 12 X MP352.4Z
84 5935500800 COPERCHIO MOTORE X EM4340L
85 0119059520 VITE M5 X 40 RBC201
86 0140059962 VITE M 5 X 6 MS251.4
87 5923503400 COPERCHIO MARMITTA MS251.4
88 168469-5 MARMITTA EBH341U
89 5923501601 PROTEZIONE MARMITTA MS251.4
90 5923008011 PARA SCINTILLE PER BHX2500
91 0043605160 VITE M 5 X 16 X MS251.4
92 5931004000 COPERCHIO TESTA X MS351-4U
93 162307-3 GUARNIZIONE COPERCHIO MARRONE
94 0650109950 CANDELA CMR6A X MS251.A
95 5931005000 CILINDRO X MS351-4U
96 162274-2 CAM GEAR COVER GASKET EBH341
97 5921500502 COPERCHIO LATERALE X MS251.4
98 0043605140 VITE M5X14 X RBC225-255
99 5926500600 TAPPO OLIO X MS251.4
100 0213169990 GUARN. TAPPO COP. OL. MS351-4U
101 0561059970 FASCETTA X TUBO PER BHX2500
102 5926500200 TUBO OLIO X MS251.4
103 5926500300 RACCORDO X MS251.4
104 0043605180 VITE COMP.X RBC230/RBC520
105 374650000 COPPA OLIO BCX3410
106 5936500100 GUARNIZIONE COPPA O. MS351-4U
107 0119059470 VITE M 5 X 16 X MS351-4U
108 266573-5 VITE M5X33 EBH341U
109 0119049960 VITE M 4 X 10 X MS351-4U
110 5921501100 PIASTRA DI RITEGNO X MS251.4
111 5921501000 PIASTRINA X MS251.4
112 125554-7 BILANCIERE EBH341U
113 5933500300 COPERCHIO MOL. VAL. X MS351-4U
114 5933500200 MOLLA VALVOLA X MS351-4U
115 256200-2 SPINOTTO 5 PER 2704
116 5933500000 ASTA X MS351-4U
117 424200-2 DISTANZIALE EBH341U
118 5923500600 ALBERINO SOLL. CAMMA X MS251.4
119 313169-4 BILANCIERE CAMMA EBH341U
120 5933500400 VALVOLA DI SCARICO X MS351-4U
121 5933500500 VALVOLA DI ASPIRAZ. X MS351-4U
122 125552-1 INGRANAGGIO CAMMA EBH341U
123 5923500501 ALBERINO CAMMA MS251.4
124 195141-6 FASCE ELASTICHE EBH341U
125 233983-1 ANELLO SPINOTTO PISTONE EBH341
126 318613-6 PISTONE EBH341U
127 5932500900 SPINOTTO PISTONE X EM4340L
128 0323039990 CHIAVETTA X RBC350-RBC420
129 0440129950 RITEGNO OLIO X MS351-4U
130 5932501000 RONDELLA ALB. A GOM. MS351-4U
131 125756-5 ALBERO ECCENTRICO EBH341U
132 213769-9 SIGILLO 10
133 125472-9 TAPPO SERBATOIO CPL
134 5926016000 TAPPO SERBATOIO MP352.4Z
135 140436-2 ASTINA EBH341U
136 6249501501 PIASTRINA COLLARE MS251.4
137 424102-2 AMMORTIZZATORE EBH341U
138 162309-9 TUBO CARBURANTE EBH341U
139 424103-0 AMMORTIZZATORE EBH341U
140 0561059990 FASC.FERMA FILTXRBC230-310/520
141 163447-0 FILTRO CARBURANTE X DCS230T
142 5936500200 SERBATOIO CARBURANTE MS351-4U
143 5196500302 AMMORTIZZATORE MP352.4Z
144 195142-4 AVVIAMENTO CPL EBH341U
145 5315023000 PULEGGIA AVV. X MS351-4U
146 5425003010 SET VITI X RBC415-225-255
147 451923-9 ROCCHETTO AVVIAMENTO EBH341U
148 232257-7 MOLLA SPIRALE EBH341U
149 5315001030 FERMO X RBC415
150 5215002110 STARTER X RBC 230-225-255
151 5315022040 FUNE AVVIAMENTO X MS351-4U
152 5935502400 GUARNIZIONE EBH341R
153 911218-7 VITE TESTA CILIND. M5X14
154 6119521900 ETICHETTA EBH341R
155 267832-0 RONDELLA ONDULATA 10 EBH341U
155 413120-5 GUARNIZIONE ISOLANTE EBH341U
156 5923005002 ISOLATORE X MS251.4
157 0021705000 DADO M5 X RBC415
158 0022706000 DADO M6 X PB500R
159 0022706000 DADO M6 X PB500R
160 0149069961 REGOLATORE X EBH341R
161 5933500600 PIASTRA ISOLANTE X MS351-4U
162 0140059370 VITE M5 X 12 X MP352.4Z
163 5926501300 FASCETTA MP352.4Z
164 0043605180 VITE COMP.X RBC230/RBC520
165 413138-6 GUARNIZIONE CARBURATORE EBH341
166 0561080010 FERMA TUBO X RBC 260/RBC520
167 5931500900 TUBO SFIATO X MS351-4U
168 422042-8 TUBO EBH341U
169 265188-5 VITE M5X68 EBH341U
170 345919-9 PIASTRA FISSAGGIO EBH341U
171 423376-2 GUARNIZIONE EBH341U
172 450560-6 PIASTRA LEVA ARIA EBH341U
173 443140-5 PRE-FILTRO EBH341U
174 443141-3 FILTRO EBH341U
175 911218-7 VITE TESTA CILIND. M5X14
176 450561-4 COPERCHIO FILTRO ARIA EBH341U
177 125468-0 PIASTRA FILTRO EBH341U
178 451925-5 CHOKE LEVER EBH341U
179 213540-1 ANELLO 15 EBH341U
180 424316-3 VALVOLA DI RITEGNO EBH341U
181 0240139970 ANELLO MS251.4
182 451924-7 PIASTRA VALVOLA DI RITEGNO
183 424315-5 VALVOLA DI CONTROLLO EBH341U
184 168577-2 GUARNIZIONE SEPARATORE EBH341U
185 5933501600 SEPARATORE X MS351-4U
186 168561-7 CARBURATORE EBH341U
187 5236018040 CAVO ACC. XRBC230-260-310-225
188 5426005030 RONDELLA X RBC350-RBC420
189 266581-6 VITE M3X8 EBH341U
190 5316005120 ANELLO X RBC 260/230/310/225/2
191 5246001010 GUARNIZIONE X RBC 260/230/310/
192 5936002010 UGELLO X MS351-4U
193 5926002040 GUARNIZIONE POMPA X MS251.4
194 5246001040 DIAF.POMPA RBC260/230/310/225
195 5926002020 MOLLA POMPA X MS251.4
196 5926002140 CORPO POMPA CPL. PER EM4251
197 5016004010 RACCORDO X RBC 260/230/310/225
198 442154-1 GUARNIZIONE DIAFRAMMA EBH341U
199 168574-8 DIAFRAMMA CPL EBH341U
200 5236046140 CORPO X MS251.4
201 424314-7 POMPA ADESCAMENTO EBH341
202 5236046050 COPERCHIO POMPA X RBC350-RBC42
203 266582-4 VITE 3X24 EBH341U
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EBH341R
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita EBH341R

Diagram Makita EBH341R

Download (687.95KB)

You might also like

Cleaner Plate Assy for Petrol Blower Makita BHX2500
Makita SKU: 125468-0
Cleaner Plate Assy for Petrol Blower Makita BHX2500
Cleaner Plate Assy for Petrol Blower Makita BHX2500 Original replacement part Makita, Cleaner Plate Assy for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for...
on 10 Business Days Approx €21.00
Details
Air Cleaner Element for Petrol Blower Makita BHX2500
Makita SKU: 443140-5
Air Cleaner Element for Petrol Blower Makita BHX2500
Air Cleaner Element for Petrol Blower Makita BHX2500 Original replacement part Makita, Air Cleaner Element for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for the...
Usually Ships in: 7/10 Business Days Approx. €2.14
Details
Harness Ass'y for Backpack Brushcutter Makita EBH341R
Makita SKU: XNR0000474
Harness Ass'y for Backpack Brushcutter Makita EBH341R
Harness Ass'y for Backpack Brushcutter Makita EBH341R Genuine replacement part Makita, Harness Ass'y for Backpack Brushcutters EBH341R - Dolmar MS352.4R. Part for the following products: - MS352.4R - BACKPACK BRUSHCUTTER 33,5CC 4T...
Last items in stock €131.63
Details
Flexible Drive Shaft for Backpack Brushcutter Makita EBH341R
Makita SKU: XNR0000326
Flexible Drive Shaft for Backpack Brushcutter Makita EBH341R
Flexible Drive Shaft for Backpack Brushcutter Makita EBH341R Genuine replacement part Makita, Flexible Drive Shaft for Backpack Brushcutters EBH341R - RBK420G - RBK350 - RBK420. Part for the following products: - EBH341R - BACKPACK...
Last items in stock €65.20
Details
Spark Plug Cap for Brushcutter Makita EBH341U
Makita SKU: 424105-6
Spark Plug Cap for Brushcutter Makita EBH341U
Spark Plug Cap for Brushcutter Makita EBH341U Genuine replacement part Makita, Spark Plug Cap for Brushcutters EBH252L - EBH252U - EBH341L - EBH341R - EM4340 - EM4340L - EBH341U. Part for the following products: - EBH252L -...
AVAILABLE €1.62
Details
Separator Gasket for Blower Makita BHX2501
Makita SKU: 168577-2
Separator Gasket for Blower Makita BHX2501
Separator Gasket for Blower Makita BHX2501 Genuine replacement part Makita, Separator Gasket for Blowers BHX2501 - Dolmar PB252.4. Part for the following products: - BHX2501 - BLOWER 24,5CC 4T...
AVAILABLE €1.62
Details
Piston Ring Set for Brushcutter Makita EBH341L
Makita SKU: 195141-6
Piston Ring Set for Brushcutter Makita EBH341L
Piston Ring Set for Brushcutter Makita EBH341L Genuine spare part Makita, Piston Ring Set Set for Brushcutters 4 STOKE EBH341L - EBH341R - MS335.4C - MS350.4C Part for the following products: -  EBH341L - BRUSHCUTTER 33,5CC 4T MAKITA...
Last items in stock €25.09
Details
Cam Gear Cover Gasket for Brushcutter Makita EBH341L
Makita SKU: 162274-2
Cam Gear Cover Gasket for Brushcutter Makita EBH341L
Cam Gear Cover Gasket for Brushcutter Makita EBH341L Genuine spare part Makita, Cam Gear Cover Gasket for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: -  EBH341L - BRUSHCUTTER...
on 7/10 Business Days Approx €2.76
Details
Choke Lever for Brushcutter Makita EBH341L
Makita SKU: 451925-5
Choke Lever for Brushcutter Makita EBH341L
Choke Lever for Brushcutter Makita EBH341L Genuine spare part Makita, Choke Lever for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: - ...
Usually Ships in: 7/10 Business Days Approx. €2.33
Details
Oil Seal 10 for Brushcutter Dolmar MS335.4C
Makita SKU: 213769-9
Oil Seal 10 for Brushcutter Dolmar MS335.4C
Oil Seal 10 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 10 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: -  MS335.4C - BRUSHCUTTER 33,5cc 4T -  MS335.4U...
on 7/10 Business Days Approx €3.20
Details
Dolmar Recoil Starter Set for MS335.4C
Makita SKU: 195142-4
Dolmar Recoil Starter Set for MS335.4C
Dolmar Recoil Starter Set for MS335.4C Genuine replacement part Dolmar, Complete Recoil Starter Assembly for Dolmar and Makita 4-stroke engines. Specifically designed for MS335.4C/U brushcutters and MP352.4Z water pumps. Part...
Last items in stock €43.54
Details
Comments (0)
