Makita Spare Parts for Chainsaw DCS232T

SKU: Makita DCS232T Condition: New
€108.76
VAT included

Makita Spare Parts for Chainsaw DCS232T

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw DCS232T.
settings 123 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
123 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

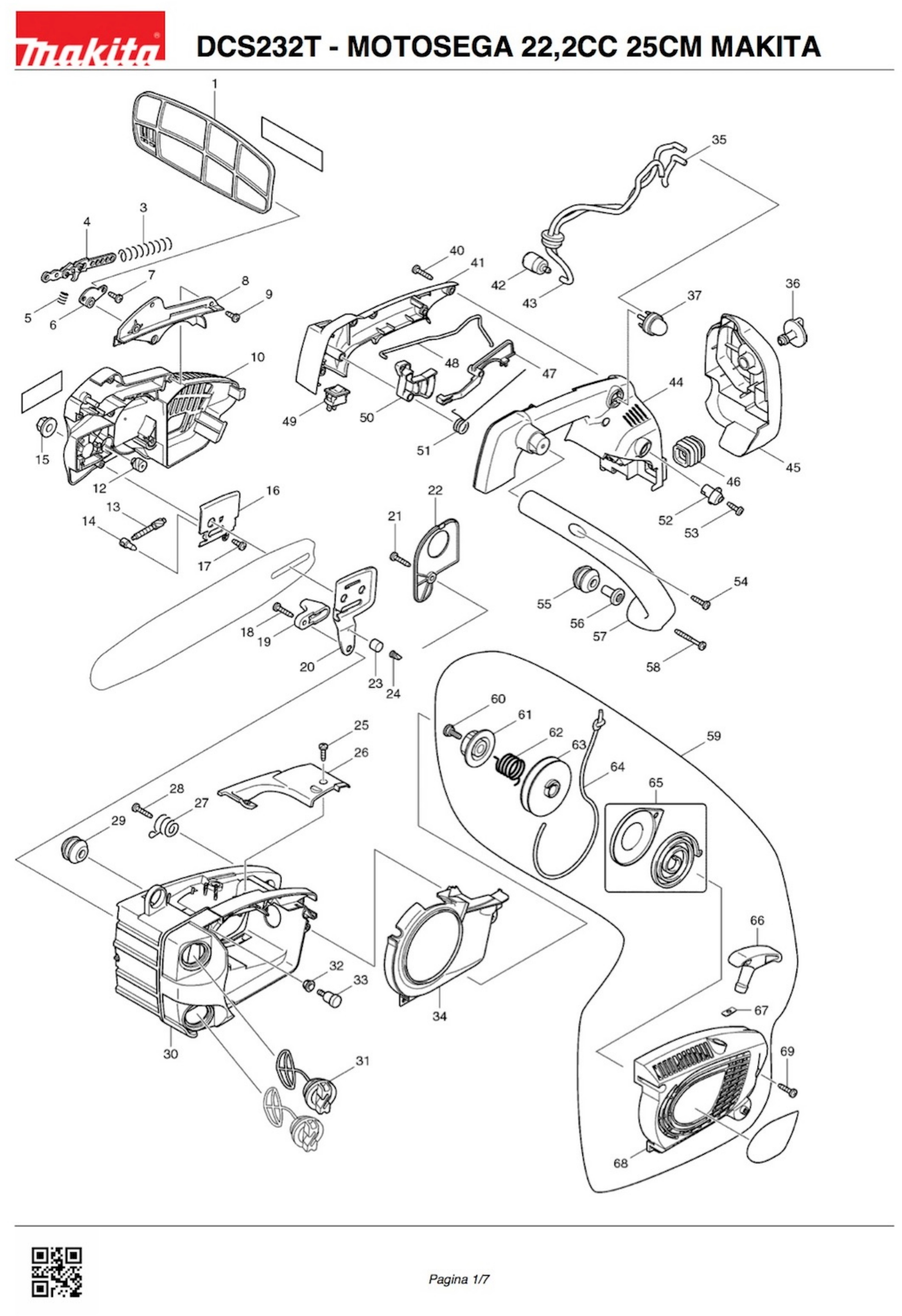

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 154650-4 HAND PROTECTION X DCS230T €9.58
3
 photo_cameraImage coming soon 233175-2 SPRING COMPRESSION 9 €2.20
4
 Link Plate Complete for Chainsaw Makita DCS230T 163448-8 Link Plate Complete for Chainsaw Makita DCS230T €6.76
5
 photo_cameraImage coming soon 231298-0 SPRING COMPRES.X HM 1500 €1.47
6
 photo_cameraImage coming soon 418715-9 HAND GUARD COVER DCS230T €2.02
7
 photo_cameraImage coming soon 266020-6 SCREW M4 X 12 €1.46
8
 Breake Band Spring Cover for Chainsaw Makita DCS230T 418736-1 Breake Band Spring Cover for Chainsaw Makita DCS230T €3.04
10
 Sproket Cover Set for Chainsaw Makita DCS230T 183946-6 Sproket Cover Set for Chainsaw Makita DCS230T €20.85
12
 Helical mm 17 Chain Tensioner for Chainsaw Dolmar PS220TH 226590-7 Helical mm 17 Chain Tensioner for Chainsaw Dolmar PS220TH €18.81
13
 Helical mm 8 Chain Tensioner for Chainsaw Dolmar PS220TH 226534-7 Helical mm 8 Chain Tensioner for Chainsaw Dolmar PS220TH €16.15
14
 Pin Chain Tensioner for Chainsaw Dolmar PS220TH 324464-7 Pin Chain Tensioner for Chainsaw Dolmar PS220TH €1.91
15
 Hex Nut M 8 Collared for Chainsaw Makita DCS230T 252145-2 Hex Nut M 8 Collared for Chainsaw Makita DCS230T €1.40
16
 Guide Plate Right for Chainsaw Dolmar PS222TH 345653-1 Guide Plate Right for Chainsaw Dolmar PS222TH €1.91
18
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
19
 Chain Catcher for Chainsaw Makita DCS230T 418710-9 Chain Catcher for Chainsaw Makita DCS230T €2.84
20
 Guide Plate Left for Chainsaw Dolmar PS222TH 345652-3 Guide Plate Left for Chainsaw Dolmar PS222TH €1.91
22
 Oil Pump Cover for Chainsaw Makita DCS230T 418707-8 Oil Pump Cover for Chainsaw Makita DCS230T €2.18
23
 Oil Valve Sponge for Chainsaw Dolmar PS220TH 421877-4 Oil Valve Sponge for Chainsaw Dolmar PS220TH €1.39
24
 Valve for Chainsaw Dolmar PS220TH 421298-0 Valve for Chainsaw Dolmar PS220TH €5.64
25
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
26
 Upper Engine Housing Cover for Chainsaw Makita DCS230T 418734-5 Upper Engine Housing Cover for Chainsaw Makita DCS230T €3.99
27
 Damper Spring for Chainsaw Makita DCS230T 324477-8 Damper Spring for Chainsaw Makita DCS230T €2.03
29
 Damper for Chainsaw Dolmar PS220TH 421874-0 Damper for Chainsaw Dolmar PS220TH €2.18
30
 Tank for Chainsaw Makita DCS230T 153918-5 Tank for Chainsaw Makita DCS230T €51.47
31
 Complete Oil Tank Cap for Chainsaw Makita DCS230T 168399-0 Complete Oil Tank Cap for Chainsaw Makita DCS230T €4.28
32
 photo_cameraImage coming soon 421875-8 RING X DCS230T €1.40
33
 photo_cameraImage coming soon 168396-6 RELIEF VALVE X DCS230T €6.85
34
 photo_cameraImage coming soon 418700-2 BUFFLE PLATE DCS230T €3.04
35
 photo_cameraImage coming soon 422036-3 TUBE 3-70 DCS230T €1.95
36
 Cleaner Cover Knob for Chainsaw Dolmar PS220TH 271422-3 Cleaner Cover Knob for Chainsaw Dolmar PS220TH €2.18
37
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
41
 photo_cameraImage coming soon 418696-7 TOP HANDLE COVER DCS230T €6.41
42
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
43
 Fuel Hose Complete for Chainsaw Makita DCS230T 168491-2 Fuel Hose Complete for Chainsaw Makita DCS230T €11.65
44
 Top Handle for Chainsaw Makita DCS230T 418695-9 Top Handle for Chainsaw Makita DCS230T €12.27
45
 Air Cleaner Cover for Chainsaw Dolmar PS220TH 418703-6 Air Cleaner Cover for Chainsaw Dolmar PS220TH €3.90
46
 Air Duct for Chainsaw Makita DCS230T 421872-4 Air Duct for Chainsaw Makita DCS230T €1.45
47
 photo_cameraImage coming soon 418706-0 LOCKOFF LEVER DCS230T €2.59
48
 photo_cameraImage coming soon 324468-9 ROD DCS230T €4.28
49
 Switch SLE6A2-GG-31 for Chainsaw Dolmar PS222TH 651525-3 Switch SLE6A2-GG-31 for Chainsaw Dolmar PS222TH €5.35
50
 Throttle Lever for Chainsaw Makita DCS230T 419362-9 Throttle Lever for Chainsaw Makita DCS230T €2.94
51
 photo_cameraImage coming soon 231672-2 TORSION SPRING 11 DCS230T €1.35
52
 Choke Lever for Chainsaw Makita DCS230T 418708-6 Choke Lever for Chainsaw Makita DCS230T €2.33
56
 Buffer Cap for Chainsaw Makita DCS230T 418709-4 Buffer Cap for Chainsaw Makita DCS230T €2.04
57
 Side Handle for Chainsaw Makita DCS230T 418704-4 Side Handle for Chainsaw Makita DCS230T €12.27
58
 photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
59
 photo_cameraImage coming soon 125260-4 STARTER CPL X DCS230T €39.08
60
 photo_cameraImage coming soon SG00000005 SET SCREW A60701200080 DCS230T €2.02
61
 Cam Plate for Chainsaw Makita DCS230T SG00000004 Cam Plate for Chainsaw Makita DCS230T €4.20
62
 photo_cameraImage coming soon SG00000003 DAMPER SPRING A52408180700 €5.74
63
 photo_cameraImage coming soon SG00000001 REEL A54108100300 DCS230T €4.95
64
 photo_cameraImage coming soon SG00000007 STATER ROPE A57110860000 €2.59
65
 photo_cameraImage coming soon SG00000002 SPRING ASSY A20403720201 DCS23 €10.70
66
 photo_cameraImage coming soon SG00000008 STARTER KNOB A5720A20000 €3.73
67
 photo_cameraImage coming soon SG00000009 ROPE STARTER A57302611810 €1.35
68
 photo_cameraImage coming soon 163450-1 STARTER CASE COMP DCS230T €10.70
501
 Guide Bar 25CM for Chainsaw Makita DCS232T 168408-5 Guide Bar 25CM for Chainsaw Makita DCS232T €28.70
502
 photo_cameraImage coming soon 511492740 SAW CHAIN 3/8" .050" 25cm-10" €19.14
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

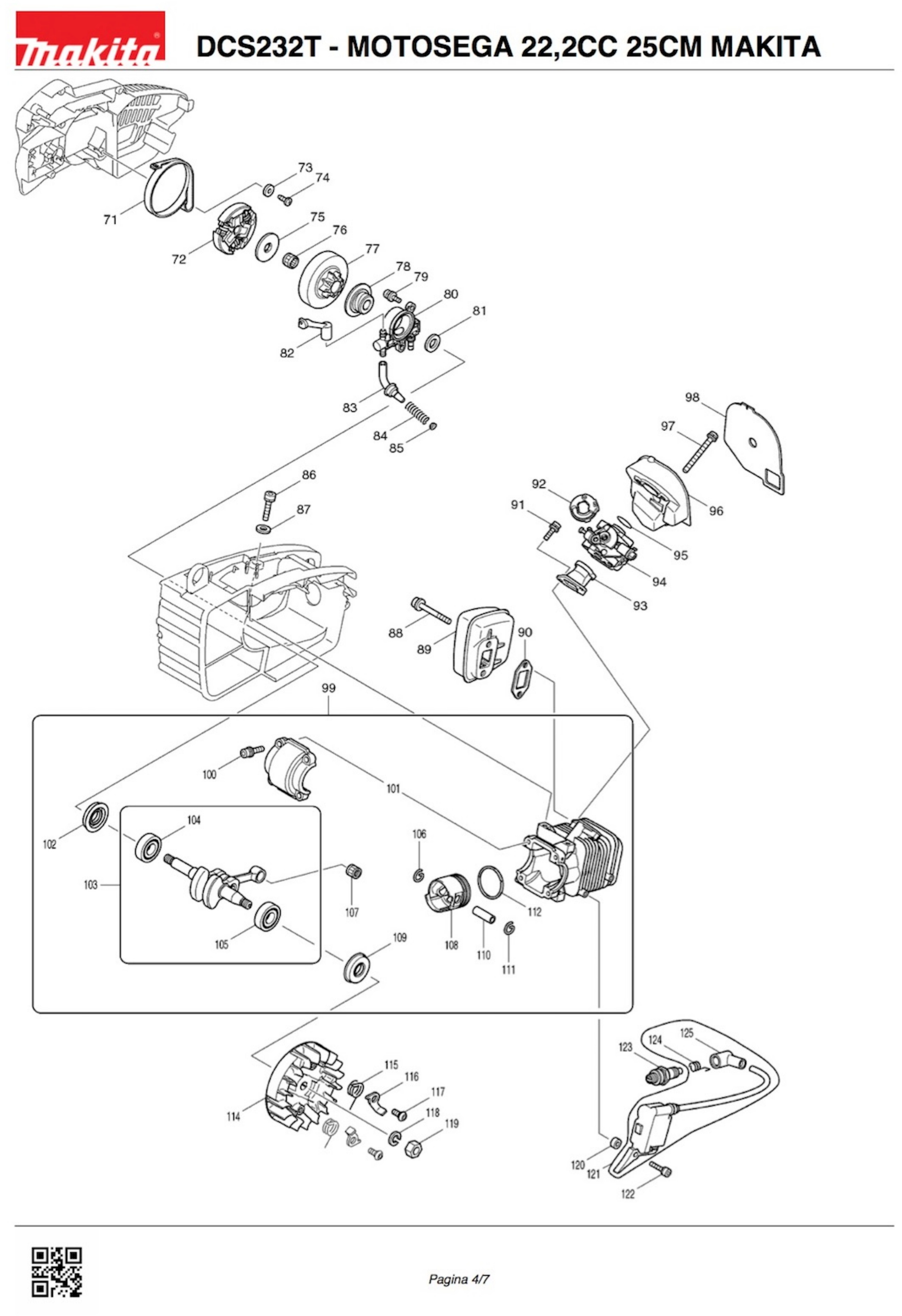

Esploso pagina 2
Pos. Item Price Buy
71
 Brake Band for Chainsaw Makita DCS230T 345454-7 Brake Band for Chainsaw Makita DCS230T €12.27
72
 Clutch for Chainsaw Makita DCS230T 168391-6 Clutch for Chainsaw Makita DCS230T €21.47
73
 photo_cameraImage coming soon 267195-4 WASHER 4 X DCS230T €1.47
75
 photo_cameraImage coming soon 267284-5 FLAT WASHER 8 DCS230T/5103R €1.35
76
 Clutch Drum Needle Bearing for Chainsaw Makita DCS230T 212077-5 Clutch Drum Needle Bearing for Chainsaw Makita DCS230T €6.56
77
 Clutch Drum for Chainsaw Makita DCS230T 165405-2 Clutch Drum for Chainsaw Makita DCS230T €27.58
78
 Worm Screw for Chainsaw Dolmar PS220TH 221422-3 Worm Screw for Chainsaw Dolmar PS220TH €7.35
79
 photo_cameraImage coming soon 911118-1 M4PER12 SCREW €2.74
80
 Oil Pump for Chainsaw Makita DCS230T 168393-2 Oil Pump for Chainsaw Makita DCS230T €42.30
81
 Flat Washer 10 for 260 mm Table Saw Makita 2704 253758-2 Flat Washer 10 for 260 mm Table Saw Makita 2704 €1.43
82
 Oil Pump Pipe Connector for Chainsaw Dolmar PS220TH 421873-2 Oil Pump Pipe Connector for Chainsaw Dolmar PS220TH €2.94
83
 Oil Pump Tube for Chainsaw Dolmar PS220TH 421876-6 Oil Pump Tube for Chainsaw Dolmar PS220TH €1.85
84
 photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
85
 photo_cameraImage coming soon 416274-7 PLUG OIL PIPE X DCS230T €1.47
86
 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH 922231-0 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH €1.35
87
 photo_cameraImage coming soon 941101-4 FLAT WASHER 5 €1.47
88
 photo_cameraImage coming soon 266354-7 FLANGE SOCKET M5X40 DCS230T €1.35
89
 Exhaust Muffler Complete for Chainsaw Makita DCS230T 168392-4 Exhaust Muffler Complete for Chainsaw Makita DCS230T €18.36
90
 photo_cameraImage coming soon 418718-3 MUFFLER GASKET DCS230T €3.73
91
 Intake Manifold Screw M4X14 for Chainsaw Makita DCS230T 922123-3 Intake Manifold Screw M4X14 for Chainsaw Makita DCS230T €1.23
92
 Carburator Holder for Chainsaw Makita DCS230T 418717-5 Carburator Holder for Chainsaw Makita DCS230T €2.93
93
 Intake Manifold for Chainsaw Dolmar PS220TH 421950-0 Intake Manifold for Chainsaw Dolmar PS220TH €8.43
94
 Carburator for Chainsaw Dolmar PS220TH 168490-4 Carburator for Chainsaw Dolmar PS220TH €55.00
95
 photo_cameraImage coming soon 213221-7 O RING 15 DCS230T €2.02
96
 Air Cleaner Case for Chainsaw Makita DCS230T 418702-8 Air Cleaner Case for Chainsaw Makita DCS230T €2.79
97
 photo_cameraImage coming soon 911268-2 FLAT HEAD SCREW M4X45  €3.18
98
 Air Cleaner for Chainsaw Dolmar PS220TH 443118-8 Air Cleaner for Chainsaw Dolmar PS220TH €2.83
99
 photo_cameraImage coming soon 125255-7 MOTOR X DCS230T €237.67
100
 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T 922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T €1.44
101
 photo_cameraImage coming soon 183944-0 CYLINDER SET DCS230T €172.10
102
 photo_cameraImage coming soon 213131-8 OIL SEAL 12 DCS230T €9.58
103
 Cranckshaft Ass'y for Chainsaw Makita DCS230T 153910-1 Cranckshaft Ass'y for Chainsaw Makita DCS230T €126.81
104
 photo_cameraImage coming soon 210101-8 BEARING 6001 X DCS230T €18.39
106
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
107
 photo_cameraImage coming soon 212955-9 NEEDLE CAGE 8X11X10 DCS230T €7.31
108
 Piston for Chainsaw Makita DCS230T 317811-9 Piston for Chainsaw Makita DCS230T €26.50
110
 photo_cameraImage coming soon 324467-1 PISTON PIN 8 DCS230T €3.04
112
 Piston Ring for Chainsaw Makita DCS230T 324463-9 Piston Ring for Chainsaw Makita DCS230T €7.23
114
 Flywheel for Chainsaw Makita DCS230T 317813-5 Flywheel for Chainsaw Makita DCS230T €29.47
115
 photo_cameraImage coming soon 231671-4 TORSION SPRING DCS230T €1.35
116
 photo_cameraImage coming soon 345453-9 RACHET DCS230T €1.35
117
 photo_cameraImage coming soon 266342-4 HEX SOCKET BUTTON BOLT M5X12 €1.35
118
 photo_cameraImage coming soon 942201-3 WASHER 8 €2.49
119
 photo_cameraImage coming soon 931403-6 HEX NUT M8 €1.40
120
 photo_cameraImage coming soon 418714-1 SPACER DCS230T €1.35
121
 Ignition Coil Ass'y for Chainsaw Makita DCS230T 125278-5 Ignition Coil Ass'y for Chainsaw Makita DCS230T €45.93
122
 photo_cameraImage coming soon 266359-7 FLANGE SOCKET M4X18 DCS230T €2.02
123
 photo_cameraImage coming soon 0650109950-10 SPARK PLUG CMR6A X MS251.A €102.53
124
 photo_cameraImage coming soon PK00000001 SPRING X SPARK PLUG DCS230T €2.02
125
 photo_cameraImage coming soon PK00000002 PLUG CAP X DCS230T €3.73
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

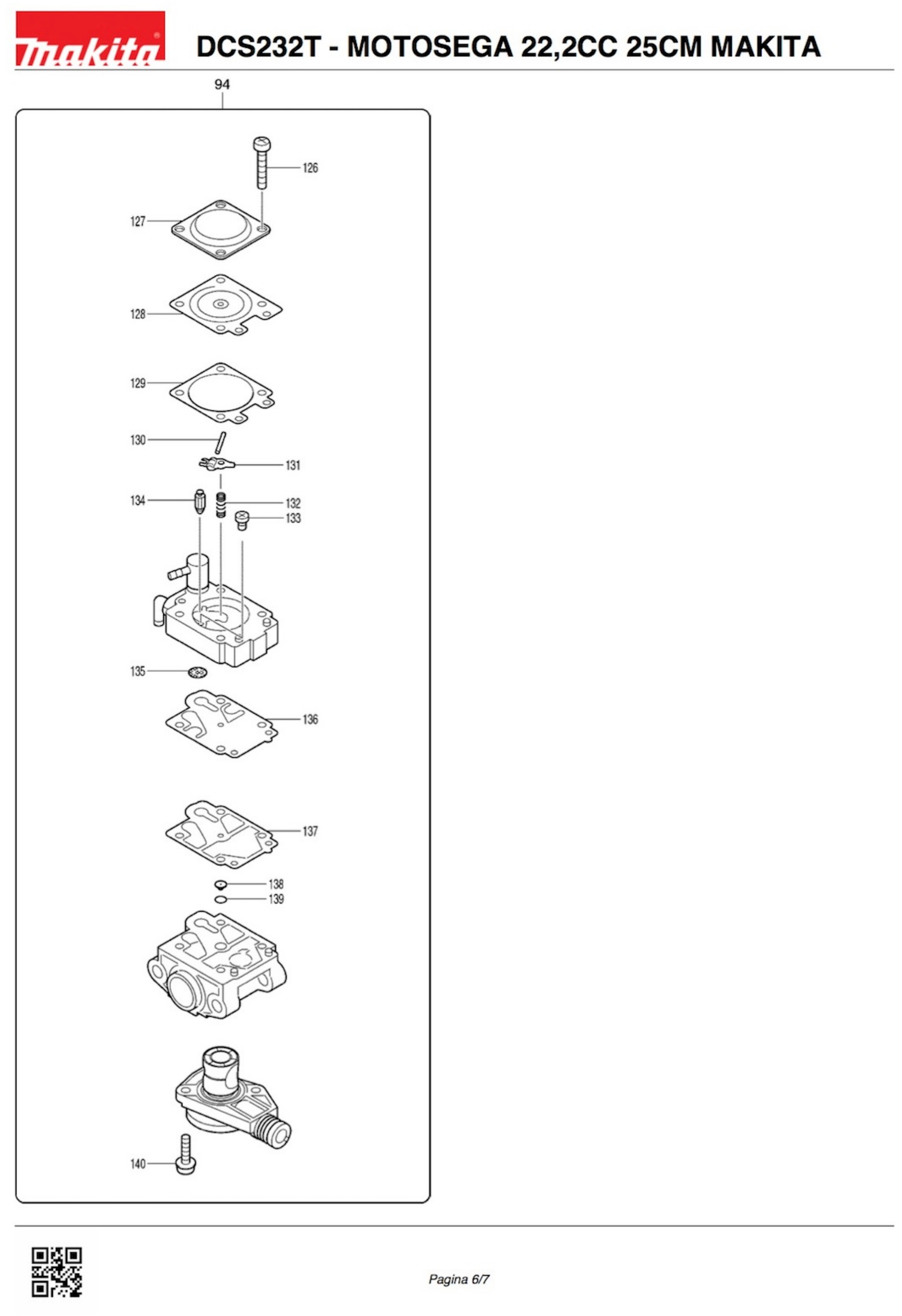

Esploso pagina 3
Pos. Item Price Buy
126
 Cover Screw for Chainsaw Makita DCS230T WJ00096325 Cover Screw for Chainsaw Makita DCS230T €2.59
127
 Cover-Metering Diaphragm for Chainsaw Makita DCS230T WJ00021158 Cover-Metering Diaphragm for Chainsaw Makita DCS230T €3.04
128
 Diaphragm Assy for Chainsaw Makita DCS230T WJ00095586 Diaphragm Assy for Chainsaw Makita DCS230T €24.58
129
 Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC WJ00092192 Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC €5.97
130
 photo_cameraImage coming soon WJ00014477 PIN DCS230T €2.77
131
 photo_cameraImage coming soon WJ00016648 LEVER DCS230T €3.22
132
 photo_cameraImage coming soon WJ00983160 SPRING DCS230T €2.76
133
 Carburator Screw for Chainsaw Makita DCS230T WJ00096424 Carburator Screw for Chainsaw Makita DCS230T €2.84
134
 photo_cameraImage coming soon WJ00008282 VALVE DCS230T €10.18
135
 photo_cameraImage coming soon WJ00014070 INLET SCREEN DCS230T €2.97
136
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
137
 photo_cameraImage coming soon WJ00092258 GASKET DCS230T €7.15
138
 photo_cameraImage coming soon WJ00112245 JET X DCS230T €9.61
139
 photo_cameraImage coming soon WJ00016104 O RING DCS230T €3.23
140
 photo_cameraImage coming soon WJ00096364 SCREW DCS230T €2.97

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chainsaw DCS232T

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw DCS232T.

In the following table, look for the model of Chainsaw and the respective parts of the code.
Makita DCS232T

Chainsaw DCS232T
# Part Num. Description
1 154650-4 HANDLE PROTECTION X DCS230T
3 233175-2 COMPRESSION SPRING 9
4 163448-8 LEVERAGE X DCS230T
5 231298-0 COMPRESSION SPRING X HM 1500
6 418715-9 LEVERAGE X DCS230T
7 266020-6 SCREW M4 X 12
8 418736-1 COVER SPRING X DCS230T
9 266020-6 SCREW M4 X 12
10 183946-6 SPROCKET COVER X DCS230T
12 226590-7 GEAR 17 X DCS230T
13 226534-7 GEAR 8 X DCS230T
14 324464-7 CHAIN TENSIONER PIN X DCS230T
15 252145-2 NUT M 8 / COLLAR X DCS230T
16 345653-1 RIGHT PLATE X DCS230T
17 266020-6 SCREW M4 X 12
18 265995-6 SCREW M4X18 X 6408 / 6221DW
19 418710-9 CHAIN GUIDE X DCS230T
20 345652-3 GUIDE PLATE LEFT X DCS230T
21 265995-6 SCREW M4X18 X 6408 / 6221DW
22 418707-8 OIL PUMP COVER X DCS230T
23 421877-4 SPONGE 10 X DCS230T
24 421298-0 CHOKE VALVE X 5014 / 16NB
25 266007-8 SCREW M3 X10 HP2030
26 418734-5 TOP COVER X DCS230T
27 324477-8 DAMPER SPRING X DCS230T
28 265995-6 SCREW M4X18 X 6408 / 6221DW
29 421874-0 DAMPER X DCS230T
30 153918-5 TANK X DCS230T
31 168399-0 OIL TANK CAP X DCS230T
32 421875-8 SEAL RING X DCS230T
33 168396-6 VALVE X DCS230T
34 418700-2 BAFFLE X DCS230T
35 422036-3 TUBE 3-70 X DCS230T
36 271422-3 KNOB 28 X DCS230T
37 168398-2 PRIMER PUMP X DCS230T
40 265995-6 SCREW M4X18 X 6408 / 6221DW
41 418696-7 UPPER HANDLE COVER X DCS230T
42 163447-0 FUEL FILTER X DCS230T
43 168491-2 COMPLETE TUBE X DCS232T
44 418695-9 TOP HANDLE X DCS230T
45 418703-6 AIR FILTER COVER DCS230T
46 421872-4 AIR DUCT X DCS230T
47 418706-0 LEVER X DCS230T
48 324468-9 ROD X DCS230T
49 651525-3 SWITCH SLE 6A2-GG-31 X DCS230T
50 419362-9 THROTTLE LEVER X DCS230T
51 231672-2 TORSION SPRING 11 X DCS230T
52 418708-6 AIR LEVER X DCS230T
53 266007-8 SCREW M3 X10 HP2030
54 265995-6 SCREW M4X18 X 6408 / 6221DW
55 421874-0 BUFFER RUBBER X DCS230T
56 418709-4 BUFFER CAP DCS230T
57 418704-4 SIDE HANDLE DCS230T
58 266048-4 SCREW M 4 X 40 X 4334D
59 125260-4 STARTER CPL X DCS230T
60 SG00000005 SCREW X DCS230T
61 SG00000004 CAMS X DCS230T
62 SG00000003 TORSION SPRING X DCS230T
63 SG00000001 REEL X DCS230T
64 SG00000007 STARTER ROPE X DCS230T
65 SG00000002 REWIND SPRING X DCS230T
66 SG00000008 START KNOB x DCS230T
67 SG00000009 LOCK ROPE X DCS230T
68 163450-1 STARTER CASE COMP X DCS230T
69 265995-6 SCREW M4X18 X 6408 / 6221DW
71 345454-7 BRAKE BAND X DCS230T
72 168391-6 CLUTCH X DCS230T
73 267195-4 WASHER 4 X DCS230T
74 266020-6 SCREW M4 X 12
75 267284-5 WASHER 8 X DCS230T
76 212077-5 NEEDLE BEARING X DCS230T
77 165405-2 CLUTCH DRUM 3/8" X DCS230T
78 221422-3 WORM SCREW X DCS230T
79 911118-1 SCREW M4X12
80 168393-2 OIL PUMP X DCS230T
81 253758-2 FLAT WASHER 10
82 421873-2 TUBE X DCS230T
83 421876-6 TUBE X DCS230T
84 231975-4 SPRING OIL TUBE X DCS230T
85 416274-7 OIL TUBE CAP X DCS230T
86 922231-0 BOLT M5X20
87 941101-4 FLAT WASHER 5
88 266354-7 SCREW M5 X 40 X DCS230T
89 168392-4 MUFFLER X DCS230T
90 418718-3 MUFFLER GASKET X DCS230T
91 922123-3 SCREW M4 X 14 X DCS230T
92 418717-5 CARBURETOR SUPPORT X DCS230T
93 421950-0 INTAKE MANIFOLD X DCS231T
94 168490-4 CARBURETOR X DCS230T
95 213221-7 RING 15 X DCS230T
96 418702-8 CLEANER CASE X DCS230T
97 911268-2 FLAT HEAD SCREW M4X45
98 443118-8 AIR FILTER X DCS230T
99 125255-7 ENGINE GROUP X DCS230T
100 922233-6 HEX SOCKET HD BOLT M5X20 X DCS230T
101 183944-0 CYLINDER X DCS230T
102 213131-8 SEAL OIL 12 X DCS230T
103 153910-1 CRANKSHAFT X DCS230T
104 210101-8 BEARING 6001 X DCS230T
105 210101-8 BEARING 6001 X DCS230T
106 233976-8-4 EBH252L PIN
107 212955-9 CAGE ROLLER X DCS230T
108 317811-9 PISTON X DCS230T
109 213131-8 SEAL OIL 12 X DCS230T
110 324467-1 PIN X DCS230T
111 233976-8-4 EBH252L PIN
112 324463-9 PISTON RING X DCS230T
114 317813-5 FLYWHEEL X DCS230T
115 231671-4 TORSION SPRING X DCS230T
116 345453-9 RACHET X DCS230T
117 266342-4 SCREW M5 X 12 X DCS230T
118 942201-3 WASHER 8
119 931403-6 HEXAGONAL NUT M8
120 418714-1 SPACER X DCS230T
121 125278-5 COIL X DCS230T
122 266359-7 SCREW M4 X 18 X DCS230T
123 0650109950-10 SPARK PLUG CMR6A X MS251.A
124 PK00000001 SPRING X SPARK PLUG DCS230T
125 PK00000002 SPARK PLUG CAP X DCS230T
94 168490-4 CARBURETOR X DCS230T
126 WJ00096325 SCREW X DCS230T
127 WJ00021158 COVER-METERING DIAPHRAGM
128 WJ00095586 DIAPHRAGM X DCS230T
129 WJ00092192 GASKET X DCS230T
130 WJ00014477 PIN X DCS230T
131 WJ00016648 LEVER X DCS230T
132 WJ00983160 SPRING X DCS230T
133 WJ00096424 SCREW X DCS230T
134 WJ00008282 VALVE X DCS230T
135 WJ00014070 CARBURETOR FILTER X DCS230T
136 WJ00009599 PUMP DIAPHRAGM X DCS230T
137 WJ00092258 GASKET X DCS230T
138 WJ00112245 JET X DCS230T
139 WJ00016104 O RING X DCS230T
140 WJ00096364 SCREW X DCS230T
501 168408-5 GUIDE BAR CM 25
502 511492740 CHAIN 40M - 1,3 - 3/8 (91PX) Extra Guard
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DCS232T
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita DCS232T

Diagram Makita DCS232T

Download (649.07KB)

You might also like

Guide Plate Left for Chainsaw Dolmar PS222TH
Makita SKU: 345652-3
Guide Plate Left for Chainsaw Dolmar PS222TH
Guide Plate Left for Chainsaw Dolmar PS222TH Genuine part Dolmar, Guide Plate Left for Chainsaw PS220TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC. Part for the following products: -  PS220TH - CHAINSAW 22,2cc DOLMAR 25CM...
Usually Ships in: 7/10 Business Days Approx. €1.91
Details
Cleaner Cover Knob for Chainsaw Dolmar PS220TH
Makita SKU: 271422-3
Cleaner Cover Knob for Chainsaw Dolmar PS220TH
Cleaner Cover Knob for Chainsaw Dolmar PS220TH Genuine parts Dolmar, Cleaner Cover Knob for Chainsaws PS222TH - PS220THC - PS221TH - PS221THC - PS222TH. Part for the following...
AVAILABLE €2.18
Details
Worm Screw for Chainsaw Dolmar PS220TH
Makita SKU: 221422-3
Worm Screw for Chainsaw Dolmar PS220TH
Worm Screw for Chainsaw Dolmar PS220TH Genuine part Dolmar, Worm Screw for Chainsaws PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC Part for the following...
Last items in stock €7.35
Details
Air Cleaner for Chainsaw Dolmar PS220TH
Makita SKU: 443118-8
Air Cleaner for Chainsaw Dolmar PS220TH
Air Cleaner for Chainsaw Dolmar PS220TH Genuine parts Dolmar, Air Cleaner for Chainsaws PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC Part for the following products: - PS220TH - CHAINSAW 22,2cc DOLMAR 25CM - PS220THC...
Usually Ships in: 7/10 Business Days Approx. €2.83
Details
Intake Manifold for Chainsaw Dolmar PS220TH
Makita SKU: 421950-0
Intake Manifold for Chainsaw Dolmar PS220TH
Intake Manifold for Chainsaw Dolmar PS220TH Genuine part Dolmar, Intake Manifold for Chainsaws PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC. Part for the...
Usually Ships in: 7/10 Business Days Approx. €8.43
Details
Pin Chain Tensioner for Chainsaw Dolmar PS220TH
Makita SKU: 324464-7
Pin Chain Tensioner for Chainsaw Dolmar PS220TH
Pin Chain Tensioner for Chainsaw Dolmar PS220TH Genuine parts Dolmar, Pin Chain Tensioner for Chainsaws PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC Part for...
AVAILABLE €1.91
Details
Oil Pump Tube for Chainsaw Dolmar PS220TH
Makita SKU: 421876-6
Oil Pump Tube for Chainsaw Dolmar PS220TH
Oil Pump Tube for Chainsaw Dolmar PS220TH Genuine parts Dolmar, Oil Pump Tube for Chainsaws PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC Part for the following products: - PS220TH - CHAINSAW 22,2cc DOLMAR 25CM -...
Last items in stock €1.85
Details
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Makita SKU: WJ00092192
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC Genuine parts Dolmar, Lower Carburator Cover Gasket for Chainsaws PS32CTLC - PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC Part for the following products: -...
AVAILABLE €5.97
Details
Gasoline Primer Pump for Chainsaw Makita DCS230T
Makita SKU: 168398-2
Gasoline Primer Pump for Chainsaw Makita DCS230T
Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...
AVAILABLE €6.24
Details
Carburator for Chainsaw Dolmar PS220TH
Makita SKU: 168490-4
Carburator for Chainsaw Dolmar PS220TH
Carburator for Chainsaw Dolmar PS220TH Genuine parts Dolmar, Carburator Walbro for Chainsaws PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC Part for the...
Last items in stock €55.00
Details
Oil Pump for Chainsaw Makita DCS230T
Makita SKU: 168393-2
Oil Pump for Chainsaw Makita DCS230T
Oil Pump for Chainsaw Makita DCS230T Genuine part Makita, Oil Pump for Chainsaws DCS230T - DCS230TC - DCS231T - DCS231TC - DCS232T - DCS232TC - BUC250RDE - Dolmar PS220TH - PS221TH Part for the following products: - DCS230T - CHAINSAW...
Last items in stock €42.30
Details
Complete Oil Tank Cap for Chainsaw Makita DCS230T
Makita SKU: 168399-0
Complete Oil Tank Cap for Chainsaw Makita DCS230T
Complete Oil Tank Cap for Chainsaw Makita DCS230T Genuine part Makita, Oil Tank Cap Ass'y for Chainsaws DCS230T - DCS230TC - DCS231T - DCS232T - DCS3400TH - DCS3410TH - DCS460 Part for the...
AVAILABLE €4.28
Details
Carburator Screw for Chainsaw Makita DCS230T Sale
Makita SKU: WJ00096424
Carburator Screw for Chainsaw Makita DCS230T
Carburator Screw for Chainsaw Makita DCS230T Genuine part Makita, Carburator Screw EB7650TH for Chainsaws DCS230T - DCS230TC - DCS231T - DCS231TC - DCS232T - DCS232TC - BUC250RDE - Dolmar PS220TH - PS221TH Part for the following...
AVAILABLE €2.84
Details
Air Duct for Chainsaw Makita DCS230T
Makita SKU: 421872-4
Air Duct for Chainsaw Makita DCS230T
Air Duct for Chainsaw Makita DCS230T Genuine part for Makita, Air Duct for Chainsaws DCS230T - DCS230TC - DCS231T - DCS231TC - DCS232T - DCS232TC.  Part for the following...
AVAILABLE €1.45
Details
Hex Nut M 8 Collared for Chainsaw Makita DCS230T
Makita SKU: 252145-2
Hex Nut M 8 Collared for Chainsaw Makita DCS230T
Hex Nut M 8 Collared for Chainsaw Makita DCS230T Genuine part Makita, Hex Nut M 8 Collared for Chainsaws DCS230T - DCS230TC - DCS231T - DCS231TC - DCS232TC - Dolmar PS220TH. Part for the following products: - DCS230T - CHAINSAW 22,2cc...
AVAILABLE €1.40
Details
Chain Catcher for Chainsaw Makita DCS230T
Makita SKU: 418710-9
Chain Catcher for Chainsaw Makita DCS230T
Chain Catcher for Chainsaw Makita DCS230T Genuine part Makita, Chain Catcher for Chainsaws DCS230T - DCS230TC - DCS231T - DCS231TC - DCS232T - DCS232TC - BUC250RDE - Dolmar PS220TH - PS221TH. Part for the following products: - DCS230T...
Last items in stock €2.84
Details
Diaphragm Assy for Chainsaw Makita DCS230T
Makita SKU: WJ00095586
Diaphragm Assy for Chainsaw Makita DCS230T
Diaphragm Assy for Chainsaw Makita DCS230T Genuine part Makita, Diaphragm Assy for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for...
Last items in stock €24.58
Details
Cam Plate for Chainsaw Makita DCS230T
Makita SKU: SG00000004
Cam Plate for Chainsaw Makita DCS230T
Cam Plate for Chainsaw Makita DCS230T Genuine part Makita, Cam Plate for Chainsaws DCS230T - DCS230TC - DCS231T - DCS231TC - DCS232T - DCS232TC - BUC250RDE - Dolmar PS220TH - PS221TH. Part for the following products: - DCS230T -...
AVAILABLE €4.20
Details
Flat Washer 10 for 260 mm Table Saw Makita 2704
Makita SKU: 253758-2
Flat Washer 10 for 260 mm Table Saw Makita 2704
Flat Washer 10 for 260 mm Table Saw Makita 2704 Original replacement part Makita, Flat Washer 10 for 260 mm Table Saw Makita 2704. Part for the following products: - 2012 - THICKNESSER PLANER 304 - 2704 - TABLE SAW 260MM 1650W - 2704...
AVAILABLE €1.43
Details
Flywheel for Chainsaw Makita DCS230T
Makita SKU: 317813-5
Flywheel for Chainsaw Makita DCS230T
Flywheel for Chainsaw Makita DCS230T Genuine part for Makita, Flywheel for Chainsaws DCS230T - DCS230TC - DCS231T - DCS231TC - DCS232TC. Part for the following products: - DCS230T -...
Last items in stock €29.47
Details
Exhaust Muffler Gasket for Chainsaw Makita DCS230T
Makita SKU: 418718-2
Exhaust Muffler Gasket for Chainsaw Makita DCS230T
Exhaust Muffler Gasket for Chainsaw Makita DCS230T Genuine part for Makita, Exhaust Muffler Gasket, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: - DCS230T - CHAINSAW...
AVAILABLE €3.74
Details
Link Plate Complete for Chainsaw Makita DCS230T
Makita SKU: 163448-8
Link Plate Complete for Chainsaw Makita DCS230T
Link Plate Complete for Chainsaw Makita DCS230T Genuine part for Makita, Link Plate Complete, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: - DCS230T - CHAINSAW 22,2cc...
Last items in stock €6.76
Details
Sproket Cover Set for Chainsaw Makita DCS230T
Makita SKU: 183946-6
Sproket Cover Set for Chainsaw Makita DCS230T
Sproket Cover Set for Chainsaw Makita DCS230T Genuine part for Makita, Sproket Cover Set, for Chainsaws DCS230T - DCS231T - DCS232T - DCS230TC - DCS231TC - DCS232TC. Part for the...
Last items in stock €20.85
Details
Breake Band Spring Cover for Chainsaw Makita DCS230T
Makita SKU: 418736-1
Breake Band Spring Cover for Chainsaw Makita DCS230T
Breake Band Spring Cover for Chainsaw Makita DCS230T Genuine replacement part Makita, Breake Band Spring Cover, for Chainsaws DCS230T - DCS231T - DCS232T - DCS230TC - DCS231TC - DCS232TC. Part for the following products: - DCS230T -...
Last items in stock €3.04
Details
Cranckshaft Ass'y for Chainsaw Makita DCS230T
Makita SKU: 153910-1
Cranckshaft Ass'y for Chainsaw Makita DCS230T
Cranckshaft Ass'y for Chainsaw Makita DCS230T Genuine part Makita, Cranckshaft Ass'y, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW 22,2cc MAKITA...
Last items in stock €126.81
Details
Damper Spring for Chainsaw Makita DCS230T
Makita SKU: 324477-8
Damper Spring for Chainsaw Makita DCS230T
Damper Spring for Chainsaw Makita DCS230T Genuine part Makita, Damper Spring, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS230T - CHAINSAW 22,2cc MAKITA -...
Last items in stock €2.03
Details
Top Handle for Chainsaw Makita DCS230T
Makita SKU: 418695-9
Top Handle for Chainsaw Makita DCS230T
Top Handle for Chainsaw Makita DCS230T Genuine part Makita, Top Handle, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the...
Last items in stock €12.27
Details
Side Handle for Chainsaw Makita DCS230T
Makita SKU: 418704-4
Side Handle for Chainsaw Makita DCS230T
Side Handle for Chainsaw Makita DCS230T Genuine part Makita, Side Handle, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW 22,2cc MAKITA 25CM -...
Last items in stock €12.27
Details
Choke Lever for Chainsaw Makita DCS230T
Makita SKU: 418708-6
Choke Lever for Chainsaw Makita DCS230T
Choke Lever for Chainsaw Makita DCS230T Genuine part Makita, Choke Lever, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the...
Last items in stock €2.33
Details
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Makita SKU: WJ00021158
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Cover-Metering Diaphragm for Chainsaw Makita DCS230T Genuine part Makita, Cover-Metering Diaphragm for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW...
Last items in stock €3.04
Details
Cover Screw for Chainsaw Makita DCS230T
Makita SKU: WJ00096325
Cover Screw for Chainsaw Makita DCS230T
Cover-Metering Diaphragm Screw for Chainsaw Makita DCS230T Genuine part Makita, Cover-Metering Diaphragm Screw, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -...
Last items in stock €2.59
Details
Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T
Makita SKU: 922233-6
Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T
Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T Genuine part Makita, Hex Socket HD Bolt M5x20, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW...
on 7/10 Business Days Approx €1.44
Details
Buffer Cap for Chainsaw Makita DCS230T
Makita SKU: 418709-4
Buffer Cap for Chainsaw Makita DCS230T
Buffer Cap for Chainsaw Makita DCS230T Genuine part Makita, Buffer Cap, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW 22,2cc MAKITA 25CM -...
on 7/10 Business Days Approx €2.04
Details
Sprocket Nose Bar 25CM for Chainsaw Makita DCS232T
Makita SKU: 168408-5
Guide Bar 25CM for Chainsaw Makita DCS232T
Guide Bar 25CM for Chainsaw Makita DCS232T Genuine part Makita, Guide Bar 25 cm (10") 3/8"- 0.50MM for Chainsaw DCS232T - DUC252. Part for the following products: -  Chainsaw DCS232T -  Battery Chainsaw DUC252 - Code : 168408-5
Last items in stock €28.70
Details
Comments (0)
