Makita

Makita Spare Parts for Cordless Chain Saw DUC122RFE

SKU: Makita DUC122RFE
€2.19
VAT included

Makita Spare Parts for Cordless Chain Saw DUC122RFE

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Chain Saw DUC122RFE.
Makita Spare Parts for Cordless Chain Saw DUC122RFE
  • Makita Spare Parts for Cordless Chain Saw DUC122RFE
  • Makita Spare Parts for Cordless Chain Saw DUC122RFE
Makita

Makita Spare Parts for Cordless Chain Saw DUC122RFE

SKU: Makita DUC122RFE Condition: New
€2.19
VAT included

Makita Spare Parts for Cordless Chain Saw DUC122RFE

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Chain Saw DUC122RFE.
settings 41 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
41 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

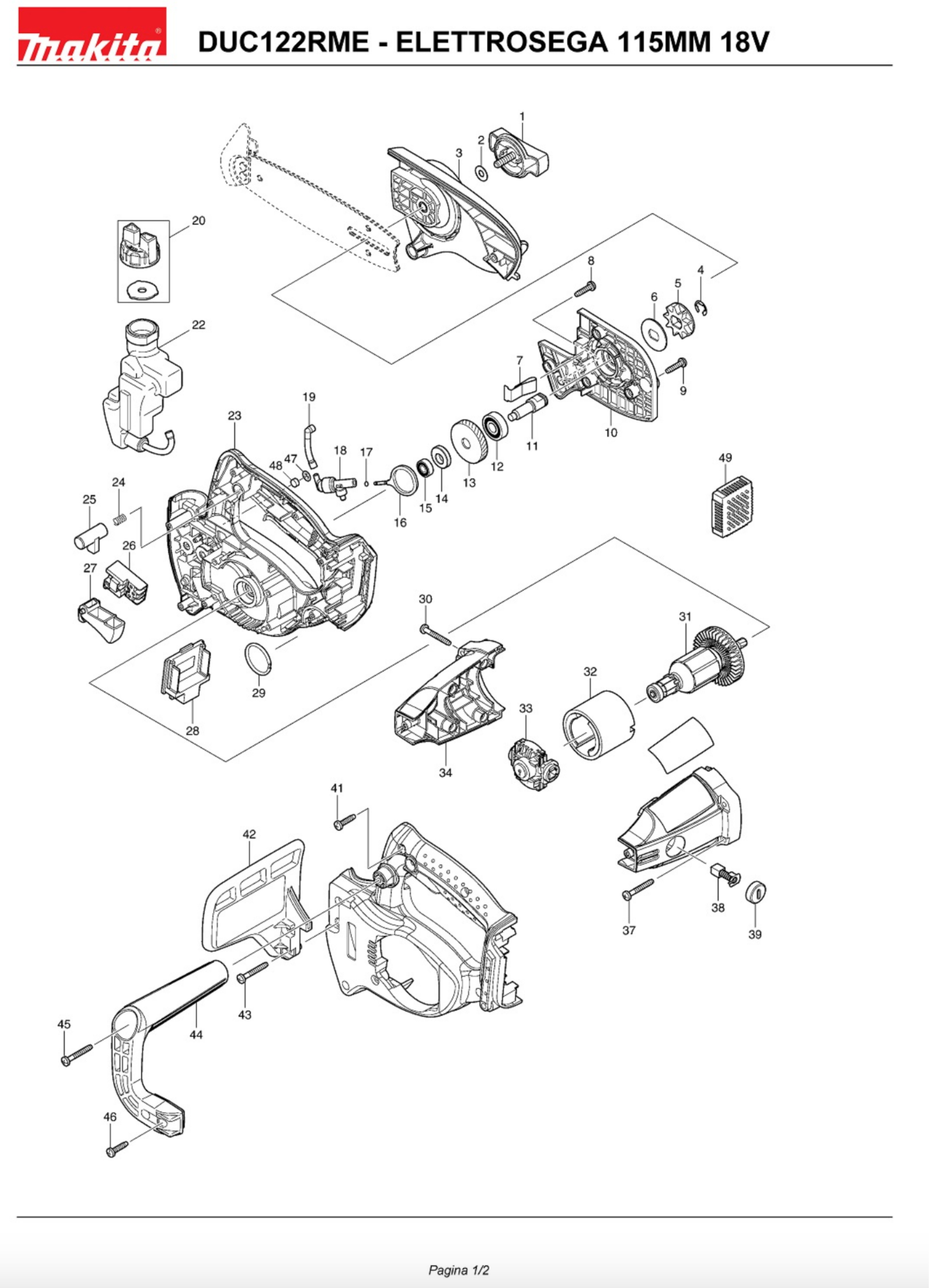

Esploso pagina 1
Pos. Item Price Buy
1
 Chain Tensioner Knob for Cordless Chainsaw DUC122RFE 158472-4 Chain Tensioner Knob for Cordless Chainsaw DUC122RFE €19.22
2
 photo_cameraImage coming soon 267004-7 FLAT WASHER 6 X4301SV €1.93
3
 photo_cameraImage coming soon 158471-6 SPROCKET COVER COMPLETE €16.76
4
 photo_cameraImage coming soon 961014-3 RETAINING RING E-8 €1.46
5
 photo_cameraImage coming soon 221527-9 PINION 9D X BUC121R €2.69
6
 photo_cameraImage coming soon 267732-4 WASHER 12 €1.93
7
 photo_cameraImage coming soon 232238-1 SPRING PLATE X BUC121R €4.43
8
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
10
 photo_cameraImage coming soon 450213-7 BEARING CASE BUC121R €9.03
11
 Spindle for Battery Saw Dolmar AS1812LGE 323806-2 Spindle for Battery Saw Dolmar AS1812LGE €18.18
12
 Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW 211051-0 Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW €11.19
13
 Helical Gear 50 for Battery Saw Dolmar AS1812LGE 226673-3 Helical Gear 50 for Battery Saw Dolmar AS1812LGE €10.34
14
 photo_cameraImage coming soon 450436-7 CAM FOR BUC121R €3.22
15
 Bearing 696ZZ FOR Angle Grinder Makita GA4530 210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530 €3.35
16
 Oil Pump Crank for Battery Saw Dolmar AS1812LGE 450435-9 Oil Pump Crank for Battery Saw Dolmar AS1812LGE €7.39
17
 photo_cameraImage coming soon 213993-4 RING 1.5 X BUC121R €1.93
18
 Oil Pump for Battery Saw Dolmar AS1812LGE 158571-2 Oil Pump for Battery Saw Dolmar AS1812LGE €19.59
19
 Oil Pump Connector Hose for Battery Saw Dolmar AS1812LGE 421615-4 Oil Pump Connector Hose for Battery Saw Dolmar AS1812LGE €2.20
20
 Complete Oil Tank Cap for Cordless Chainsaws Makita DUC252Z-DUC122RFE 158810-0 Complete Oil Tank Cap for Cordless Chainsaws Makita DUC252Z-DUC122RFE €8.54
22
 photo_cameraImage coming soon 158634-4 OIL TANK X BUC121R €19.22
23
 photo_cameraImage coming soon 187237-7 HANDLE €75.83
24
 photo_cameraImage coming soon 231470-4 SPRING 6 X 6811DW €1.93
25
 photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.47
26
 photo_cameraImage coming soon 651956-6 SWITCH TG72BD X 5621RDW €18.98
27
 photo_cameraImage coming soon 450212-9 LEVER SWITCH. X BUC121R €3.13
28
 photo_cameraImage coming soon 644808-8 X-TERMINAL BLS713 BHP451 €6.27
29
 photo_cameraImage coming soon 257264-9 RING 30 X BUC121R €1.93
31
 Armature DC 18V for Battery Saw Dolmar AS1812LGE 619225-1 Armature DC 18V for Battery Saw Dolmar AS1812LGE €33.22
32
 photo_cameraImage coming soon 638138-7 STATOR PERMANENT MAGNET €13.29
33
 photo_cameraImage coming soon 638608-6 HOLDER BRUSHES BUC121R €4.43
34
 photo_cameraImage coming soon 188468-1 HOUSING MOTOR X BUC121R €16.76
37
 photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
38
 Carbon Brushes CB-430 for Cordless Angle Grinders Makita BGA450-452RFE 191971-3 Carbon Brushes CB-430 for Cordless Angle Grinders Makita BGA450-452RFE €8.23
39
 Carbon Brush Holder Cap for Cordless Drill Makita 6347D 643807-7 Carbon Brush Holder Cap for Cordless Drill Makita 6347D €2.51
42
 photo_cameraImage coming soon 158474-0 SAFE HANDES X BUC121R €11.61
44
 photo_cameraImage coming soon 450217-9 FRONT HANDLE BUC121R €6.63
47
 photo_cameraImage coming soon 259041-5 RING FOR 8 UC3020A €1.93
48
 photo_cameraImage coming soon 443125-1 FILTER UC3020A €1.93
49
 photo_cameraImage coming soon 620098-7 REGULATOR €28.31
501
 photo_cameraImage coming soon 158479-0 GUIDE BAR 115 mm 1/4 " €38.59
502
 photo_cameraImage coming soon P-19928 CHAIN 25AP DRIVE LINK 42 .050" 1/4" - FILE SIZE 5/32" €23.69

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Cordless Chain Saw DUC122RFE

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Chain Saw DUC122RFE.

In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
Makita DUC122RFE

Cordless Chain Saw DUC122RME
# Part Num. Description
1 158472-4 KNOB 60 X BUC121R
2 267004-7 FLAT WASHER 6 X4301SV
3 158471-6 CARTER PIGNONE X BUC121R
4 961014-3 RETAINING RING E-8
5 221527-9 PINION 9D X BUC121R
6 267732-4 WASHER 12
7 232238-1 SPRING PLATE X BUC121R
8 265995-6 SCREW M4X18 X 6408/6221DW
9 265995-6 SCREW M4X18 X 6408/6221DW
10 450213-7 BEARING CASE BUC121R
11 323806-2 SPINDLE X BUC121R
12 211051-0 BALL BEARING 609 2RS
13 226673-3 HELICAL GEAR 50 X BUC121R
14 450436-7 CAM FOR BUC121R
15 210033-9 BEARING 696ZZ X 2107FK
16 450435-9 OIL PUMP CRANK X BUC121R
17 213993-4 RING 1.5 X BUC121R
18 158571-2 OIL PUMP FOR BUC121R
19 421615-4 OIL PUMP CONNECTOR HOSE BUC121R
20 158810-0 TANK CAP ASSY
22 158634-4 OIL TANK X BUC121R
23 187237-7 HANDLE
24 231470-4 SPRING 6 X 6811DW
25 416178-3 RESET BUTTON X UC3020A
26 651956-6 SWITCH TG72BD X 5621RDW
27 450212-9 LEVER SWITCH. X BUC121R
28 644808-8 X-TERMINAL BLS713 BHP451
29 257264-9 RING 30 X BUC121R
30 265995-6 SCREW M4X18 X 6408/6221DW
31 619225-1 ARMATURE BUC122R
32 638138-7 STATOR PERMANENT MAGNET
33 638608-6 HOLDER BRUSHES BUC121R
34 188468-1 HOUSING MOTOR X BUC121R
37 266050-7 SCREW 4X30 PT
38 191971-3 CARBON BRUSH SET CB-430
39 643807-7 CARBON BRUSHE HOLDER CAP 6347D
41 265995-6 SCREW M4X18 X 6408/6221DW
42 158474-0 SAFE HANDES X BUC121R
43 266050-7 SCREW 4X30 PT
44 450217-9 FRONT HANDLE BUC121R
45 266050-7 SCREW 4X30 PT
46 265995-6 SCREW M4X18 X 6408 / 6221DW
47 259041-5 RING FOR 8 UC3020A
48 443125-1 FILTER UC3020A
49 620098-7 REGULATOR
501 158479-0 GUIDE BAR 115 mm 1/4 "
502 P-19928 CHAIN 25AP DRIVE LINK 42 .050" 1/4" - FILE SIZE 5/32"
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
