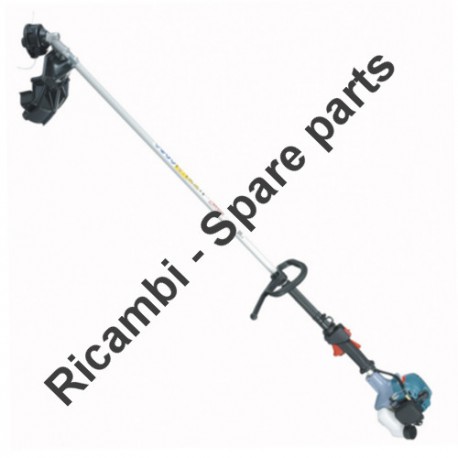

Makita Spare Parts for Brusch Cutter RBC3210

SKU: Makita RBC3210
€1.38
VAT included

Makita Spare Parts for Brusch Cutter RBC3210

Makita original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Brusch Cutter RBC3210.
Makita Spare Parts for Brusch Cutter RBC3210
  • Online only
  • Makita Spare Parts for Brusch Cutter RBC3210
  • Makita Spare Parts for Brusch Cutter RBC3210
  • Makita Spare Parts for Brusch Cutter RBC3210
  • Makita Spare Parts for Brusch Cutter RBC3210
  • Makita Spare Parts for Brusch Cutter RBC3210
  • Makita Spare Parts for Brusch Cutter RBC3210
  • Makita Spare Parts for Brusch Cutter RBC3210
  • Makita Spare Parts for Brusch Cutter RBC3210

Makita Spare Parts for Brusch Cutter RBC3210

SKU: Makita RBC3210 Condition: New
€1.38
VAT included

Makita Spare Parts for Brusch Cutter RBC3210

Makita original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Brusch Cutter RBC3210.
settings 156 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

147 spare parts

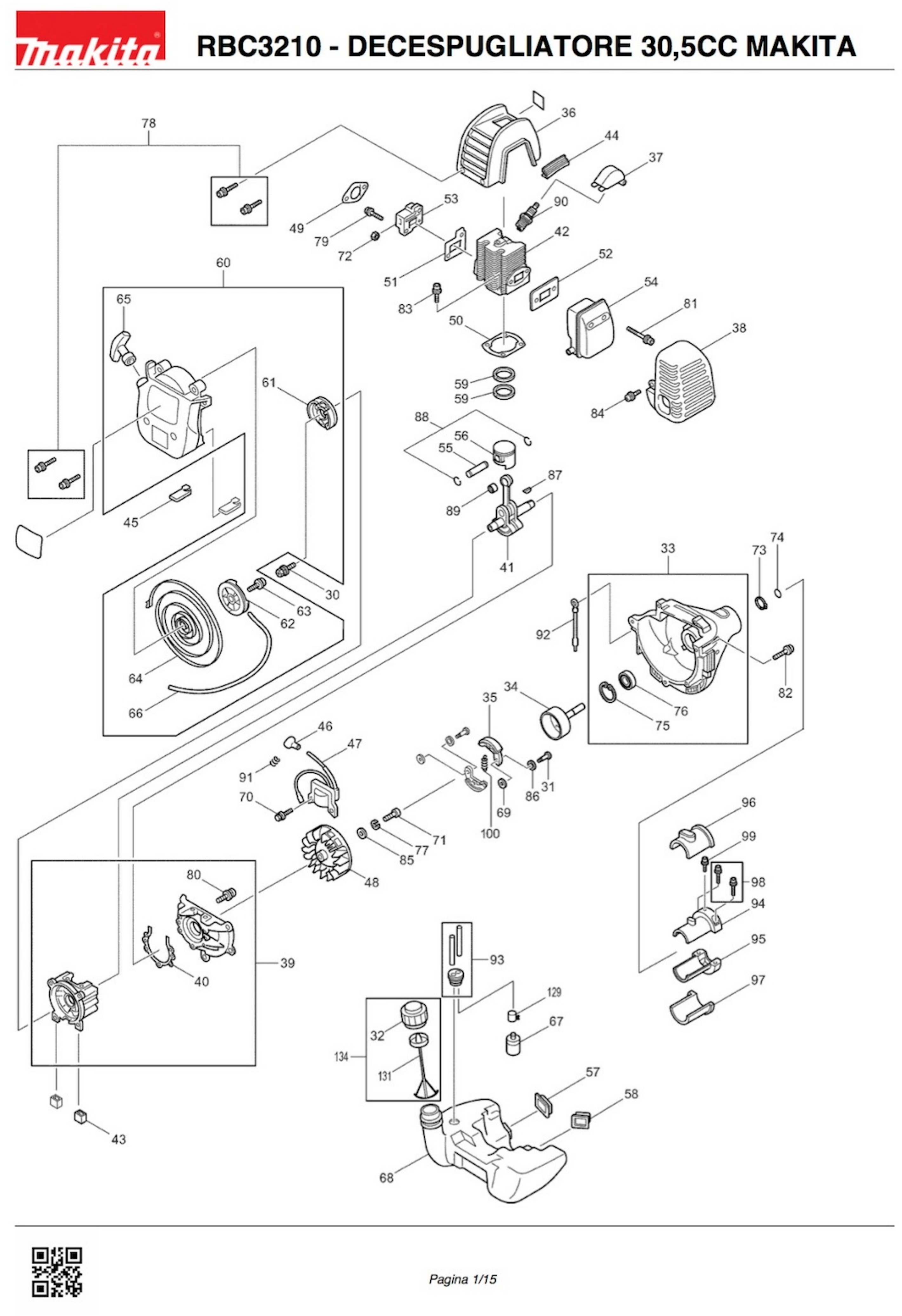

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
30
photo_cameraImage coming soon 6202006000 BOLT FOR RBC310 €2.14
31
photo_cameraImage coming soon 266457-7 SCREW M6FOR25 EBH252L €2.76
32
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
33
photo_cameraImage coming soon 6271004001 CLUTCH HOUSING RBC321 €151.83
34
photo_cameraImage coming soon 6272002002 CPL DRUM CLUTCH RBC321 €64.79
37
photo_cameraImage coming soon 5317500700 SPARK PLUG COVER FOR RBC321 €7.33
39
photo_cameraImage coming soon 5311007000 ENGINE CPL FOR RBC321 €199.62
40
photo_cameraImage coming soon 5311501200 ENGINE GASKET FOR RBC321 €2.30
41
photo_cameraImage coming soon 5312007001 CRANKSHAFT FOR MS2810 €123.95
42
Cylinder for Brushcutter Makita RBC310 319255-9 Cylinder for Brushcutter Makita RBC310 €140.91
43
photo_cameraImage coming soon 5216500200 DAMPER X RBC230-225-255 €1.40
44
photo_cameraImage coming soon 5315504100 RUBBER FOR RBC321 €2.96
45
photo_cameraImage coming soon 5316503100 DAMPER FOR RBC321 €4.89
46
photo_cameraImage coming soon 5317010030 PLUG CAP RBC321 €2.96
47
Electronic Coil for Brushcutter Makita RBC3210 5317010020 Electronic Coil for Brushcutter Makita RBC3210 €40.75 Not available for order
48
photo_cameraImage coming soon 5317010010 FLYWHEEL FOR RBC321 €111.42
49
Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
50
Cylinder Gasket for Brushcutter Makita RBC310 5311500301 Cylinder Gasket for Brushcutter Makita RBC310 €3.08
51
Insulator Gasket for Brushcutter Makita RBC310 5313502300 Insulator Gasket for Brushcutter Makita RBC310 €3.86
52
photo_cameraImage coming soon 5313502200 MUFFLER GASKET FOR RBC321 €7.33
53
photo_cameraImage coming soon 5313500500 ISOLATOR FOR RBC 310 €8.50
54
photo_cameraImage coming soon 5313009001 MUFFLER FOR RBC321 €82.29
55
Piston Pin for Brushcutter Makita RBC310 5312500400 Piston Pin for Brushcutter Makita RBC310 €3.08
56
Piston for Brushcutter Makita RBC310 5312500601 Piston for Brushcutter Makita RBC310 €56.71
57
Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
58
photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
59
Piston Ring for Brushcutter Makita RBC310 5982500200 Piston Ring for Brushcutter Makita RBC310 €6.19
60
photo_cameraImage coming soon 5315012000 STARTING BLOCK CPL FOR RBC321 €45.12
62
photo_cameraImage coming soon 5315007010 STARTER REEL FOR RBC321 €18.40
63
photo_cameraImage coming soon 5315007020 SCREW FOR RBC351 €3.46
64
photo_cameraImage coming soon 5415003020 STARTER SPRING FOR RBC260 €7.33
65
photo_cameraImage coming soon 5215002110 STARTER FOR RBC 230-225-255 €3.23
66
photo_cameraImage coming soon 5235024022 STARTER ROPE RBK250-RBC225-2 €17.13
67
Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
68
photo_cameraImage coming soon 5316502001 TANK MS3210 €44.71
69
photo_cameraImage coming soon 6272500000 WASHER FOR RBC321 €1.54
72
photo_cameraImage coming soon 21705000 NUT M5 FOR RBC415 €1.43
73
photo_cameraImage coming soon 31512000 RING FOR RBC260 / 520RBK410 €1.91
75
photo_cameraImage coming soon 31432000 INTERNAL LOCKING RBC260 / 310/410 €2.23
76
photo_cameraImage coming soon 600129950 BALL BEARING FOR RBC260 €13.61
77
photo_cameraImage coming soon 32006000 WASHER FOR RBC / RBK410-G2400R €1.43
78
photo_cameraImage coming soon 119059570 M5FOR30 RBC321 BOLT €1.60
79
photo_cameraImage coming soon 119059630 M5FOR20 FOR PB500R BOLT €2.76
81
photo_cameraImage coming soon 119059670 SCREW M5FOR55 FOR RBC415 €2.23
82
photo_cameraImage coming soon 119059730 BOLT X RBC 260/230/225/255 €1.91
83
photo_cameraImage coming soon 119059950 M5FOR18 BOLT FORRBC230 / 310/225 / €1.91
84
photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
85
photo_cameraImage coming soon 200069920 WASHER M6 FOR RBC310 / 410 / RBK410 €2.76
86
photo_cameraImage coming soon 267817-6 WASHER 8 EBH252L €1.46
87
photo_cameraImage coming soon 323039990 WOODRUUF FOR RBC350-RBC420 €2.76
88
photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
89
photo_cameraImage coming soon 610089990 NEEDLE BEARING FOR RBC260 / 230/310 / €5.96
90
photo_cameraImage coming soon 0650149721-10 SPARK PLUG X RBK250 €154.28
91
photo_cameraImage coming soon 654009931 PIN X RBC415-225-255 €2.46
92
photo_cameraImage coming soon 6165500201 WIRE RBC201 €3.23
93
photo_cameraImage coming soon 0851179972 FUEL TUBE MS2810 €15.85
94
photo_cameraImage coming soon 6271500301 UPPER HALF-SHELL 1 RBC321 €14.05
95
photo_cameraImage coming soon 6271500401 LOWER HALF-SHELL 2 RBC321 €14.05
96
photo_cameraImage coming soon 6271500105 UPPER SPACER FOR MS2810 €7.33
97
photo_cameraImage coming soon 6271500205 LOWER SPACER FOR MS2810 €6.57
99
photo_cameraImage coming soon 119059900 M5FOR12 FOR RBC225-255 BOLT €1.71
100
photo_cameraImage coming soon 6272003020 CLUTCH SPRING €4.89
131
Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
134
photo_cameraImage coming soon 168668-9 FUEL TANK CAP COMPLETE RBC2510 €9.90

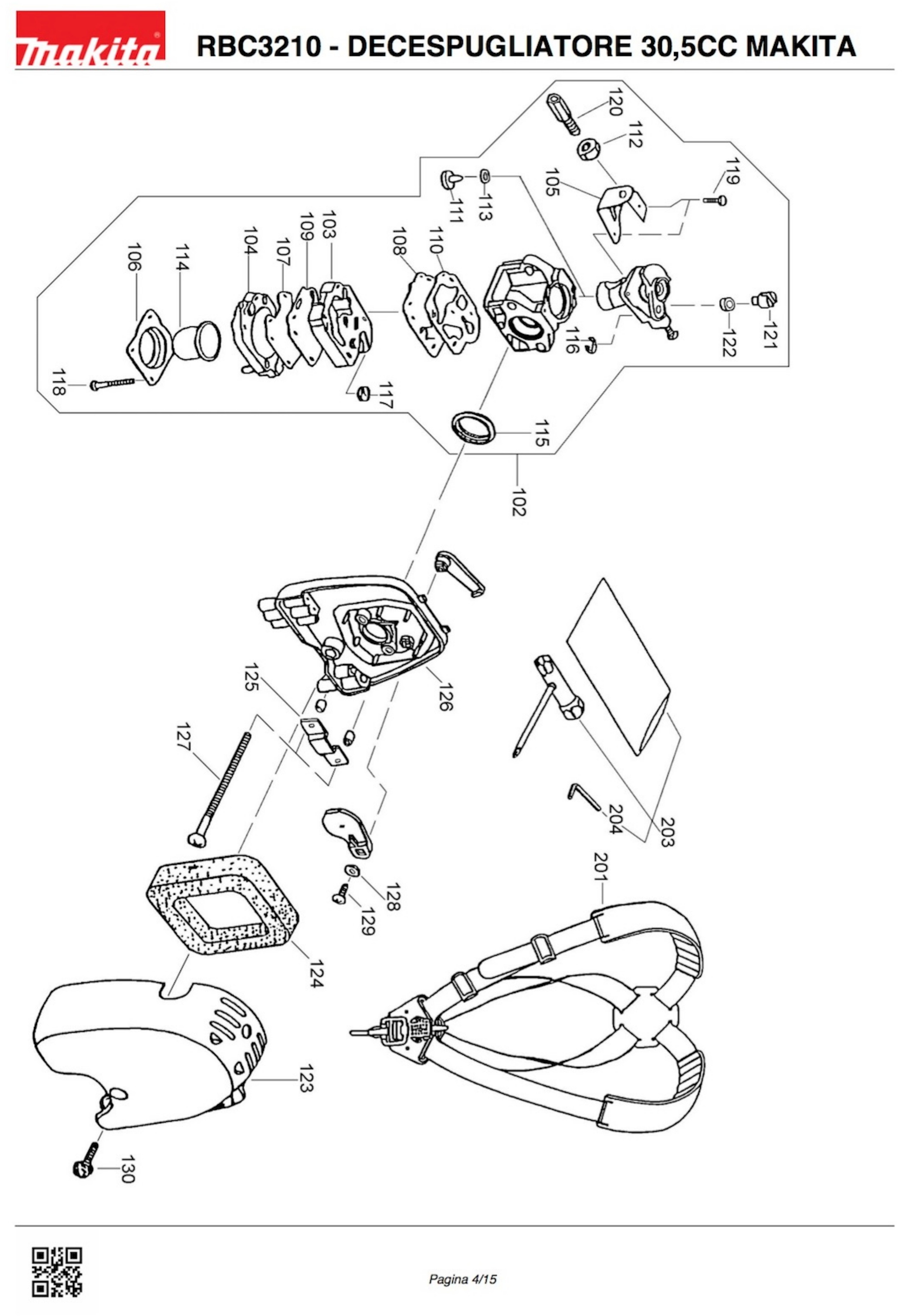

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
102
Carburator Walbro for Brushcutter Dolmar MS3201C 5316021000 Carburator Walbro for Brushcutter Dolmar MS3201C €77.43
103
photo_cameraImage coming soon 5236046130 BODY PUMP CPL FOR RBC350-RBC42 €61.62
104
photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
105
photo_cameraImage coming soon 5236052020 CABLE SUPPORT RBC350-RBC420 €25.16
106
photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
107
photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
108
photo_cameraImage coming soon 5246001040 PUMP DIAPHRAGM RBC260 / 230/310/225 €13.12
109
photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
110
photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
111
photo_cameraImage coming soon 5036002010 JET FOR RBC230 / 310/225/255 €11.07
112
photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
113
photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
114
Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
115
photo_cameraImage coming soon 5236018020 GASKET FOR RBC 260/230 / 310 €5.43
116
photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
117
photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
118
photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
120
photo_cameraImage coming soon 5316020020 SCREW FOR CABLE RBC321 €5.13
121
photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
122
photo_cameraImage coming soon 5236052030 WASHER FOR RBC321 €9.80
123
photo_cameraImage coming soon 5313503200 AIR FILTER COVER RBC321 €8.37
124
Air Cleaner Element for Brushcutter Makita RBC2510 443167-5 Air Cleaner Element for Brushcutter Makita RBC2510 €3.03
125
photo_cameraImage coming soon 5013502400 CPL AIR FILTER PLATE RBC321 €17.81
126
photo_cameraImage coming soon 5313015000 AIR FILTER SUPPORT RBC321 €12.48
127
photo_cameraImage coming soon 140059730 SCREW M5FOR50 FOR RBC260 / 310 €1.60
128
photo_cameraImage coming soon 31104000 WASHER FOR RBC225-255 €1.29
129
photo_cameraImage coming soon 150049980 SCREW M4FOR8 FOR RBC225-255 €1.29
201
photo_cameraImage coming soon 6417015003 HARNESS CPL FOR RBC420E €81.27
203
photo_cameraImage coming soon 6119019000 KIT KEY SERVICE X RBC225-255 €24.76
204
photo_cameraImage coming soon 717049990 WOODRUUF RBC350-RBC420 €2.16

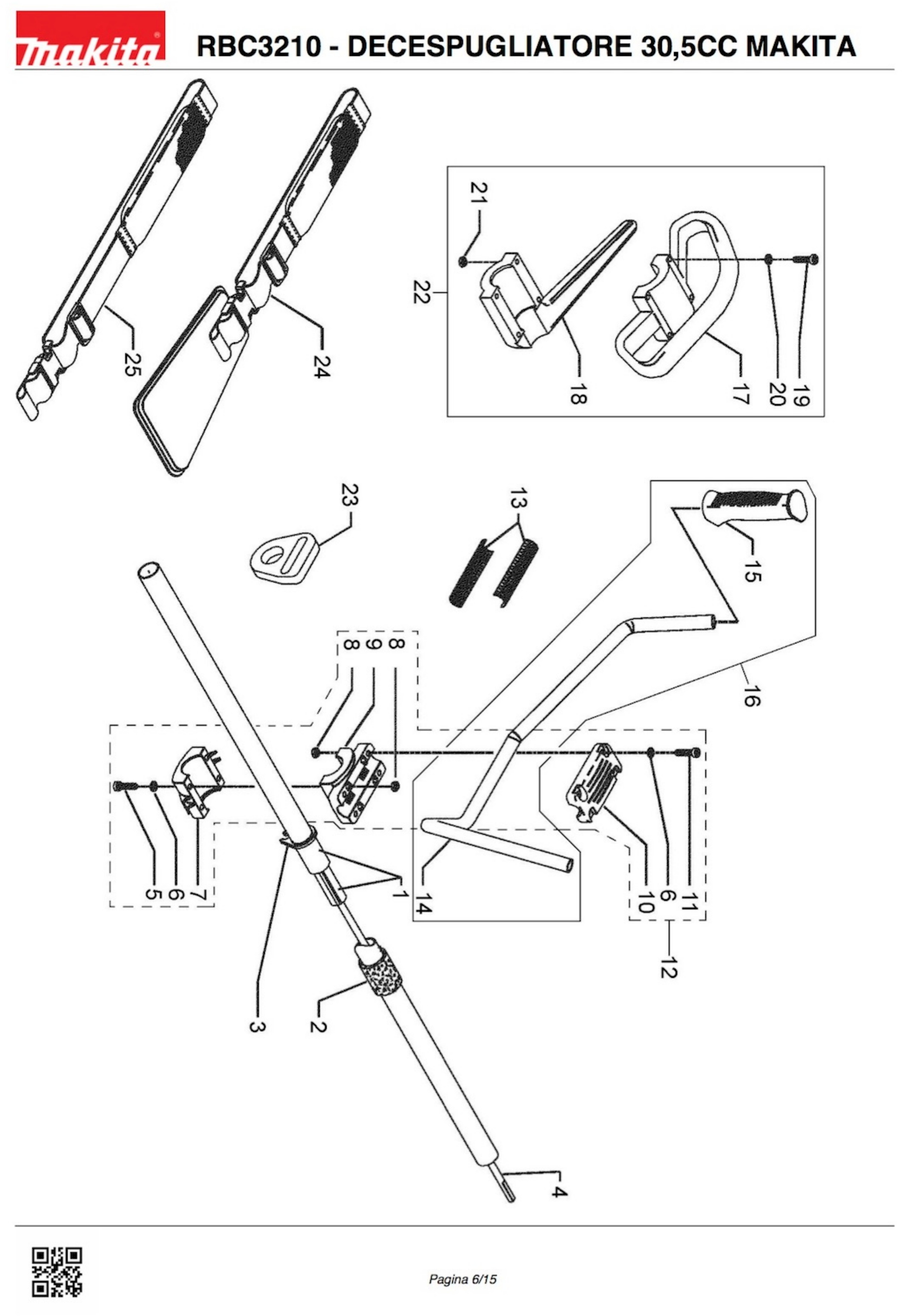

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon BB752920 EFORTERNAL TUBE €46.09
2
photo_cameraImage coming soon BB544210 ANTIVIBRATION BUSHING D.24 €5.13
3
photo_cameraImage coming soon BB540690 GAS CONTROL CABLE SUPPORT €2.69
13
photo_cameraImage coming soon BB511030 SPACER €1.40
17
photo_cameraImage coming soon BB540560 SINGLE HANDLE €11.07
18
photo_cameraImage coming soon BB543390 BASE FOR SINGLE HANDLE €8.50
19
photo_cameraImage coming soon BB030620 SCREW TCEI M 5 X 35 €1.41
20
photo_cameraImage coming soon BB090780 FLAT WASHER 5.3 X 10 X 1 €1.41
21
photo_cameraImage coming soon BB060100 NUT M 5 FOR 4 €1.40
22
photo_cameraImage coming soon BB724570 CPL SINGLE HANDLE €14.34
23
photo_cameraImage coming soon BB540700 HOOK €3.13
25
photo_cameraImage coming soon BB752810 HARNESS €9.89

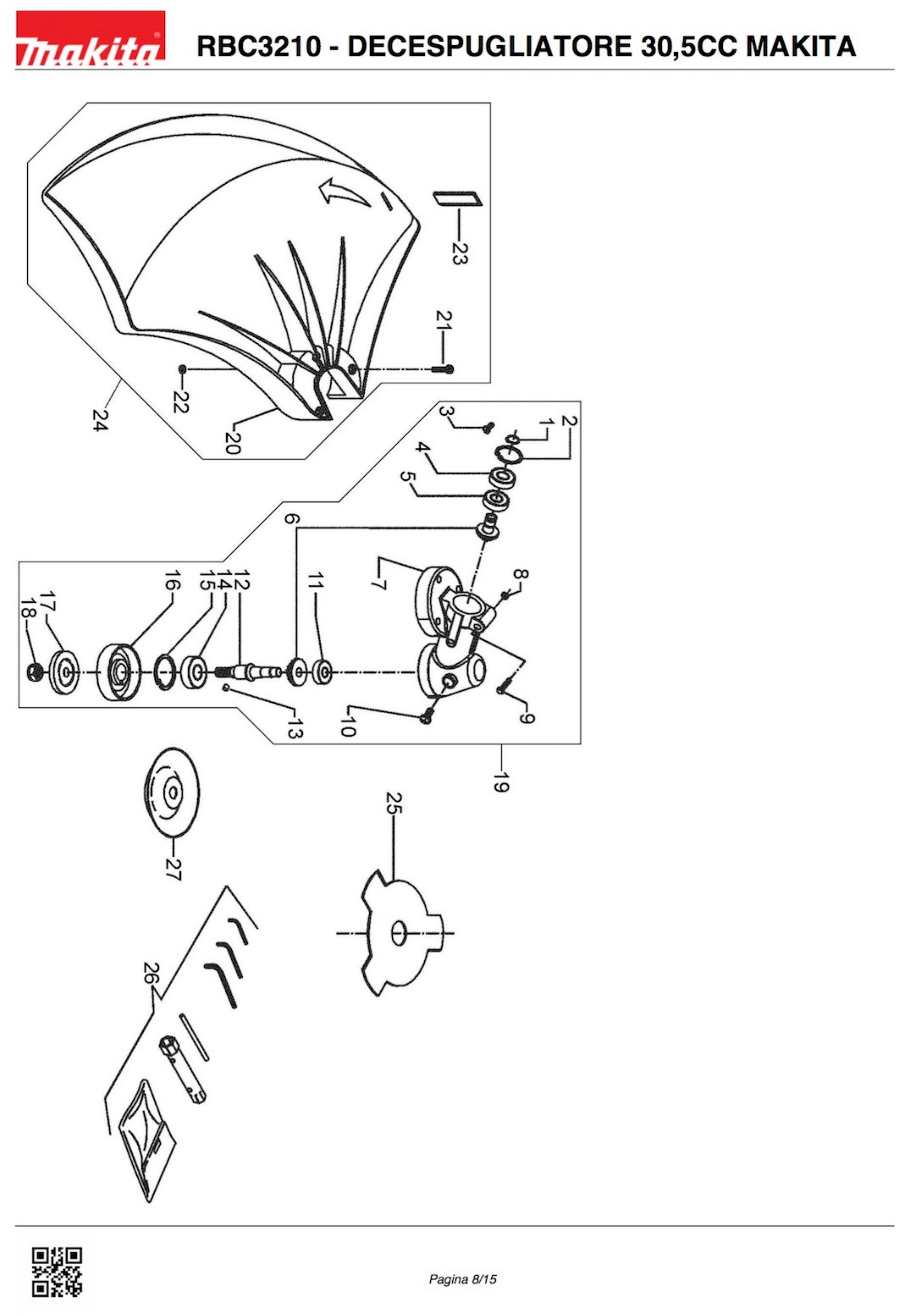

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon BB120280 SEEGER RING €1.40
2
photo_cameraImage coming soon BB120290 SEEGER RING 24I €1.40
3
photo_cameraImage coming soon BB030800 TCB SCREW M 4 X 10 €1.41
4
photo_cameraImage coming soon BB270410 BEARING 609 RS €14.34
5
photo_cameraImage coming soon BB270400 BEARING 609 €8.50
6
Cutter Shaft Set for Brushcutter Makita RBC2501 BB725250A Cutter Shaft Set for Brushcutter Makita RBC2501 €70.92
7
photo_cameraImage coming soon BB481100 GEAR HOUSING D.24 €32.73
11
photo_cameraImage coming soon BB270390 BEARING 608 €12.69
12
photo_cameraImage coming soon BB391690 SHAFT €24.35
13
Lock Pin for Brushcutter Dolmar MS4520B BB420010 Lock Pin for Brushcutter Dolmar MS4520B €1.44 Not available for order
14
photo_cameraImage coming soon BB270420 BEARING 6001 2RS €14.34
15
photo_cameraImage coming soon BB120010 SEEGER RING 28I UNI 7437 €1.40
16
photo_cameraImage coming soon BB091720 INTERNAL FLANGE €12.69
17
photo_cameraImage coming soon BB091730 FLANGE FOR D.24 €6.63
18
photo_cameraImage coming soon BB060470 NUT M 10 FOR 1 FOR 12 €2.08
19
photo_cameraImage coming soon BB725240/A GEAR HOUSING CPL RBC2501 €174.83
20
photo_cameraImage coming soon BB542930 STONE GUARD D.24 €16.65
23
photo_cameraImage coming soon BB511090 BLADE €2.08
24
photo_cameraImage coming soon P-47329 GUARD FOR ROD D.24 €17.44
25
3 Teeth Blade for Brushcutter Makita RBC310 P-47385 3 Teeth Blade for Brushcutter Makita RBC310 €14.78
27
photo_cameraImage coming soon P-47282 CUP €3.44

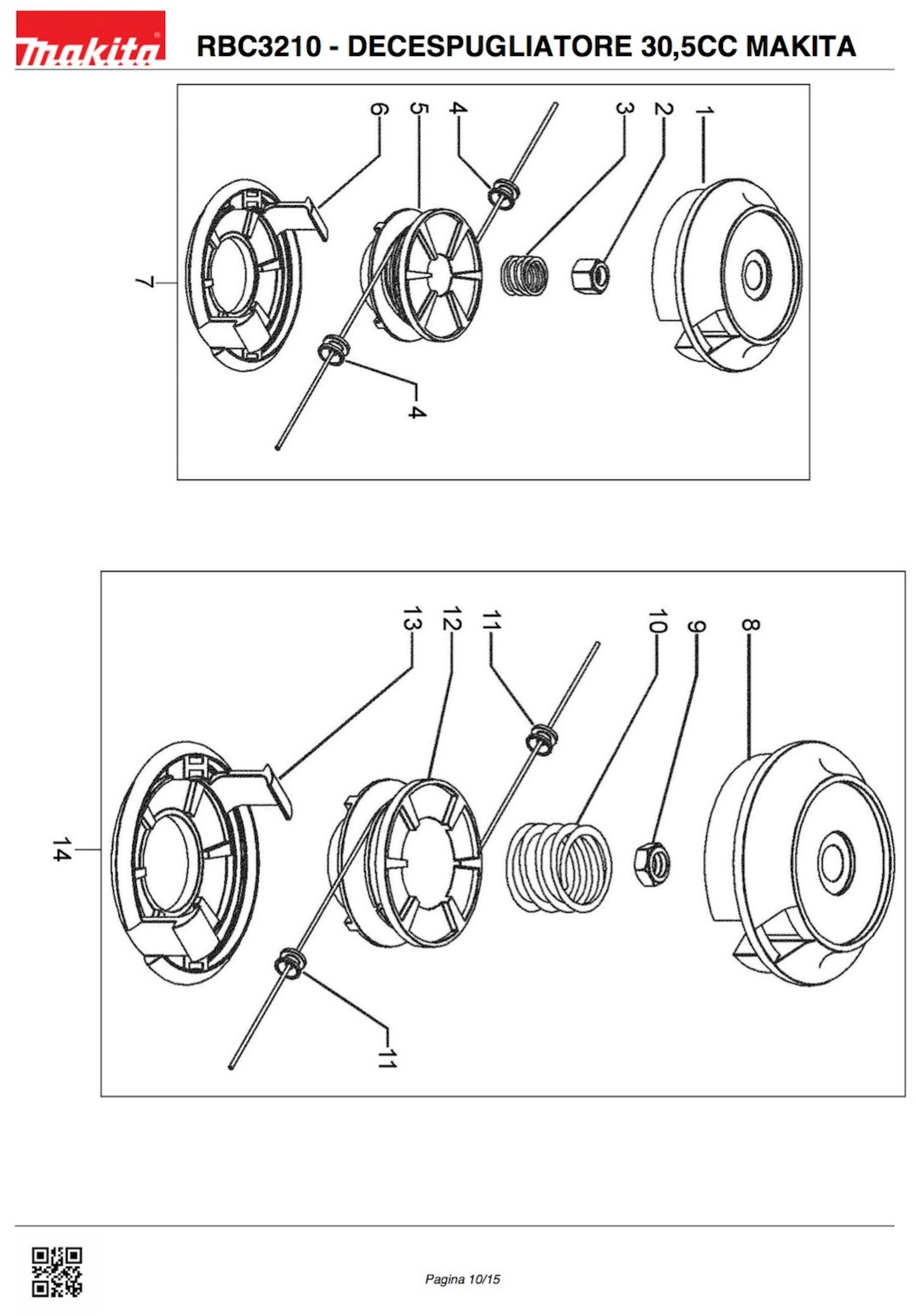

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon BB543260 UPPER COVER FLASH LIGHT €11.07
3
photo_cameraImage coming soon BB180370 SPRING FOR HEAD FLASH LIGHT €2.69
4
photo_cameraImage coming soon BB091350 GUIDE WIRE BUSHING FOR HEAD €2.69
5
photo_cameraImage coming soon BB543280 REEL FOR HEAD FLASH LIGHT €8.50
6
photo_cameraImage coming soon BB543270 FLASH LIGHT FLANGE €7.58
7
photo_cameraImage coming soon P-47313 HEAD TAP AND GO M10FOR1.0F €11.88
8
photo_cameraImage coming soon BB542180 UPPER COVER FOR HEAD FLASH RAPID €11.07
10
photo_cameraImage coming soon BB180180 SPRING FOR AUTOMATIC HEAD €2.69
12
photo_cameraImage coming soon P-47254 REEL FOR HEAD P-47422 €6.77
13
photo_cameraImage coming soon BB542190 FLANGE €7.58
14
photo_cameraImage coming soon P-47307 MANUAL HEAD M10X1.0F €13.52

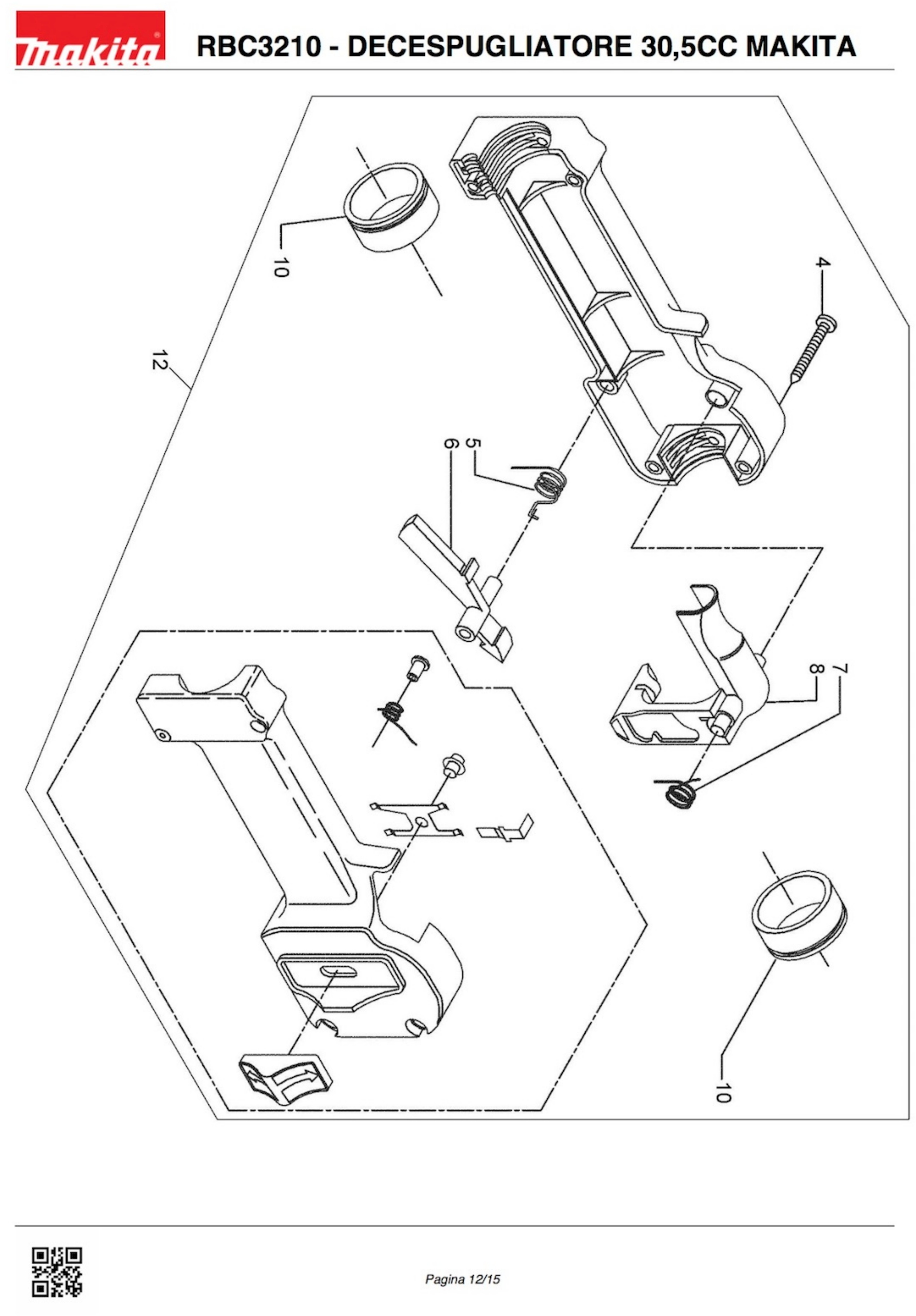

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
4
photo_cameraImage coming soon BB030860 SCREW 3.5 X 25 €1.40
5
photo_cameraImage coming soon BB180230 SPRING FOR SAFETY LEVER €1.40
6
photo_cameraImage coming soon BB541410 CONTROL GAS SAFETY LEVER €2.08
7
photo_cameraImage coming soon BB180220 GAS SPRING LEVER €1.40
8
photo_cameraImage coming soon BB541400 GAS CONTROL LEVER €2.08
10
photo_cameraImage coming soon BB544220 BUSHING €3.13
12
photo_cameraImage coming soon BB725270 CONTROL LEVER €28.31

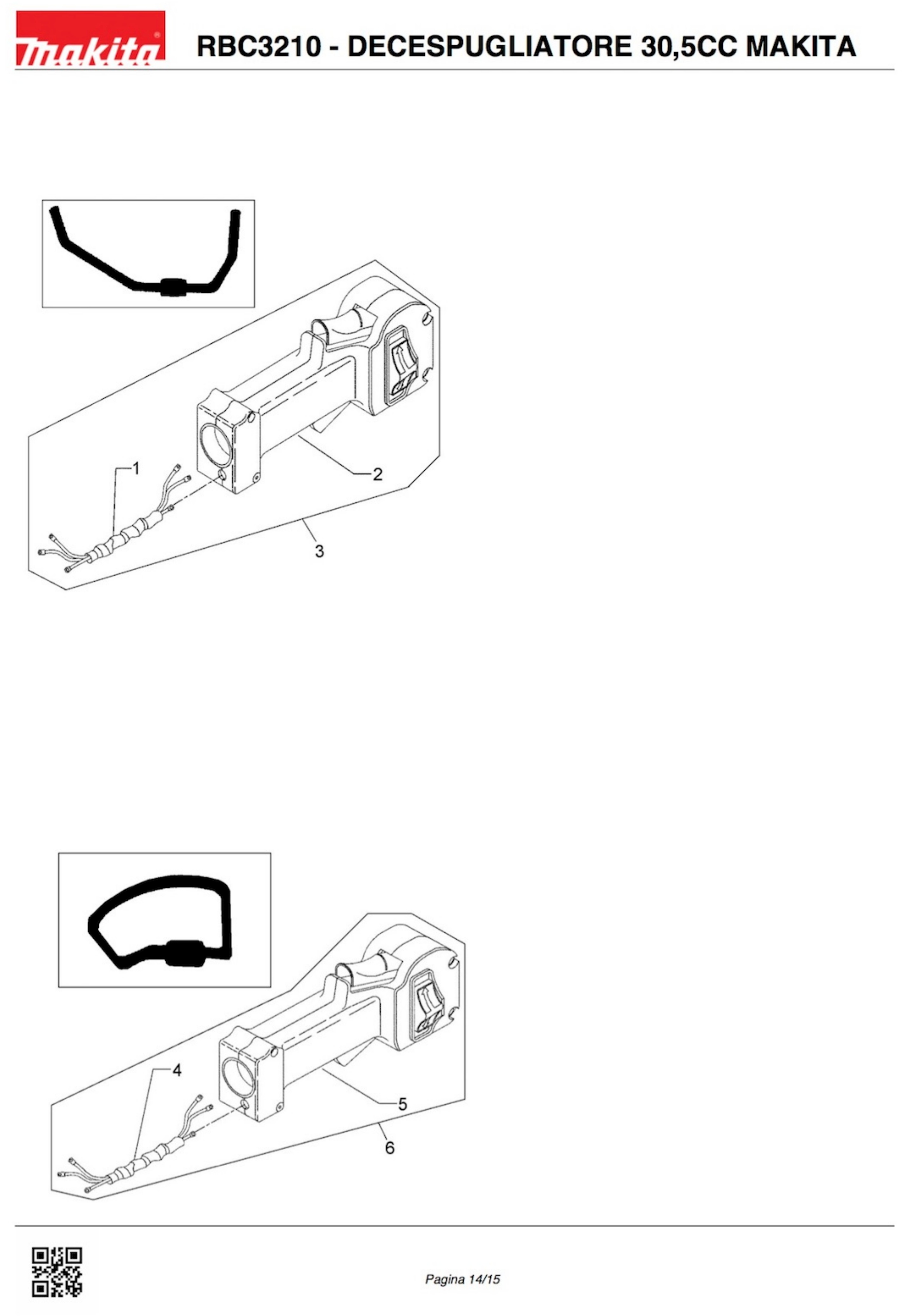

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
4
photo_cameraImage coming soon BB752860 CONTROL CABLES KIT €35.76
6
photo_cameraImage coming soon BB725660 CPL CONTROL LEVER €32.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brusch Cutter RBC3210

Makita original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Brusch Cutter RBC3210.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita RBC3210

Brusch Cutter RBC3210 Pag.1
# Part Num. Description
30 6202006000 BOLT X RBC310
31 266457-7 SCREW M6X25 EBH252L
32 452920-8 TANK CAP
33 6271004001 HOUSING CLUTCH
34 6272002002 CPL RBC321 CLUTCH DRUM
35 6272003000 CLUTCH X RBC321
36 5315503900 CASING CYLINDER X RBC321
37 5317500700 SPARK PLUG X RBC321 COVER
38 5313503800 COVER MUFFLER X MS2810
39 5311007000 CPL X RBC321 ENGINE KIT
40 5311501200 ENGINE GASKET X RBC321
41 5312007001 CRANKSHAFT X MS2810
42 319255-9 CYLINDER
43 5216500200 RUBBER X RBC230-225-255
44 5315504100 RUBBER X RBC321
45 5316503100 DAMPER X RBC321
46 5317010030 SPARK PLUG CAP RBC321
47 5317010020 COIL X RBC321
48 5317010010 FLYWHELL X RBC321
49 442177-9 GASKET
50 5311500301 MS2810 CYLINDER GASKET
51 5313502300 INSULATOR GASKET X RBC321
52 5313502200 GASKET MUFFLER X RBC321
53 5313500500 ISOLATOR X RBC 310
54 5313009001 MUFFLER X RBC321
55 5312500400 PIN RBC X 310
56 5312500601 PISTON X RBC310
57 424102-2 EBH341U DAMPER
58 424103-0 EBH341U DAMPER
59 5982500200 PISTON RING X RBC 230/310
60 5315012000 CPL X RBC321 STARTER
61 5245007000 START WHEEL
62 5315007010 ROPE START X RBC321
63 5315007020 SCREW X RBC351
64 5415003020 SPRING STARTER X RBC260
65 5215002110 STARTER X RBC 230-225-255
66 5235024022 ROPE STARTER X RBK250-RBC225-2
67 163447-0 FUEL FILTER X DCS230T
68 5316502001 MS3210 TANK
69 6272500000 WASHER X RBC321
70 11605200 BOLT X RBC321
71 16606160 BOLT M6X16 X RBC321
72 21705000 NUT M5 X RBC415
73 31512000 RING X RBC260 / 520RBK410
74 62610060 RING X RBC321
75 31432000 INTERNAL PIN X RBC260 / 310/410
76 600129950 BEARING X RBC260
77 32006000 WASHER.X RBC / RBK410-G2400R
78 119059570 BOLT M5X30 RBC321
79 119059630 BOLT M5X20 X PB500R
81 119059670 SCREW M5X55 X RBC415
82 119059730 BOLT X RBC 260/230/225/255
83 119059950 BOLT M5X18 XRBC230 / 310/225 /
84 911218-7 SCREW M5x14
85 200069920 WASHER M6 X RBC310 / 410 / RBK410
86 267817-6 WASHER 8 EBH252L
87 323039990 KEY X RBC350-RBC420
88 233976-8-4 EBH252L PIN RING
89 610089990 NEEDLE BEARING X RBC260 / 230/310 /
90 0650149721-10 SPARK PLUG X RBK250
91 654009931 PIN X RBC415-225-255
92 6165500201 METAL ROPE RBC201
93 0851179972 FUEL TUBE MS2810
94 6271500301 UPPER HOUSING RBC321
95 6271500401 LOWER HOUSING 2 RBC321
96 6271500105 SPACER UPPER X MS2810
97 6271500205 X MS2810 LOWER SPACER
98 119059950 BOLT M5X18 XRBC230 / 310/225 /
99 119059900 BOLT M5X12 X RBC225-255
100 6272003020 CLUTCH SPRING
129 561059990 CLAMP TXRBC230-310 / 520
131 140436-2 ROD EBH341U
134 168668-9 CPL RBC2510 CAP TANK
Brusch Cutter RBC3210 - Pag.2
102 5316021000 CARBURETOR X RBC321
103 5236046130 CPL PUMP BODY X RBC350-RBC42
104 5236046060 AIR FILTER BODY CPL. RBC350
105 5236052020 CABLE HOLDER RBC350-RBC420
106 5236046050 PUMP COVER X RBC350-RBC42
107 168574-8 DIAPHRAGM CPL EBH341U
108 5246001040 PUMP DIAPHRAGM RBC260 / 230/310/225
109 442154-1 DIAPHRAGM GASKET EBH341U
110 5246001030 GASKET PUMP RBC260-230-310-
111 5036002010 JET X RBC230 / 310/225/255
112 5316005450 NUT RBC260 / 310
113 5246001010 GASKET X RBC 260/230/310 /
114 424314-7 ADJUSTMENT PUMP EBH341
115 5236018020 GASKET X RBC 260/230 / 310
116 5316005120 RING X RBC 260/230/310/225/2
117 5016004010 FITTING X RBC 260/230/310/225
118 266582-4 SCREW 3X24 EBH341U
120 5316020020 SCREW X CABLE RBC321
121 5236018040 CABLE ACCELERETOR XRBC230-260-310-225-
122 5236052030 WASHER X RBC321
123 5313503200 AIR FILTER COVER RBC321
124 443167-5 AIR FILTER RBC2510
125 5013502400 CPL RBC321 AIR FILTER PLATE
126 5313015000 AIR FILTER SUPPORT RBC321
127 140059730 SCREW M5X50 X RBC260 / 310
128 31104000 WASHER X RBC225-255
129 150049980 SCREW M4X8 X RBC225-255
130 911218-7 SREW M5x14
201 6417015003 CPL X RBC420E SUSPENDER
203 6119019000 KIT KEY SERVICE X RBC225-255
204 717049990 KEY FOR NUT RBC350-RBC420
Brusch Cutter RBC3210 - Pag.3
1 BB752920 EXTERNAL TUBE
2 BB544210 BUSH DAMPER D.24
3 BB540690 CABLE CONTROL GAS HOLDER
4 BB391850 ROD ENGINE
13 BB511030 SPACER FOR HOLDER HANDLE
17 BB540560 SINGLE HANDLE
18 BB543390 BASE X SINGLE HANDLE
19 BB030620 SREW M 5 X 35
20 BB090780 WASHER 5.3 X 10 X 1
21 BB060100 NUT M 5 X 4
22 BB724570 CPL SINGLE HANDLE
23 BB540700 HOOK FOR SUSPENDER
25 BB752810 SUSPENDER
Brusch Cutter RBC3210 - Pag.4
1 BB120280 RING
2 BB120290 24I RING
3 BB030800 SCREW TCB M 4 X 10
4 BB270410 609 RS BEARING
5 BB270400 BEARING 609
6 BB725250A CUTTER SHAFT SET
7 BB481100 GEAR CASE D.24
8 BB060100 NUT M 5 X 4
11 BB270390 BEARING 608
12 BB391690 SHAFT GEAR BOX
13 BB420010 PIN
14 BB270420 BEARING 6001 2RS
15 BB120010 RING 28I UNI 7437
16 BB091720 INTERNAL FLANGE
17 BB091730 DISC FLANGE D.24
18 BB060470 NUT BL.M 10 X 1 X 12
19 BB725240/A GEAR BOX CPL
20 BB542930 GUARD D.24
23 BB511090 BLADE CUT WIRE
24 P-47329 GUARD ROD D.24
25 P-47385 BLADE 3 TEETH (255X1.4X25.4) MM
27 P-47282 SUPPORTING CUP
Brusch Cutter RBC3210 - Pag.5
1 BB543260 UPPER COVER FLASH LIGHT
3 BB180370 SPRING FOR FLASH LIGHT DEAD
4 BB091350 BUSCH
5 BB543280 BOBINA X TESTINA FLASH LIGHT
6 BB543270 FLANGE
7 P-47313 BEAT HEAD CLAP M10X1.0F
8 BB542180 FLASH RAPID COVER UPPER
10 BB180180 SPRING X AUTOMATIC
11 BB091350 BUSH
12 P-47254 TESTING BOB P-47422
13 BB542190 FLANGE
14 P-47307 MANUAL HED M10X1.0F
Brusch Cutter RBC3210 - Pag.6
4 BB030860 SCREW 3.5 X 25
5 BB180230 SAFETY SPRING
6 BB541410 SAFETY LEVER GAS CONTROL
7 BB180220 GAS CONTROL LEVER SPRING
8 BB541400 GAS CONTROL LEVER
10 BB544220 BUSCH
12 BB725270 CONTROL LEVER
Brusch Cutter RBC3210 - Pag.7
4 BB752860 CABLE CONTROL KIT
5 BB725270 CONTROL LEVER
6 BB725660 CPL CONTROL LEVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC3210
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita RBC3210

Diagram Makita RBC3210

Download (1.45MB)

You might also like

Makita SKU: DA00000118
Carburator Hose Grommet for Brushcutter Dolmar MS-27C Genuine parts Dolmar, Carburator Hose Grommet for Brushcutter MS-27C - Makita EM2600L Part for the following products: -  MS-27C - BRUSHCUTTER 25,7CC DOLMAR -  EM2600L -...
AVAILABLE €2.37
Makita SKU: P-47385
3 Teeth Blade for Brushcutter Makita RBC310 Genuine spare part Makita, 3 Teeth Blade (255X1.4X25.4)MM for Brushcutters RBC2501 - RBC2511 - RBC3200 - RBC3210 - Dolmar MS254C - MS254U - MS3201C - MS3201U Part for the following products:...
AVAILABLE €14.78
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Makita SKU: 5317010020
Electronic Coil for Brushcutter Makita RBC3210 Genuine spare part Makita, Electronic Coil for Brushcutters RBC321 - RBC3210 - RBC281 - RBC320. Part for the following products: - MS3201C...
Available in 7/10 days €40.75
Makita SKU: 5316021000
Carburator Walbro for Brushcutter Dolmar MS3201C Genuine part Dolmar, Carburator Walbro for Brushcutter MS3201C - MS3210 - MS3212 - Makita RBC3110 - RBC3210 - RBC320. Part for the following products: - MS2810 - BRUSHCUTTER 27,2CC...
Last items in stock €77.43
Makita SKU: 319255-9
Cylinder for Brushcutter Makita RBC310 Genuine spare part Makita, Cylinder for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C - RBC3200...
Last items in stock €140.91
Makita SKU: 443167-5
Air Cleaner Element for Brushcutter Makita RBC2510 Genuine part Makita, Air Cleaner Sponge Element for Brushcutters RBC2510 - RBC225-255 - MS2501 - MS2810. Part for the following products: - MS254C...
AVAILABLE €3.03
Makita SKU: BB725250A
Cutter Shaft Set for Brushcutter Makita RBC2501 Genuine spare part Makita, Cutter Shaft Set for Brushcutters RBC2501 - RBC2511 - RBC3200 - RBC3210. Part for the following...
Last items in stock €70.92
Comments (0)
