Makita Spare Parts for Brush Cutter RBC201

SKU: Makita RBC201
€4.06
VAT included

Makita Spare Parts for Brush Cutter RBC201

Makita Genuine spare parts or replacement parts for to repair Brush Cutter RBC201.

Fix Your Brush Cutter RBC201. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Brush Cutter RBC201
  • Makita Spare Parts for Brush Cutter RBC201
  • Makita Spare Parts for Brush Cutter RBC201
  • Makita Spare Parts for Brush Cutter RBC201
  • Makita Spare Parts for Brush Cutter RBC201
  • Makita Spare Parts for Brush Cutter RBC201

Makita Spare Parts for Brush Cutter RBC201

SKU: Makita RBC201 Condition: New
€4.06
VAT included

Makita Spare Parts for Brush Cutter RBC201

Makita Genuine spare parts or replacement parts for to repair Brush Cutter RBC201.

Fix Your Brush Cutter RBC201. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 112 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

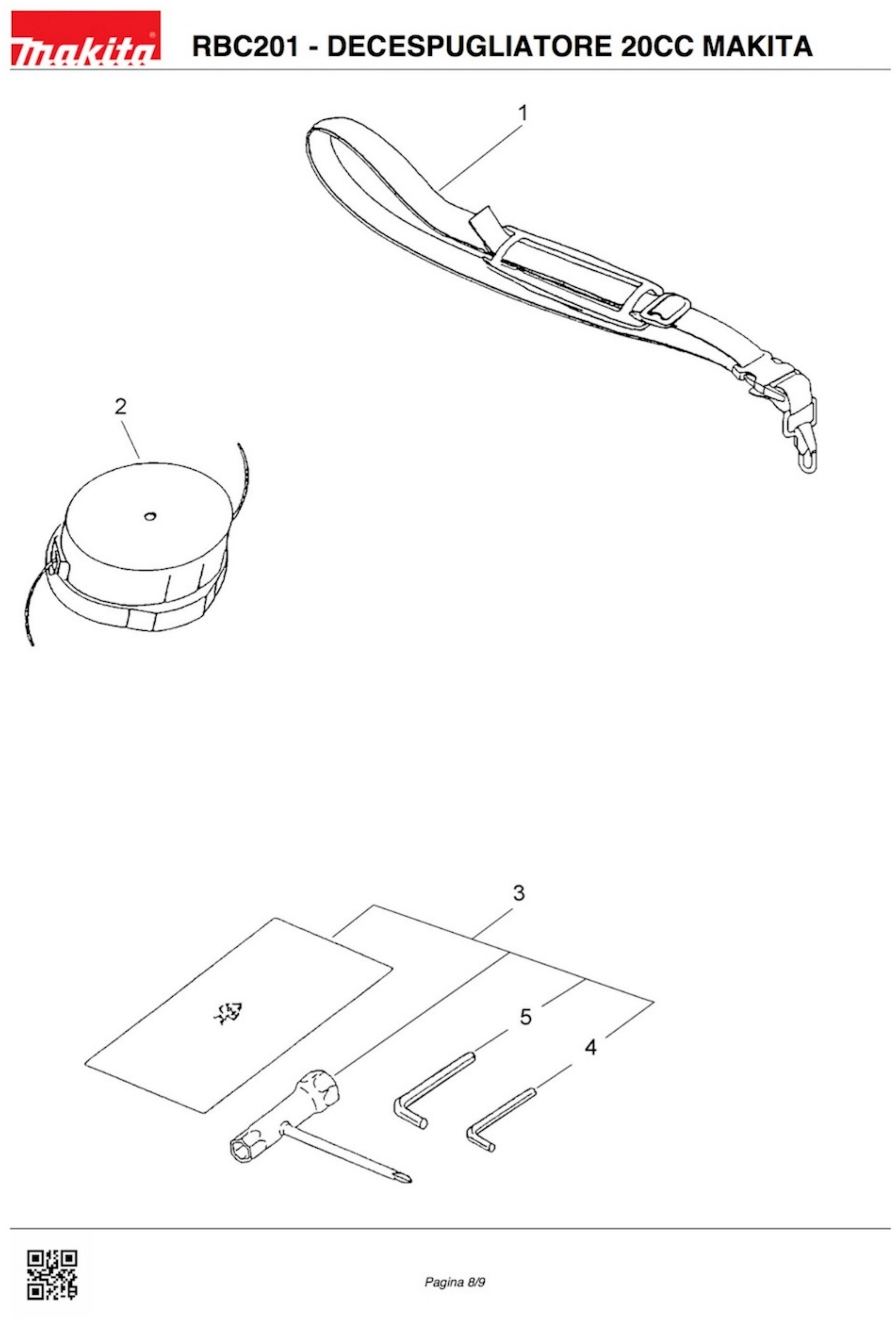

109 spare parts
Pos. Item Price Buy
1
photo_cameraImage coming soon 6197003000 BAND ASS'Y €30.44
2
Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar B-02945 Nylon Cutting Head 4Y for Brushcutter Makita - Dolmar €46.62
3
photo_cameraImage coming soon 6199003000 SERVICE KEYS €9.98
4
photo_cameraImage coming soon 0717049990 WRENCHE €2.73
5
photo_cameraImage coming soon 0717059990 WRENCHE €2.61
23
photo_cameraImage coming soon 5191004000 CRANKCASE ASS'Y RBC201 €140.99
23
photo_cameraImage coming soon 5196002020 JET RBC201 €29.80
24
photo_cameraImage coming soon 0440109980 OIL SEAL RBC201 €6.26
24
photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
25
photo_cameraImage coming soon 0600109980 BALL BEARING 6000 €14.77
25
photo_cameraImage coming soon 5246001040 PUMP DIAPHRAGM RBC260 / 230/310/225 €13.12
26
photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
26
photo_cameraImage coming soon 5191500702 CYLINDER RBC201 €55.12
27
photo_cameraImage coming soon 442173-7 CYLINDER GASKET RBC201 €2.97
27
photo_cameraImage coming soon 5236046130 BODY PUMP CPL FOR RBC350-RBC42 €61.62
28
photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
28
photo_cameraImage coming soon 5191500400 CRANKCASE GASKET RBC201 €2.54
29
photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
29
photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
30
photo_cameraImage coming soon 0140059500 SCREW M5x25 X RBC225-255 €1.43
30
photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
31
photo_cameraImage coming soon 141047-6 CRANK SHAFT €71.53
31
Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
32
photo_cameraImage coming soon 5192500800 PISTON RBC201 €17.39
32
photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
33
photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
33
photo_cameraImage coming soon 268277-5 PISTON PIN €2.97

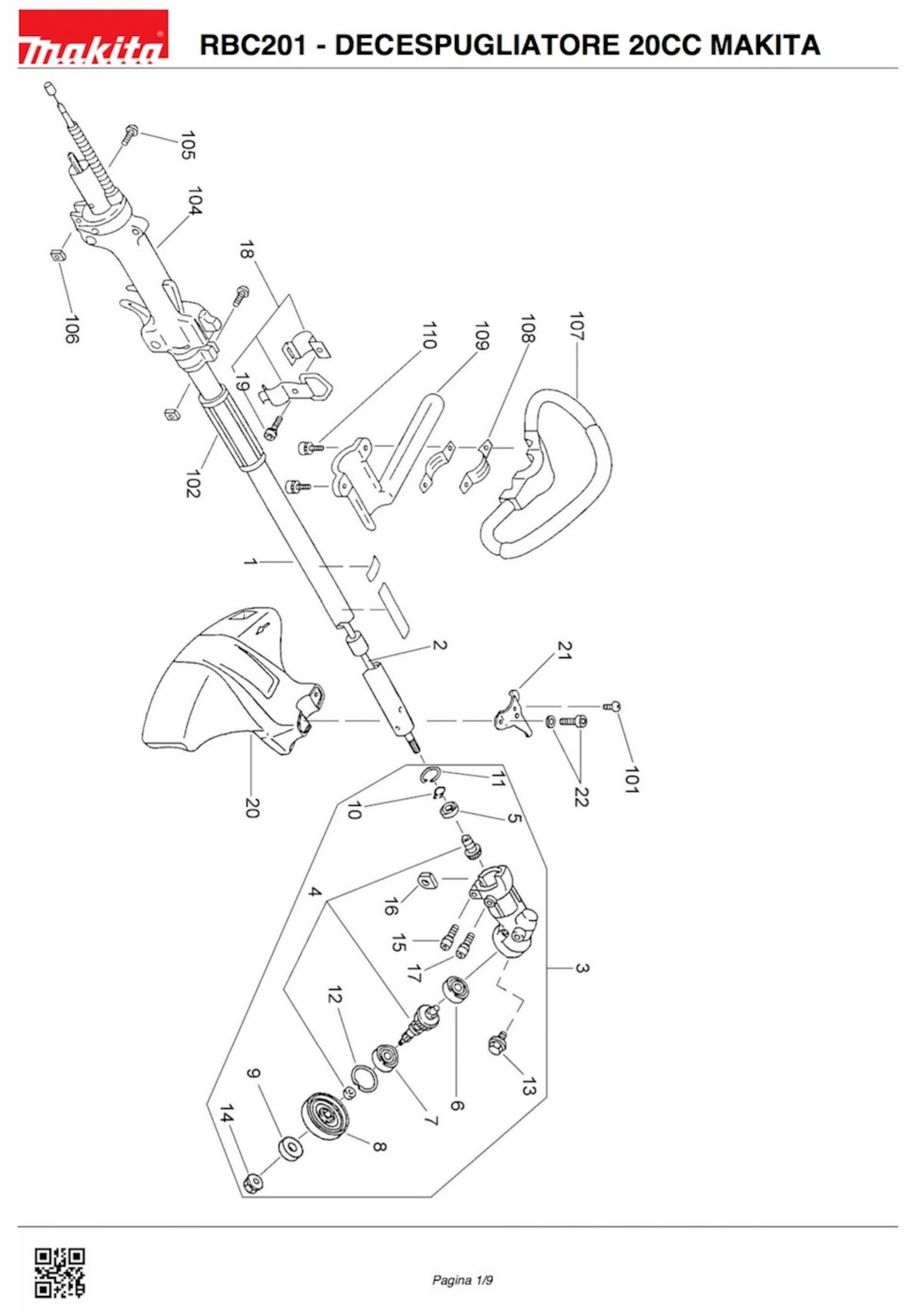

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 6191010000 PIPE SHAFT COMP. RBC201 €176.69
2
photo_cameraImage coming soon 324893-4 SHAFT EBH252L €72.17
3
photo_cameraImage coming soon 6193004002 GEAR CASE ASS'Y RBC201 €198.28
4
Cutter Shaft Set for Brushcutter Makita RBC201 6193003001 Cutter Shaft Set for Brushcutter Makita RBC201 €41.65
5
photo_cameraImage coming soon 6212500300 BALL BEARING 609ZZ RBC225- €19.63
6
photo_cameraImage coming soon DA00000158 BEARING 626ZZ €6.23
8
photo_cameraImage coming soon 6198500102 RECEIVE WASHER RBC201 €28.85
9
photo_cameraImage coming soon 6193004010 WASHER RBC201 €1.70
12
photo_cameraImage coming soon 0043305650 SCREW ASS'Y XHT2256D-HT2276E €2.76
13
photo_cameraImage coming soon 5253020010 AIR CLEANER COVER RBC201 €13.06
13
photo_cameraImage coming soon 6253011012 OIL CAP M6 X 9 RBC201 €1.97
14
Air Filter Element for Brushcutter Makita RBC201 5203004010 Air Filter Element for Brushcutter Makita RBC201 €3.95
14
photo_cameraImage coming soon 6193004020 NUT M8 RBC201 €2.18
15
photo_cameraImage coming soon 5253003020 AIR CLEANER HOUSING RBC201 €10.18
17
photo_cameraImage coming soon 5236061000 O-RING RBC201 €2.69
18
photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
18
photo_cameraImage coming soon 6197002001 HANGER ASS'Y RBC201 €7.59
19
photo_cameraImage coming soon 0119059850 SCREW M5 X 14 RBC201 €1.99
19
photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
20
photo_cameraImage coming soon 5196002010 THROTTLE VALVE ASS'Y RBC201 €68.84
20
photo_cameraImage coming soon 6218008003 PROTECTOR ASS'Y €51.16
21
photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
21
photo_cameraImage coming soon 6418500303 CLAMP PROTECTION RBC201 €7.58
22
photo_cameraImage coming soon 0011706300 BOLT M6X30 X RBK250-RBC225- €2.15
22
photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
101
photo_cameraImage coming soon 0150059940 SCREW X RBK250-RBC225-RBC255 €1.41
102
photo_cameraImage coming soon 6271501501 SPACER RBC201 €7.11
104
photo_cameraImage coming soon 6195003002 CONTROL LEVER RBC201 €102.83
105
photo_cameraImage coming soon 0119069880 SCREW M6X20 X RBC525 €1.70
106
photo_cameraImage coming soon 6415011140 NUT X EH760 HT2276E €2.14
107
photo_cameraImage coming soon 6274004010 LOOP HANDLE RBC201 €26.92
109
photo_cameraImage coming soon 6274004020 LOOP HANDLE BAR RBC201 €20.99
110
photo_cameraImage coming soon 6274004040 SCREW M6 X 20 RBC201 €4.24
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
34
photo_cameraImage coming soon 5192500600 PISTON RING RBC201 €4.16
35
photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
36
photo_cameraImage coming soon 5193001002 MUFFLER RBC201 €52.83
37
photo_cameraImage coming soon 5193500001 MUFFLER INSULATOR RBC201 €4.16
38
photo_cameraImage coming soon 0119059520 SCREW M5 X 40 RBC201 €3.68
39
photo_cameraImage coming soon 141056-5 INSULATOR COMPLETE €6.81
40
photo_cameraImage coming soon 442175-3 INSULATOR GASKET RBC201 €1.97
41
photo_cameraImage coming soon 5193500401 CARBURATOR GASKET RBC201 €3.35
42
photo_cameraImage coming soon 5103503500 CARBURATOR SPACER RBC201 €2.29
43
Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
44
photo_cameraImage coming soon 5193500302 MUFFLER INSULATOR RBC201 €3.12
46
photo_cameraImage coming soon 5193500101 PLATE RBC201 €7.15
47
photo_cameraImage coming soon 6165500201 WIRE RBC201 €3.23
48
photo_cameraImage coming soon 5195001001 STARTER REWIND COMP. RBC201 €62.52
49
photo_cameraImage coming soon 5195002100 SWING ARM RBC201 €2.84
50
photo_cameraImage coming soon 452972-9 REEL START €5.13
51
photo_cameraImage coming soon 266585-8 SCREW 5X12 EBH252L €2.18
52
photo_cameraImage coming soon 234220-6 SPIRAL SPRING €5.94
53
photo_cameraImage coming soon 5255016020 STARTER ROPE RBC201 €12.69
54
photo_cameraImage coming soon 5225004020 STARTER KNOB HT2256D €13.66
55
photo_cameraImage coming soon 451938-6 COLLAR EBH252L €1.46
56
photo_cameraImage coming soon 5195500000 PULLEY RBC201 €5.28
57
photo_cameraImage coming soon 5195500500 COVER-CYLINDER RBC201 €45.56
58
photo_cameraImage coming soon 6601500500 SCREW X RBL250 €2.55
59
photo_cameraImage coming soon 0043604250 SCREW M4 X 25 RBC201 €1.41
62
photo_cameraImage coming soon 452989-2 FUEL TANK CPL €15.70
64
Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
65
photo_cameraImage coming soon 0561059990 HOSE CLAMP XRBC230-310 / 520 €1.89
66
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
67
Tank Damper for Brushcutter Makita RBC2110 424102-2 Tank Damper for Brushcutter Makita RBC2110 €1.30
68
photo_cameraImage coming soon 424103-0 DAMPER EBH341U €1.44
69
photo_cameraImage coming soon 5216500200 DAMPER X RBC230-225-255 €1.40
70
photo_cameraImage coming soon 5197001010 FLYWHEEL RBC201 €82.95
71
photo_cameraImage coming soon 5197001020 IGNITION COIL €140.99
72
photo_cameraImage coming soon 0851119930 TUBE RBC201 €3.12
73
photo_cameraImage coming soon 0655009940 PLUG CAP X RBC410 / RBK410RBC520 €3.23
74
photo_cameraImage coming soon 5197500100 COVER PLUG CAP RBC201 €3.13
75
photo_cameraImage coming soon 0654009931 PIN X RBC415-225-255 €3.68
77
photo_cameraImage coming soon 0140049920 SCREW M4X20 X RBC225-255 €1.43
78
photo_cameraImage coming soon 5257018001 WIRE COMP. RBC201 €3.95
79
photo_cameraImage coming soon 141058-1 CLUTCH CASE COMPLETE €20.12
81
photo_cameraImage coming soon 0566059980 CLAMP X RBC525 €3.95
82
photo_cameraImage coming soon 424461-4 PIPE DAMPER €3.63
83
photo_cameraImage coming soon 318792-0 PIPE BRACKET €6.26
84
photo_cameraImage coming soon 0119059880 BOLT X RBC 310 €2.03
86
photo_cameraImage coming soon 6192001001 CLUTCH DRUM RBC201 substituited by 161477-5 €20.51
87
Clutch Ass'y for Brushcutter Dolmar MS22C 6192002003 Clutch Ass'y for Brushcutter Dolmar MS22C €22.54
88
photo_cameraImage coming soon 0031510000 OUTER SNAP RING 10 RBK 410 €1.41
89
Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Brush Cutter RBC201

Fix Your Brush Cutter RBC201. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Brush Cutter and the respective parts of the code.Makita RBC201

Brush Cutter RBC201 Pag.1
# Part Num. Description
1 6191010000 PIPE SHAFT COMP. RBC201
2 324893-4 TRANSMISSION SHAFT EBH252L
3 6193004002 GEAR CASE ASS'Y RBC201
4 6193003001 CUTTER SHAFT GEAR SET RBC201
5 6212500300 BALL BEARING 609ZZ RBC225-
6 DA00000158 BALL BEARING 626ZZ
8 6198500102 RECEIVE WASHER RBC201
9 6193004010 WASHER RBC201
13 6253011012 OIL CAP M6 X 9 RBC201
14 6193004020 NUT M8 RBC201
16 6251501400 GASKET RBC201
18 6197002001 HANGER ASS'Y RBC201
19 0119059850 SCREW M5 X 14 RBC201
20 6218008003 PROTECTOR ASS'Y
21 6418500303 CLAMP PROTECTION RBC201
22 0011706300 BOLT M6X30 X RBK250-RBC225-
101 0150059940 SCREW X RBK250-RBC225-RBC255
102 6271501501 SPACER RBC201
104 6195003002 CONTROL LEVER RBC201
105 0119069880 SCREW M6X20 X RBC525
106 6415011140 NUT X EH760 HT2276E
107 6274004010 LOOP HANDLE RBC201
109 6274004020 LOOP HANDLE BAR RBC201
110 6274004040 SCREW M6 X 20 RBC201
23 5191004000 CRANKCASE ASS'Y RBC201
24 0440109980 OIL SEAL RBC201
25 0600109980 BALL BEARING 6000
26 5191500702 CYLINDER RBC201
27 442173-7 CYLINDER GASKET
28 5191500400 CRANKCASE GASKET RBC201
29 0119059730 BOLT X RBC 260/230/225/255
30 0140059500 SCREW M5x25 X RBC225-255
31 141047-6 CRANK SHAFT COMP.
32 5192500800 PISTON RBC201
33 268277-5 PIN
34 5192500600 PISTON RING RBC201
35 233976-8-4 CLIP EBH252L
36 5193001002 MUFFLER RBC201
37 5193500001 MUFFLER INSULATOR RBC201
38 0119059520 SCREW M5 X 40 RBC201
39 141056-5 INSULATOR
40 442175-3 INSULATOR GASKET RBC201
41 5193500401 CARBURATOR GASKET RBC201
42 5103503500 CARBURATOR SPACER RBC201
43 442177-9 AIR CLEANER GASKET
44 5193500302 MUFFLER INSULATOR RBC201
45 0140059500 SCREW M5x25 X RBC225-255
46 5193500101 PLATE-MUFFLER RBC201
47 6165500201 WIRE RBC201
48 5195001001 STARTER REWIND COMP. RBC201
49 5195002100 SWING ARM RBC201
50 452972-9 STARTER REEL
51 266585-8 SCREW 5X12 EBH252L
52 234220-6 SPIRAL SPRING
53 5255016020 STARTER ROPE RBC201
54 5225004020 STARTER KNOB HT2256D
55 451938-6 COLLAR EBH252L
56 5195500000 PULLEY RBC201
57 5195500500 COVER-CYLINDER RBC201
58 6601500500 SCREW X RBL250
59 0043604250 SCREW M4 X 25 RBC201
62 452989-2 FUEL TANK
64 163447-0 GASOLIN FILTER X DCS230T
65 0561059990 HOSE CLAMP XRBC230-310 / 520
66 452920-8 FUEL TANK CAP
67 424102-2 PLATE EBH341U
68 424103-0 GASKET EBH341U
69 5216500200 DAMPER RBC230-225-255
70 5197001010 FLYWHEEL RBC201
71 5197001020 IGNITION COIL
72 0851119930 TUBE RBC201
73 0655009940 PLUG CAP X RBC410 / RBK410RBC520
74 5197500100 COVER PLUG CAP RBC201
75 0654009931 PIN X RBC415-225-255
77 0140049920 SCREW M4X20 X RBC225-255
78 5257018001 WIRE COMP. RBC201
79 141058-1 CLUTCH CASE COMPLETE
80 0150059980 SCREW M5 X 20 RBC201
81 0566059980 CLAMP X RBC525
82 424461-4 DAMPER
83 318792-0 PIPE BRACKET
84 0119059880 BOLT X RBC 310
85 6601500500 SCREW X RBL250
86 6192001001 CLUTCH DRUM RBC201
87 6192002003 CLUTCH RBC201
88 0031510000 SNAP RING X RBK 410
89 140436-2 STRAP COMPLETE EBH341U

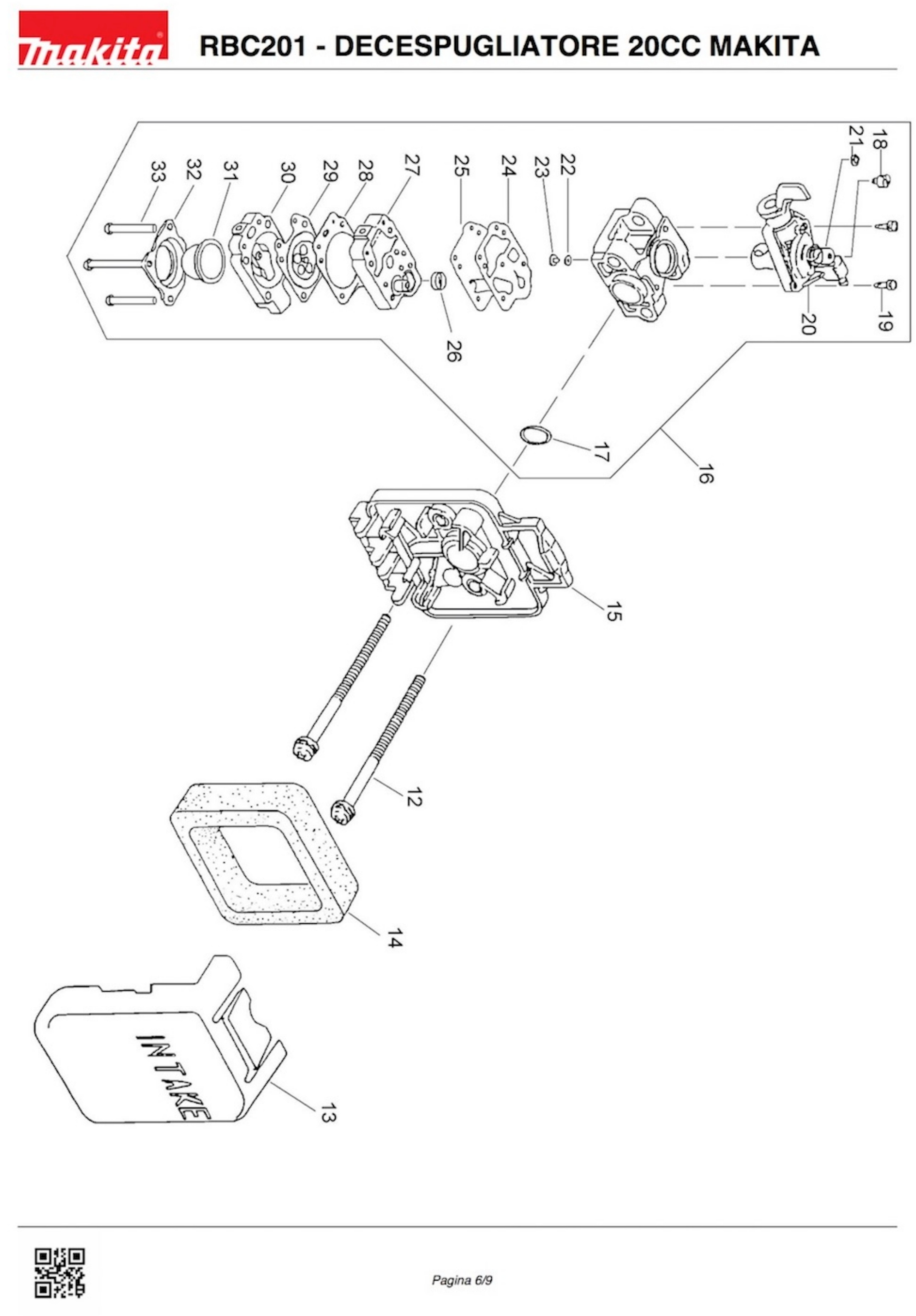

12 0043305650 SCREW ASS'Y XHT2256D-HT2276E
13 5253020010 AIR CLEANER COVER RBC201
14 5203004010 AIR FILTER X HT2256D
15 5253003020 AIR CLEANER HOUSING RBC201
16 168682-5 CARBURETOR
17 5236061000 O-RING RBC201
18 5236018040 SWIVEL XRBC230-260-310-225-
19 266581-6 SCREW M3X8 EBH341U
20 5196002010 THROTTLE VALVE ASS'Y RBC201
21 5316005120 RING X RBC 260/230/310/225/2
22 5246001010 GASKET X RBC 260/230/310 /
23 5196002020 JET RBC201
24 5246001030 PUMP GASKET RBC260-230-310-
25 5246001040 DIAPHRAGM RBC260 / 230/310/225
26 5016004010 INLET SCREEN RBC 260/230/310/225
27 5236046130 PUMP BODY ASS'Y RBC350-RBC42
28 442154-1 DIAPHRAGM GASKET EBH341U
29 168574-8 METERING DIAPHRAGM CPL EBH341U
30 5236046060 AIR PURGE BODY ASS'Y RBC350
31 424314-7 PRIMER PUMP EBH341
32 5236046050 PUMP COVER X RBC350-RBC42
33 266582-4 TAPPING SCREW 3X24 EBH341U
Accessories Pag.2
1 6197003000 BAND ASS'Y
2 B-02945 TAP & GO NYLON HEAD M8 M10X1,25F
3 6199003000 SERVICE KEYS
4 0717049990 WRENCHE
5 0717059990 WRENCHE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBC201
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita RBC201

Diagram Makita RBC201

Download (667.32KB)

You might also like

Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Makita SKU: 6192002003
Clutch Ass'y for Brushcutter Dolmar MS22C Genuine replacement part Dolmar, Clutch Ass'y for Brushcutters MS22C - Makita RBC201 - RBC2110. Part for the following products: - MS20C - DECESPUGLIATORE 20CC...
Usually Ships in: 7/10 Business Days Approx. €22.54
Makita SKU: 6193003001
Cutter Shaft Set for Brushcutter Makita RBC201 Genuine spare part Makita, Cutter Shaft Gear Set for Brushcutters RBC201 - MS20C. Part for the following products: -  MS20C - BRUSHCUTTER 20CC DOLMAR -  RBC201 - BRUSHCUTTER 20CC MAKITA...
Last items in stock €41.65
Makita SKU: B-02945
Nylon Cutting Head 4Y (L.H.) for Brushcutter Makita - Dolmar Genuine Accessory Makita, Nylon Cutting Head 4Y (L.H.) for Brushcutter Makita - Dolmar Parts for the following products: -  RBC2110 - BRUSHCUTTER MAKITA...
on 7/10 Business Days Approx €46.62
Makita SKU: 5203004010
Air Filter Element for Brushcutter Makita RBC201 Genuine spare part Makita, Air Filter Element for Brushcutters RBC201 - Hedge Trimmer HT2256D - HT2556D. Part for the following products: -  RBC201 - BRUSHCUTTER 20CC MAKITA -  HT2256D...
on 7/10 Business Days Approx €3.95
Comments (0)
