Makita Spare Parts for Lawn Mower ELM3800

SKU: Makita ELM3800
€2.21
VAT included

Makita Spare Parts for Lawn Mower ELM3800

We have the original Spares Makita for Lawn Mower ELM3800, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Lawn Mower ELM3800. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Lawn Mower ELM3800
  • Makita Spare Parts for Lawn Mower ELM3800

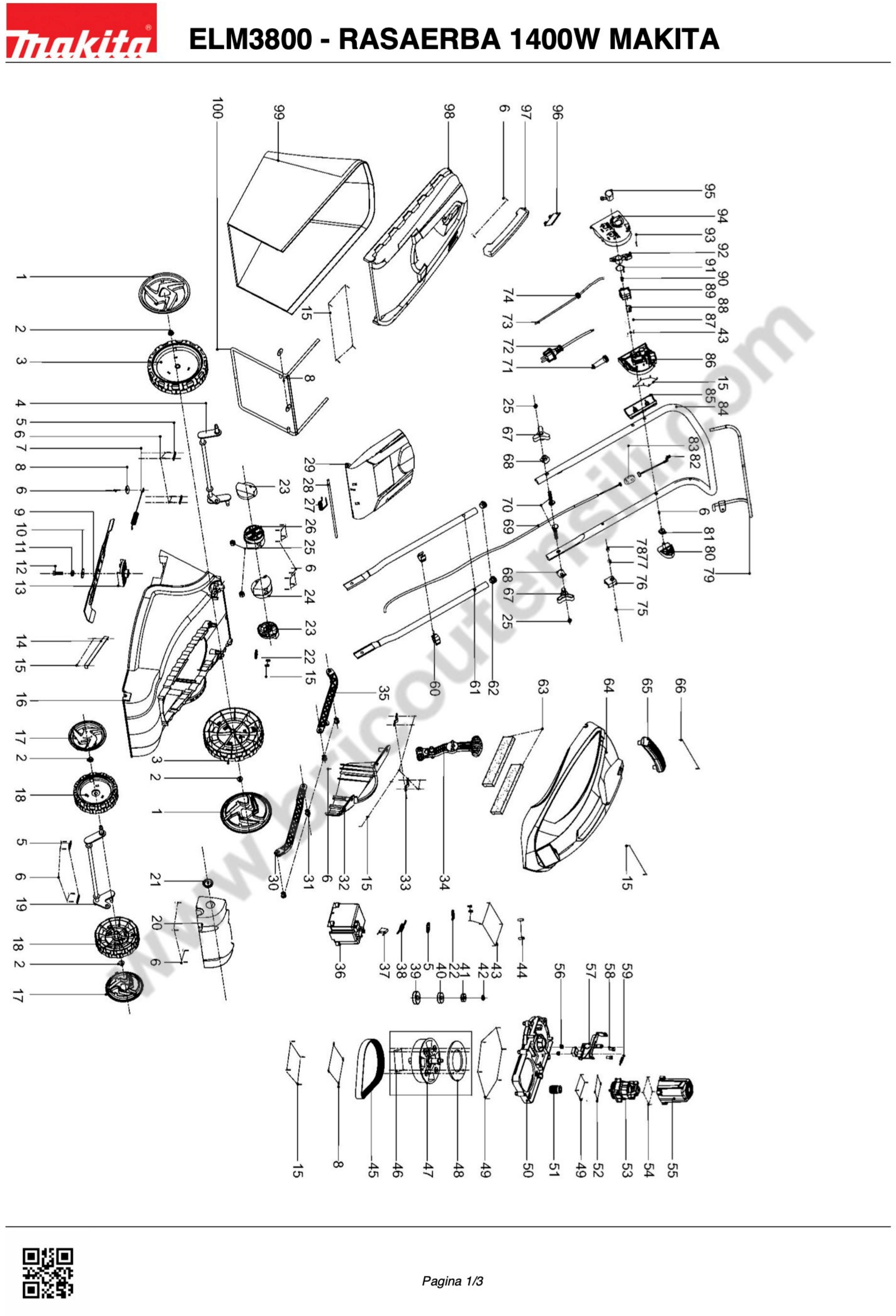

  • Makita Spare Parts for Lawn Mower ELM3800 - Exploded Diagram

Makita Spare Parts for Lawn Mower ELM3800

SKU: Makita ELM3800 Condition: New
€2.21
VAT included

Makita Spare Parts for Lawn Mower ELM3800

We have the original Spares Makita for Lawn Mower ELM3800, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Lawn Mower ELM3800. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 100 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

92 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 671010049 COVER HUB 190MM €6.57
2
photo_cameraImage coming soon 671005028 HEXAGONAL LOCKINGPLM €2.15
3
photo_cameraImage coming soon 671946001 WHEEL BACK 190MM €10.97
4
photo_cameraImage coming soon 671002424 AXIS BACK €26.44
5
photo_cameraImage coming soon 671001203 PRESSING PLATE OFPLM €2.21
6
photo_cameraImage coming soon 671105502 SCREW M5X16 €1.40
7
photo_cameraImage coming soon 671011209 SPRING 72A €2.94
8
photo_cameraImage coming soon 671001436 TIGHTEN PRESSING PLAPLM €2.21
9
Cutter Blade 38 cm for Lawnmower Makita ELM3800 DA00000916 Cutter Blade 38 cm for Lawnmower Makita ELM3800 €19.80
10
photo_cameraImage coming soon 671007002 WASHER 8 €1.32
11
photo_cameraImage coming soon 671008002 SPRING RINGPLM €2.15
12
photo_cameraImage coming soon 671006017 HEXAGON HEAD BOLTPLM €2.15
13
photo_cameraImage coming soon 671960001 HOLDER BLADE €27.27
15
photo_cameraImage coming soon 671001005 SELF-TAPPING SCREWELM €2.15
17
photo_cameraImage coming soon 671010048 COVER HUB 138CM €6.20
18
photo_cameraImage coming soon 671944001 FRONT WHEEL 138CM €14.20
19
photo_cameraImage coming soon 671002421 FRONT AXIS €22.74
20
photo_cameraImage coming soon 671001015 FRONT €21.34
21
photo_cameraImage coming soon 671771001 CAP €1.32
22
photo_cameraImage coming soon 671010230 CABLE CLAMP €1.32
23
photo_cameraImage coming soon 671974002 BLOCKING HANDLE €2.94
25
photo_cameraImage coming soon 671005023 HEXAGONAL NUT €2.06
27
photo_cameraImage coming soon 671011012 SPRING D11 €1.95
28
photo_cameraImage coming soon 671001006 PIN €4.14
30
photo_cameraImage coming soon 671949002 HEIGHT ADJUSTMENT PLATE €6.20
31
photo_cameraImage coming soon 671951002 PIN €1.32
33
photo_cameraImage coming soon 671002426 PRESSURE PLATE €1.95
34
photo_cameraImage coming soon 671948004 HEIGHT ADJUSTMENT LEVER €9.24
35
photo_cameraImage coming soon 671950002 HEIGHT ADJUSTMENT PLATE €4.80
36
photo_cameraImage coming soon 671956001 COVER €4.14
37
photo_cameraImage coming soon 671104901 CAPACITOR €2.66
38
photo_cameraImage coming soon 671200202 COIL €3.60
39
photo_cameraImage coming soon 671004048 BEARING 6003-2RS €7.95
40
photo_cameraImage coming soon 671040130 BEARING 6002-2RS €7.08
41
photo_cameraImage coming soon 671004007 BEARING 609ZZ €5.55
42
photo_cameraImage coming soon 671009016 ELASTIC RING €1.32
43
photo_cameraImage coming soon 671001003 SELF-TAPPING SCREWELM €2.15
44
photo_cameraImage coming soon 671201101 CAP €1.32
45
Poli-V Belt PJ475 for Lawn Mower Makita ELM3800 671002058 Poli-V Belt PJ475 for Lawn Mower Makita ELM3800 €19.36
46
photo_cameraImage coming soon 671003072 SCREW M5x25 €1.32
47
Big Pulley for Lawn Mower Makita ELM3800 671959001 Big Pulley for Lawn Mower Makita ELM3800 €10.90
48
photo_cameraImage coming soon 671002360 DISC BRAKE €10.35
49
photo_cameraImage coming soon 671010740 SCREW 4,8X16 €1.32
50
Inner Frame for Lawnmower Makita ELM3800 671958001 Inner Frame for Lawnmower Makita ELM3800 €15.95
51
photo_cameraImage coming soon 671040290 PULLEY €9.80
52
photo_cameraImage coming soon 671008011 WASHER 5.65 €1.40
53
photo_cameraImage coming soon 671030280 ENGINE 1400W €173.18
54
photo_cameraImage coming soon 671001054 SELF-TAPPING SCREWELM €2.15
55
photo_cameraImage coming soon 671124001 INTERIOR ENGINE COVER €6.20
56
photo_cameraImage coming soon 671005005 LOCKING NUTPLM €2.15
57
photo_cameraImage coming soon 671580020 BRAKE €15.55
58
photo_cameraImage coming soon 671006041 SCREW M6X12 €1.95
59
photo_cameraImage coming soon 671011198 SPRING €2.51
60
photo_cameraImage coming soon 671277001 CABLE HOLDER €1.32
61
photo_cameraImage coming soon 671017380 LOWER HANDLE €15.55
62
photo_cameraImage coming soon 671001198 CAP ELM3310-3710 €2.01
63
photo_cameraImage coming soon 671010270 SPONGE €2.66
64
photo_cameraImage coming soon 671942002 ENGINE COVER €17.74
65
photo_cameraImage coming soon 671943001 COVER HANDLING €3.60
66
photo_cameraImage coming soon 671001016 4X20 SCREW €1.32
67
photo_cameraImage coming soon 671010500 KNOB €1.32
68
photo_cameraImage coming soon 671001085 WASHERPLM €2.15
69
Brake Wire for Lawnmower Makita ELM3800 671001253 Brake Wire for Lawnmower Makita ELM3800 €11.47
70
photo_cameraImage coming soon 671006130 SCREW M8X47 €2.51
71
photo_cameraImage coming soon 671803001 PROTECTION €1.32
72
photo_cameraImage coming soon 671010570 POWER CABLE €7.95
73
photo_cameraImage coming soon 671001010 CABLE 1250MM ELM3310-3710 €14.20
74
photo_cameraImage coming soon 671283001 BUSHING 1 ELM3310-3710 €2.15
75
photo_cameraImage coming soon 671006077 SCREW M6X35 PM5120-5120S €1.39
76
photo_cameraImage coming soon 671336001 HOLDER PLM4110-4610-4611 €2.06
77
photo_cameraImage coming soon 671007008 WASHER PLM4110-4610-4611 €2.06
78
photo_cameraImage coming soon 671050160 NUT M6 €1.39
79
photo_cameraImage coming soon 671001999 ENGINE BRAKE LEVER €17.74
80
photo_cameraImage coming soon 671955001 HOLDER HANDLE €2.94
81
photo_cameraImage coming soon 671391001 WASHER €2.06
82
photo_cameraImage coming soon 671001268 ENGINE BRAKE CABLE 168MM €4.78
83
photo_cameraImage coming soon 671657001 ELM4611 CONNECTOR €3.11
84
photo_cameraImage coming soon 671001939 TOP HANDLE €37.74
85
photo_cameraImage coming soon 671952001 PRESSURE PLATE €1.95
86
photo_cameraImage coming soon 671769001 SWITCHBOARD COVER SWITCH €4.39
87
photo_cameraImage coming soon 671263001 PLATE €1.39
88
photo_cameraImage coming soon 671776001 SWITCH LOCK €1.39
89
photo_cameraImage coming soon 671010220 SWITCH 5E4 IP55 T85 €12.57
90
photo_cameraImage coming soon 671011005 SCREW PLM4110-4610-4611 €1.47
91
photo_cameraImage coming soon 671011179 SPRING €2.06
92
Switch Lever end Cap Right for Lawnmower ELM3800 DA00000925 Switch Lever end Cap Right for Lawnmower ELM3800 €2.12
93
photo_cameraImage coming soon 671002033 SCREW M4X8 €1.39
94
photo_cameraImage coming soon 671953001 TOP COVER €5.09
95
Security Button for Lawn Mower Makita ELM3800 671774009 Security Button for Lawn Mower Makita ELM3800 €2.39
97
photo_cameraImage coming soon 671977001 HANDLE €4.14
98
photo_cameraImage coming soon 671976001 COVER BAG €37.74
100
photo_cameraImage coming soon 671001988 FRAME FOR BAG €22.74

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Lawn Mower ELM3800

Fix Your Lawn Mower ELM3800. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita ELM3800
Lawn Mower ELM3800
# Part Num. Description
1 671010049 COVER HUB 190MM
2 671005028 NUT M8 ELM4110
3 671946001 WHEEL BACK 190MM
4 671002424 AXIS BACK
5 671001203 PLATE ELM4110
6 671105502 SCREW M5X16
7 671011209 SPRING 72A
8 671001436 WASHER ELM4110
9 DA00000916 CUTTER BLADE 38CM
10 671007002 WASHER 8
11 671008002 WASHER ELM4110
12 671006017 SCREW M8X30 ELM4110
13 671960001 HOLDER BLADE
14 671978003 PROTECTION
15 671001005 SCREW M4X16 ELM3310-3710
16 671939003 BLACK FRAME
17 671010048 COVER HUB 138CM
18 671944001 FRONT WHEEL 138CM
19 671002421 FRONT AXIS
20 671001015 FRONT
21 671771001 CAP
22 671010230 CABLE CLAMP
23 671974002 BLOCKING HANDLE
24 671972002 LEFT HOLDER
25 671005023 NUT M8
26 671973002 RIGHT HOLDER
27 671011012 SPRING D11
28 671001006 PIN
29 671975004 BACK COVER
30 671949002 HEIGHT ADJUSTMENT PLATE
31 671951002 PIN
32 671941003 SIDE COVER
33 671002426 PRESSURE PLATE
34 671948004 HEIGHT ADJUSTMENT LEVER
35 671950002 HEIGHT ADJUSTMENT PLATE
36 671956001 COVER
37 671104901 CAPACITOR
38 671200202 COIL
39 671004048 BEARING 6003-2RS
40 671040130 BEARING 6002-2RS
41 671004007 BEARING 609ZZ
42 671009016 ELASTIC RING
43 671001003 SCREW 4X12 ELM3310-3710
44 671201101 CAP
45 671002058 BELT
46 671003072 SCREW M5x25
47 671959001 BIG PULLEY
48 671002360 DISC BRAKE
49 671010740 SCREW 4,8X16
50 671958001 INNER FRAME
51 671040290 PULLEY
52 671008011 WASHER 5.65
53 671030280 ENGINE 1400W
54 671001054 SCREW 5X12 ELM3310-3710
55 671124001 INTERIOR ENGINE COVER
56 671005005 NUT M6 ELM4110
57 671580020 BRAKE
58 671006041 SCREW M6X12
59 671011198 SPRING
60 671277001 CABLE HOLDER
61 671017380 LOWER HANDLE
62 671001198 CAP ELM3310-3710
63 671010270 SPONGE
64 671942002 ENGINE COVER
65 671943001 COVER HANDLING
66 671001016 4X20 SCREW
67 671010500 KNOB
68 671001085 WASHER ELM4110
69 671001253 BRAKE WIRE CPL
70 671006130 SCREW M8X47
71 671803001 PROTECTION
72 671010570 POWER CABLE
73 671001010 CABLE 1250MM ELM3310-3710
74 671283001 BUSH 1 ELM3310-3710
75 671006077 SCREW M6X35 PM5120-5120S
76 671336001 HOLDER PLM4110-4610-4611
77 671007008 WASHER PLM4110-4610-4611
78 671050160 NUT M6
79 671001999 ENGINE BRAKE LEVER
80 671955001 HOLDER HANDLE
81 671391001 WASHER
82 671001268 ENGINE BRAKE CABLE 168MM
83 671657001 ELM4611 CONNECTOR
84 671001939 TOP HANDLE
85 671952001 PRESSURE PLATE
86 671769001 SWITCHBOARD COVER SWITCH
87 671263001 PLATE
88 671776001 SWITCH LOCK
89 671010220 SWITCH 5E4 IP55 T85
90 671011005 MOLLA PLM4110-4610-4611
91 671011179 SPRING
92 DA00000925 SWITCH LEVER END CAP RIGHT
93 671002033 SCREW M4X8
94 671953001 TOP COVER
95 671774009 SAFETY BUTTON
96 671010860 ERROR LEVEL INDICATOR
97 671977001 HANDLE
98 671976001 COVER BAG
99 671157004 BAG
100 671001988 FRAME FOR BAG
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita ELM3800
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita ELM3800

Diagram Makita ELM3800

Download (364.59KB)

You might also like

Makita SKU: 671774009
Security Button for Lawn Mower Makita ELM3800 Genuine parts Makita, Security Button for Lawn Mower Makita ELM3800 - Dolmar EM380 Parts for the following products: -  ELM3800 - Lawn Mower 1400W...
Last items in stock €2.39
Makita SKU: 671959001
Big Pulley for Lawn Mower Makita ELM3800 Genuine parts Makita, Big Pulley for Lawn Mower Makita ELM3800 - Dolmar EM380 Parts for the following products: -  ELM3800 - Lawn Mower 1400W...
Last items in stock €10.90
Makita SKU: 671002058
Poli-V Belt PJ475 for Lawn Mower Makita ELM3800 Genuine parts Makita, Poli-V Belt PJ475 - 187J for Lawn Mower Makita ELM3800 - Dolmar EM380 Parts for the following products: - ...
Last items in stock €19.36
Makita SKU: 671001253
Brake Wire for Lawnmower Makita ELM3800 Genuine parts Makita, Brake Wire Lower Side for Lawn Mower Makita ELM3800 - Dolmar EM380 Parts for the following products: -  ELM3800 - Lawn Mower 1400W...
on 7/10 Business Days Approx. €11.47
Makita SKU: 671958001
Inner Frame for Lawnmower Makita ELM3800 Genuine parts Makita, Inner Frame for Lawn Mower Makita ELM3800 - Dolmar EM380 Parts for the following products: -  ELM3800 - Lawn Mower 1400W...
Last items in stock €15.95
Makita SKU: DA00000916
Cutter Blade 38 cm for Lawnmower Makita ELM3800 Genuine parts Makita, Cutter Blade 38 cm for Lawn Mower Makita ELM3800 - Dolmar EM380 Parts for the following products: -  ELM3800 - Lawn Mower 1400W...
Last items in stock €19.80
Makita SKU: DA00000925
Switch Lever end Cap Right for Lawnmower Makita ELM3800 Genuine parts Makita, Switch Lever end Cap Right for Lawn Mower Makita ELM3800 - Dolmar EM380 Parts for the following products: - ...
on 7/10 Business Days Approx. €2.12
Comments (0)
